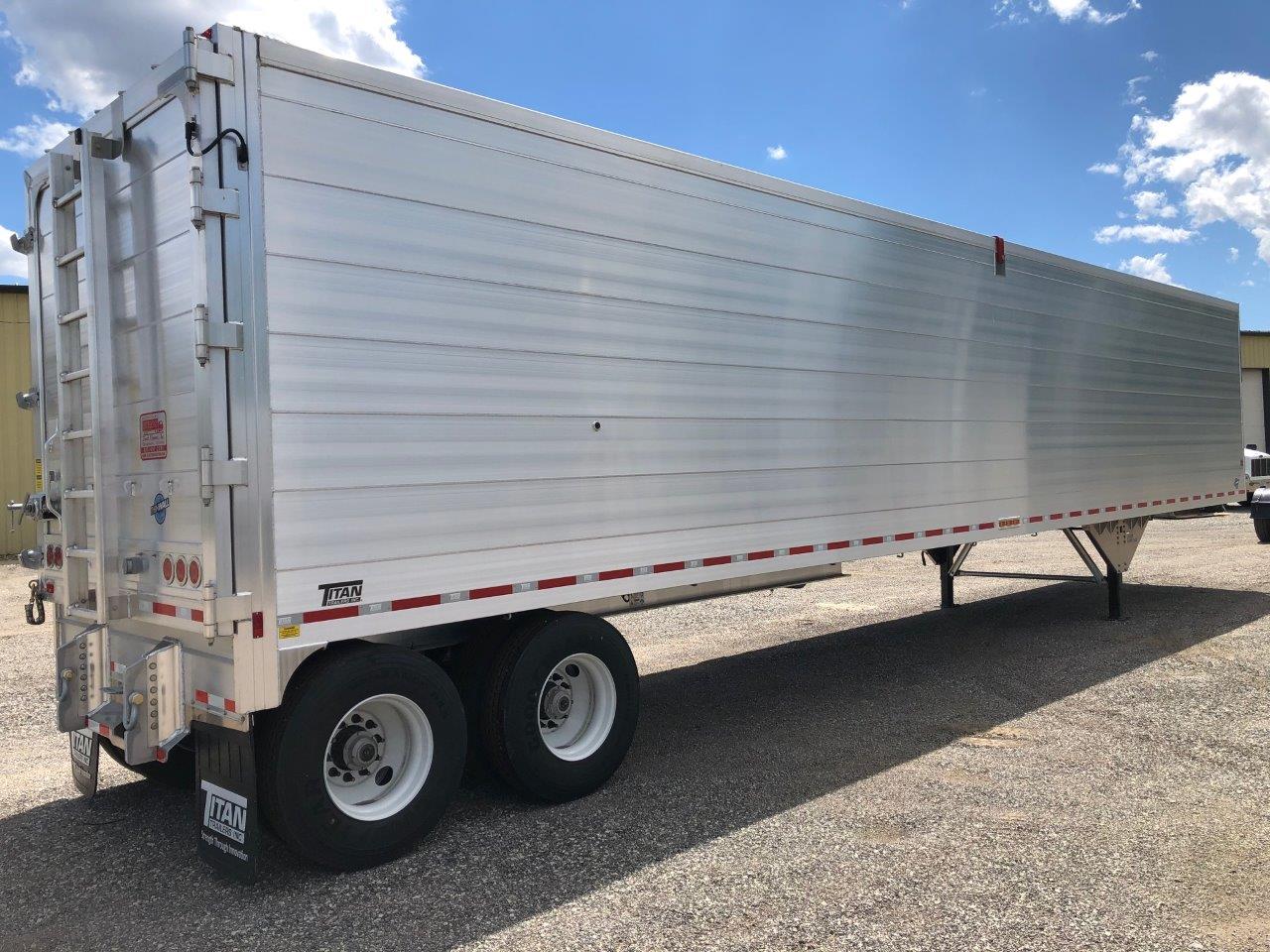

2026 TITAN 48' 2 AXLE WALKING FLOOR TRAILER 2 UNITS WO# 7481

2026 TITAN 48′ 2 AXLE WALKING FLOOR    2 UNITS AVAILABLE     CALL FOR PRICING

Customer application              Garbage Application

Base model                                48-2-TW-WF – Open Top

Style                                             Straight

Wall configuration

Front               To Suit Garbage Application

Sides               7-14” + 1-6” to Suit Garbage Application

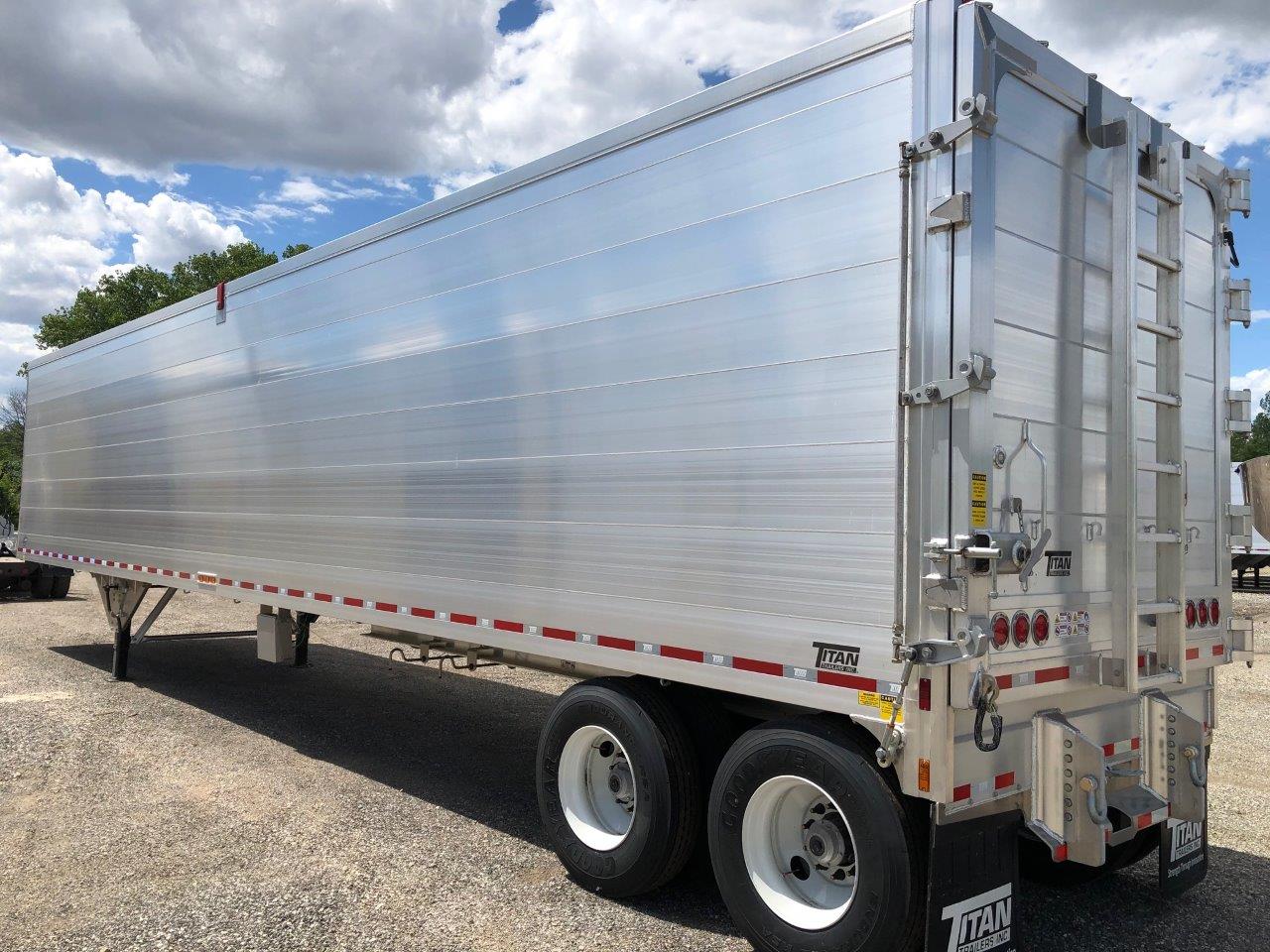

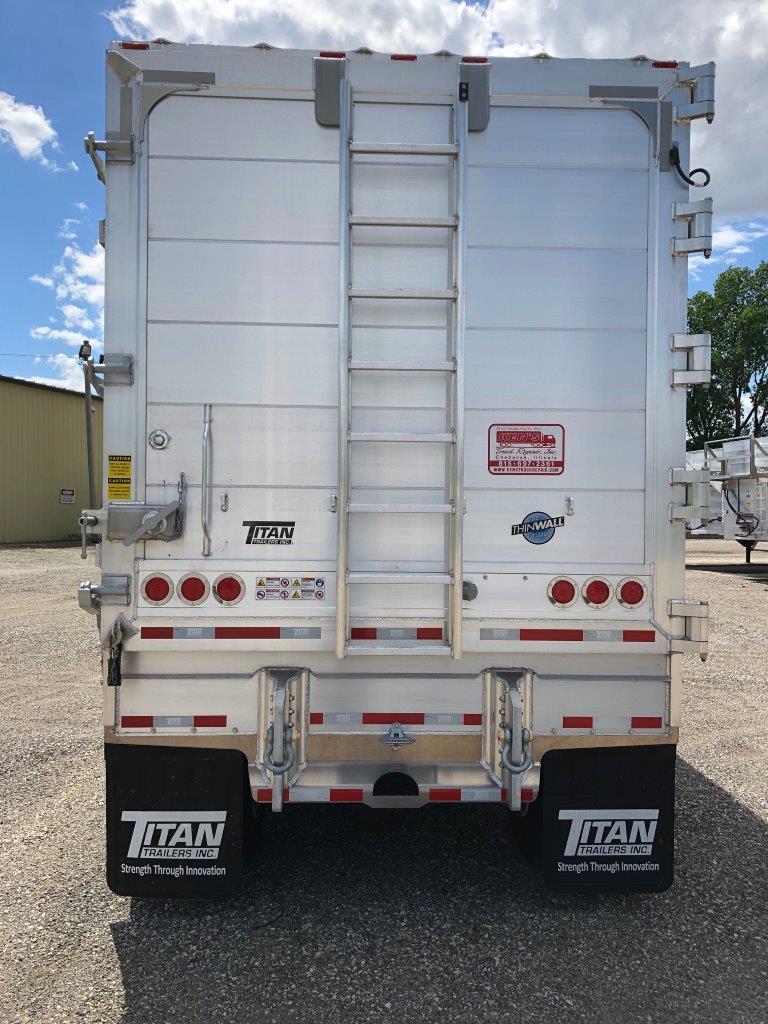

Rear Door       Side Swing, Door in Door, Lights in Door, Air Release w/ reinforced lock finger – See Note #3

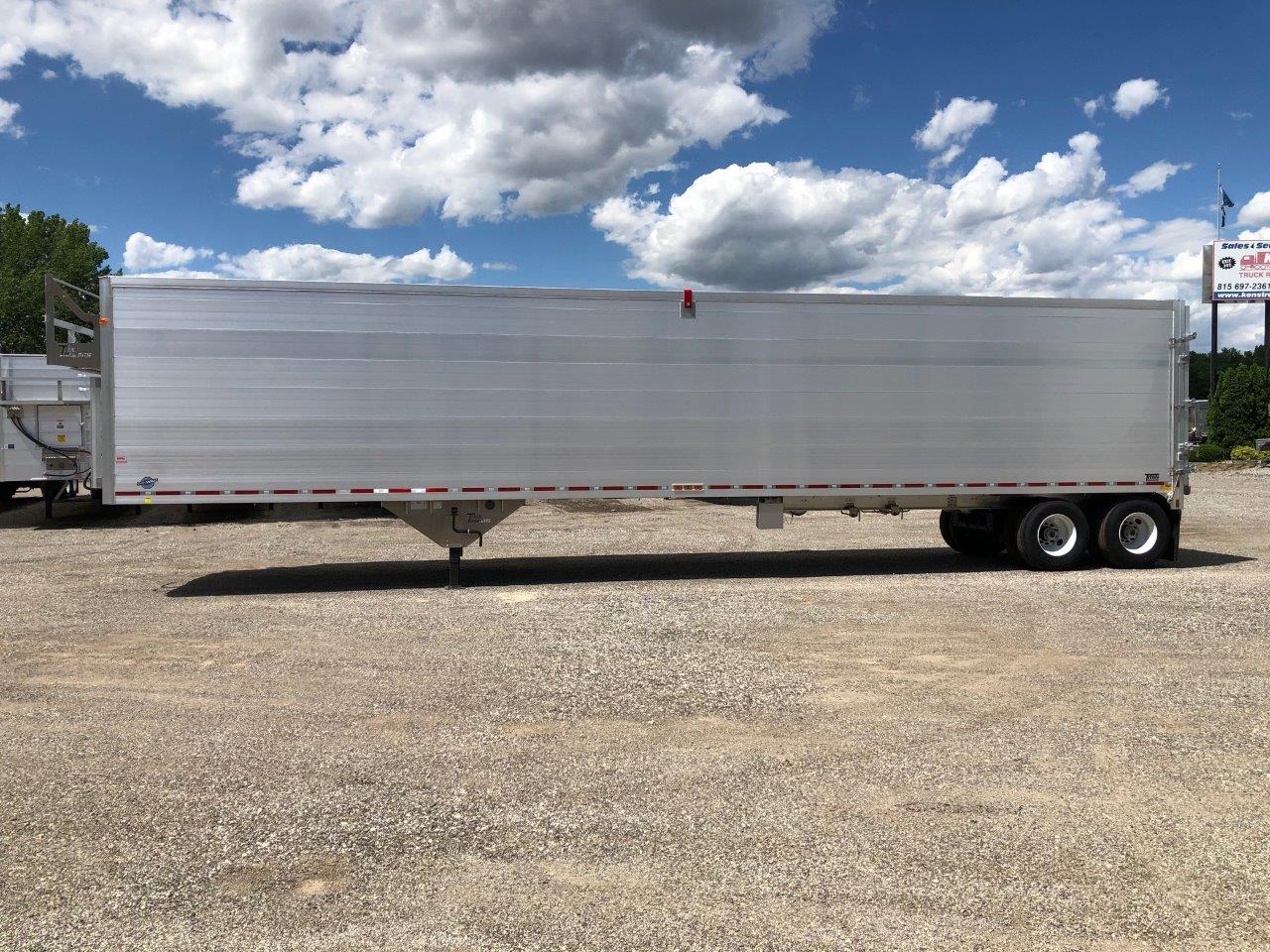

Overall length                         48ft

Overall width                          102” Nominal

Overall height                         13’ 1 ¼” (157.25”) Approx

King pin location                    36” WELD IN

Upper coupler                         5/16” THK Steel– Set @ 48” high

Number of Axles                     Primary       Two (2)

Axles                                          Intraax – Straight Spindle

Axle track                                 77.5”

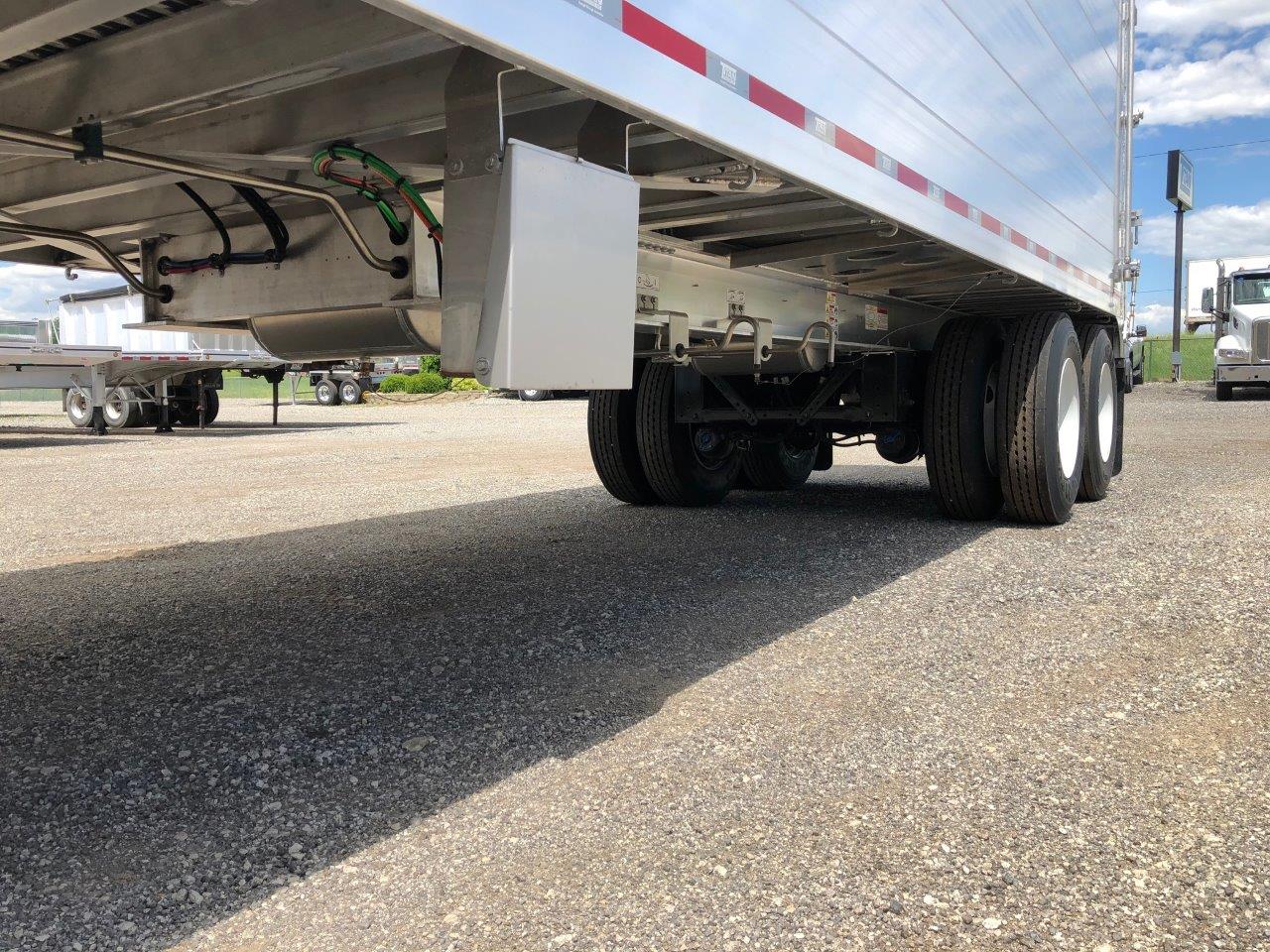

Suspension                             Intraax AAT 30K

Location of spreads               See axle layout

Hub/drum assembly            10 Stud Duralite – Hub/Centrifuse Drum

Disc wheel size                       8.25 x 22.5

Rims                                        STEEL – Standard Duty – Pre-Painted White

Tires                Brand              Goodyear

Size                 11R22.5 – 41.4 dia.

Tread               Endurance RST

Ply                   16

Quantity          8

Axle layout                             FRONT -Prim -50 – Prim -28 – REAR

Oil seals                                   To suit axles

Lubricants                               Oil-Std 80W-90

Brakes             ABS                 2S/1M Meritor Wabco

Slack adj.        DRUM BRAKES: Meritor Auto

Cam Enclos     DRUM BRAKES: All Axles & C/W Dust Shields

Lift kits                                   None

Lift controls                            None

Frame width                           48”

Rear bumper                            Alum, offset, push

Option #1        Tow shackles

Option #2        Steel vertical blocks bolted to bumper protrudes 3 ½” sloped top

Tire carrier                              None

Landing gear                           Jost Standard A400 Series: A401-G3-  low pro cushion foot- See Note # 1

Top rail                                    Titan Tapered, V1

Top cross tube                        Qty 1 – Spring Steel (two piece style)

Floor crossmembers                12” Centers

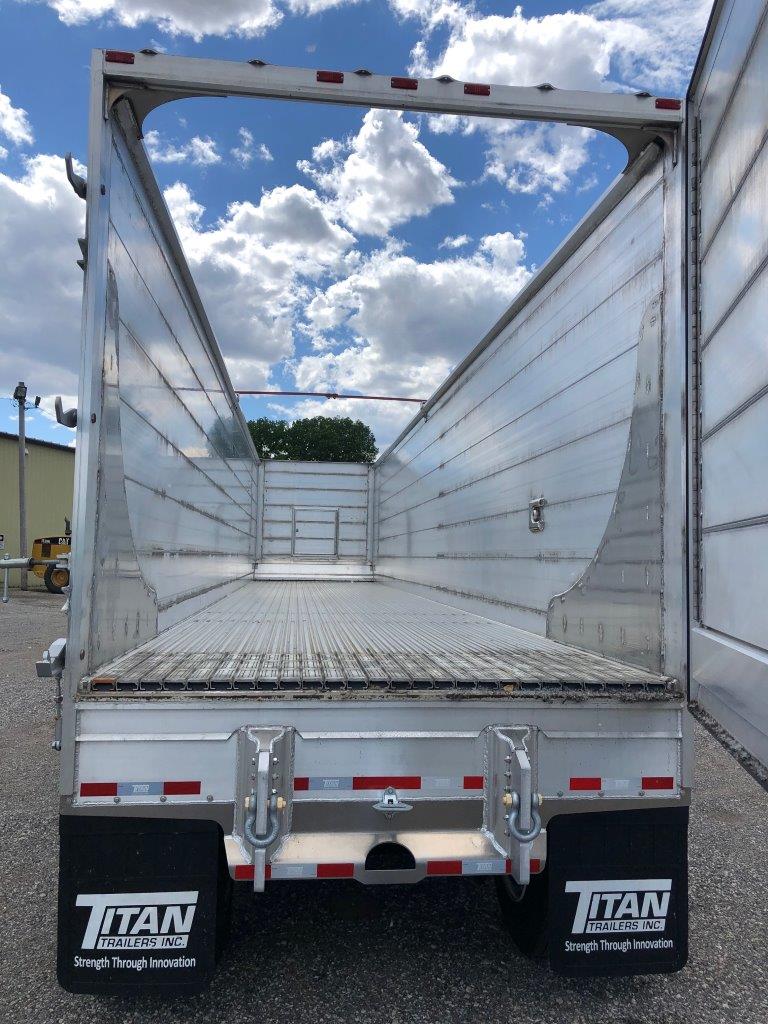

Keith walking floor kit           Running floor II: 3.5” Dia Cylinders – 10” stroke

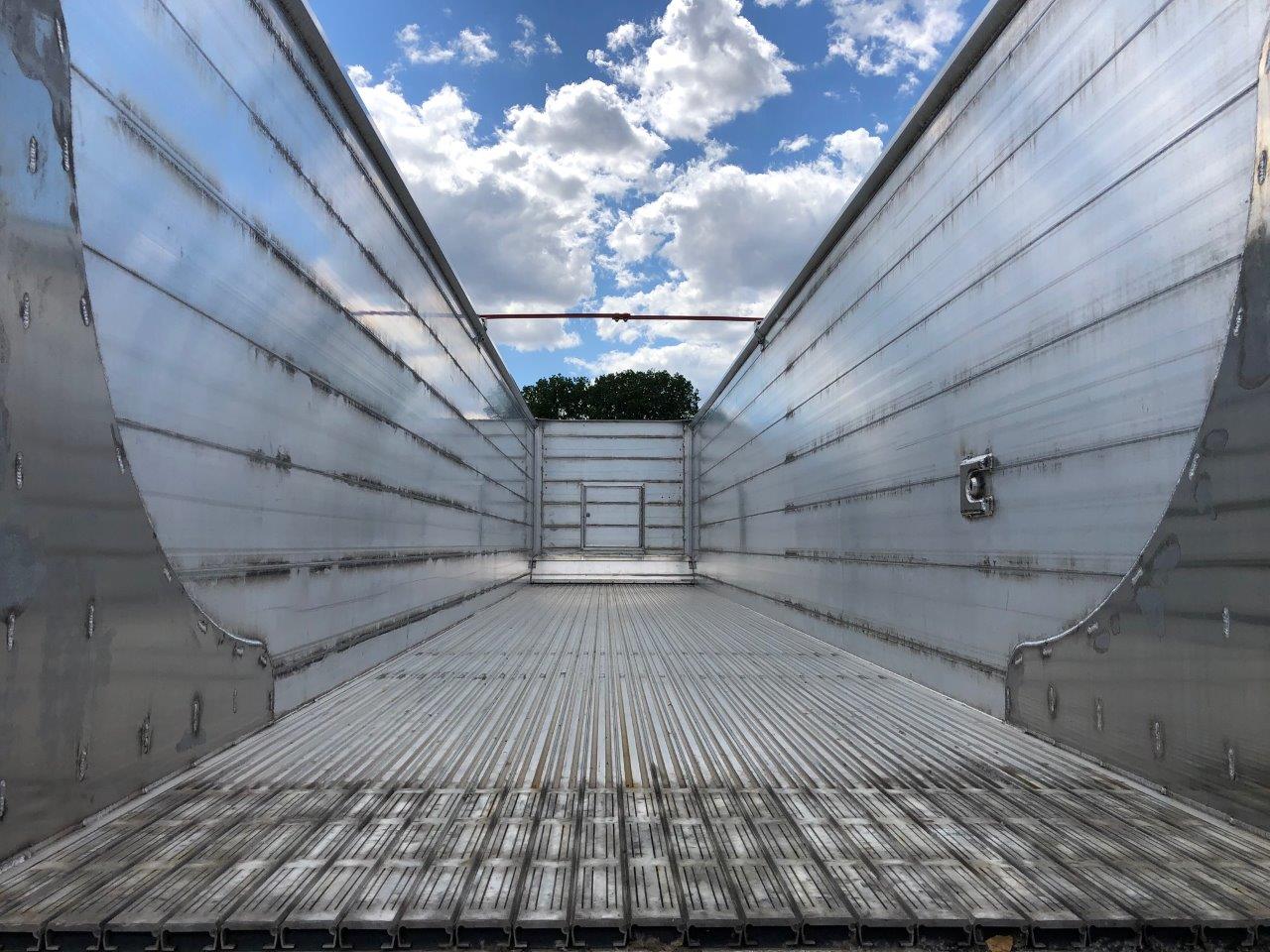

Slat model & width                26 slat: 2299 slats (1/2” Triple Ridge Impact- 3.5” W), 1212 seals,  T-blocks rear

Slat wear strips                        36” long, Flush, Filler bar wear strips

Continuous bearing                 Continuous Splash/Hold Down Bearings

Side wall wear plates              Boomerang style

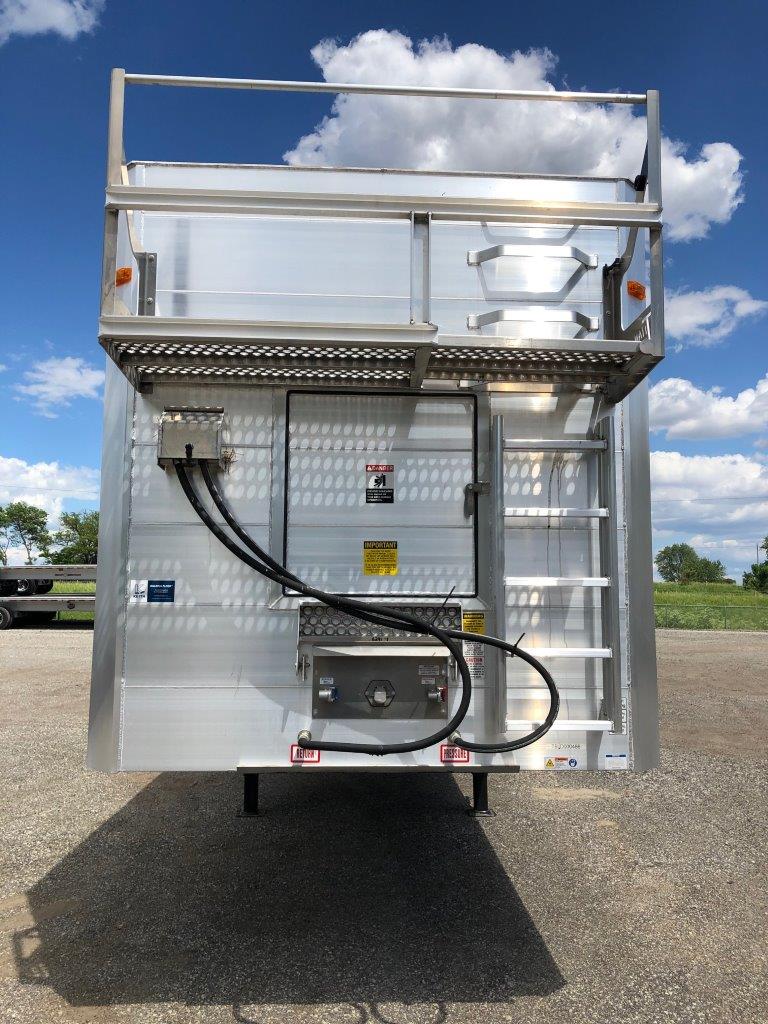

Front access door                    STD (35”W x 37.5”H) Curbside Hinge W/Flip Step, located center

Tarp style                                None

Tarp header                             None

Tarp basket                             None

Tarp hooks                              Side Hooks approx 48” o/c & (4) Hooks on Rear Door

Axle fender                             None

Hyd fitting                             Pressure          1” quick coupler – Male

Return             1” quick coupler – Female

Mud flaps                              Style                Titan black rubber

Location          (2) at Rear

Mud flap                             Landing gear        None

Paint                                    Body – color     Natural aluminum

Run – gear        Titan black

Hub / drum      Same as running gear

Rims or Disc     Steel Prepainted White

Light package                  Front: (1) mkr per corner mitre.         Sides: (2) mkrs (includes midturn)          Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

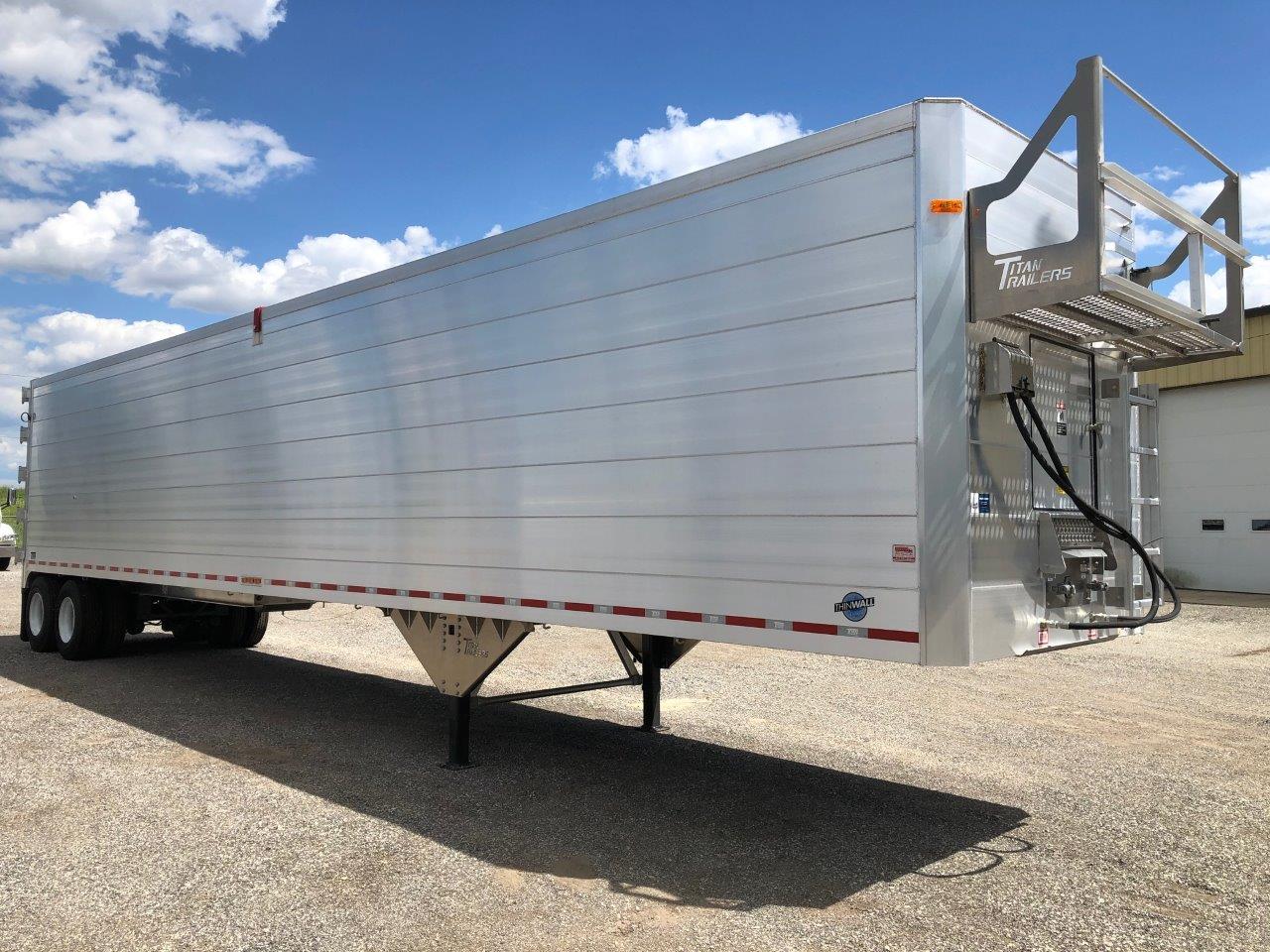

Access                                Catwalk              Universal Roadside Entry 24” Catwalk

J-Ladder Frt    Roadside To Catwalk

J-Ladder Rear  Middle of Rear Door Full height

Steps Frt out    None

Steps Frt in      None

Steps Rear       None

Additional specifications:

• 1)  KP To Center of Tandem must be approx 41’ or Less
• 2)  a) Add 9’ hoses to front wall           b) Add hinged lid hose hanger to front wall

3)  Tapered door header with one piece gusset attached to top side of tapered header Gusset to suit 10” bolt on tarp header

• 4) Add 2.5” hydraulic pressure gauge to frame (flush mount), located beside the on/off handle with identifying label

Estimated weight: 17,778 lbs +/- 3%

Estimated volume: 123 cu yds
