2026 TITAN 48' 2 AXLE V-FLOOR 9 SLAT TRAILER 2 UNITS WO# 7480

2026 TITAN 48′ 2 AXLE V-FLOOR 9 SLAT TRAILER    2 UNITS AVAILABLE    CALL FOR PRICING

Customer Application               Garbage – Flat top aluminum with steel tips

Base Model                                 48-2-TW-VF OT

Body Style                                   Straight (top panel cut to wedge)

Wall configuration                    Front             To suit garbage application upgraded to EHD panels wherever possible

                                                      Sides              7-14” + 1-12” panels to suit garbage application upgraded to EHD panels wherever possible, top panel cut to wedge

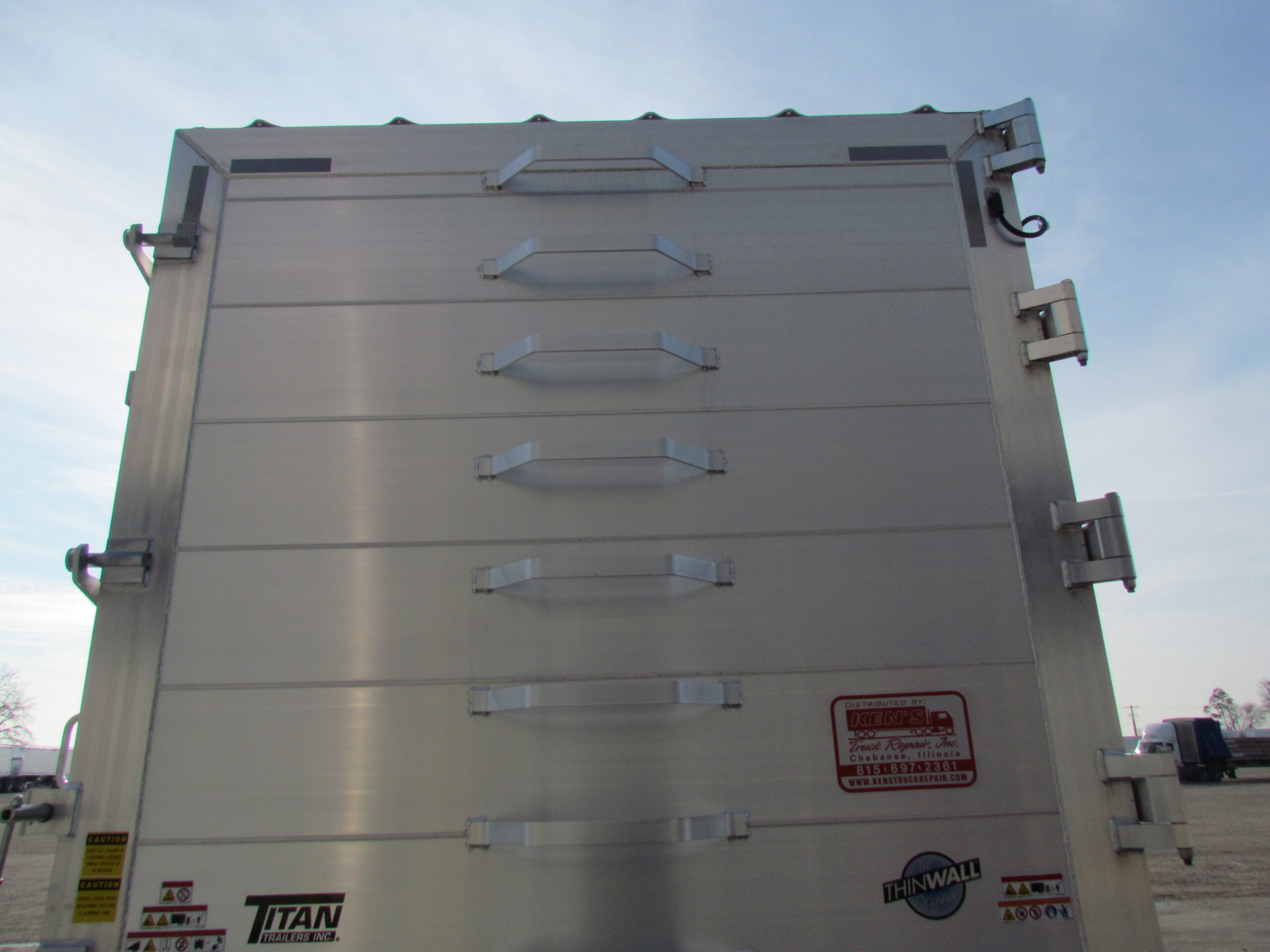

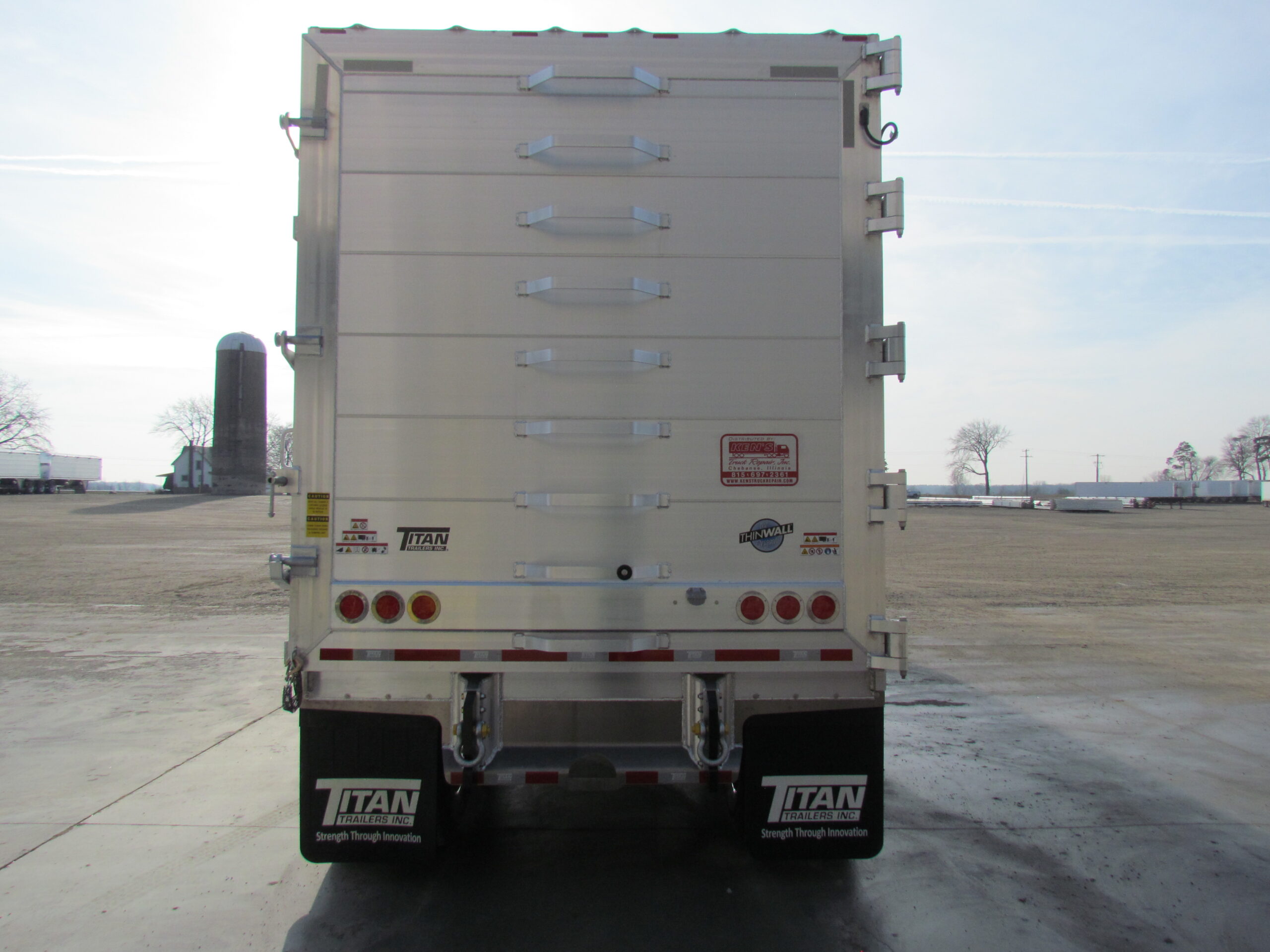

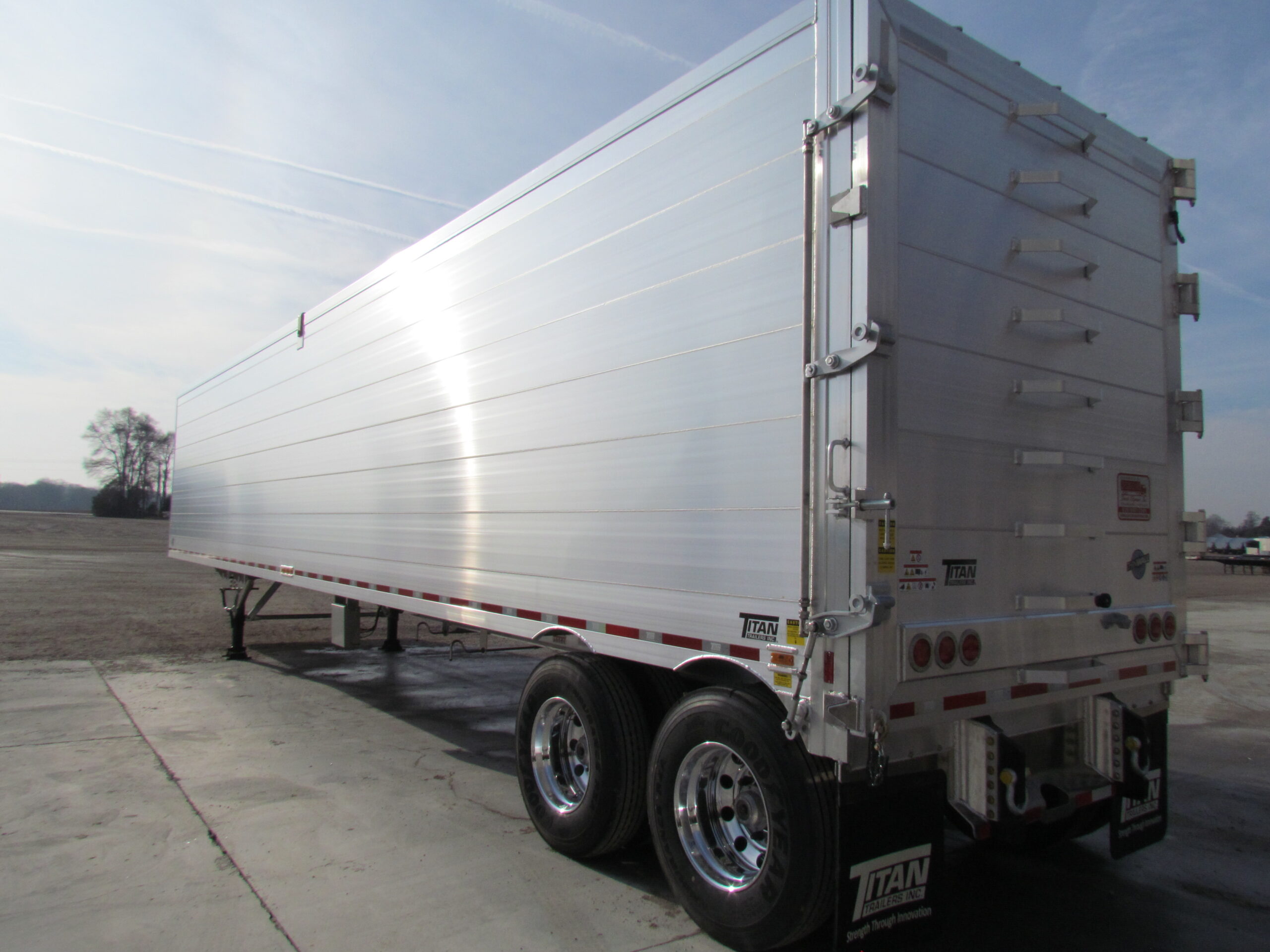

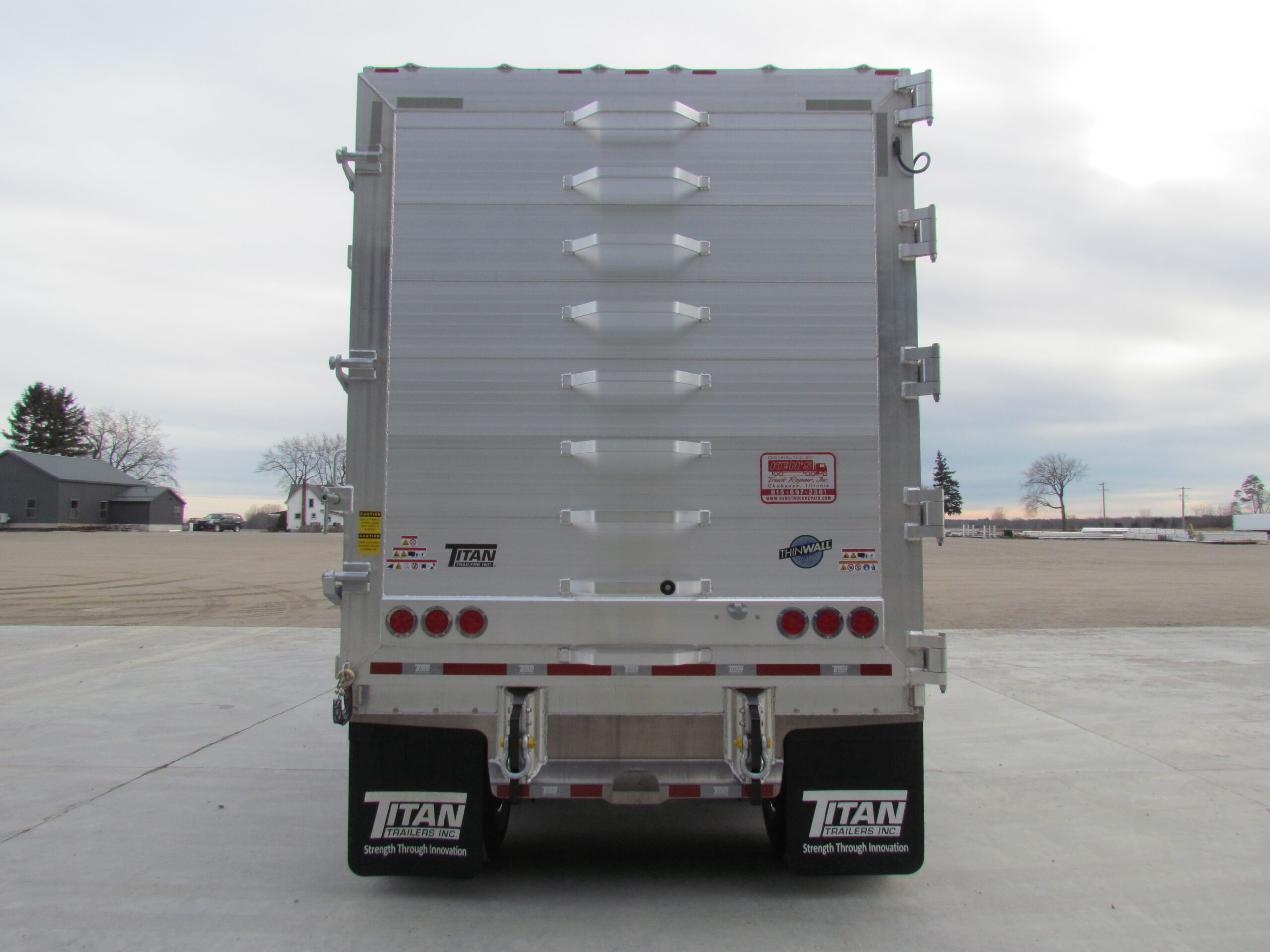

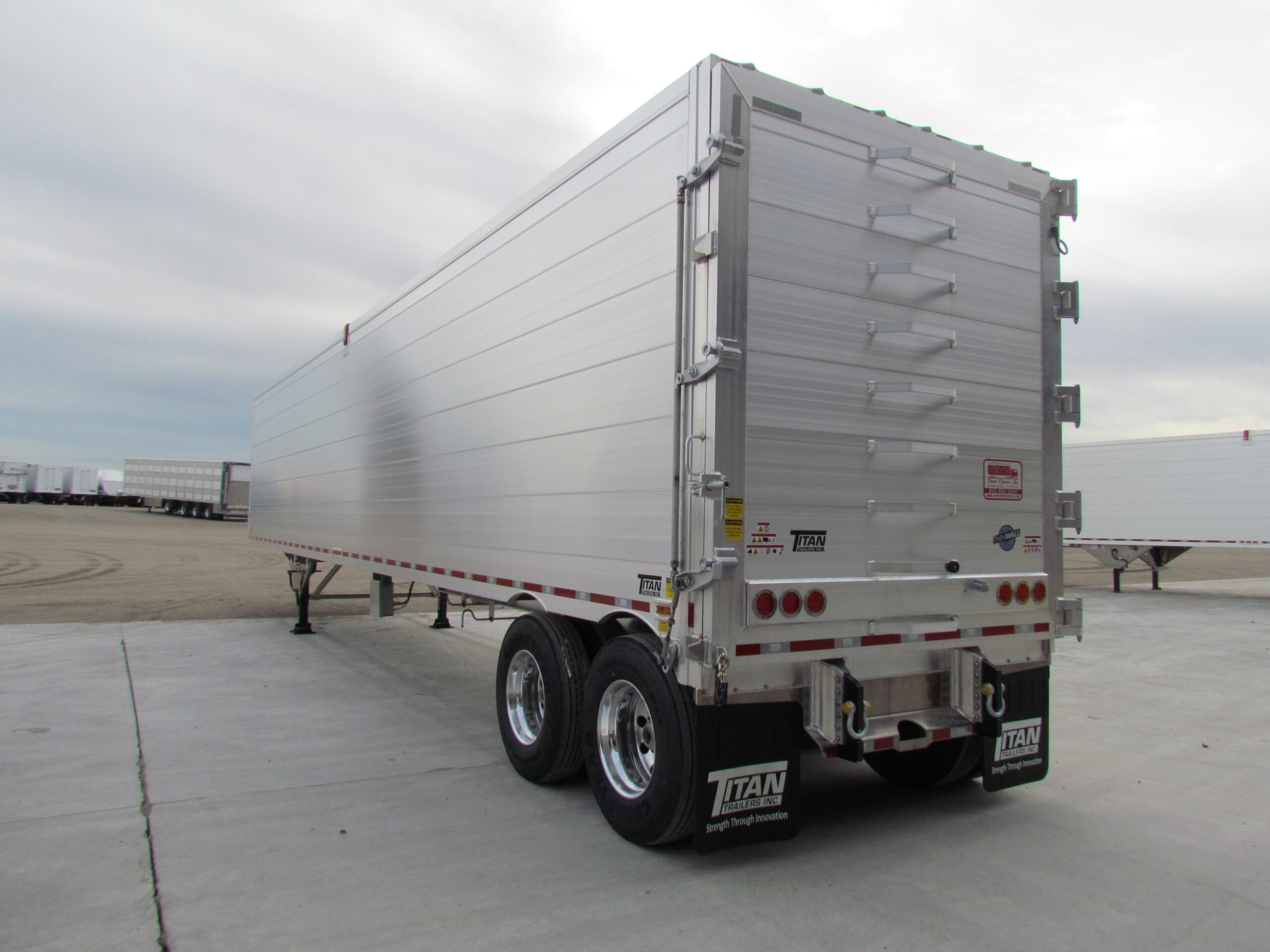

                                                     Rear Door     Sideswing, Solid, lights in door, air release w/reinforced Bottom lock finger- See Note #1

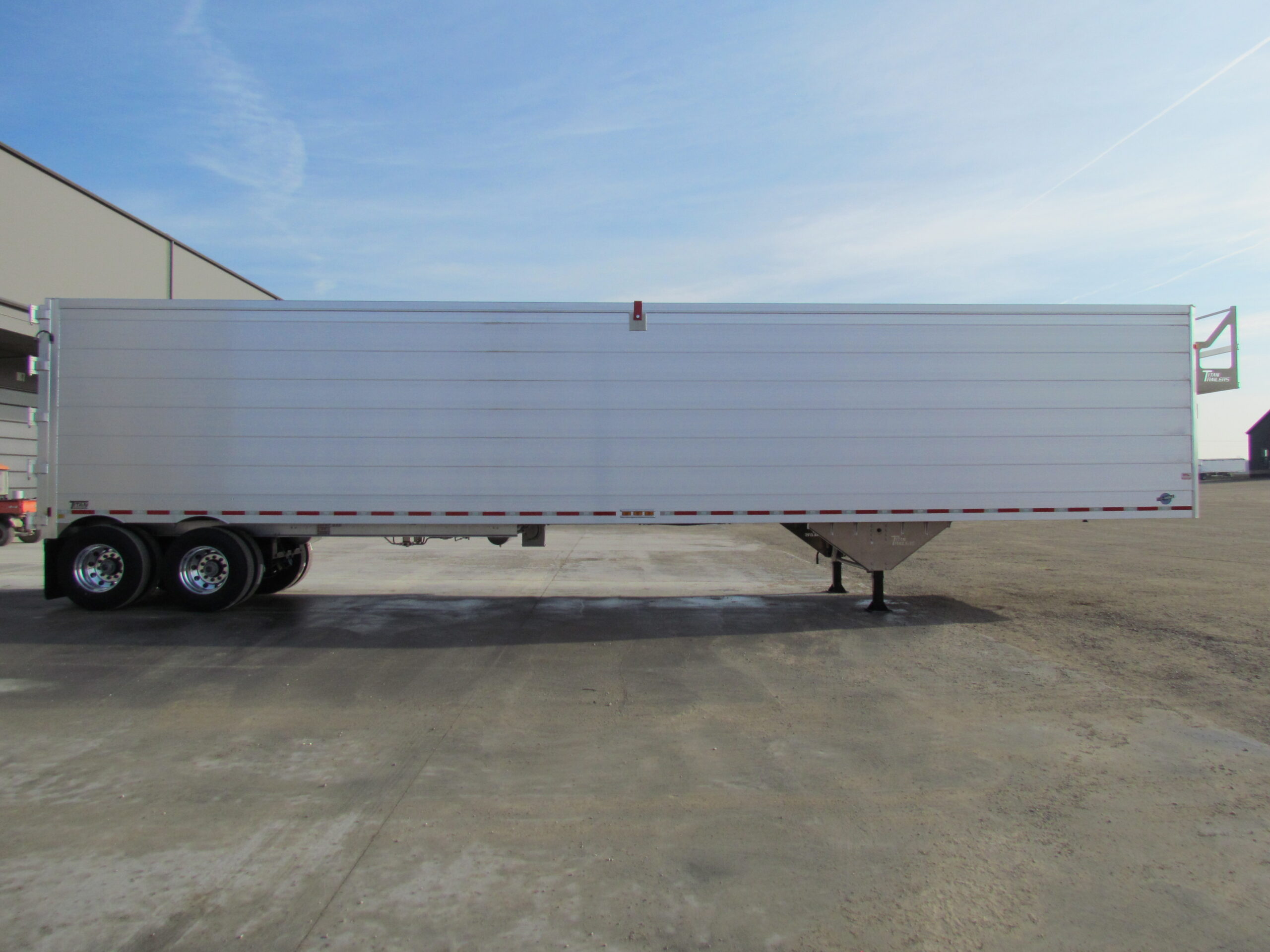

Overall Length                         48’

Overall Width                         102”

Overall Height                        13’ 4” (160”) approx.

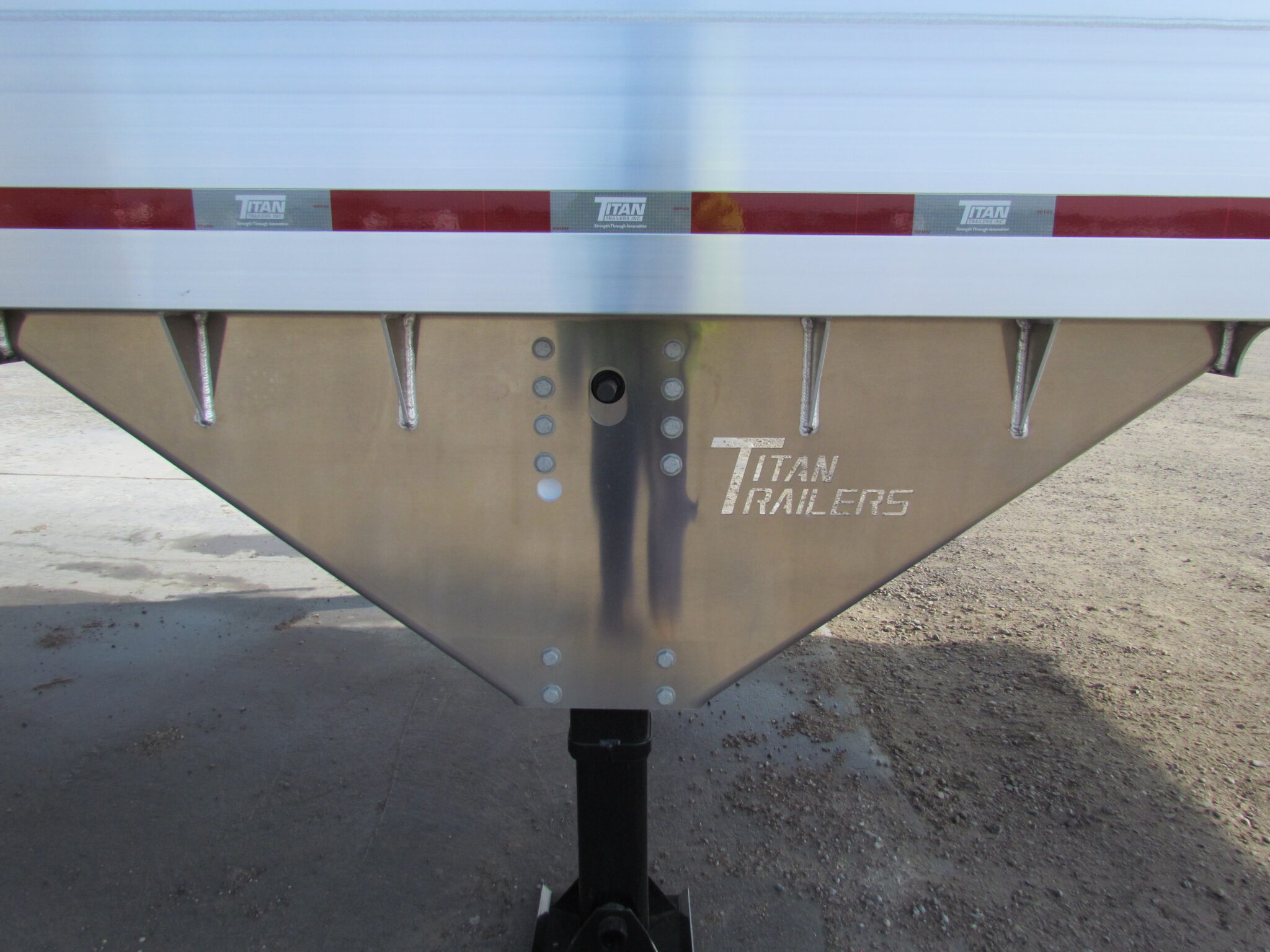

King Pin Location                  36” WELD IN

Upper Coupler                        5/16” THK- set @ 48” high

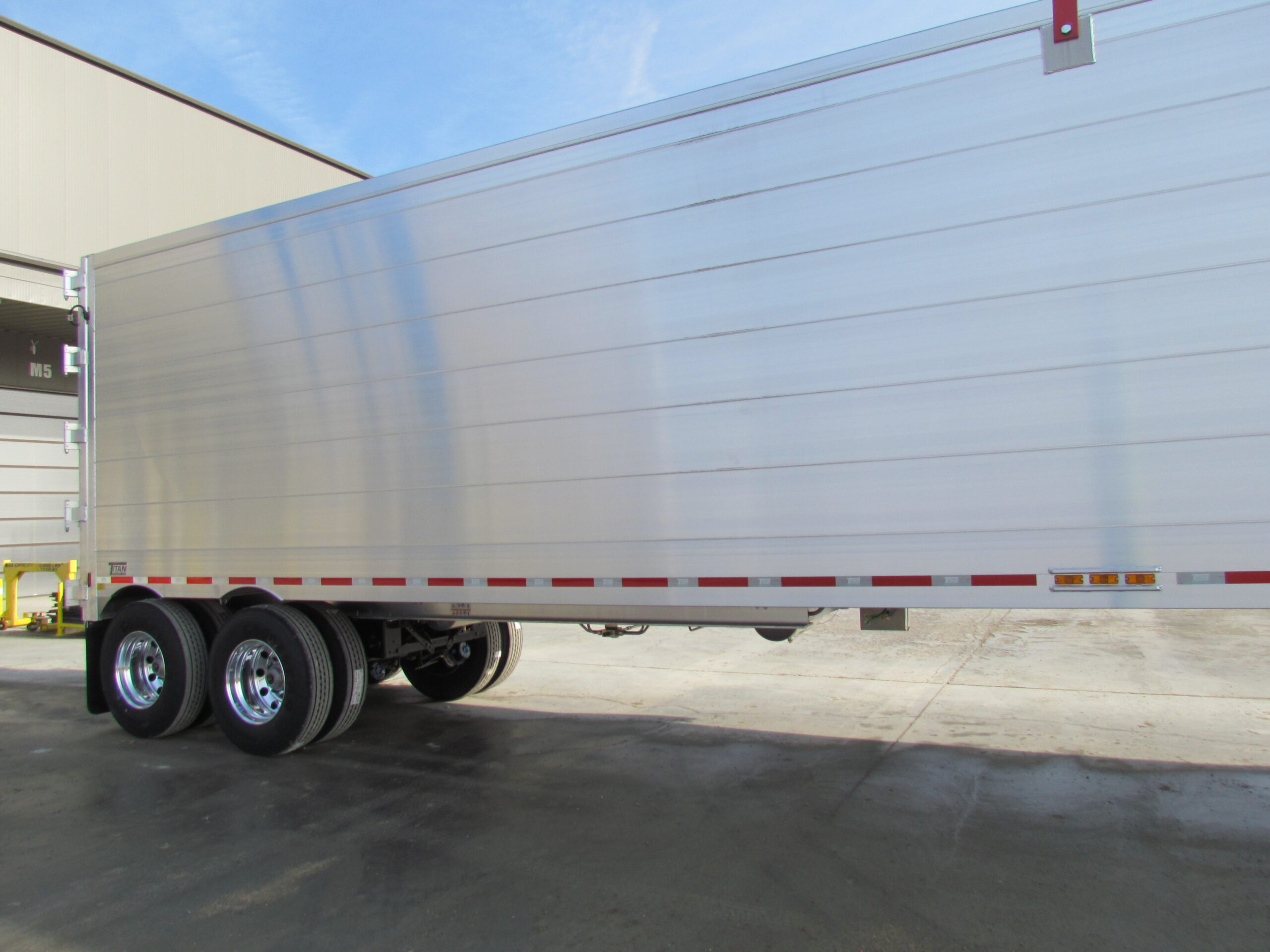

Number of Axles                    Primary   Two (2)

Axles                                         Intraax – Straight Spindle

Axle track                                 77.5”

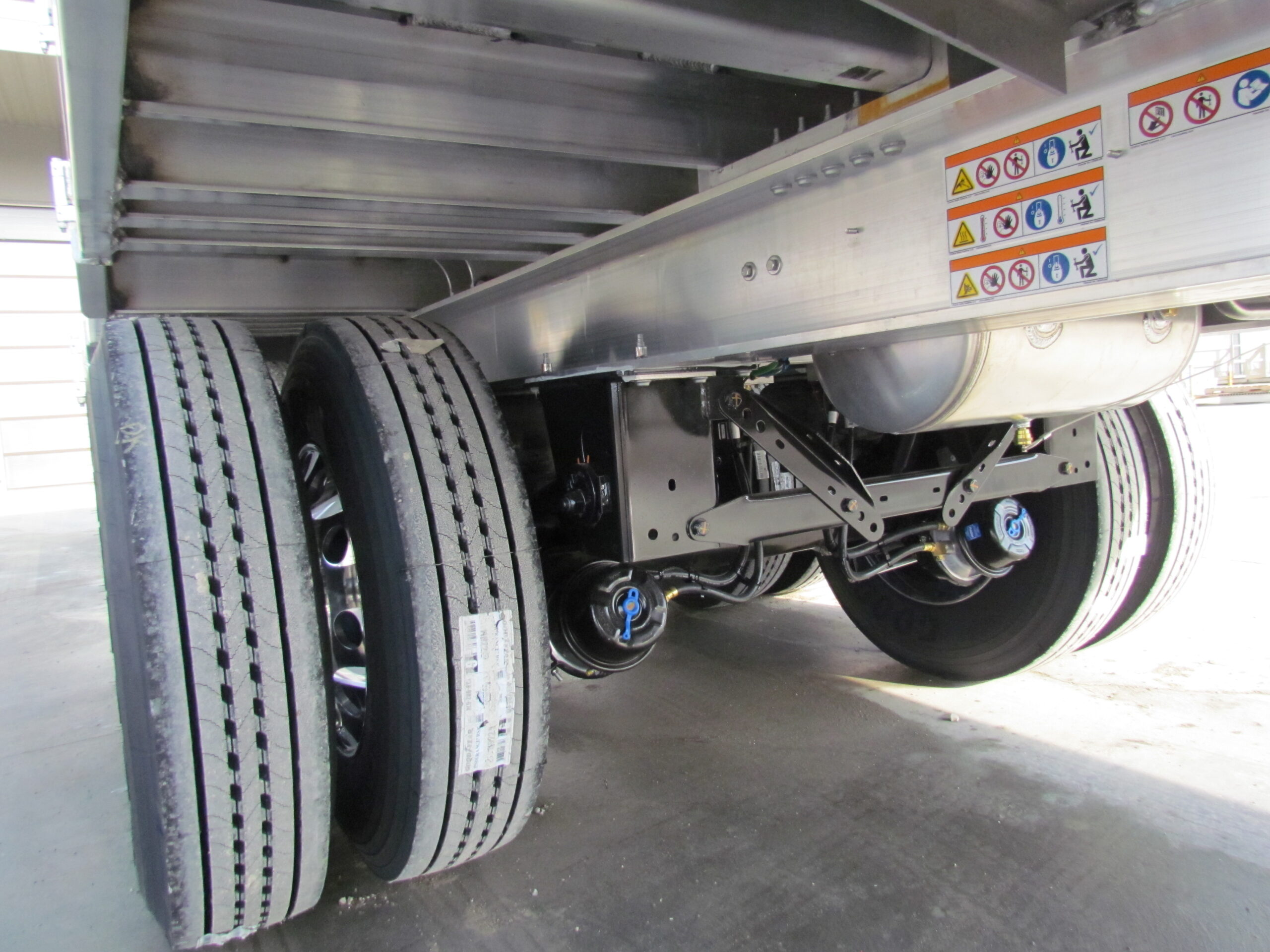

Suspension                              Intraax AAT 30K

Location of Spreads              See axle layout

Hub & Drum Assembly        10 Stud Dura-light Hub/Centrifuse Drum

Disc Wheel Size                      8.25 x 22.5

Rims                                         Steel Std Duty (Prepainted White)

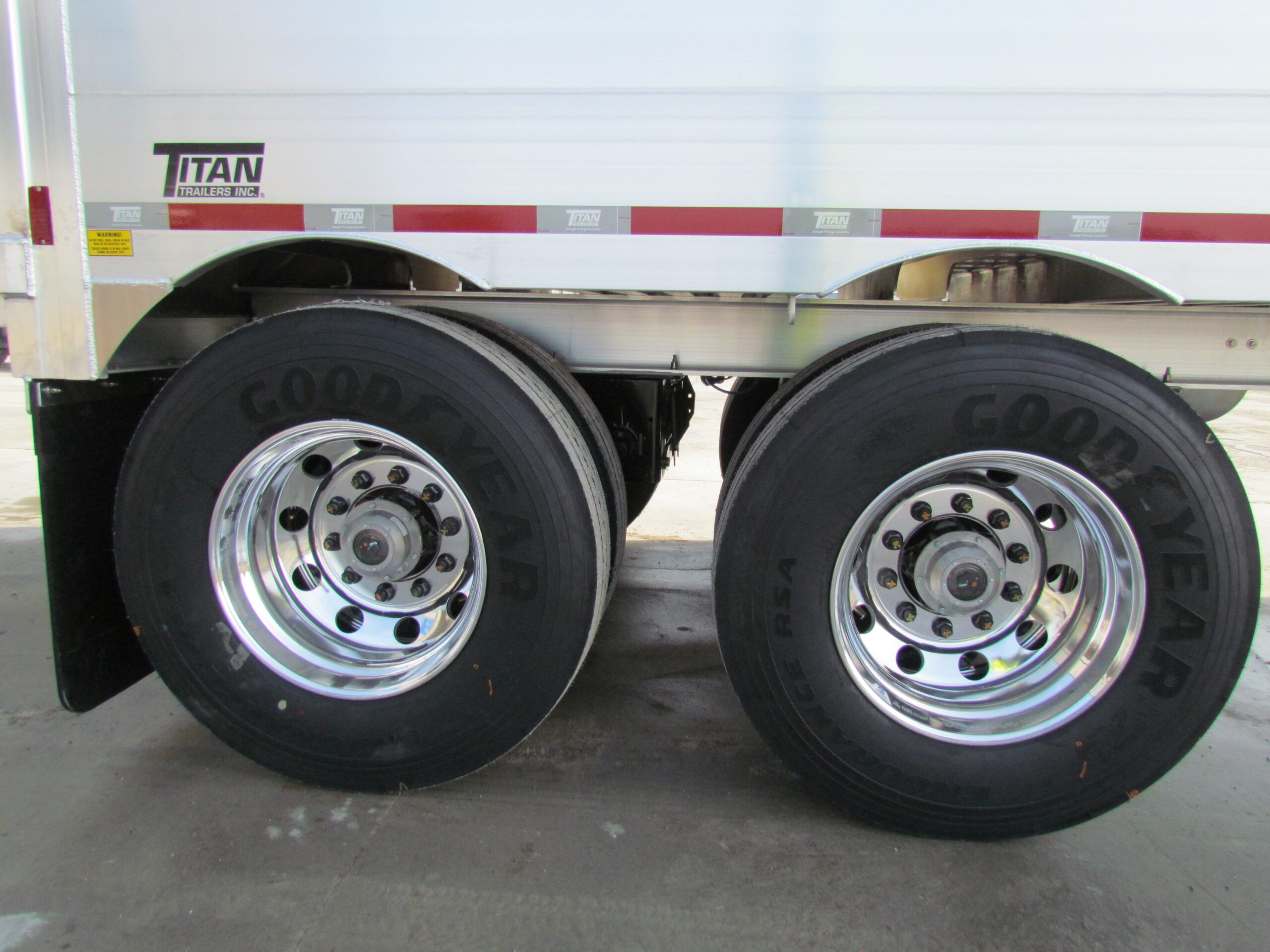

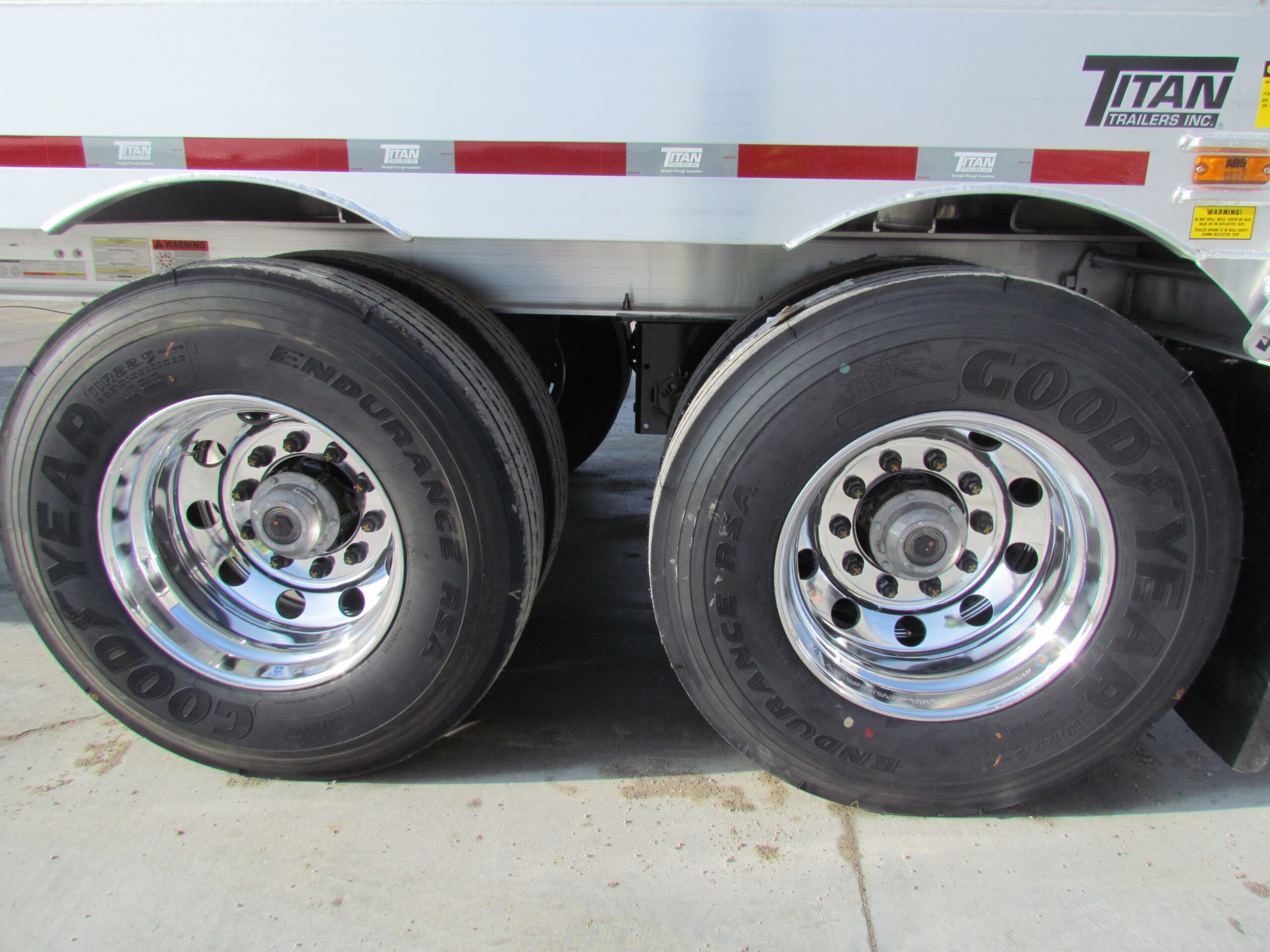

Tires      Brand                        Goodyear

               Size                             11R22.5 – 41.4 dia

              Tread                           Endurance RST

               Ply                               16

              Quantity                      8

Axle layout                               FRONT–Prim-50-Prim-28-REAR

Oil Seals                                   To suit axles

Lubricants                               Oil-80W-90

Brakes              ABS                2S1M Meritor Wabco

                         Slack Adj         DRUM BRAKES: Haldex Auto

                        Cam Enclos      DRUM BRAKES: All Axles & c/w Dust Shields

Lift Kits                                     None

Lift Control                              None

Frame Width                           48”

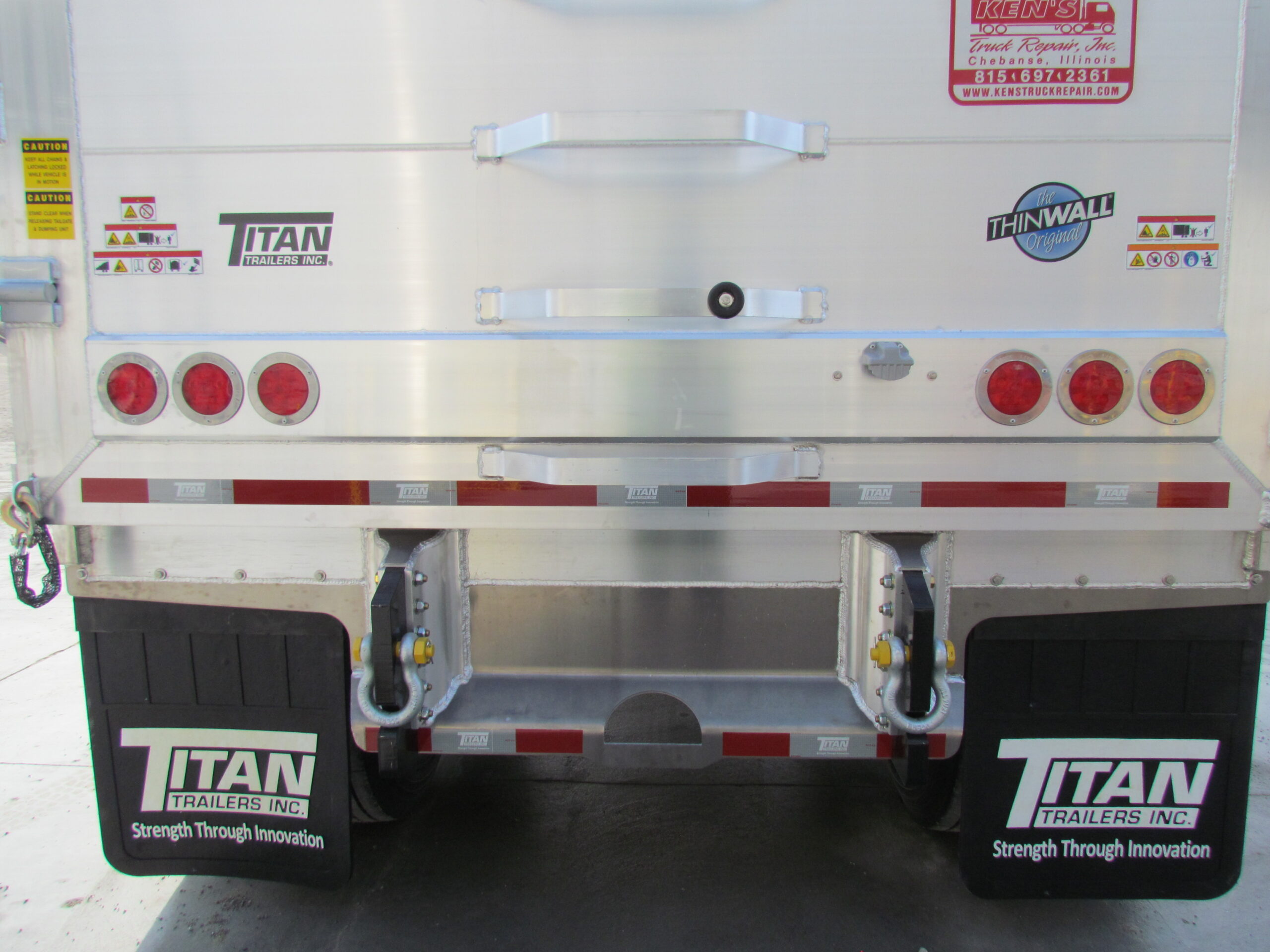

Rear Bumper                          Aluminum Offset, Push

                                                   Additional Bumper Option # 1       Tow Shackles

                                                   Additional Bumper Option # 2     Steel Vertical Blocks Bolted to Bumper protrudes 3 ½” sloped top

Tire Carrier                              None

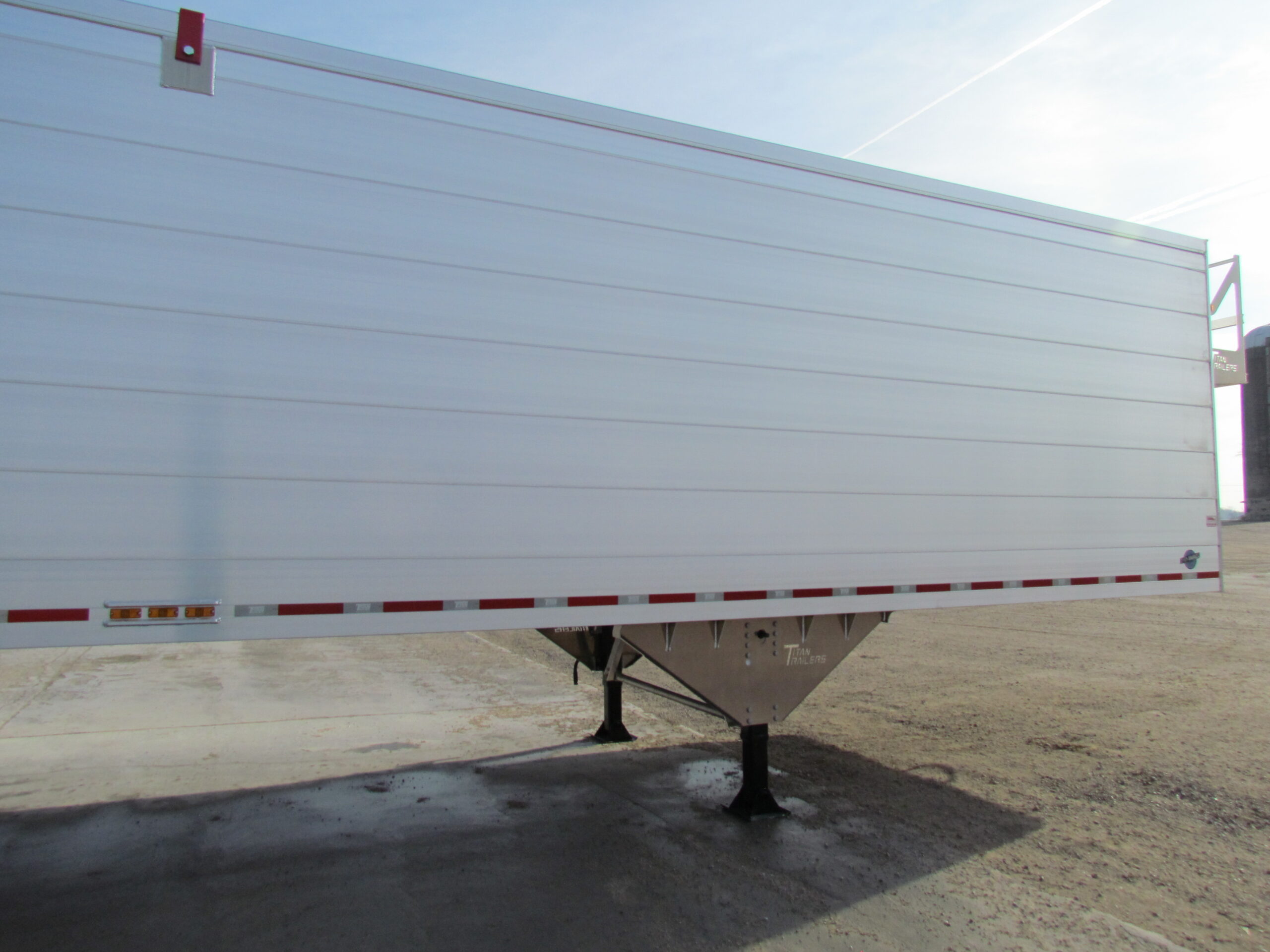

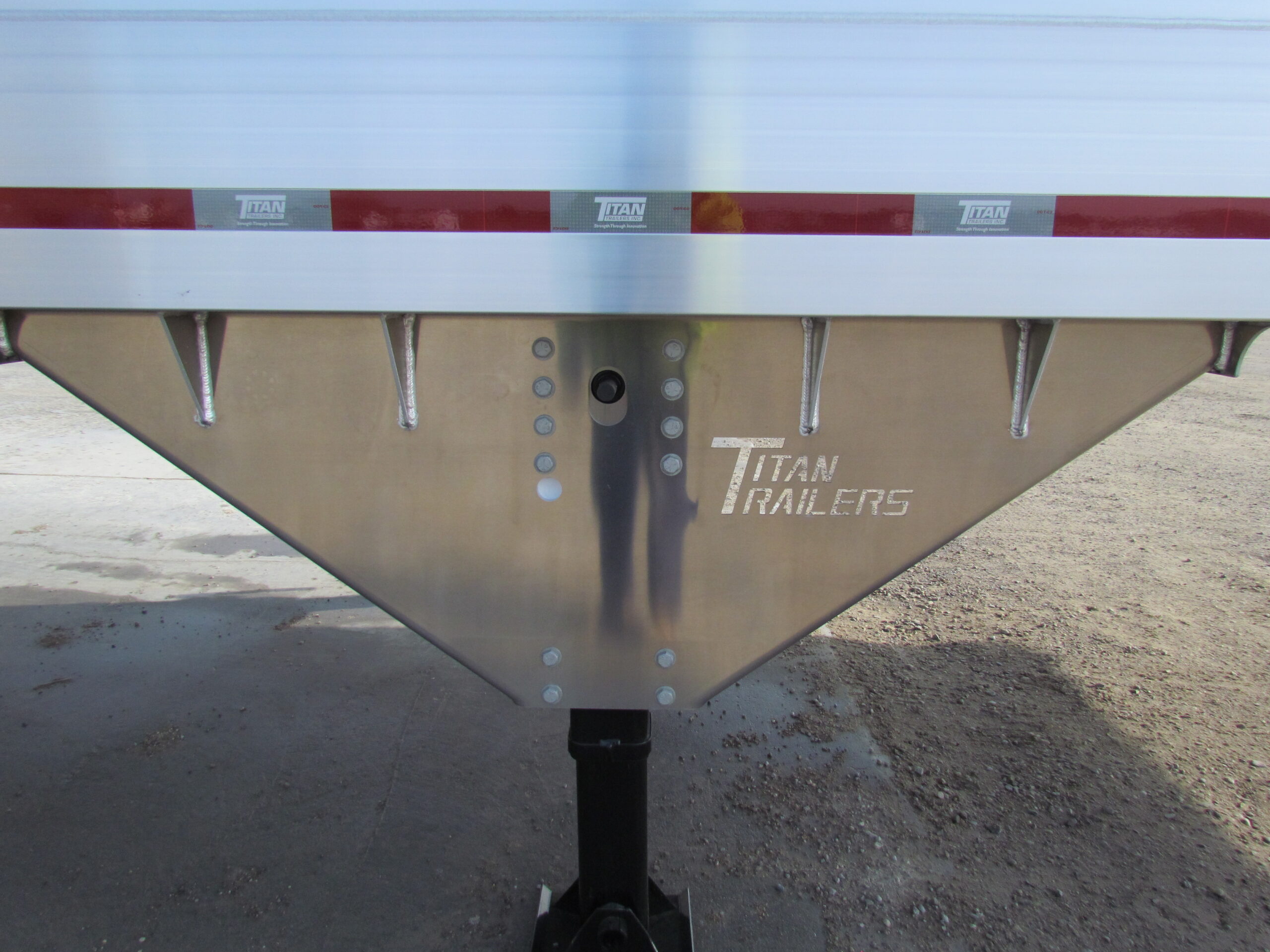

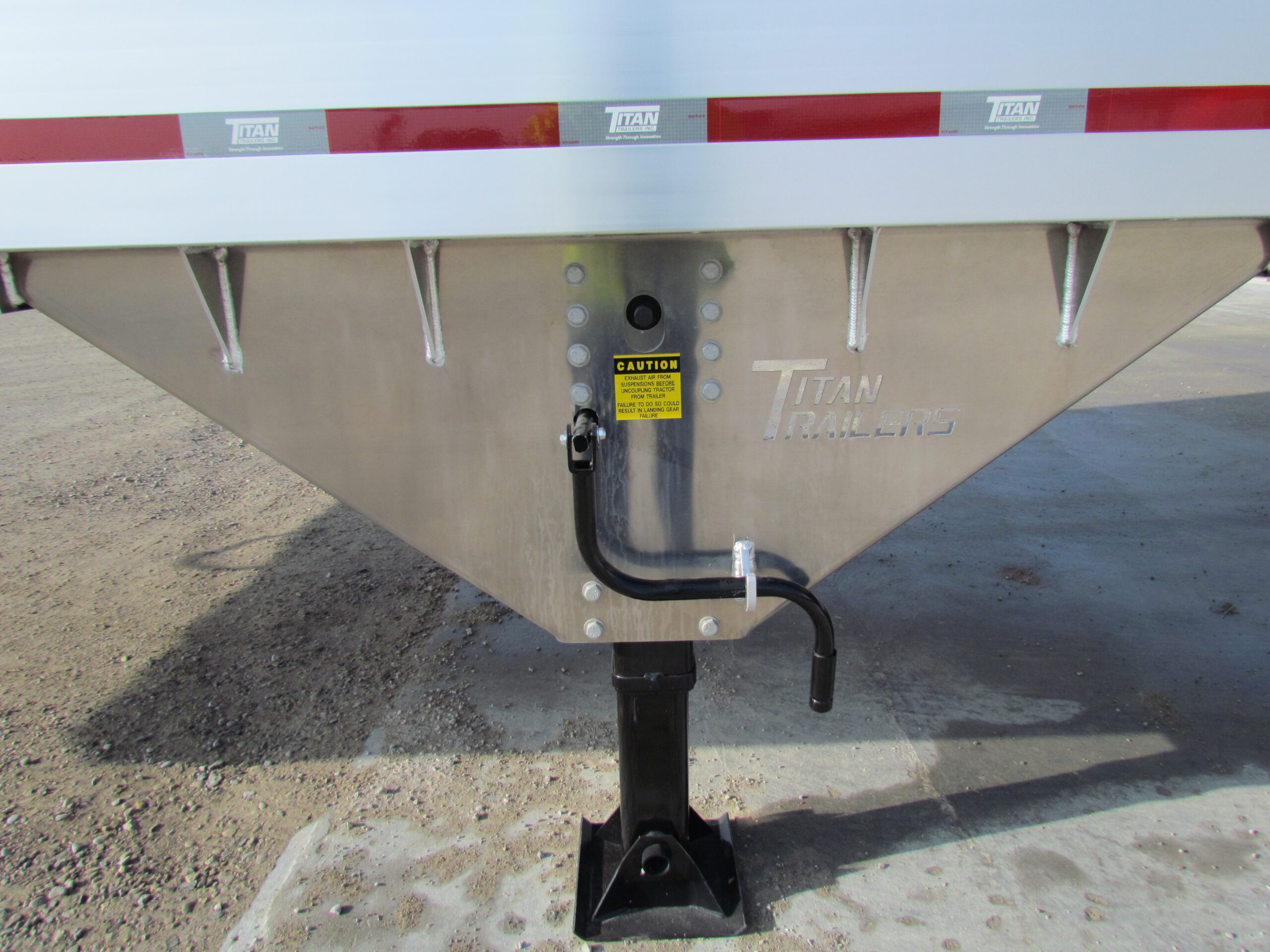

Landing Gear                          SAF-Holland Mark V: 105 Standard Skid Foot, Standard hollow axle

Top Rail                                   Titan Tapered V1

Top Cross Tube                       Qty 1- Spring Steel (two piece style) – See Note # 3

Floor Crossmembers               12” Centers

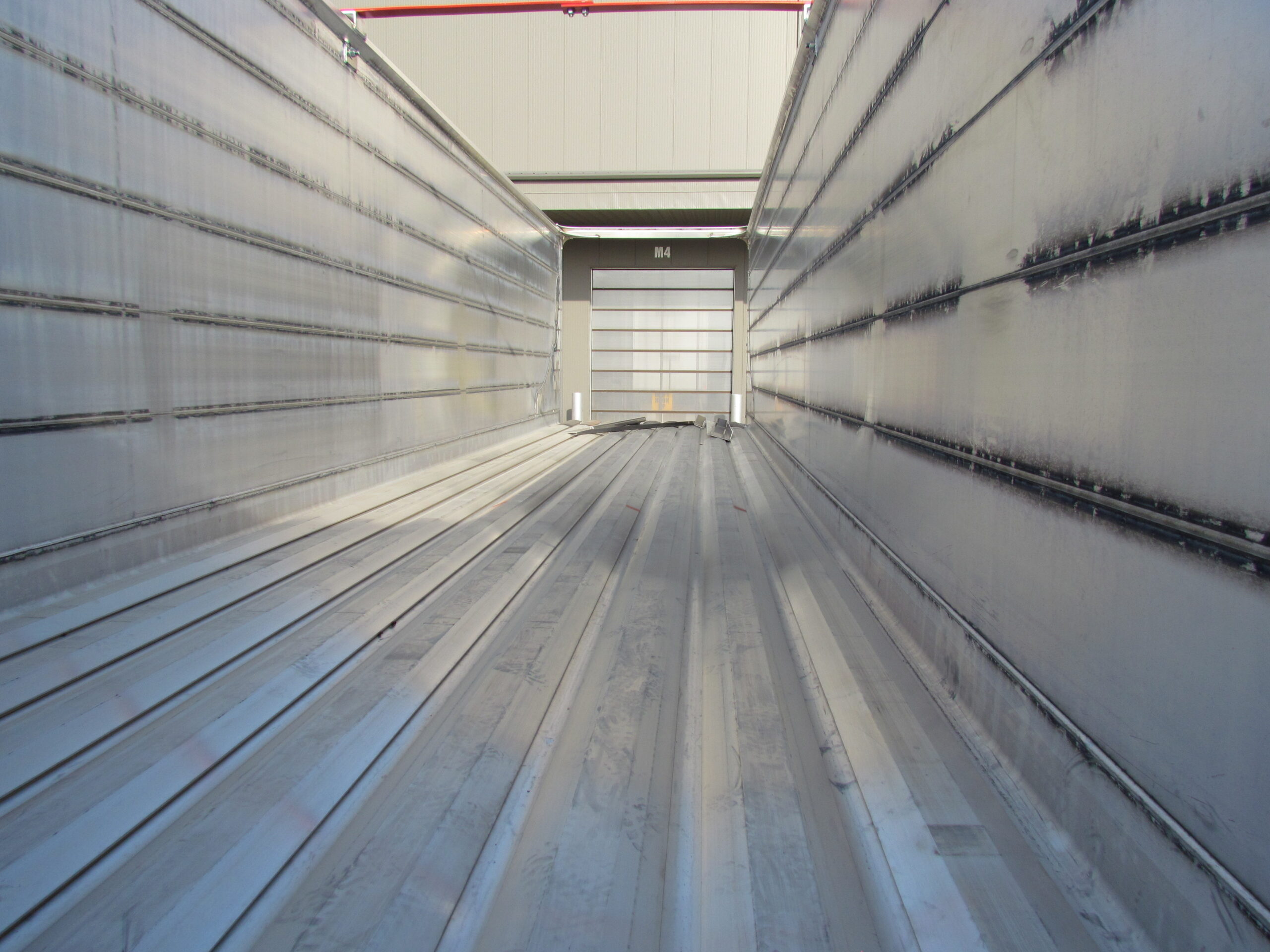

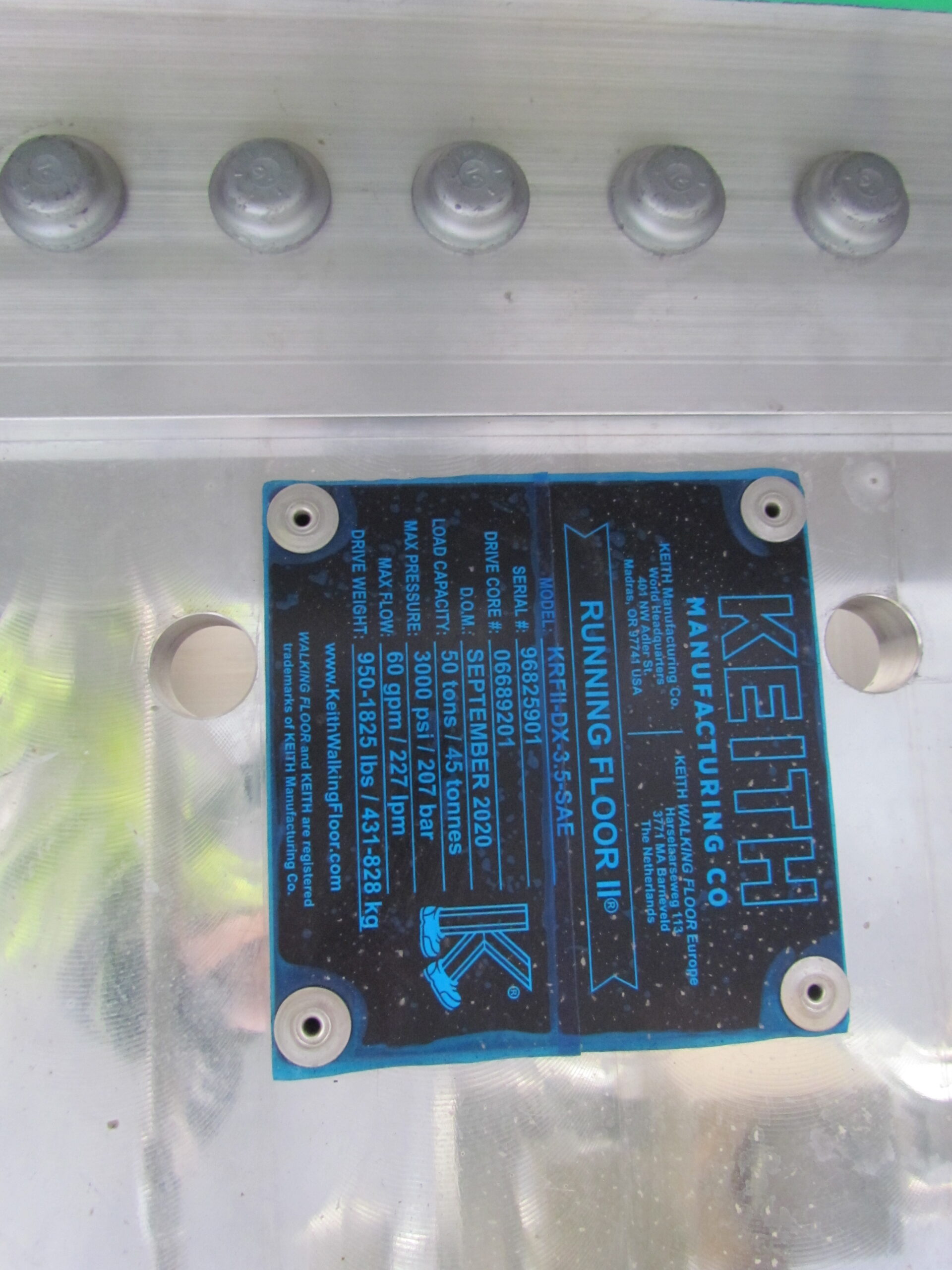

Keith Walking Floor Kit         Running Floor II: -3.5” Dia Cylinders, 6” stroke

Slat Model & Width                 9 Slat : 2631slats  (Alum flat top -3/8” THK1 10.5” Centers) 2490 Subdeck, 2493 J-Bearing

Slat Wear Strips                      48” long steel tips

Continuous Bearings              None

Side Wall Wear Plates            Boomerang Style

Front Access Door Std           (35”W x 37.5”H)Curbside Hinge W/ Flip, located center

Tarp Style                                 None

Tarp Header                            None

Tarp Basket                             None

Tarp Hooks                             None

Axle Fender                            None

Hyd Fitting     Pressure        1” Quick Coupler Male  – See Note # 2

                          Return            1” Quick Coupler Female – See Note # 2

Mud Flaps       Style               Titan Black Rubber

                         Location         (2) at rear

Mud Flaps     Landing Gear   None

Paint               Body – Color     Natural Aluminum

                         Run – Gear      Titan Black

                        Hub/Drum        Same As Running Gear

                       Rims Or Disc      Steel Prepainted white

Light Package (Plug Form)         Front: (1) mkr corner mitre.          Sides: (2) mkrs (includes midturn)          Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

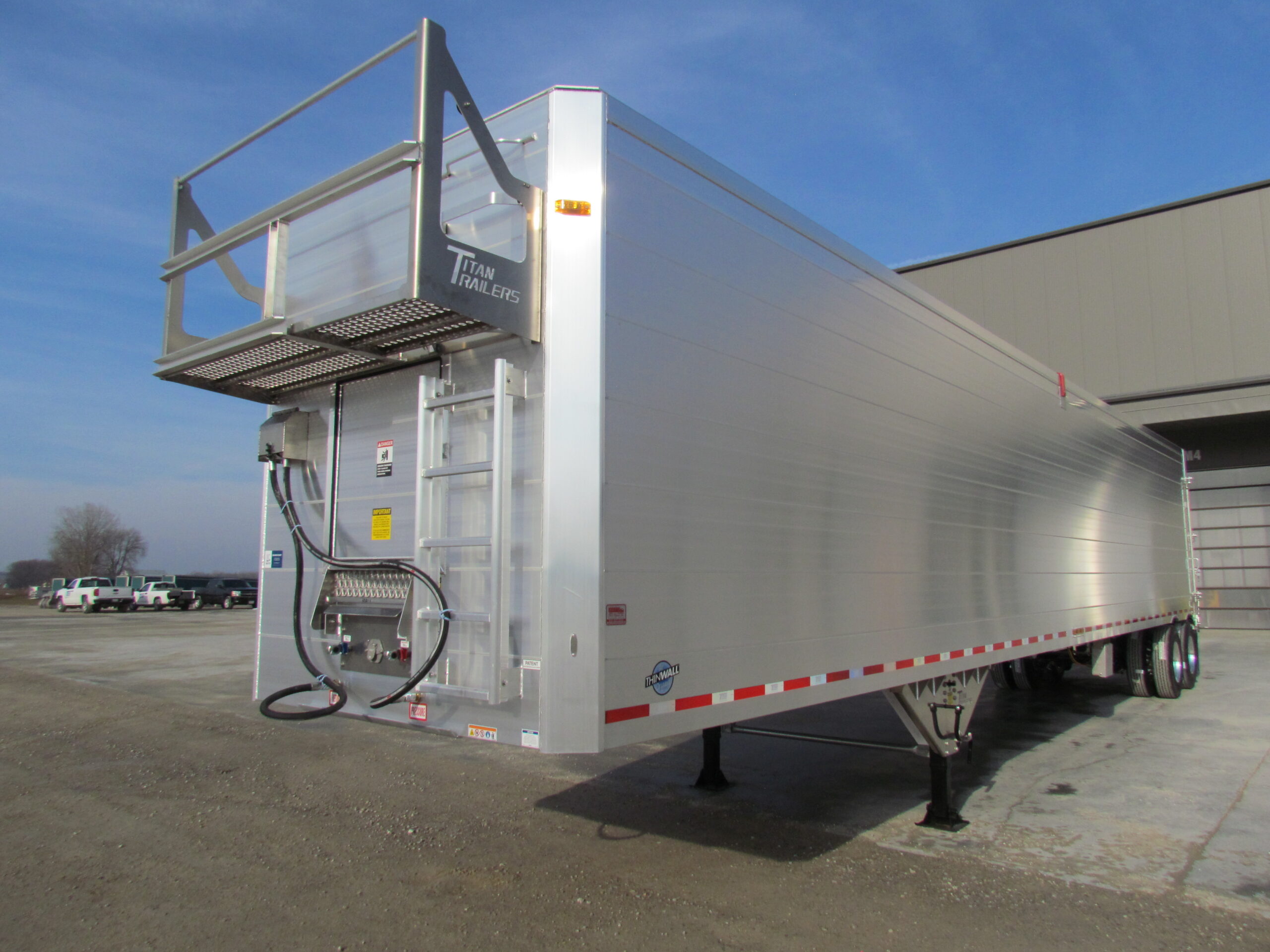

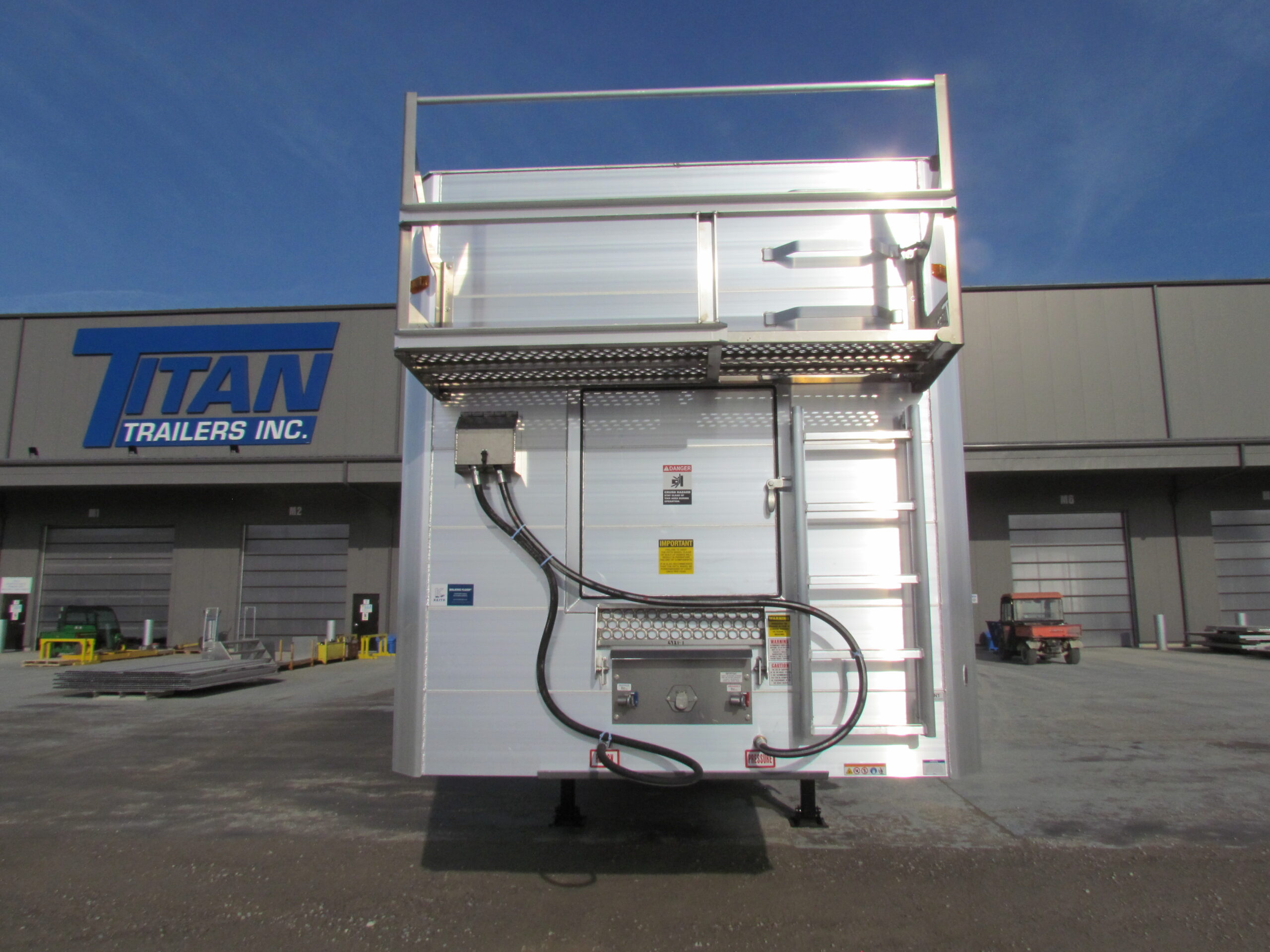

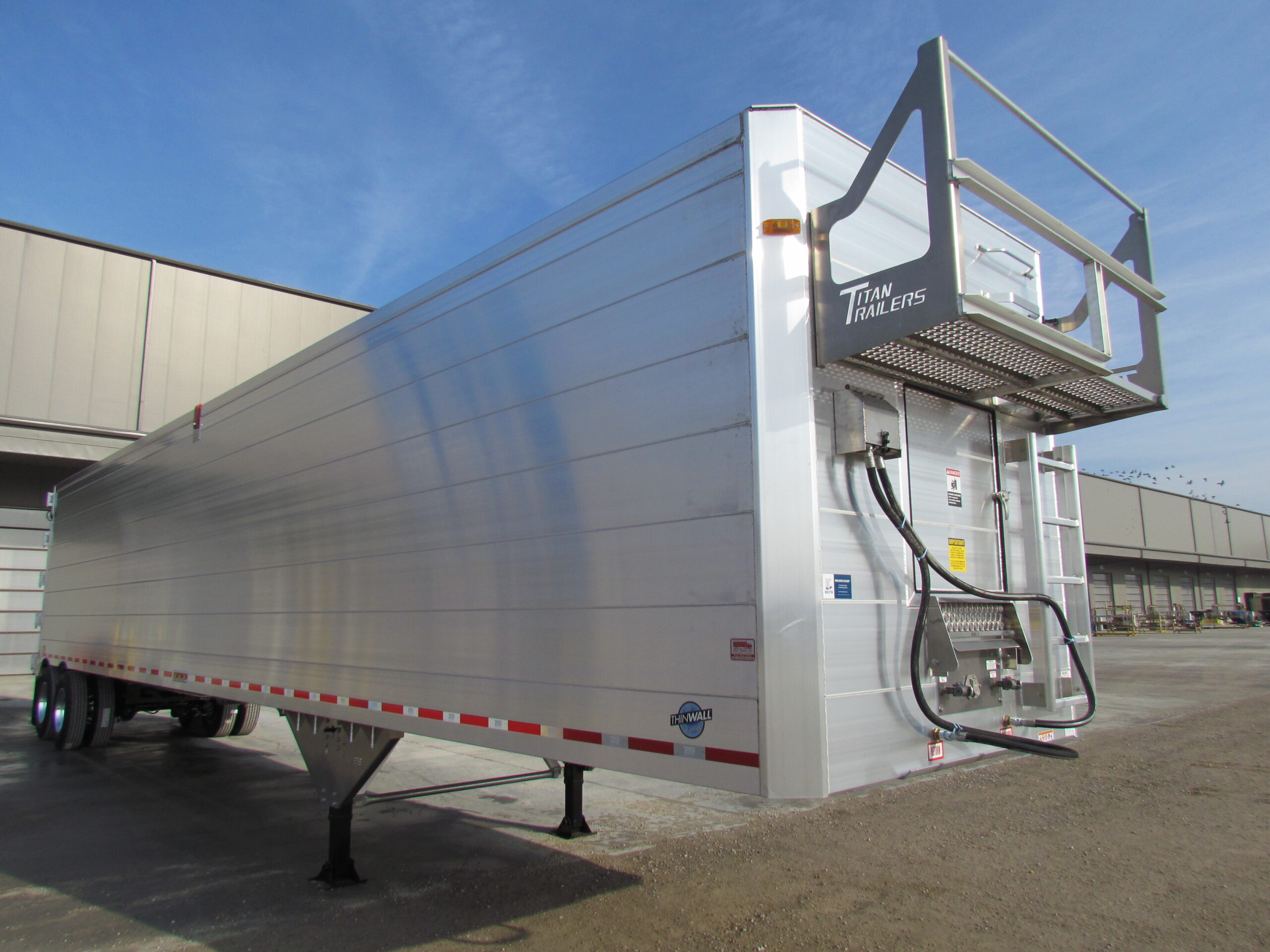

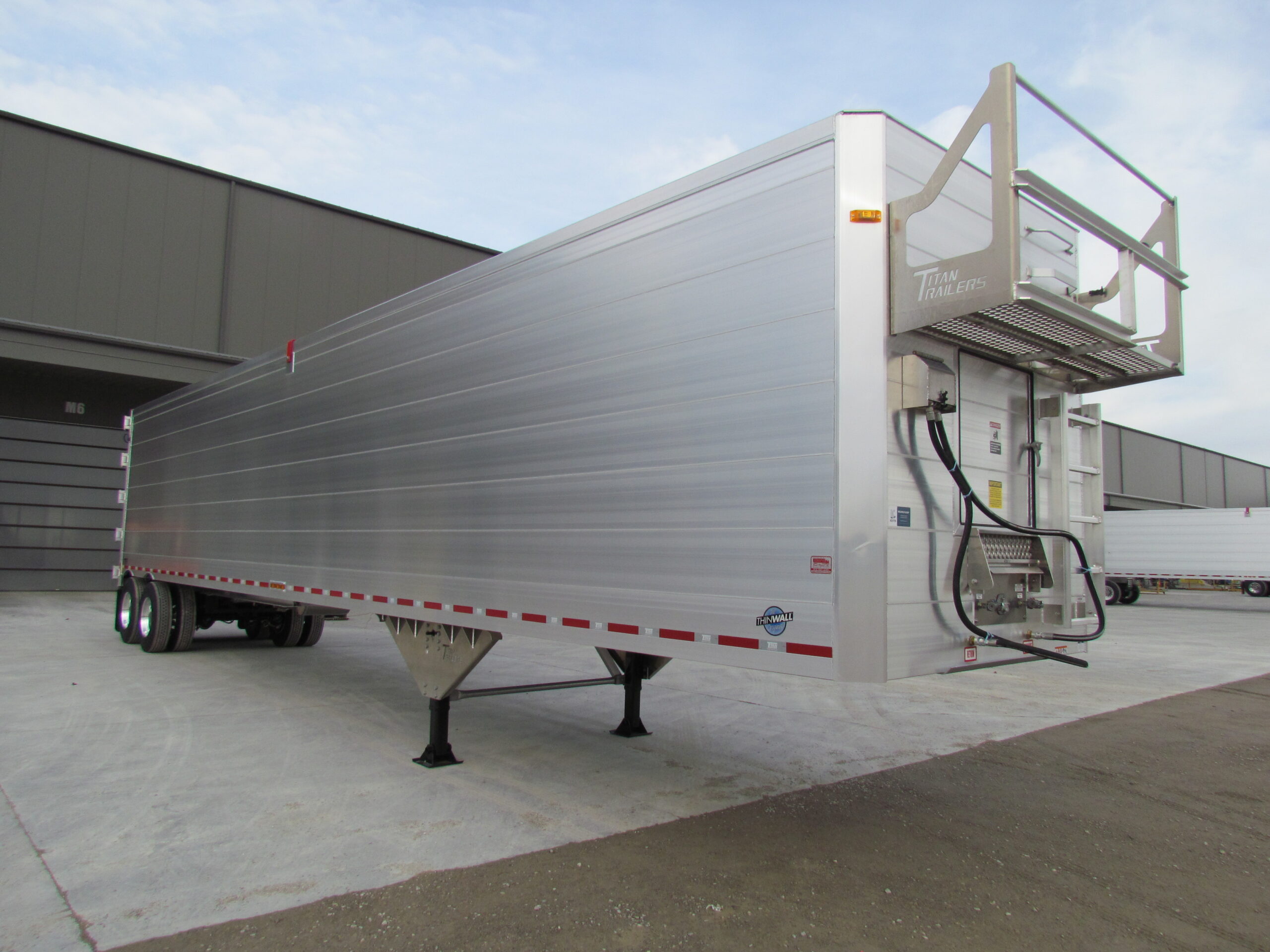

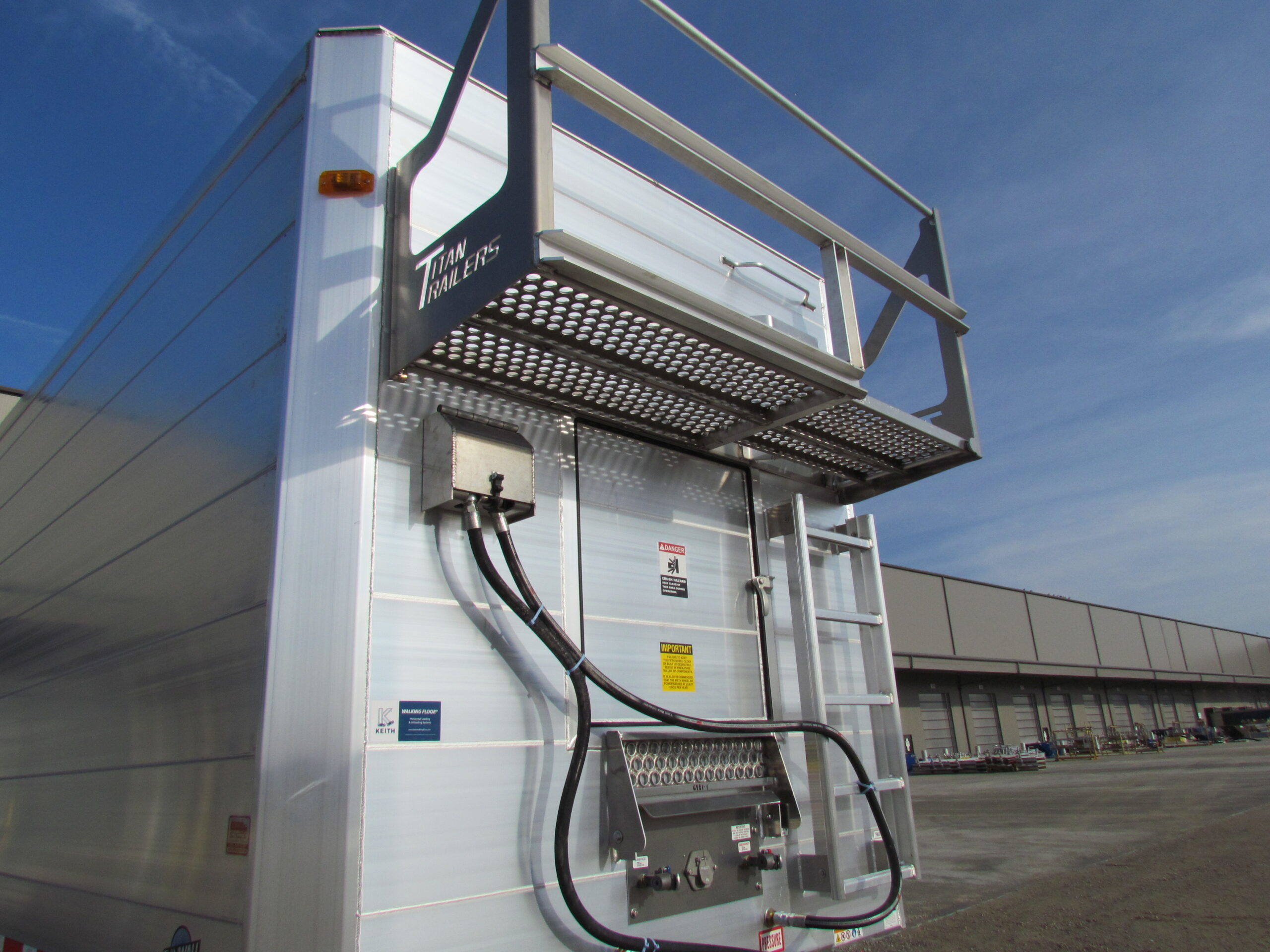

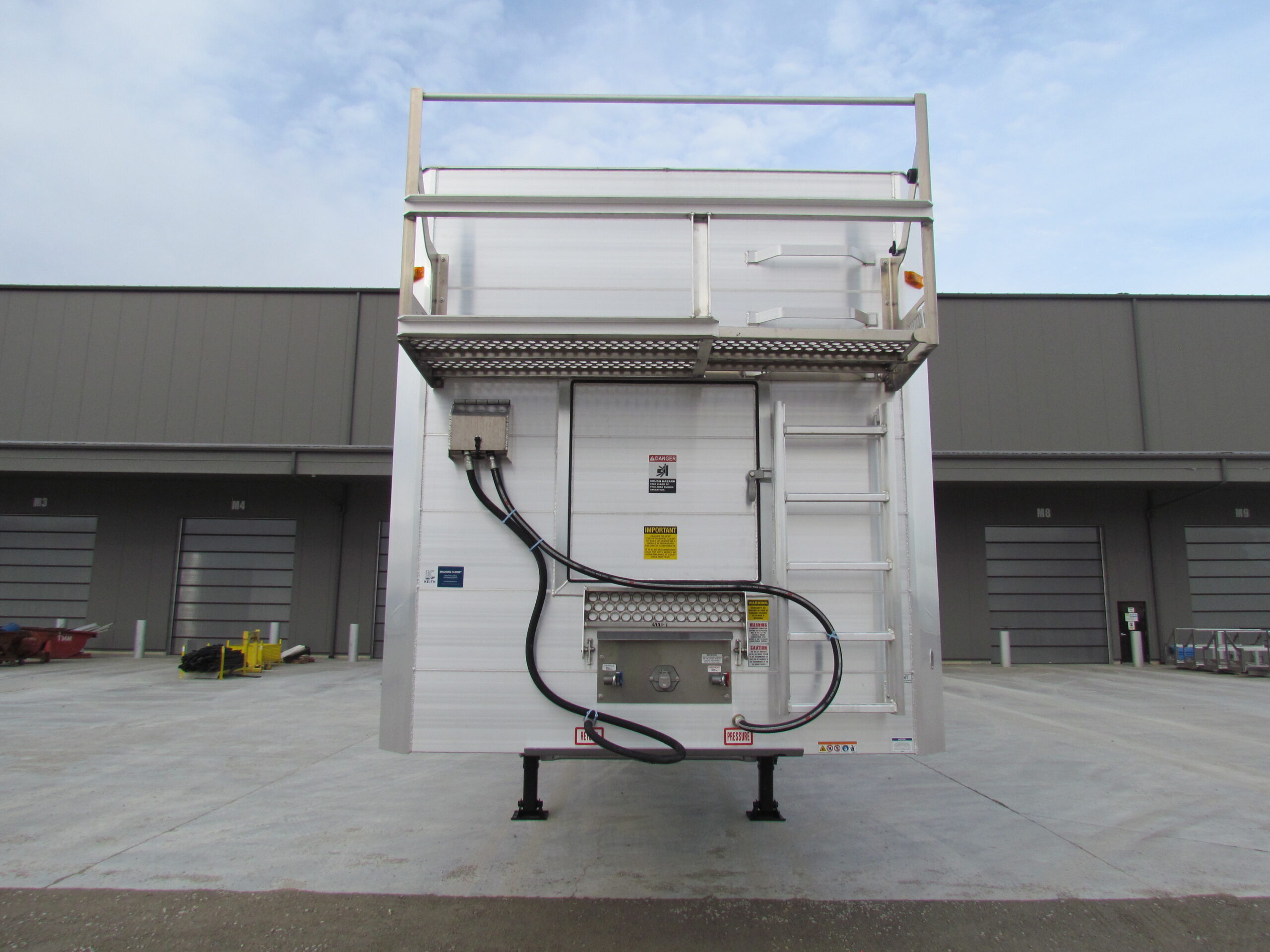

Access         Catwalk                  Universal Roadside Enty 24” Catwalk

                    J-Ladder – Front   Roadside to Catwalk

                   J-Ladder – Rear      None

                  Steps-Front-Out      None

                  Steps-Front-Ins       None

                  Steps-Rear                Rung style steps up middle

Additional Specifications:

1. Tapered Door Header with one pc gusset attached to top side of tapered header  Gusset to suit 10” bolt on tarp header
2.  a) Add 9′ hoses to front wall      b) Add hinged lid hose hanger to front wall
3. Ship Loose: Qty (1) 4″ OD Steel Crosstube

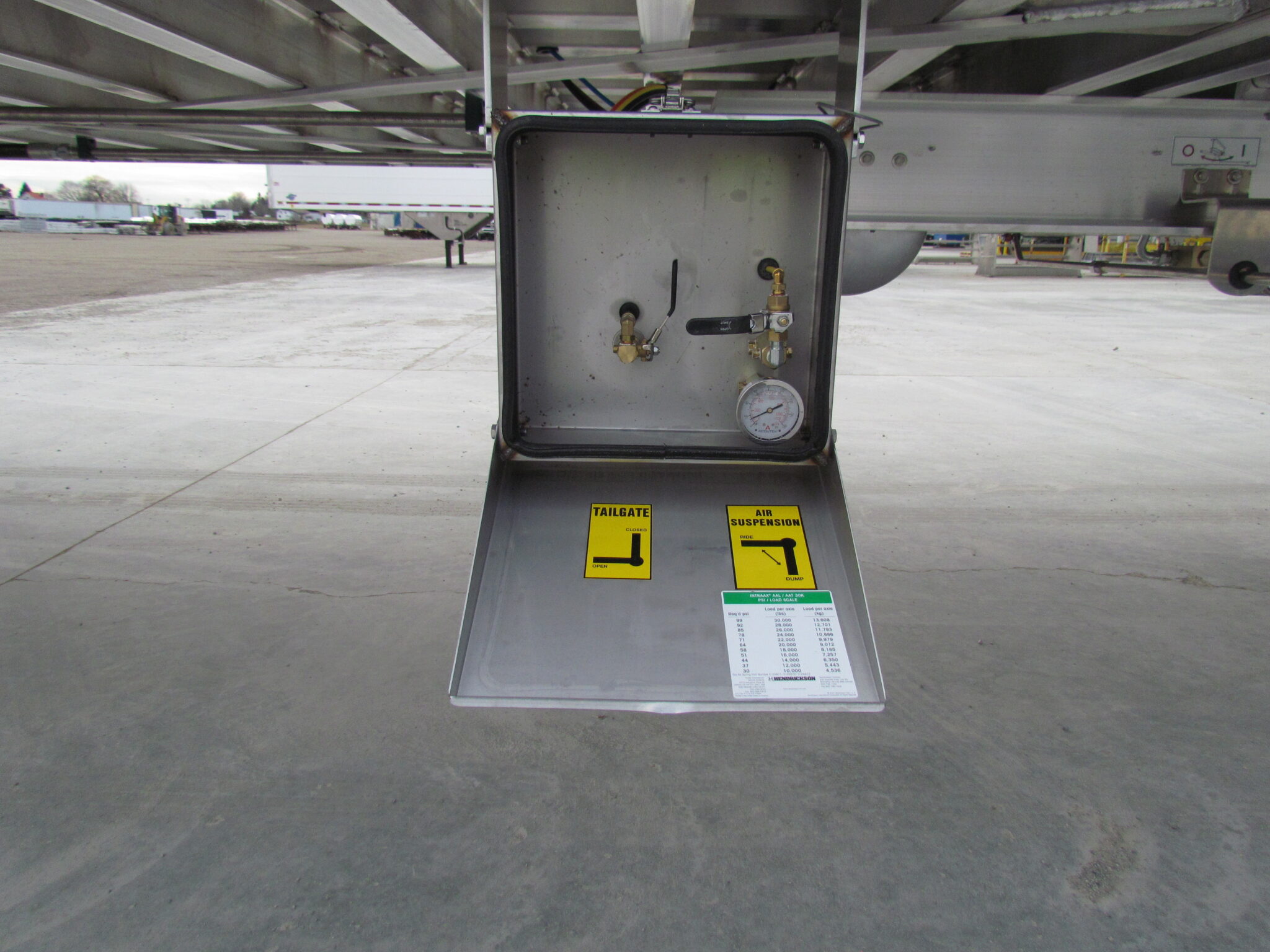

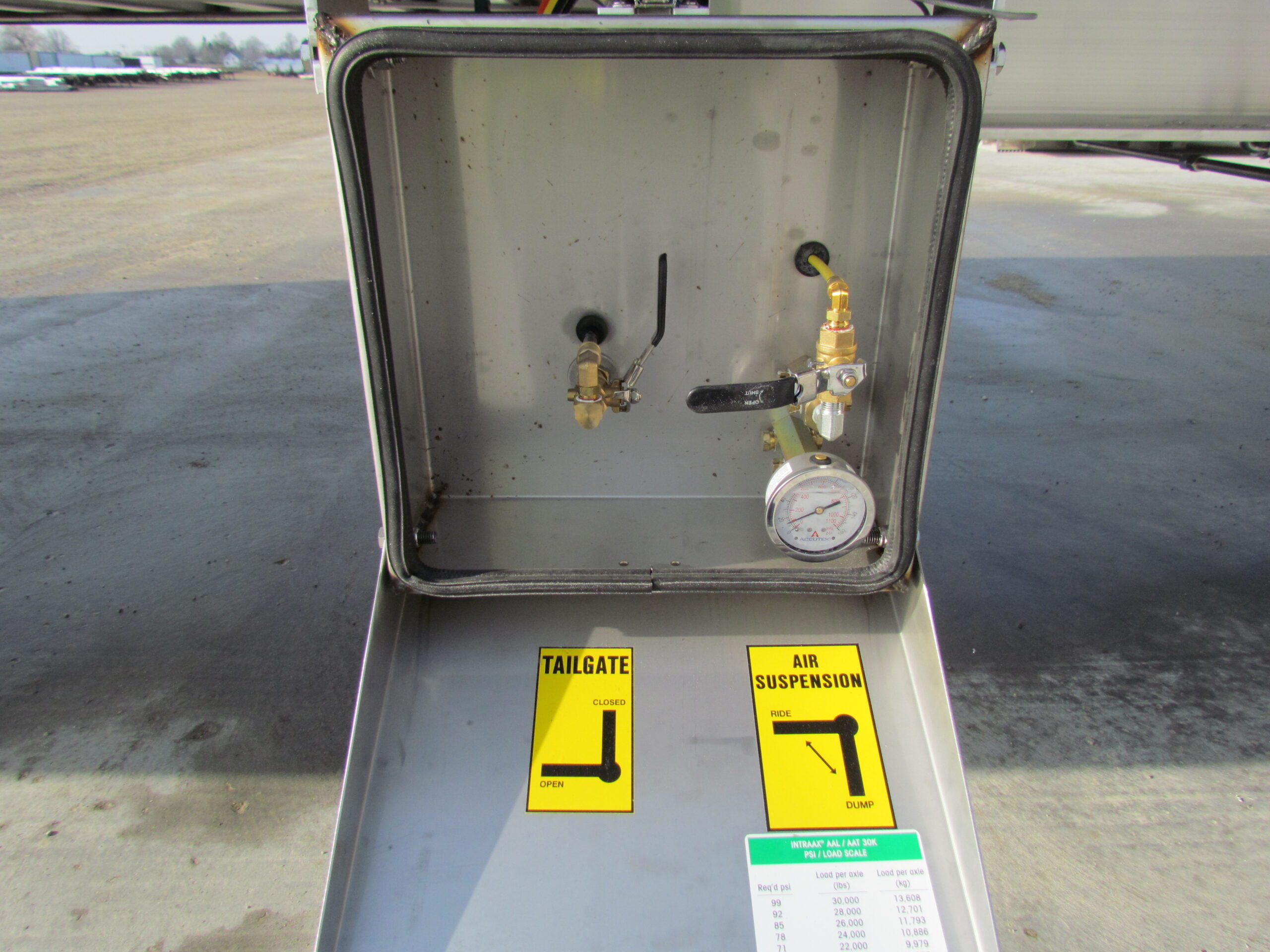

4. Add 2.5″ hydraulic pressure gauge to frame (flush mount) – located beside the on/off handle with identifying label

Estimated weight: 19,400 lbs.   +/- 3%

Estimated volume: 127 cu yds
