2024 TITAN 53' 2 AXLE DROPFRAME WALKING FLOOR TRAILER 2 UNITS

2024 TITAN 53′ 2 AXLE DROPFRAME WALKING FLOOR TRAILER     2 UNITS

Customer Application:       Garbage – New Style Dropframe

Style:                                      Drop Style

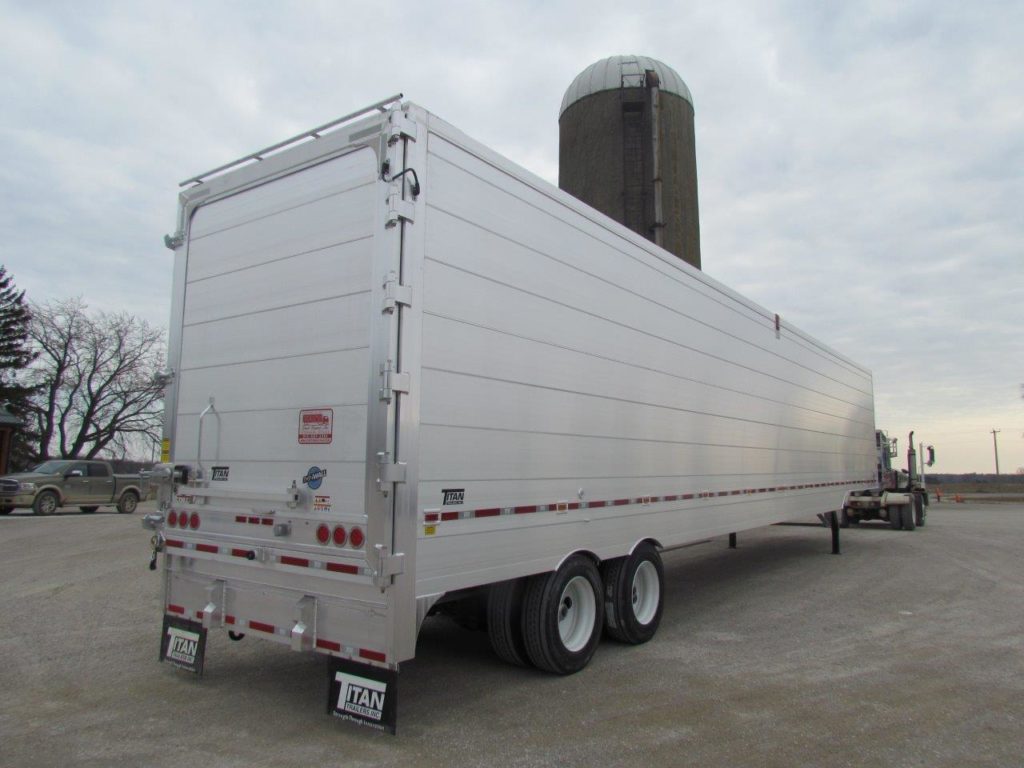

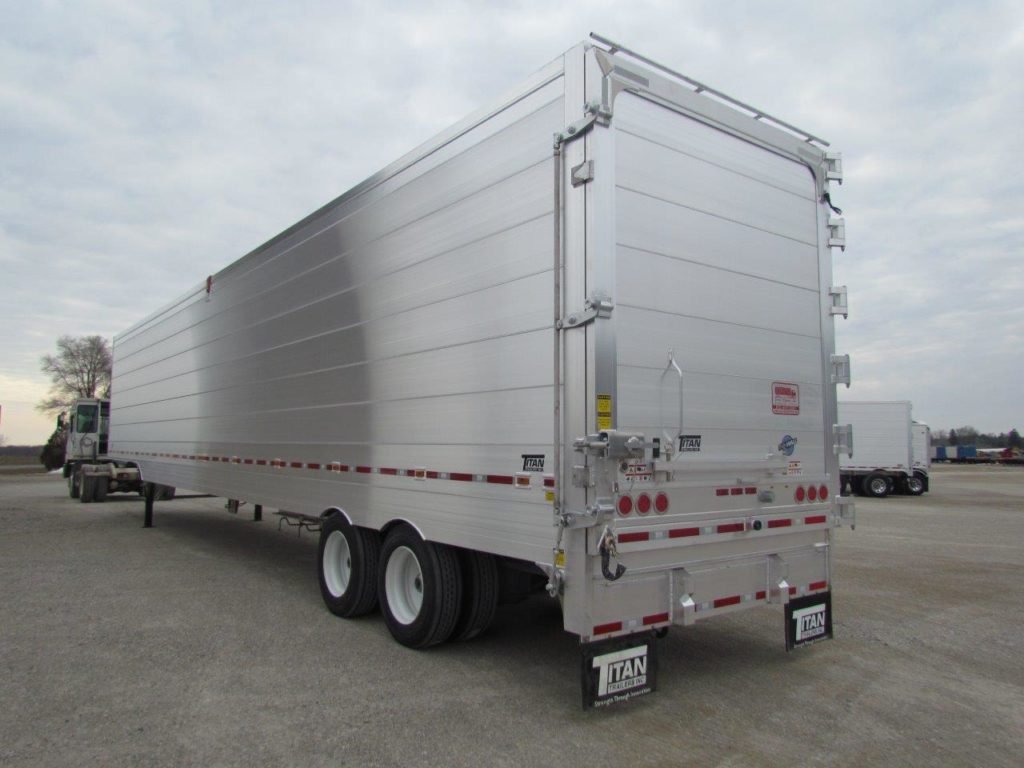

Wall Configuration:           Front & Sides – to suit garbage application   Rear Door – Side swing, door in door, air release, lights in door, compactor posts, with reinforced bottom lock finger

King Pin Location:             36″ Weld In

Upper Coupler:                  5/16″ THK Steel – Set @ 49″ high

Axles:                                   Intraax – Straight Spindle         Axle track – 77″

Hub/Drum:                        10 Stud Duralite – Hub Pilot / Centrifuse Drum

Rims:                                   STEEL Standard duty – prepainted white

Tires:                                  Brand – Continental           Size – 275/80R22.5    38 dia                     Tread – HSR2                Ply – 16         Quantity – 8

Brakes:                              ABS – 2S/2M Meritor Wabco              Slack Adj – Haldex Auto          Cam Enclos – All axles – c/w dust shields

Landing Gear:                 Inboard Jost Landing Gear – with cushion foot # A401-G3-17

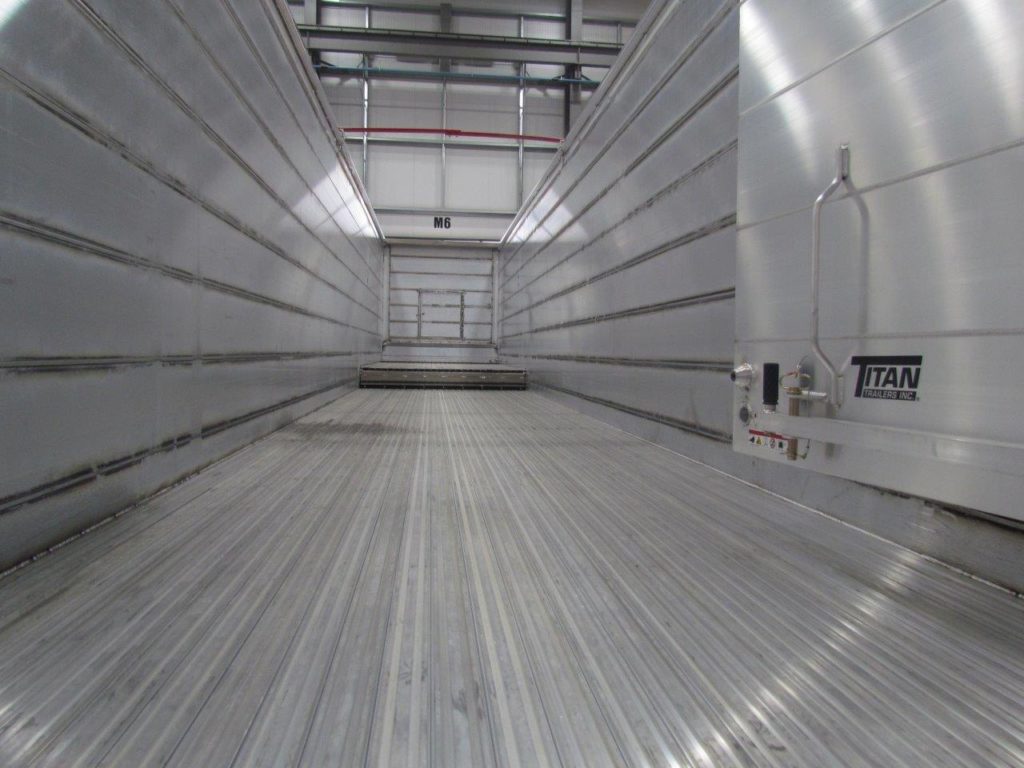

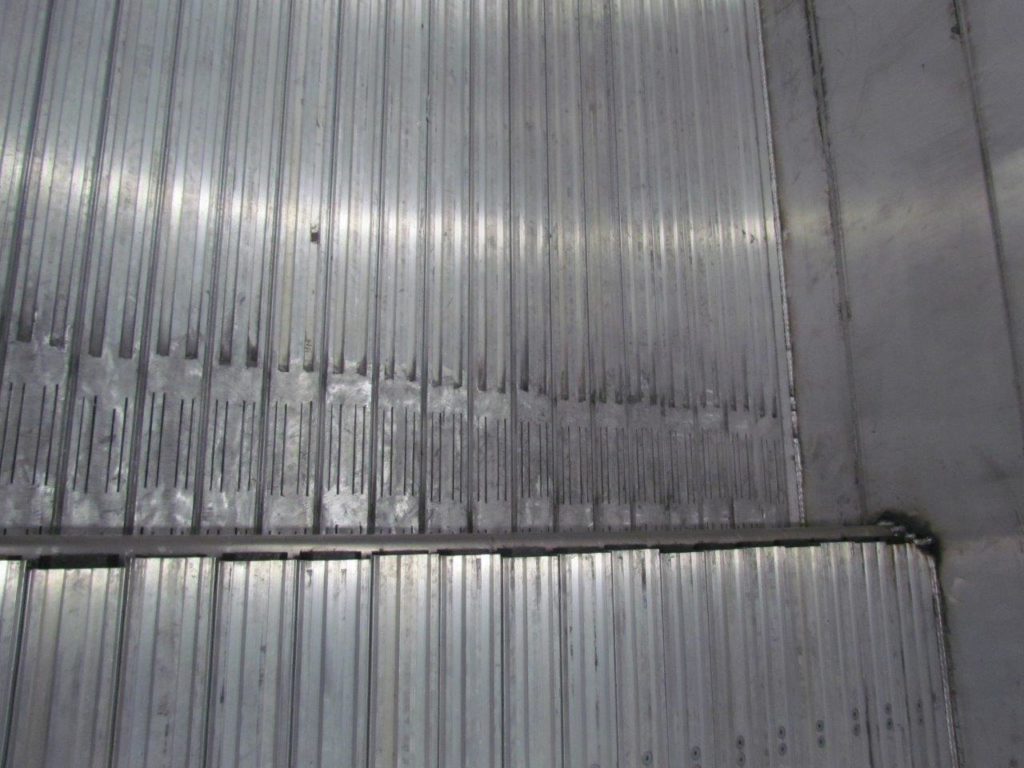

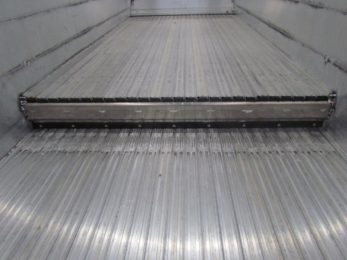

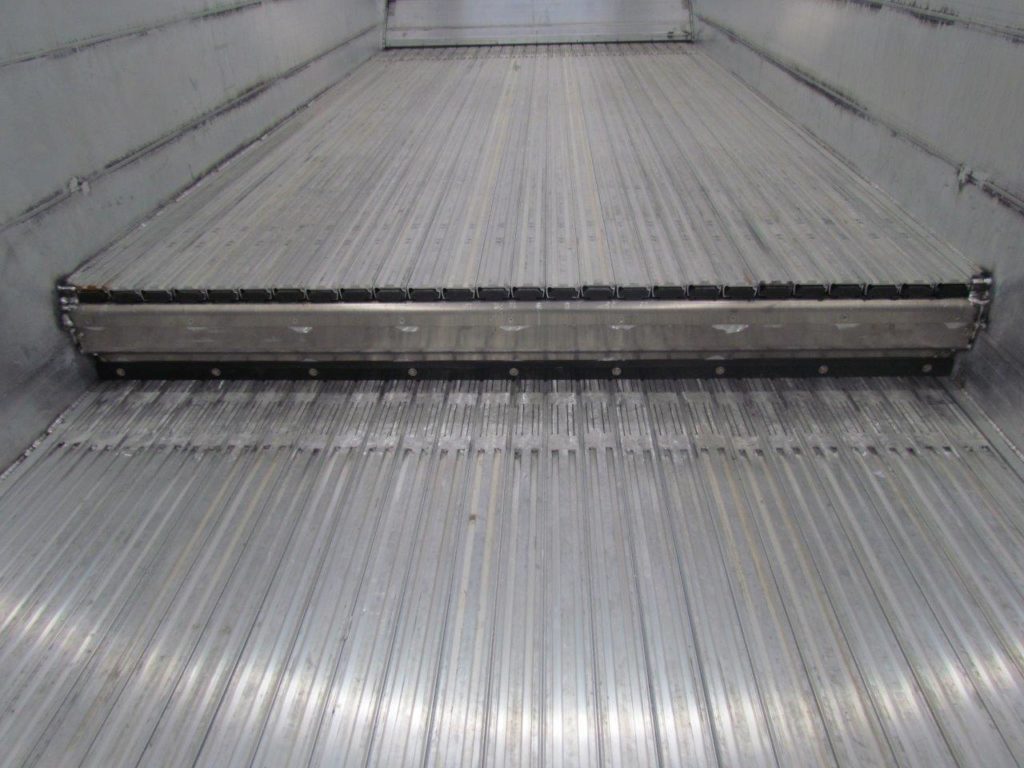

Keith Walking Floor:    Running Floor II – 3 1/2″ Dia cylinders – 6″ stroke            Slat Wear Strips – 24″ at rear of trailer floor (.5 x 3/8″)        Slat Model – 2299 (1914 CWS) 3 1/2″ – 1212 seals – T-blocks rear – with drop

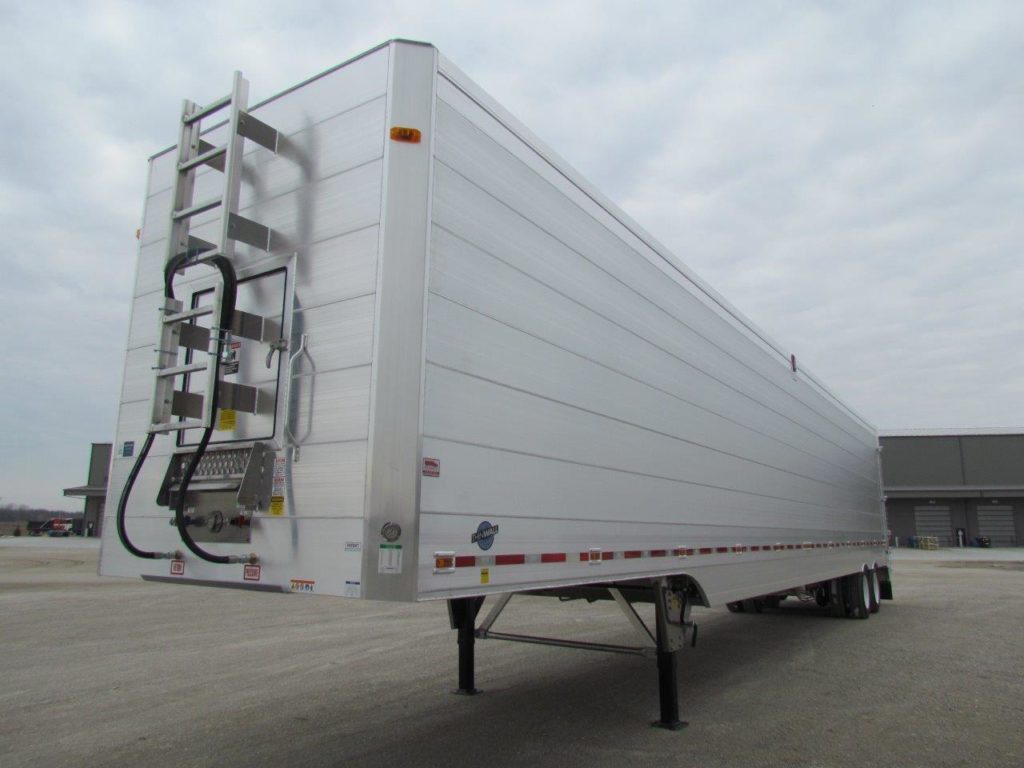

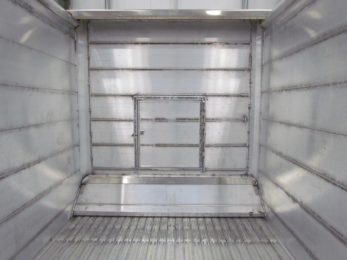

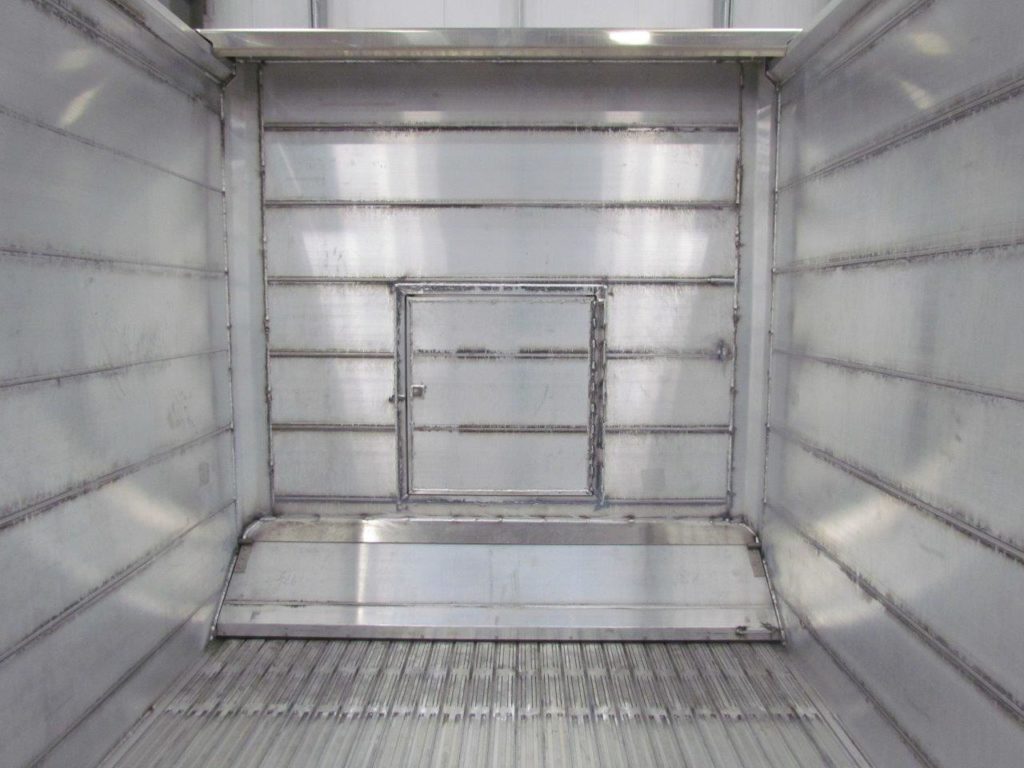

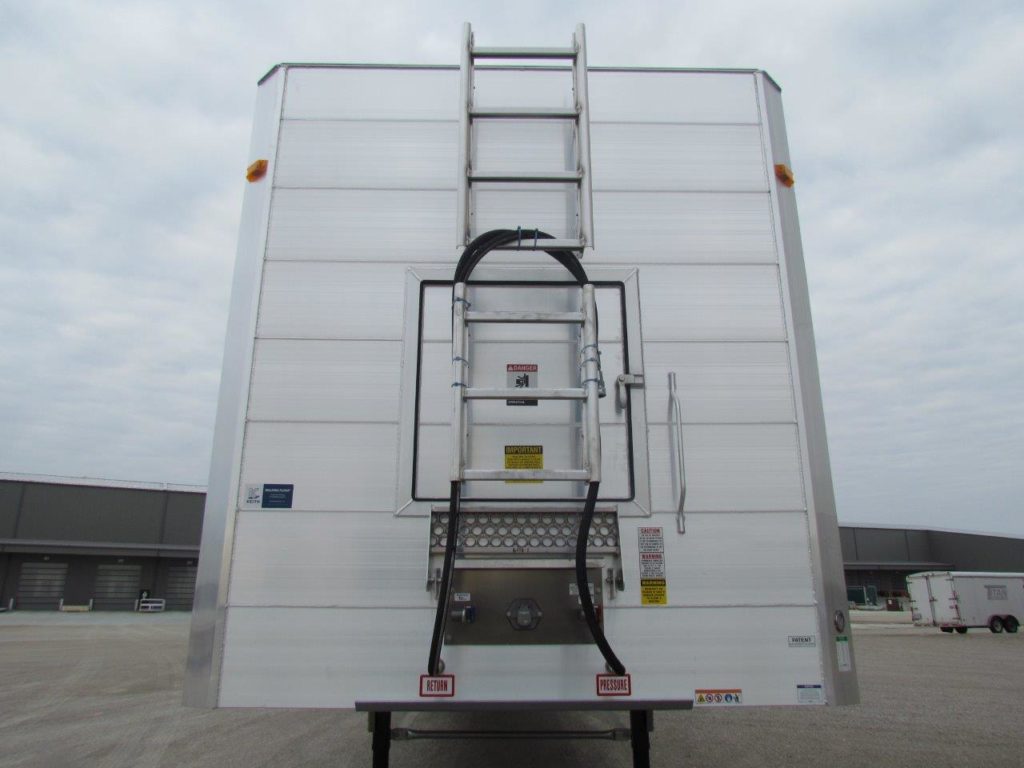

J-Ladder Front:            2 pc ladder on front wall with one section on man door & one section above it w/ 10″ stand offs

Steps – Front – Out:     Use flip up step below ladder

Weight:                           19,828 lbs

Volume:                          149.2 cu yds
