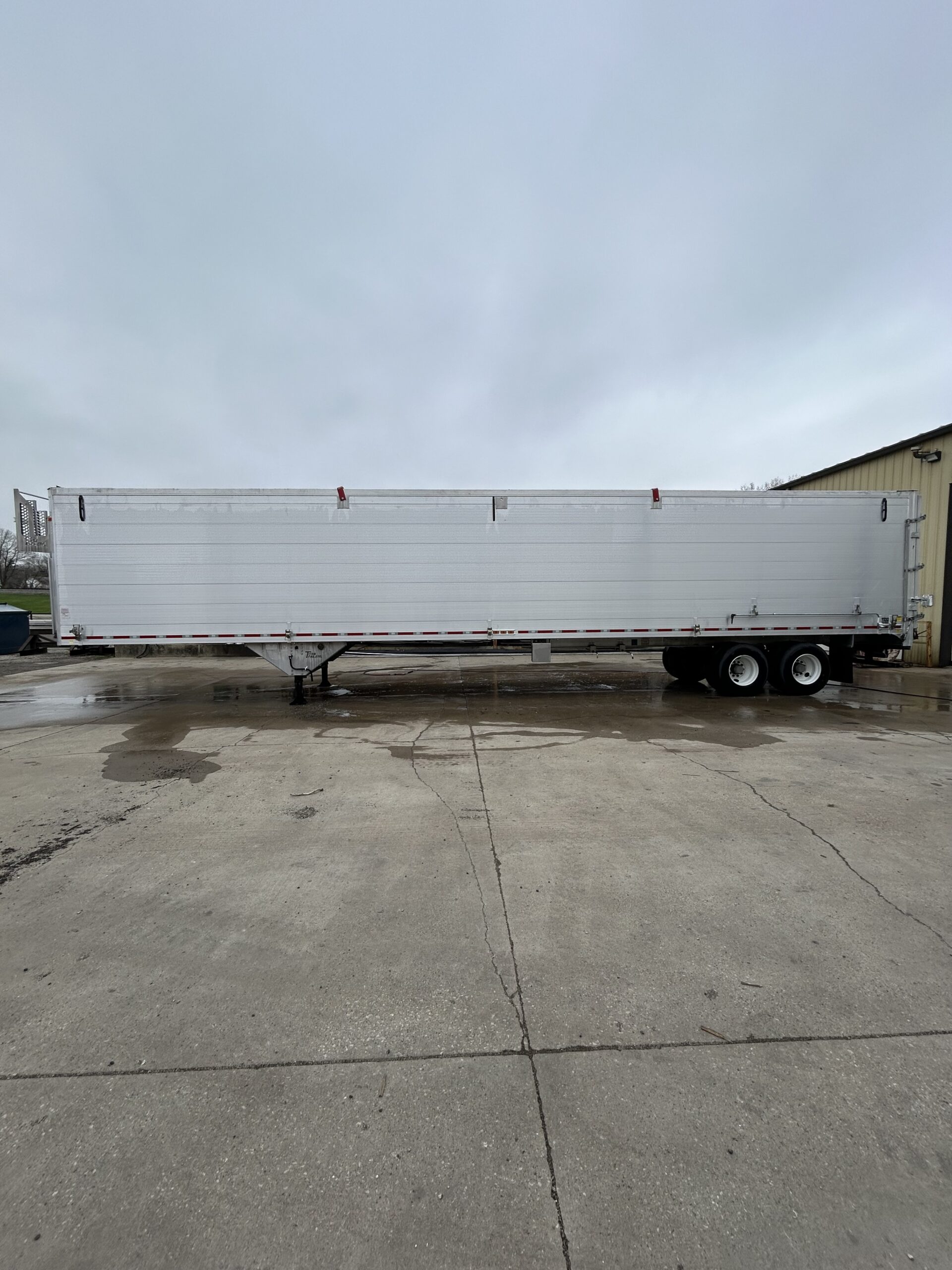

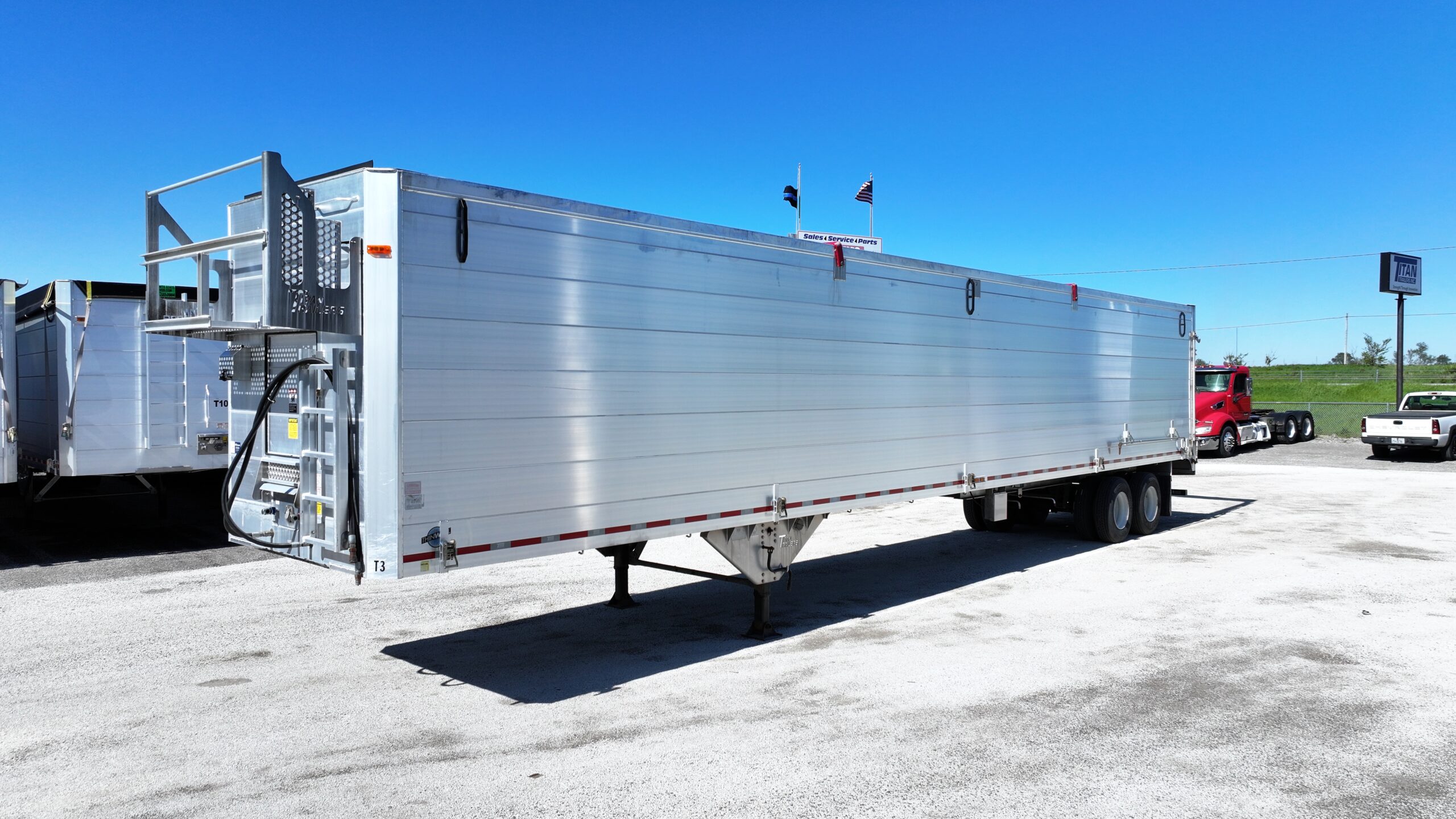

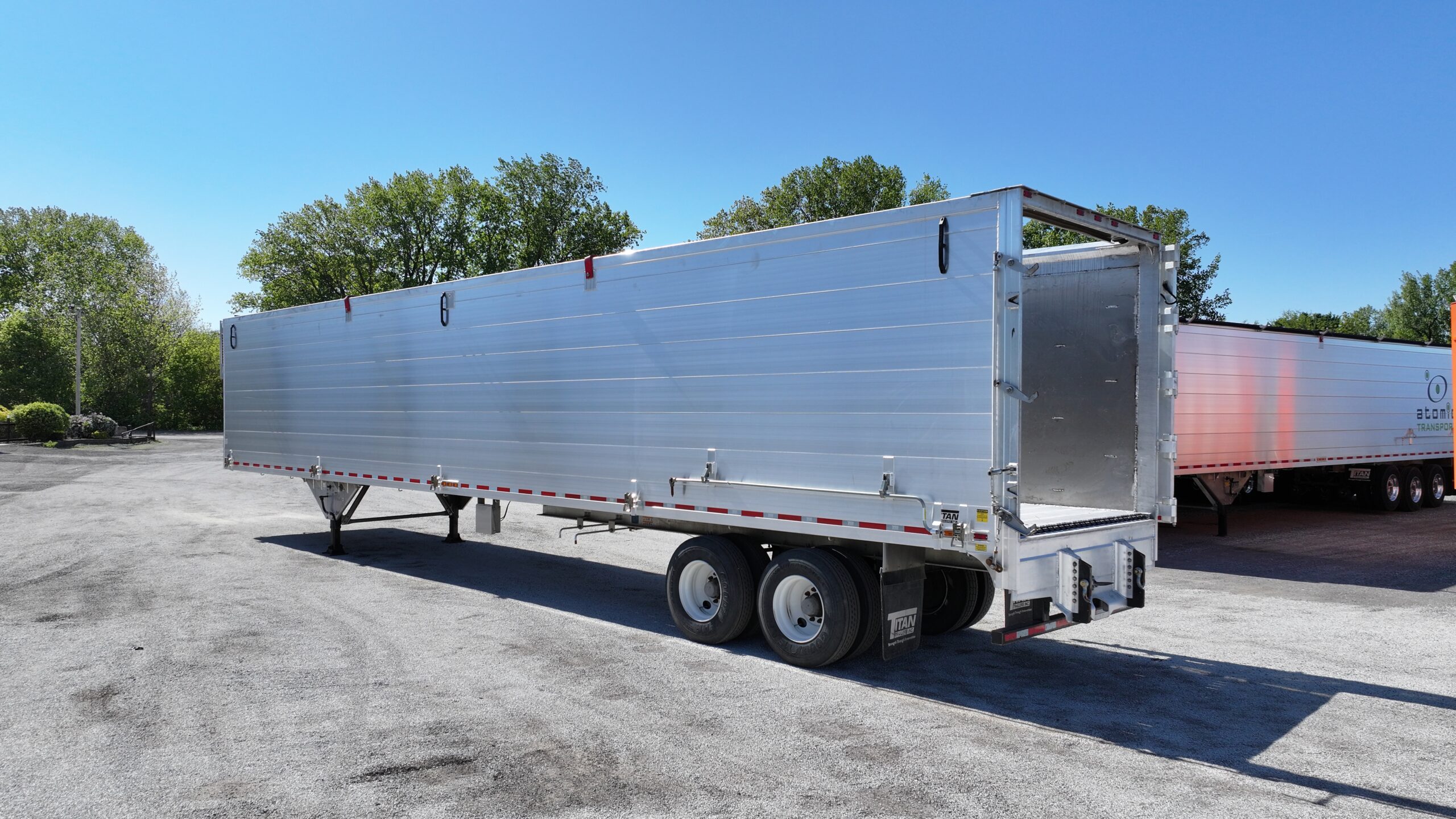

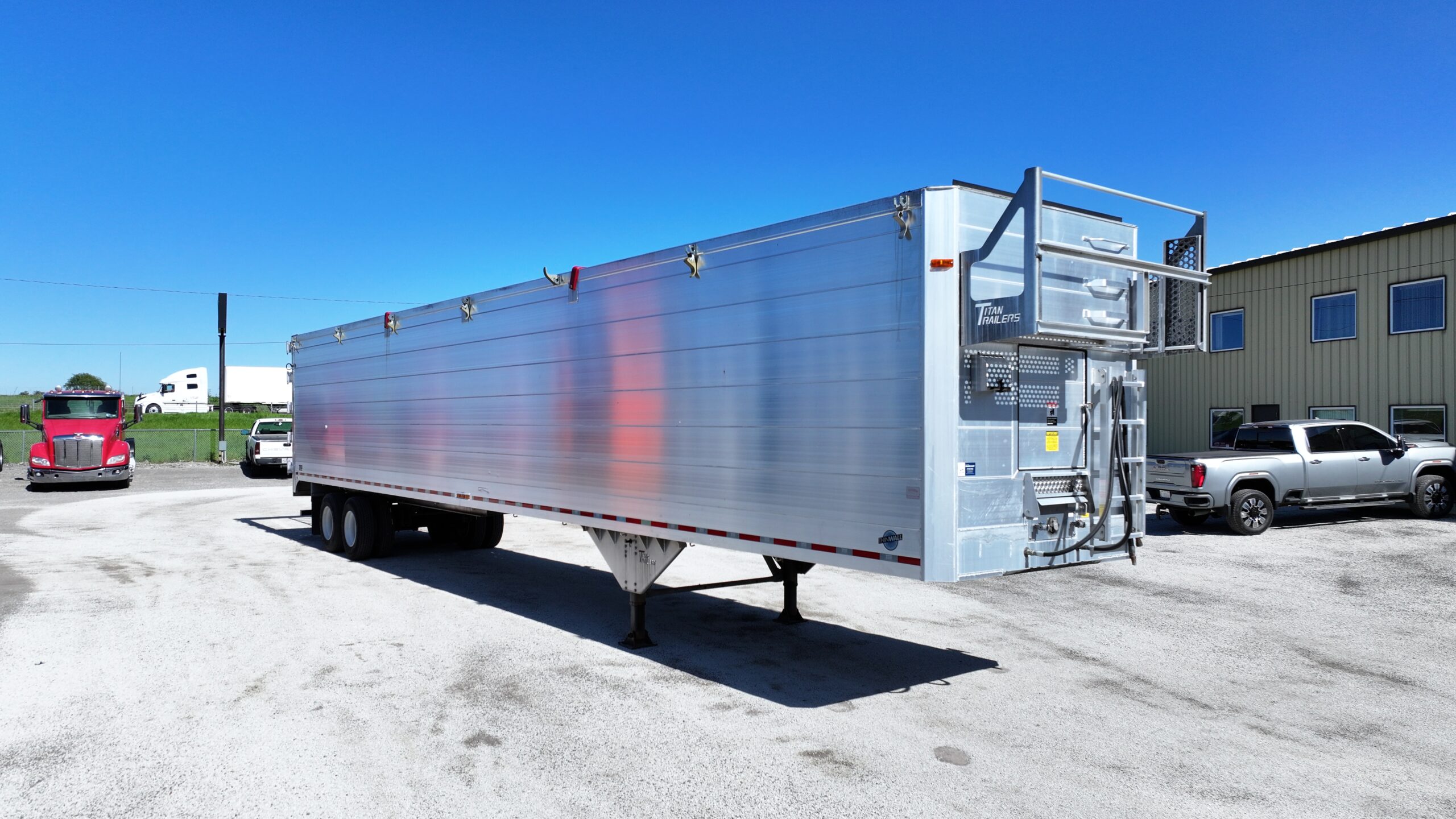

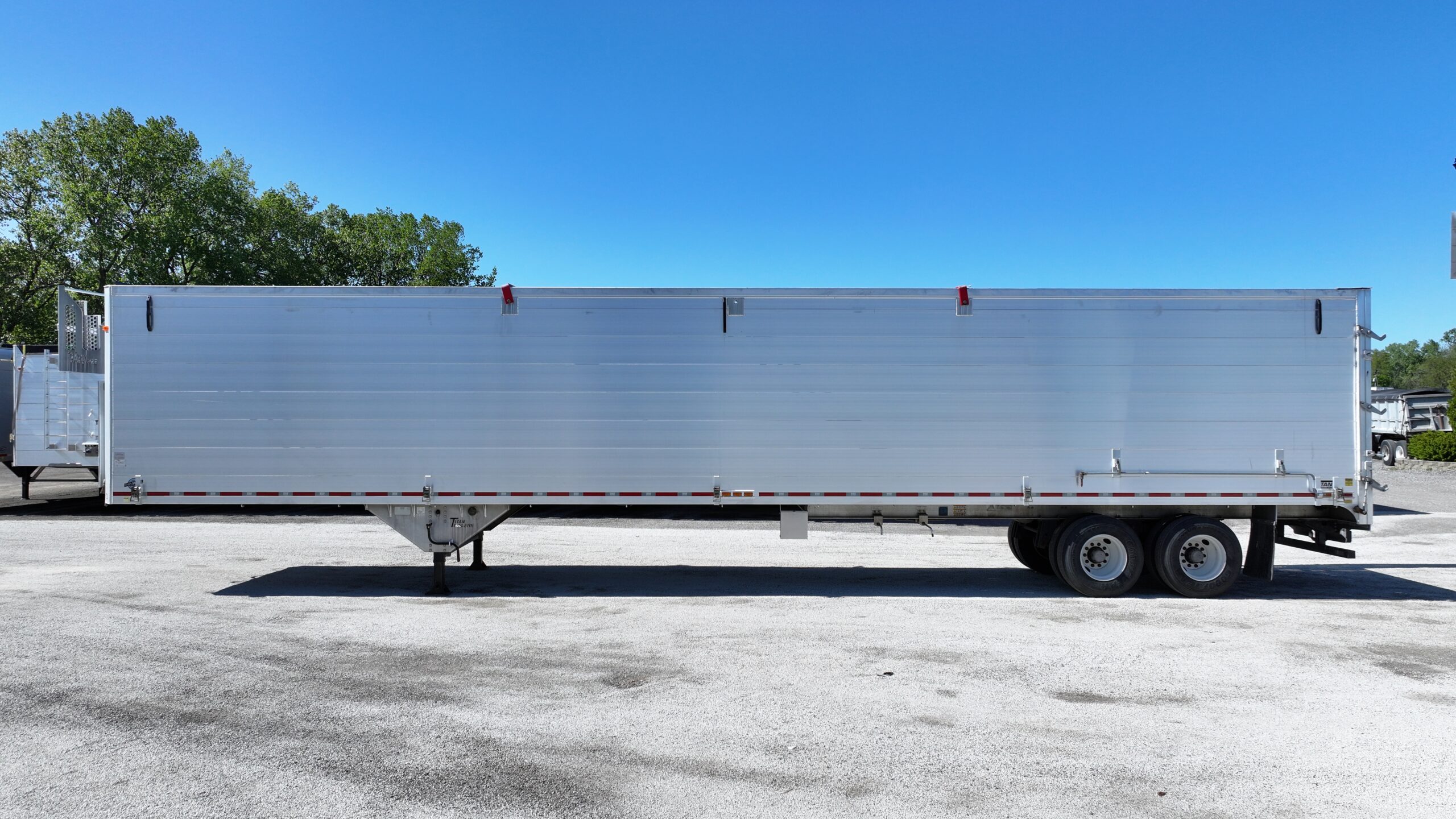

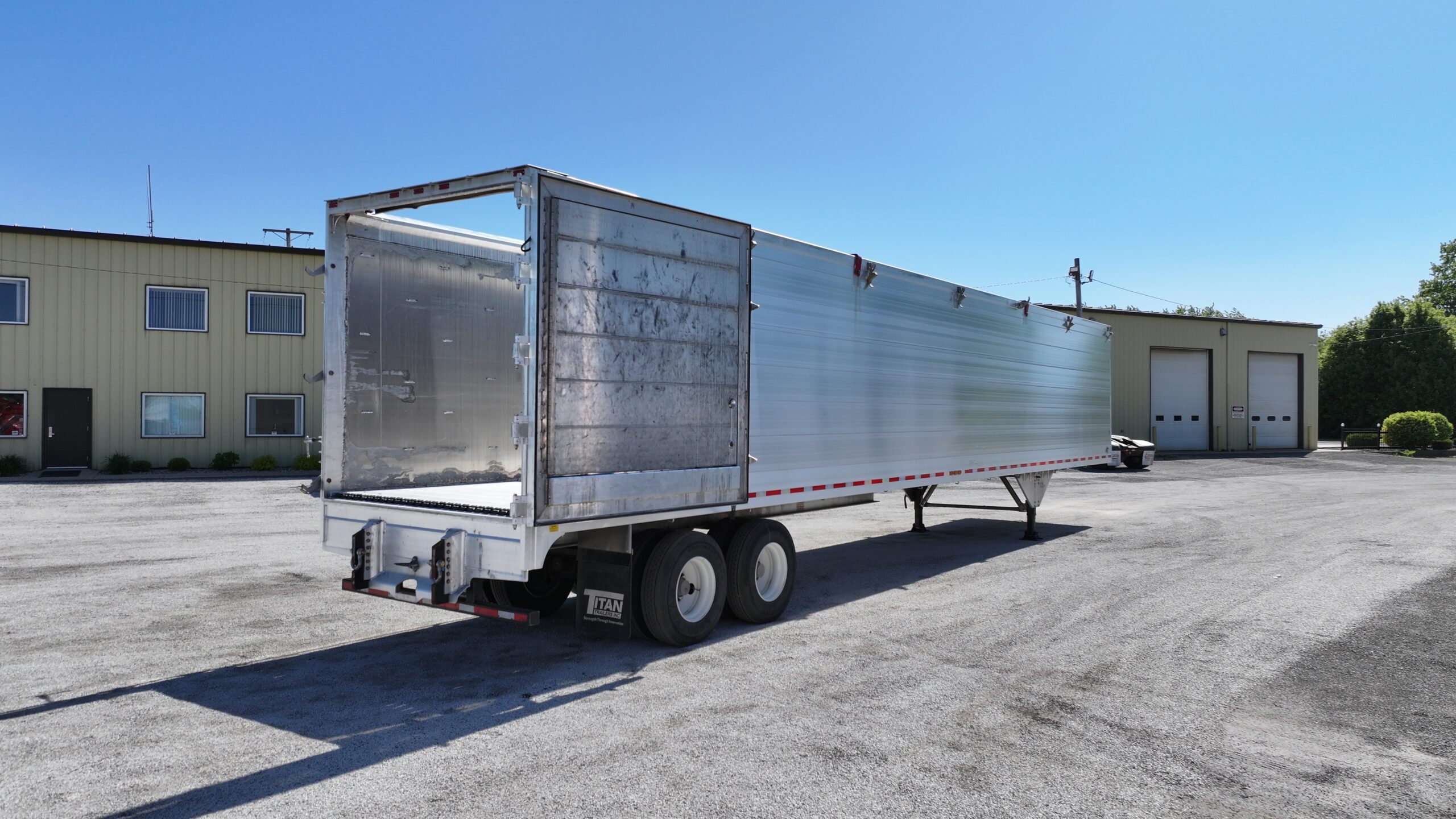

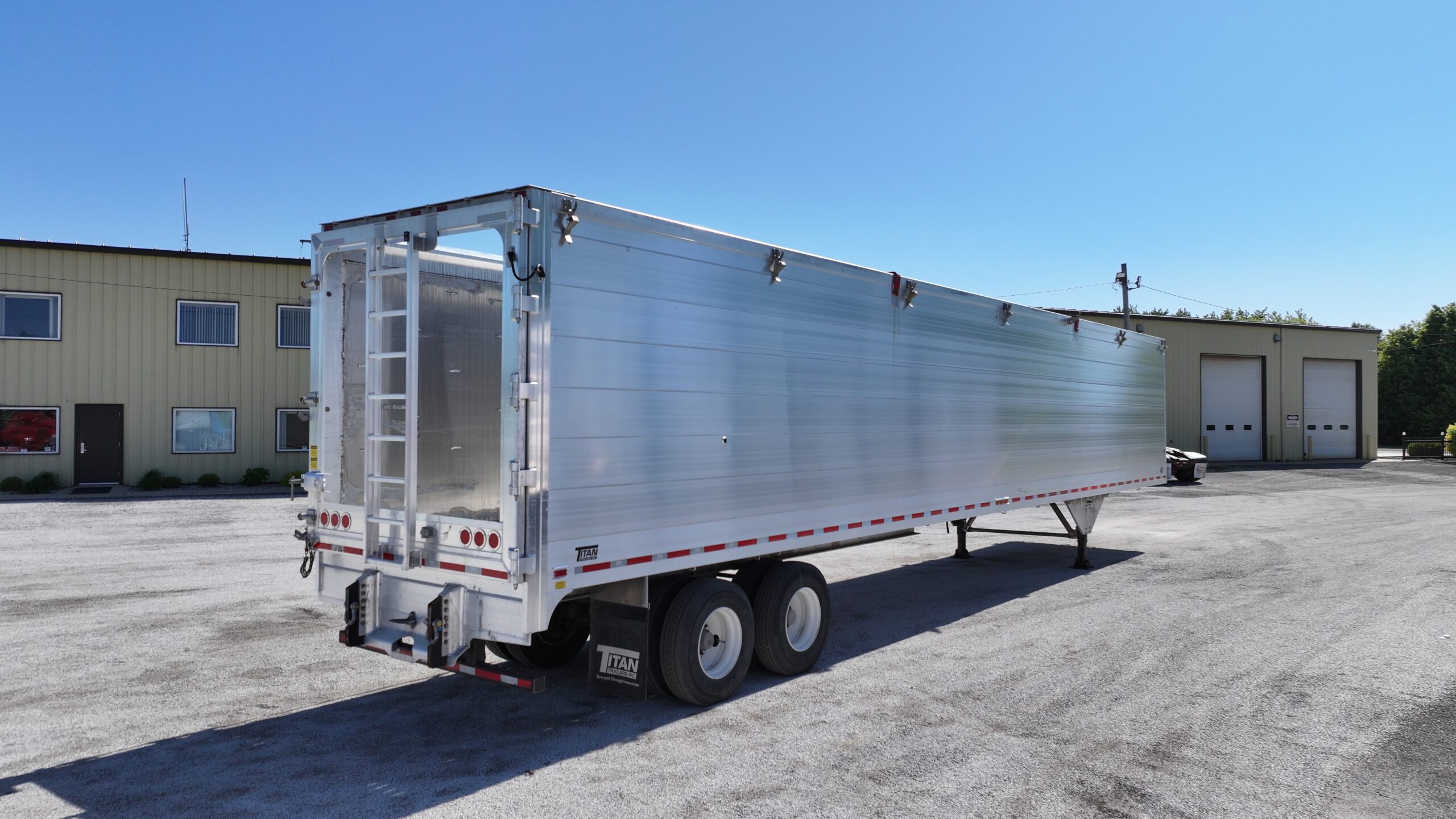

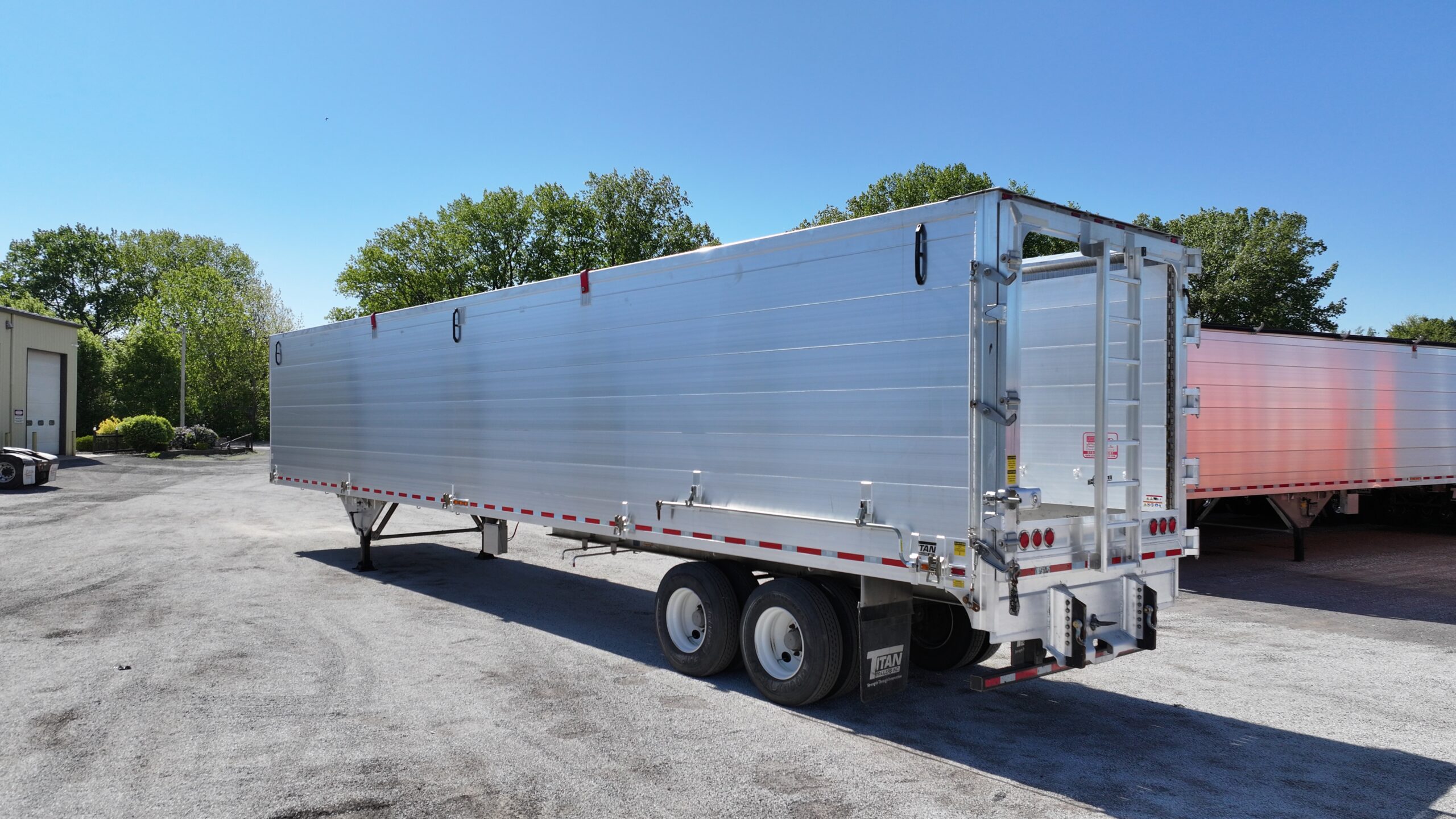

USED 2024 TITAN 53′ 2 AXLE WALKING FLOOR TRAILER
Customer application Garbage – 3.5” Drive
Base model 53-2-TW-WF – Open Top
Style Straight
Wall configuration
Front To Suit Garbage Application
Sides 7-14” +1-6” to suit garbage application

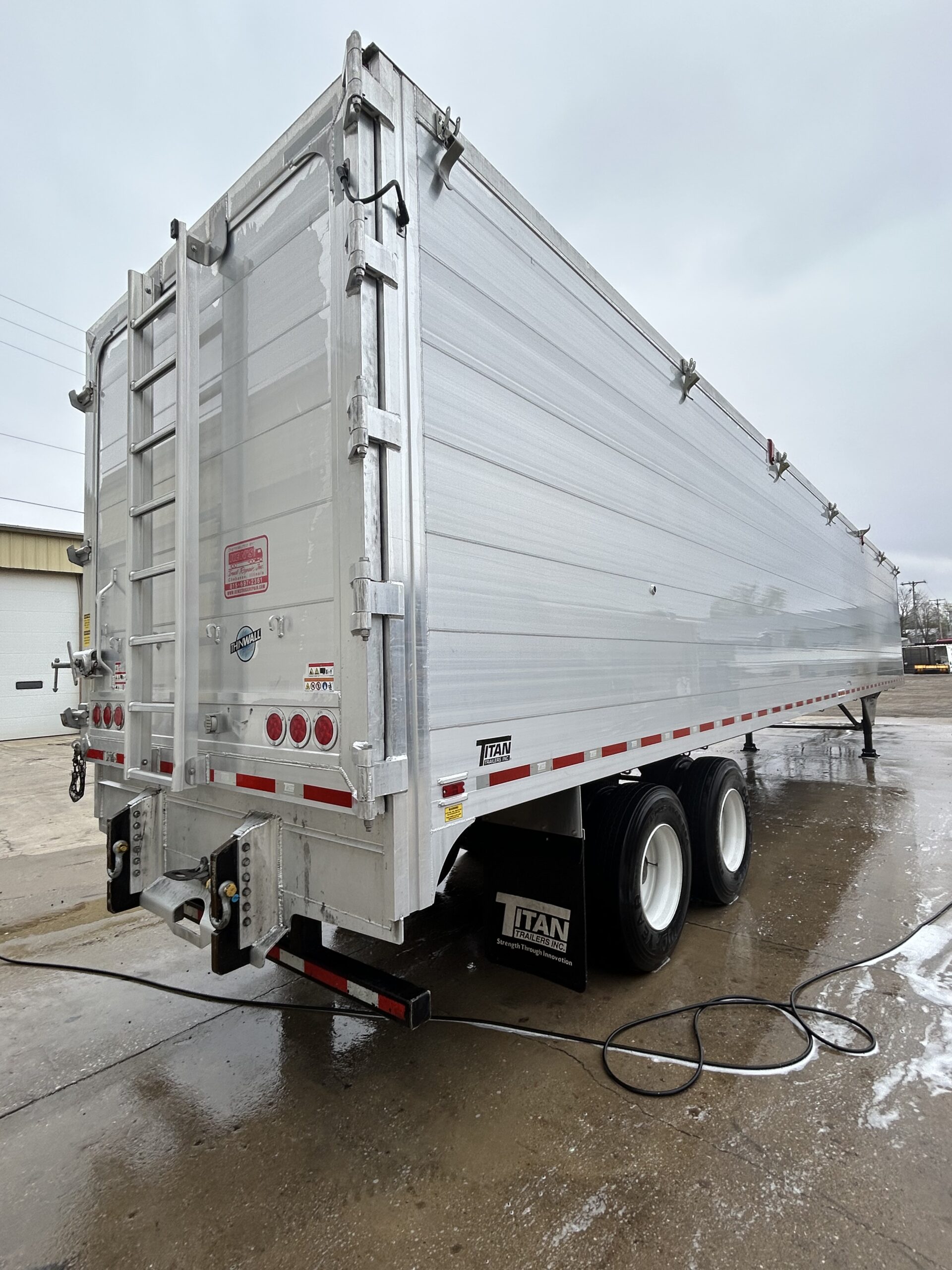

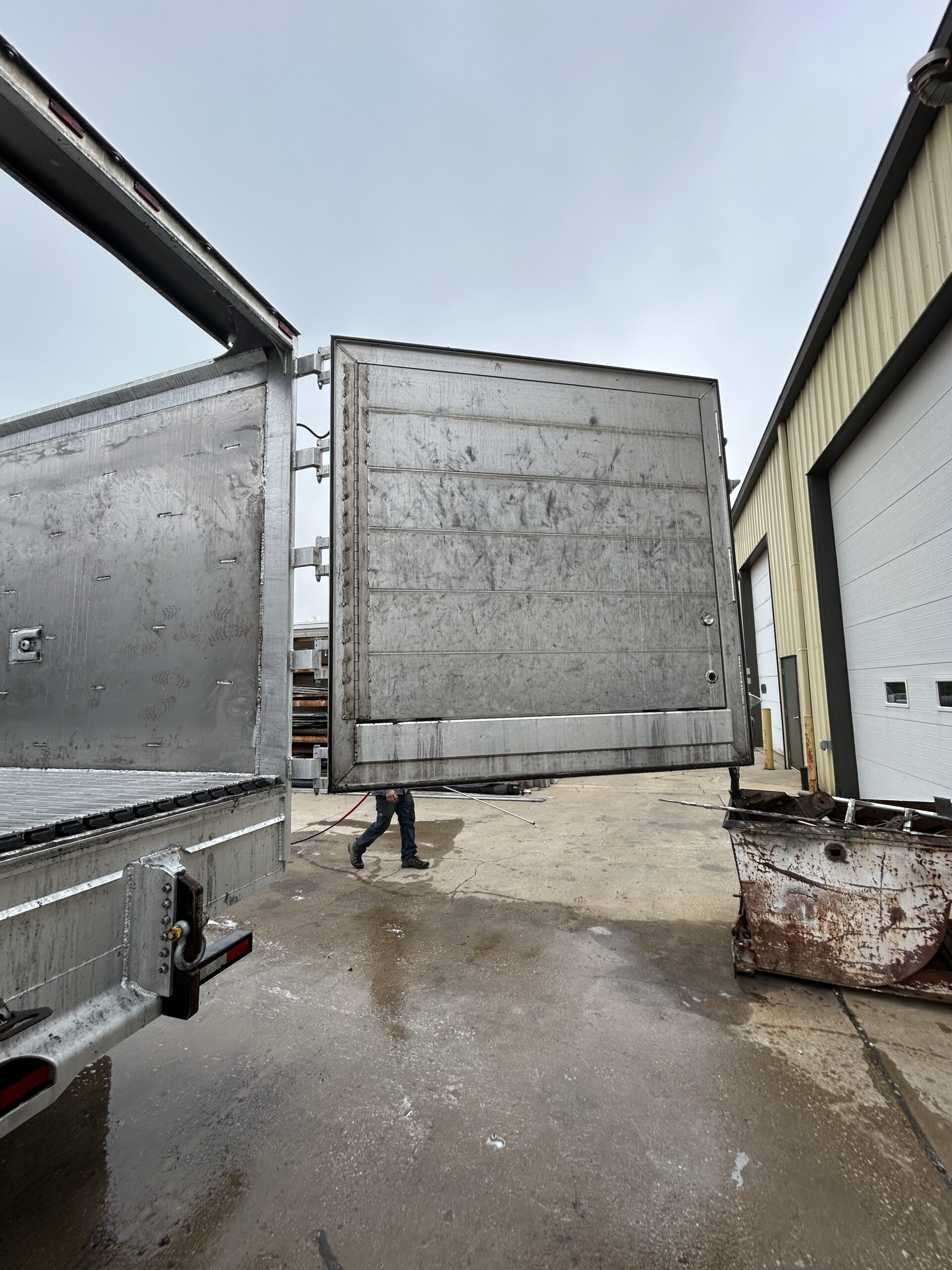

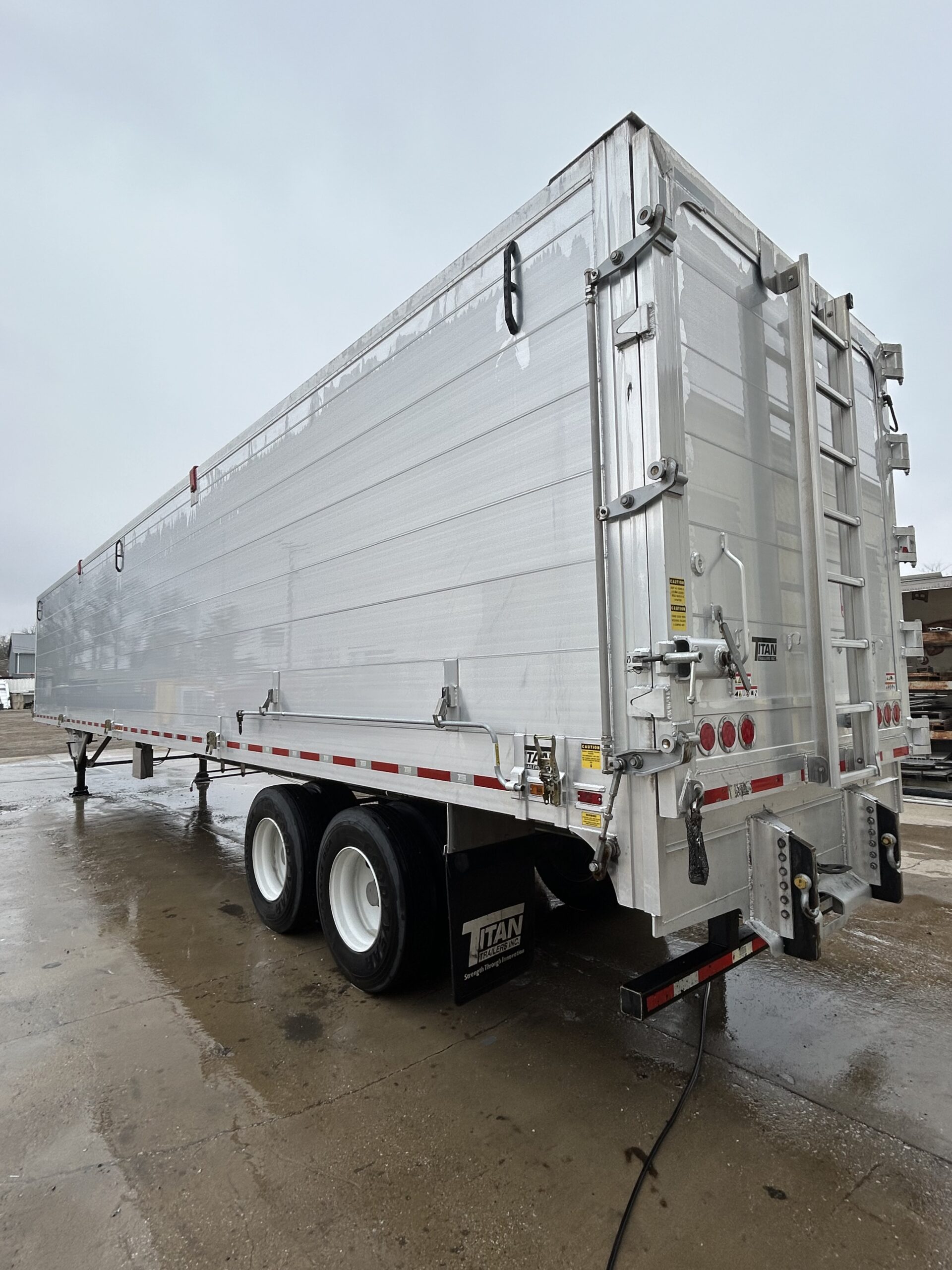

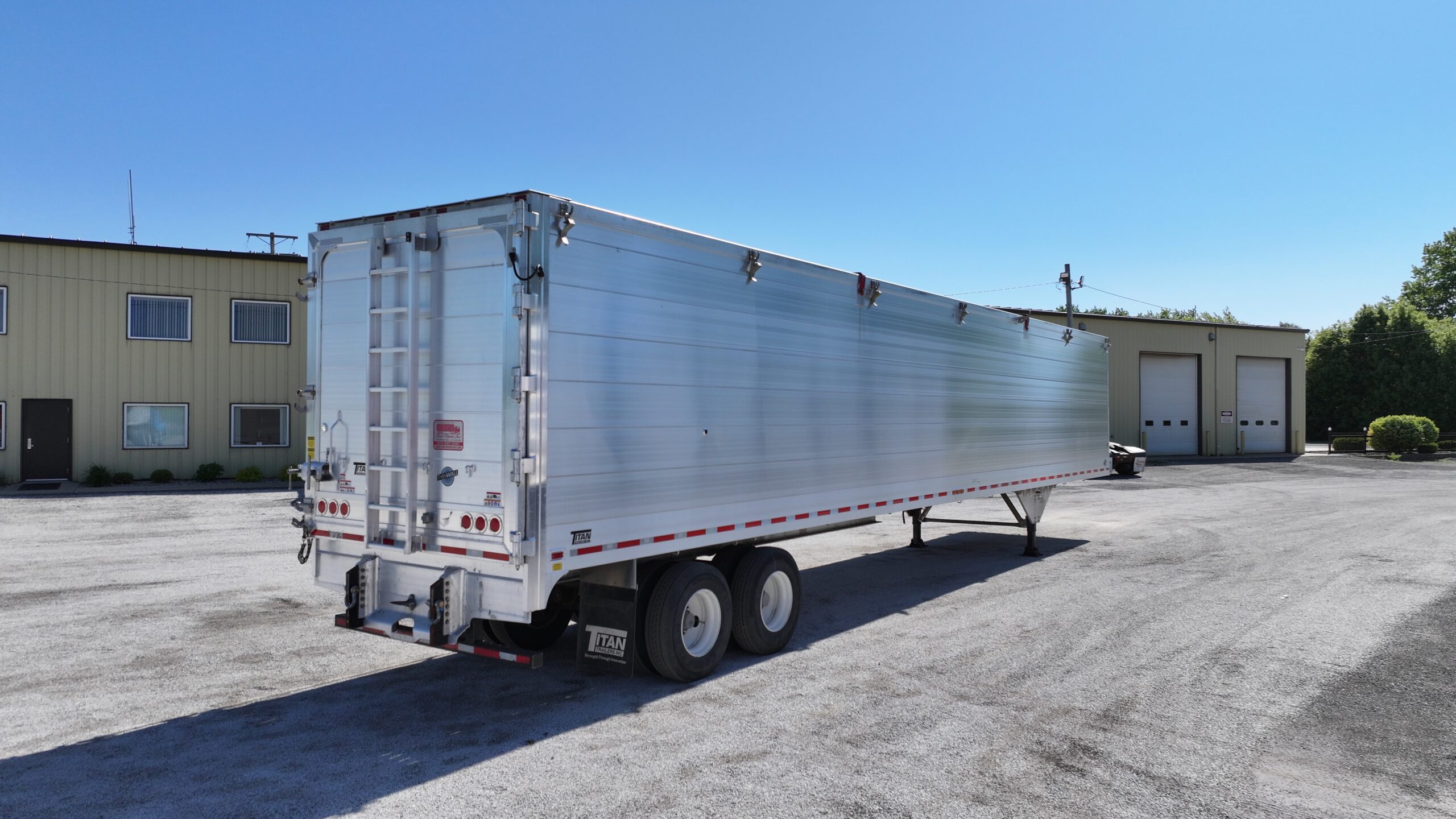

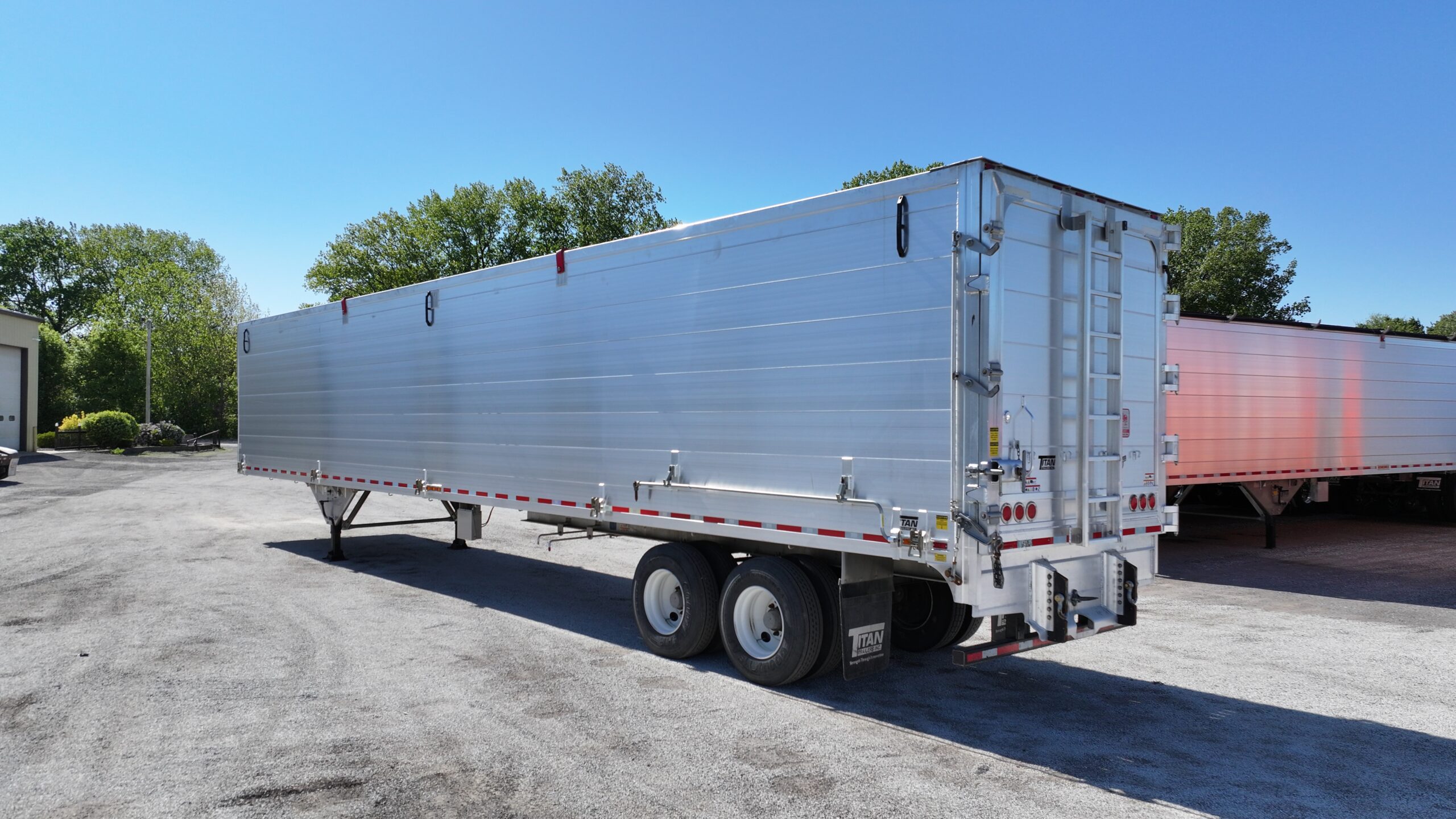

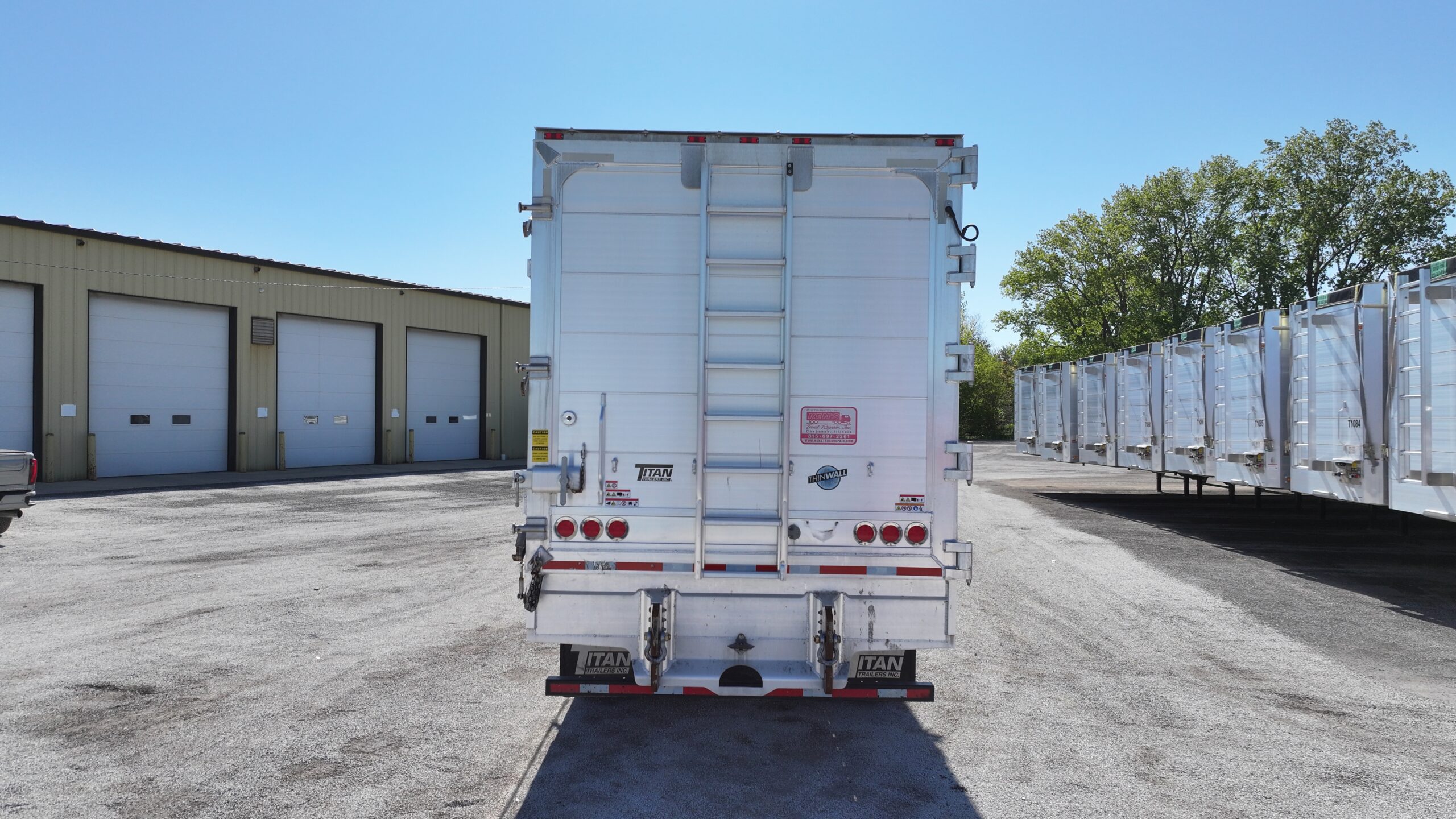

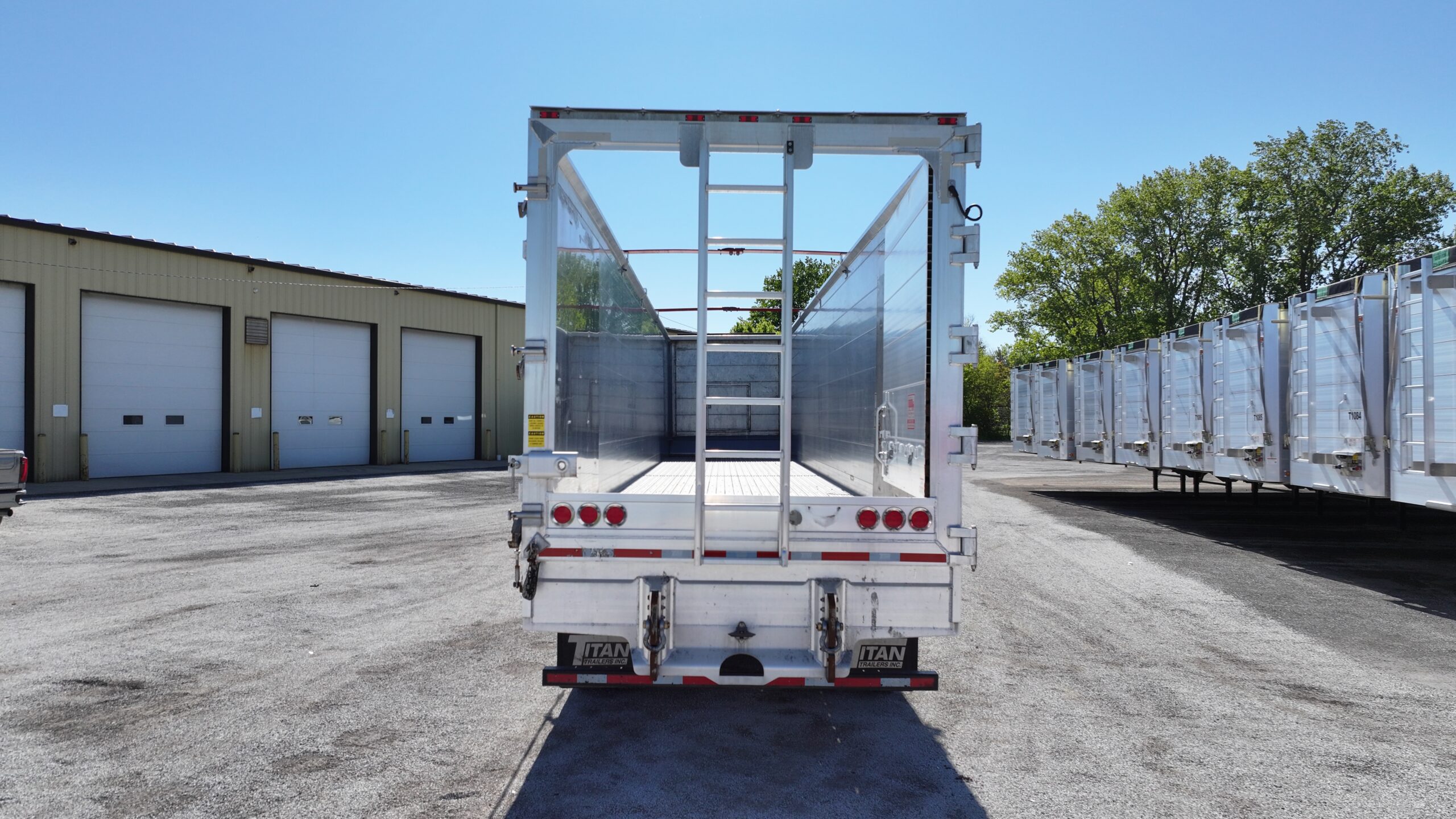

Rear Door Side Swing, Door in Door, Lights in Door, Air Release w/ Reinforced lock finger – See Note # 5,7,&8
Overall length 53ft
Overall width 102” Nominal
Overall height 13’ 1 1/2” approx
King pin location 36” WELD IN
Upper coupler 5/16” THK Steel – Set at 48” high

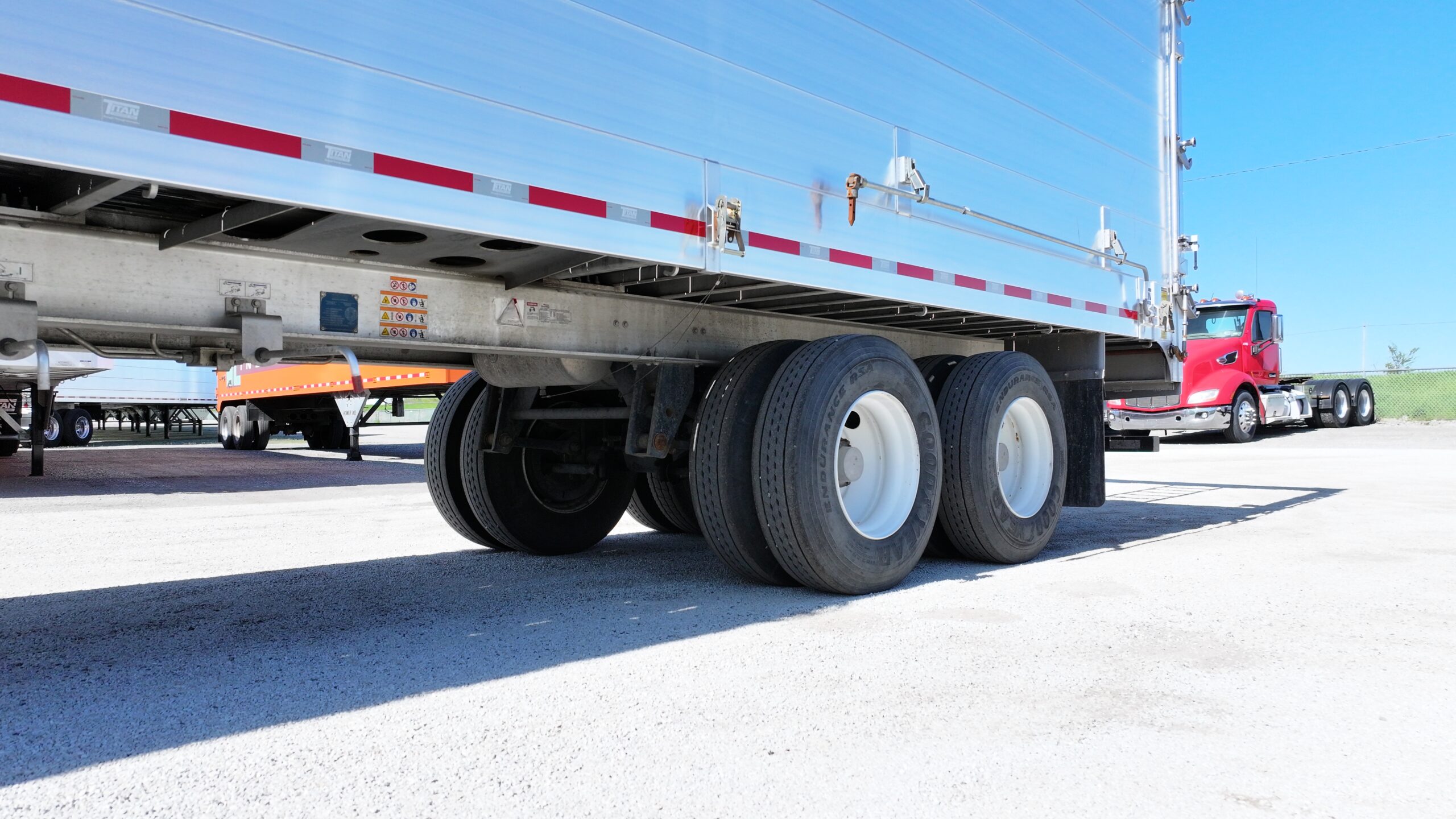

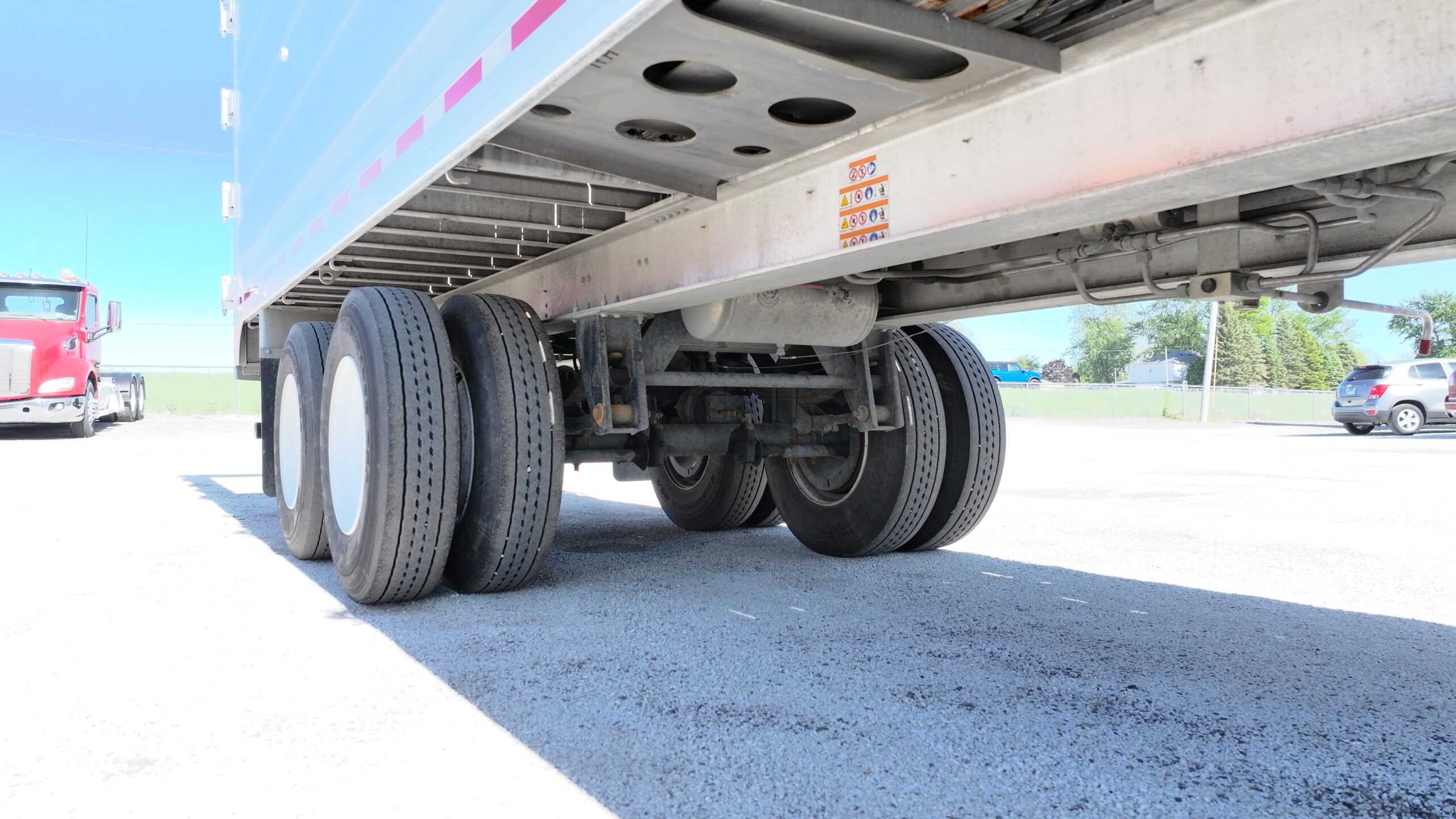

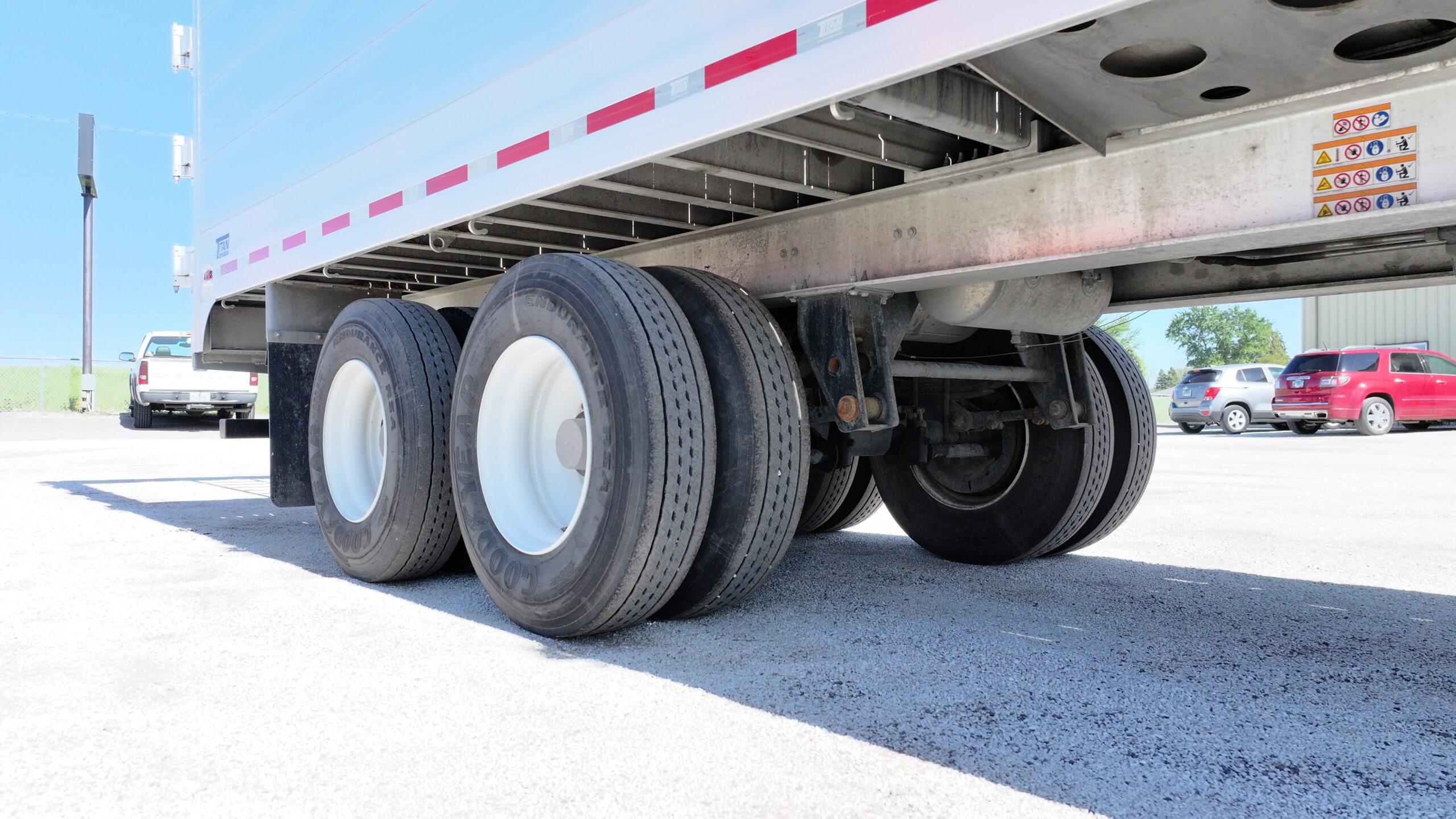

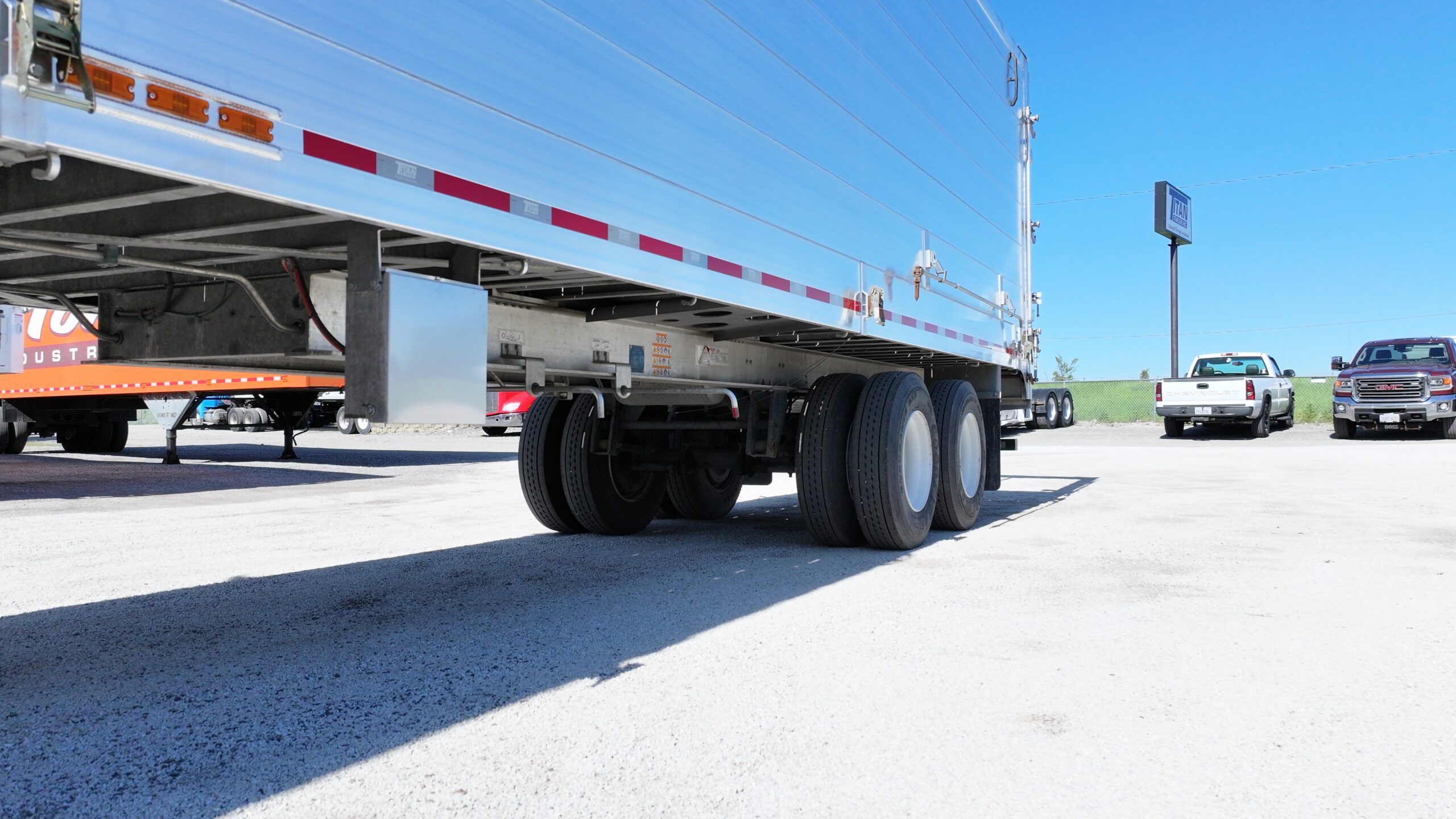

Number of Axles Primary Two (2)
Axles 5” Round .580 – Straight Spindle
Axle track 77”
Suspension Reyco 21B w/inner wear pads & 3 leaf springs
Location of spreads See axle layout

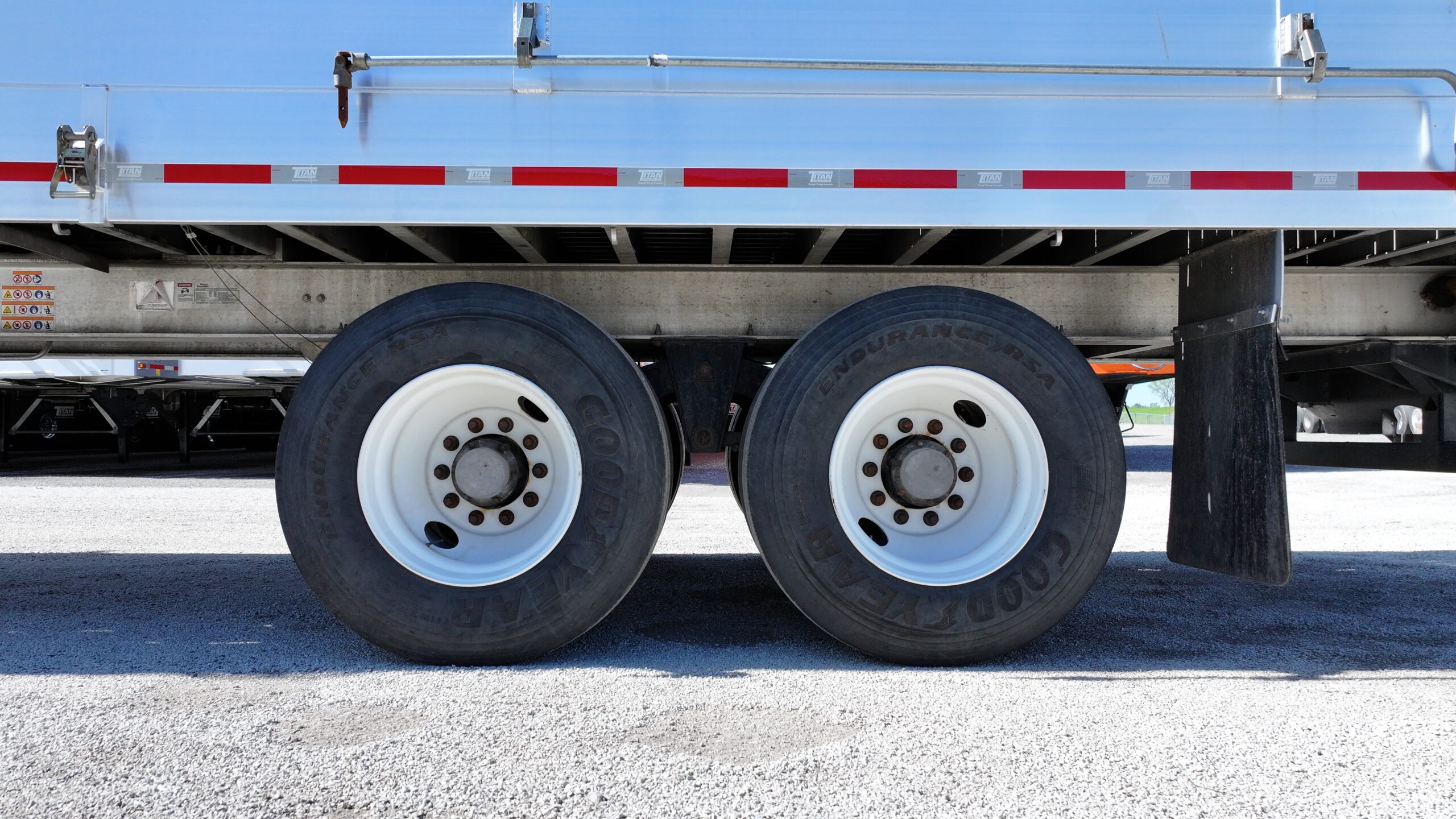

Hub/drum assembly 10 Stud Duralite – Hub Pilot/Centrifuse Drum
Disc wheel size 8.25 x 22.5
Rims Steel – std duty – Prepainted White

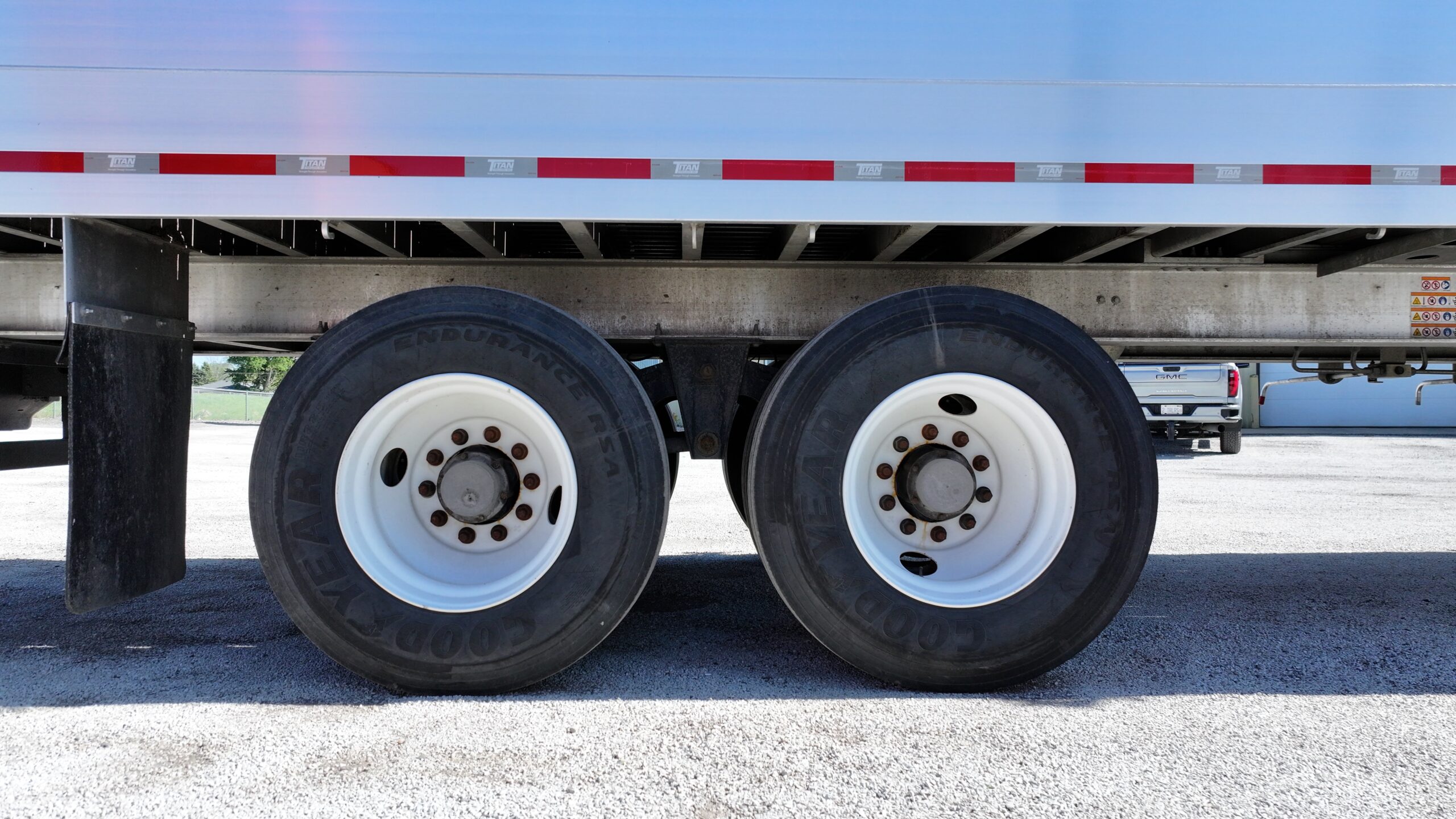

Tires Brand Goodyear
Size 11R22.5 – 41.9 dia
Tread Endurance RSA
Ply 16
Quantity 8
Axle layout FRONT – Prim -50 – Prim – 84 – REAR
Oil seals To suit axles
Lubricants Semi Fluid Grease – SHC007
Brakes ABS 2S/1M Meritor Wabco
Slack adj. Meritor Auto
Cam Enclos All Axles – c/w Dust Shields
Lift kits None
Lift controls None
Frame width 48”
Rear bumper Aluminum, offset, push w/ underride
Option #1 Tow shackles
Option #2 Steel vertical blocks -protrudes 3 ½” sloped top bolted to bumper
Tire carrier None
Landing gear Holland Mark 5 – Standard Skid Foot – See Note #1
Top rail Titan Tapered, V1
Top cross tube Qty 2 – Spring Steel (two piece style) – See Note #3
Floor crossmembers 12” Centers with cross bracing

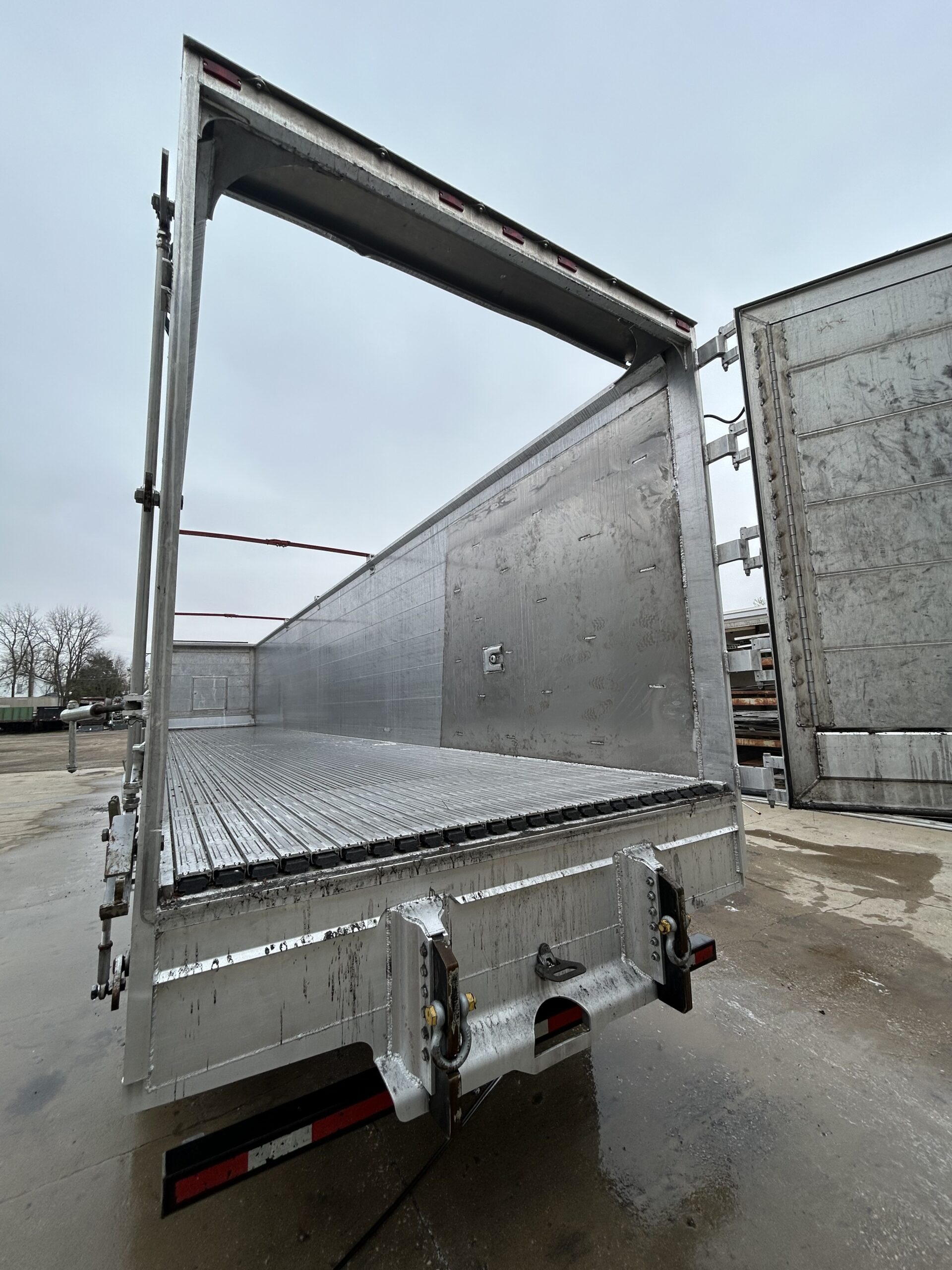

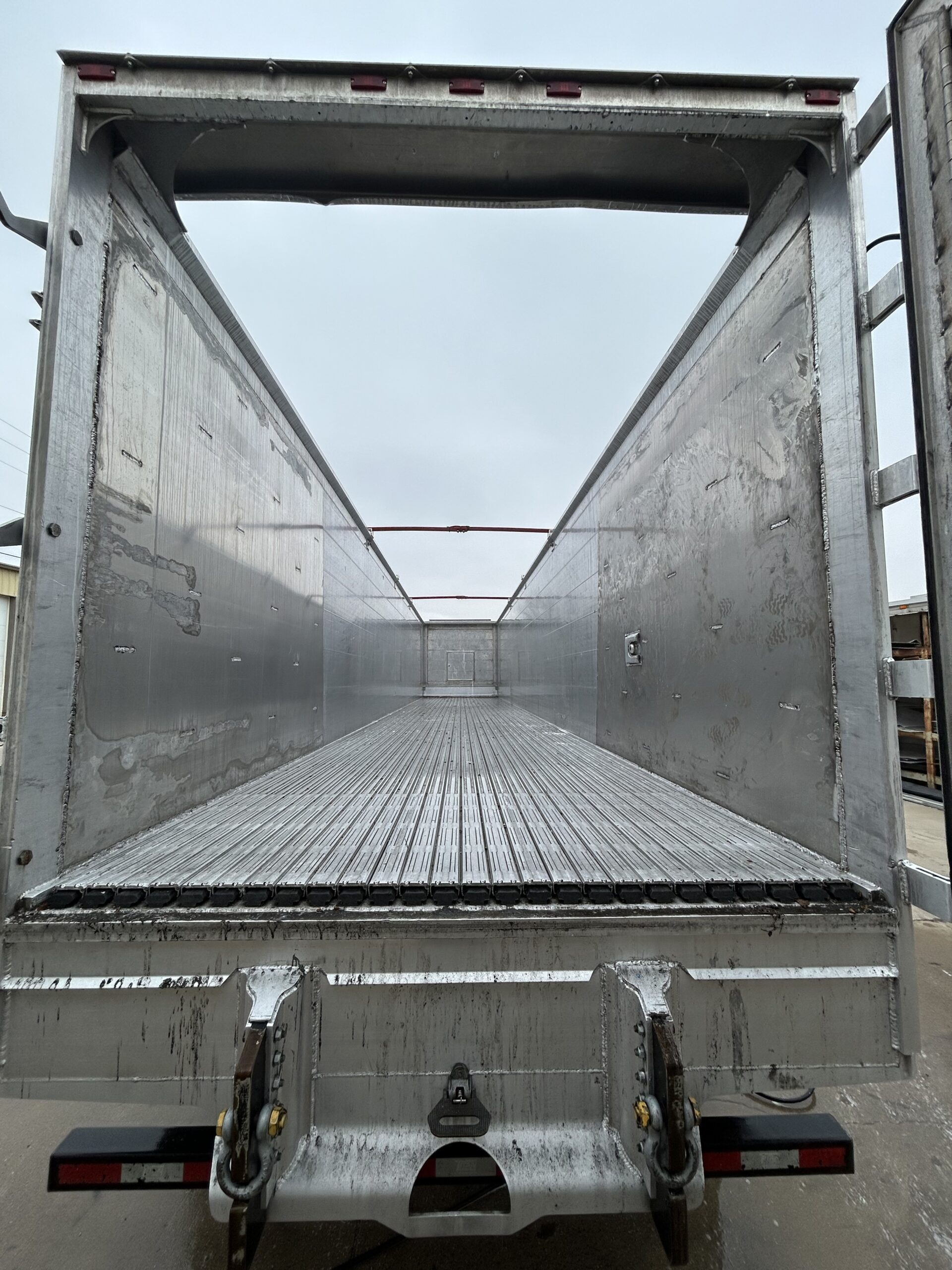

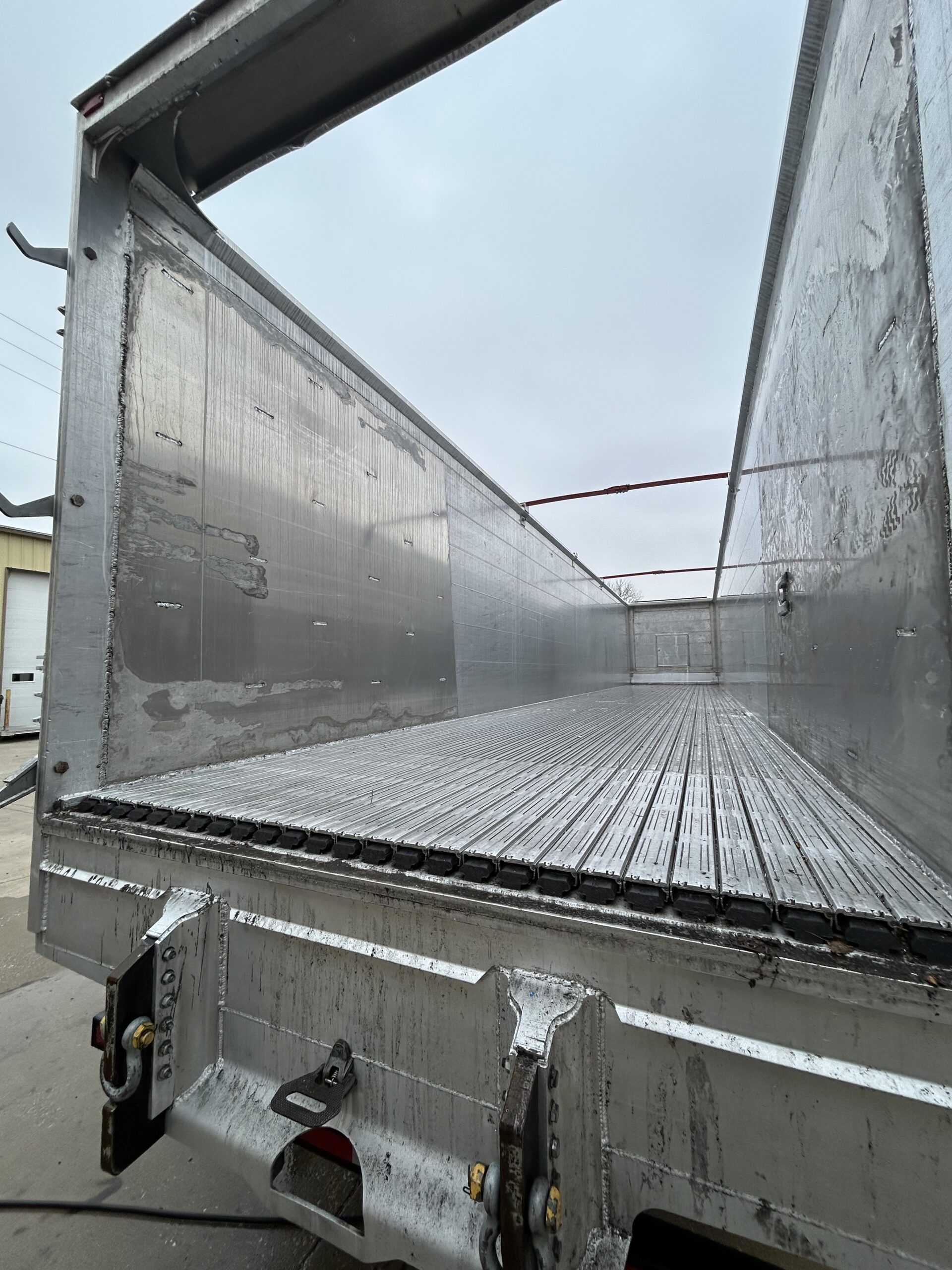

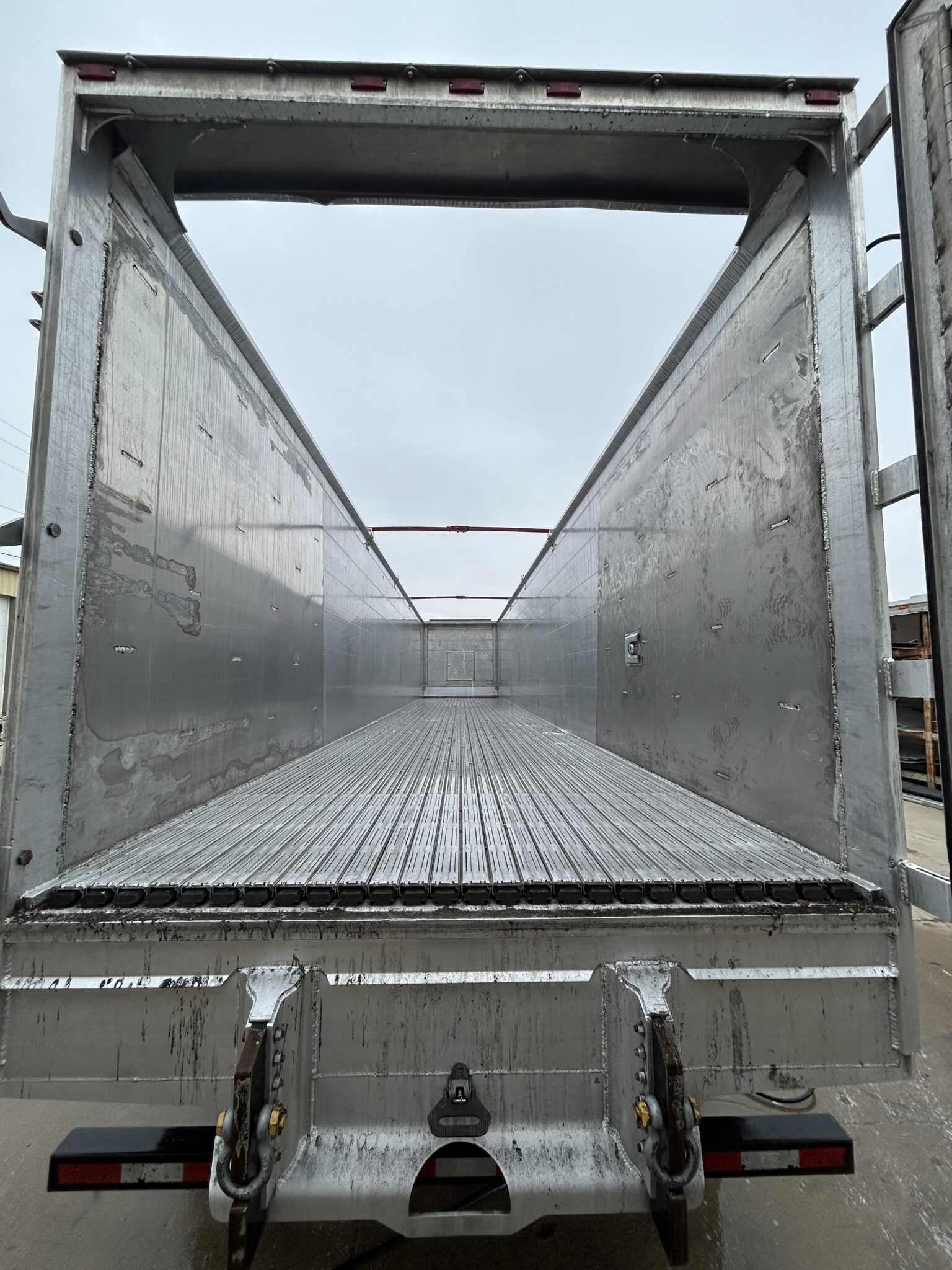

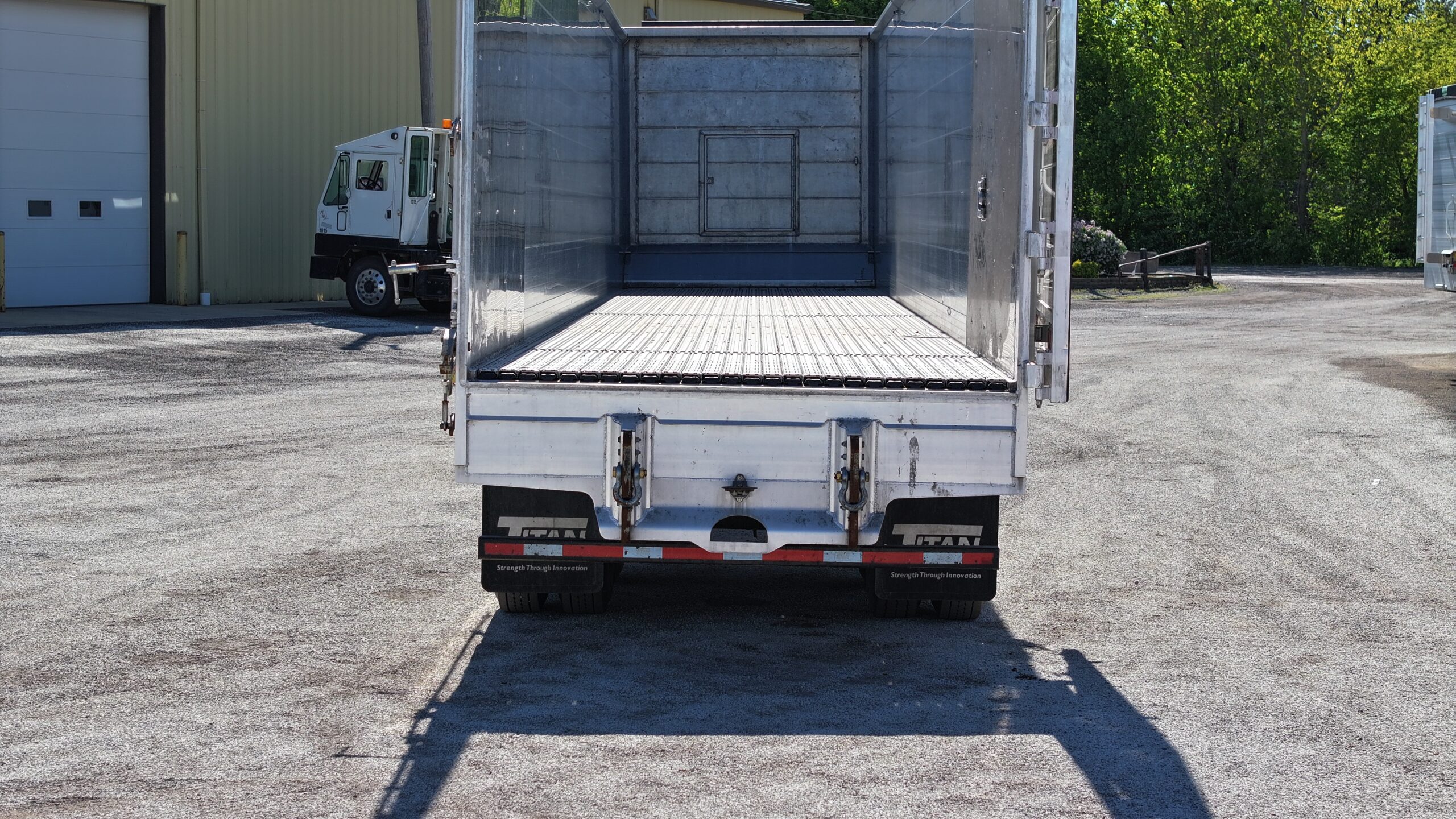

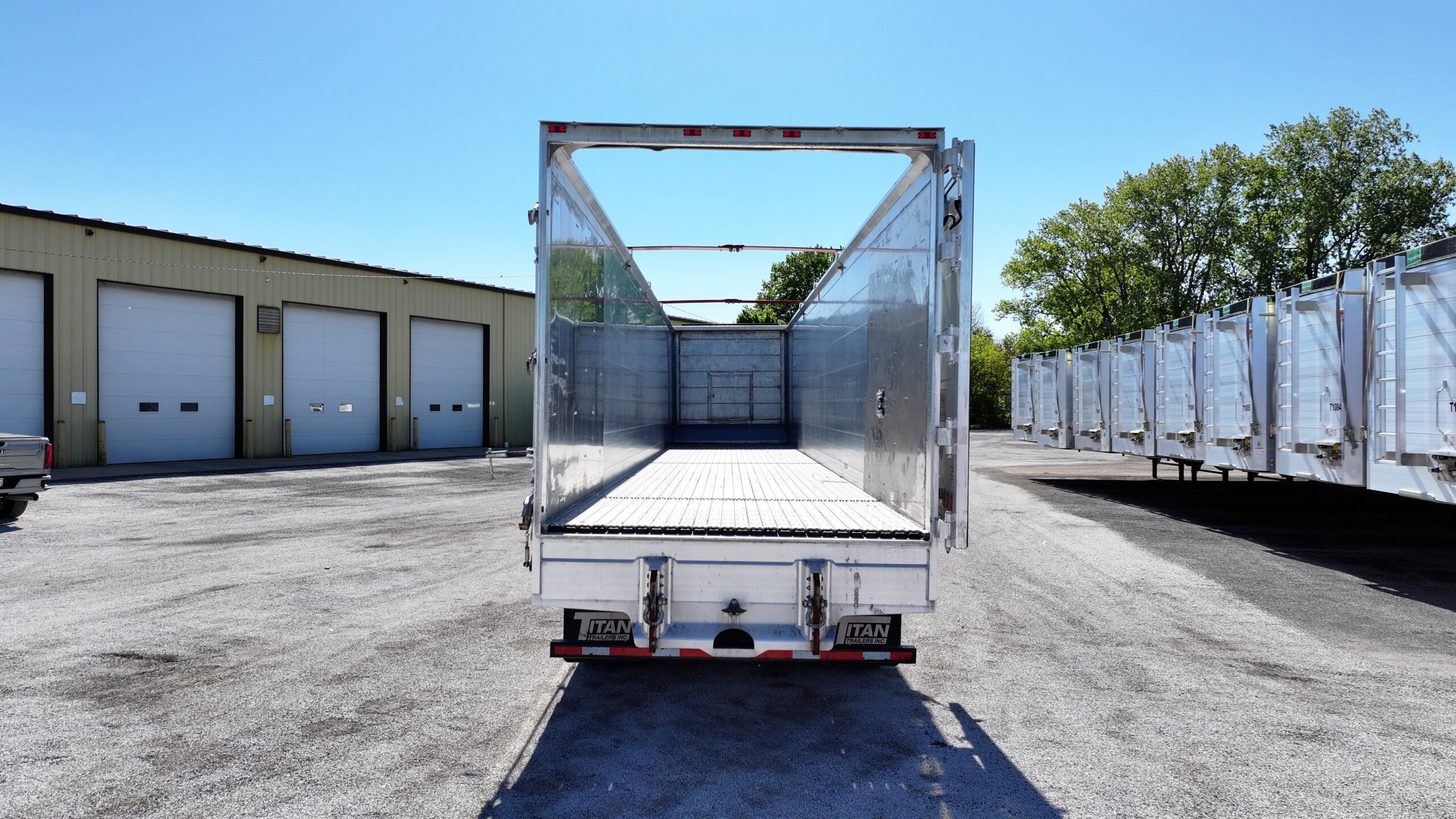

Keith walking floor kit Running floor II – 3.5” Dia Cylinders – 10” stroke
Slat model & width 2299 (1914 C.W.S.) 3 ½” T-blocks rear, 1212 seals, T-Blocks Rear
Slat wear strips 4’ Keith Style wear Strips at rear
Continuous bearing Continuous Splash/Hold Down Bearings
Side wall wear plates Boomerang style

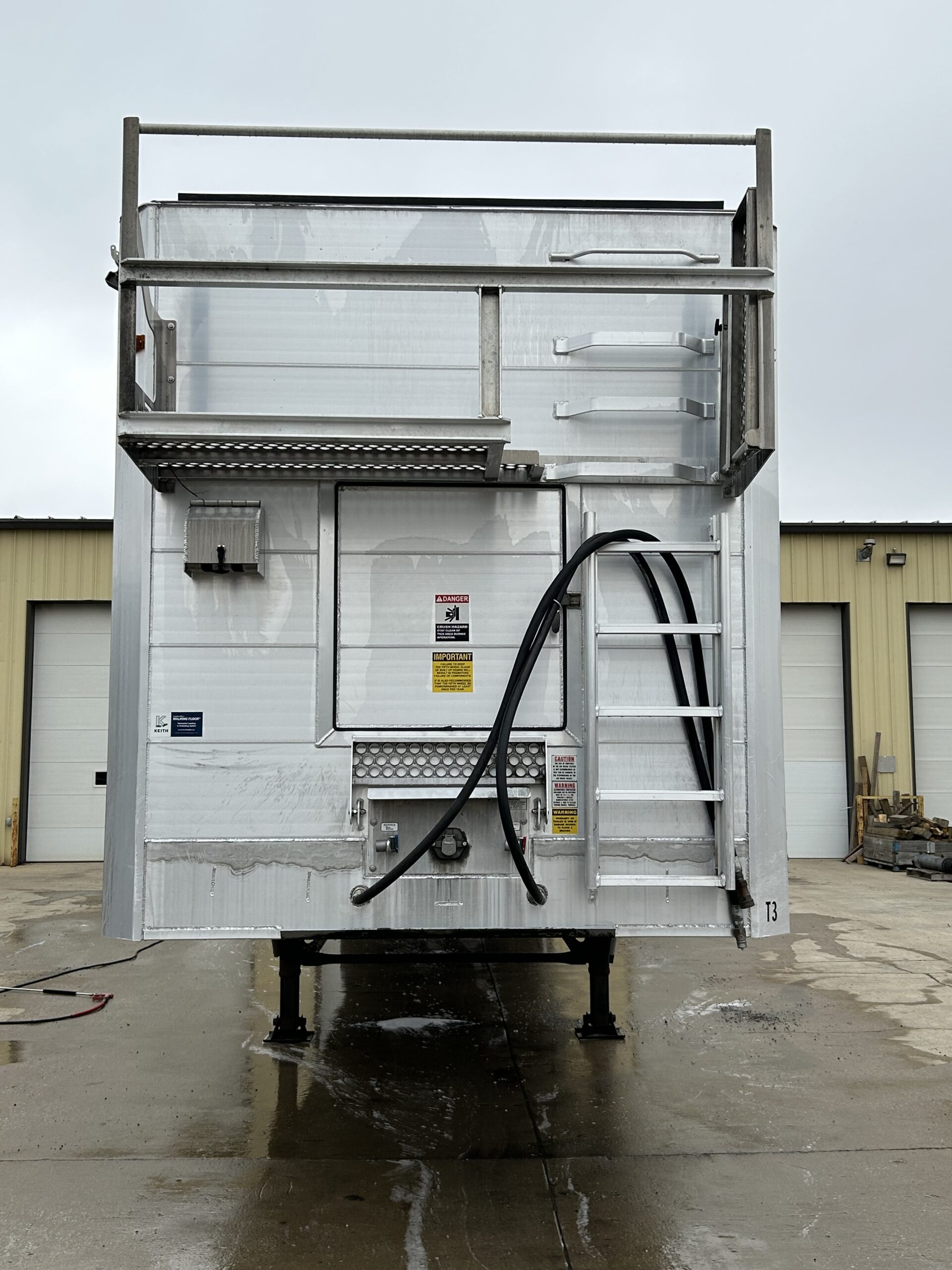

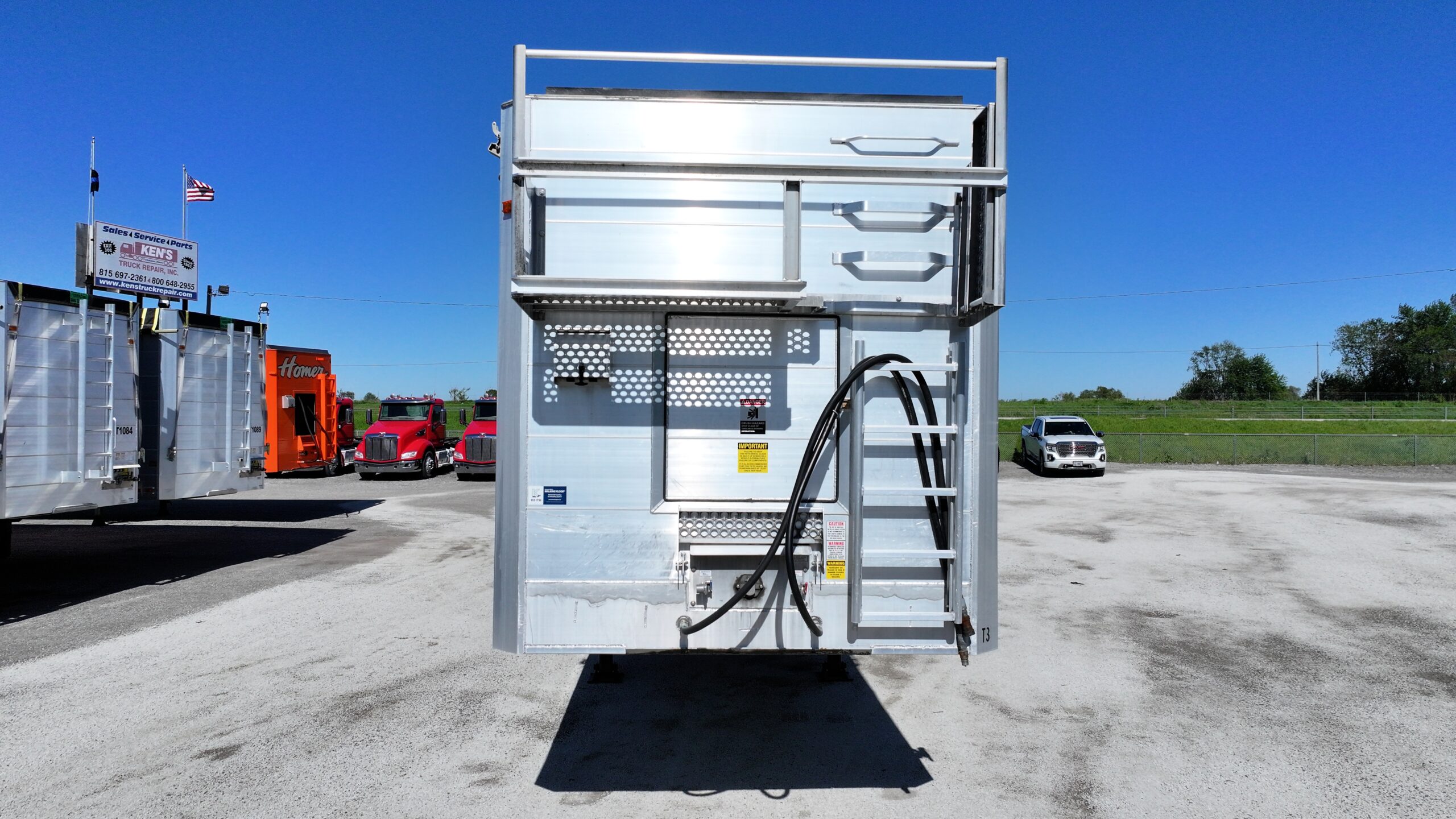

Front access door STD 35w x 37.5h Sealed – Curbside Hinge with flip step over air & electrical
Tarp style None
Tarp header None
Tarp basket None
Tarp hooks Tarp hooks on 48” o/c with 4 hooks on rear door
Axle fender None
Hyd fitting Pressure 1” Quick Coupler – Male – See Note #2
Return 1” Quick Coupler – Female – See Note #2

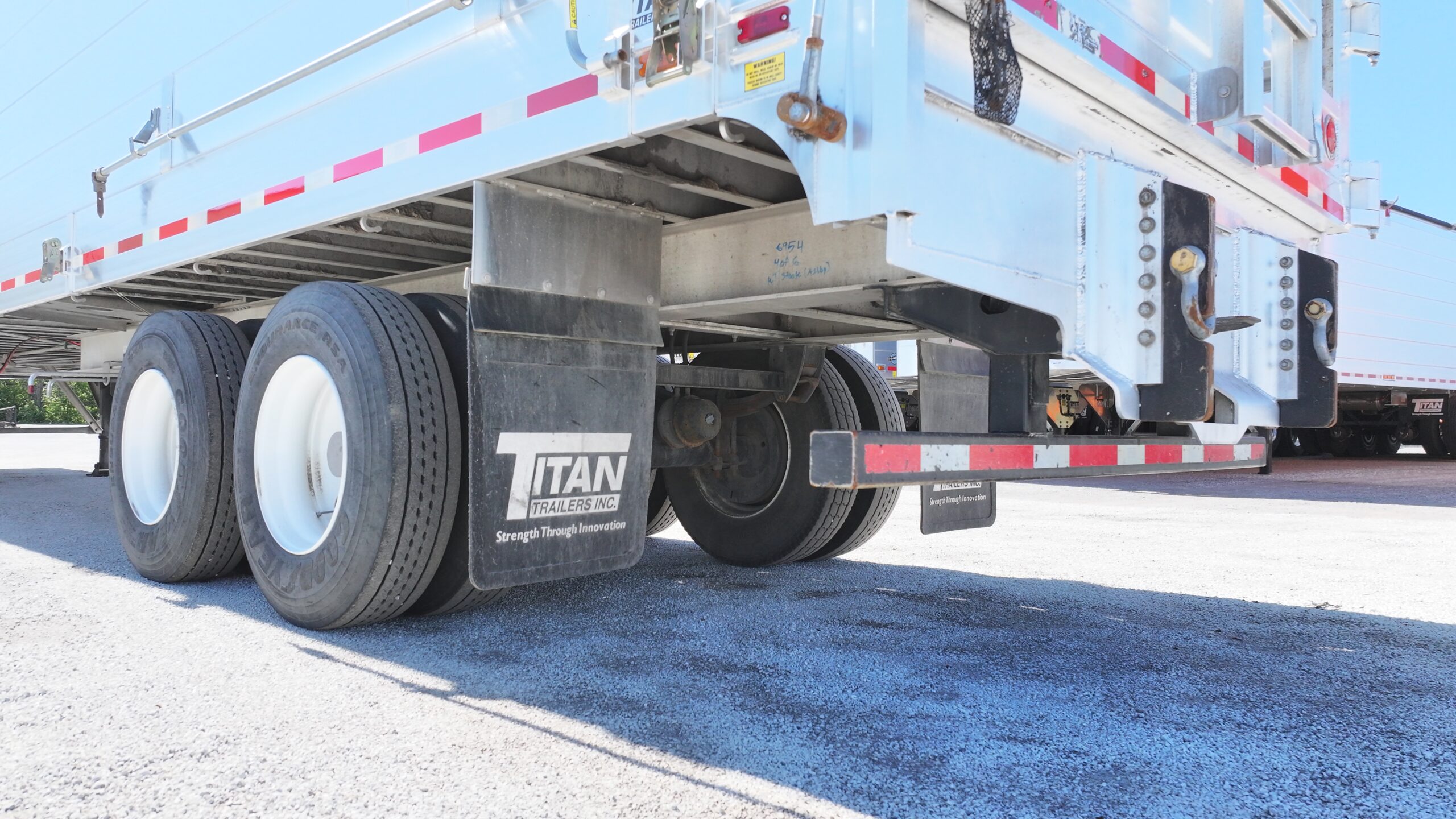

Mud flaps Style Titan black rubber
Location Behind Primaries not at rear
Mud flap – Landing gear None
Paint Body – color Natural aluminum
Run – gear Titan black
Hub / drum Same as running gear
Rims or Disc Prepainted White
Light package 3 markers per side (includes corner mitre, & midturn) At Rear: 3 per side, 4” dia in door, & 5 rect. Clearance at top
Option #1 Install Rear Taillights in rear door & license plate in door

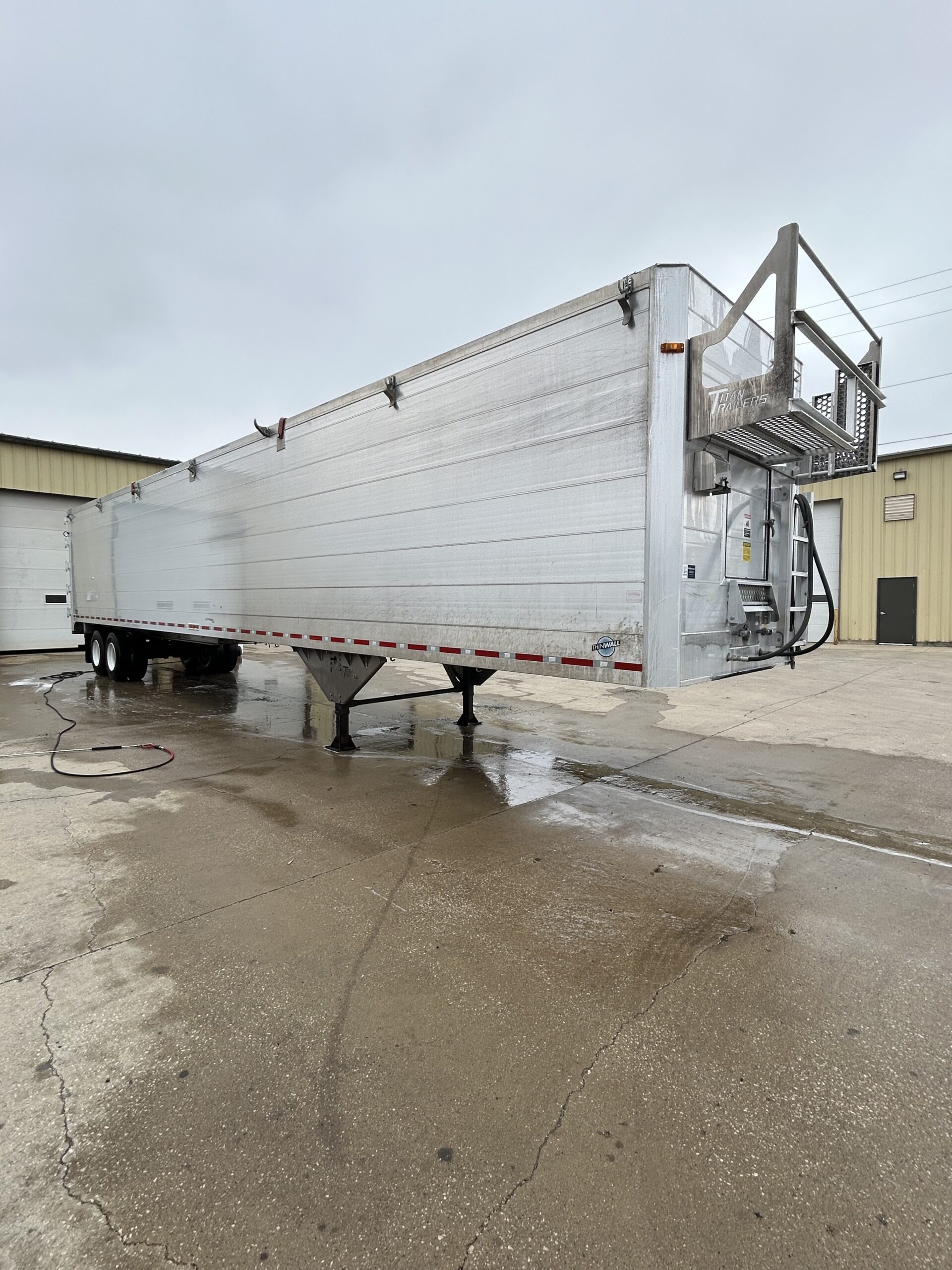

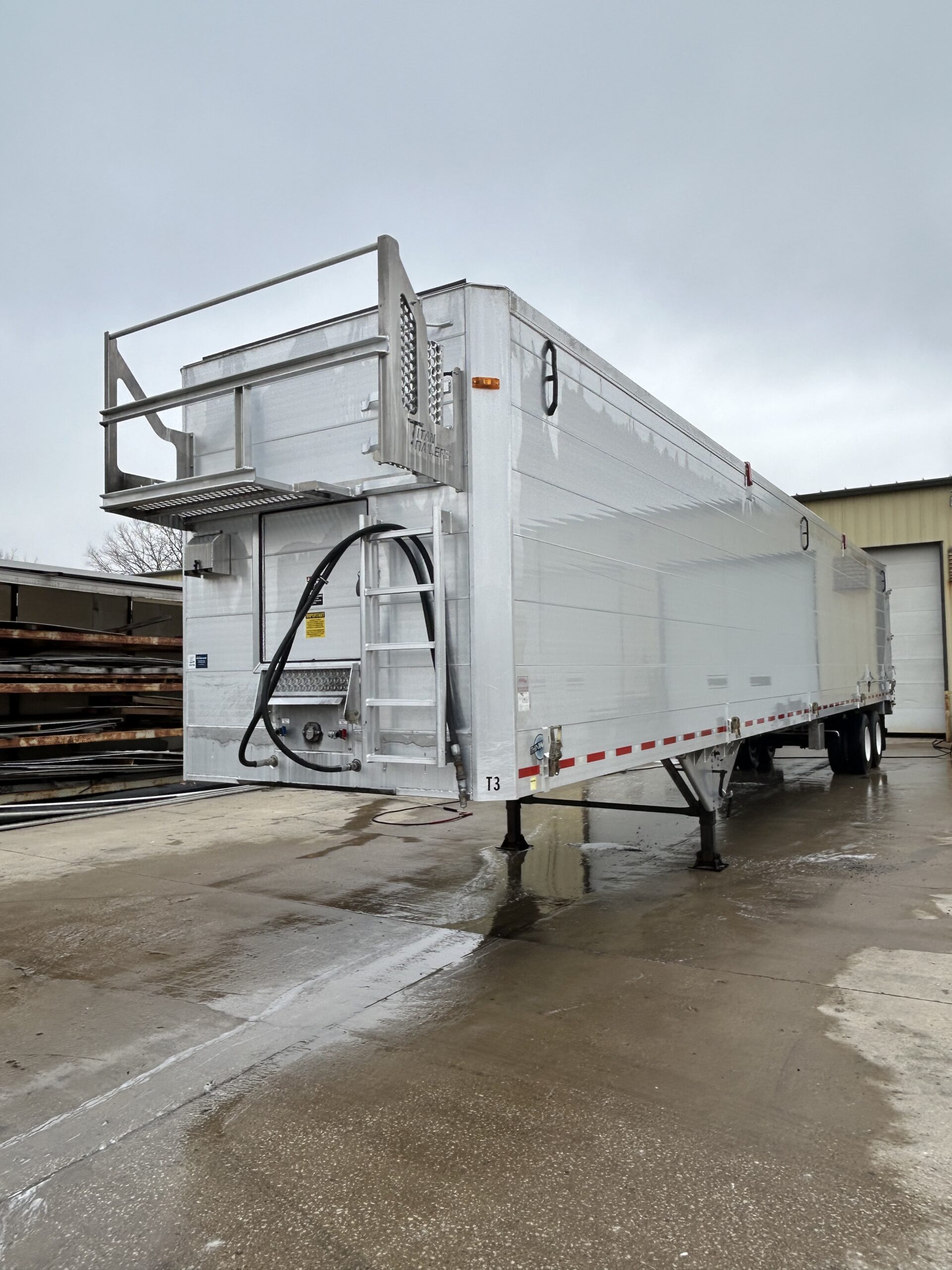

Access Catwalk 24” Catwalk (Roll Rite Style – notched roadside)
J-Ladder Frt Roadside to Catwalk -See Note #4

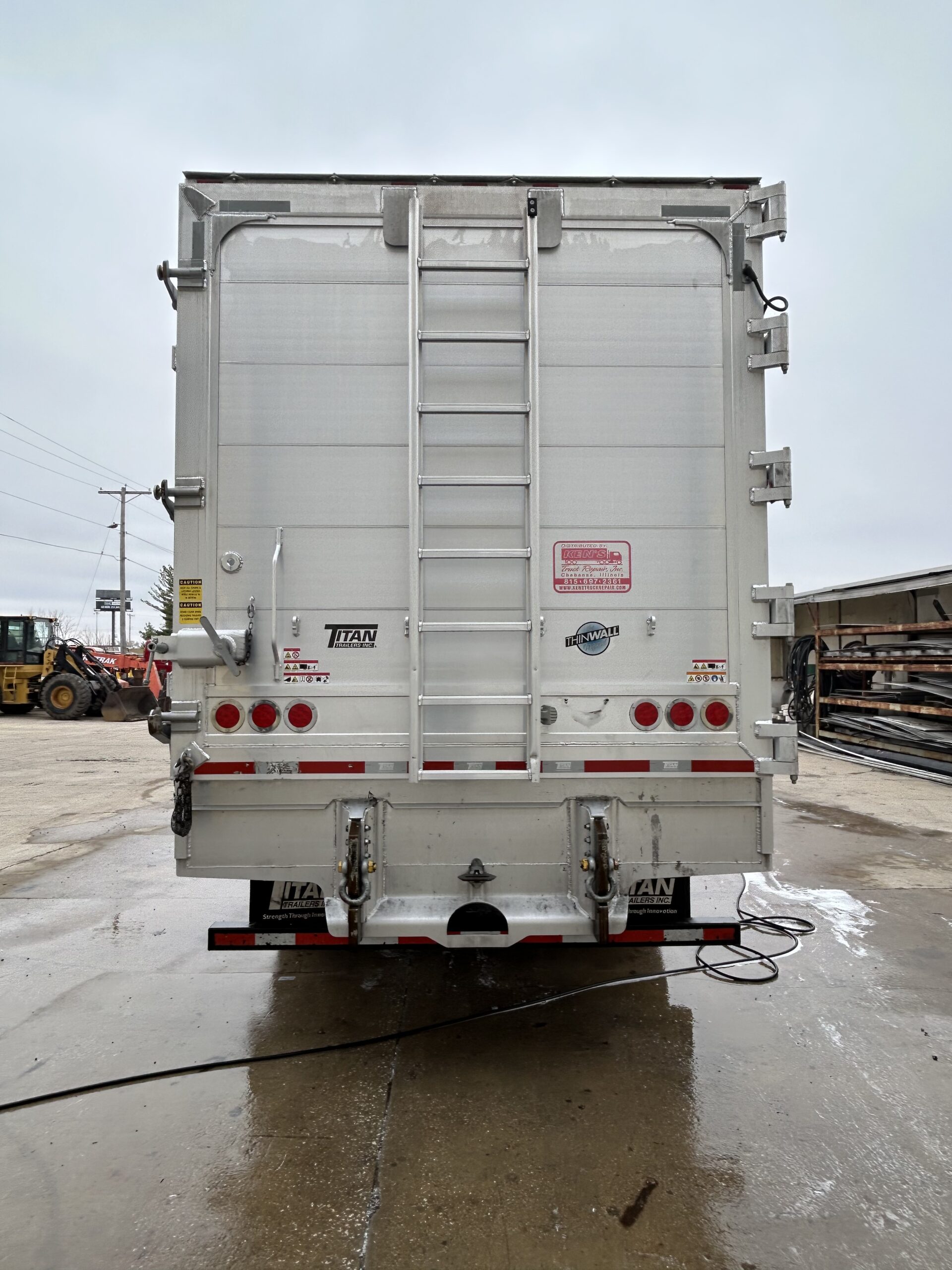

J-Ladder Rear Center of Rear Door
Steps Frt out None
Steps Frt in None
Steps Rear None
Additional specifications:
1) Landing gear will be 36’ 8” approx. from rear of push bumper.
2) a) 108” hoses on frontwall. Attach to bulkhead with union.
b) Add hose hanger bracket
3) Locate spring bars as follows: 17’ from the front & 17’ from the rear.
4) Top step for access ladder on front wall should be 20” down from the top.
5) The air release tailgate controls to be mounted in control box.
6) Invert axles
7) Top door V-guide to be below top lock finger, not above.
8) Tapered door header with 1 pc gusset attached to top side of tapered header. Gusset to suit 10” bolt on tarp header
Estimated weight: 19,599 lbs +/- 3%
Estimated volume: 133 cu yds
Additional work completed at KTR :
– Plate and cap front bottom panel
– Overlays on inside rear of trailer
– Check trailer over
– Install center spring bar plates and angles
