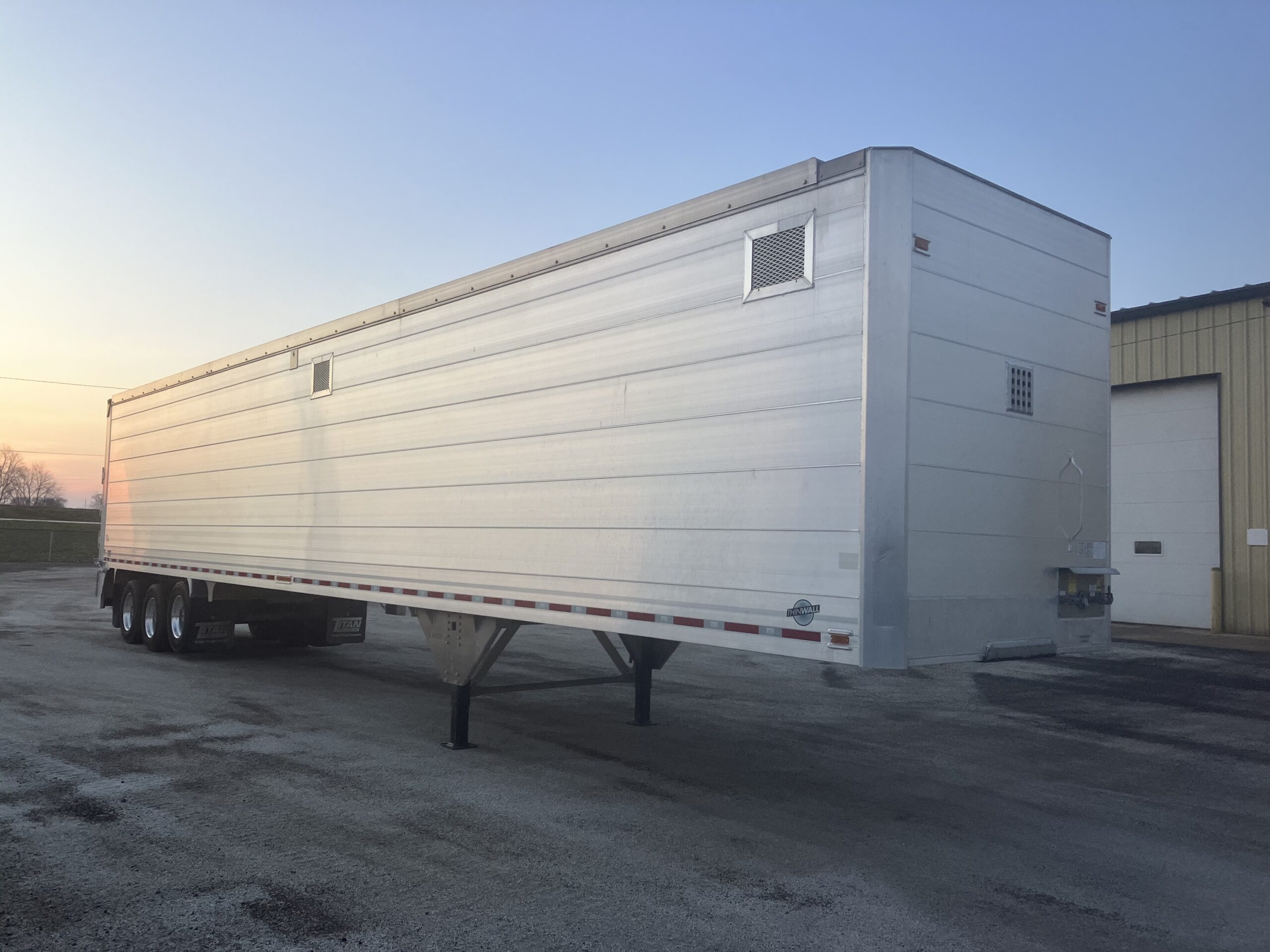

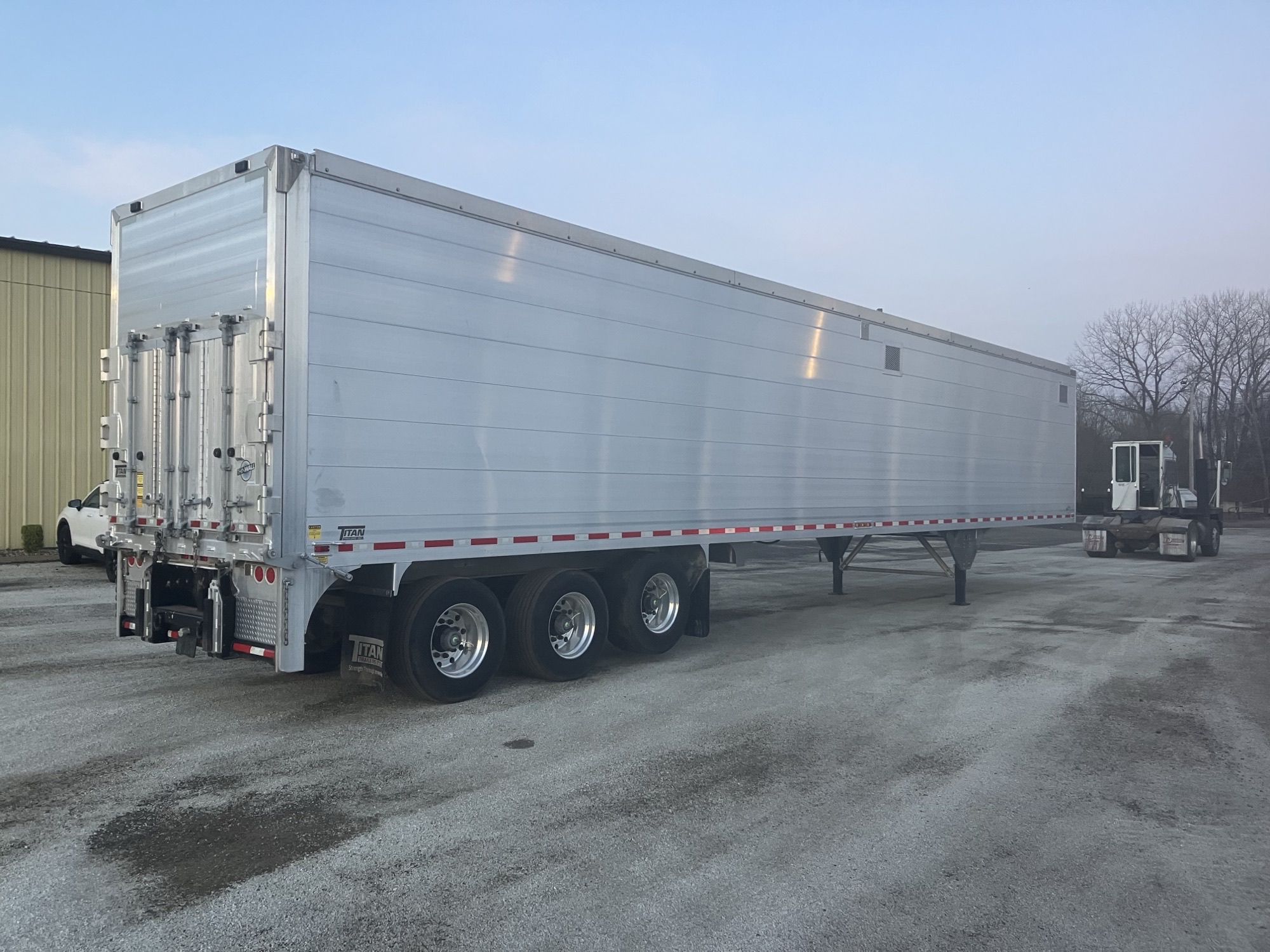

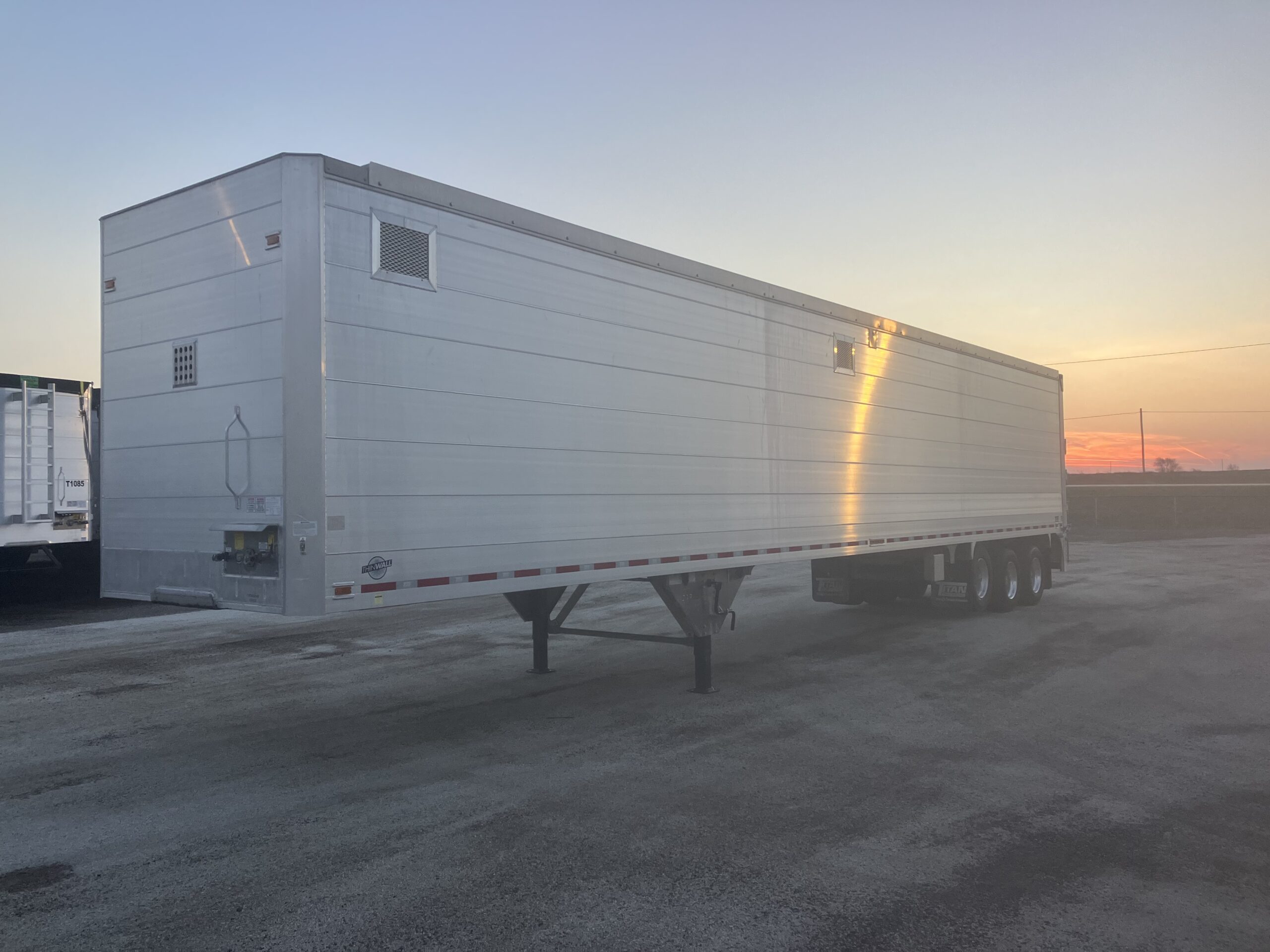

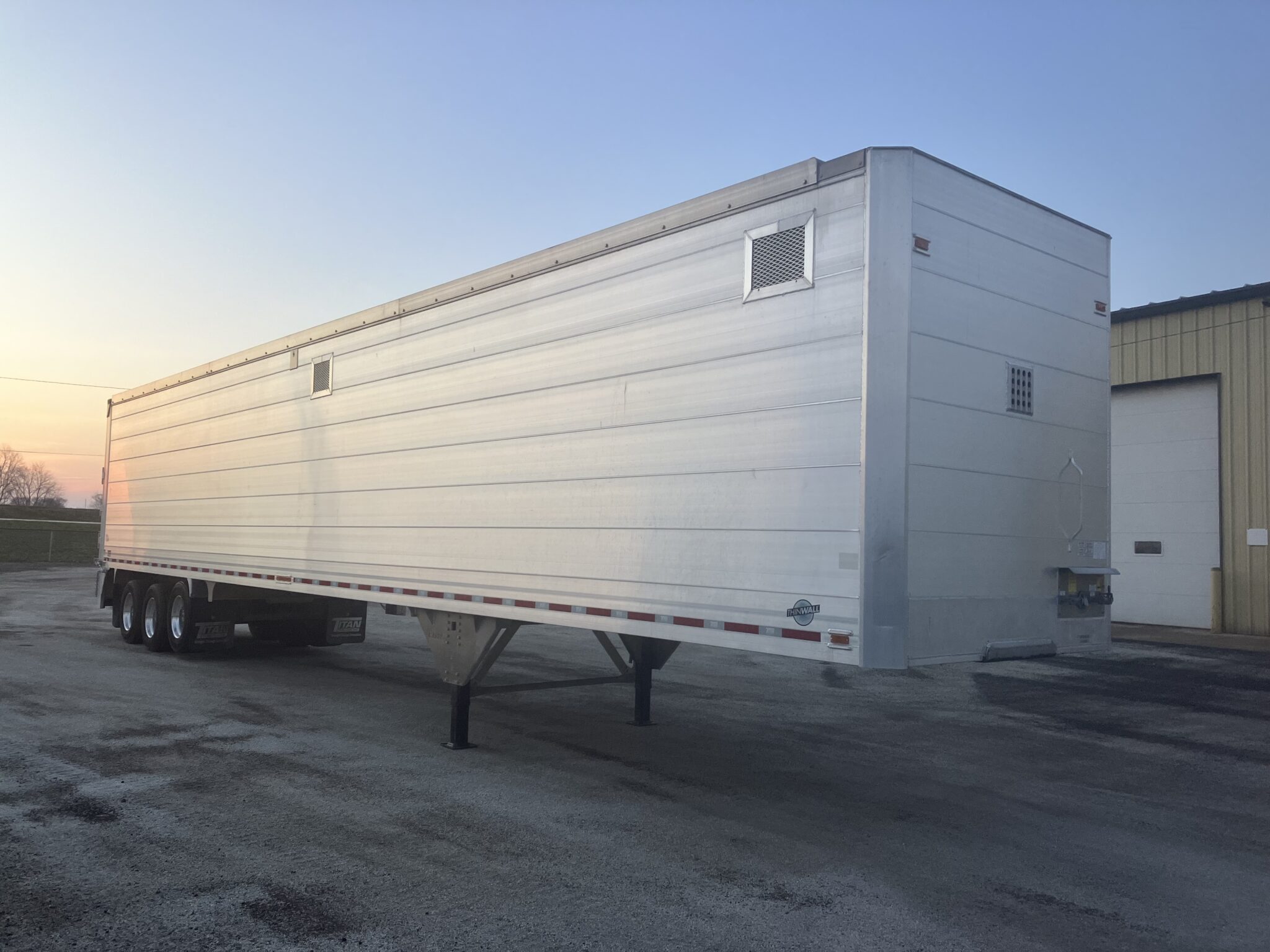

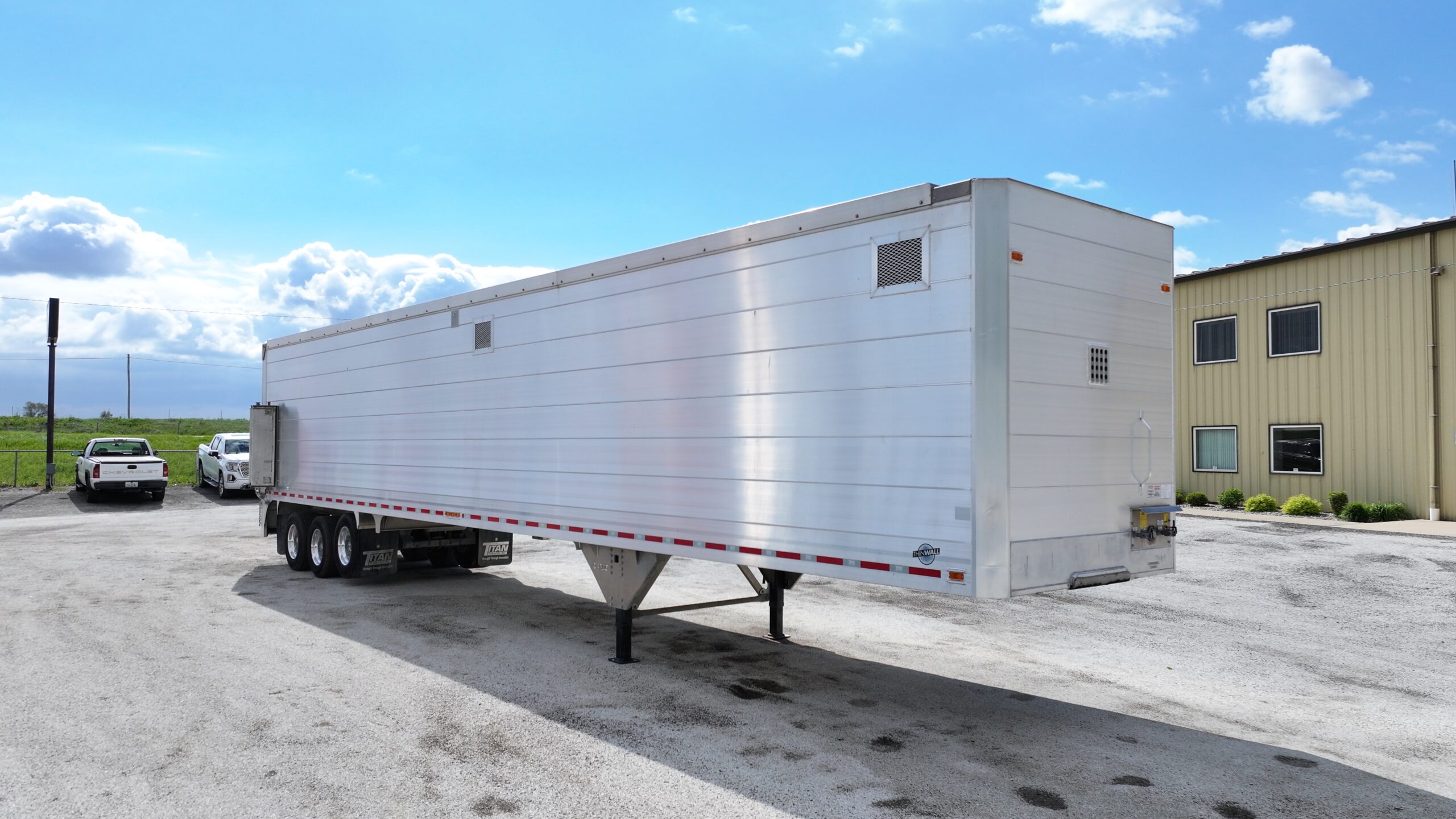

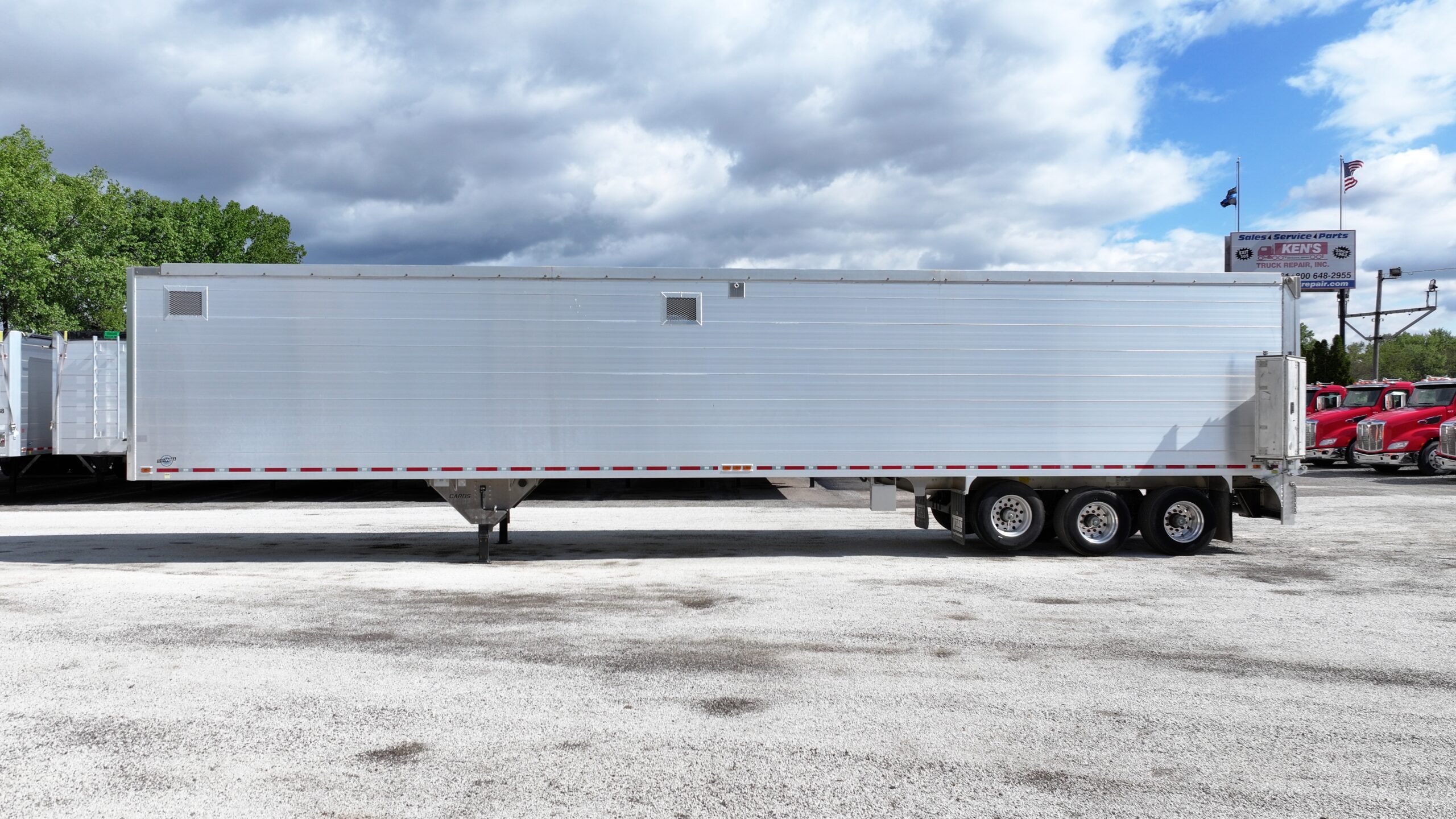

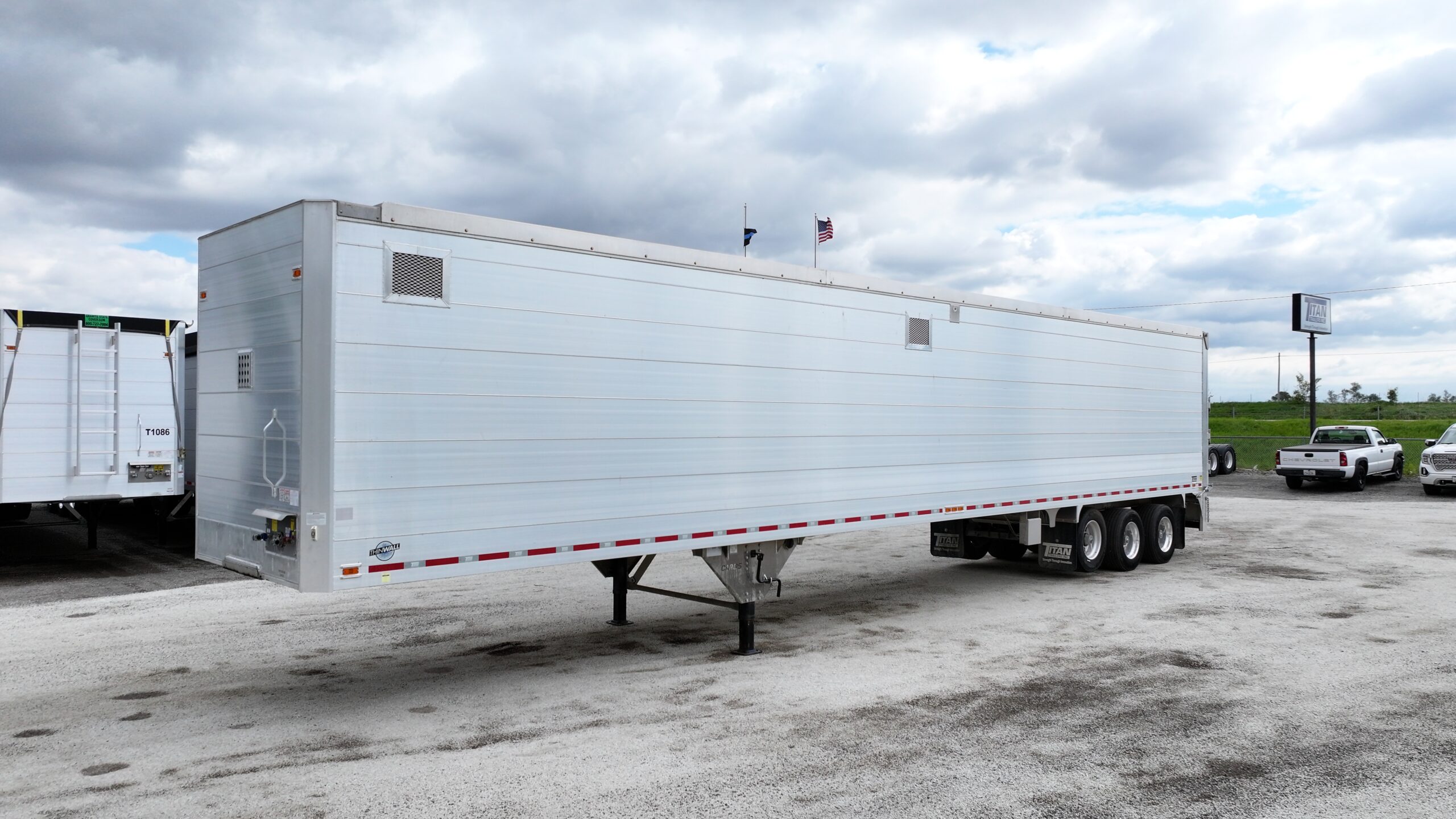

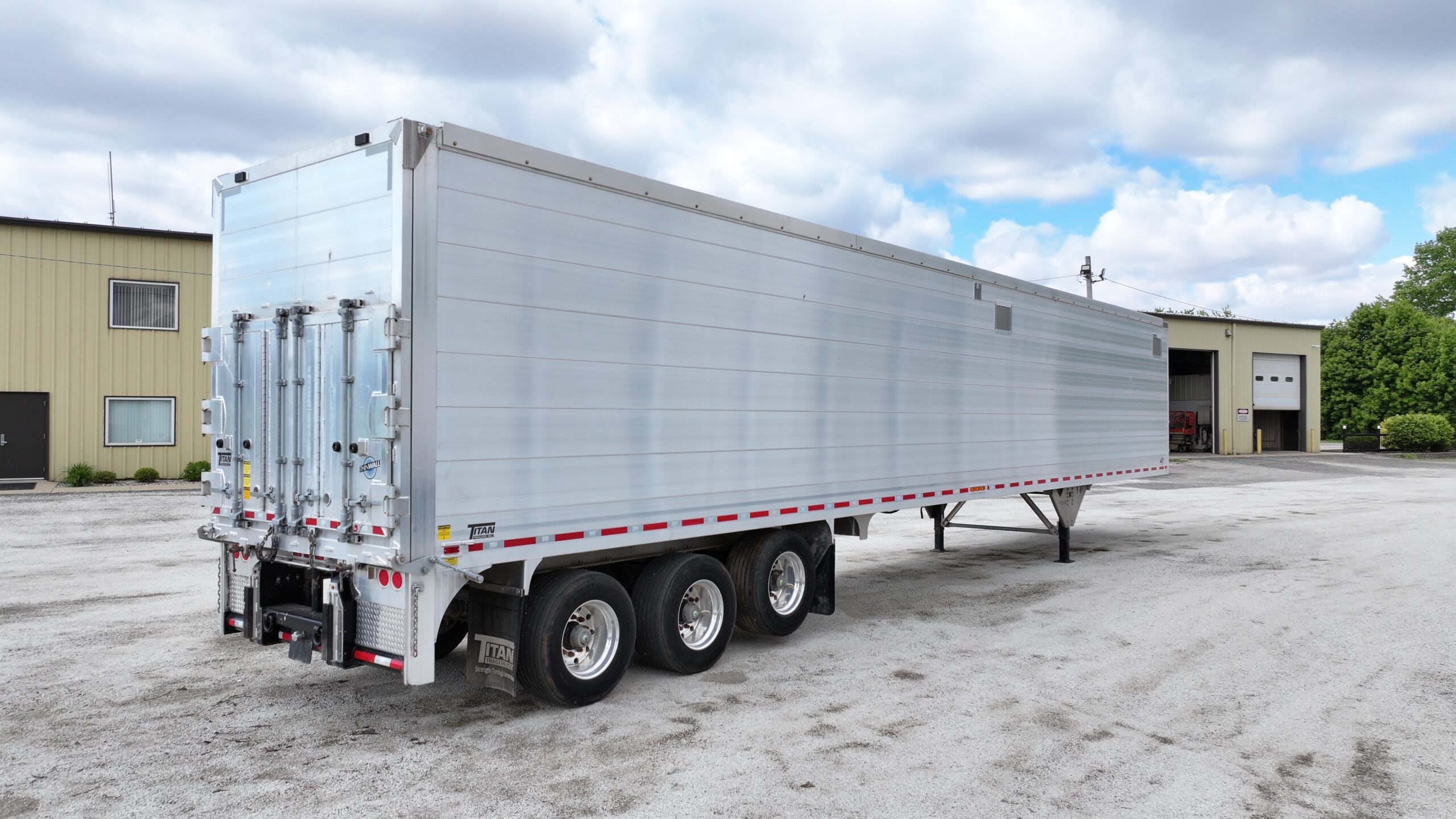

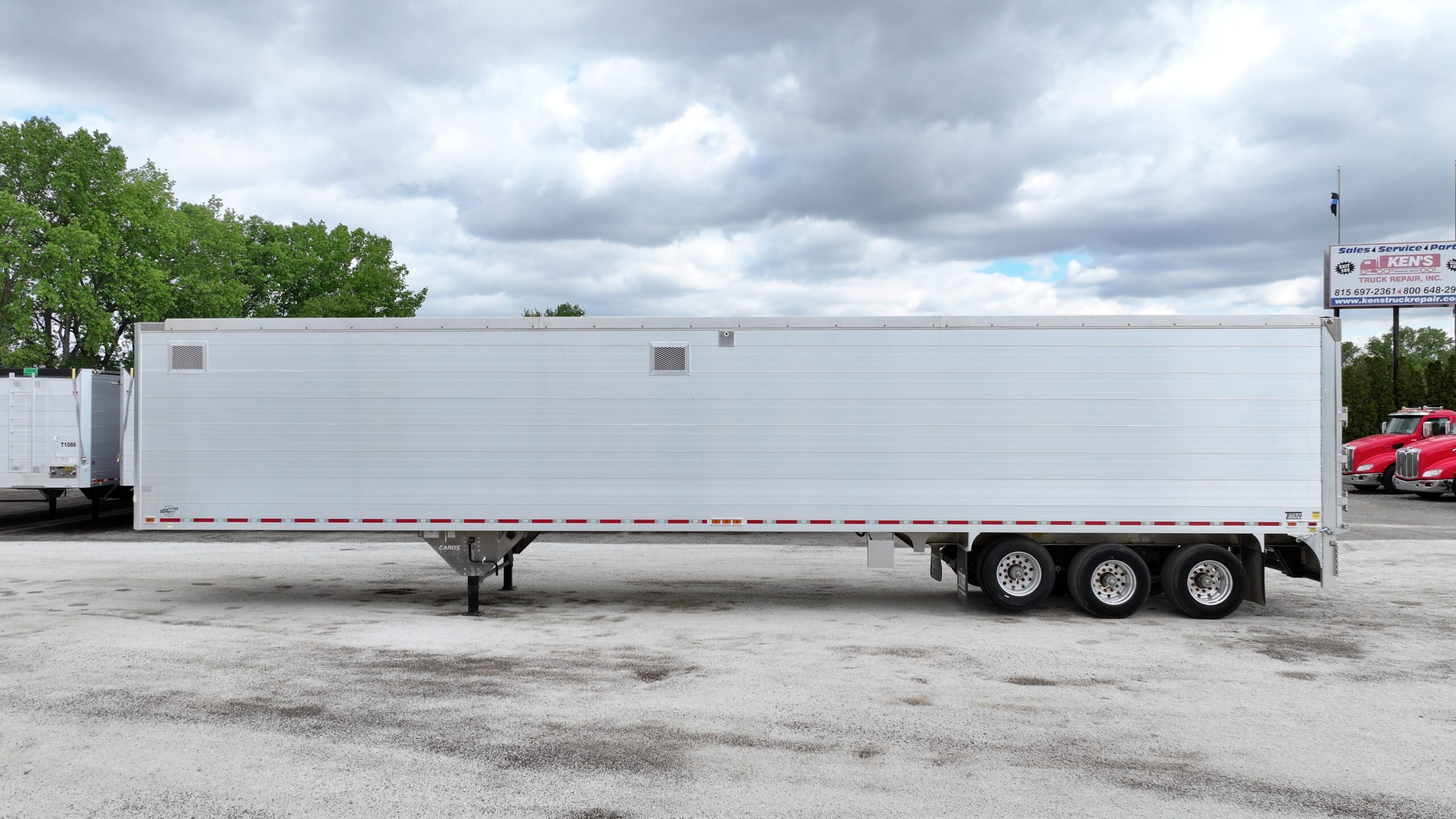

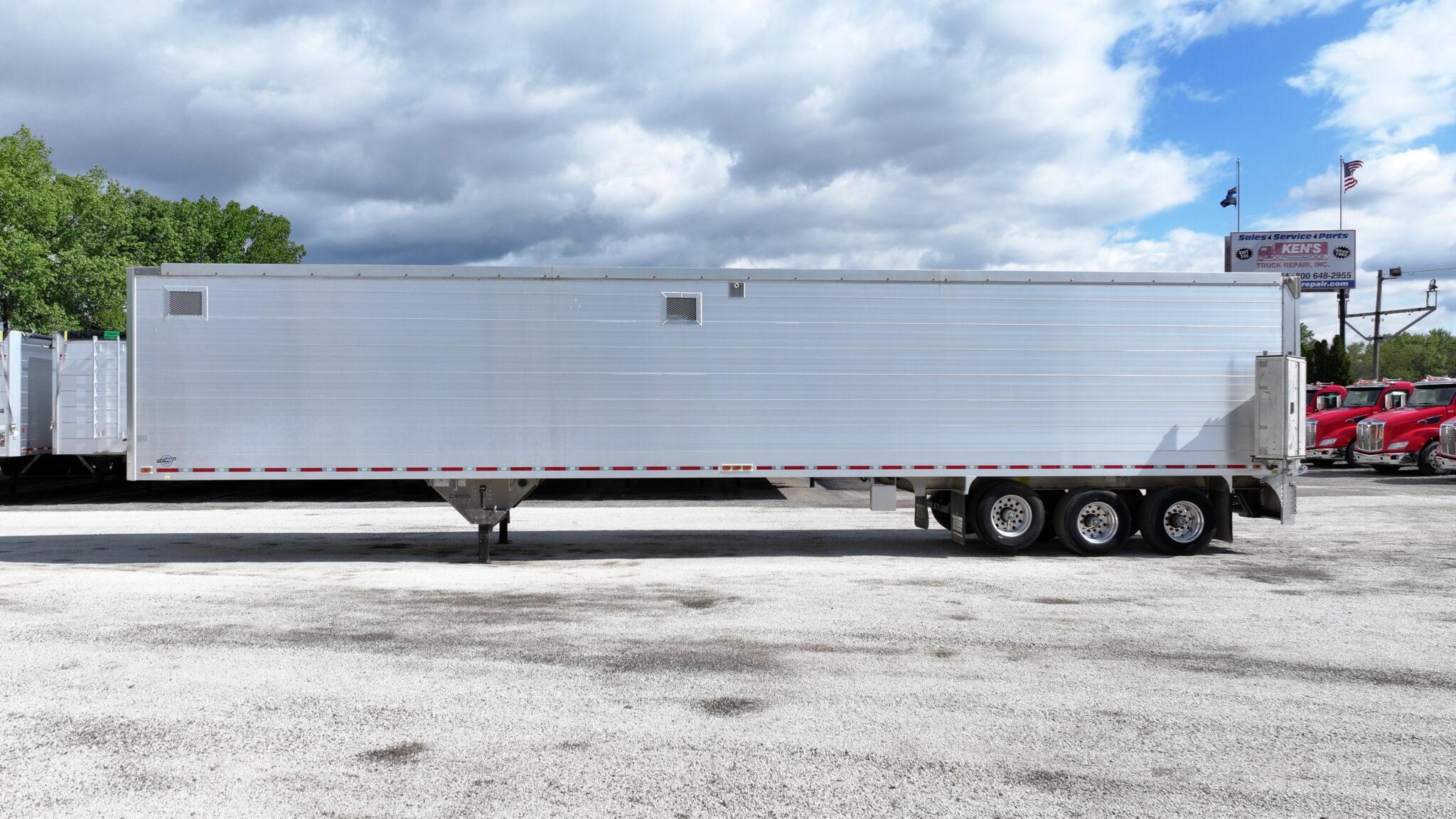

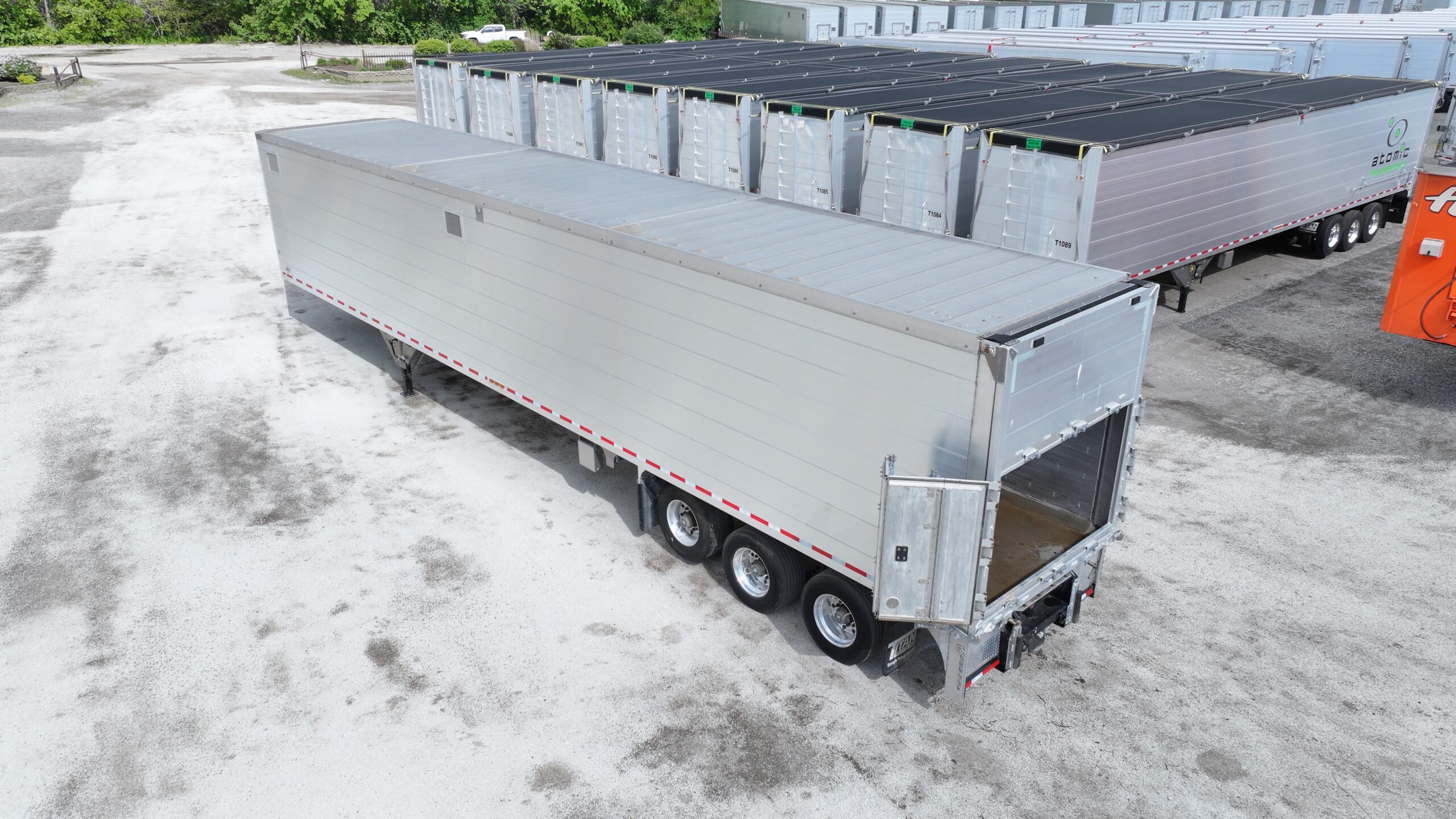

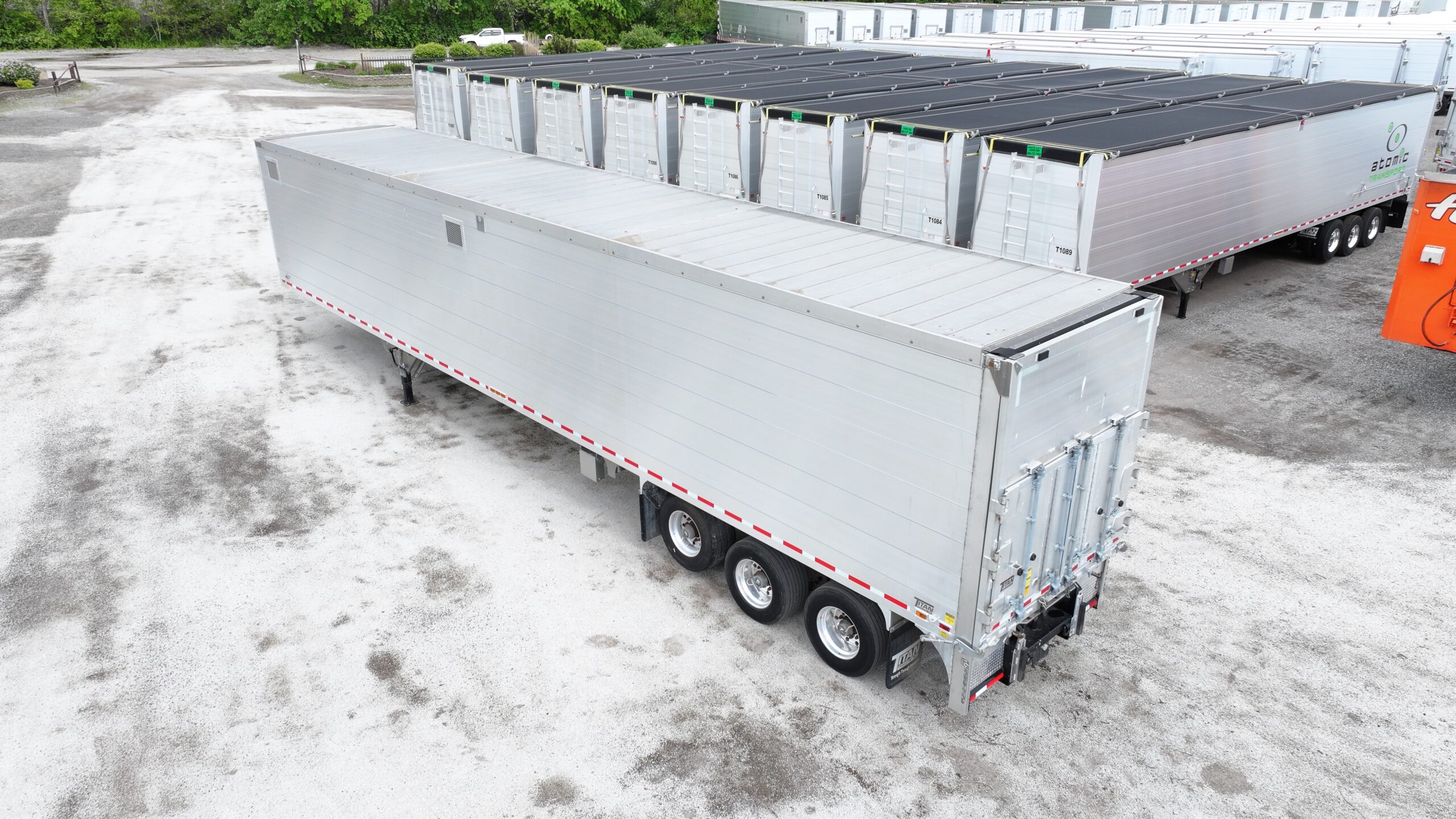

USED 2023 TITAN 53′ 3 AXLE TIPPER TRAILER WITH BOLT ON ROOF

Customer application              Garbage – Compactor – Removable Roof

Base model                             53-3-TW-TP OT Removable bolt on roof

Style                                        Wedge to suit tipper/compactor

Panel configuration                 To suit compactor application with EHD panels

Overall length                         53 ft

Overall width                          102” nominal

Overall height                         13’ 6” at front & rear approx. to top of roof

King pin location                    36”

Upper coupler                         Flat style aluminum coupler assembly with stainless steel wear plates set @ 50” high

Number of Axles   Primary   Two (2)

Axles                                       5” Round .580 Wall Straight Spindle – PSI Ready

Axle track                               77”

Suspension                              Reyco 21B FAB w/ Inner wear pads

Location of spreads                 See axle layout

Hub/drum assembly                10 Stud Duralite – Hub Pilot / Centrifuse Drum

Disc wheel size                       14” x 22.5 – 2” offset

Rims                                        Aluminum – LVL 1

Tires                Brand              Michelin

Size                 445/50R22.5

Tread               XOne XMET

Ply                   20

Quantity          4

Number of Axles   Lift           One (1) – See Notes #12, 13

Axles                                       5” Round .580 Wall Straight Spindle – PSI Ready

Axle track                               77”

Suspension                              Watson TA 25000

Location of spreads                 See axle layout

Hub/drum assembly                10 Stud Duralite – Hub Pilot / Centrifuse Drum

Disc wheel size                       14 x 22.5 – 2” offset

Rims                                        Aluminum – LVL 1

Tires                Brand              Michelin

Size                 445/50R22.5

Tread               XOne XMET

Ply                   20

Quantity          2

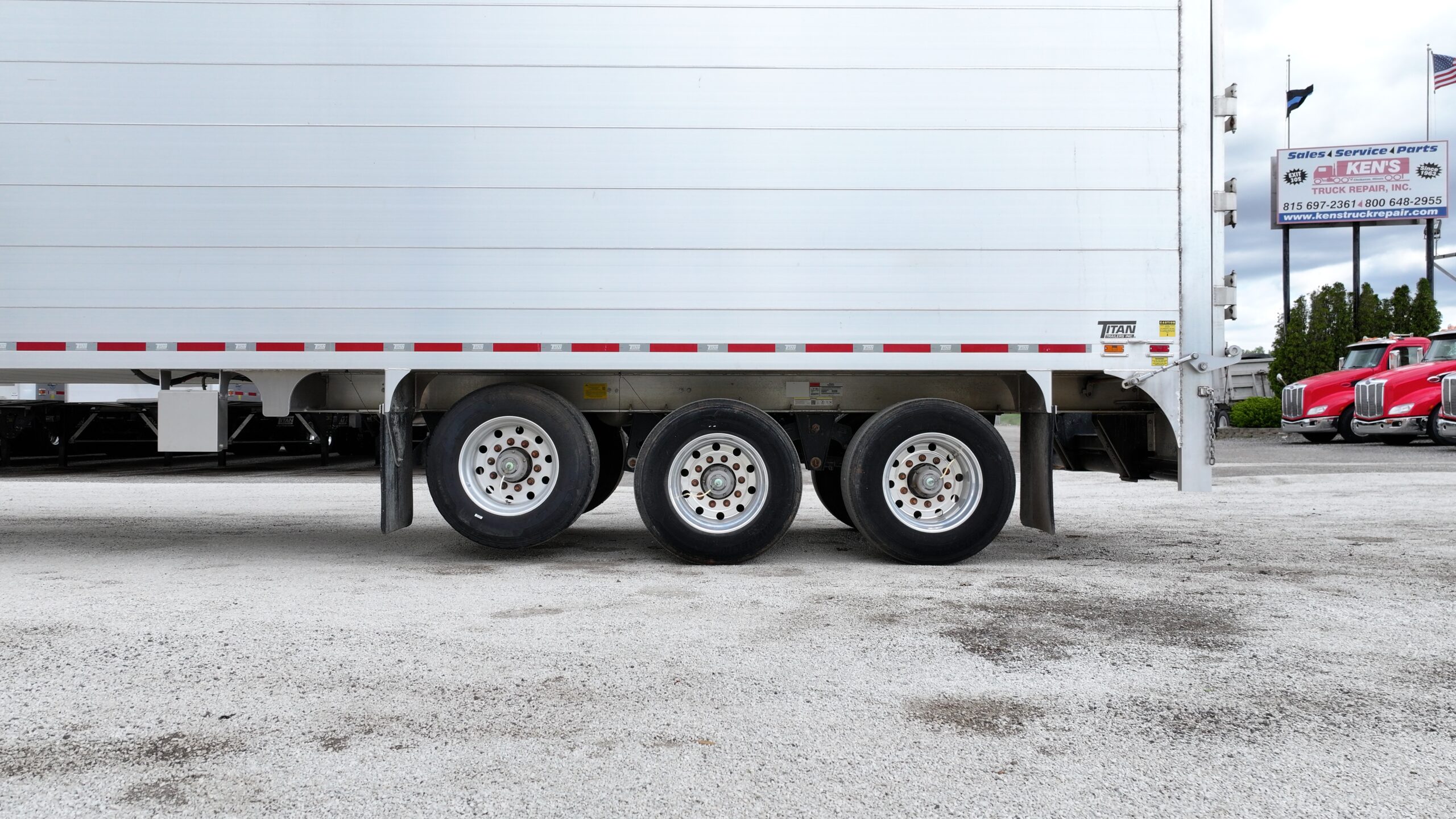

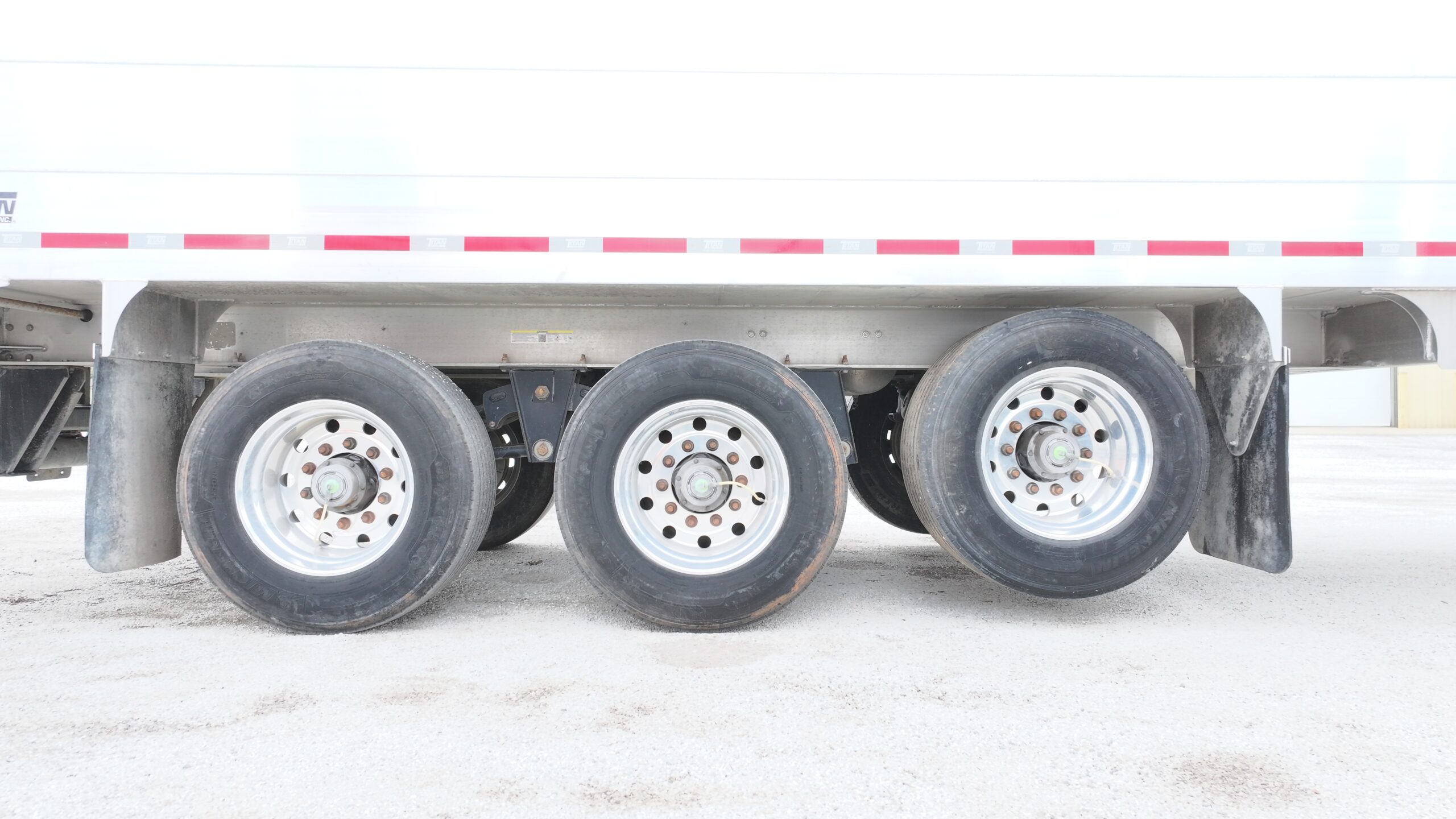

Axle layout                             FRONT-Lift-50-Primary-50-Primary-64-REAR

Oil seals                                   SKF

Lubricants                               Synthetic Oil – Chevron Delo 75W-90

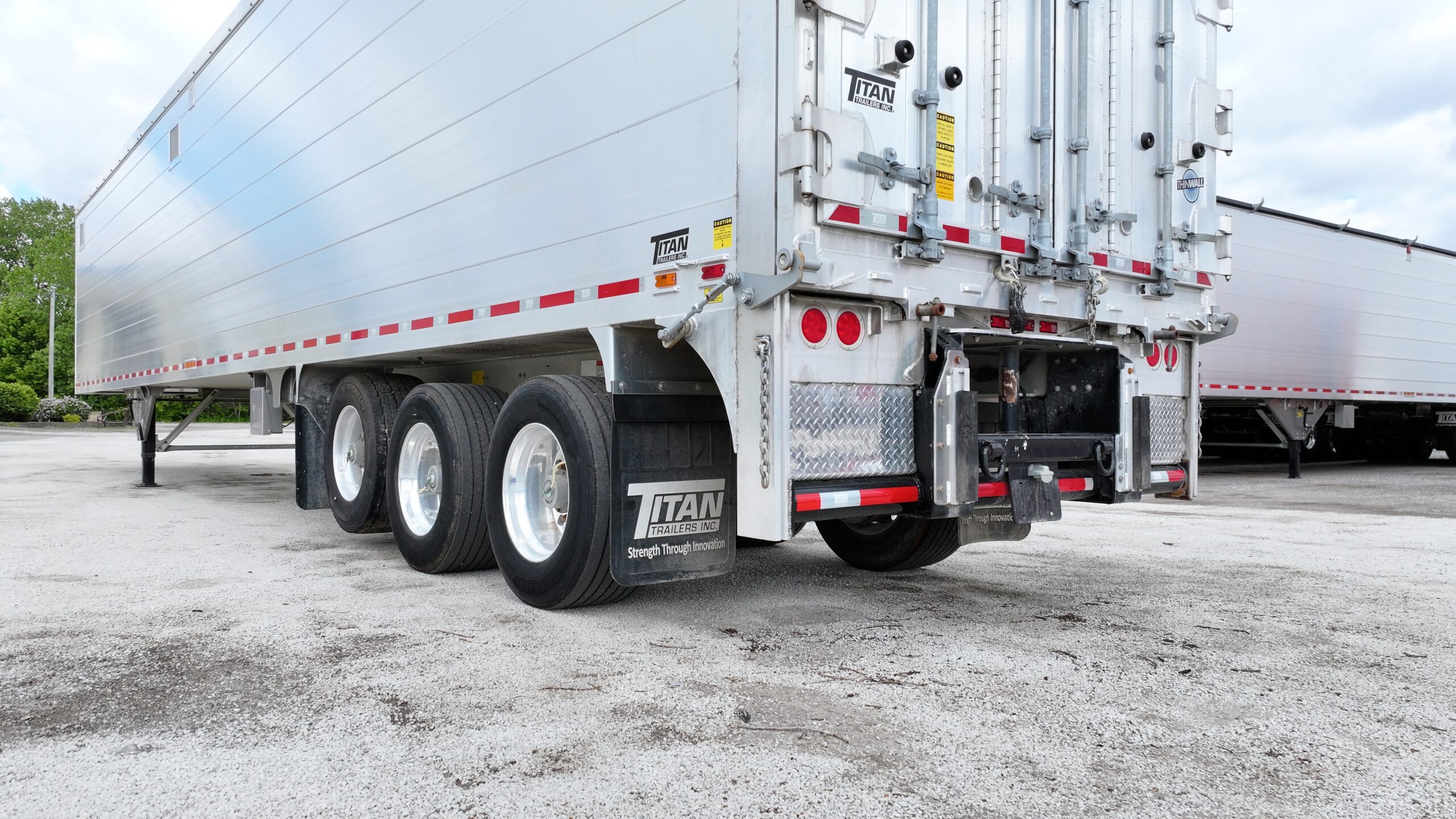

Brakes             ABS                2S/2M Meritor Wabco

Slack adj.        Meritor Auto

Cam Enclos     All axles  – c/w dust shields

Lift kits                                   AL-86

Lift controls                            Manual

Springs                                    3 Leaf

Frame width                           48”

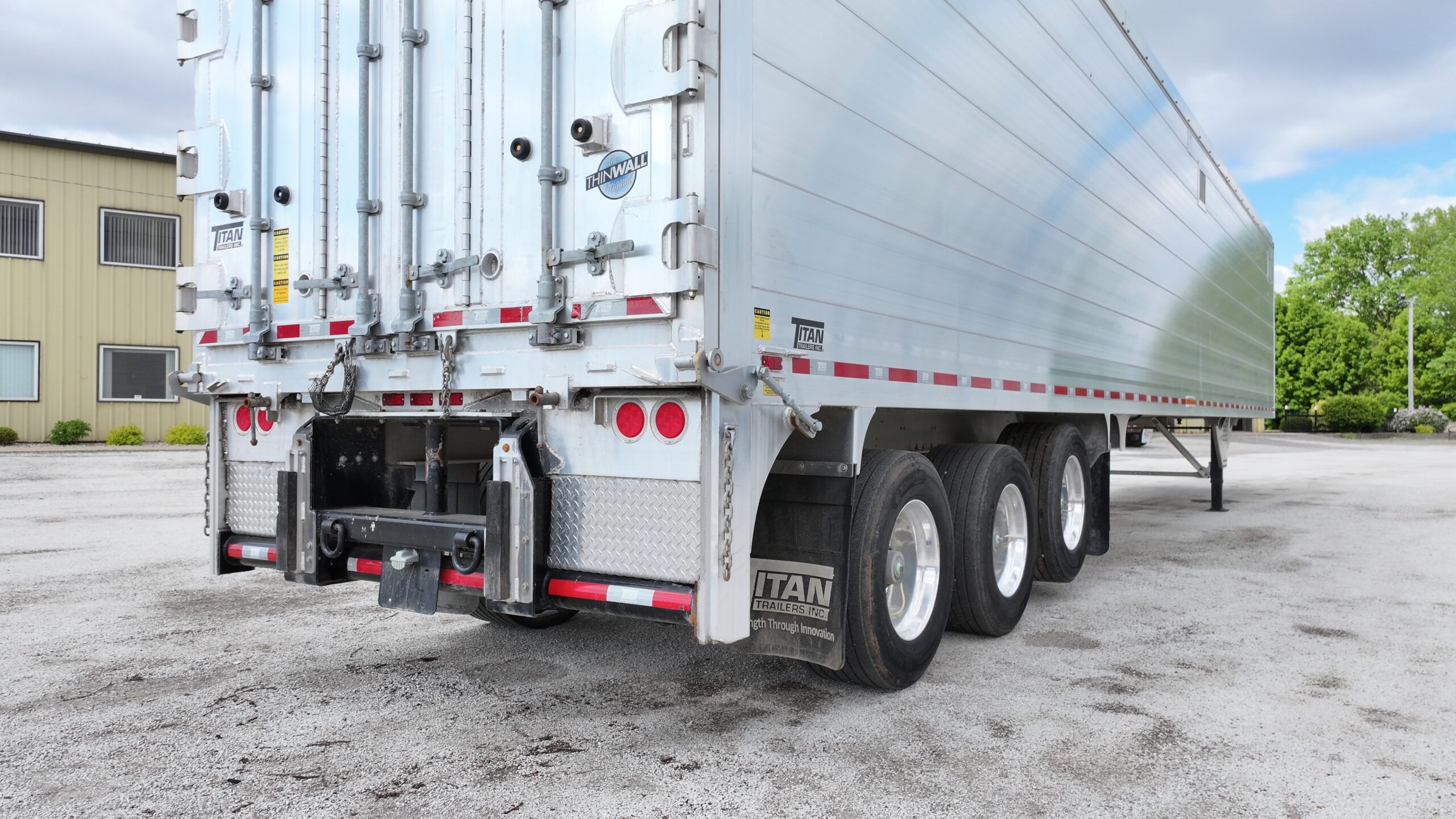

Rear bumper                            Steel, Flush, Wide w/ Center Pin Assembly – 36 ½” ground to center of pin

Rubber bumpers                      None

Rubber Tipper T Block Bumpers

Tow hooks                              D-rings

Tire carrier                              None

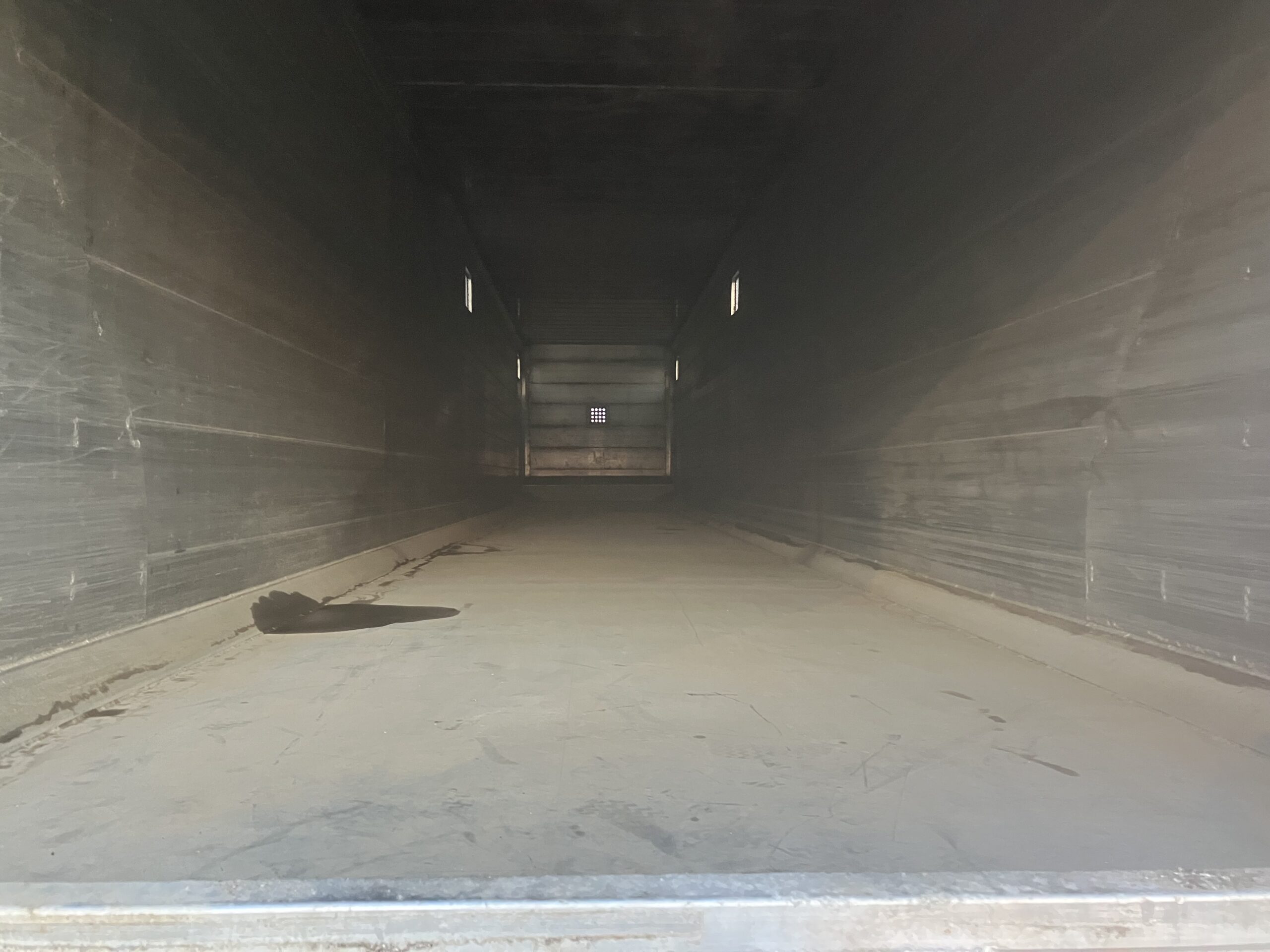

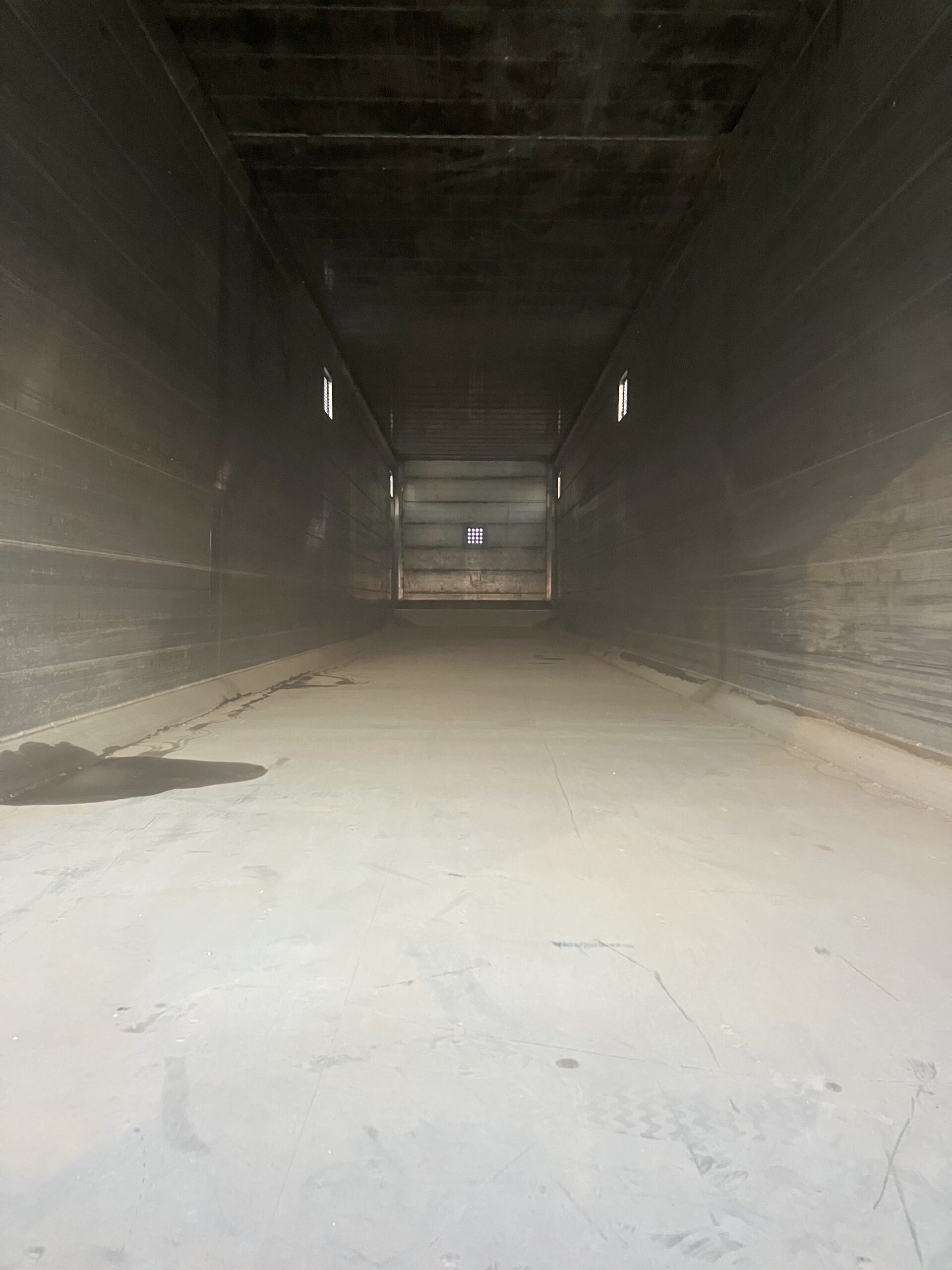

Floor                                        2 ½” thinwall

Floor crossmembers                None

Landing gear                           Jost Landing Gear Model A401-G3-19-08

Top rail                                    Titan Tapered V1

Top cross tube qty                  None – provide spigot for future spring bar

Top cross tube type                 None

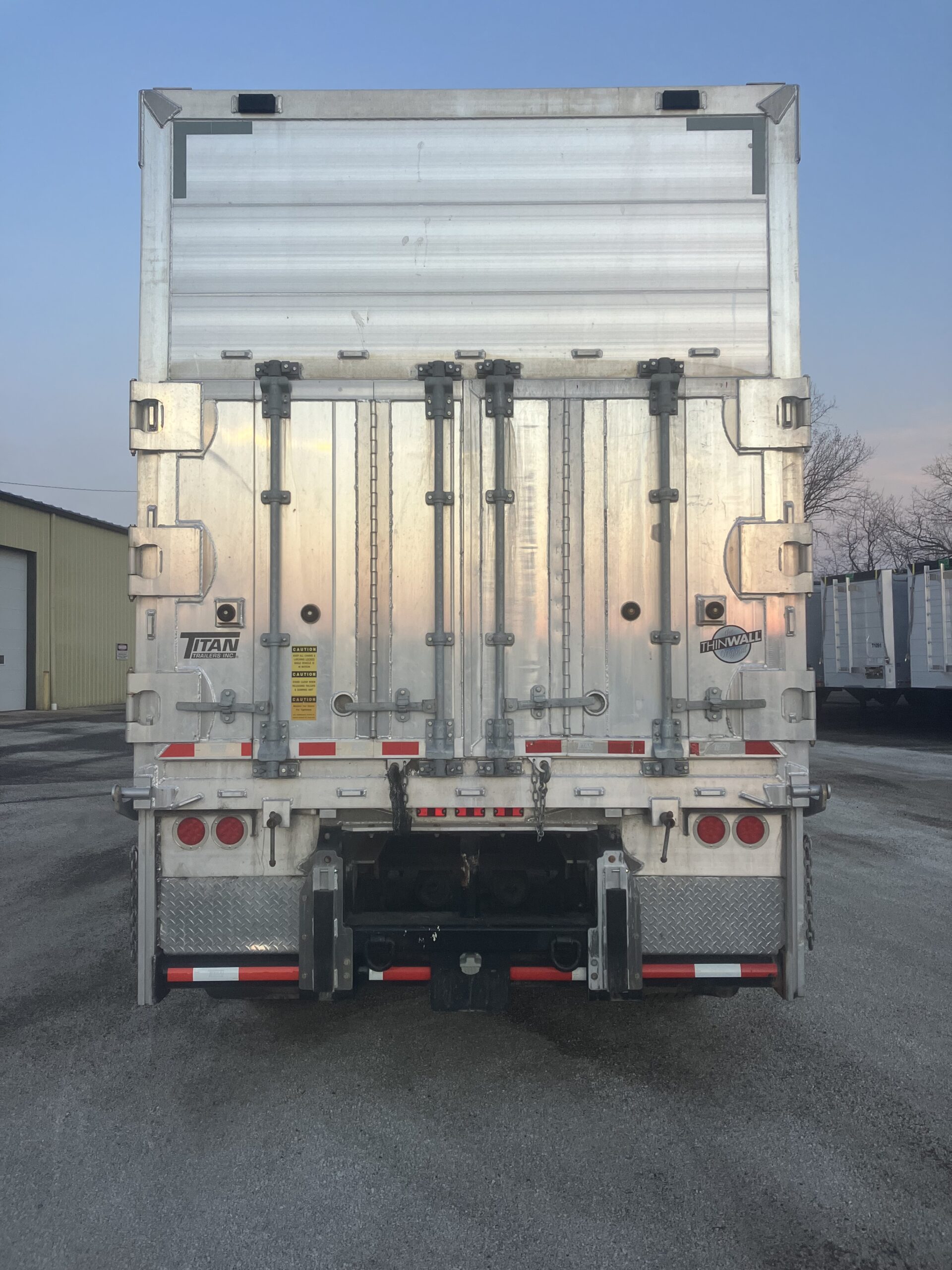

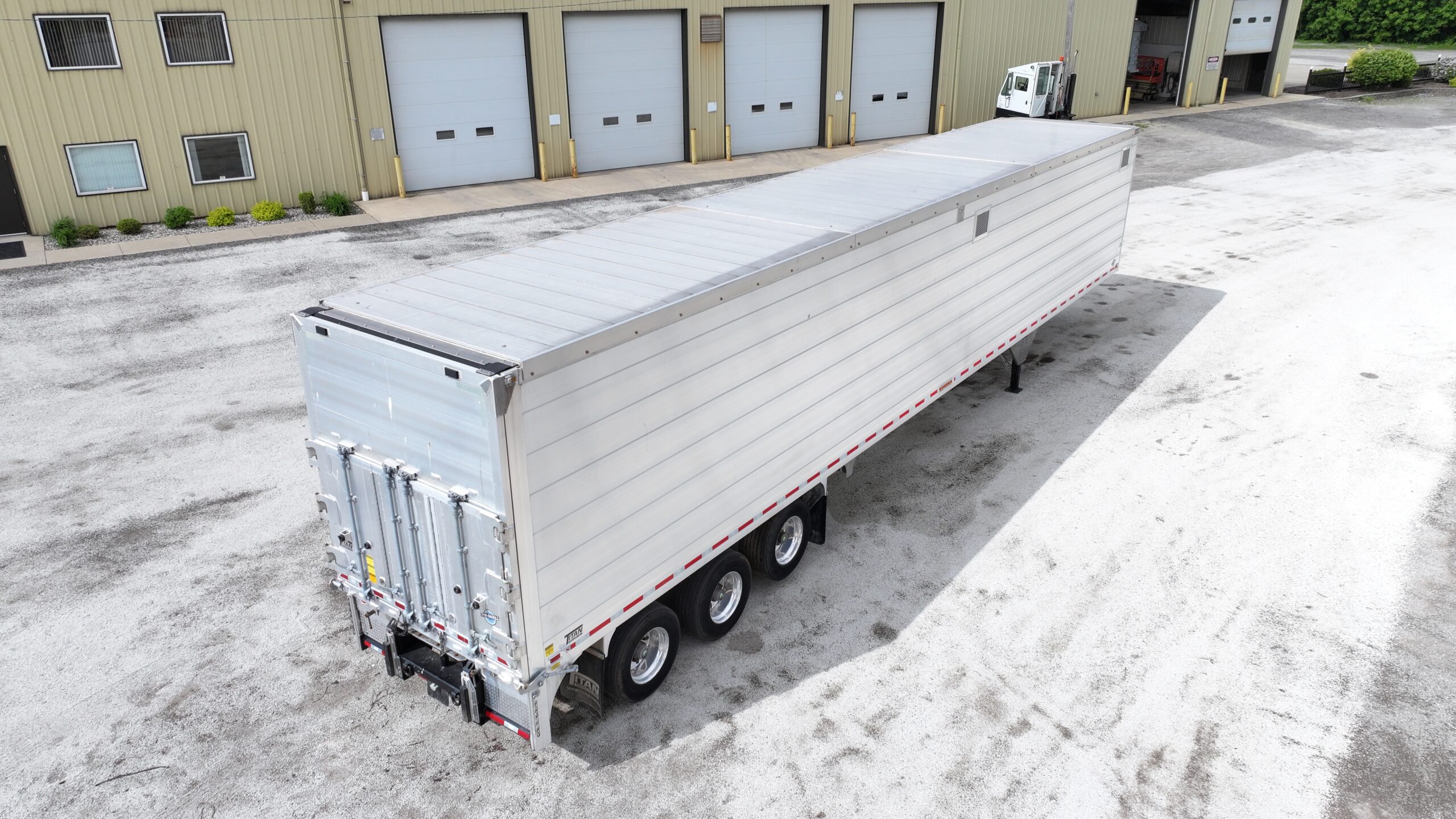

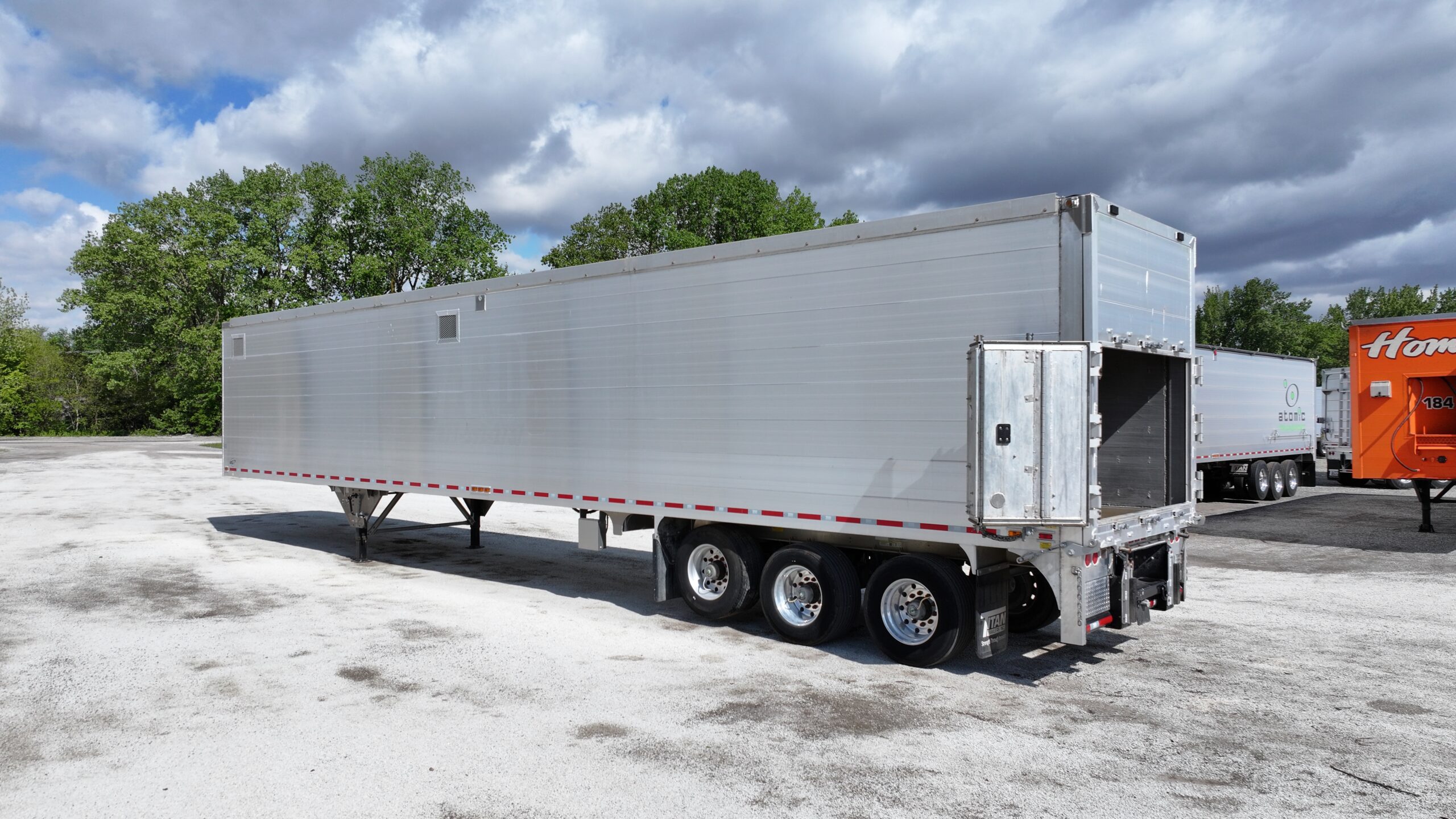

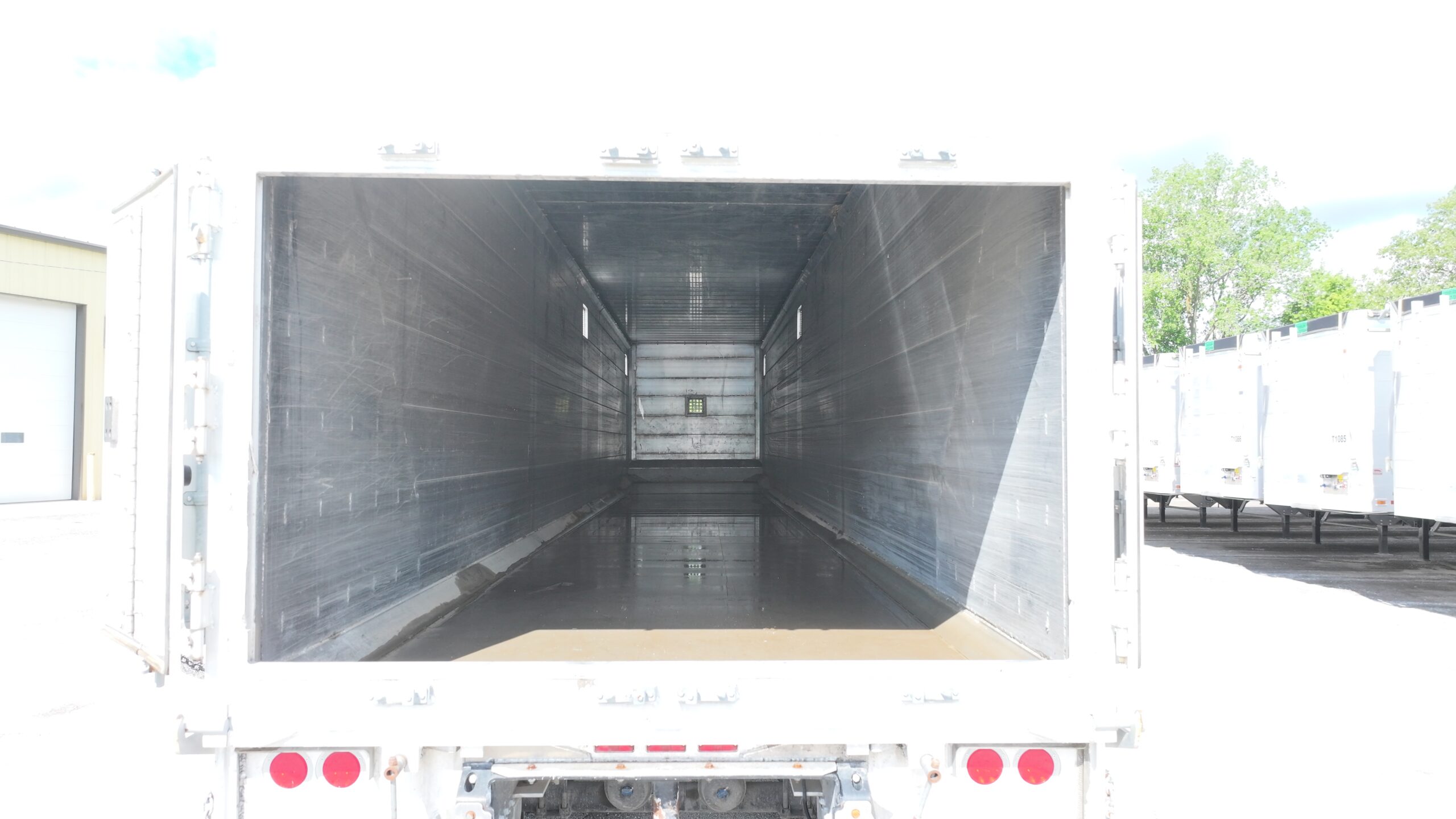

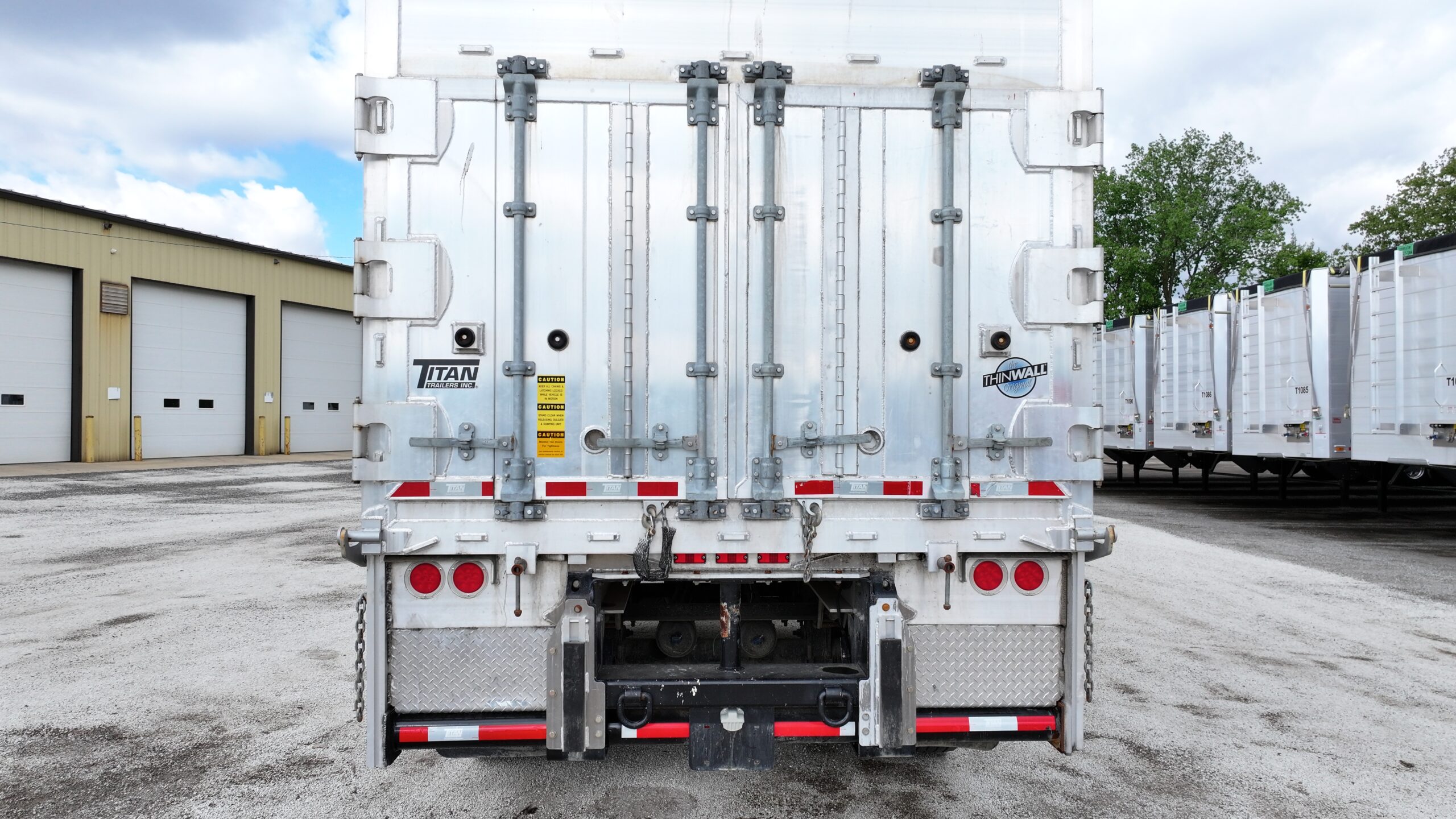

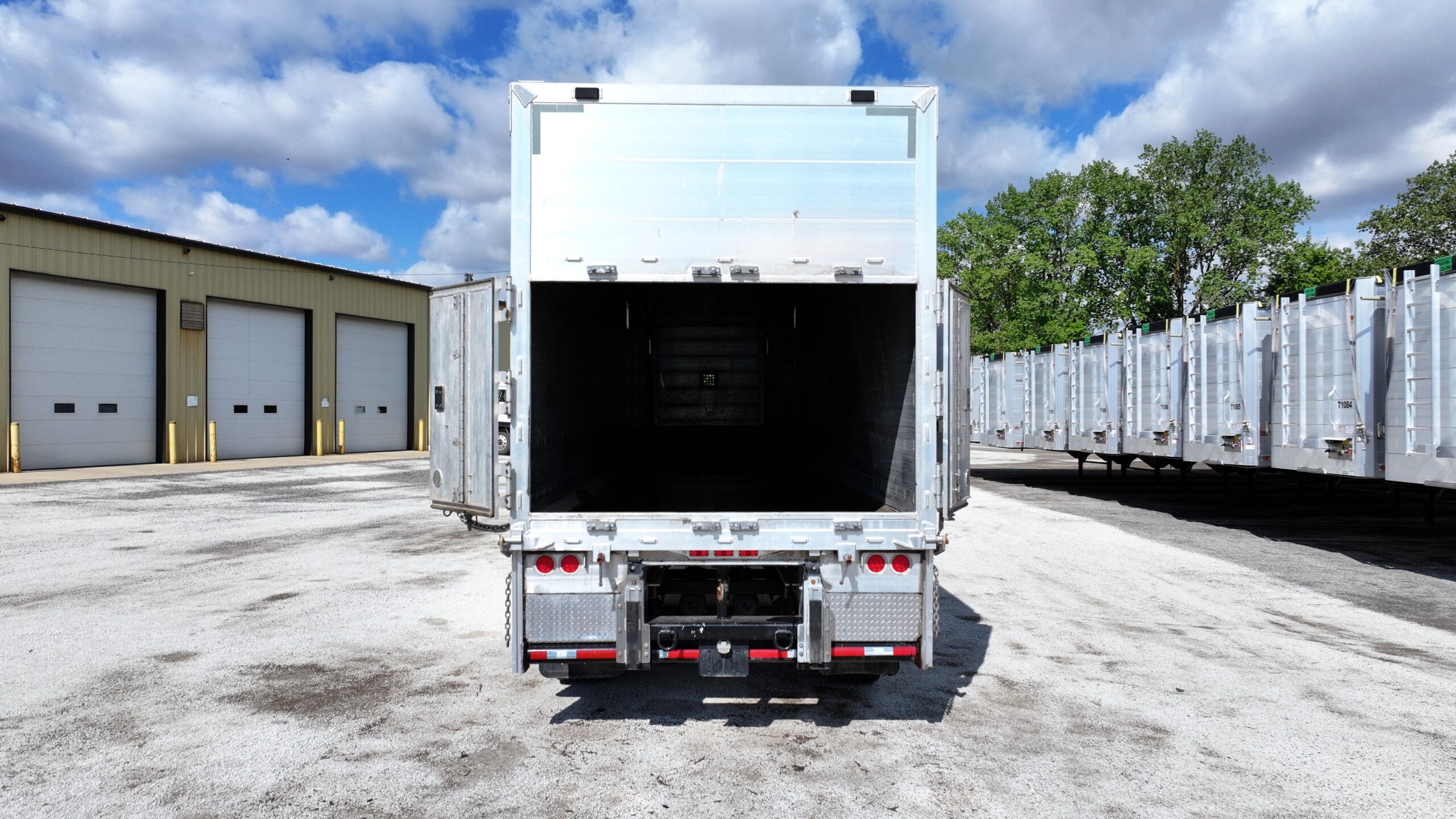

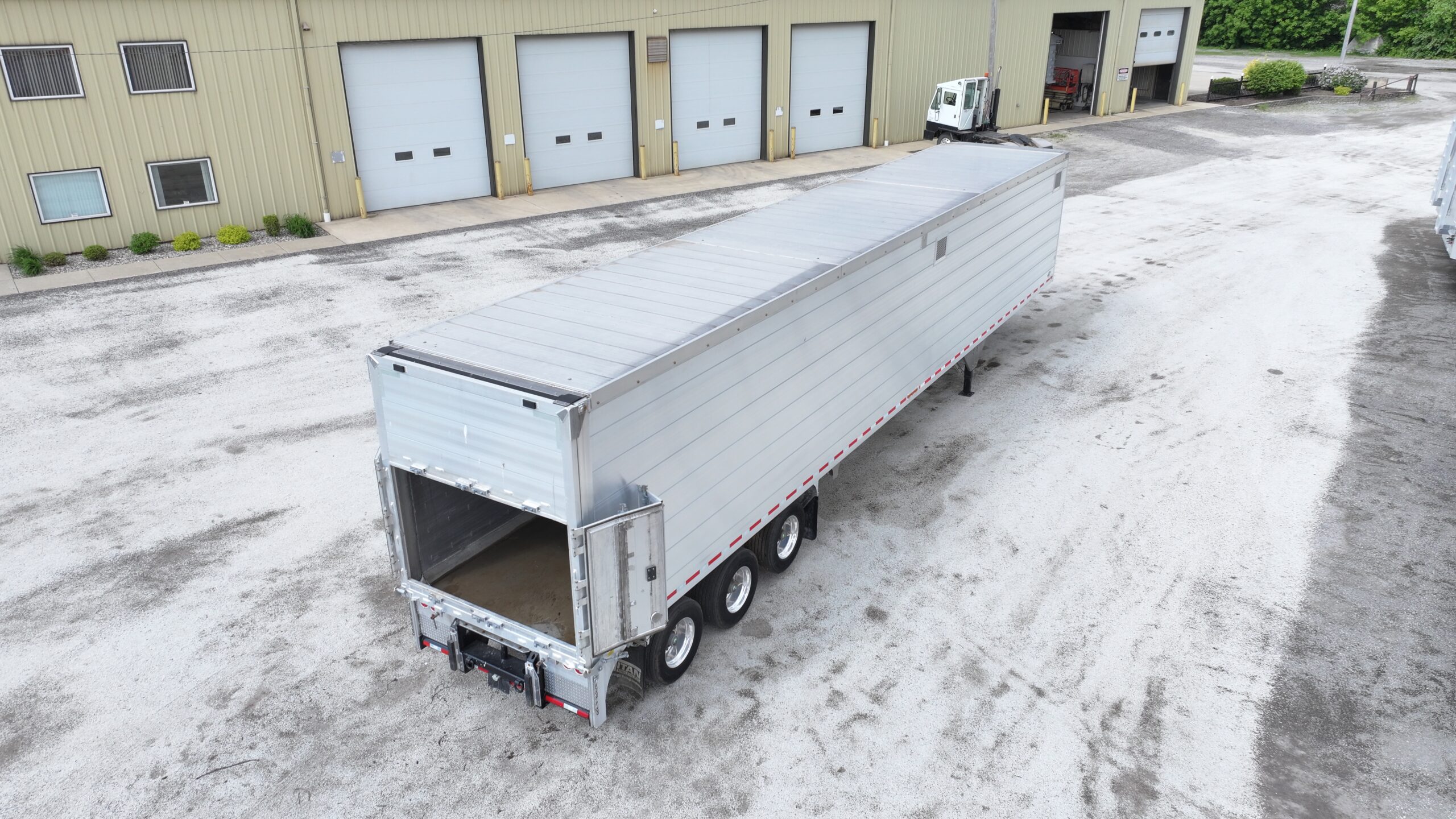

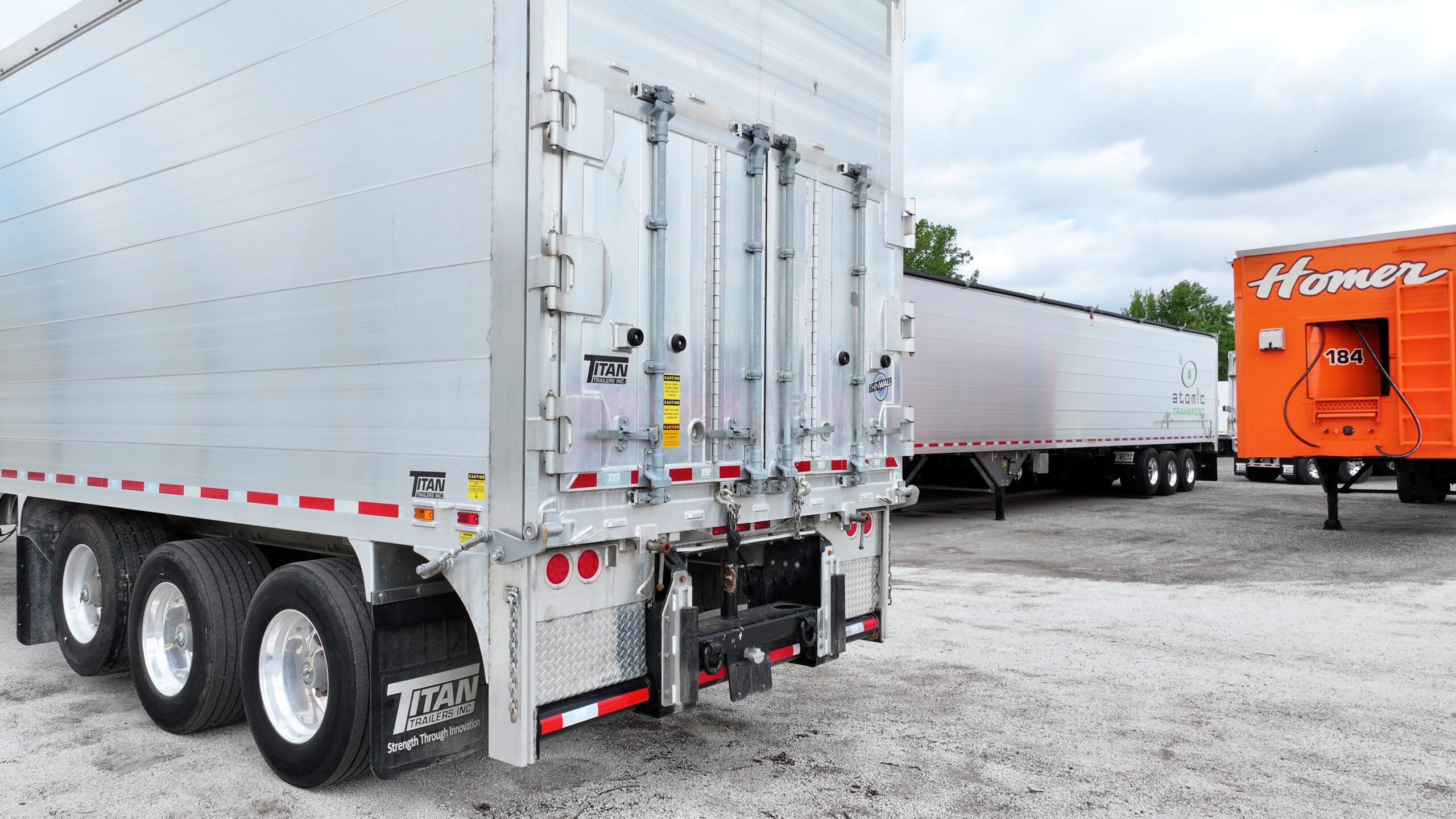

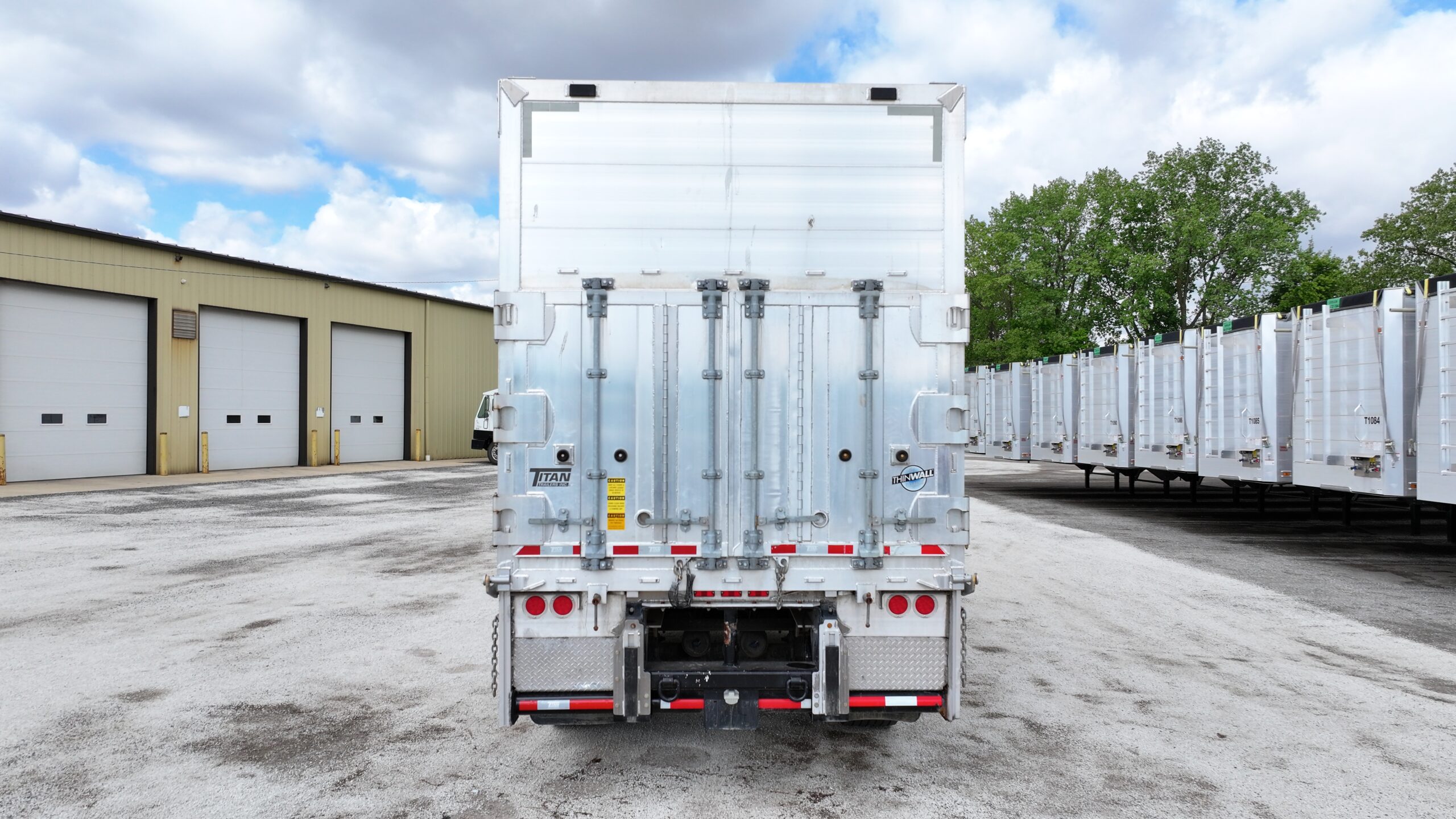

Rear Door                               Compactor, overslung hinge, outer tri fold van doors, air release, side finger locks – See Notes # 1 & # 3

Rear Door Seal                        Rubber

Front Door                              None

Tarp header                             None

Tarp basket                             None

Tarp hooks                              None

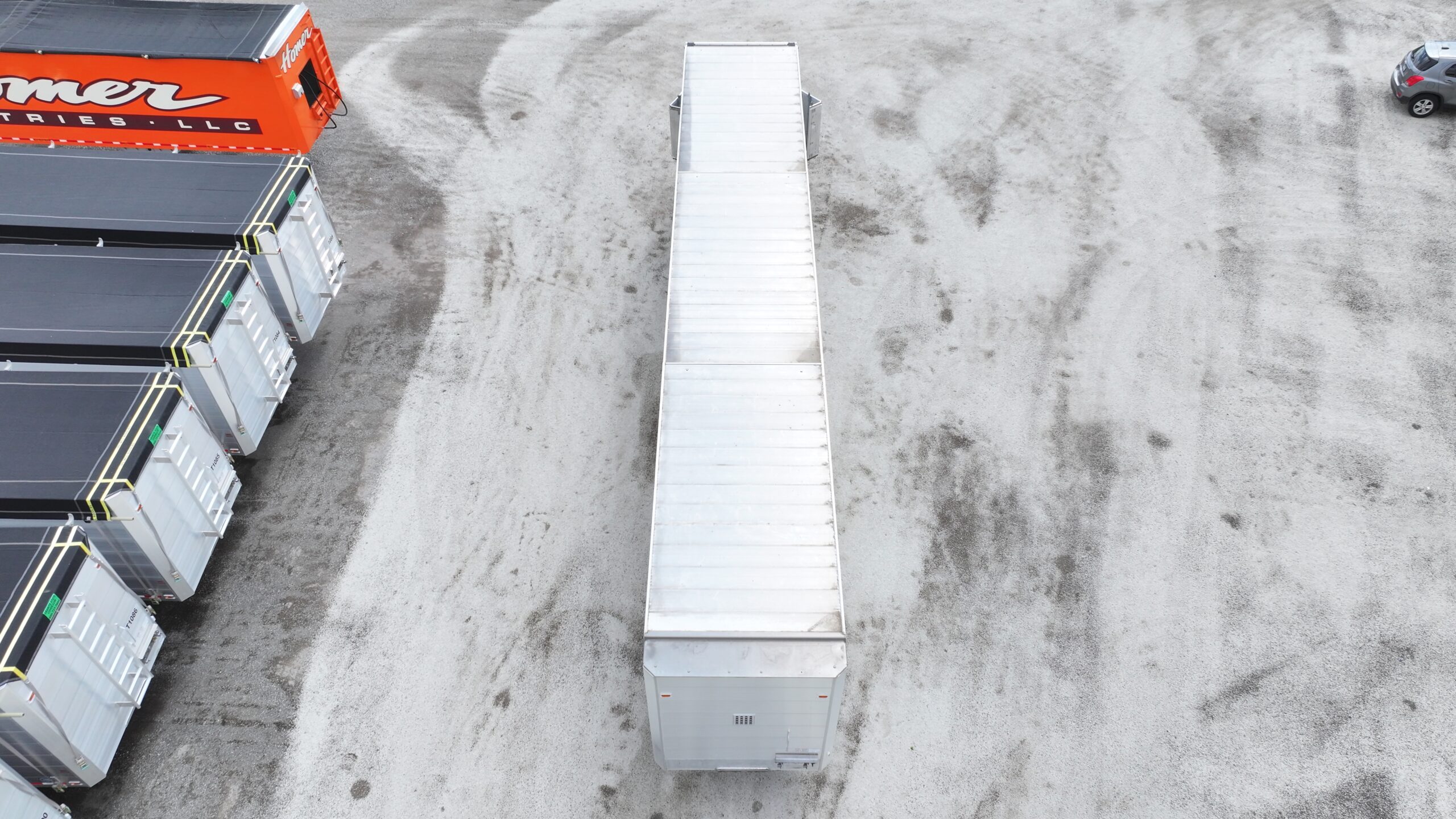

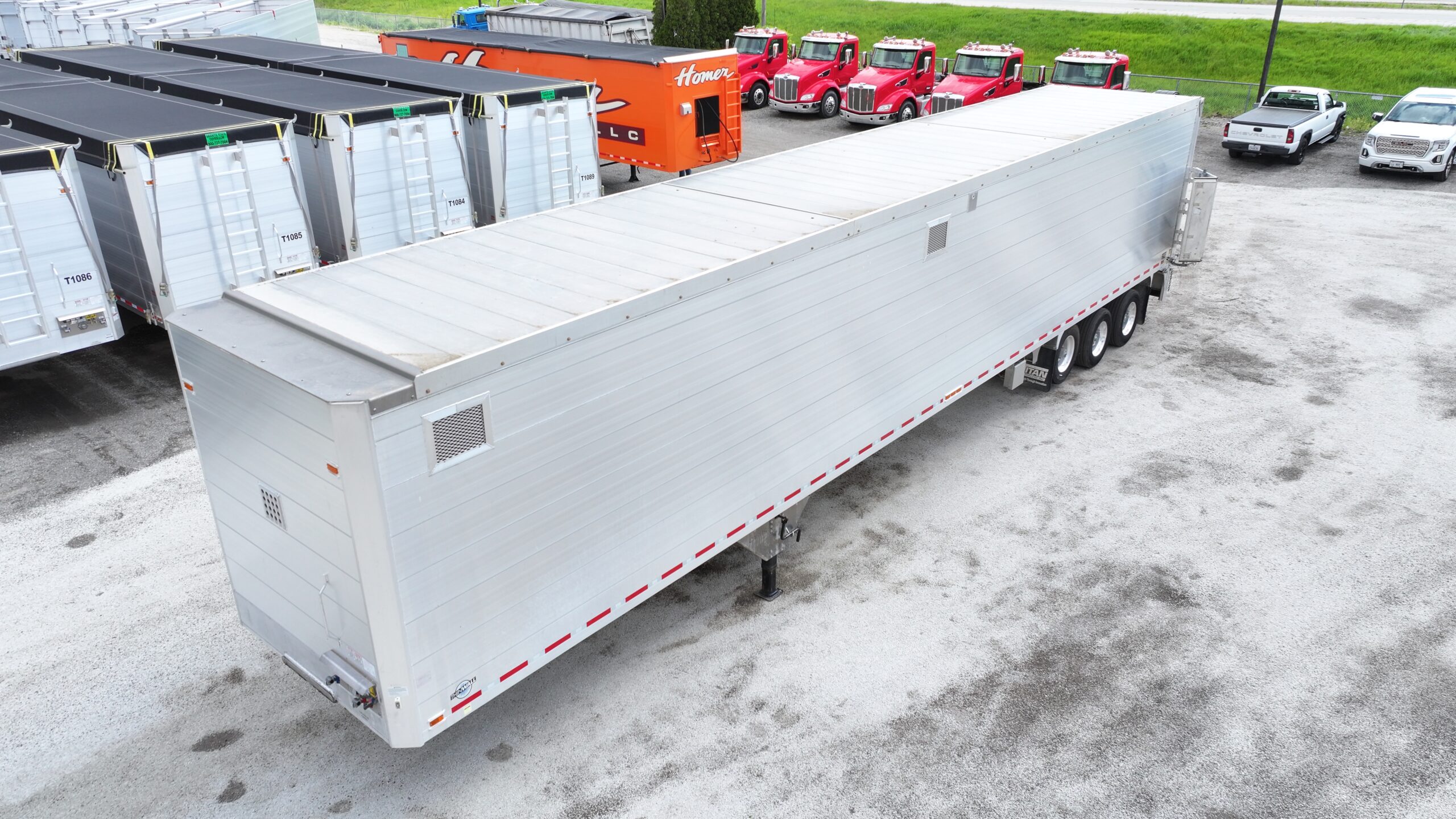

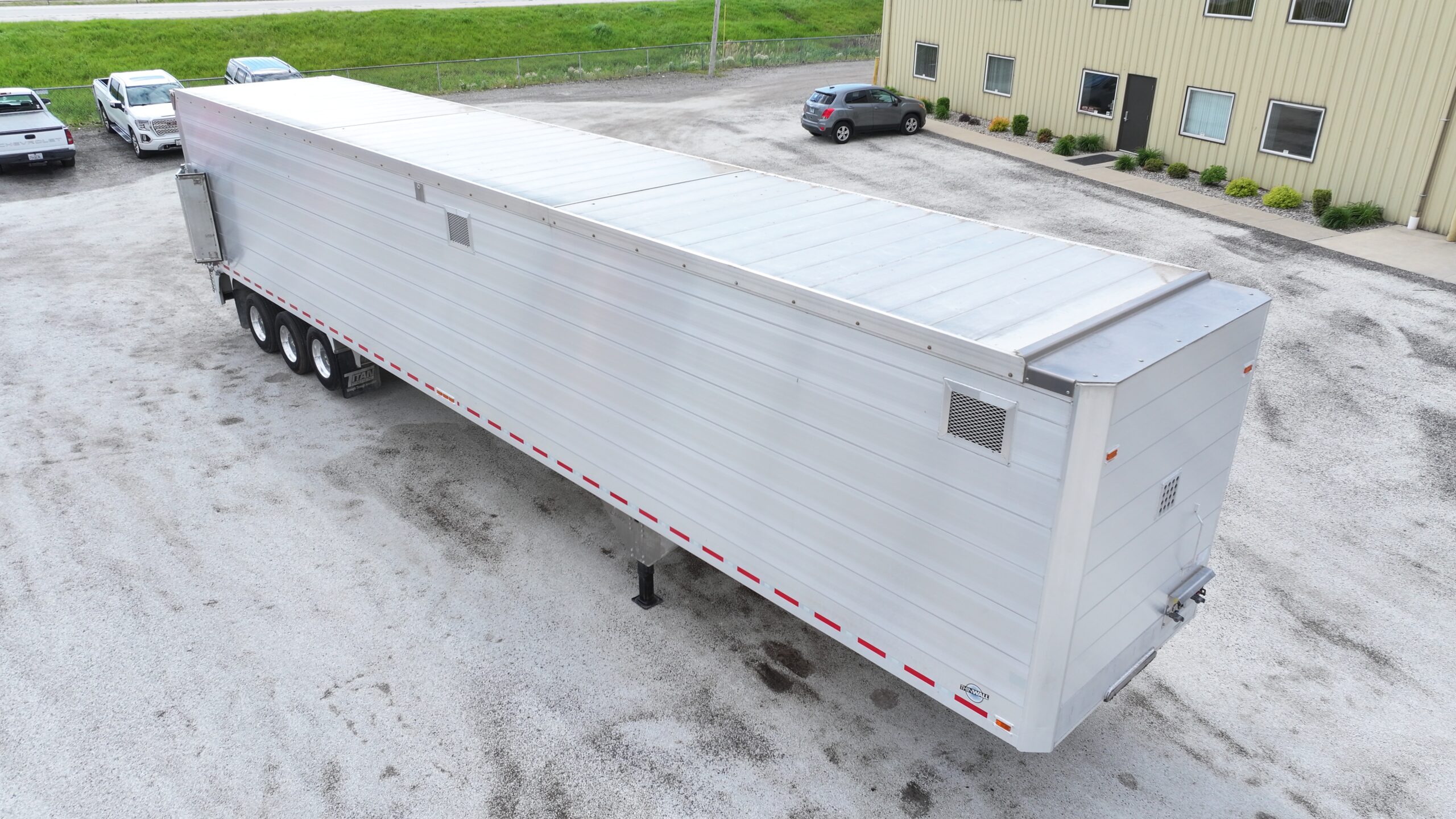

Tarp/Roof                                No tarp – removable bolt on roof 3 pc – See Note #7& 8

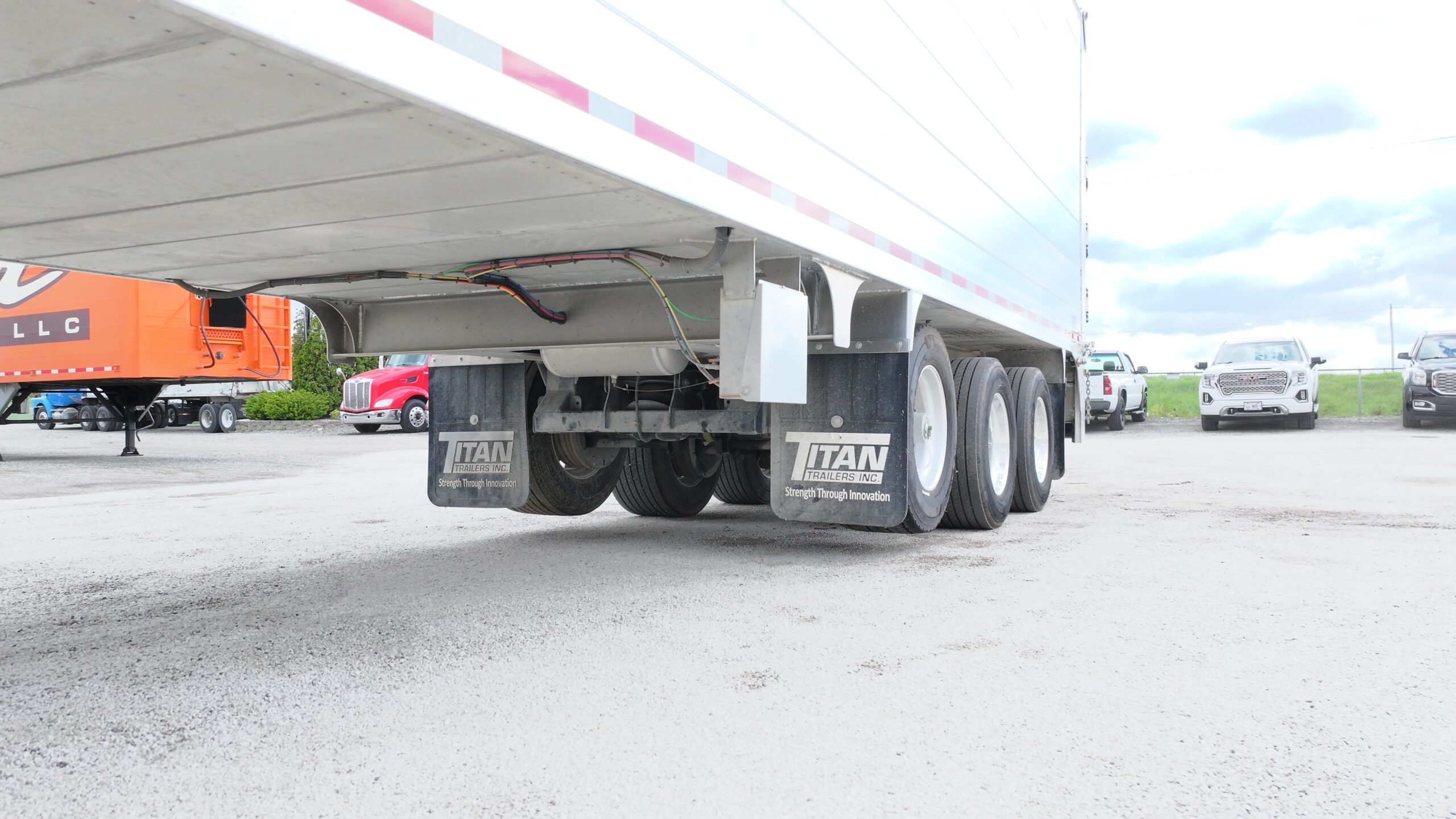

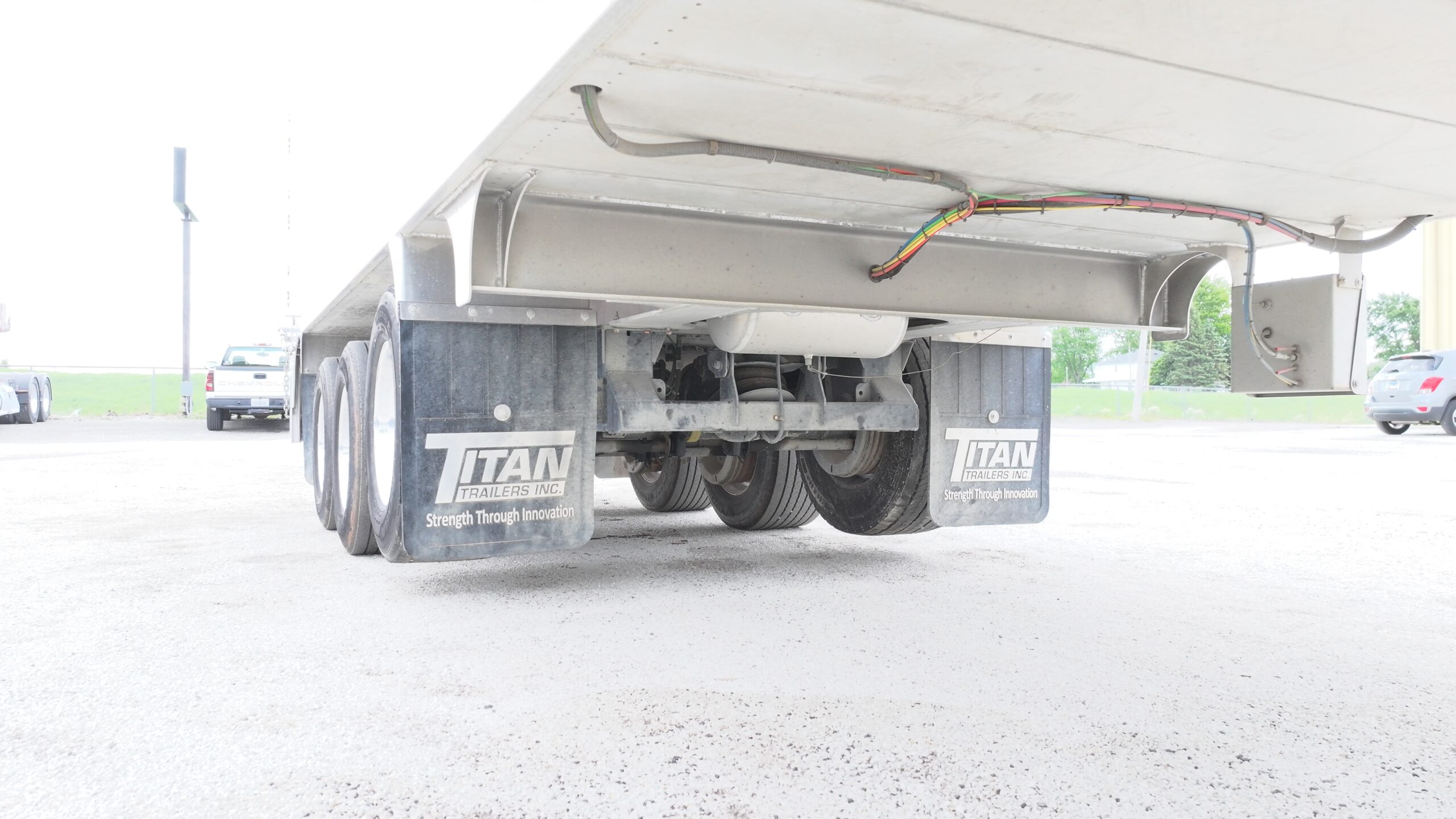

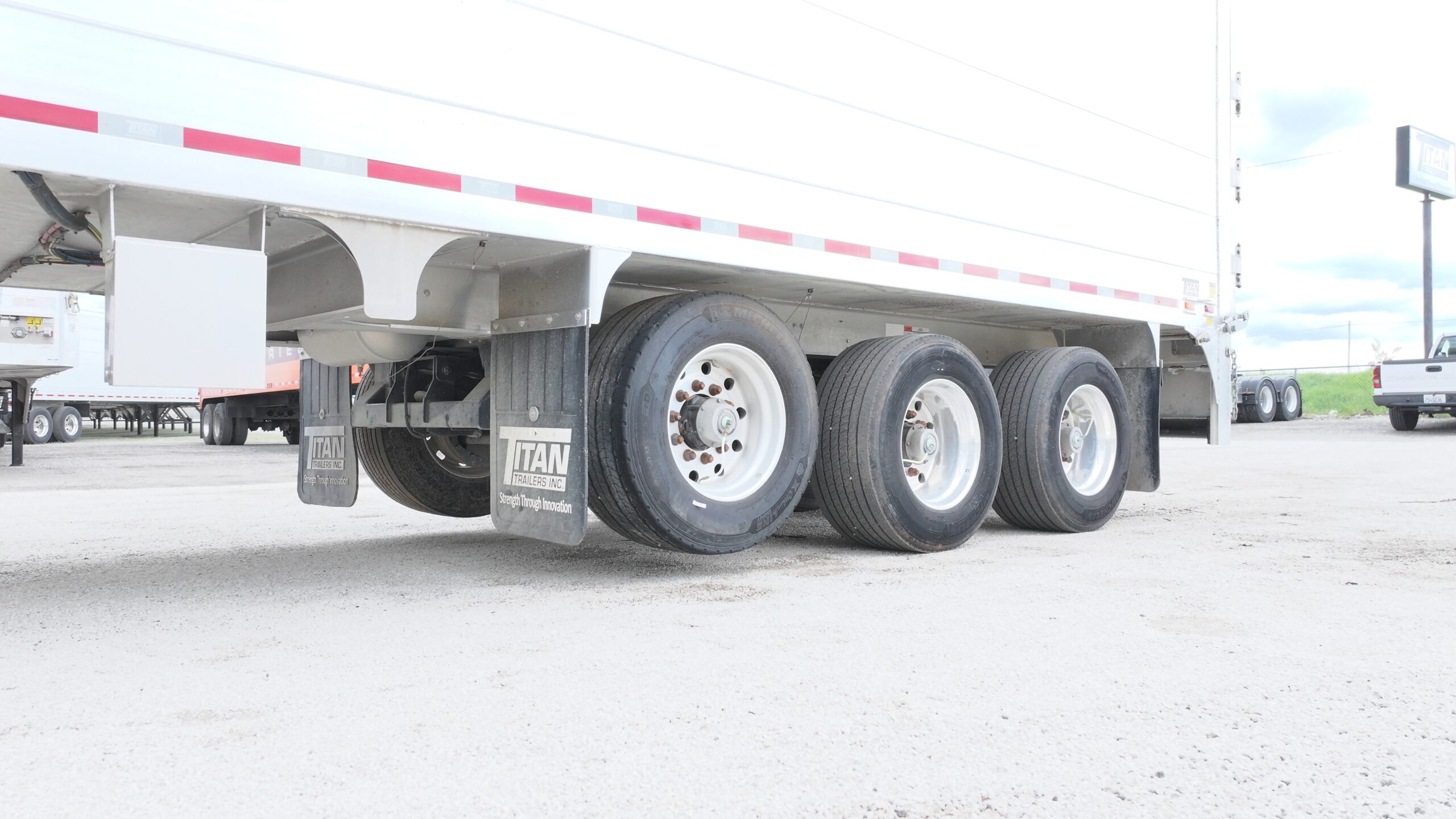

Mud flaps        Style                Titan black rubber

Location          Front of Lift and Rear primary – rear flap reinforced w/ 6” flap

Paint                Body – color   Natural aluminum

Run – gear       Titan black

Hub / drum      Same as running gear

Rims or Disc   Aluminum

Light package                         2-ID markers & midturn per sidewall, 2-4” dia. per side & 3 rect.  In rear light bar, 1 per side ID clearance lights at front – See Note #6

Option #1        Use Round plastic 4 ½” on rear, no stainless cover (anti theft ring)

Option #2        All lights LED

Access             Catwalk Frt     None

Ladder Frt       None

Ladder Rear    None

Steps Frt out    None

Steps Frt in      None

Steps Rear       None



Additional specifications:

• (2) Winders located at the bottom of door. 1 on each side.
• Landing gear 38’ 4” approx. from center of landing gear to rear of bumper blocks to suit 48’ Tipper deck length.
• No Sidegrabs. Door opening to suit bottom of compactor chute which is 60 ¾” from ground. Tipper backstop height 42”.  Tri Fold door needs to open and close inside building with 2’             clearance on each side of trailer.

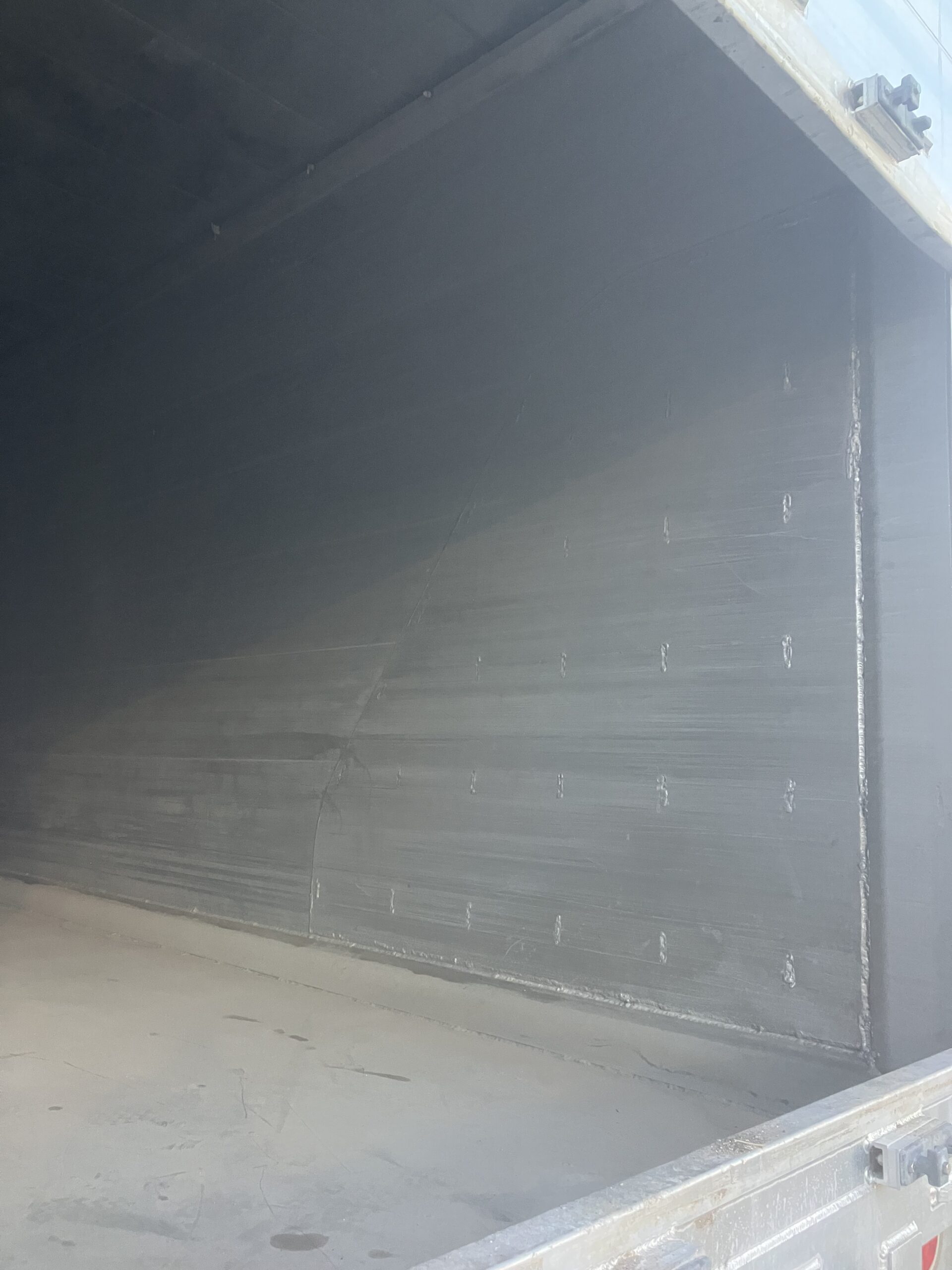

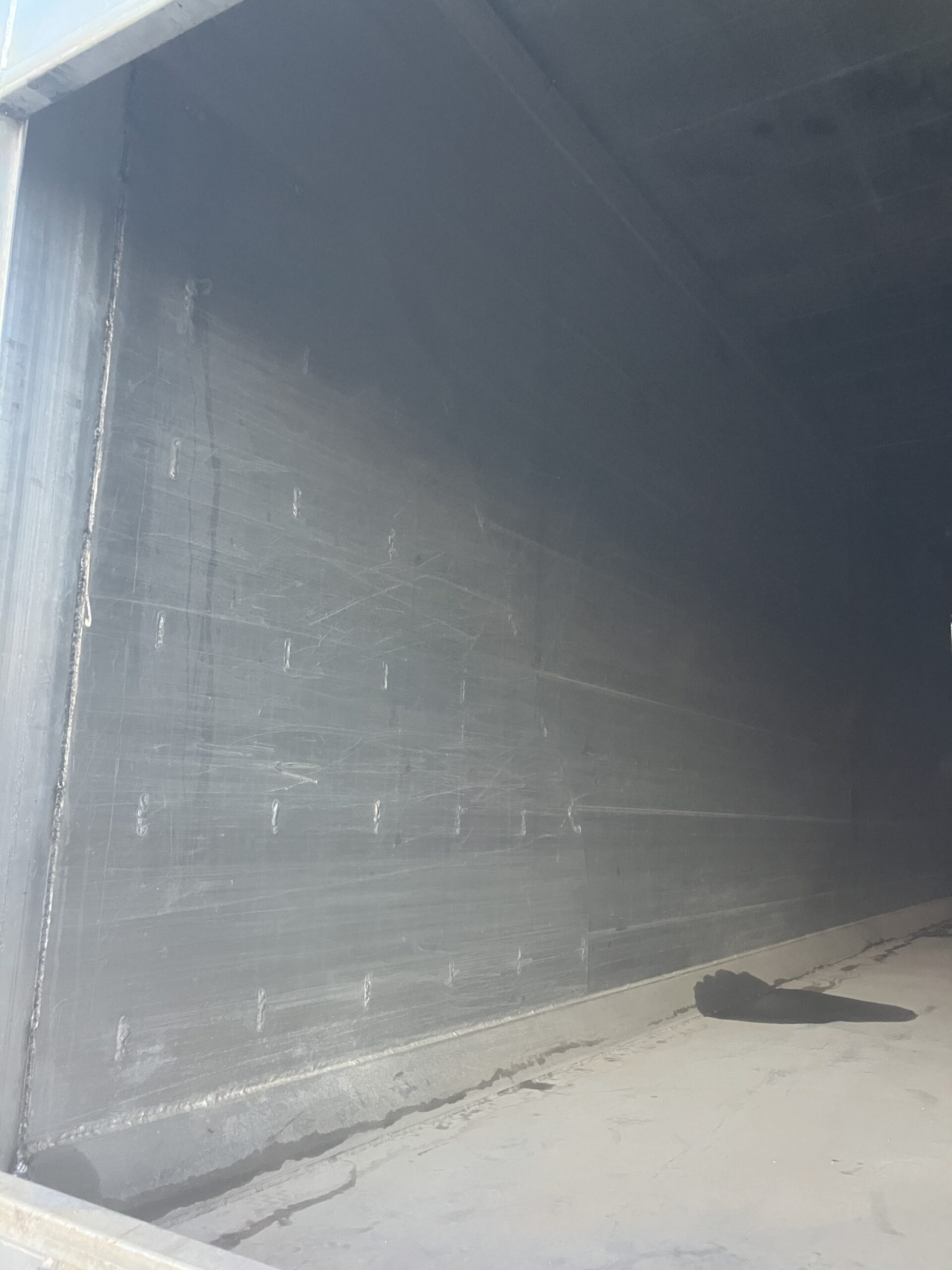

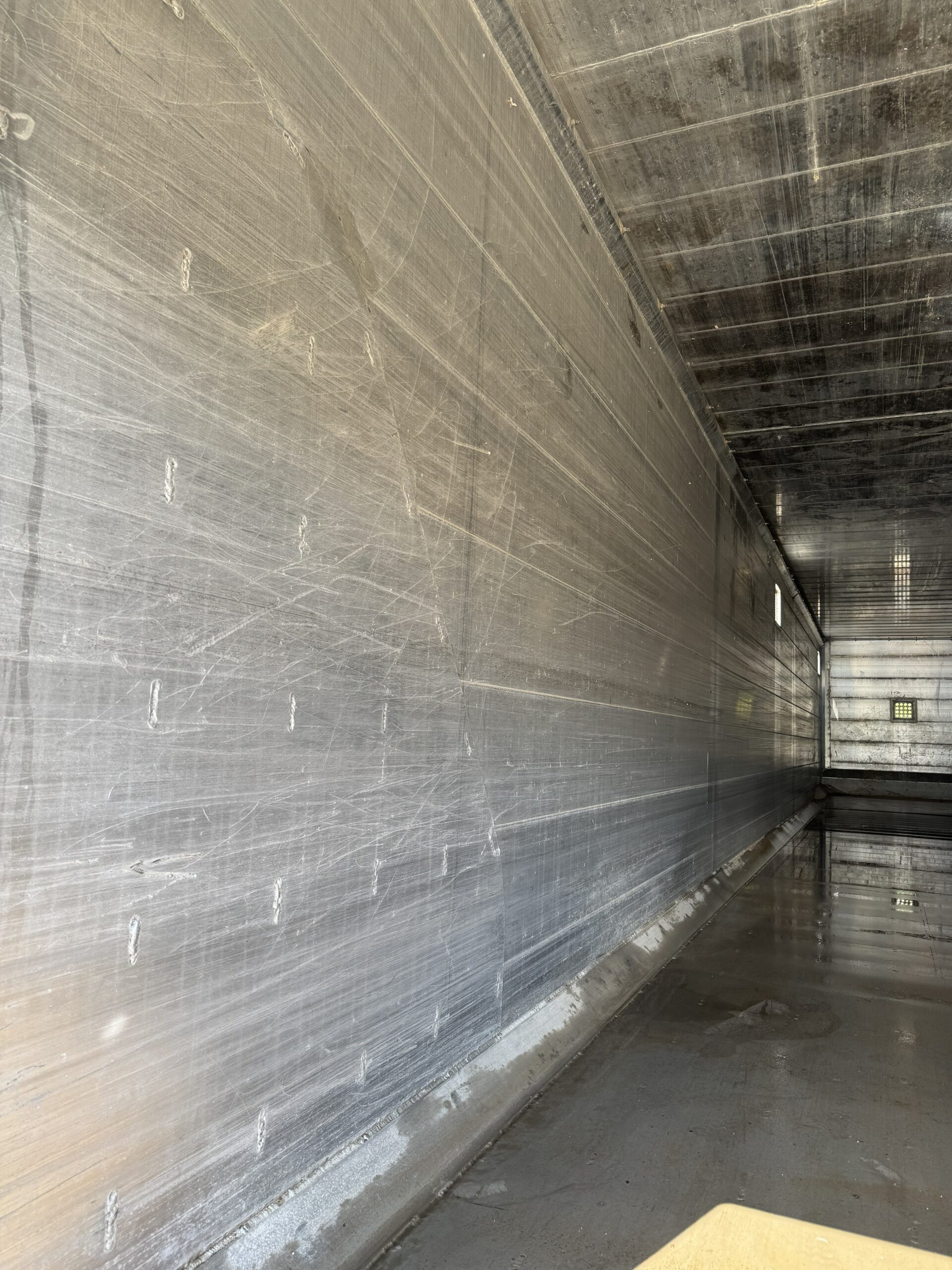

• Compactor sidewall wear plates
• Air/Elec plate roadside front wall, add suspension dump, tailgate release & air gauge

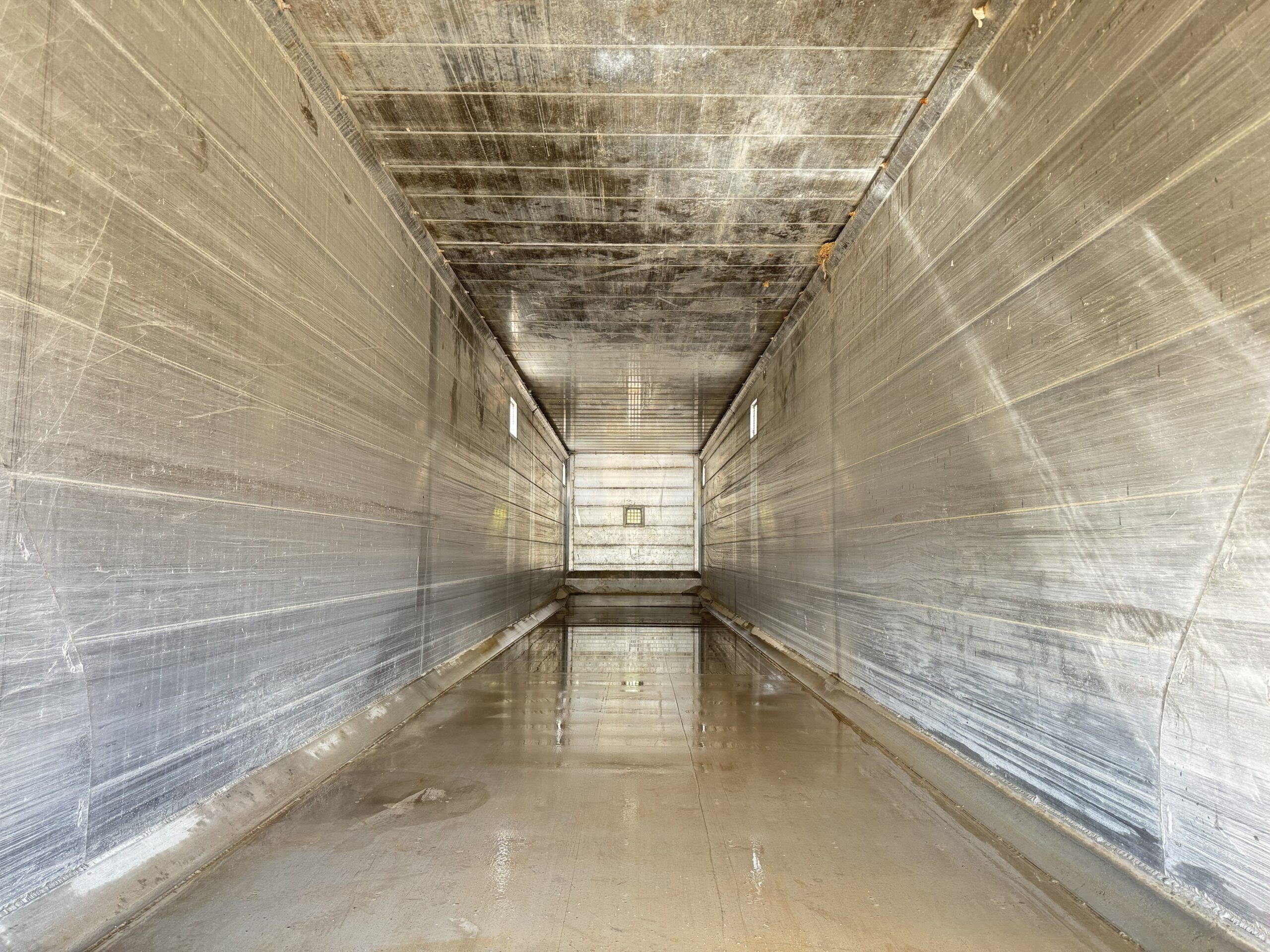

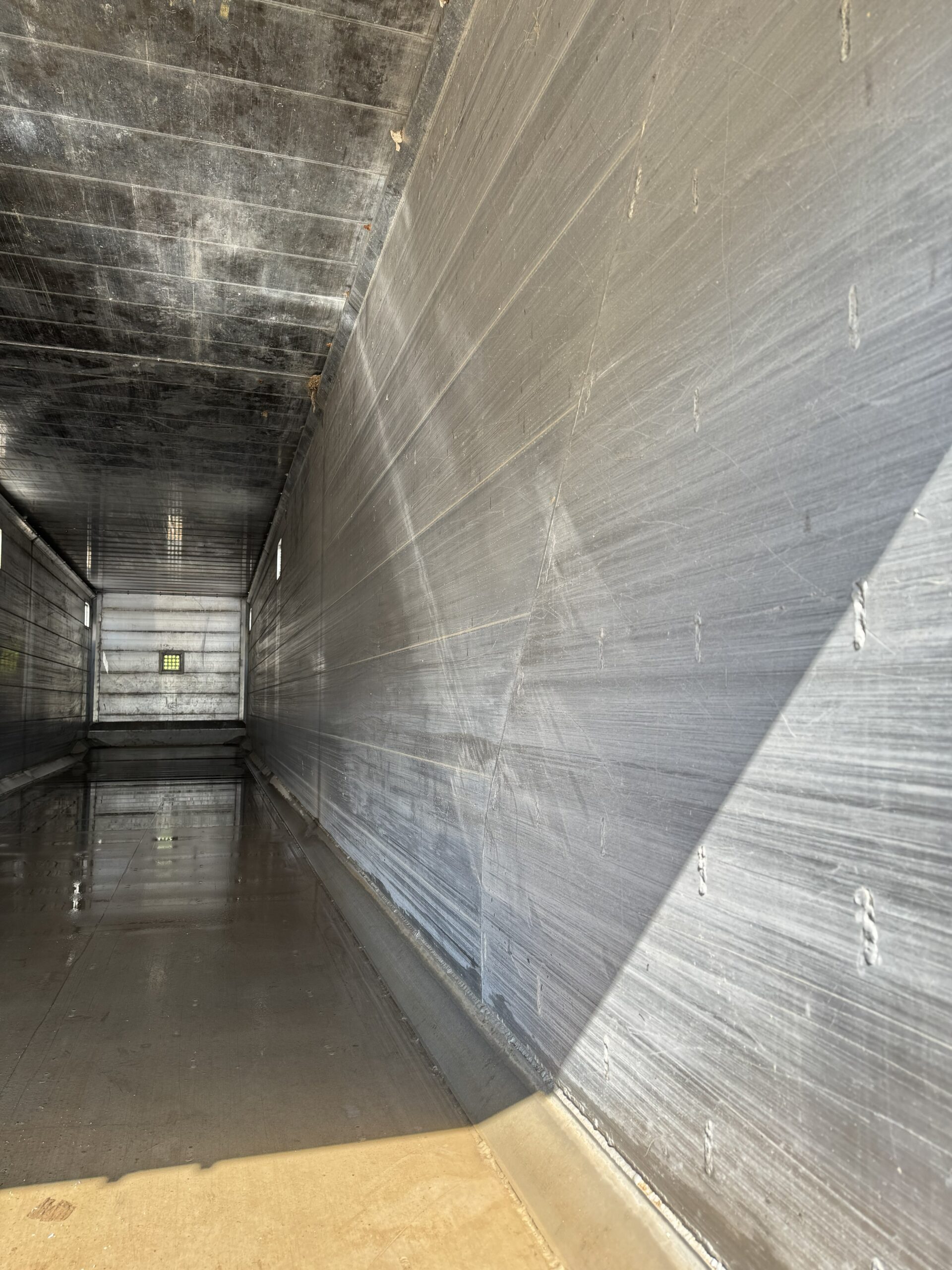

• Install alum 3/16” wear plate on rear 20’ of floor
• HD rear 1/3 of roof, NGHD remainder

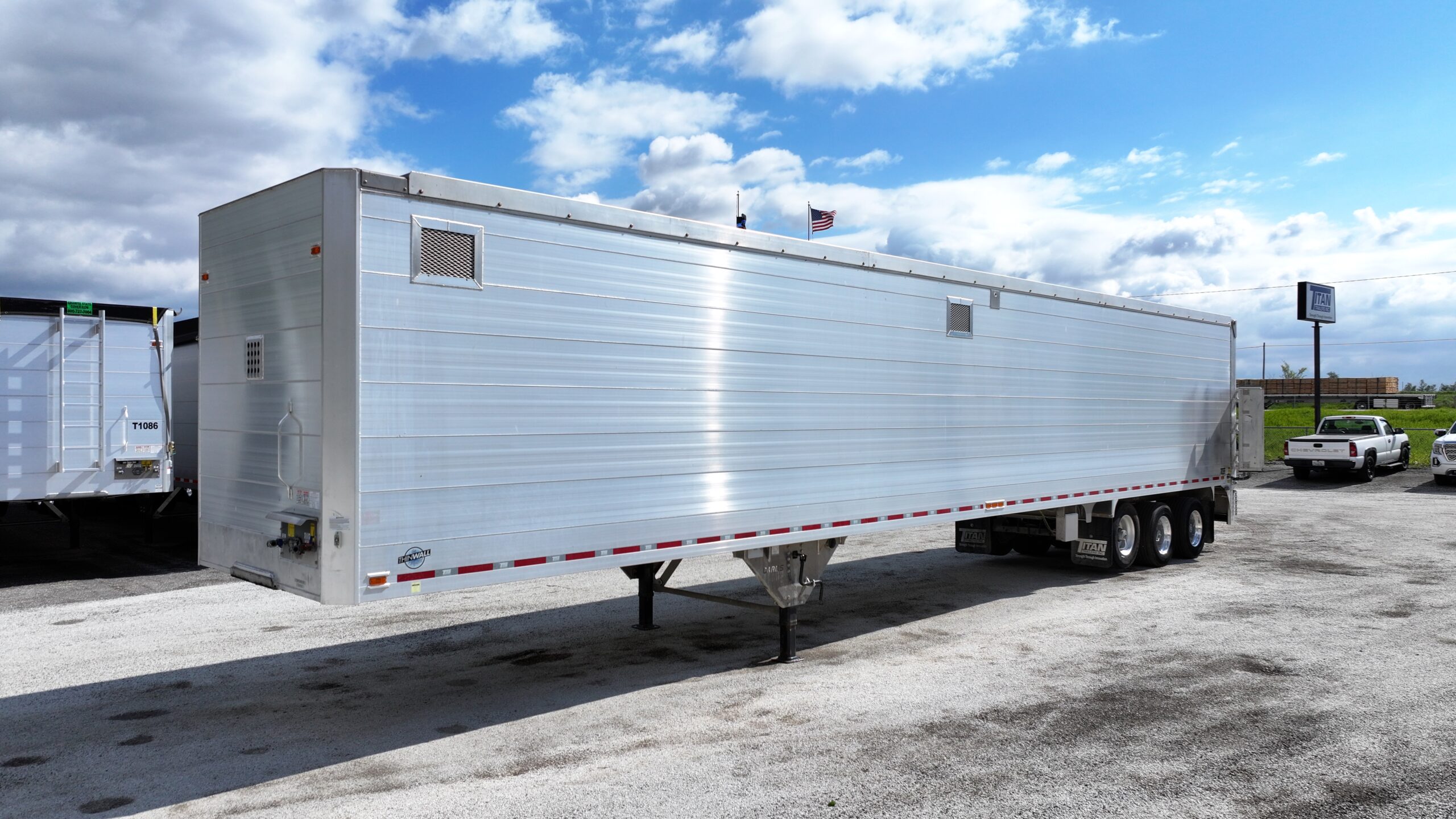

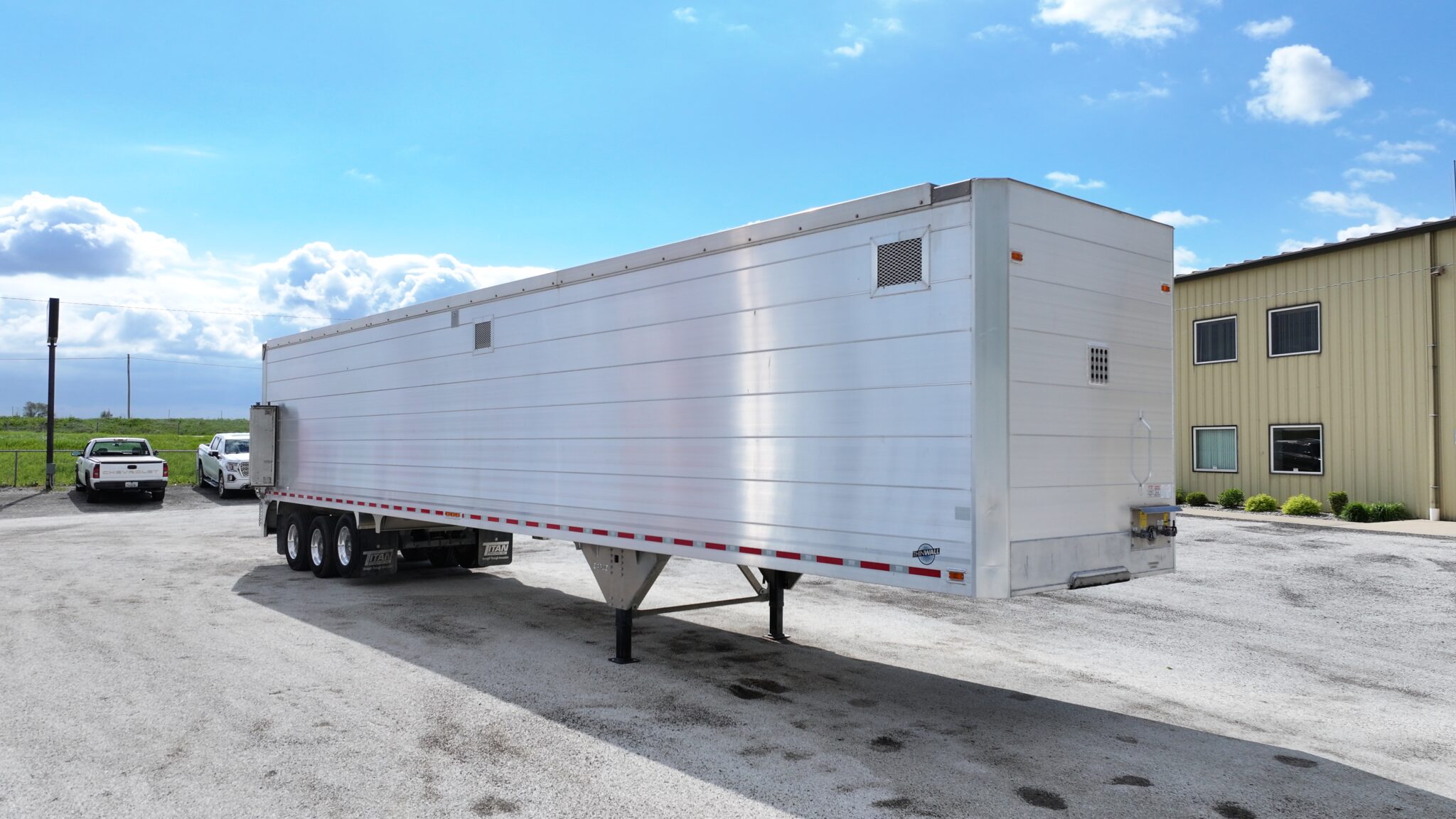

• Add (2) vents per side on sidewall
• There is no sill, only a lightbar at rear. Eyebrows to be installed
• Add (18) tarp hooks around door in door opening so customer can tarp it to eliminate spillage when disconnecting from compactor. (4) per side / (5) top & bottom  These tarp hooks are not standard, make out of aluminum square stock x 4” long, drill ¼” hole for bungee S hook to hook into
• Install Meritor Tire Inflation System        Axles are to be inverted
• Haldex long stroke brake chambers

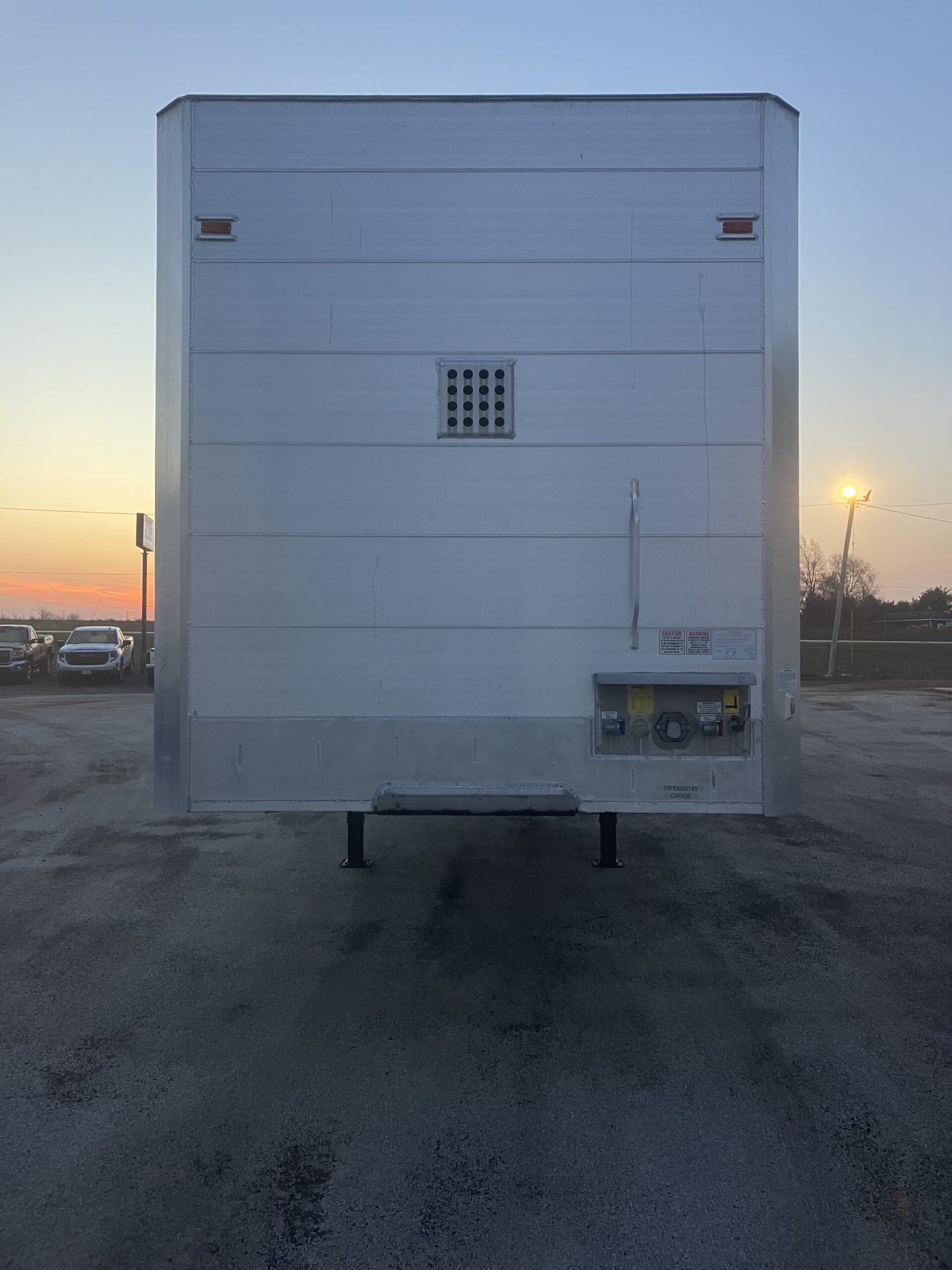

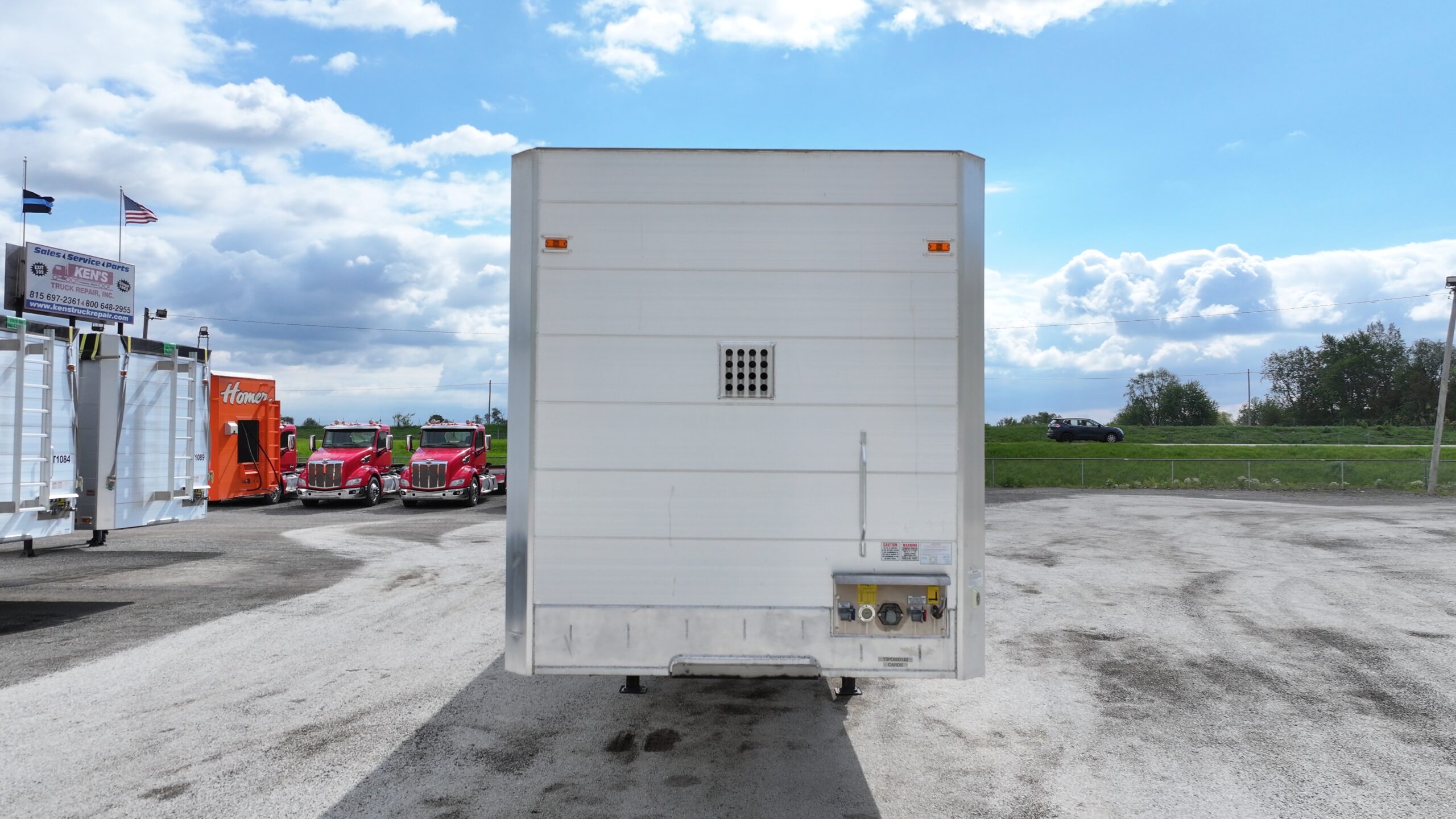

• Add 10”x10” plasma’d viewing window on front wall
• Install a ¼” liner to outside front bottom panel
• Install a piece of the 2” c-cap top rail to underside of front wall each side of coupler plate

Weight estimate: 20,600 lbs +/- 3%

Volume: 144.8 cubic yards
