INVENTORY

2027 TITAN 53′ 2 AXLE WALKING FLOOR TRAILER     3 UNITS        CALL FOR PRICING

Customer application             Garbage – 3.5” Drive

Base model                             53-2-TW-WF – Open Top

Style                                        Straight

Wall configuration

Front                     To Suit Garbage Application

Sides                      7-14” +1-6” panels to suit garbage application

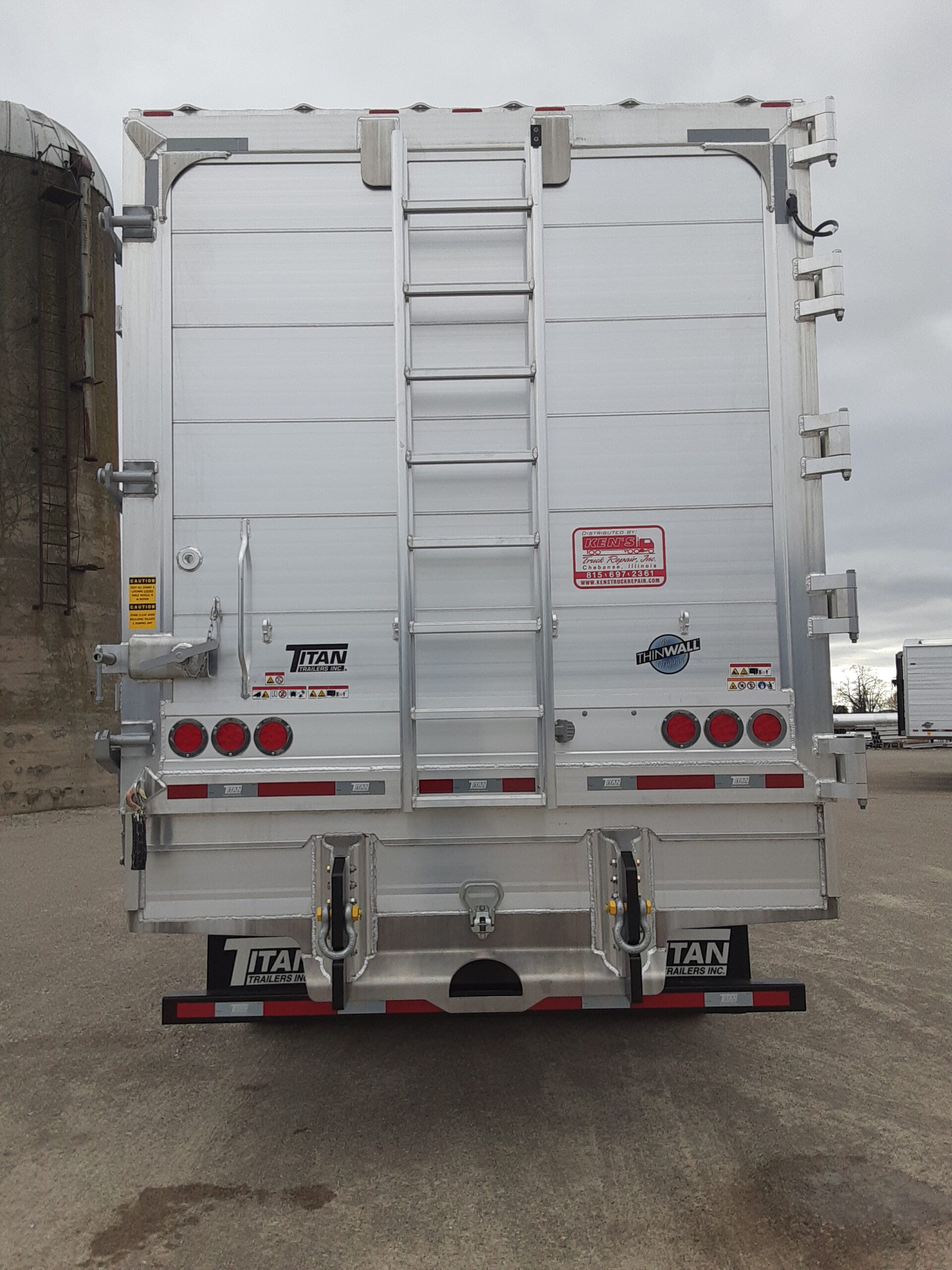

Rear Door              Side Swing, Door in Door, Lights in Door, Air Release w/ Reinforced bottom lock finger – See Note # 7

Overall length                      53ft

Overall width                       102” Nominal

Overall height                      13’ 0-13/16” (156.8125”) approx

King pin location                 36” WELD IN

Upper coupler                     5/16” THK Steel – Set at 48” high

Number of Axles                 Primary Two (2)

Axles                                    5” Round .580 Wall – Straight Spindle – See Note # 6

Axle track                            77.5”

Suspension                         Reyco 21B FAB w/inner & upper wear pads & 3 leaf springs

Location of spreads           See axle layout

Hub/drum assembly          10 Stud Duralite – Hub/Centrifuse Drum

Disc wheel size                   8.25 x 22.5

Rims                                   ALUM LVL Outer/Inner

Tires     Brand                     Goodyear

Size                        11R22.5 – 41.4 dia

Tread                      Endurance RST

Ply                          16

Quantity                 8

Axle layout                        FRONT – Prim -50 – Prim – 84 – REAR

Oil seals                            To suit axles

Lubricants                         80W-90

Brakes     ABS                   2S/1M Meritor Wabco

Slack adj.           DRUM BRAKES: Meritor Auto

Cam Enclos       DRUM BRAKES: All Axles & c/w Dust Shields

Lift kits                             None

Lift controls                     None

Frame width                    48”

Rear bumper                   Aluminum, offset, push w/ underride – See Note # 1

Option #1               Tow shackles

Option #2               Steel vertical blocks -protrudes 3 ½” sloped top bolted to bumper

Tire carrier                      None

Landing gear                  SAF-Holland Mark V: 105 Skid Foot, Standard hollow axle – See Note #1

Top rail                           Titan Tapered, V1

Top cross tube                Qty 2 – Spring Steel (two piece style) – See Note #4

Floor crossmembers       12” Centers

Keith walking floor kit     Running floor II – 3.5” Dia Cylinders – 10” stroke – See Note # 8

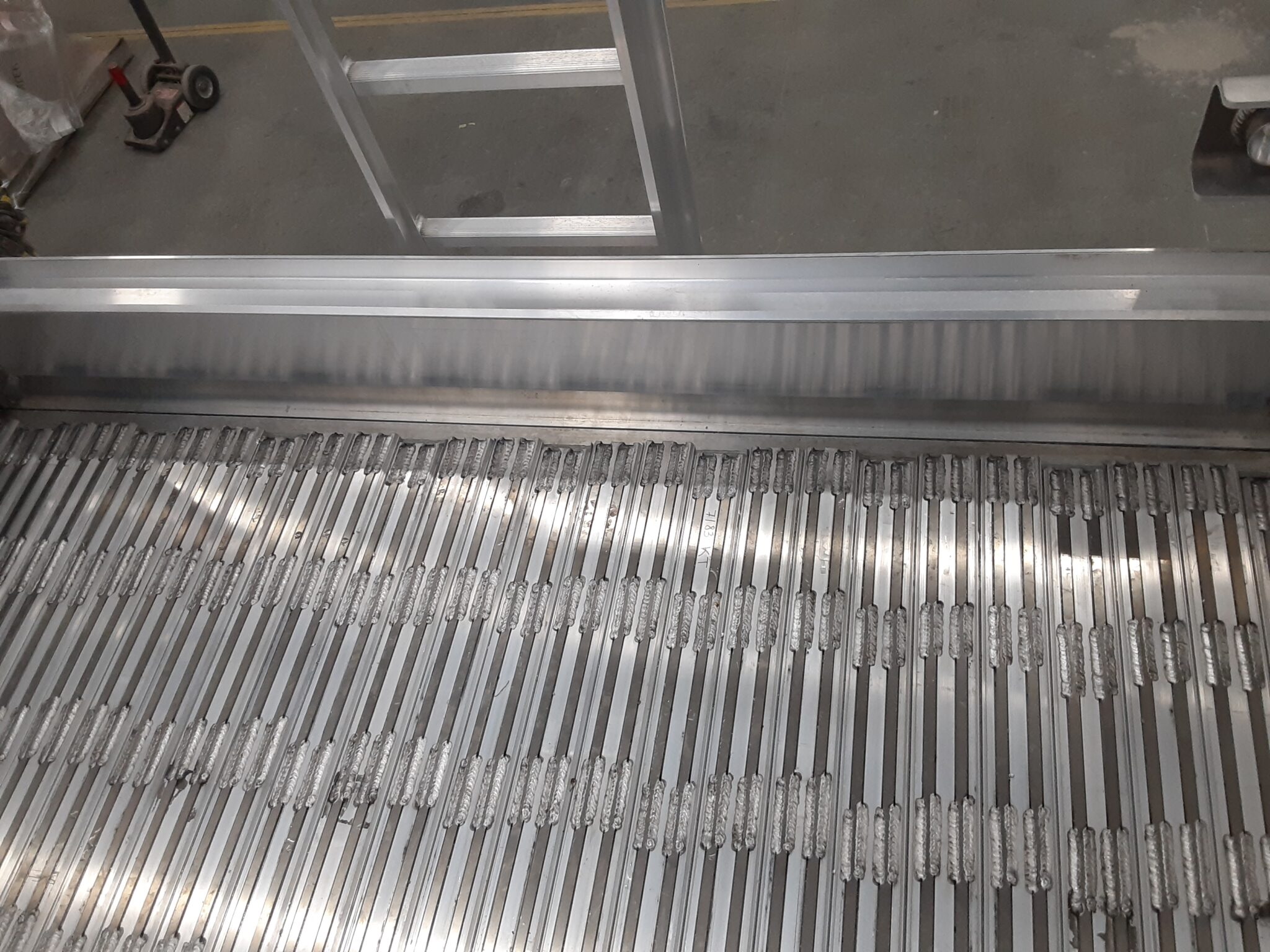

Slat model & width        26 slats: 2299 Slats (1/2” Triple Ridge Impact – 3.5”W), 1212 seals, T-Blocks at Rear

Slat wear strips              48’ long, Flush, Filler bar wear strips

Continuous bearing      Continuous Splash/Hold Down Bearings

Side wall wear plates     Boomerang style

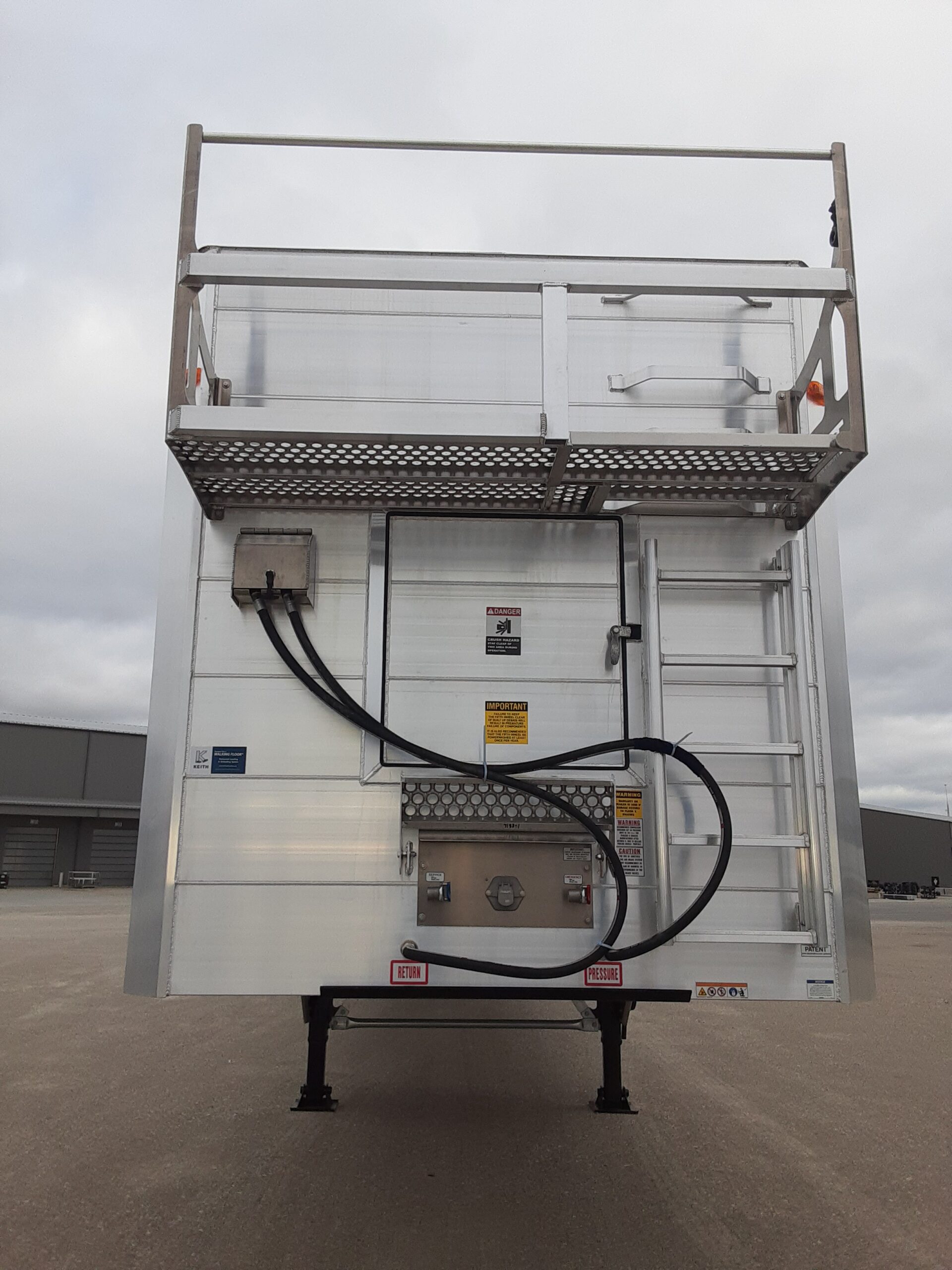

Front access door          STD 35w x 37.5h Sealed – Curbside Hinge with flip step, located center

Tarp style                       None

Tarp header                   None

Tarp basket                   None

Tarp hooks                   Side hooks approx. 48” o/c with 4 hooks on rear door

Axle fender                  None

Hyd fitting  Pressure    1” Quick Coupler – Male

Return       1” Quick Coupler – Female

Mud flaps   Style          Titan black rubber

Location   (2) Behind Primary group & none at rear

Mud flap – Landing gear  None

Paint      Body – color  Natural aluminum

Run – gear    Titan black

Hub / drum   Same as running gear

Rims or Disc  Aluminum

Light package             Front: (1) mkr per corner mitre.      Sides: (2) mkrs (includes midturn)      Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

Option #1            Install Rear Taillights in rear door & license plate in door

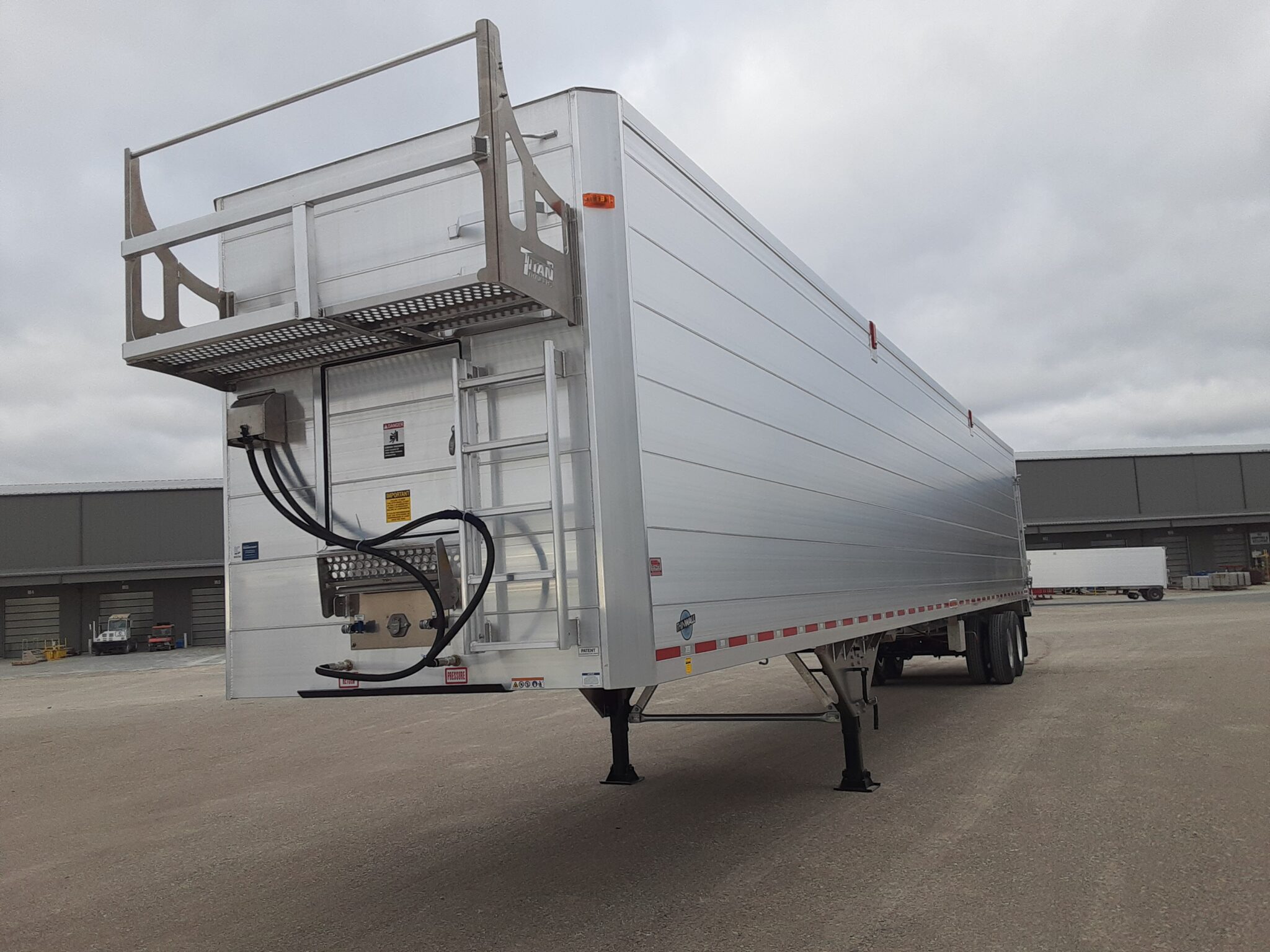

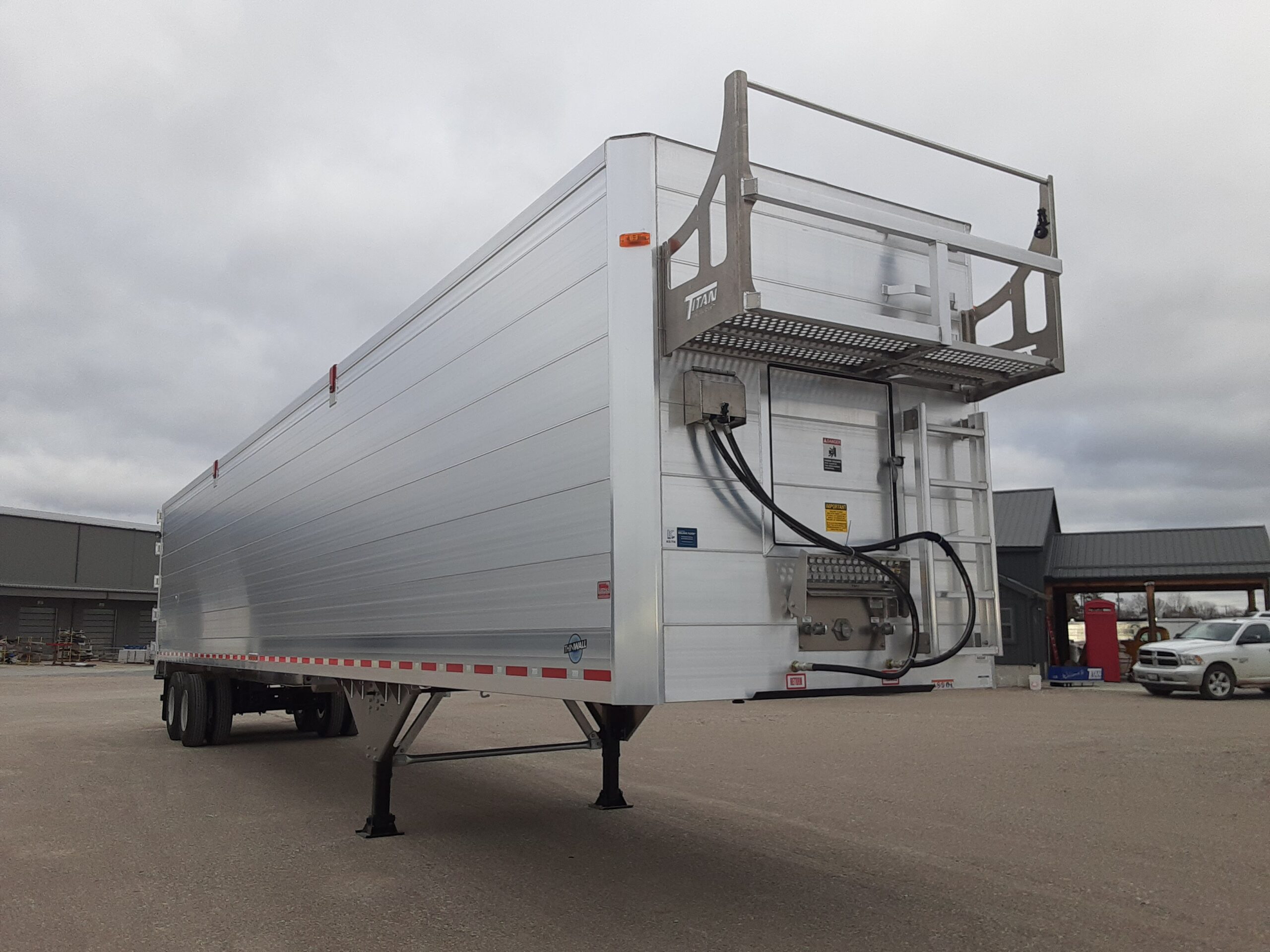

Access   Catwalk         Universal Roadside entry 24” catwalk

J-Ladder Frt   Roadside to Catwalk

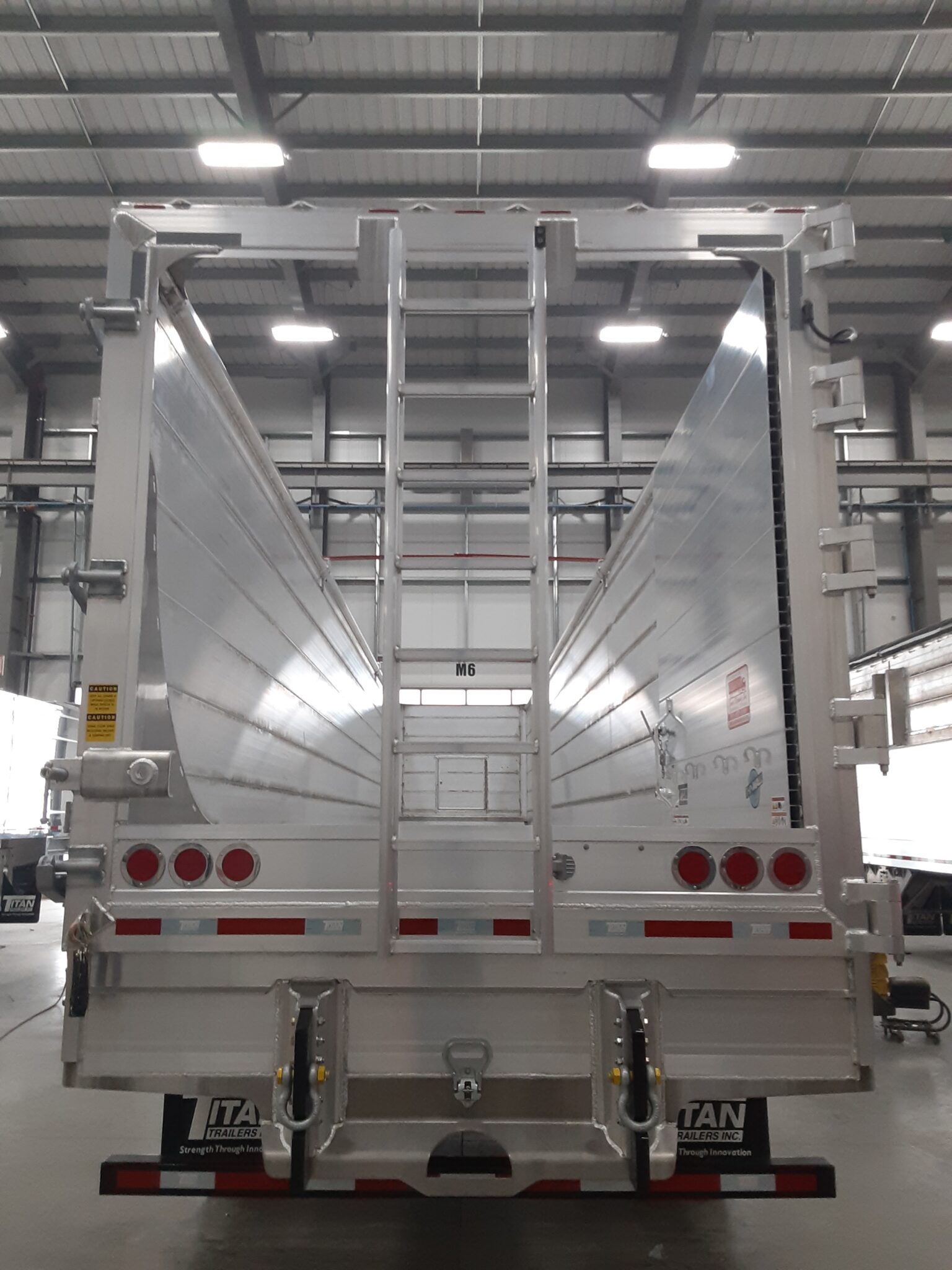

J-Ladder Rear  Middle of Rear door full height – See Note # 3

Steps Frt out    None

Steps Frt in      None

Steps Rear       None

Additional specifications:

1. Approximately 39’ 9-1/2” from center of landing gear to rear of bumper

2. a) Add 9’ hoses to front wall

b) Add hinged lid hose hanger to front wall

3. Top stirrup step for front access ladder needs to be located approximately 20” down from top. Grab handle is still needed

4. a) Spring bars to be located 17’ from front and 17’ from rear

b) Prep Sidewalls at center for future spring bar

5. Air release tailgate controls to be located in control box

6. a) Invert axles

b) PSI ready axles

7. Tapered door header with 1-PC gusset attached to top side of tapered header. Gusset to suit 10” bolt on tarp header

8. Add 2.5” hydraulic pressure gauge to frame (flush mount), located beside the on/off handle with identifying label

Estimated weight: 19,136 lbs +/- 3%

Estimated volume: 135.49 cu yds
