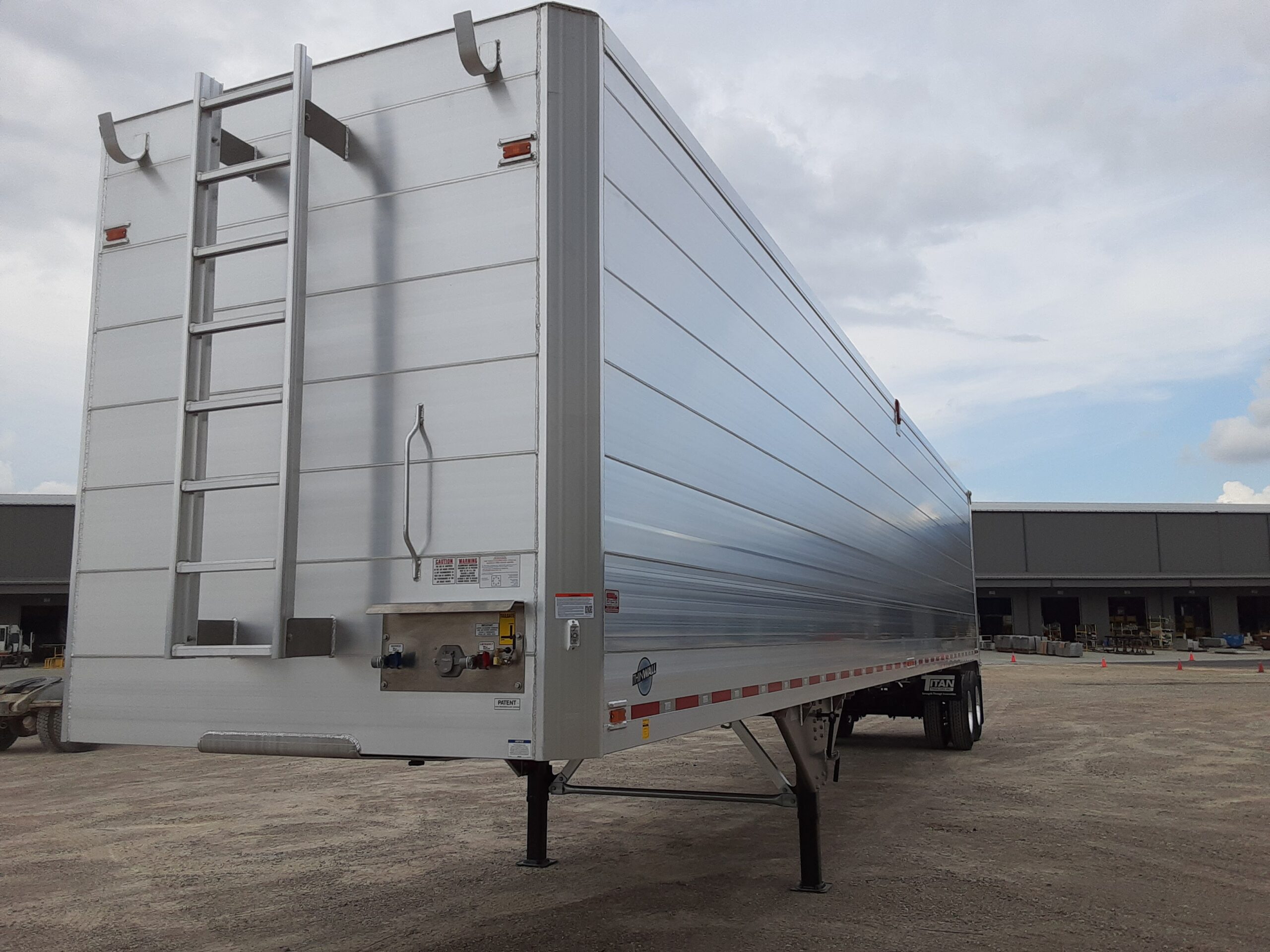

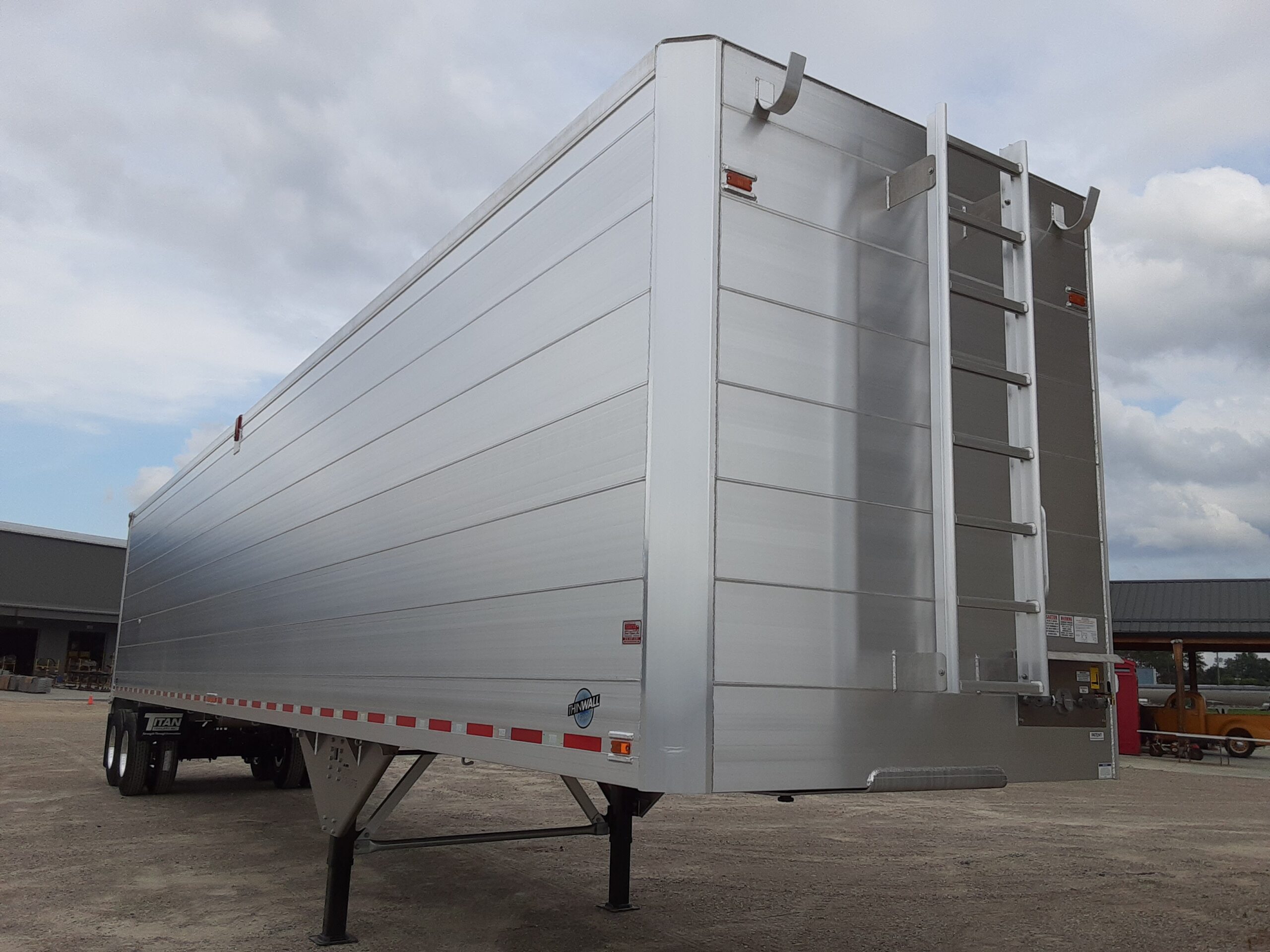

2027 TITAN 48′ 2 AXLE TIPPER TRAILER    20 UNITS       CALL FOR PRICING

Customer Application                         Garbage sheet floor

Base Model                                         48-2-TW-TP (open top)

Body Style                                          Straight

Panel Configuration                            7-14” + 1-6” panels to suit garbage application – See Note # 3 Overall Length                                 48’

Overall Width                                     102” Nominal

Overall Height                                    13’ 4” (160”) approx.

King Pin Location                               36” bolt in

Upper Coupler                                    Aluminum coupler assembly with stainless steel wear plate (3” drop) set @ 48” high

Number of Axles                                 Primary            (2) Two

Lift                  (0) None

Axle                                                    5” Round .580 Wall-straight spindle – See Note #2

Axle Track                                          77.5”

Suspension                                          Titan/Eveley with inner & upper wear pads with 3 leaf springs

Location of Spreads                            See axle layout

Hub & Drum Assembly                      10 stud dura-light – hub/centrifuse drum Disc Wheels Size                       8.25 x 22.5

Rims                                                    ALUM LVL Outer/Inner

Tires               Brand                            Goodyear – See Note # 4

Size                               11R22.5 – 41.4 dia

Tread                             Endurance RST

Ply                                16

Quantity                       8

Axle Layout                                          Front-Primary-50- Primary-29.5-Rear

Oil Seals                                              To suit axles

Lubricants                                           Oil 80W-90

Brakes               ABS                            2S/1M Meritor Wabco

Slack Adj                    DRUM BRAKES: Meritor Auto

Cam Enclos                 DRUM BRAKES: All Axles & c/w Dust Shields

Lift Kits                                                 None

Lift Controls                                         None

Springs                                                3 leaf TRA-3384

Frame Width                                       48”

Rear Bumper                                       Aluminum, Flush, Narrow

Rubber Bumpers                                 Tailgate           Aluminum Rubber Channel Bumpers

Tow Hooks                                          QTY (1) 21B Rear Hanger Tow Hook, Roadside

Tire Carrier                                          None

Floor                                                   ¼” THK alum. sheet & 5/16” THK alum sheet at 6’ of rear

Floor Cross members                         U channel: 18” centers and 12” centers over subframe

Landing Gear                                      Jost Standard A400 Series: A401-G3-low profile cushion ft – See Note #1

Top Rail                                              Titan Tapered,V1

Top Cross Tube Qty                           QTY (1)

Top Cross Tube Type                         Spring steel (two piece style)

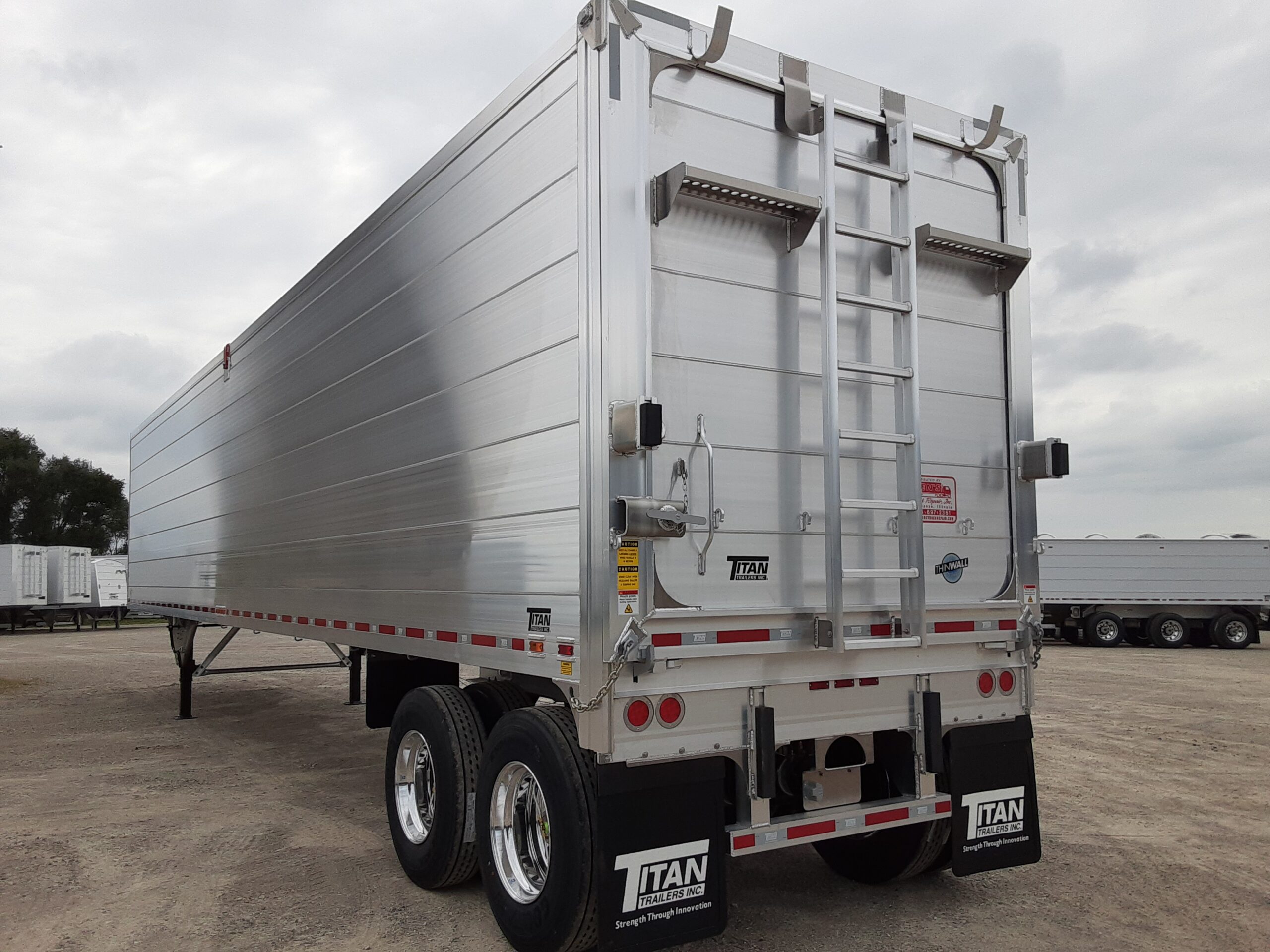

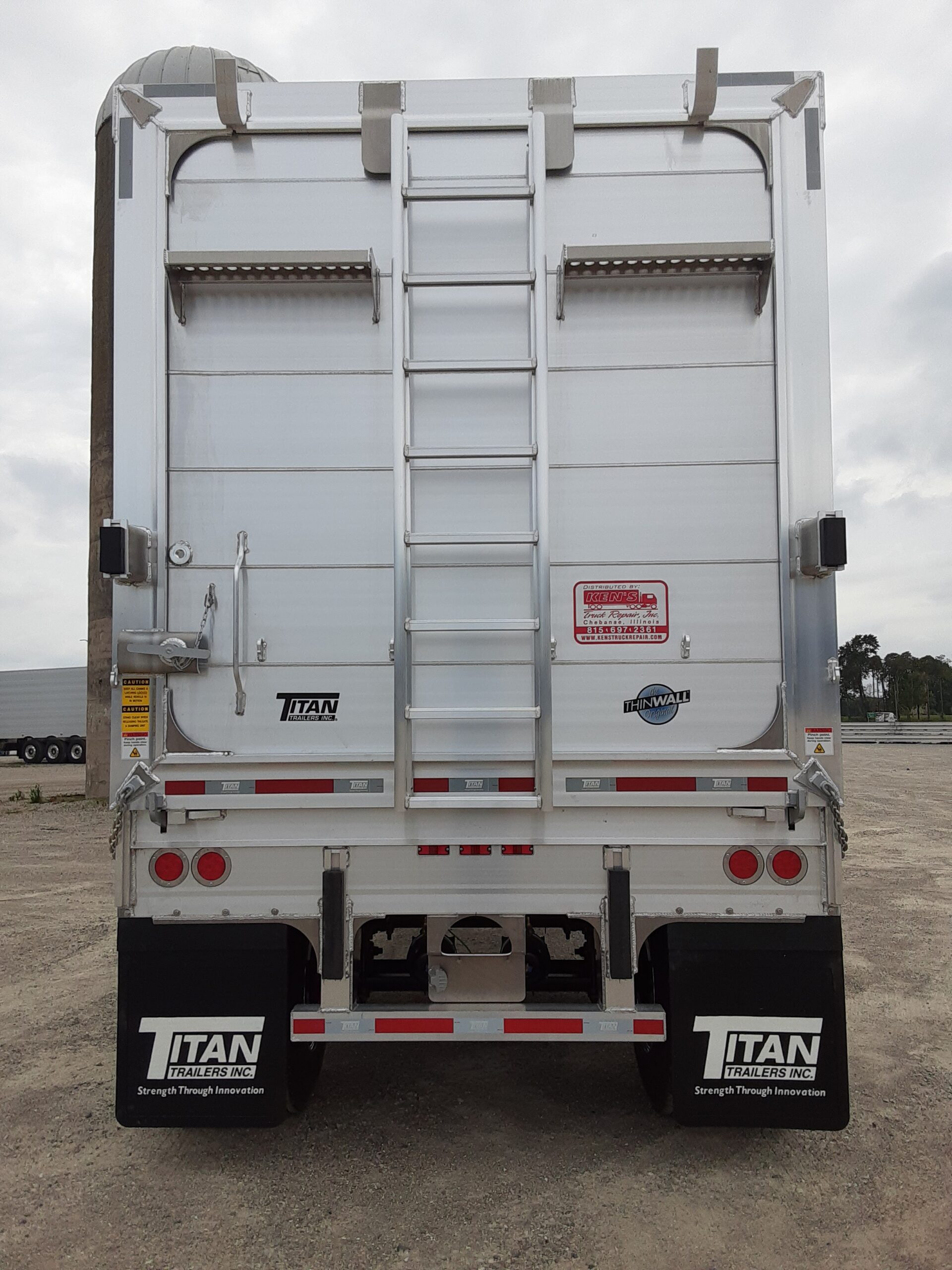

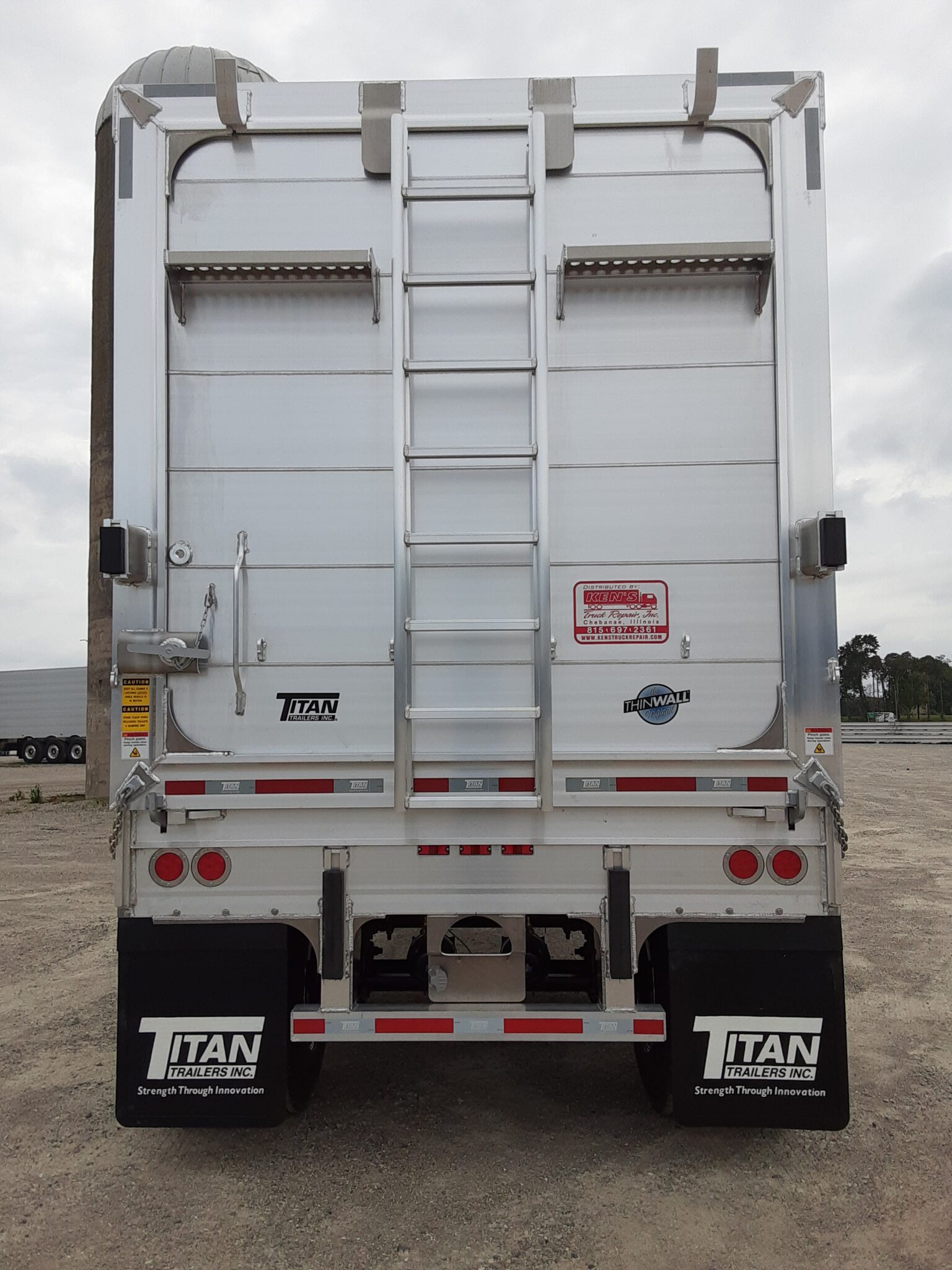

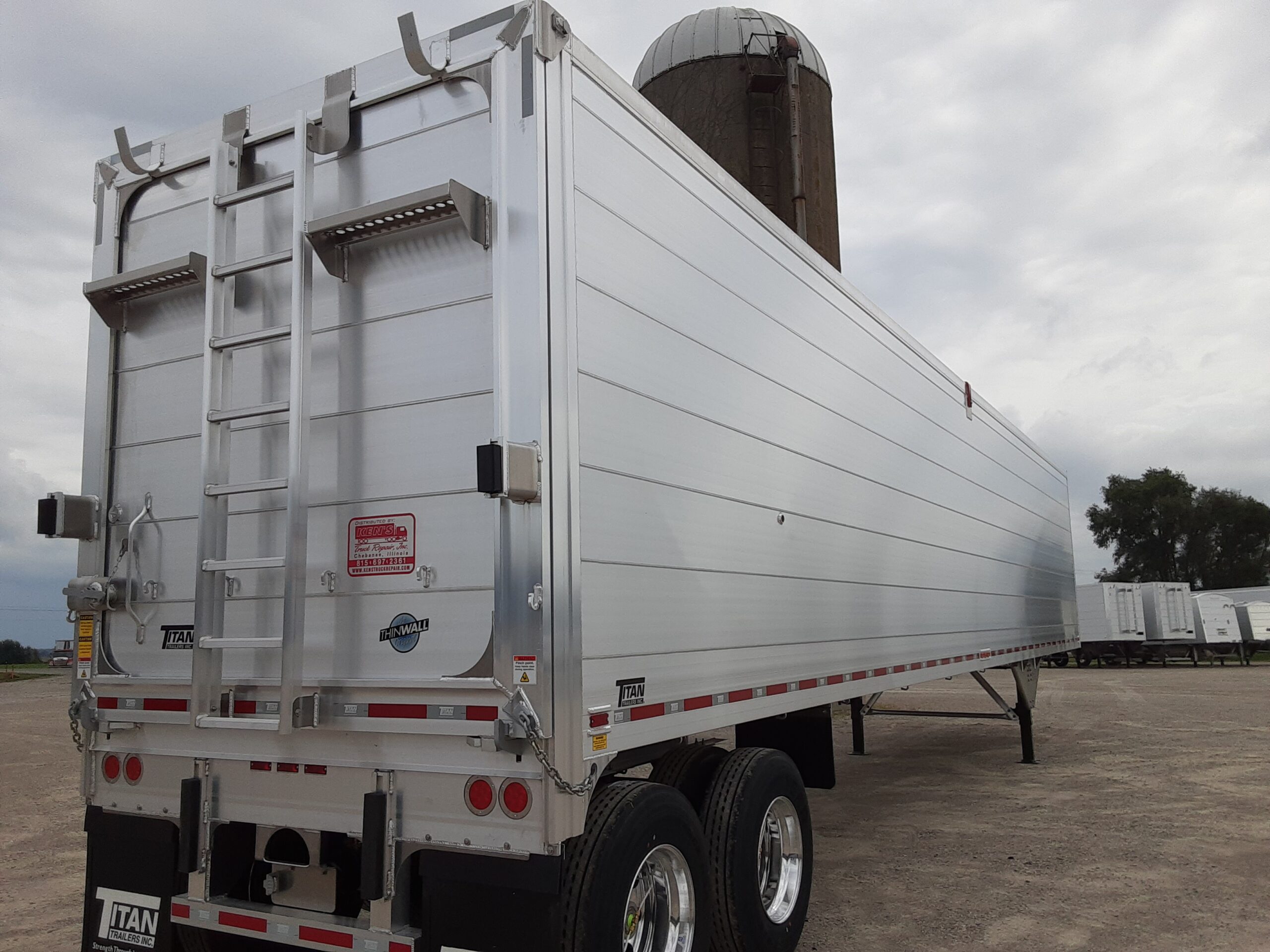

Rear Door                                           Overslung hinge, door in door, air release & safety chain

Rear Door Seal                                    Rubber

Front Door                                          None

Tarp Header                                        None

Tarp Basket (Hoops)                           None

Tarp Hook                                           Side hooks approx. 54” o/c & (4) hooks at rear

Tarp/Roof                                            None

Mud Flaps              Style                     Titan Black Rubber

Location               (2) ahead & (2) behind primary group

Paint                      Body                    Natural Aluminum

Run – Gear         Titan Black

Hub/Drum         Same as running gear

Rims or Disc       Aluminum

Std Light Package – plug form         Front (2) mkrs.  Sides: (3) mkrs (included midturn)  Rear: No mkrs at top w/center cluster of (3) mkrs in lightbar, (2) 4” round red taillights per side

Access             Catwalk – front         None

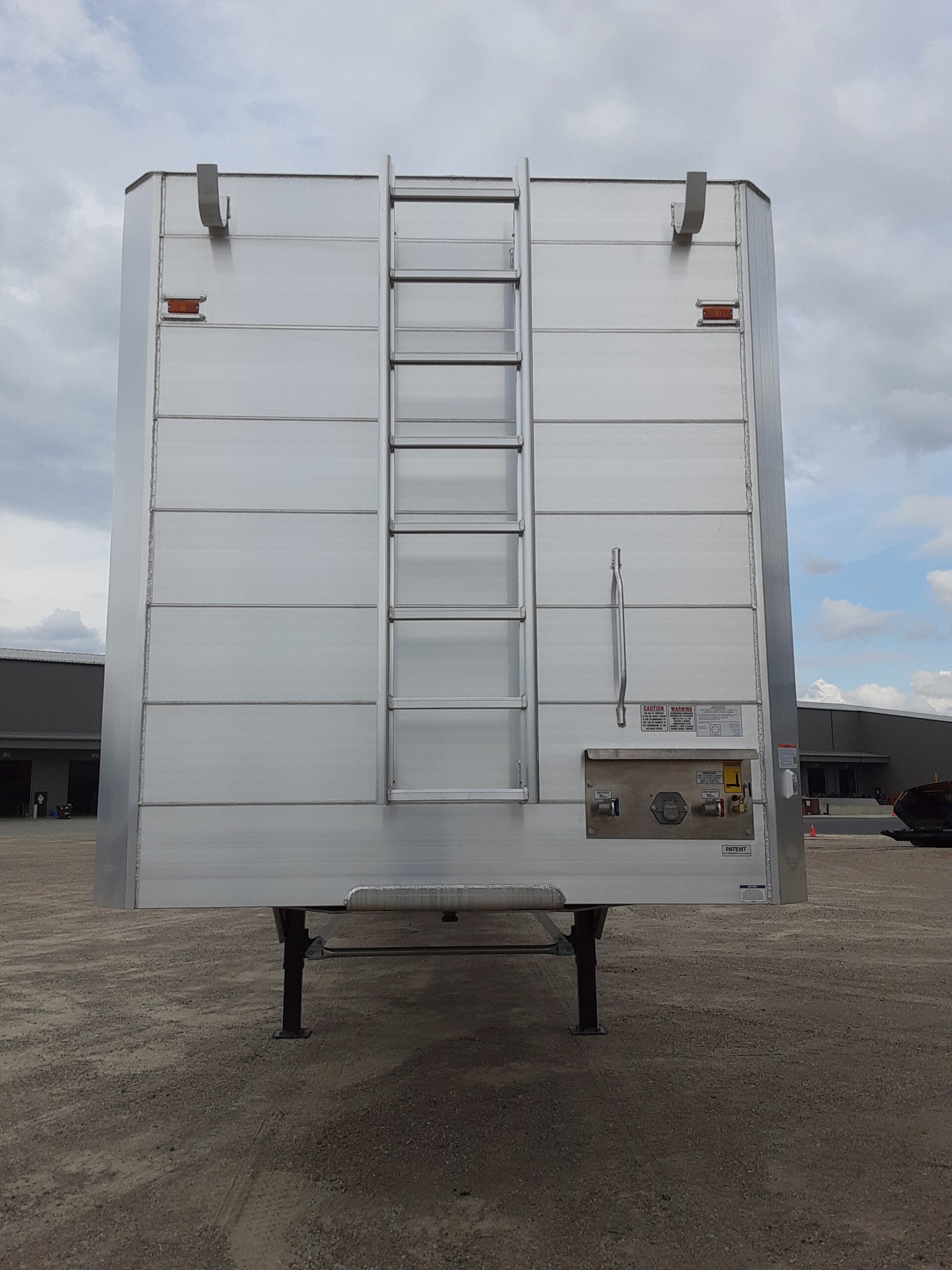

Ladder – front          Middle of frontwall full height

Ladder – rear            QTY (1) middle full height with (1) small catwalk on each side

Steps – front – out    None

Steps – front – ins     None

Steps – rear               None

Additional Specifications:

• 34’ 11-¾” from center of landing gear to rear of rubber bumpers
• Invert axles
• Boomerang wear plates
• Add PSI Meritor Tire Inflation System to all axles

Estimated volume: 125 cu yds

Estimated weight: 13,089 lbs +/- 3%
