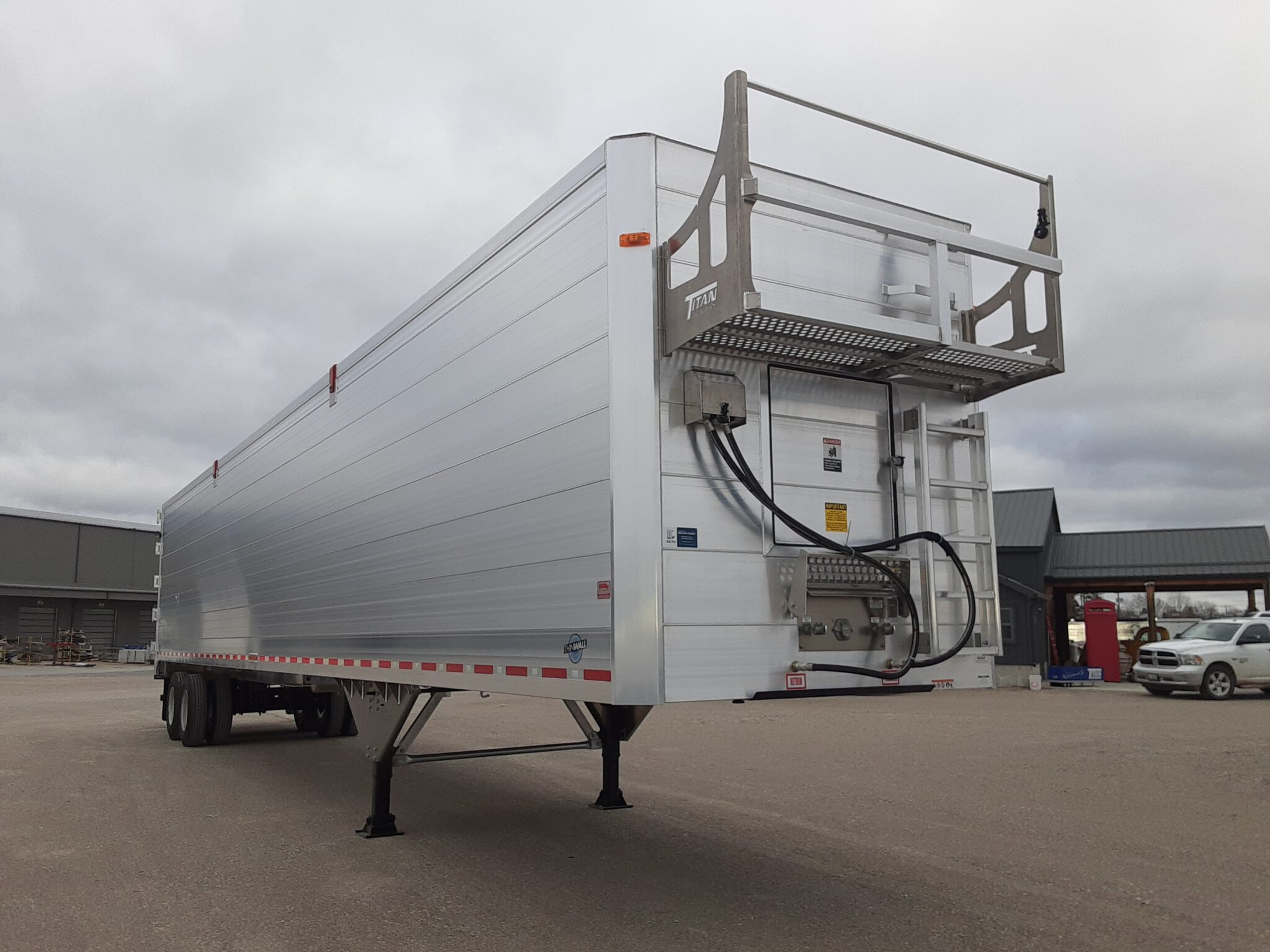

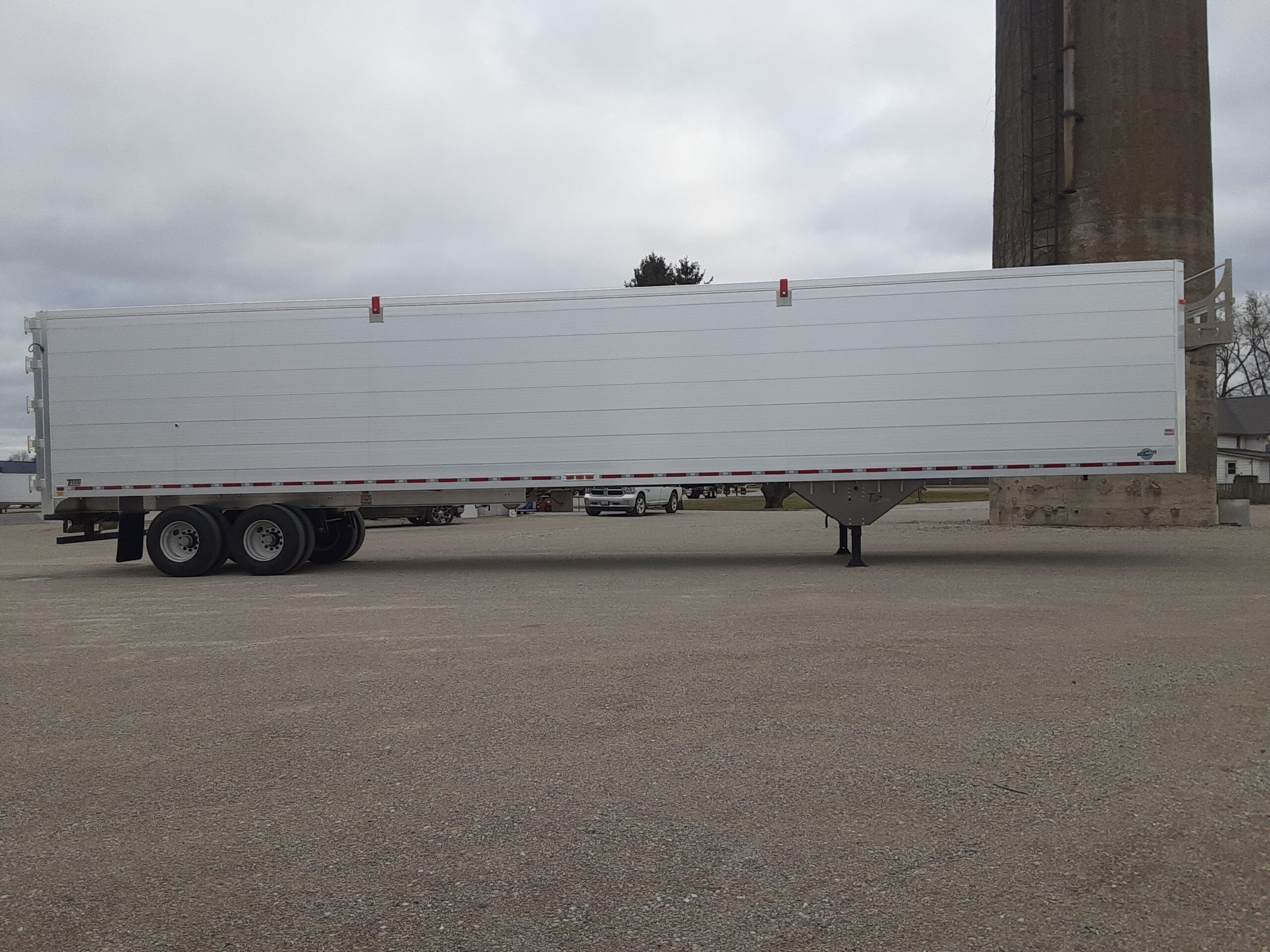

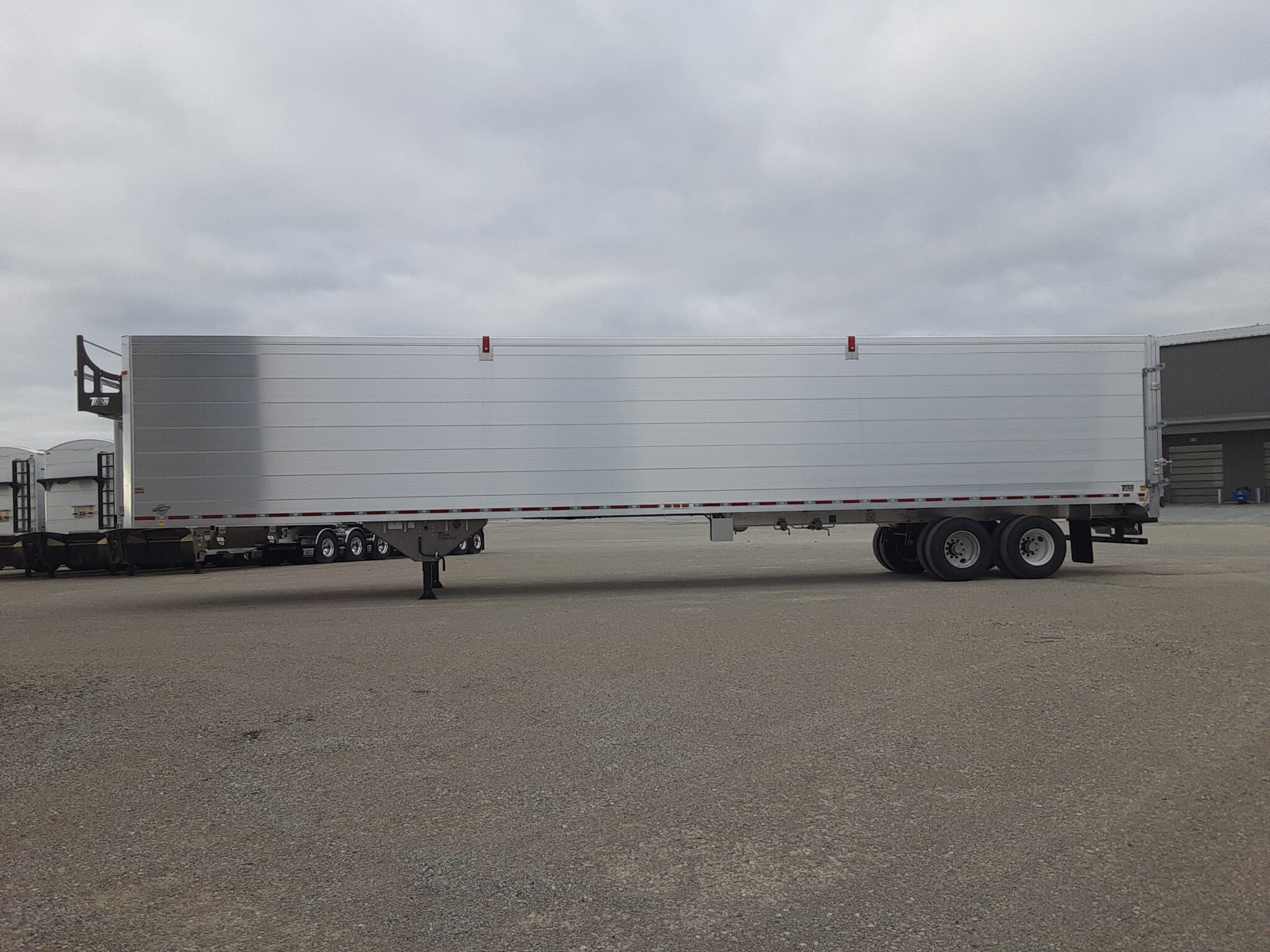

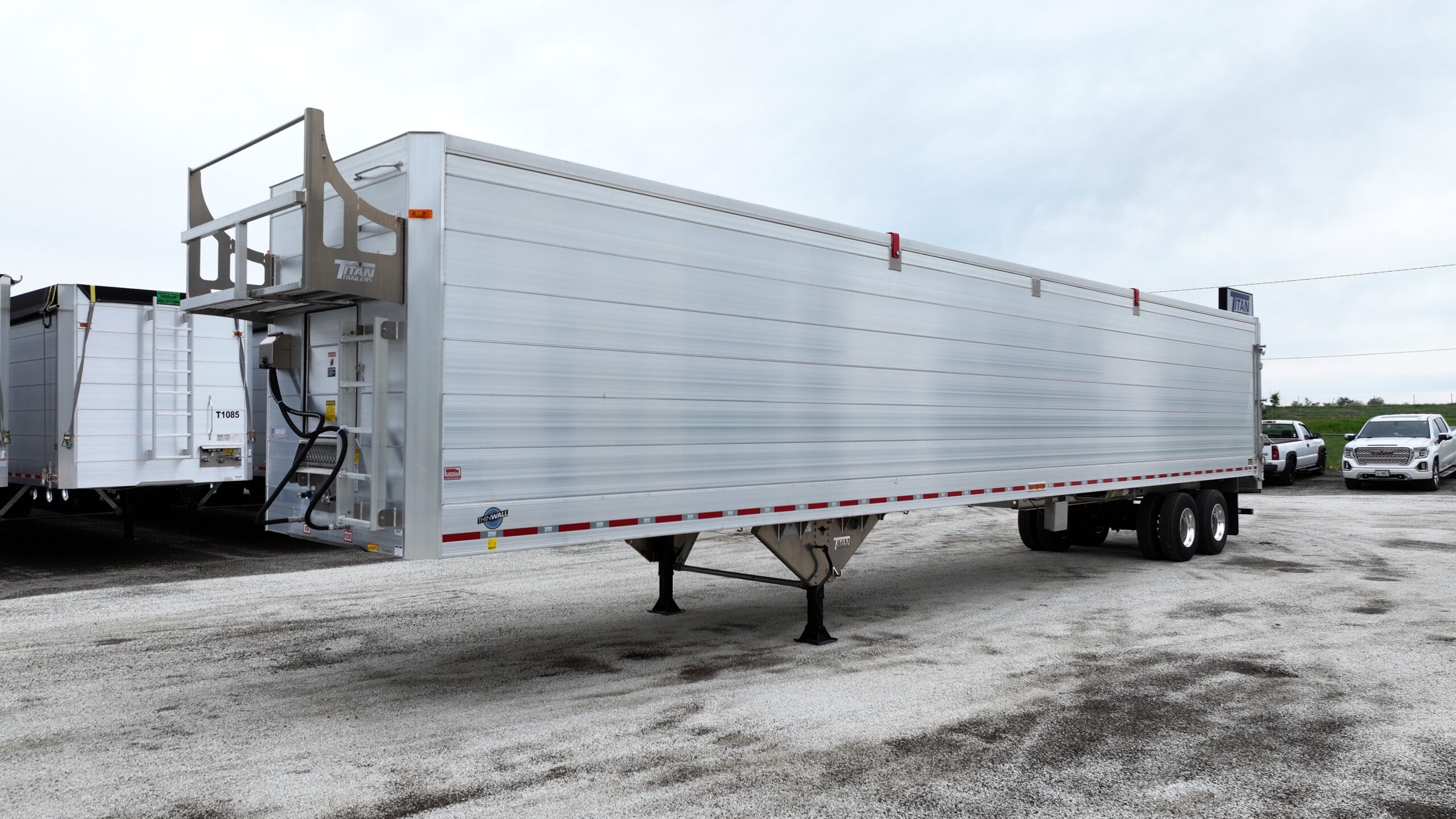

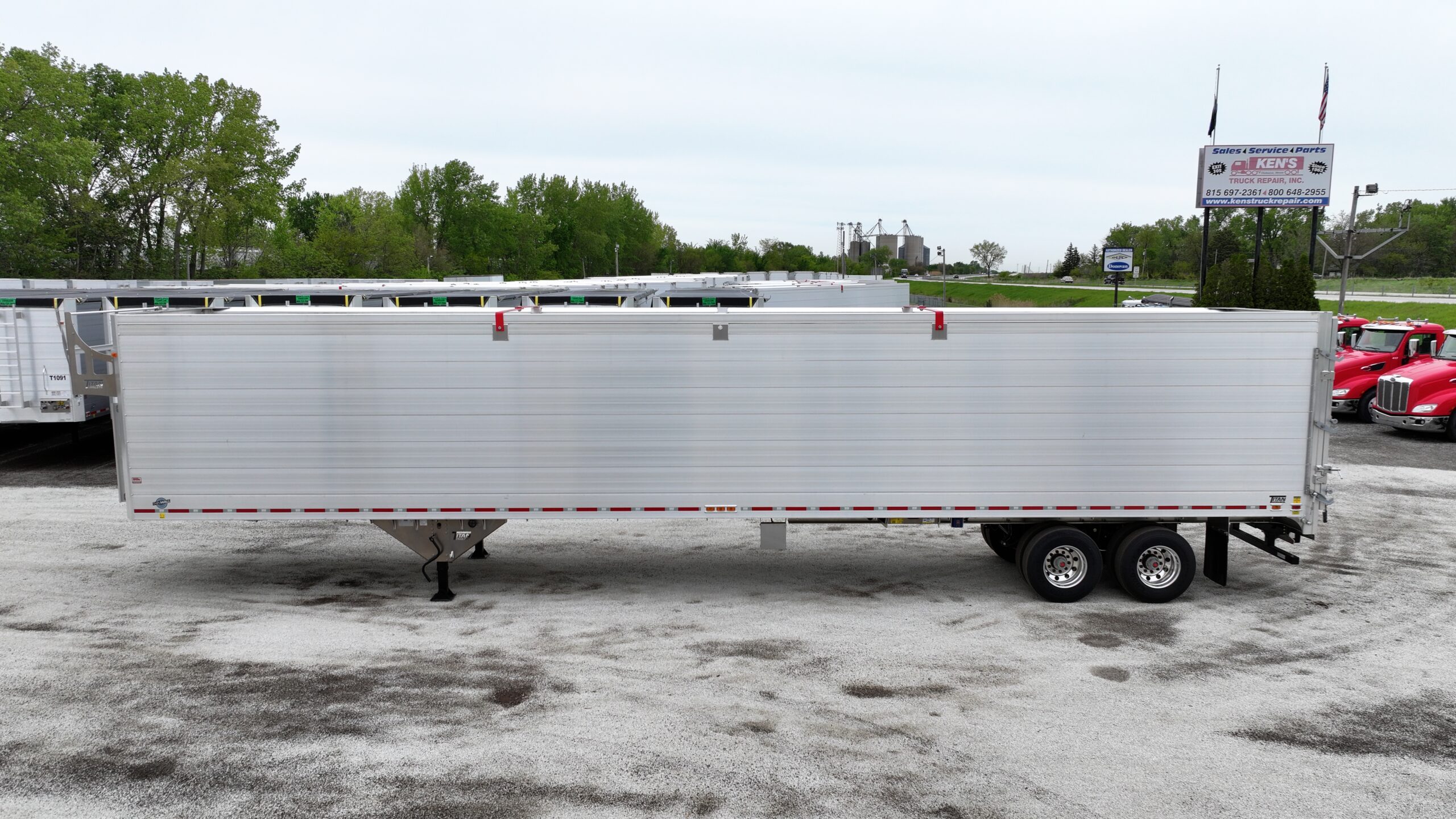

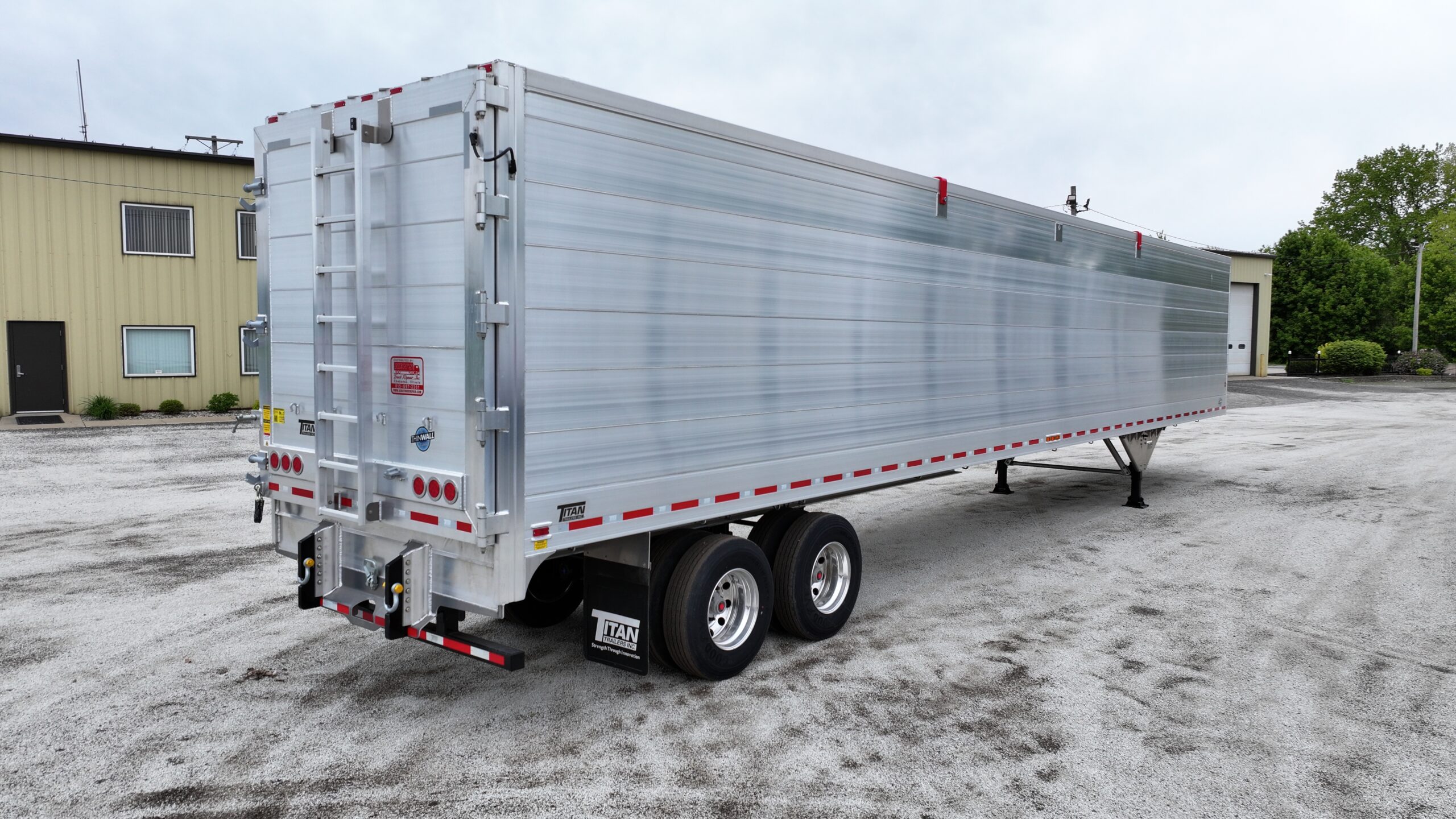

2026 TITAN 53′ 2 AXLE WALKING FLOOR TRAILER     CALL FOR PRICING

Customer application             Garbage Application

Base model                                53-2-TW-WF – Open Top

Style                                            Straight

Wall configuration

Front                     To Suit Garbage Application

Sides                       7-14” +1-6” panels to suit garbage application

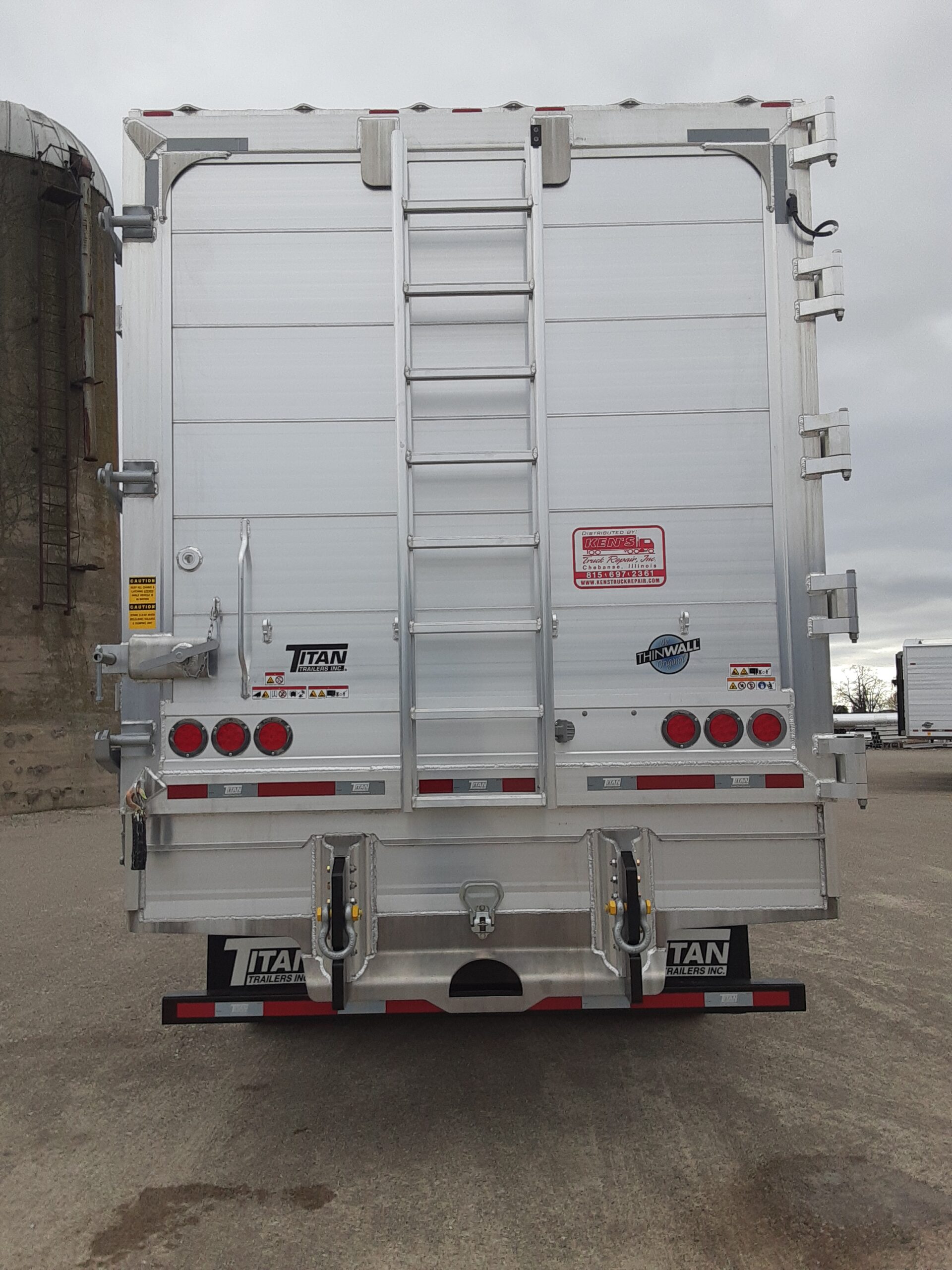

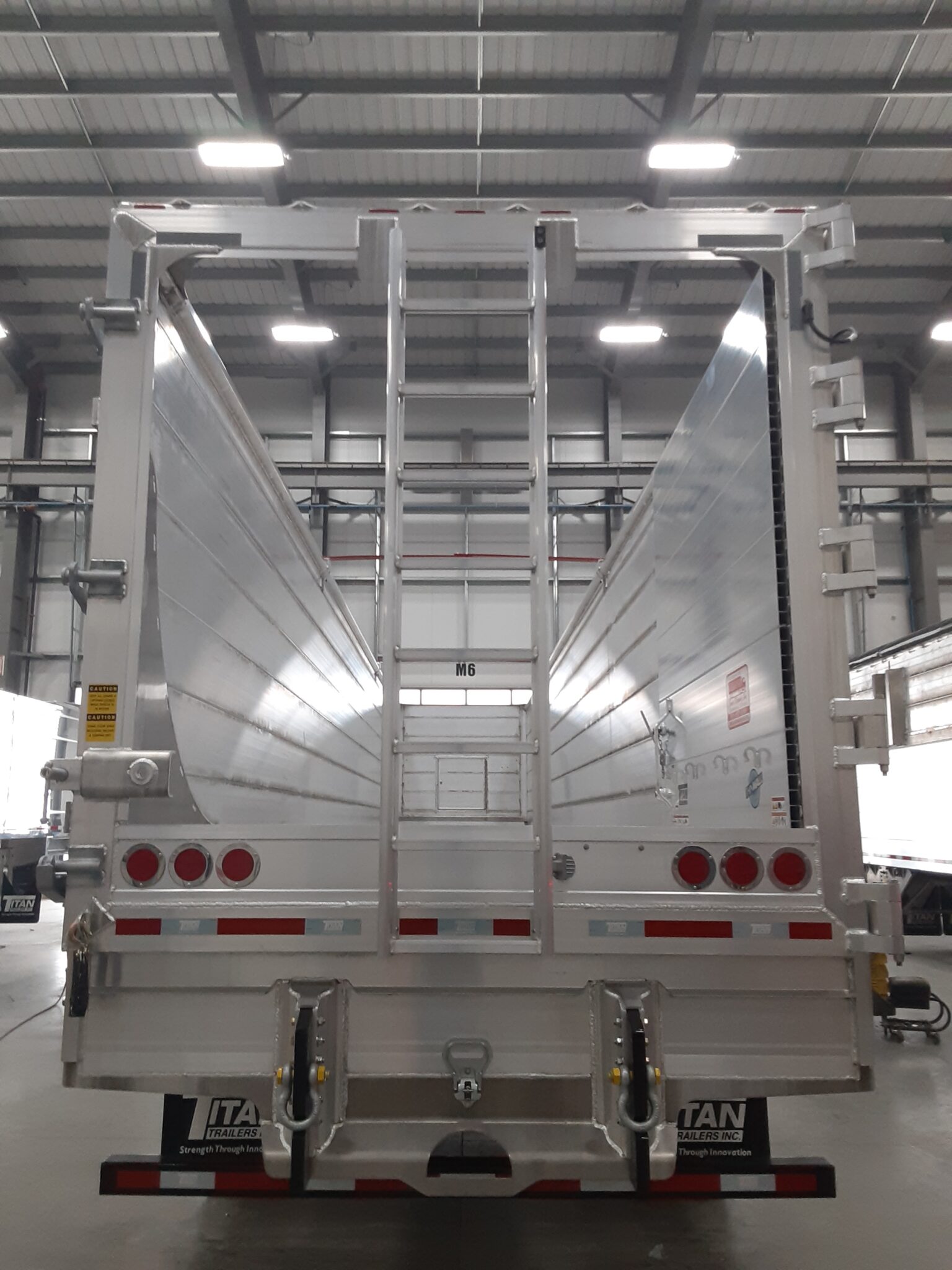

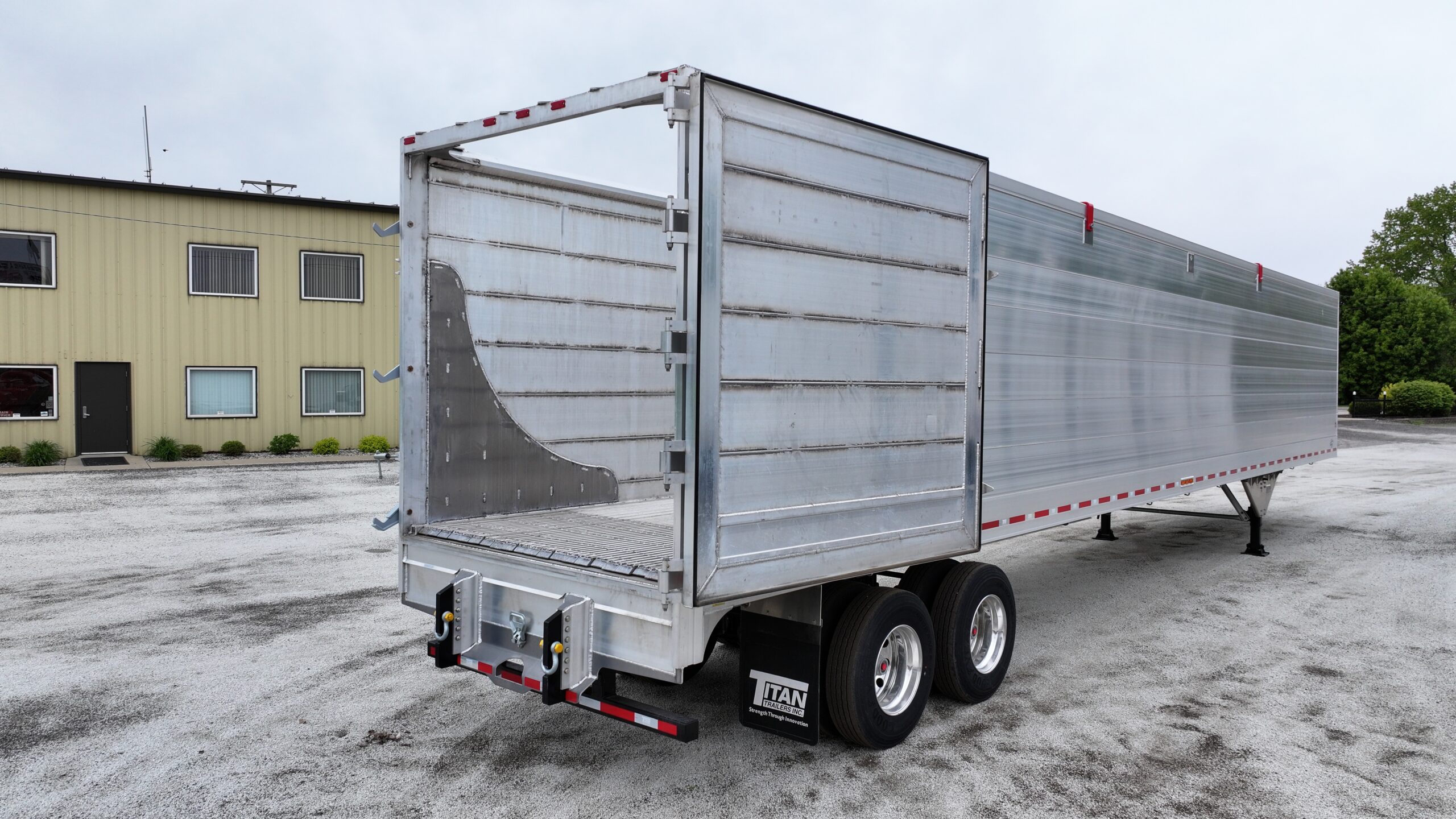

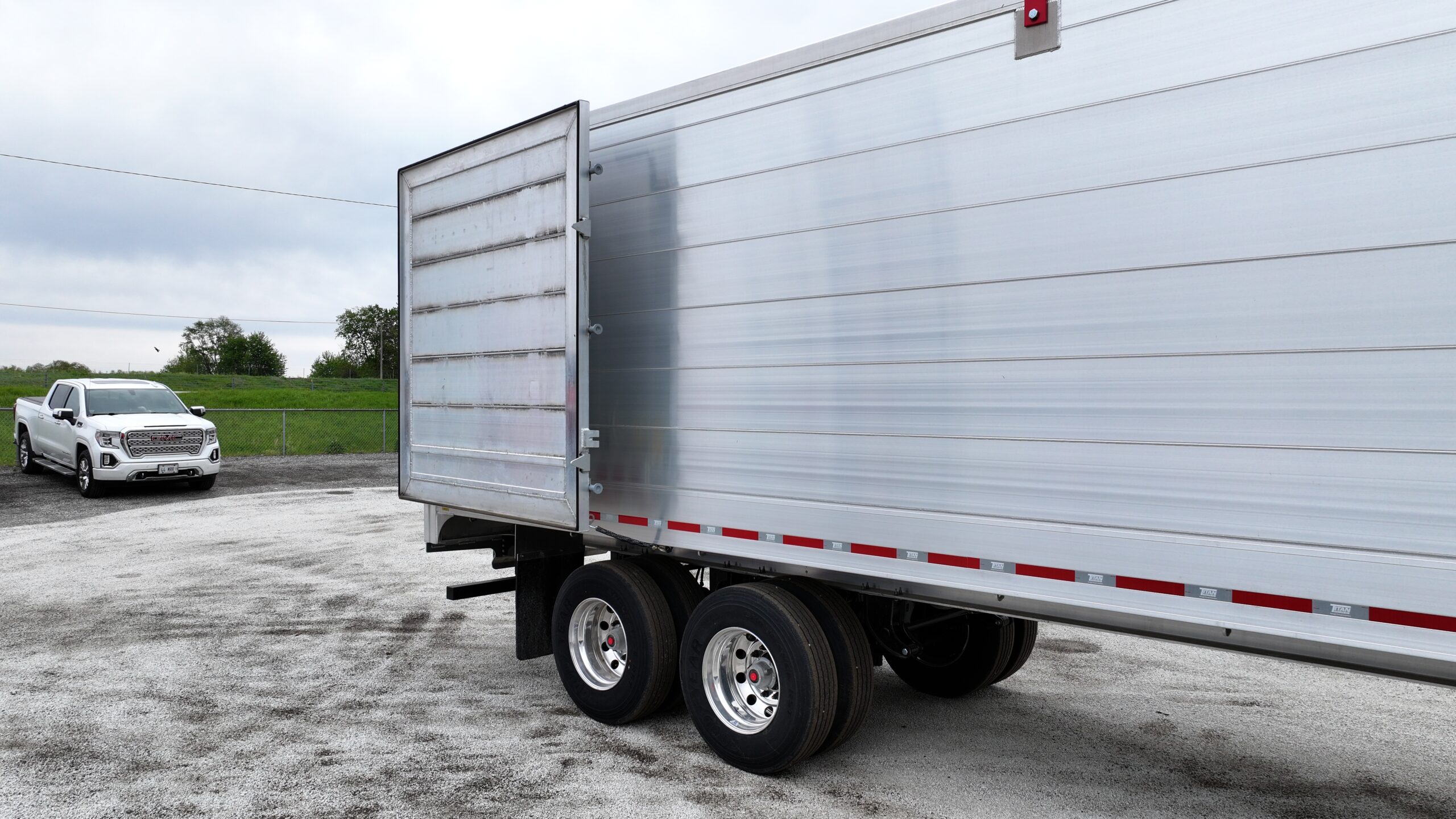

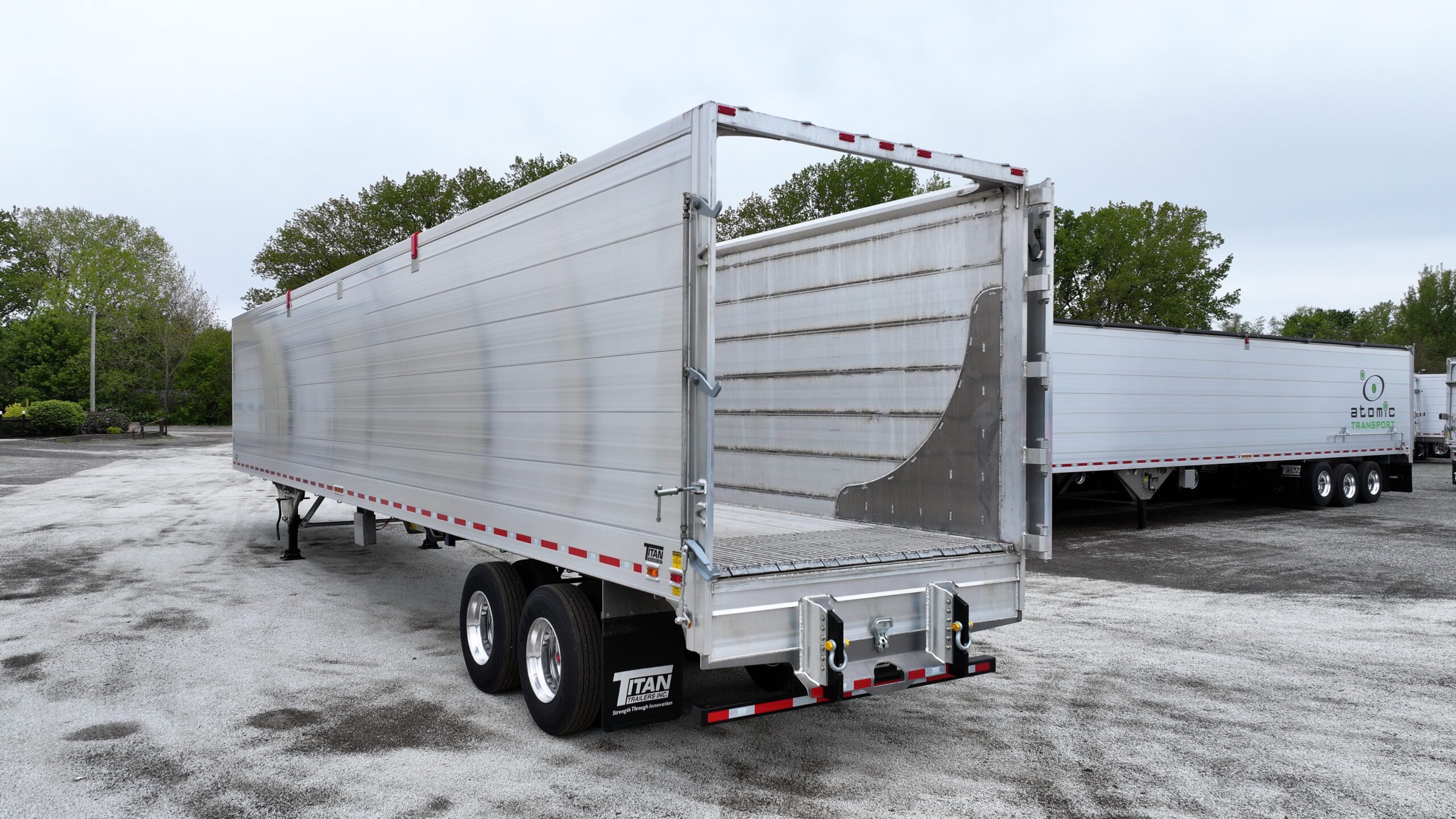

Rear Door              Side Swing, Solid, Lights in Door, Air Release w/ Reinforced bottom lock finger – See Note # 7

Overall length                         53ft

Overall width                          102” Nominal

Overall height                          13’ 0-13/16” (156.8125”) approx.

King pin location                     36” WELD IN

Upper coupler                          5/16” THK Steel – Set at 48” high

Number of Axles                     Primary Two (2)

Axles                                         5” Round .580 Wall – Straight Spindle – See Note # 6

Axle track                                 77.5”

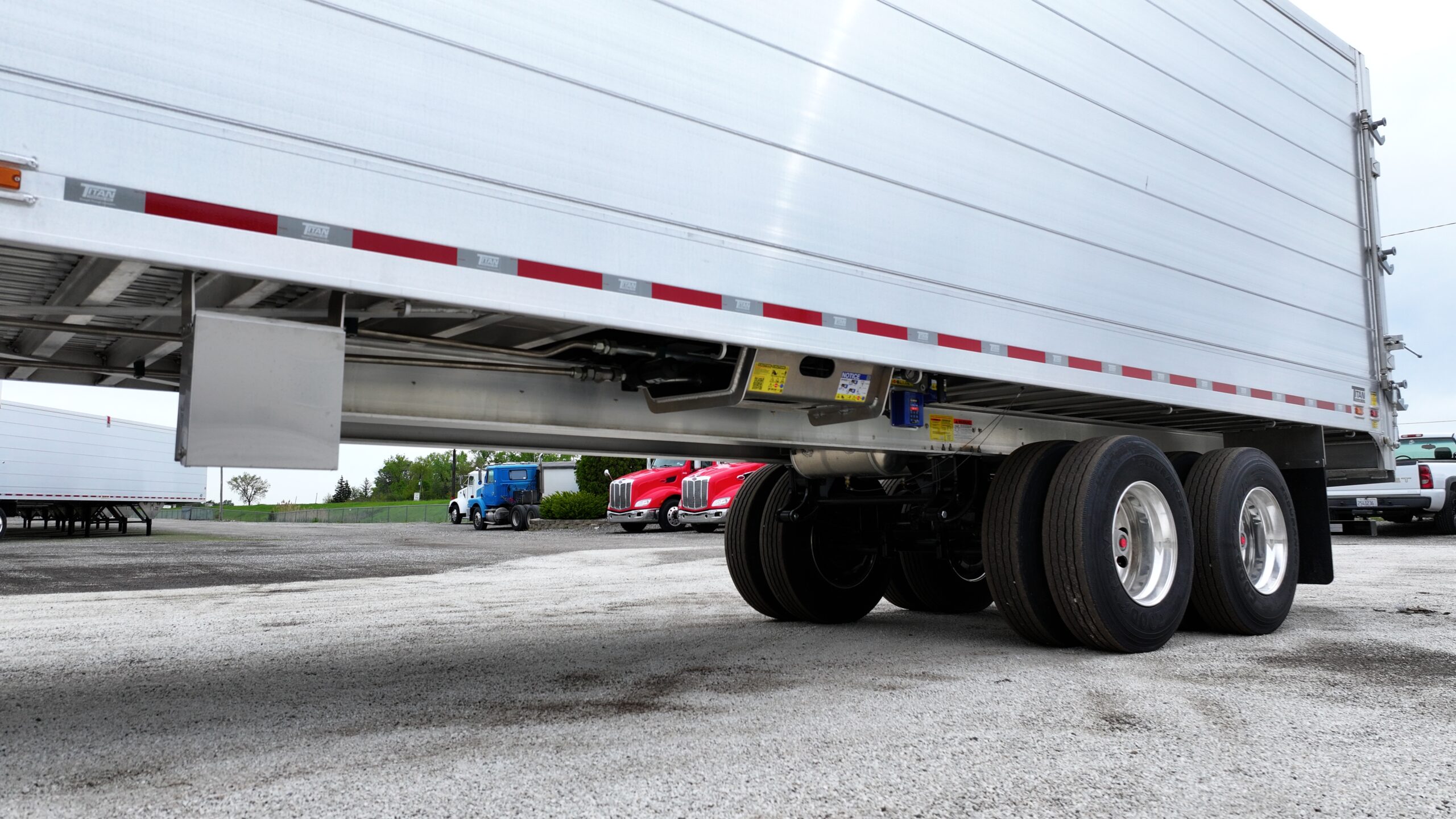

Suspension                             Titan/Eveley with inner & upper wear pads with 3 leaf springs

Location of spreads               See axle layout

Hub/drum assembly            10 Stud Duralite – Hub/Centrifuse Drum

Disc wheel size                      8.25 x 22.5

Rims                                       ALUM LVL Outer/Inner

Tires      Brand                      Goodyear

Size                            11R22.5 – 41.4 dia

Tread                          Endurance RST

Ply                              16

Quantity                    8

Axle layout                            FRONT – Prim -50 – Prim – 84 – REAR

Oil seals                               To suit axles

Lubricants                           80W-90

Brakes         ABS                 2S/1M Meritor Wabco

Slack adj.        DRUM BRAKES: Meritor Auto

Cam Enclos     DRUM BRAKES: All Axles & c/w Dust Shields

Lift kits                                None

Lift controls                       None

Frame width                      48”

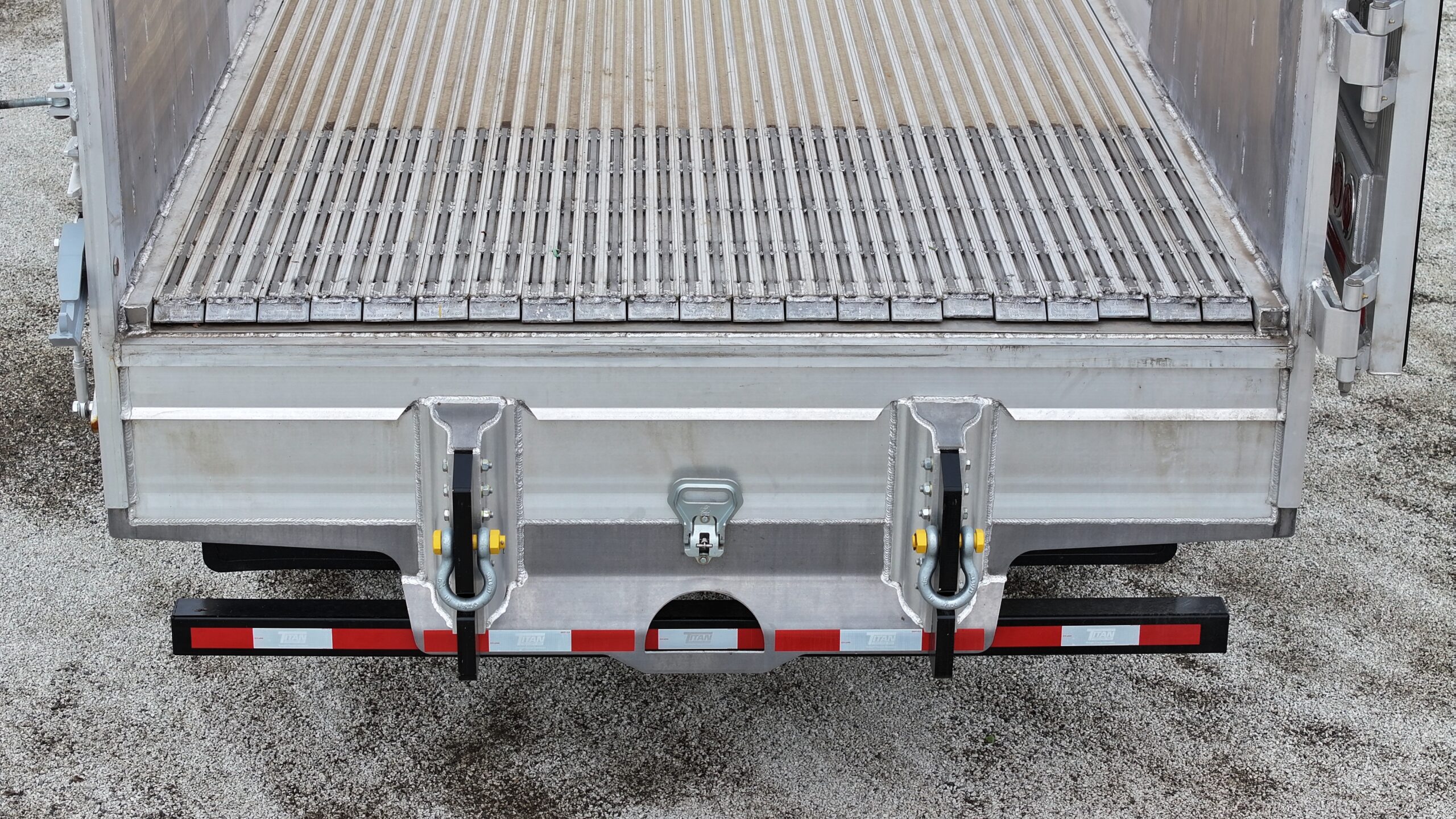

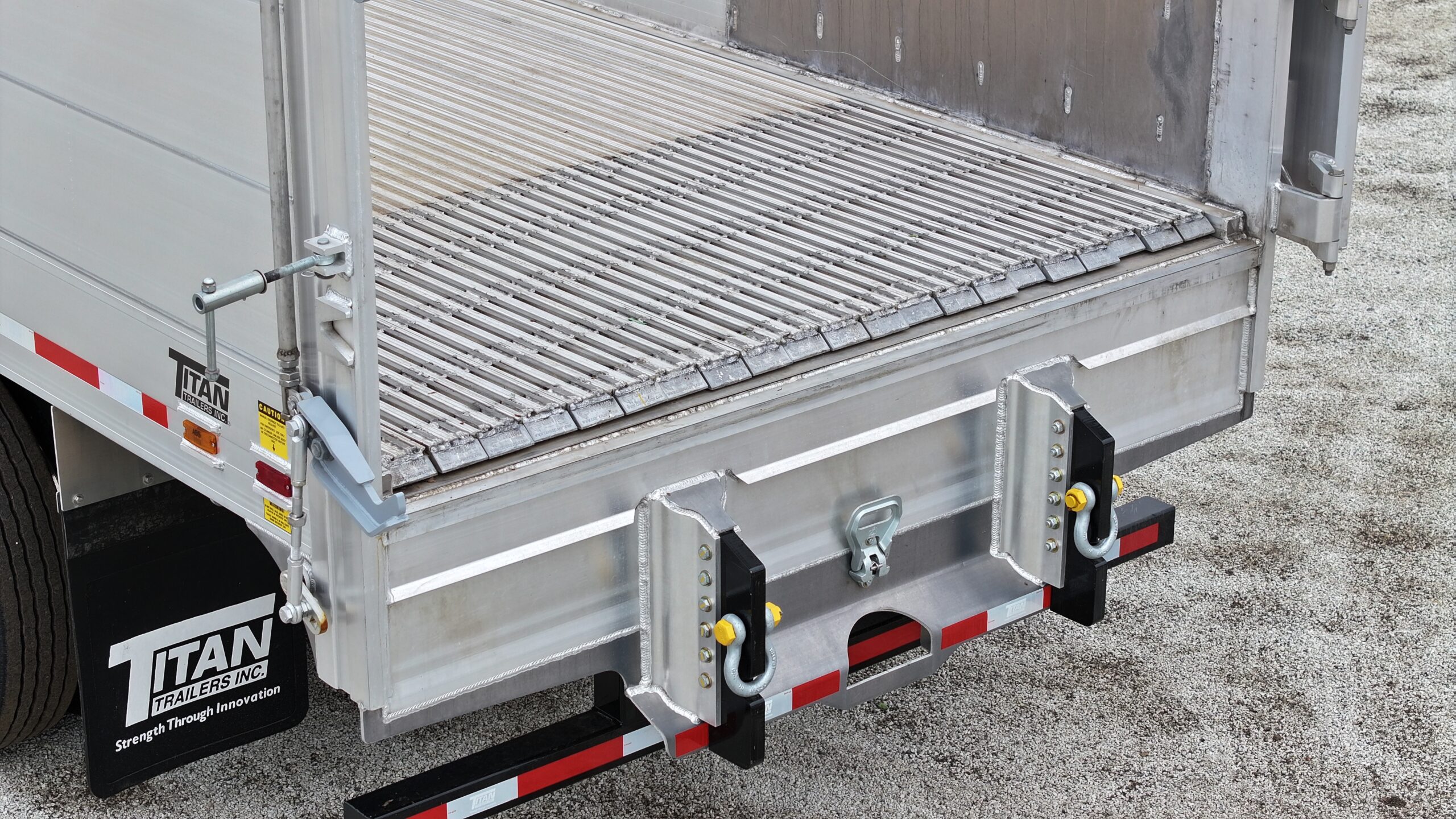

Rear bumper                    Aluminum, offset, push w/ underride – See Note # 1

Option #1                    Tow shackles

Option #2                  Steel vertical blocks -protrudes 3 ½” sloped top bolted to bumper

Tire carrier                      None

Landing gear                  SAF-Holland Mark V: 105 Skid Foot, Standard hollow axle – See Note #1

Top rail                           Titan Tapered, V1

Top cross tube               Qty 2 – Spring Steel (two piece style) – See Note #4

Floor crossmembers     12” Centers

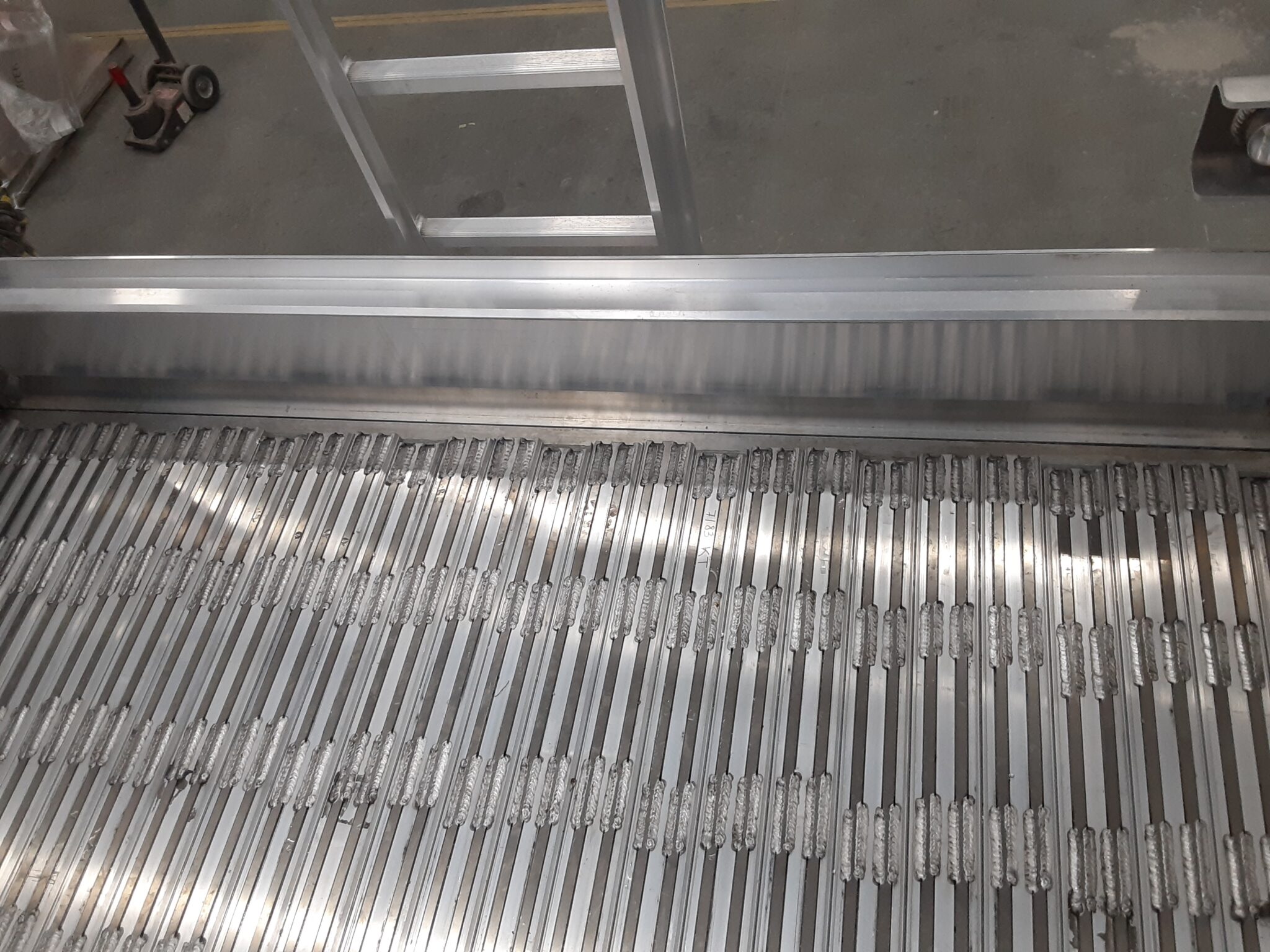

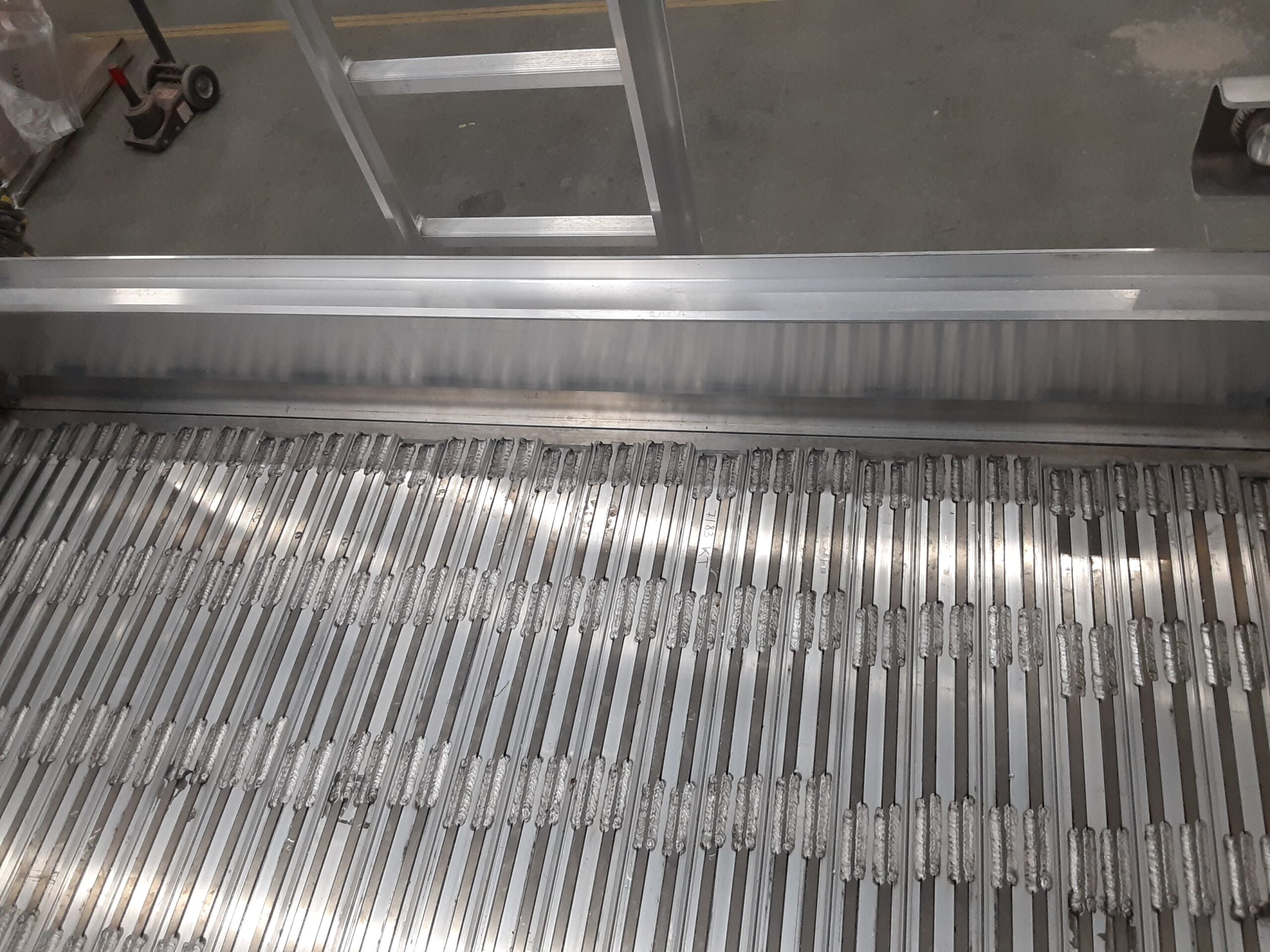

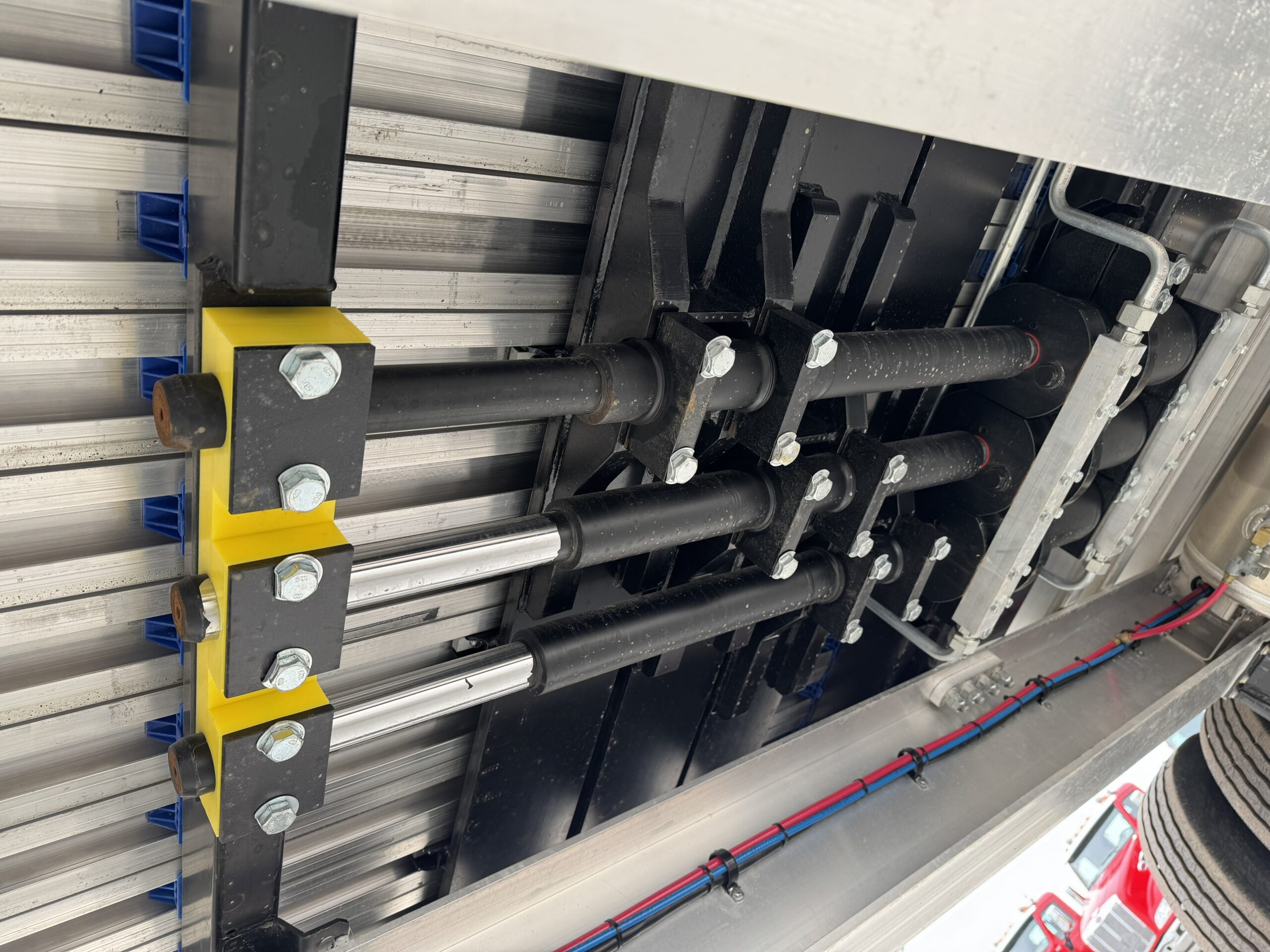

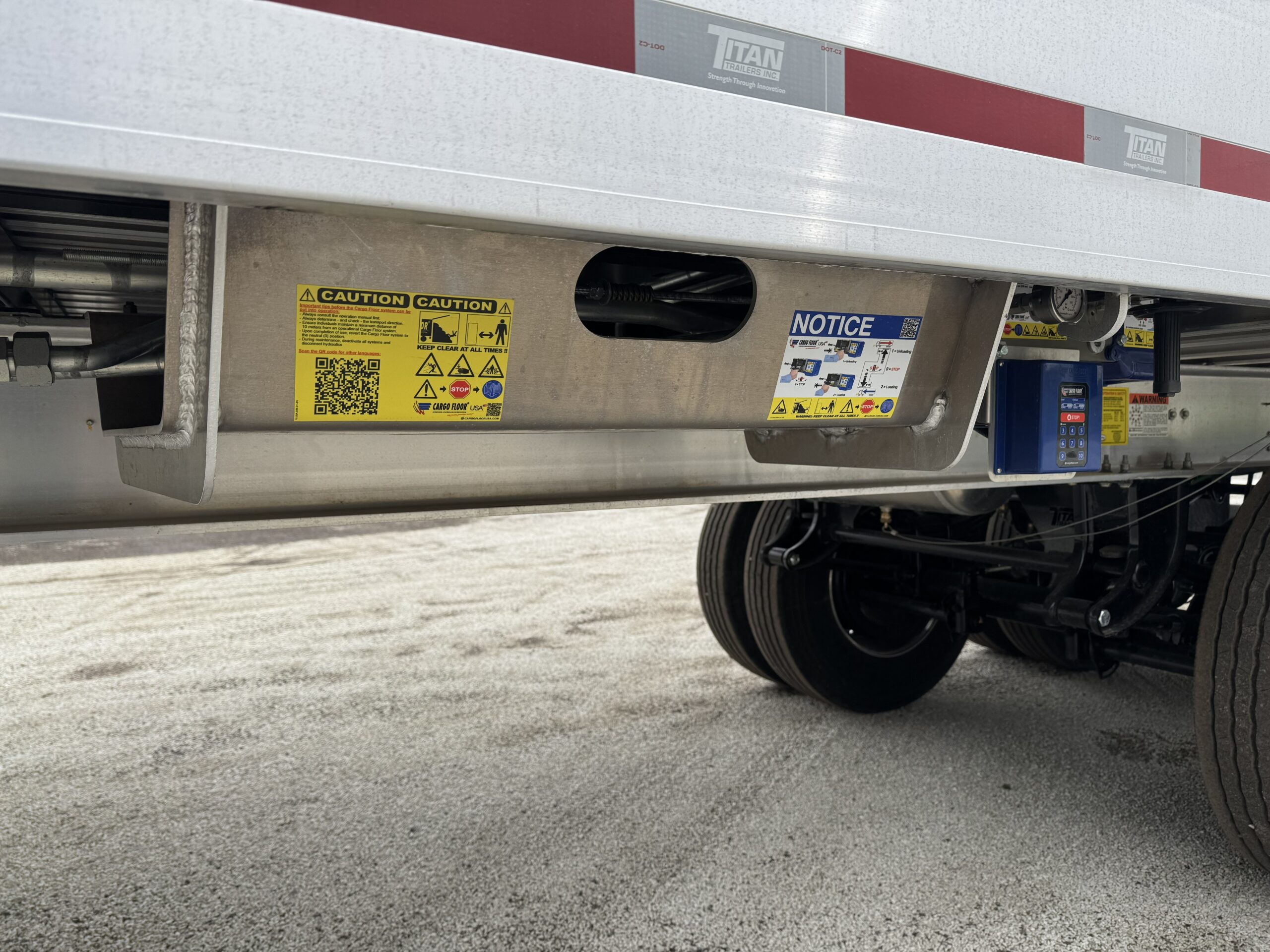

Walking floor kit           Cargo CF600 HDC

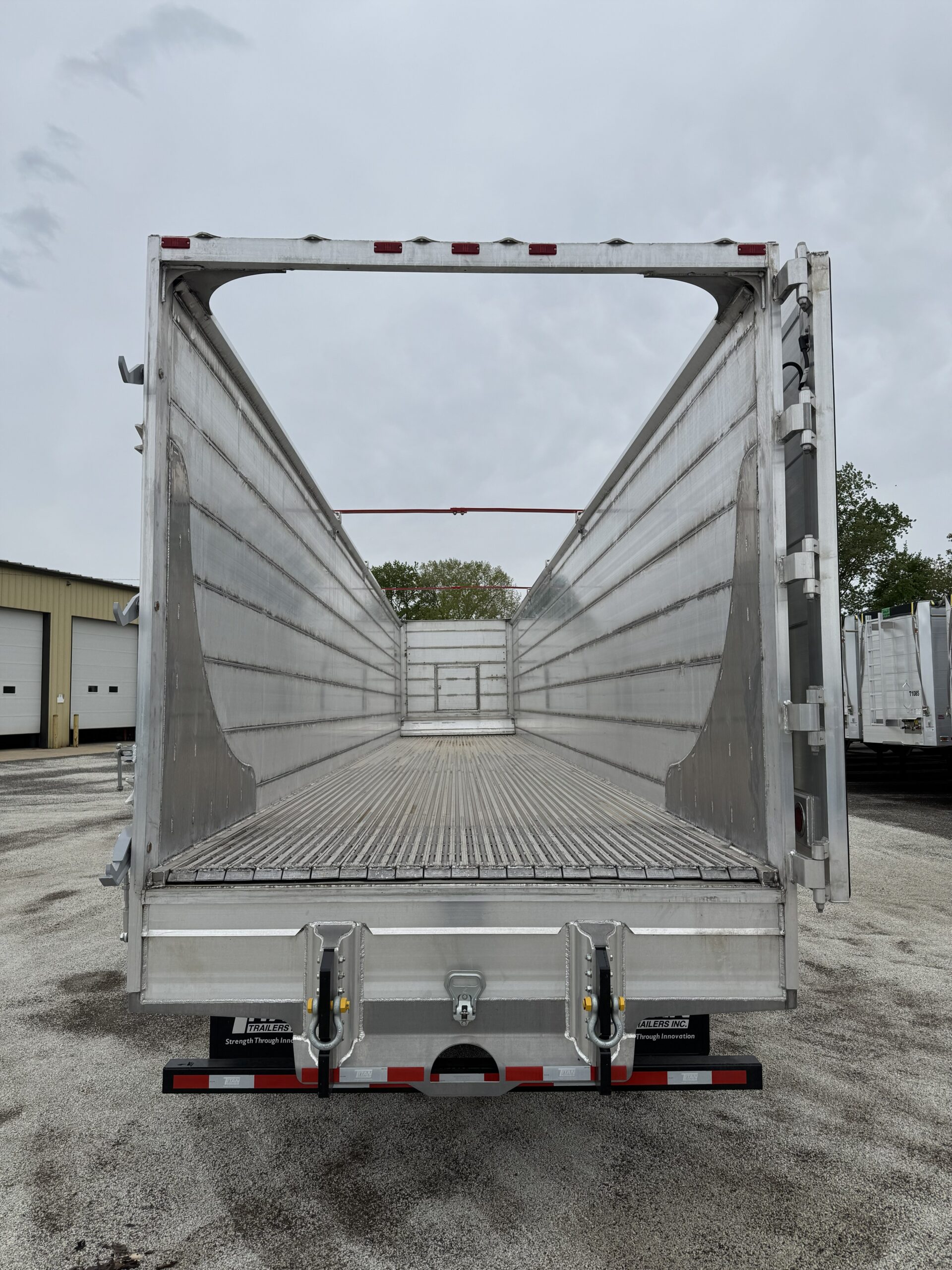

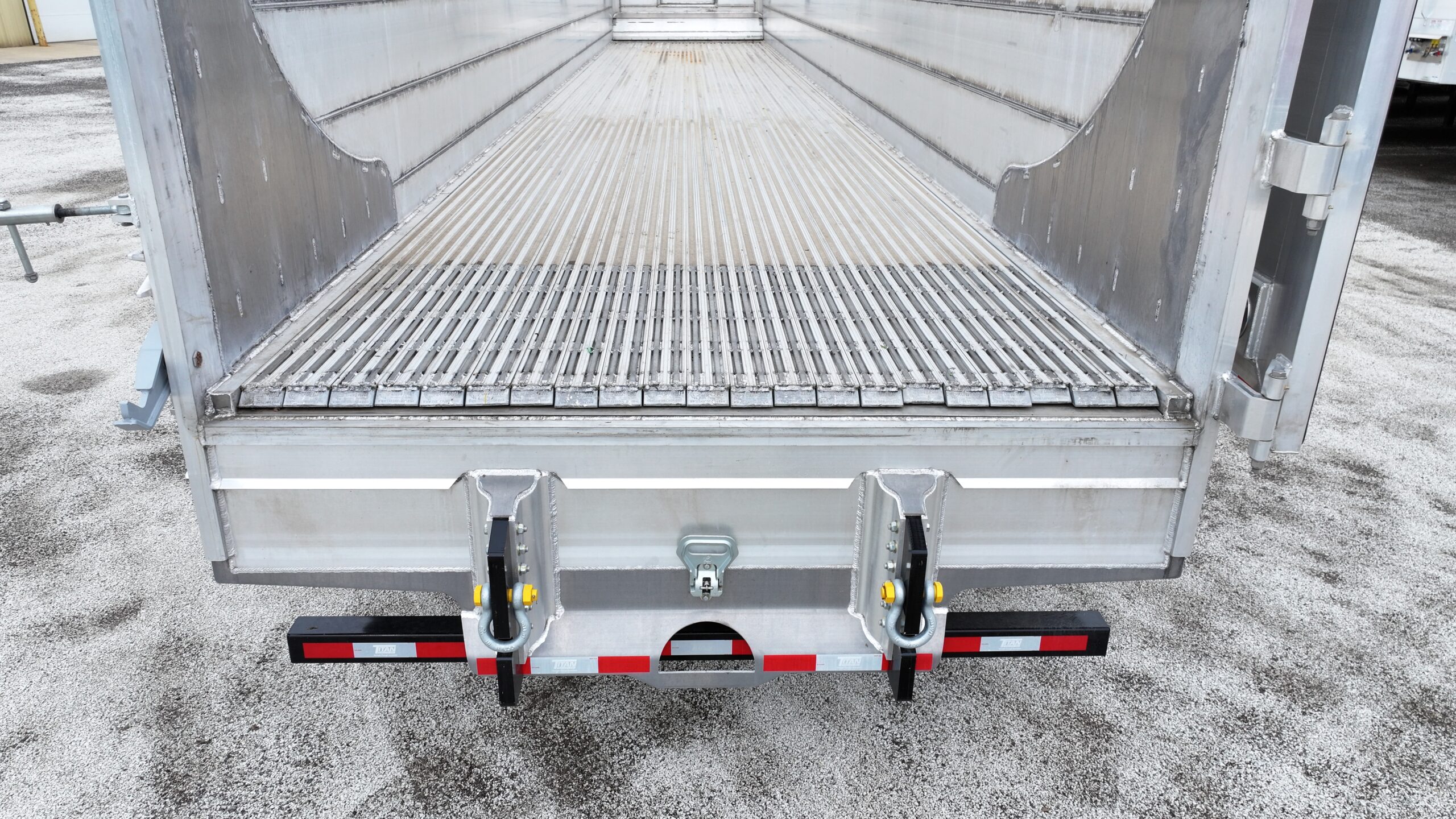

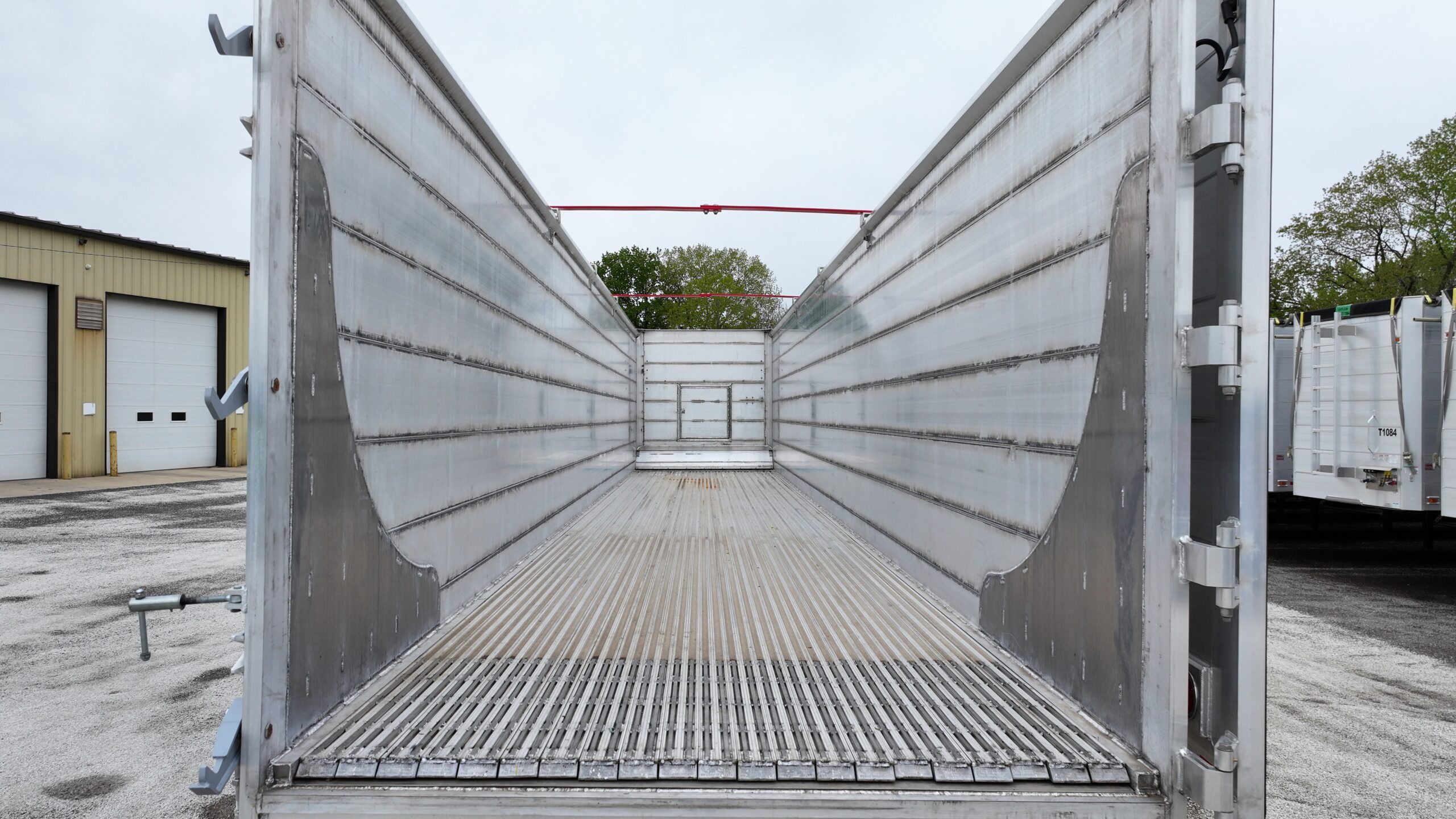

Slat model & width       Cargo: 21 Slat: Triple Ridge (Titan Extruded Slats), low friction seal, Aluminum endcaps

Slat wear strips             48’ long, Flush, Filler bar wear strips

Continuous bearing      Twister Bearings (no continuous green bearings)

Side wall wear plates    Boomerang style

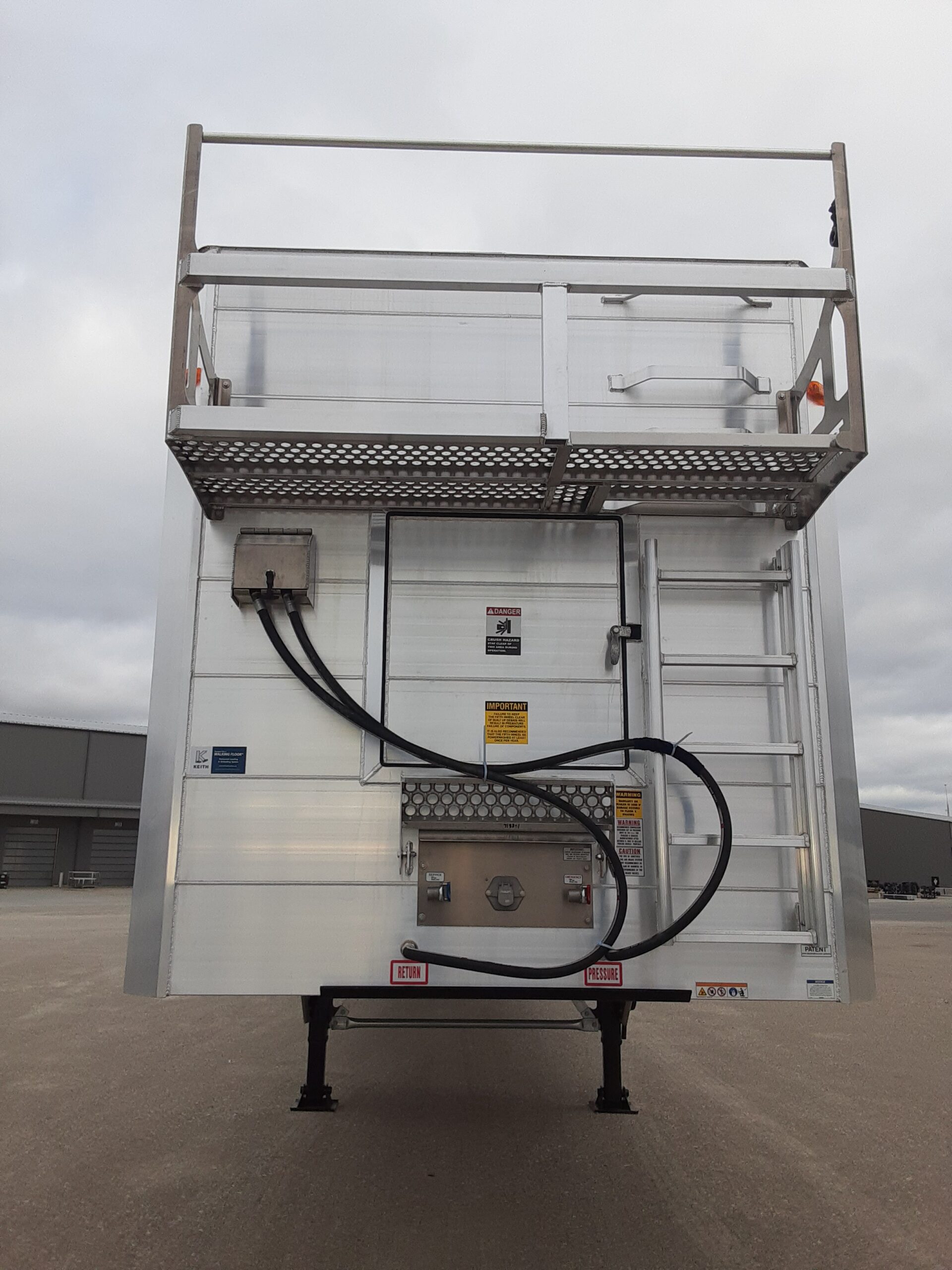

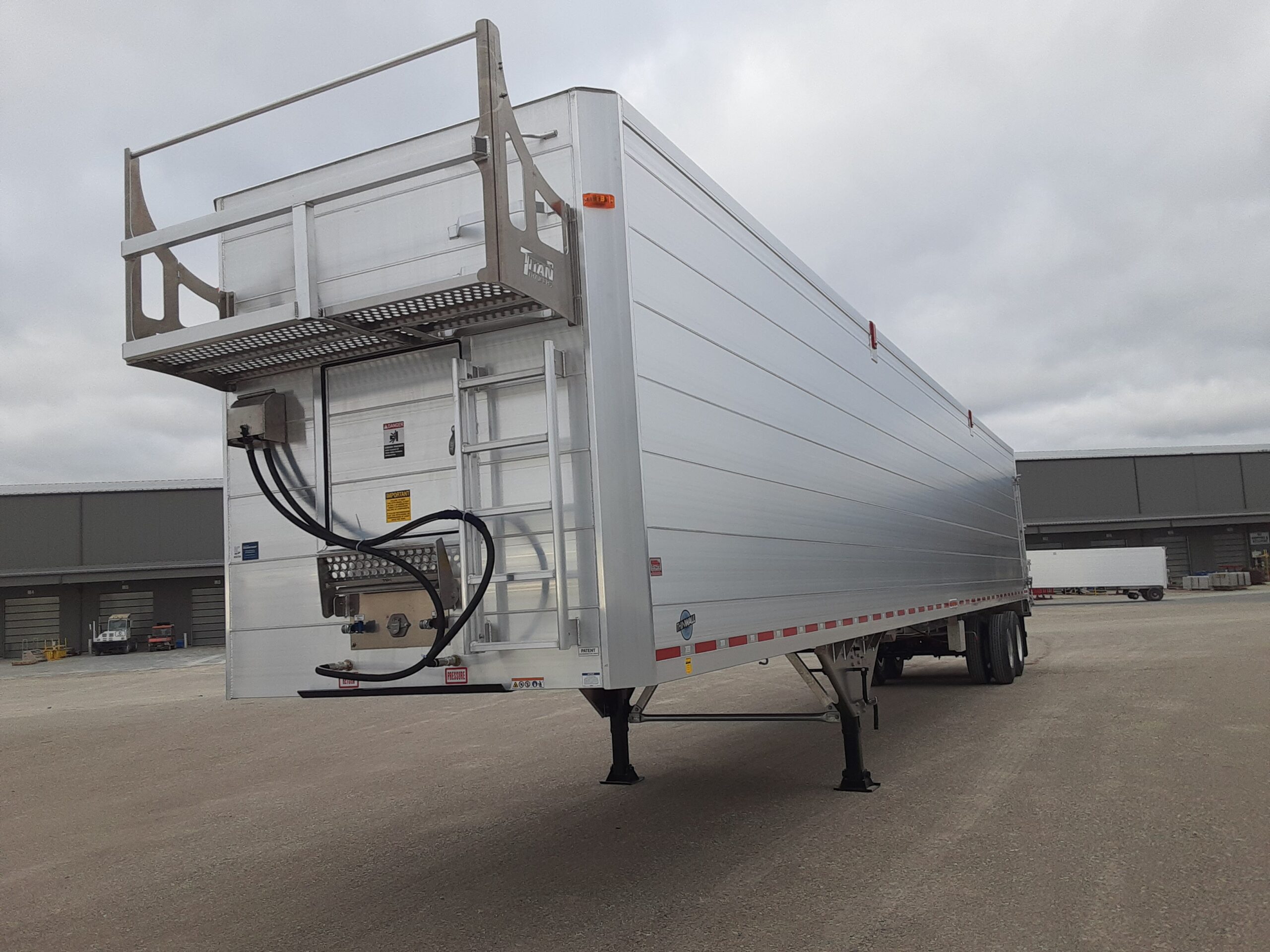

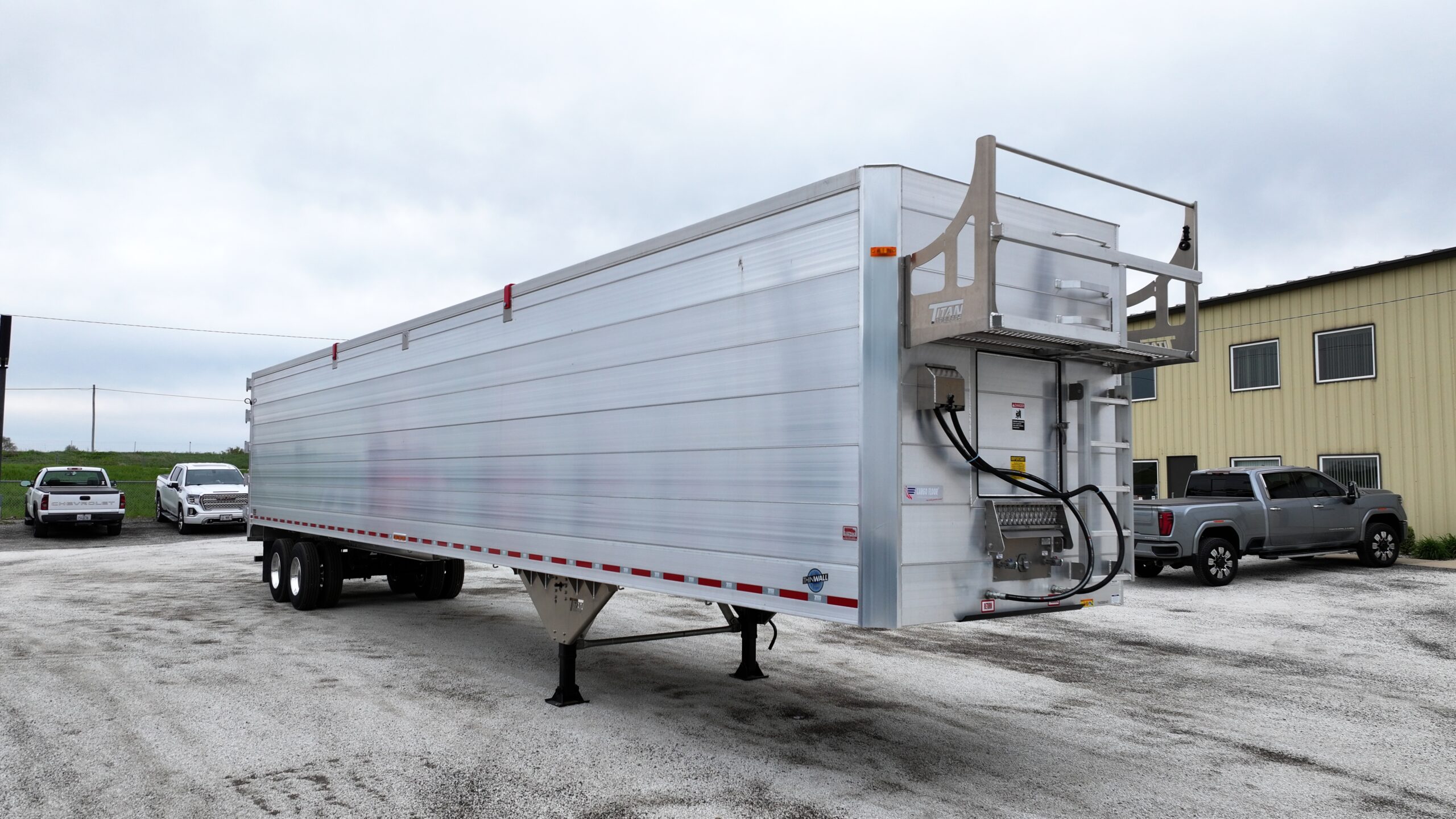

Front access door          STD 35w x 37.5h Sealed – Curbside Hinge with flip step, located center

Tarp style                        None

Tarp header                    None

Tarp basket                    None

Tarp hooks                     Side hooks approx. 48” o/c with 4 hooks on rear door

Axle fender                   None

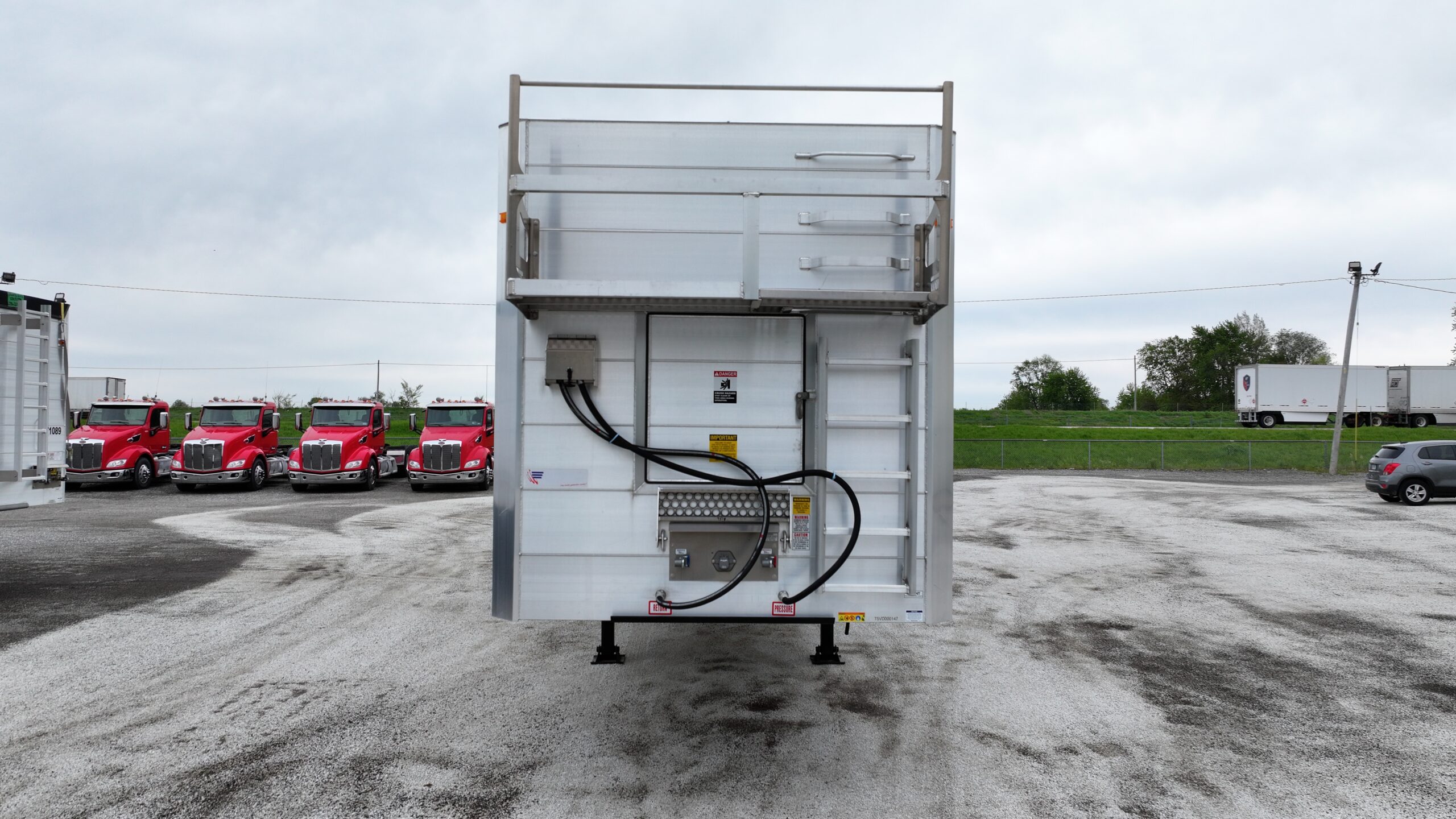

Hyd fitting Pressure   1” Quick Coupler – Male

Return       1” Quick Coupler – Female

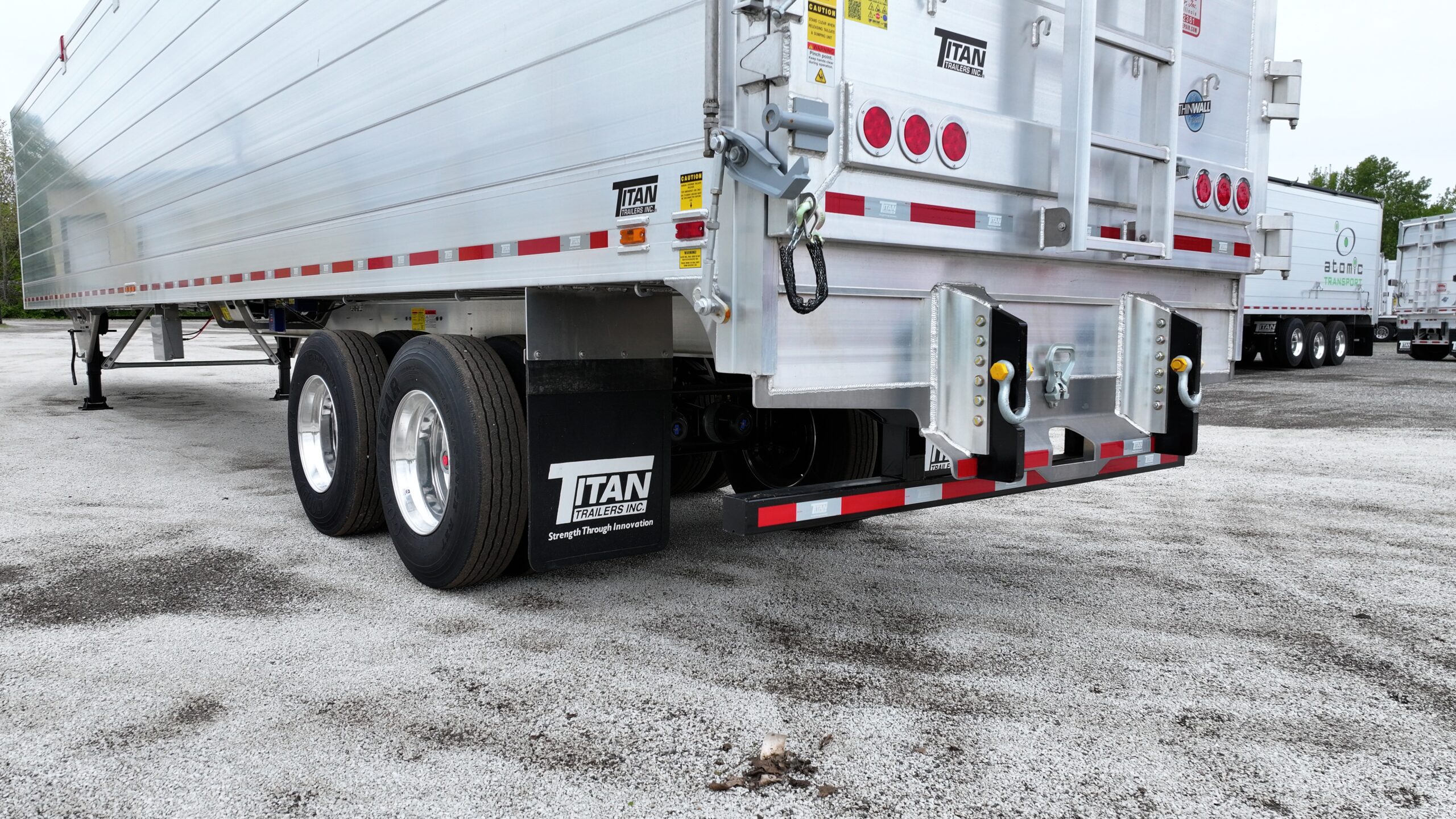

Mud flaps   Style          Titan black rubber

Location   (2) Behind Primary group & none at rear

Mud flap – Landing gear   None

Paint   Body – color    Natural aluminum

Run – gear      Titan black

Hub / drum    Same as running gear

Rims or Disc     Aluminum

Light package               Front: (1) mkr per corner mitre.   Sides: (2) mkrs (includes midturn)    Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

Option #1               Install Rear Taillights in rear door & license plate in door

Access  Catwalk          Universal Roadside entry 24” catwalk

J-Ladder Frt  Roadside to Catwalk

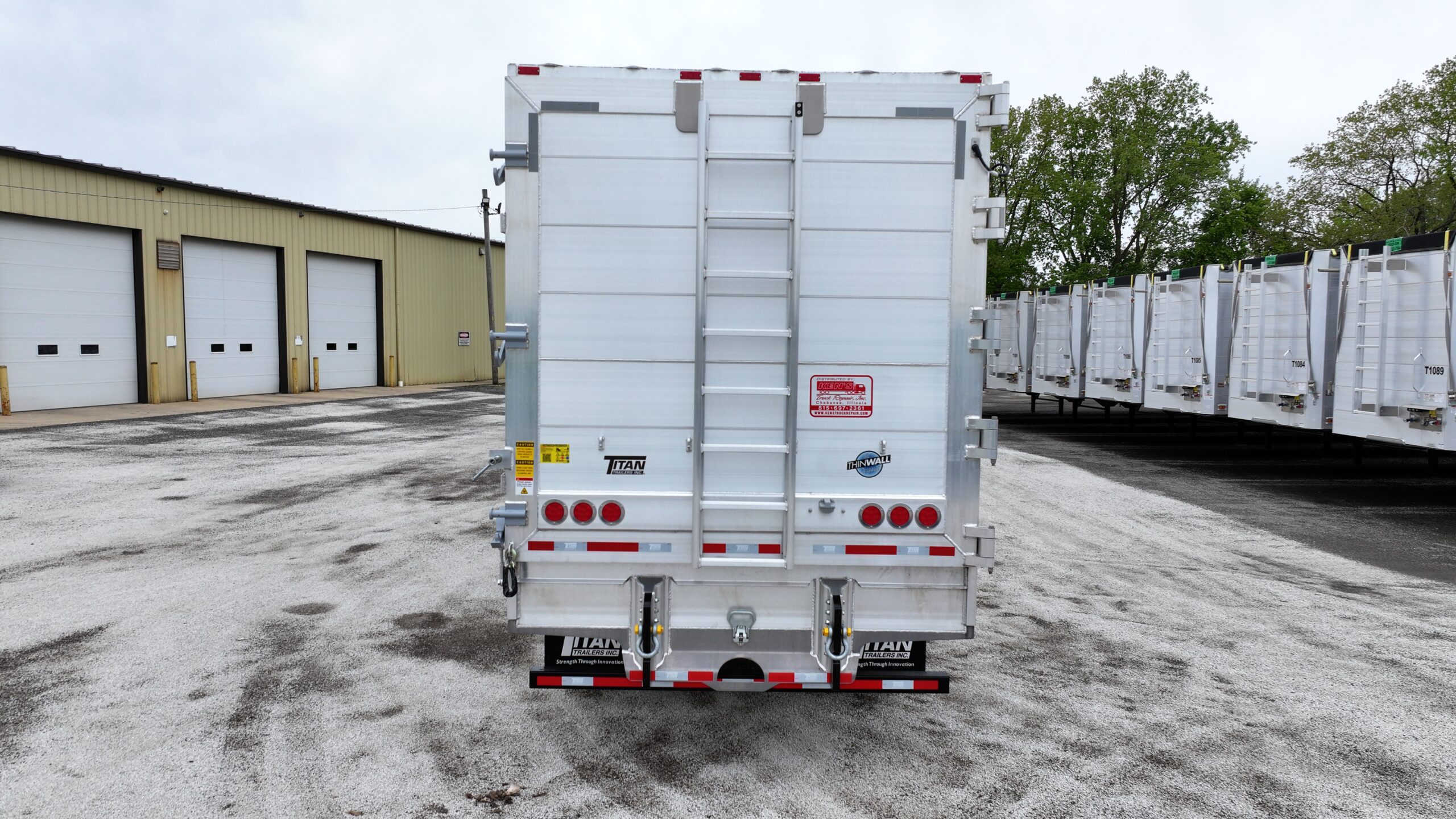

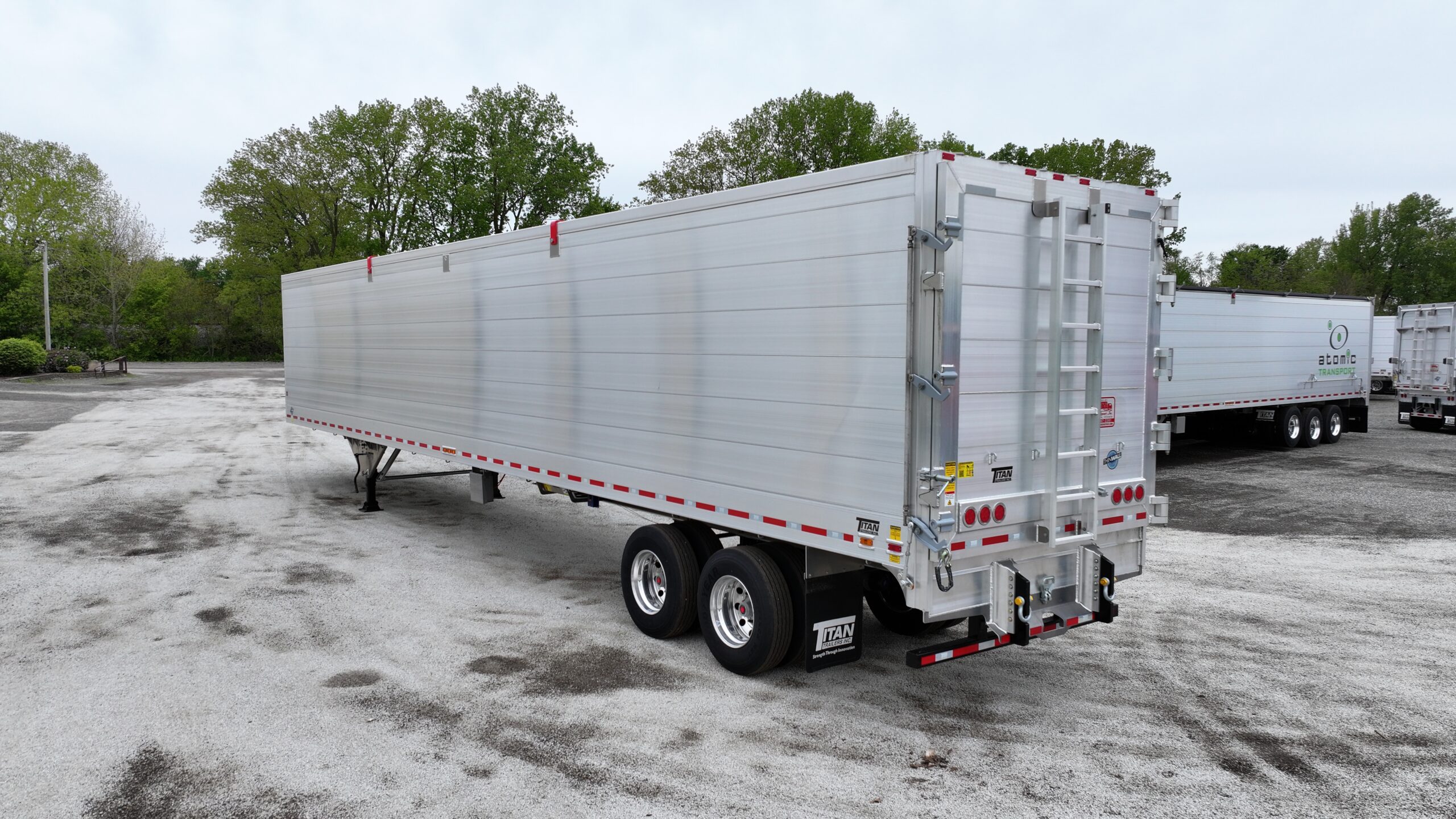

J-Ladder Rear  Middle of Rear door full height – See Note # 3

Steps Frt out      None

Steps Frt in        None

Steps Rear        None

Additional specifications:

1. Approximately 39’ 9-1/2” from center of landing gear to rear of bumper

2.    a) Add 9’ hoses to front wall

b) Add hinged lid hose hanger to front wall

3. Top stirrup step for front access ladder needs to be located approximately 20” down from top. Grab handle is still needed

4.     a) Spring bars to be located 17’ from front and 17’ from rear

b) Prep Sidewalls at center for future spring bar

5. Air release tailgate controls to be located in control box

6.       a) Invert axles

b) PSI ready axles

7. Tapered door header with 1-PC gusset attached to top side of tapered header. Gusset to suit 10” bolt on tarp header

Estimated volume: 135.49 cu yds
