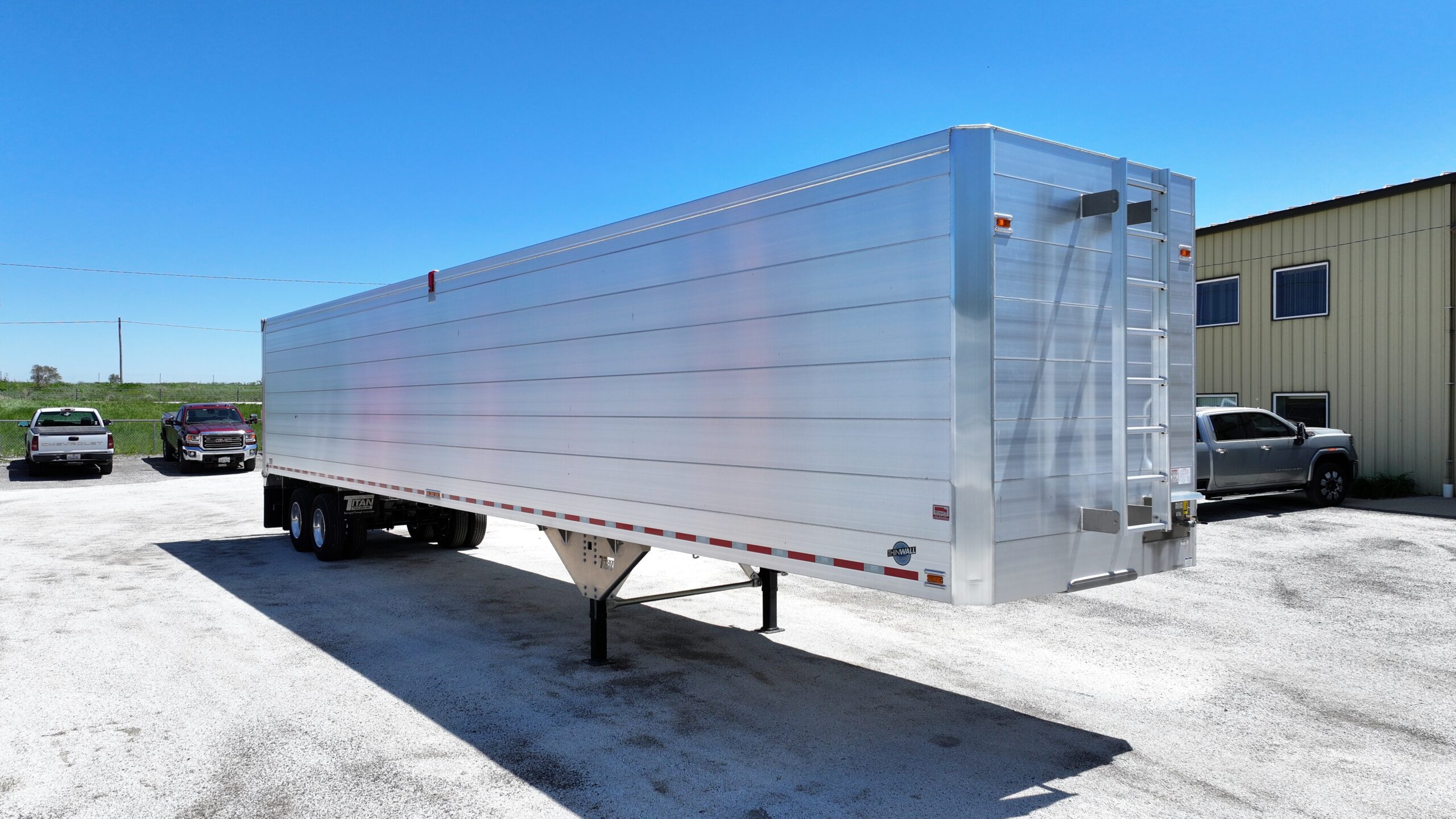

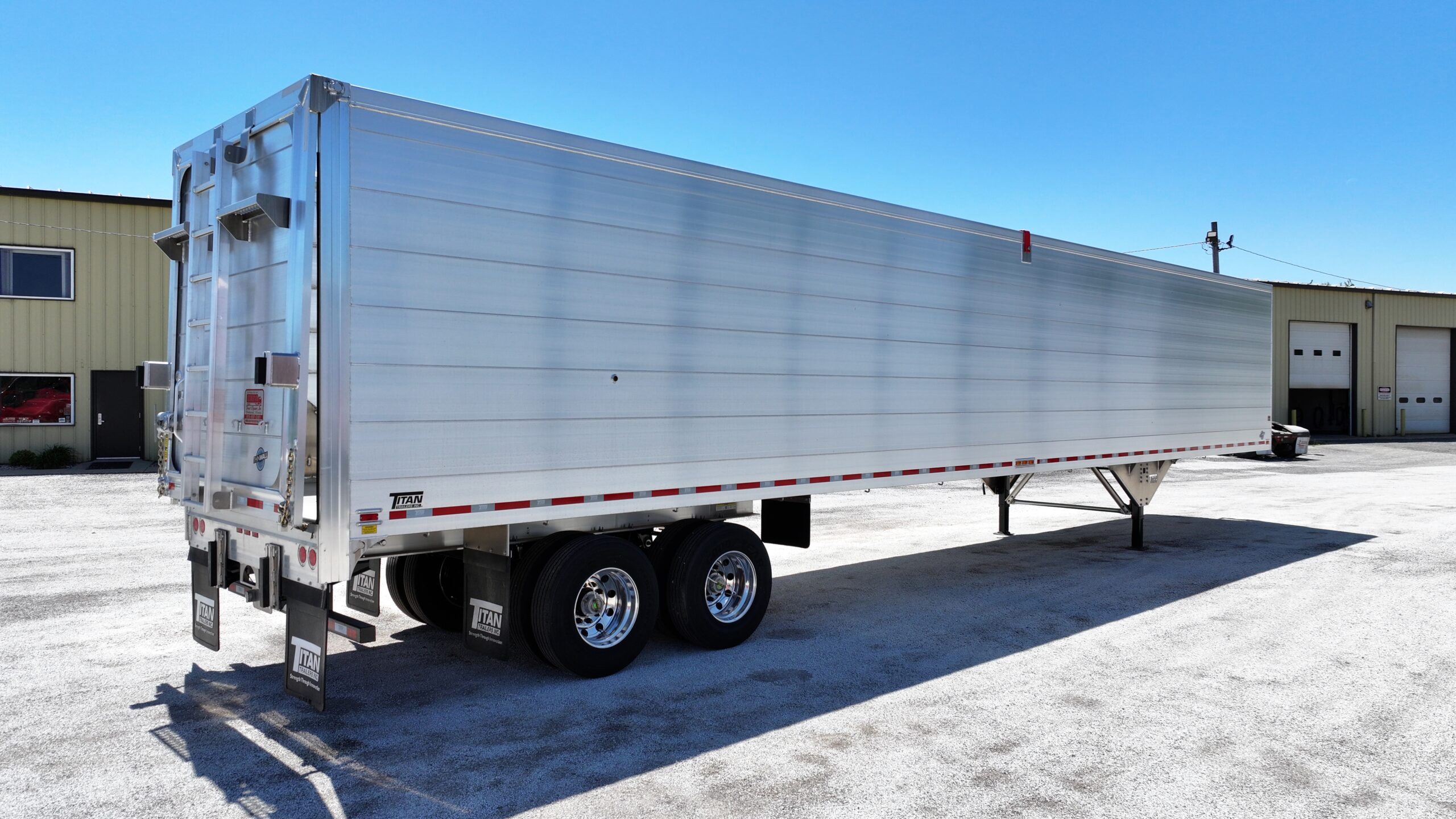

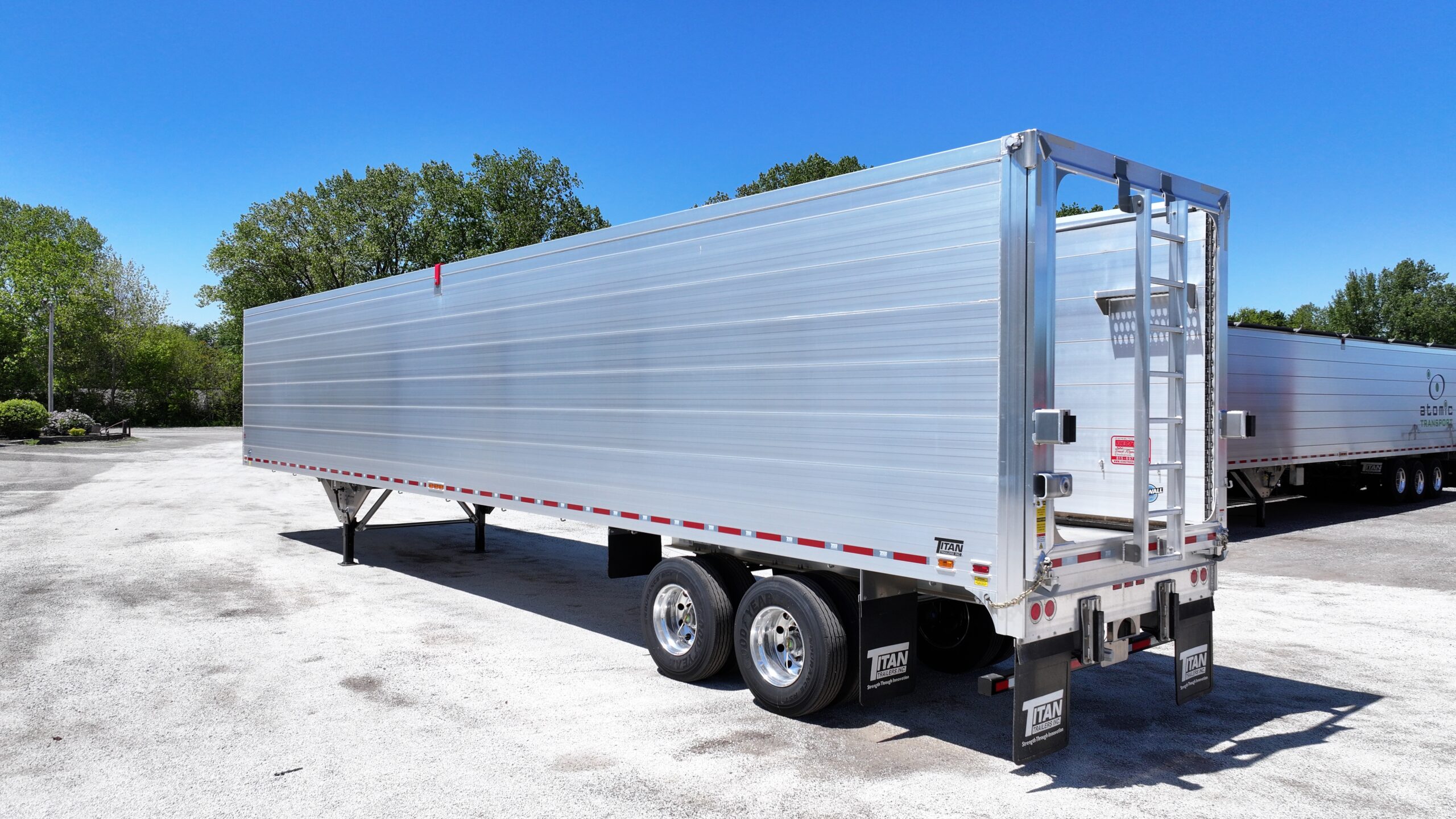

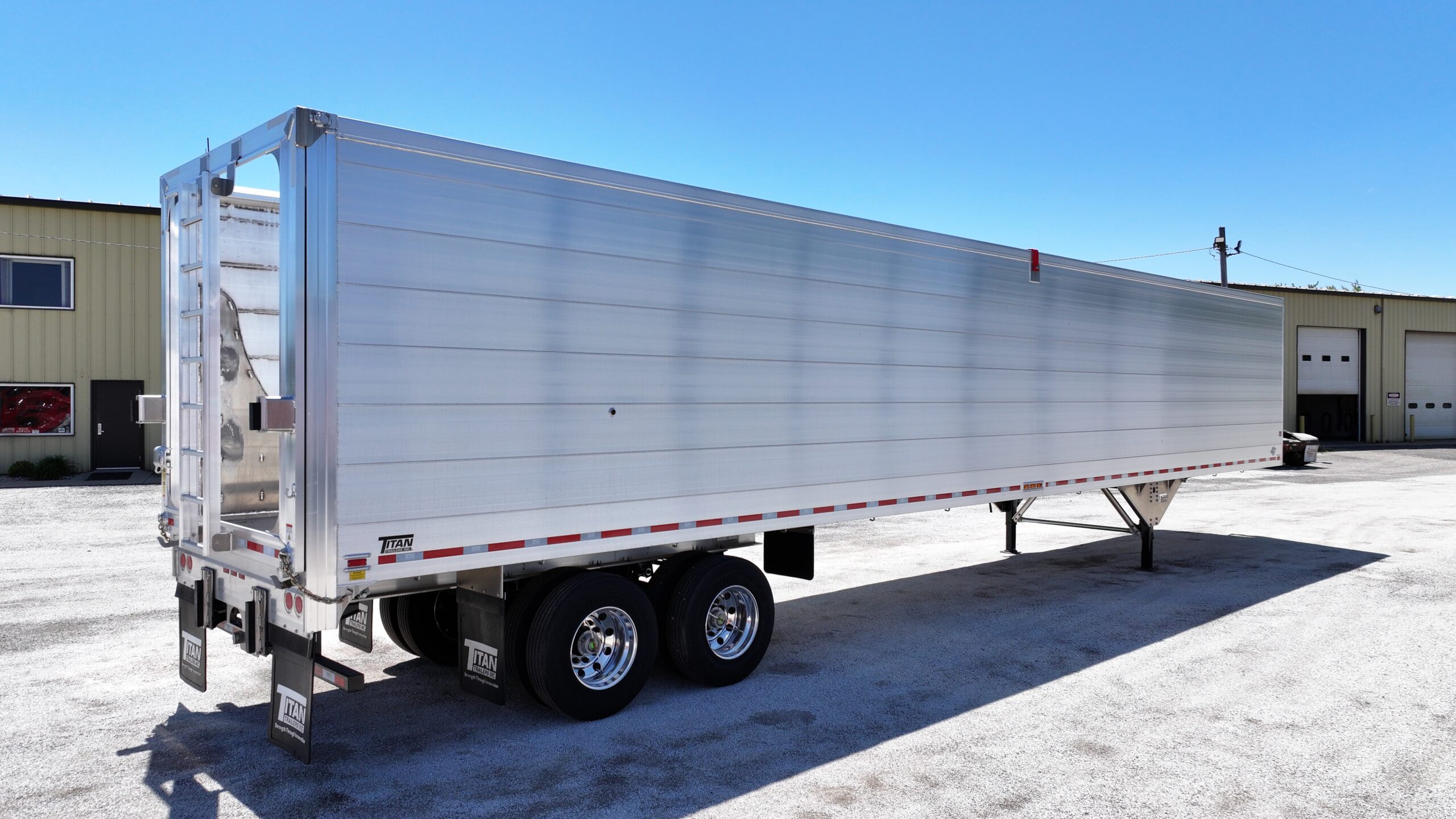

2026 TITAN 53′ 2 AXLE TIPPER TRAILER          10 UNITS AVAILABLE       CALL FOR PRICING



Customer Application                         Garbage sheet floor

Base Model                                            53-2-TW-TP (open top)

Body Style                                              Straight

Panel Configuration                            7-14” + 1-6” panels to suit garbage application – See Note # 3

Overall Length                                     53’

Overall Width                                     102” Nominal

Overall Height                                    13’ 4” (160”) approx.

King Pin Location                               36” bolt in

Upper Coupler                                    Aluminum coupler assembly with stainless steel wear plate  (3” drop) set @ 48” high

Number of Axles        Primary            (2) Two

Lift                     (0) None 2026

Axle                                                       5” round .580 Wall-Straight Spindle – See Note #2

Axle Track                                            77.5”

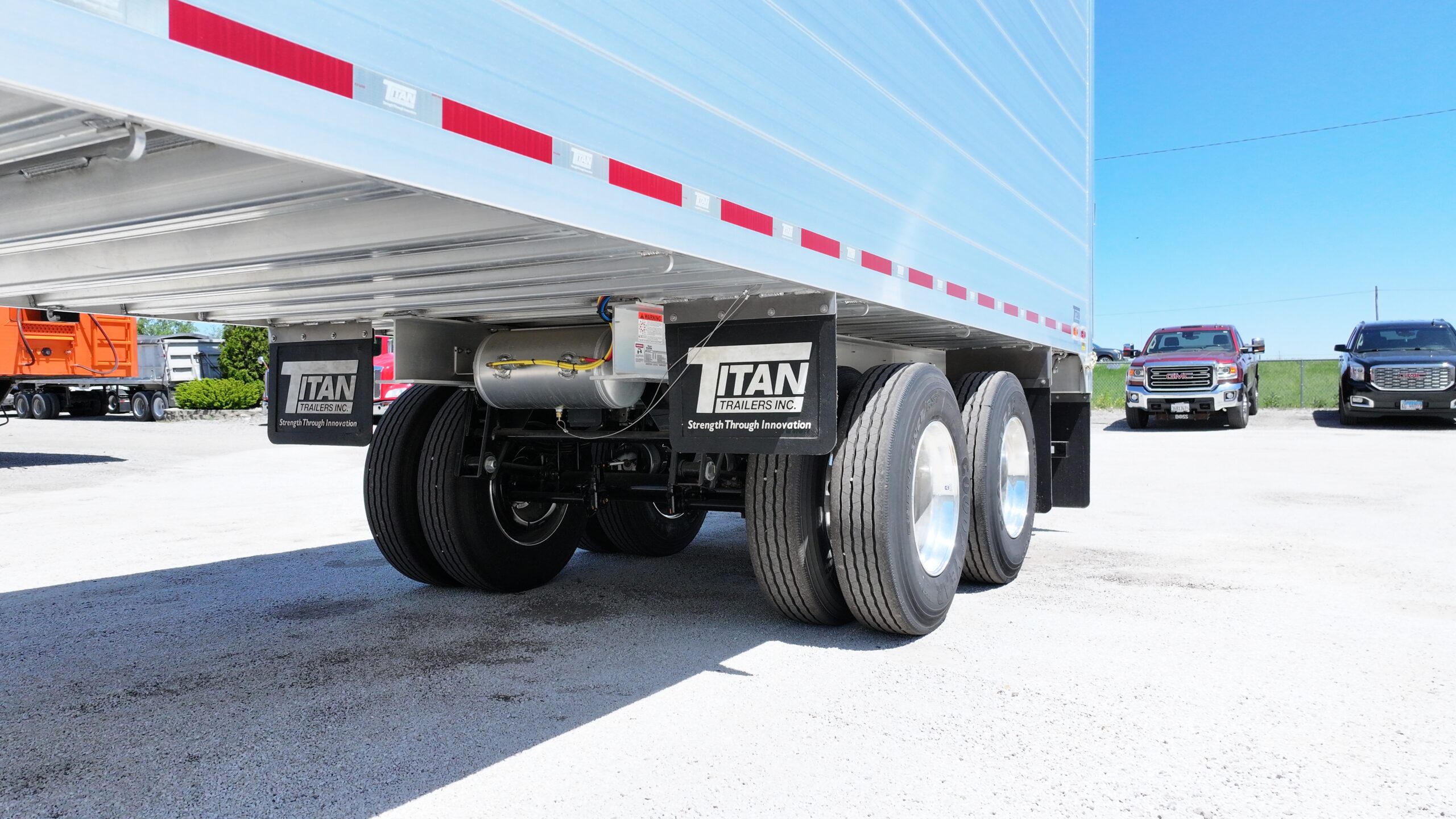

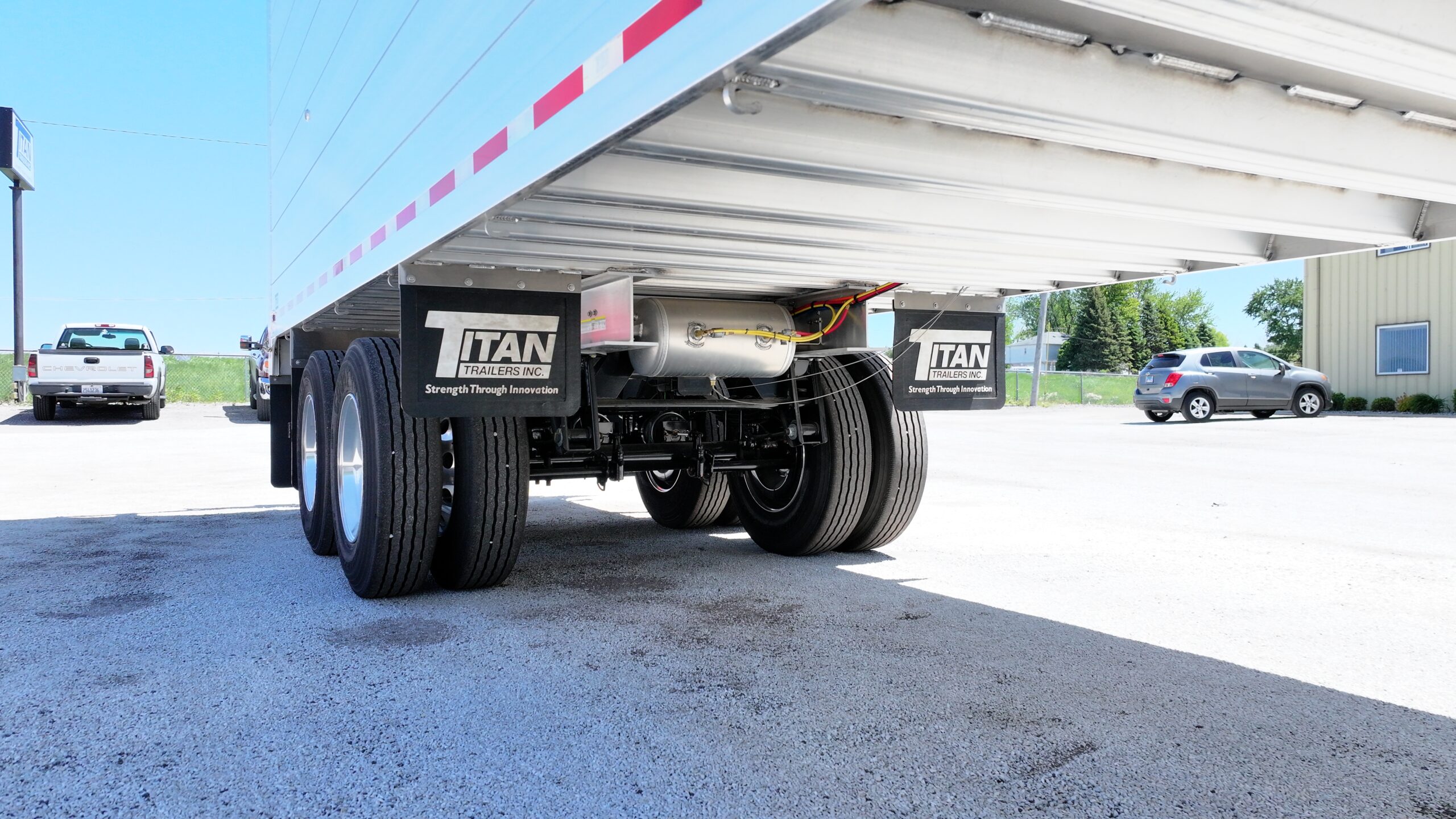

Suspension                                         Reyco 21B FAB w/ inner & upper wear plates

Location of Spreads                           see axle layout

Hub & Drum Assembly                    10 stud Dura-light – Hub/Centrifuse Drum

Disc Wheels Size                                8.25 x 22.5

Rims                                                    Alum LVL Outer/Inner

Tires                            Brand              Goodyear – See Note #4

Size                 11R22.5 – 41.4 dia

Tread               Endurance RST

Ply                   16

Quantity          8

Axle Layout                                        Front-Primary-50- Primary-84-Rear

Oil Seals                                              To suit axles

Lubricants                                           Oil 80W-90

Brakes                         ABS                2S/1M Meritor Wabco

Slack Adj        DRUM BRAKES: Meritor Auto

Cam Enclos     DRUM BRAKES: All Axles & c/w Dust Shields

Lift Kits                                              None

Lift Controls                                       None

Springs                                                3 leaf TRA-3384

Frame Width                                       48”

Rear Bumper                                       Steel, flush, underride

Rubber Bumpers                                 Tailgate      Rubber Tipper T block bumpers

Tow Hooks                                         J style, roadside

Tire Carrier                                         None

Floor                                                    ¼” THK alum sheet, & 5/16” THK alum sheet at 6’ of rear

Floor Cross members                         U-Channel: 18” centers, and 12” centers over subframe

Landing Gear                                      Jost Standard A400 Series: A401-G3-Low Profile Cushion foot – See Note #1

Top Rail                                              Titan Tapered, V1

Top Cross Tube Qty                           Qty (1)

Top Cross Tube Type                         Spring steel (two piece version)

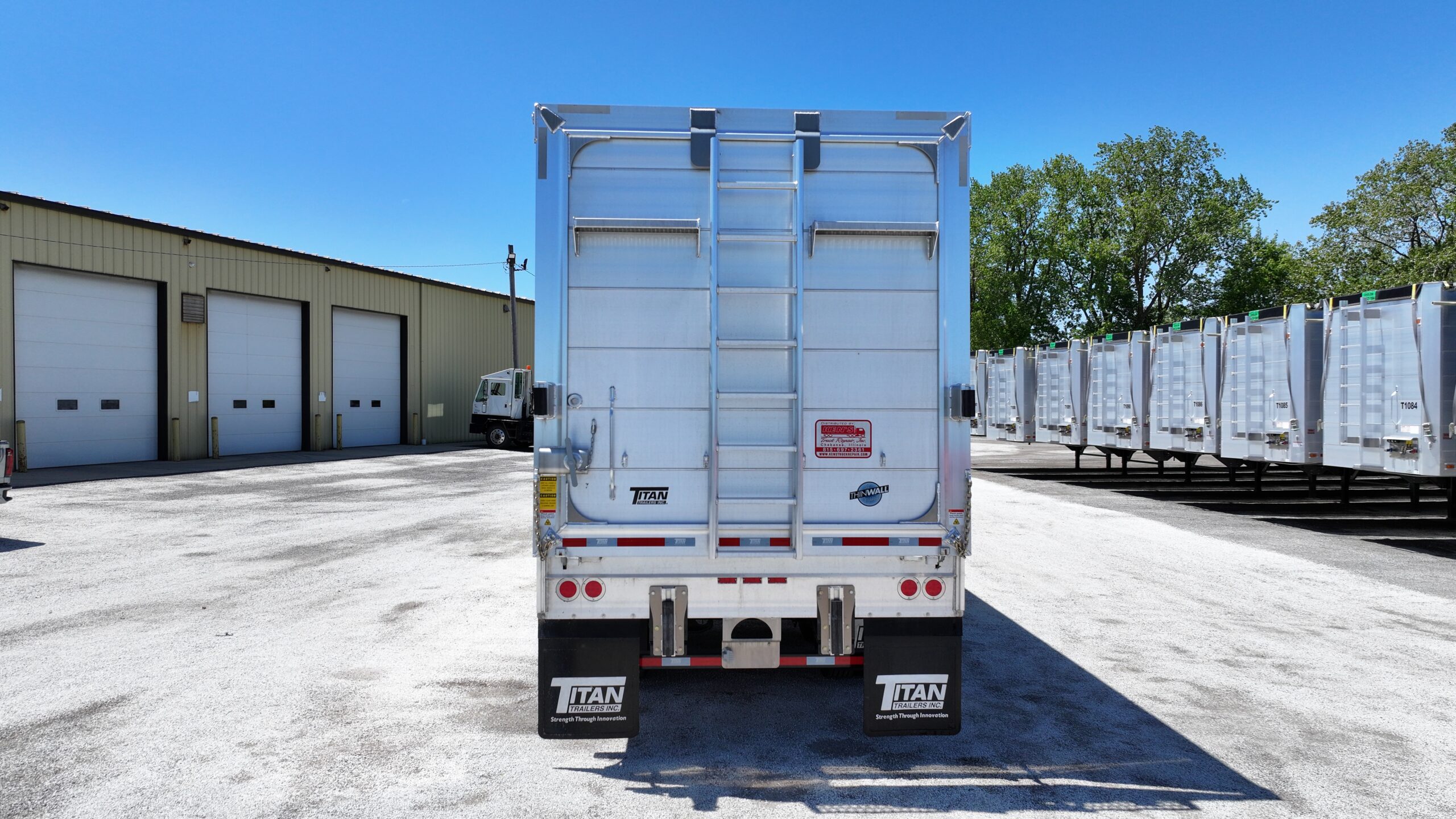

Rear Door                                           Overslung hinge, door in door, air release & safety chain

Rear Door Seal                                    Rubber

Front Door                                          None

Tarp Header                                        None

Tarp Basket (Hoops)                          None

Tarp Hook                                           Side hooks approx. 54” o/c & (4) hooks at rear

Tarp/Roof                                            None

Mud Flap/Style                                   Titan Black Rubber

Location                                              (2) ahead & (2) behind prim group & (2) at rear



Paint

Body                                                      Natural Aluminum

Run – Gear                                          Titan Black

Hub/Drum                                           Same as running gear

Rims or Disc                                        Aluminum

Std Light Package – plug form           Front: (2) mkrs. Sides: (3) mkrs (includes midturn) Rear: No mkrs at top with center cluster of (3) in lightbar, (2) 4” round red taillights per side

Access

Catwalk – front                                   None

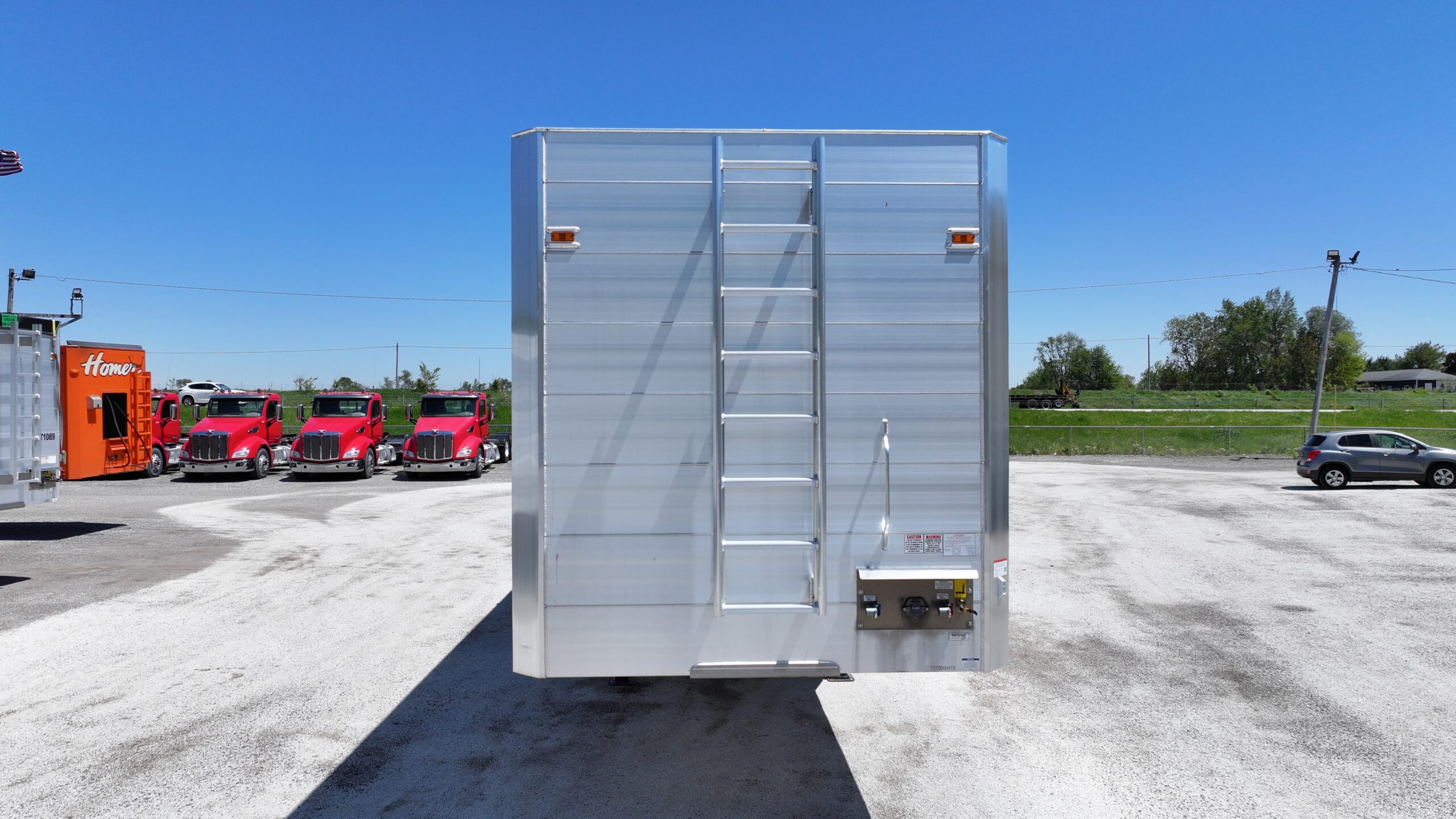

Ladder – front                                     Middle of Frontwall Full Height

Ladder – rear                                       QTY (1) Middle full height with (1) small catwalk on each side

Steps – front – out                               None

Steps – front – ins                               None

Steps – rear                                         None

Additional Specifications:

1)  Approx. 38’ ½” from center of landing gear to rear of rubber bumpers.

     2)  Invert axles.

     3)  Boomerang wear plates.

4)   Add PSI Meritor Tire Inflation System to all axles

Estimated volume: 137.8 cu yds

Estimated weight: 13,933 lbs +/- 3%
