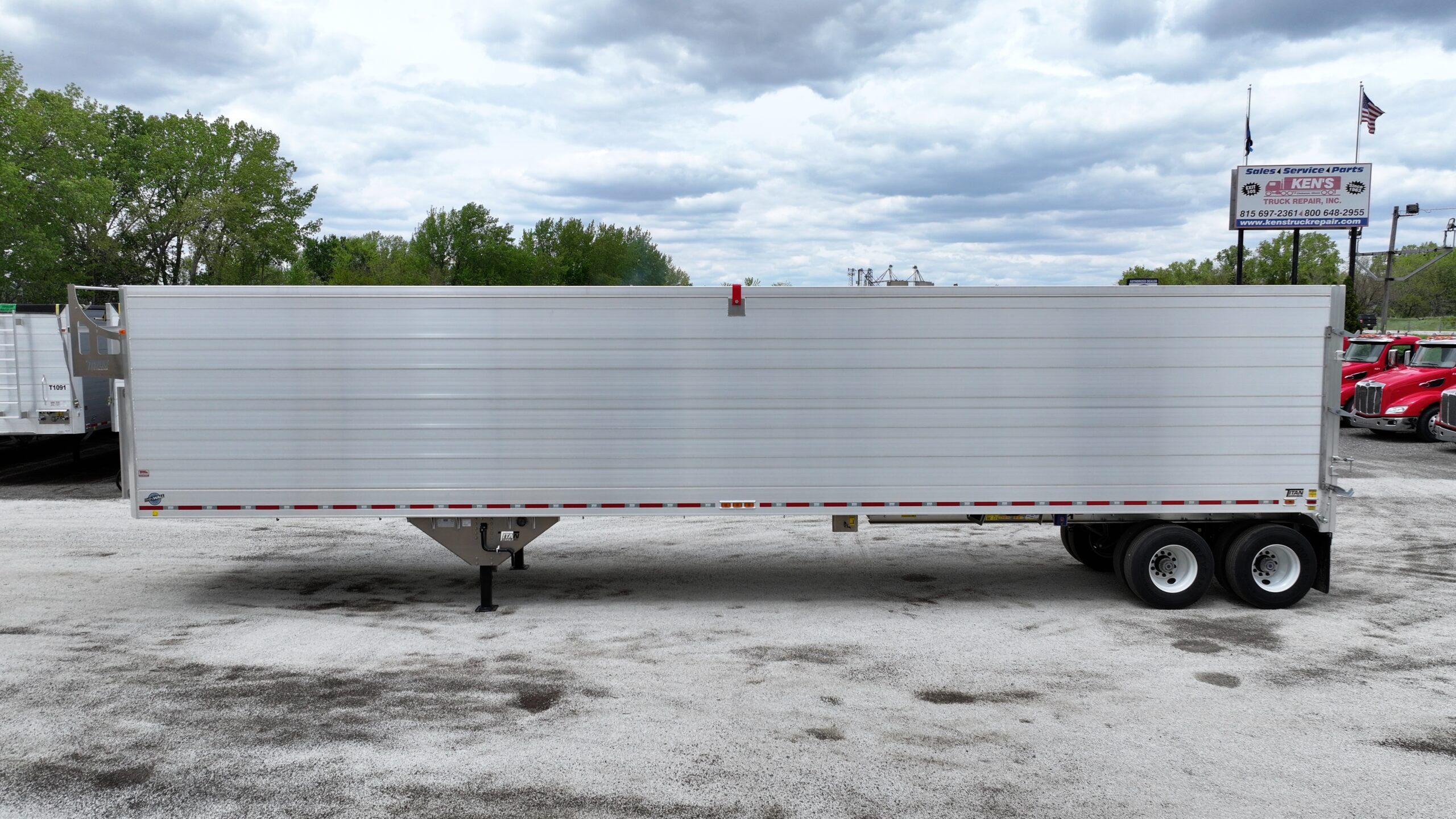

2026 TITAN 48′ WALKING FLOOR TRAILER       CALL FOR PRICING

Base model                  48-2-TW-WF – Open Top

Style                               Straight

Wall configuration

Front                To Suit Garbage Application

Sides                  7-14” + 1-6” to Suit Garbage Application

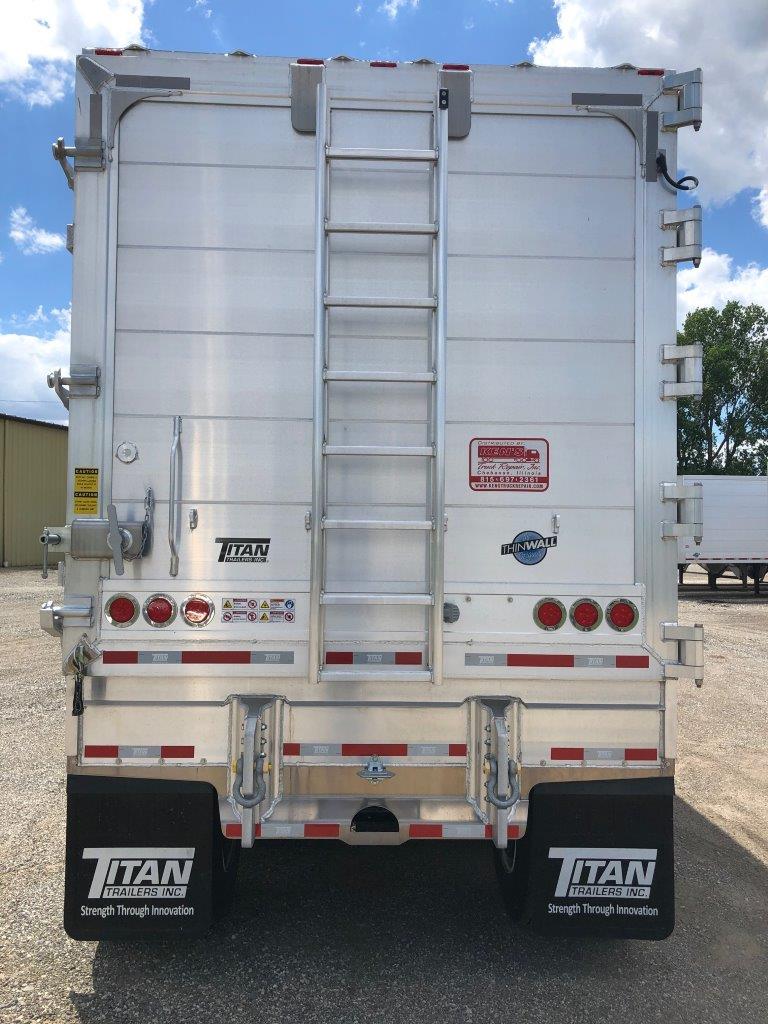

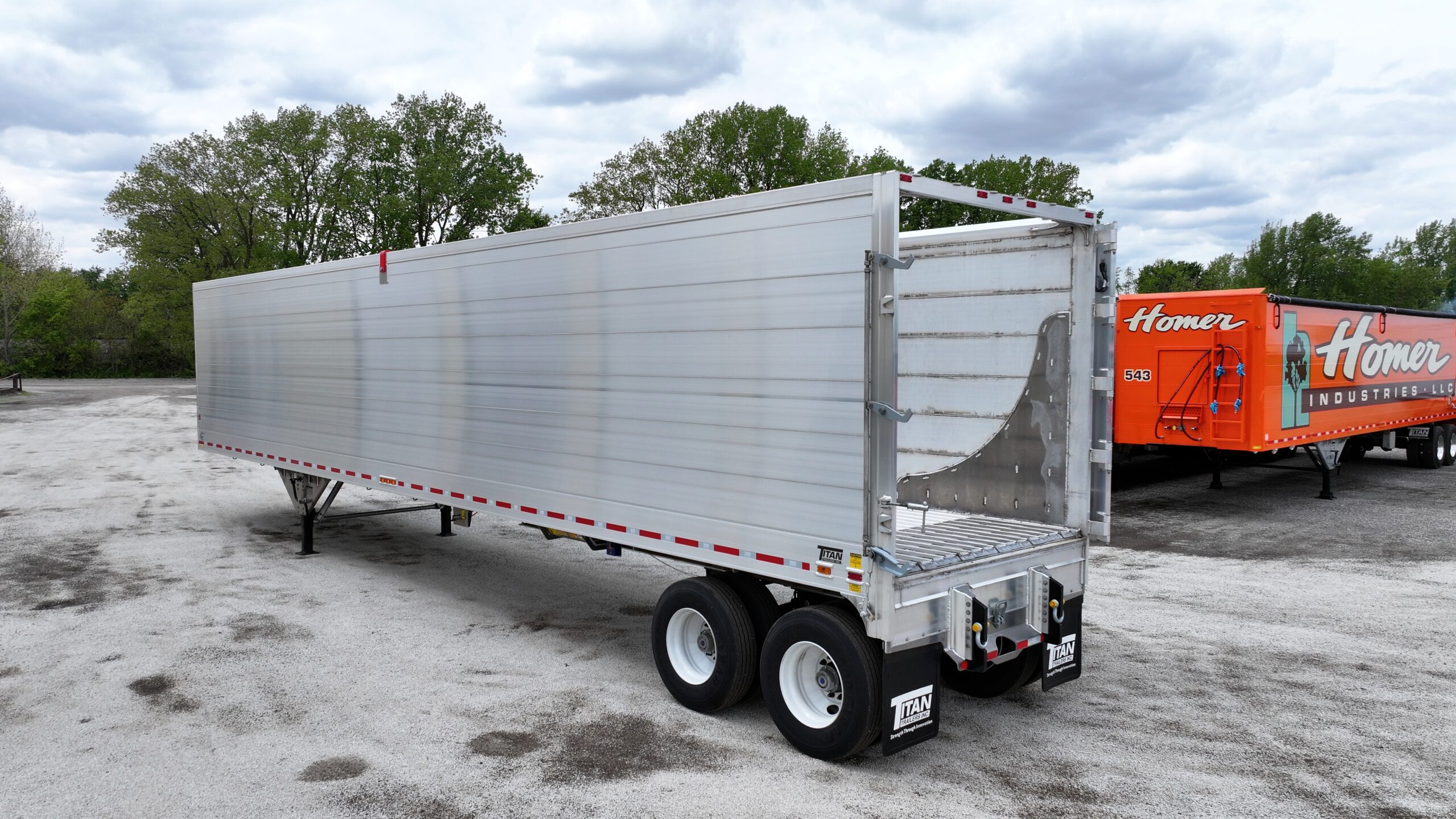

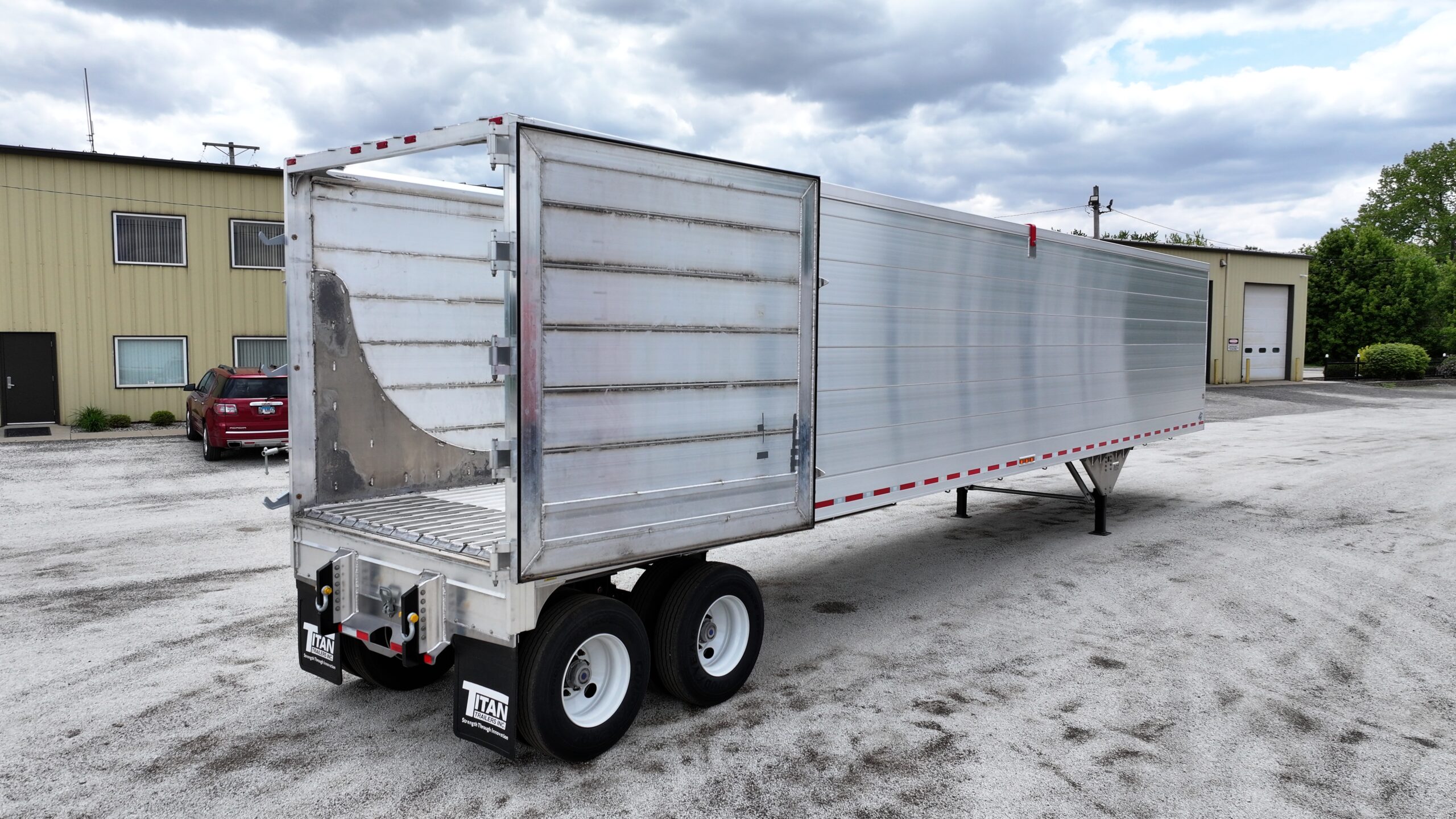

Rear Door        Side Swing, Solid, Lights in Door, Air Release w/ reinforced lock finger – See Note #4

Overall length            48ft

Overall width             102” Nominal

Overall height             13’ 0 7/8” (156.875”) Approx

King pin location       36” WELD IN – See Note #1

Upper coupler             5/16” THK Steel– Set @ 48” high

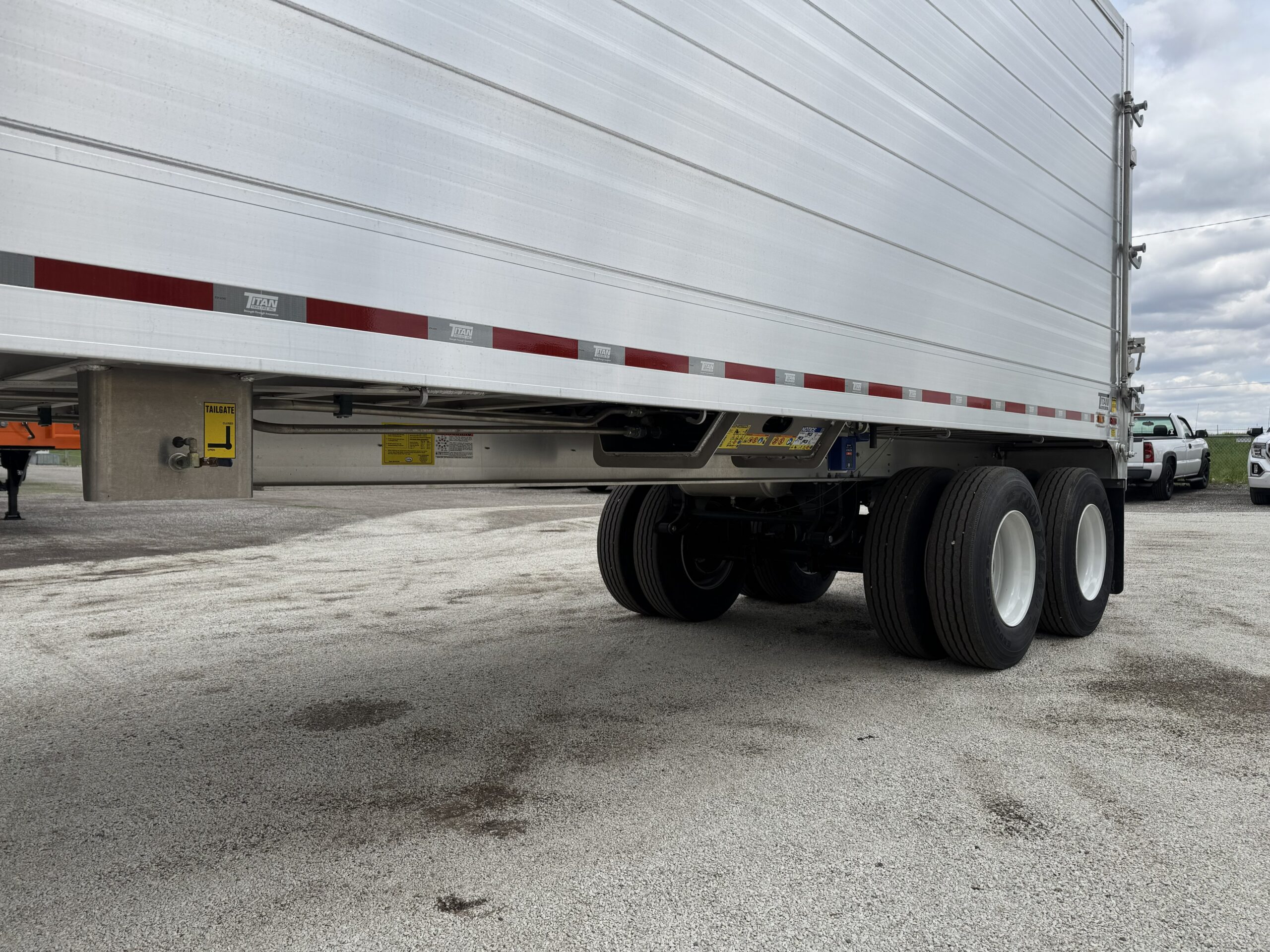

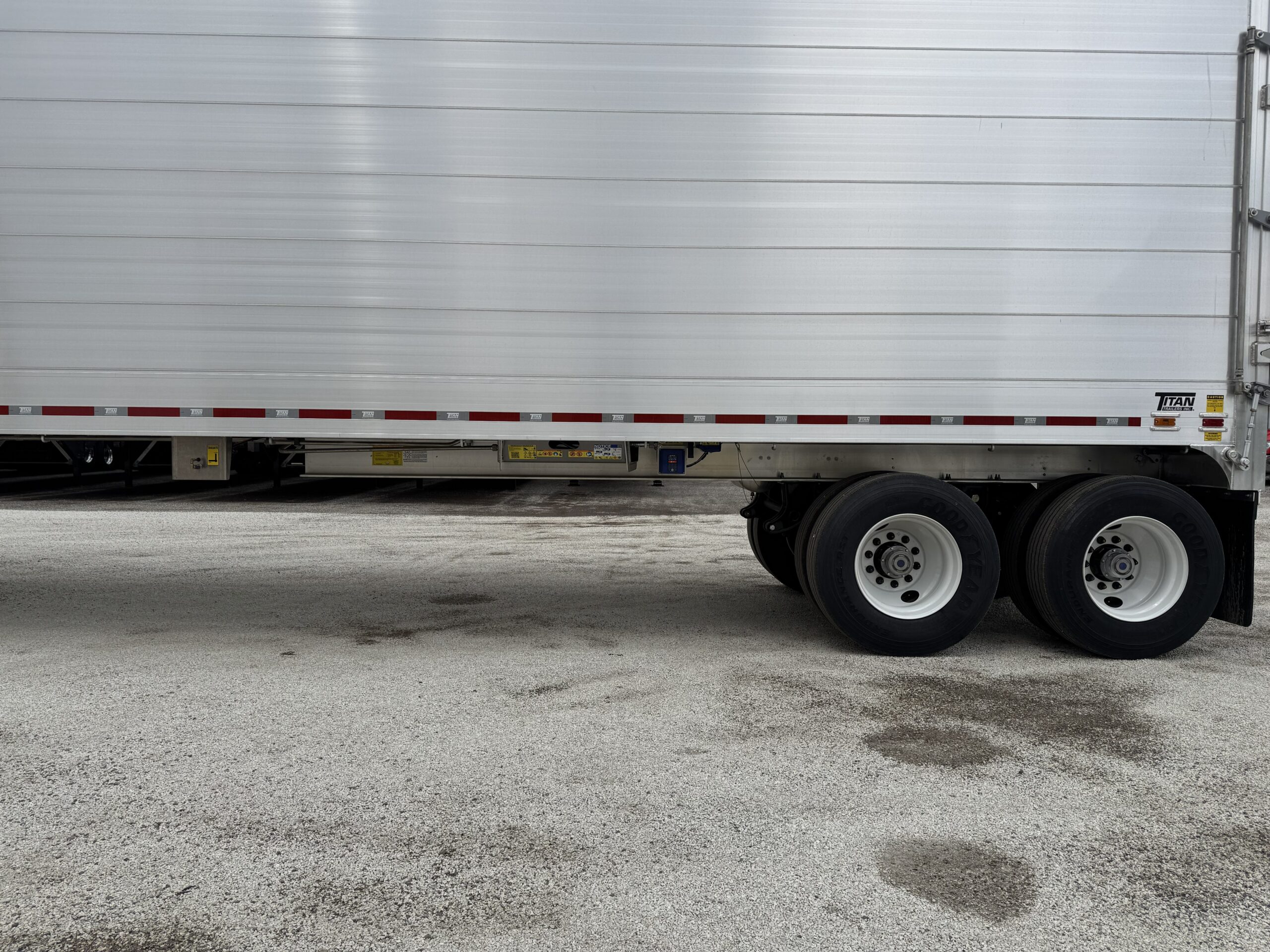

Number of Axles        Primary Two (2)

Axles                              5” Round .580 Wall-Straight Spindle (Note #2)

Axle track                     77.5”

Suspension                 Titan/Eveley with inner & upper wear pads with 3 leaf springs

Location of spreads   See axle layout

Hub/drum assembly  10 Stud Dura-light – Hub/Centrifuse Drum

Disc wheel size            8.25 x 22.5

Rims                             STEEL- Std. Duty – Pre-painted White

Tires     Brand             Goodyear

Size                 11R22.5 – 41.4 dia

Tread               Endurance RST

Ply                    16

Quantity           8

Axle layout                  FRONT -Prim -50 – Prim -28 – REAR

Oil seals                       To suit axles

Lubricants                   Oil-Std 80W-90

Brakes    iABS             2S/1M Meritor Wabco

Slack adj.      DRUM BRAKES: Meritor Auto

Cam Enclos   DRUM BRAKES: All Axles & C/W Dust Shields

Lift kits                        None

Lift controls               None

Frame width              48”

Rear bumper            Aluminum, offset, push

Option #1                  Tow shackles

Option #2                 Steel vertical blocks bolted to bumper protruding 3 ½” sloped top

Tire carrier               None

Landing gear          Jost Standard A400 Series: A401-G3-Low pro cushion foot

Top rail                   Titan Tapered, V1

Top cross tube        Qty 1 – Spring Steel (two piece style)

Floor crossmember  12” centers

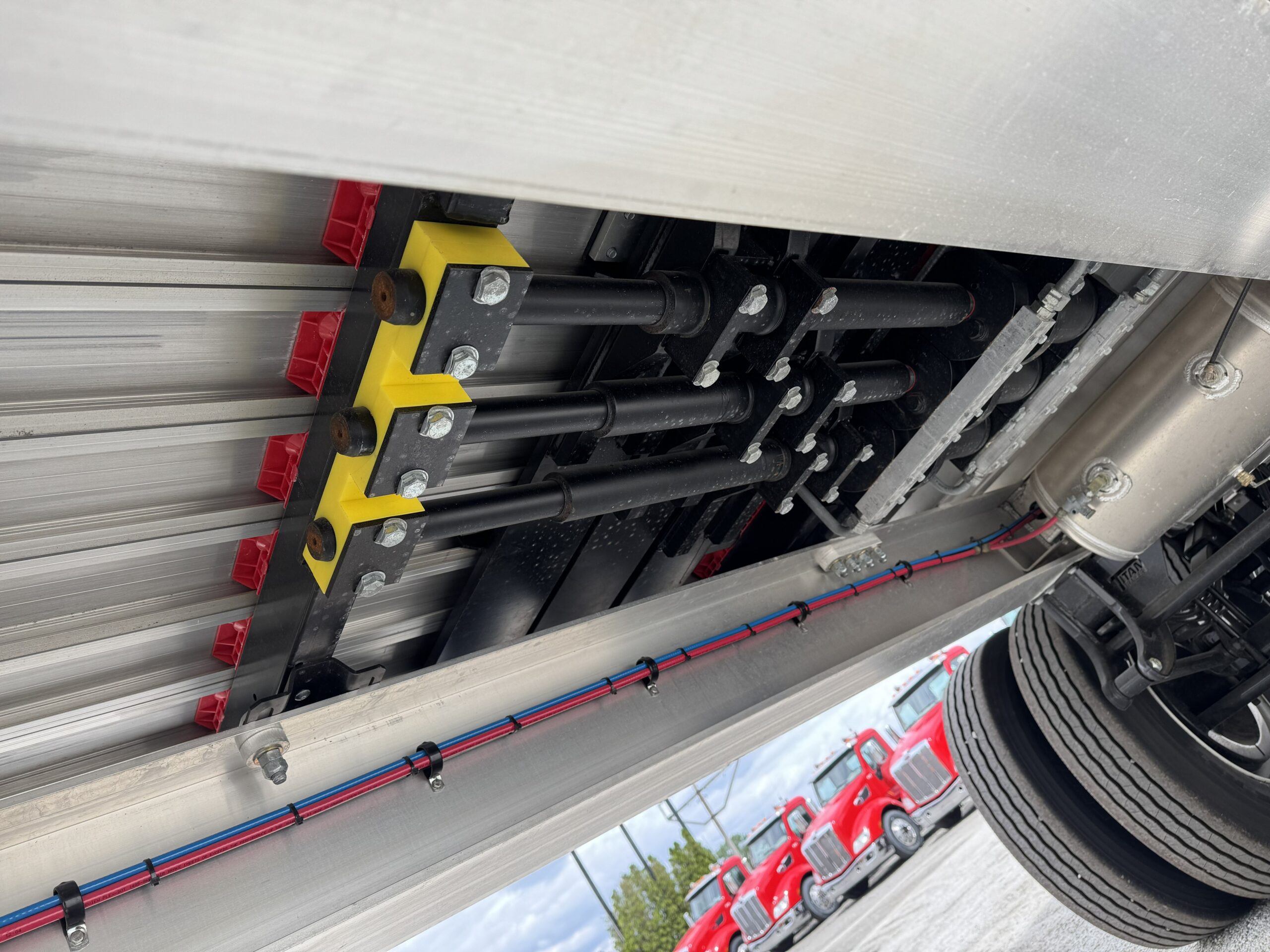

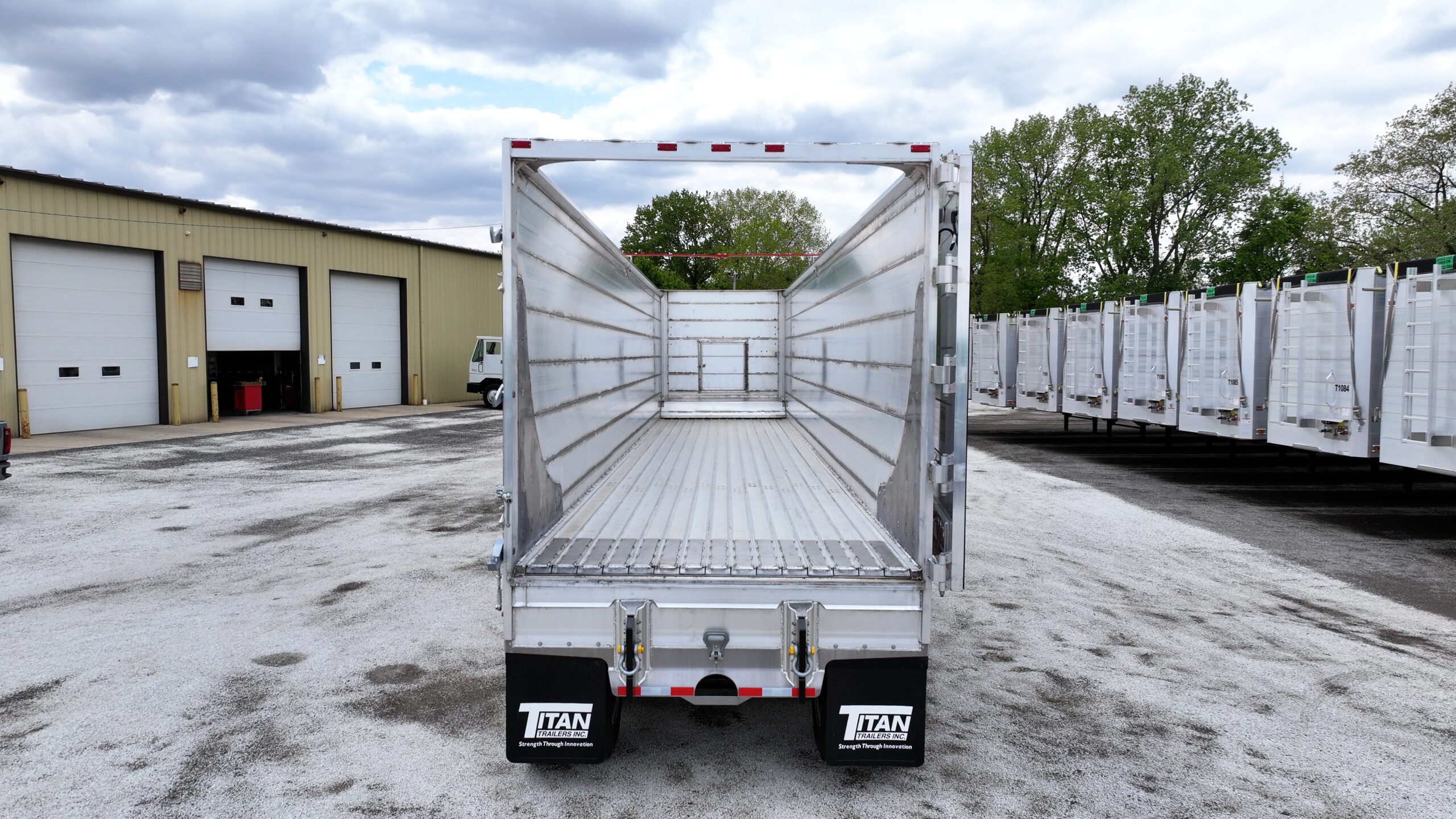

Walking floor kit       Cargo CF600 HDC

Slat model & width    Cargo: 15 Slat: Double Ridge (Titan Extruded Slats), low friction seal, Alum endcaps

Slat wear strips          36” long, Flush, Filler bar wear strips

Continuous bearing   Twister Bearings (no continuous green bearings)

Side wall wear plates  Boomerang style

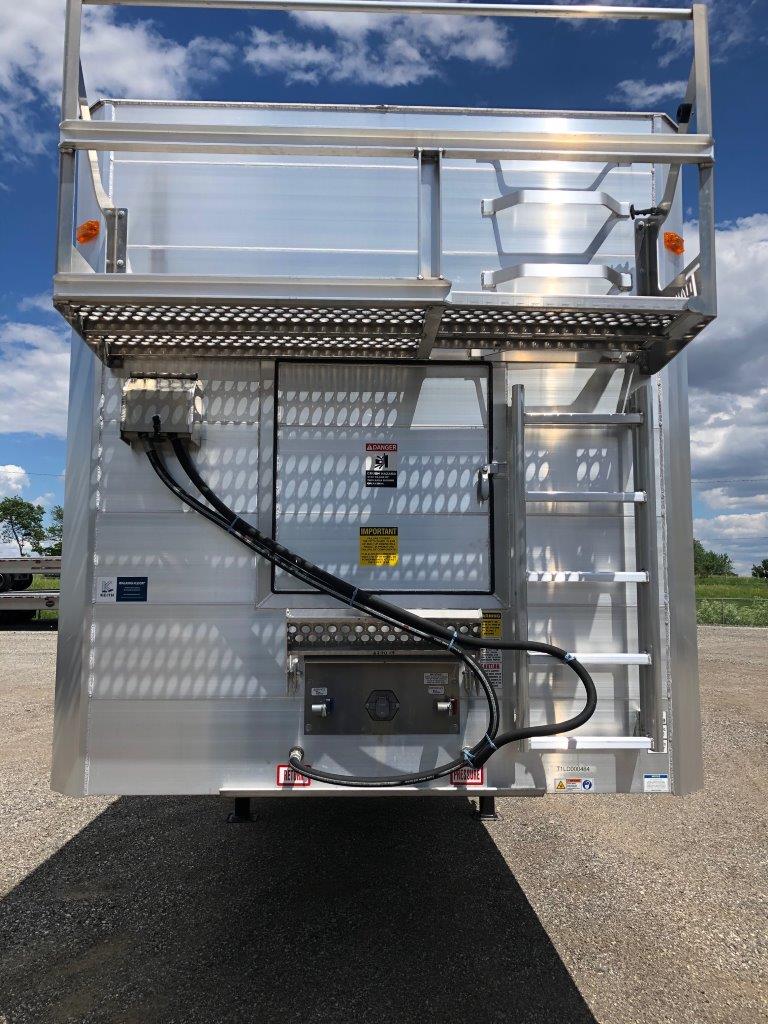

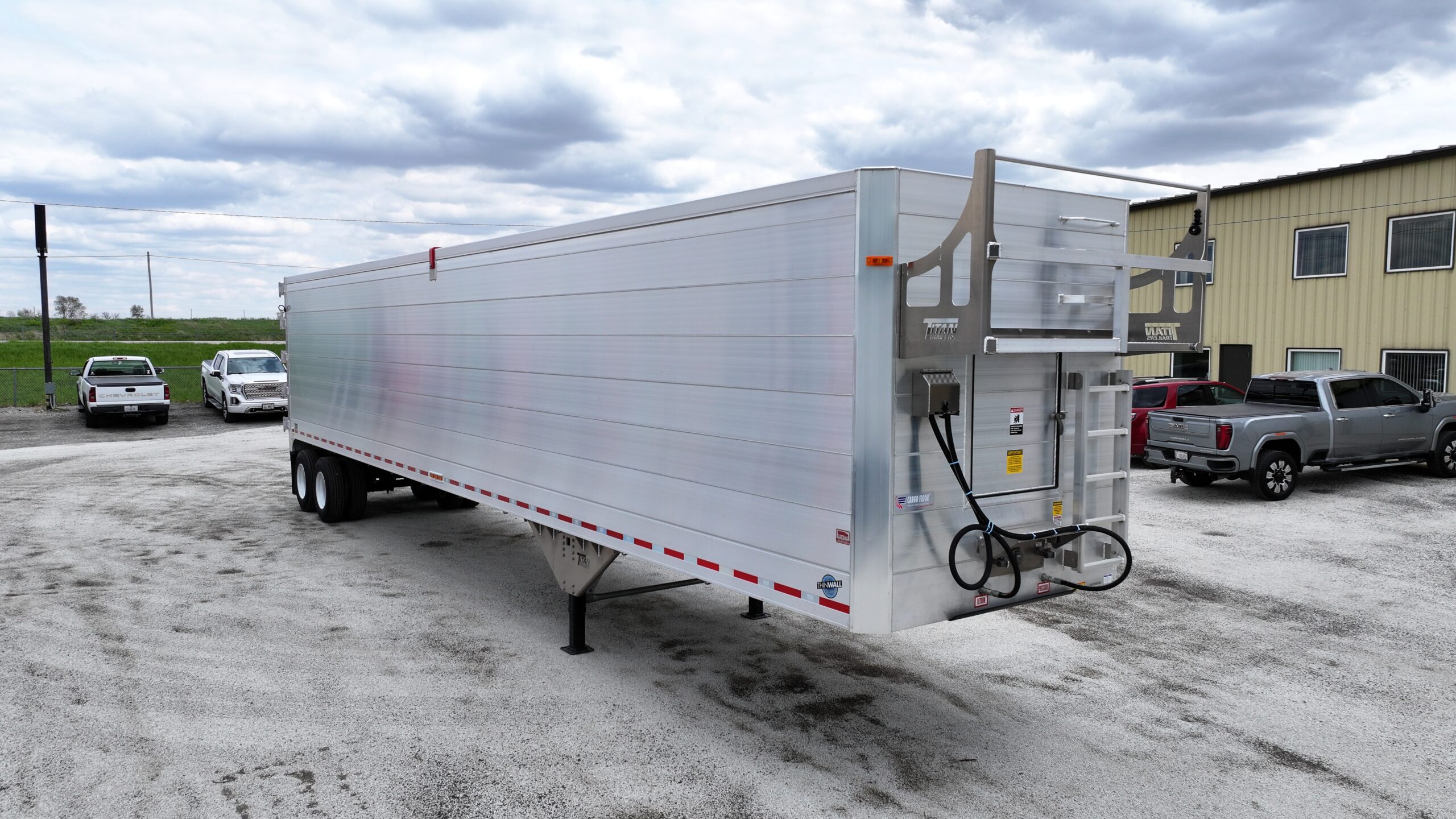

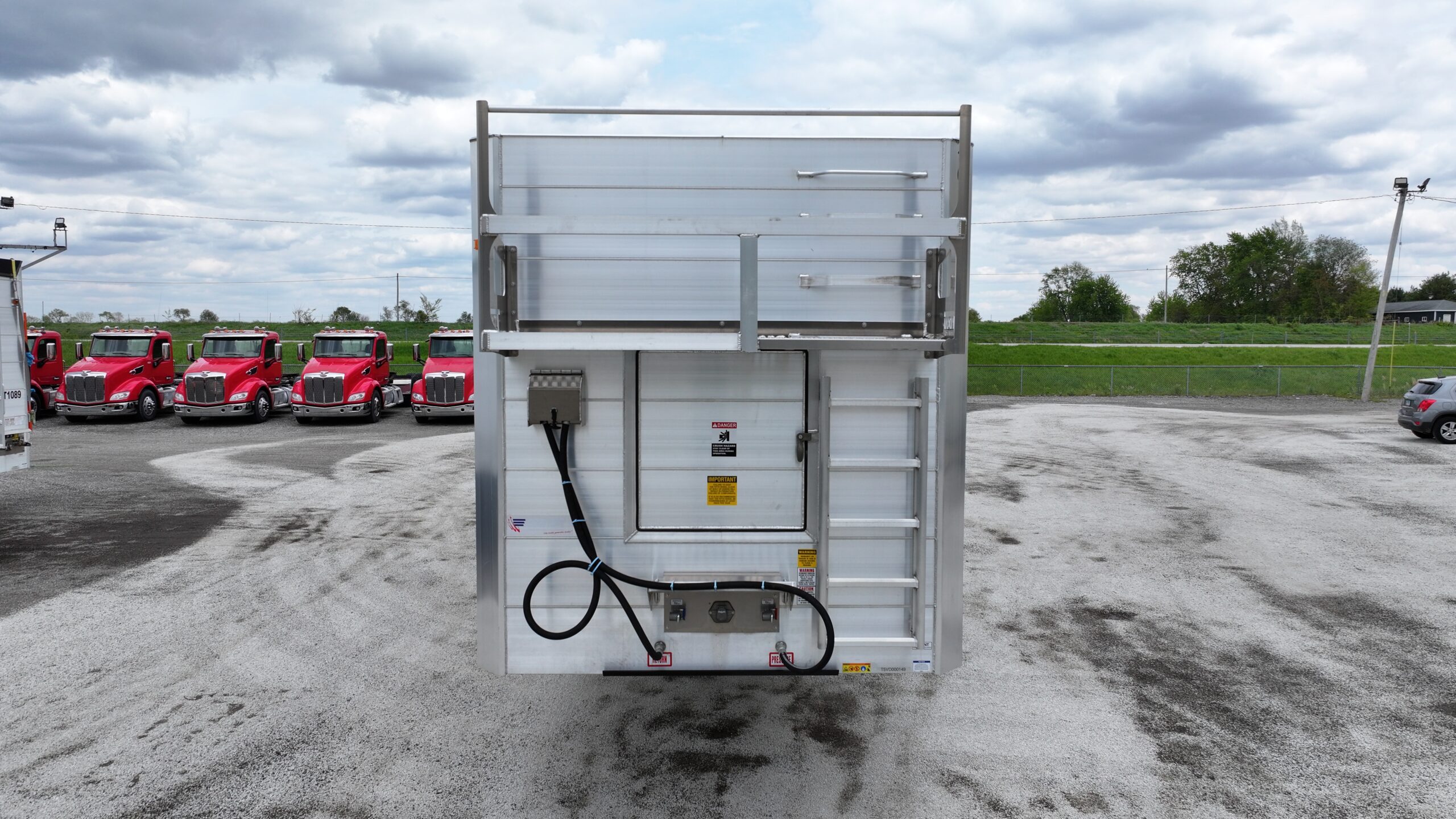

Front access door        STD (35”W x 37.5”H) Curbside Hinge W/Flip Step, located center

Tarp style                      None

Tarp header                 None

Tarp basket/hoops     None

Tarp hooks                   Side Hooks approx. 48” o/c & (4) Hooks on Rear Door

Axle fender                  None

Hyd fitting Pressure   1” quick coupler – Male – See Note #3

Return      1” quick coupler – Female – See Note #3

Mud flaps   Style           Titan black rubber

Location    (2) at Rear

Mud flap – Landing gear  None

Paint   Body – color      Natural aluminum

Run – gear         Titan black

Hub / drum        Same as running gear

Rims or Disc        Steel Pre-painted White

Light package                   Front: (1) mkr per corner mitre.   Sides: (2) mkrs (includes midturn)  Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

Access   Catwalk              Universal Roadside entry 24” catwalk

J-Ladder Frt      Roadside to catwalk

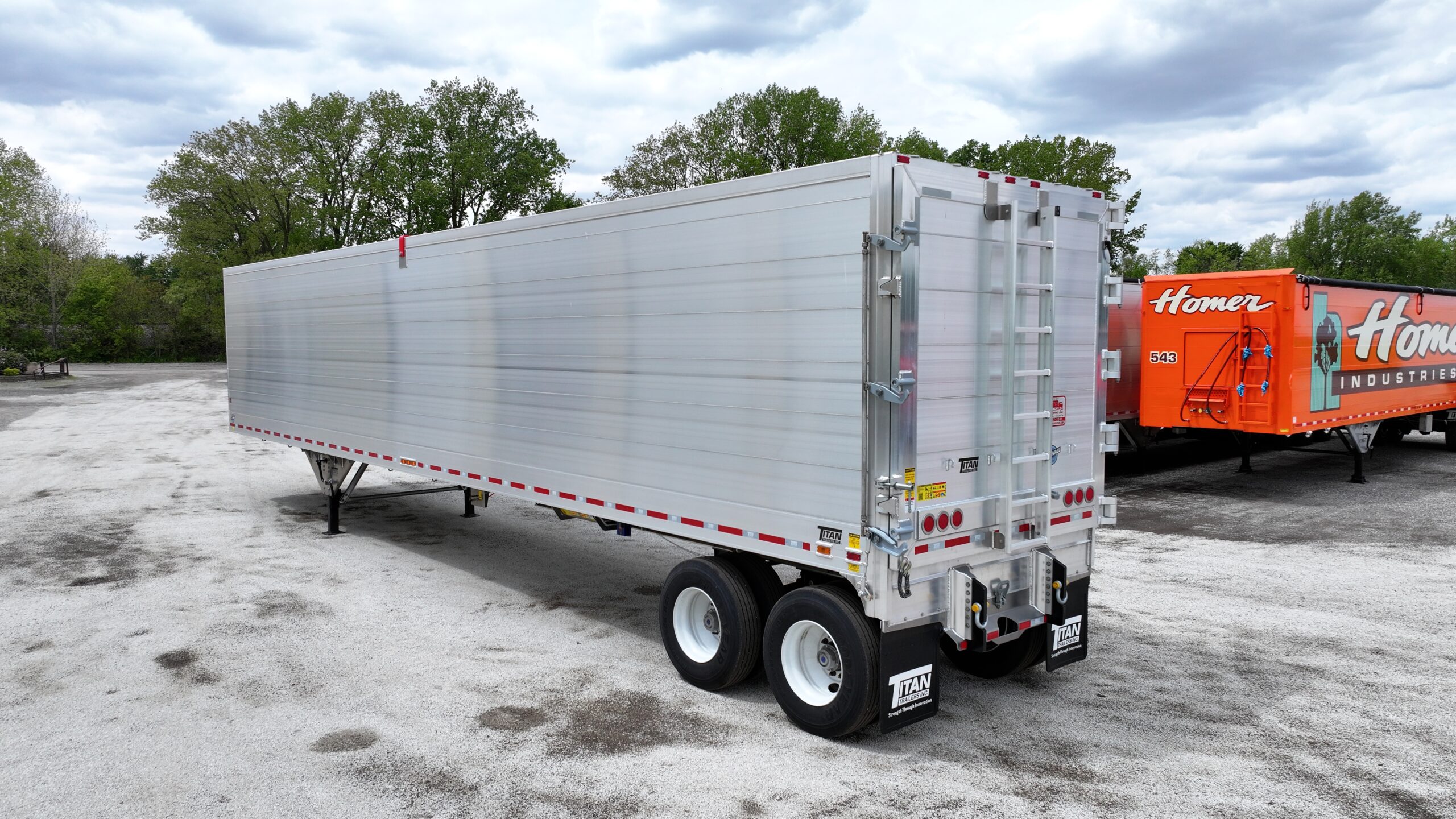

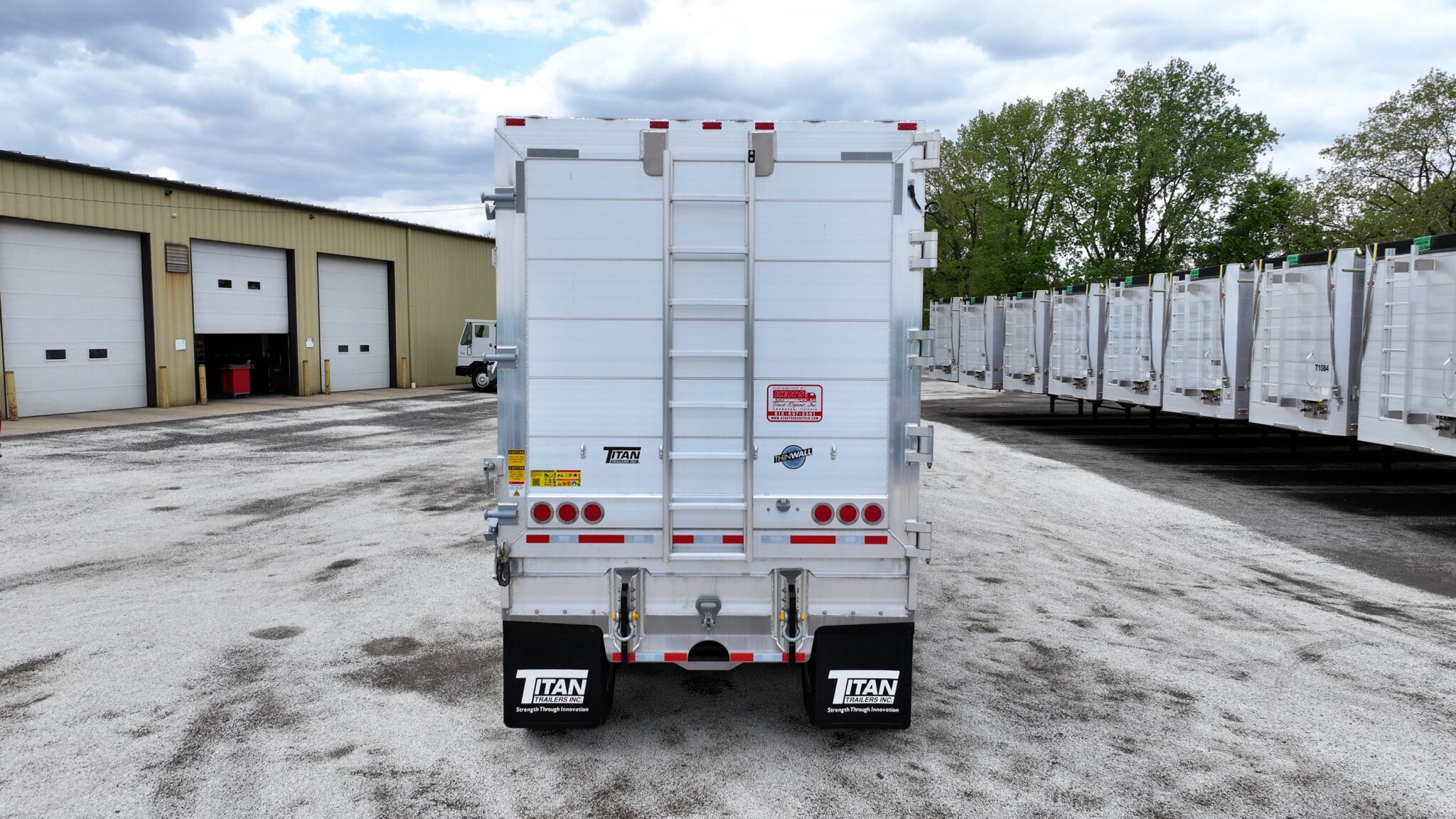

J-Ladder Rear     Middle of Rear Door Full Height

Steps Frt out        None

Steps Frt in         None

Steps Rear          None

Additional specifications:

1) KP To Center of Tandem must be approx. 41’ or Less

2)    a) Invert axles

b) PSI ready axles

3)    a) Add 9’ hoses to front wall

b)Add hinged lid hose hanger to front wall

4) Tapered door header with one piece gusset attached to top side of tapered header. Gusset to suit 10” bolt on tarp header

Estimated volume: 123 cu yds
