2026 TITAN 48' 2 AXLE WALKING FLOOR TRAILER 6 UNITS AVAILABLE WO# 7478

2026 TITAN 48′ 2 AXLE WALKING FLOOR TRAILER   6 UNITS AVAILABLE    CALL FOR PRICING

Customer application                  Garbage Application

Base model                                    48-2-TW-WF – Open Top

Style                                                 Straight

Wall configuration

Front               To Suit Garbage Application

Sides               7-14” + 1-6” to Suit Garbage Application

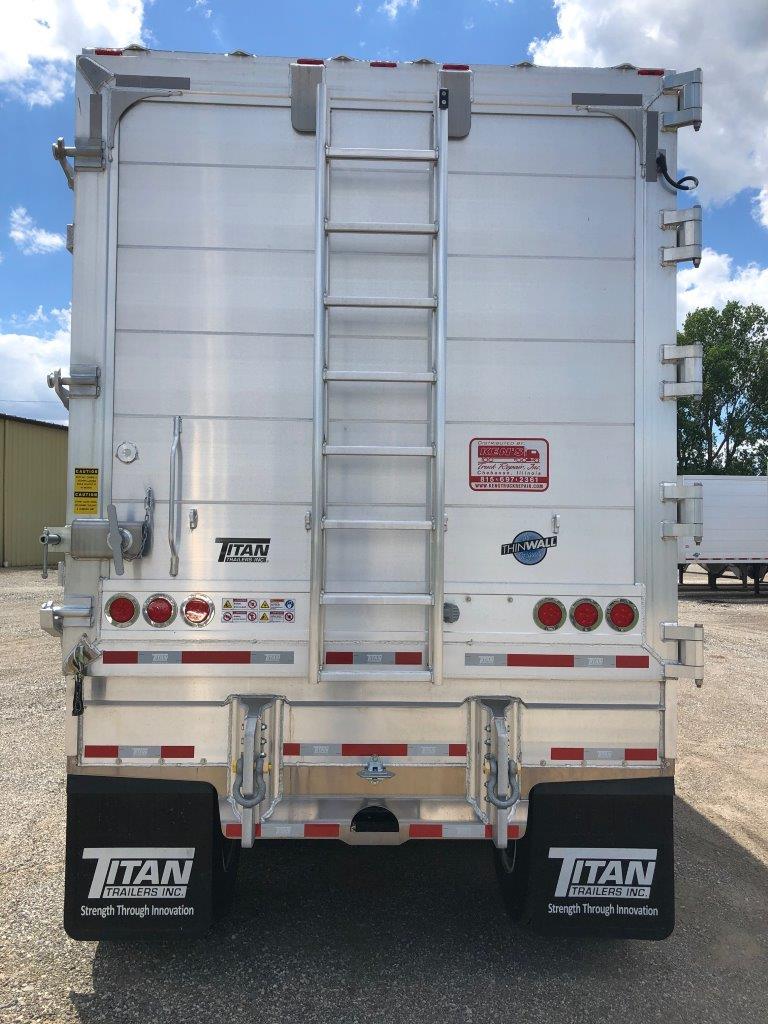

Rear Door       Side Swing, Door in Door, Lights in Door, Air Release w/ reinforced lock finger – See Note #4

Overall length                         48ft

Overall width                          102” Nominal

Overall height                         13’ 0 7/8”  (156.875”)  Approx

King pin location                    36” WELD IN – See Note #1

Upper coupler                         5/16” THK Steel– Set @ 48” high

Number of Axles                    Primary       Two (2)

Axles                                       5” Round .580 Wall-Straight Spindle (Note #2)

Axle track                               77.5”

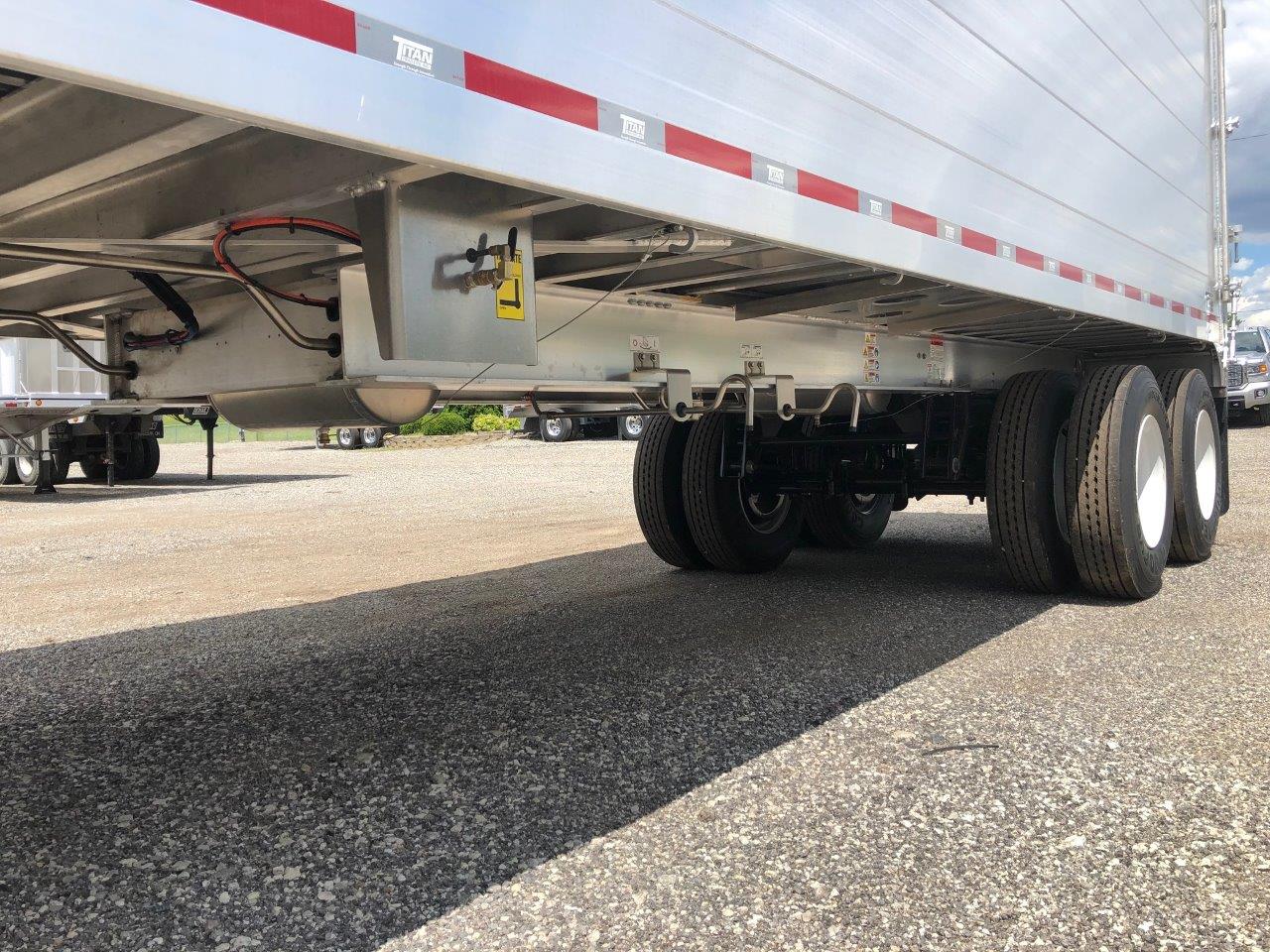

Suspension                              Reyco 21B FAB w/ inner & upper wear pads with 3 leaf springs

Location of spreads                See axle layout

Hub/drum assembly             10 Stud Dura-light – Hub/Centrifuse Drum

Disc wheel size                       8.25 x 22.5

Rims                                        STEEL- Std. Duty – Pre-painted White

Tires                Brand              Goodyear

Size                 11R22.5 – 41.4 dia

Tread               Endurance RST

Ply                   16

Quantity          8

Axle layout                             FRONT -Prim -50 – Prim -28 – REAR

Oil seals                                   To suit axles

Lubricants                               Oil-Std 80W-90

Brakes             ABS               2S/1M Meritor Wabco

Slack adj.        DRUM BRAKES: Meritor Auto

Cam Enclos     DRUM BRAKES: All Axles & C/W Dust Shields

Lift kits                                   None

Lift controls                            None

Frame width                           48”

Rear bumper                            Aluminum, offset, push

Option #1        Tow shackles

Option #2        Steel vertical blocks bolted to bumper protruding 3 ½” sloped top

Tire carrier                              None

Landing gear                           Jost Standard A400 Series: A401-G3-Low pro cushion foot

Top rail                                    Titan Tapered, V1

Top cross tube                        Qty 1 – Spring Steel (two piece style)

Floor crossmember                  12” centers

Keith walking floor kit           Running floor II: 3.5” Dia Cylinders, 10” stroke – See Note # 5

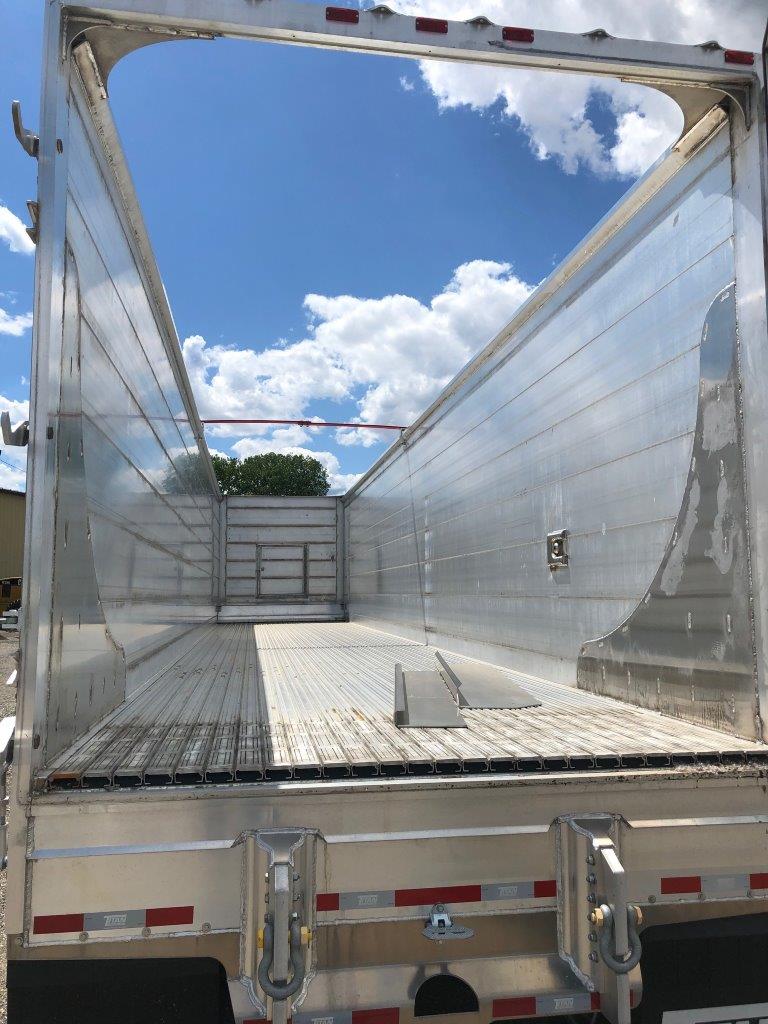

Slat model & width                26 slat: 2299 slats (1/2” Triple Ridge Impact – 3.5” W) 1212 seals, T-blocks rear

Slat wear strips                        36” long, Flush, Filler bar wear strips

Continuous bearing                 Continuous Splash/Hold Down Bearings

Side wall wear plates              Boomerang style

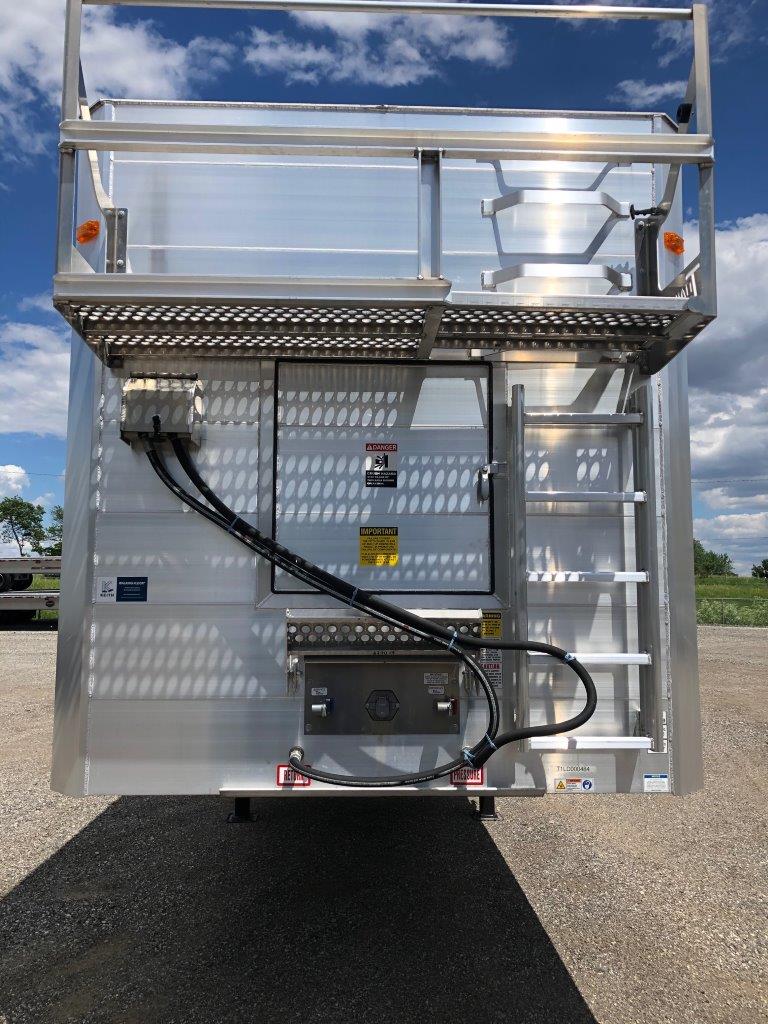

Front access door                    STD (35”W x 37.5”H) Curbside Hinge W/Flip Step, located center

Tarp style                                None

Tarp header                             None

Tarp basket/hoops                None

Tarp hooks                              Side Hooks approx. 48” o/c & (4)  Hooks on Rear Door

Axle fender                             None

Hyd fitting                            Pressure           1” quick coupler – Male – See Note #3

Return             1” quick coupler – Female – See Note #3

Mud flaps                             Style                Titan black rubber

Location          (2) at Rear

Mud flap                             Landing gear        None

Paint                                   Body – color   Natural aluminum

Run – gear       Titan black

Hub / drum      Same as running gear

Rims or Disc   Steel Pre-painted White

Light package                 Front: (1) mkr per corner mitre.            Sides: (2) mkrs (includes midturn)             Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

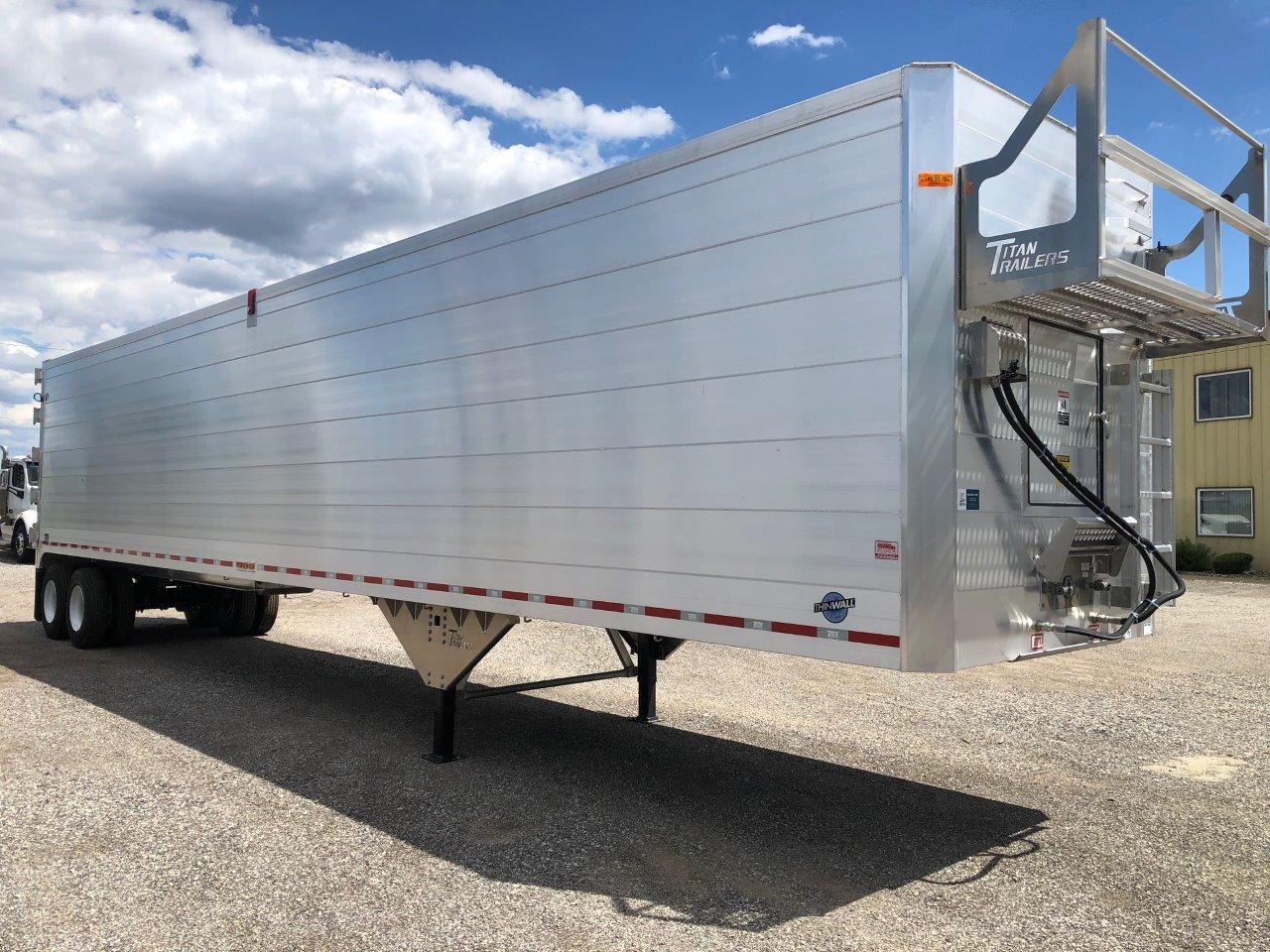

Access                             Catwalk           Universal Roadside entry 24” catwalk

J-Ladder Frt    Roadside to catwalk

J-Ladder Rear Middle of Rear Door Height

Steps Frt out    None

Steps Frt in      None

Steps Rear       None

Additional specifications:

• 1)  KP To Center of Tandem must be approx. 41’ or Less
• 2      a) Invert axles        b) PSI ready axles

3)   a) Add 9’ hoses to front wall

b)Add hinged lid hose hanger to front wall

4)  Tapered door header with one piece gusset attached to top side of tapered header.  Gusset 5)to suit 10” bolt on tarp header

• 5)  Add 2.5” hydraulic pressure gauge to frame (flush mount) located beside the on/off handle with identifying label

Estimated weight:    17,800 lbs +/- 3%

Estimated volume:    123 cu yds
