2026 TITAN 48′ 2 AXLE WALKING FLOOR TRAILER       5 UNITS DUE IN JANUARY 2026     CALL FOR PRICING

Customer application                       Garbage Application

Base model                                         48-2-TW-WF – Open Top

Style                                                     Straight

Wall configuration

Front                            To Suit Garbage Application

Sides                             7-14” + 1-6” to Suit Garbage Application

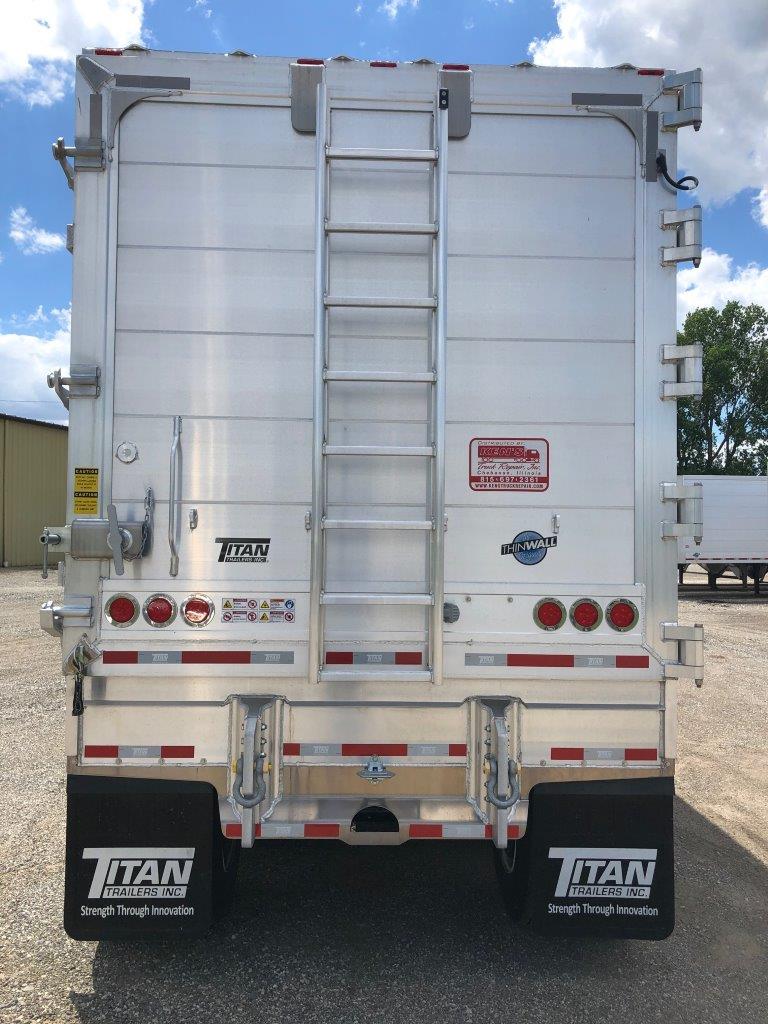

Rear Door                   Side Swing, Door in Door, Lights in Door, Air Release w/ reinforced lock finger – See Note #4

Overall length                                  48ft

Overall width                                   102” Nominal

Overall height                                 13’ 0 7/8”  (156.875”)  Approx

King pin location                           36” WELD IN – See Note #1

Upper coupler                                5/16” THK Steel– Set @ 48” high

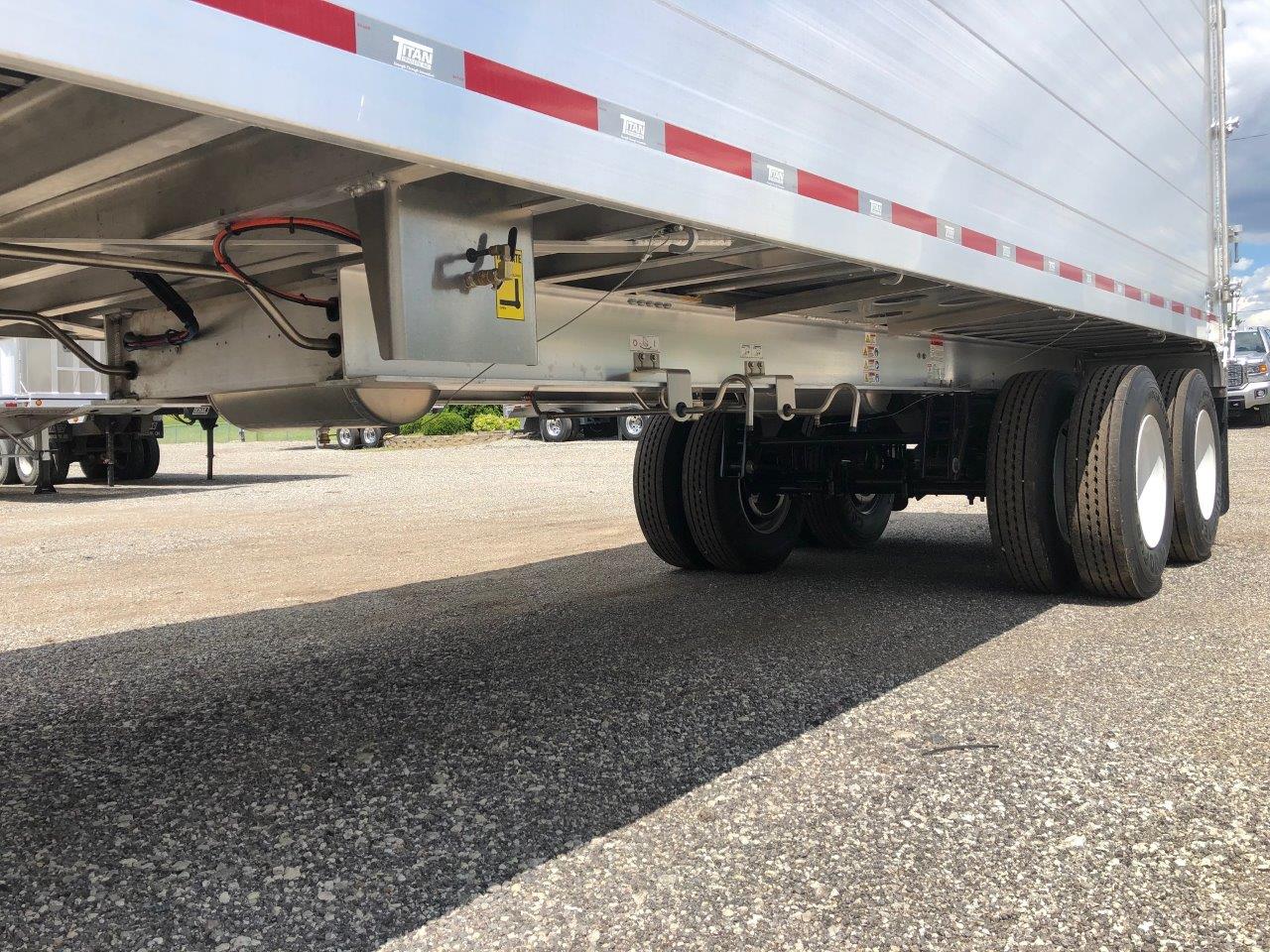

Number of Axles   Primary       Two (2)

Axles                                                5” Round .580 Wall-Straight Spindle (Note #2)

Axle track                                        77.5”

Suspension                                     Reyco 21B FAB w/ inner & upper wear pads with 3 leaf springs

Location of spreads                      See axle layout

Hub/drum assembly                    10 Stud Dura-light – Hub/Centrifuse Drum

Disc wheel size                               8.25 x 22.5

Rims                                                STEEL- Std. Duty – Pre-painted White

Tires                Brand                     Goodyear

Size                          11R22.5 – 41.4 dia

Tread                      Endurance RST

Ply                           16

Quantity                8

Axle layout                                    FRONT -Prim -50 – Prim -28 – REAR

Oil seals                                         To suit axles

Lubricants                                    Oil-Std 80W-90

Brakes          iABS                        2S/1M Meritor Wabco

Slack adj.                 DRUM BRAKES: Meritor Auto

Cam Enclos              DRUM BRAKES: All Axles & C/W Dust Shields

Lift kits                                         None

Lift controls                                None

Frame width                              48”

Rear bumper                             Aluminum, offset, push

Option #1            Tow shackles

Option #2             Steel vertical blocks bolted to bumper protruding 3 ½” sloped top

Tire carrier                                None

Landing gear                           Jost Standard A400 Series: A401-G3-Low pro cushion foot

Top rail                                     Titan Tapered, V1

Top cross tube                        Qty 1 – Spring Steel (two piece style)

Floor crossmember                12” centers

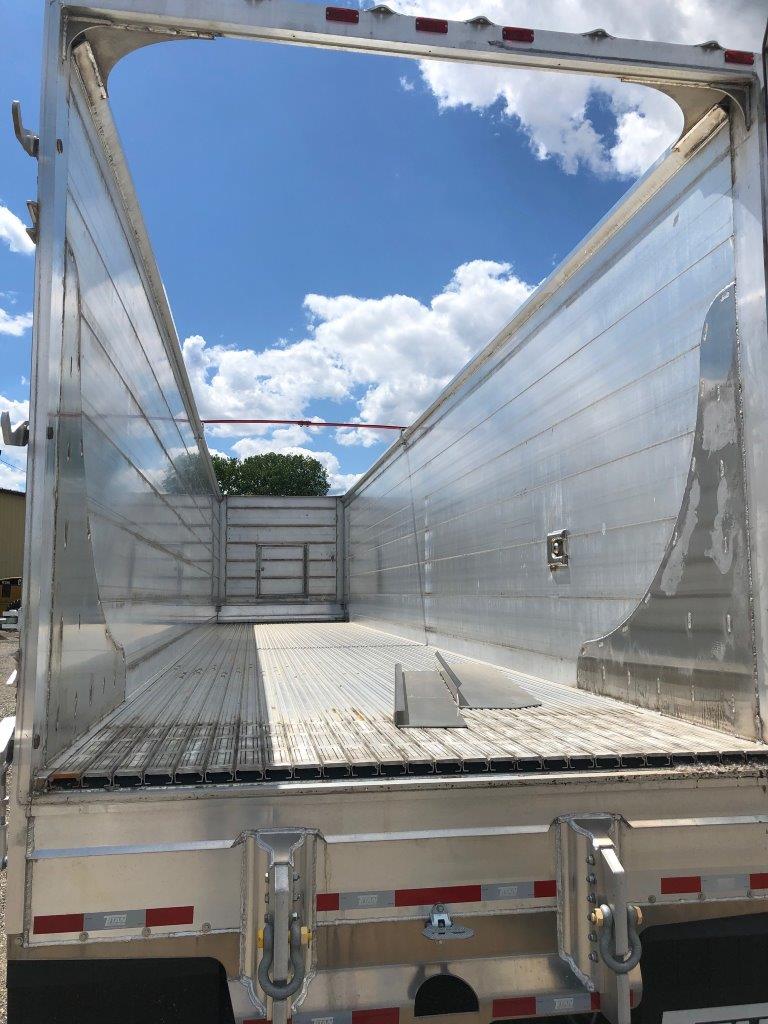

Keith walking floor kit          Running floor II: 3.5” Dia Cylinders, 10” stroke – See Note # 5

Slat model & width                26 slat: 2299 slats (1/2” Triple Ridge Impact – 3.5” W) 1212 seals, T-blocks rear

Slat wear strips                       36” long, Flush, Filler bar wear strips

Continuous bearing               Continuous Splash/Hold Down Bearings

Side wall wear plates              Boomerang style

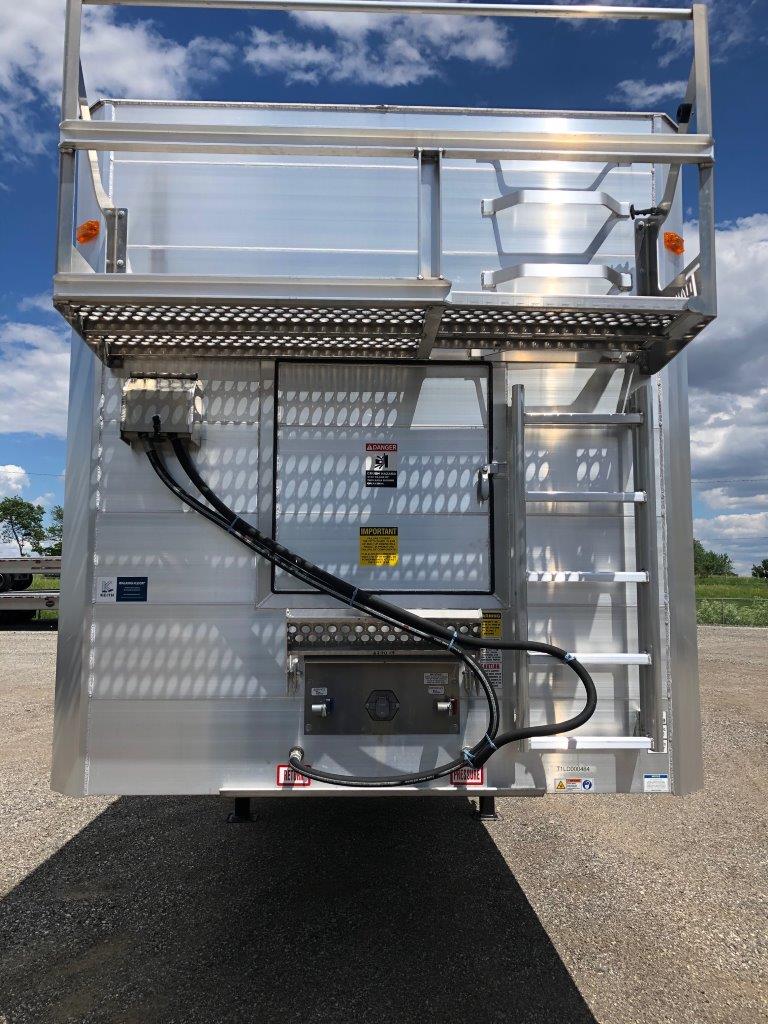

Front access door                   STD (35”W x 37.5”H) Curbside Hinge W/Flip Step, located center

Tarp style                                None

Tarp header                             None

Tarp basket/hoops                 None

Tarp hooks                              Side Hooks approx. 48” o/c & (4)  Hooks on Rear Door

Axle fender                             None

Hyd fitting   Pressure             1” quick coupler – Male – See Note #3

Return              1” quick coupler – Female – See Note #3

Mud flaps     Style                    Titan black rubber

Location            (2) at Rear

Mud flap – Landing gear       None

Paint          Body – color         Natural aluminum

Run – gear           Titan black

Hub / drum         Same as running gear

Rims or Disc       Steel Pre-painted White

Light package                         Front: (1) mkr per corner mitre.        Sides: (2) mkrs (includes midturn)            Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

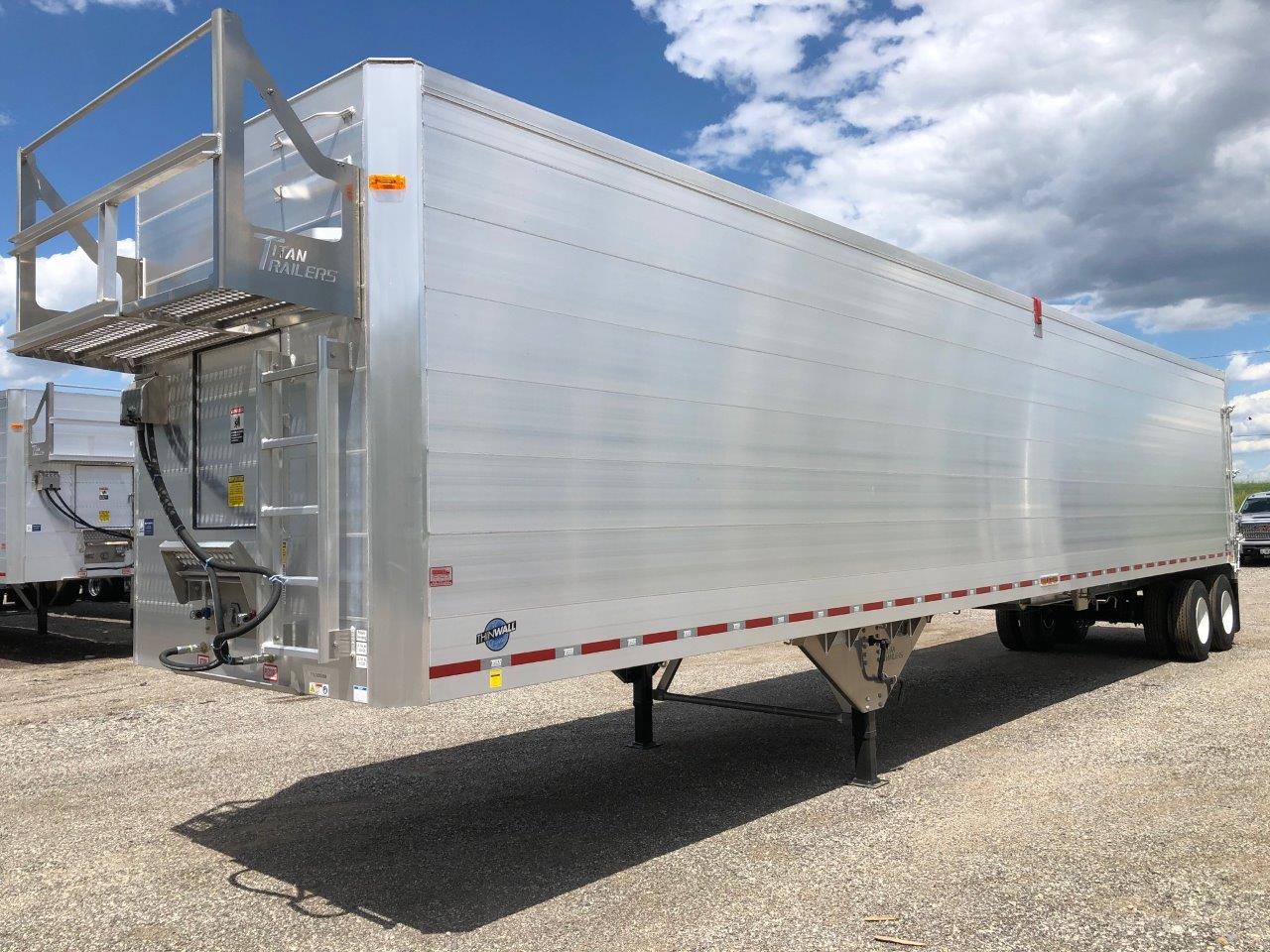

Access        Catwalk                Universal Roadside entry 24” catwalk

J-Ladder Frt        Roadside to catwalk

J-Ladder Rear     Middle of Rear Door Height

Steps Frt out         None

Steps Frt in          None

Steps Rear           None

Additional specifications:

1.    KP To Center of Tandem must be approx. 41’ or Less

2.  a) Invert axles

b) PSI ready axles

3.   a) Add 9’ hoses to front wall

b)Add hinged lid hose hanger to front wall

4.    Tapered door header with one piece gusset attached to top side of tapered header.  Gusset  to suit 10” bolt on tarp header

5.    Add 2.5” hydraulic pressure gauge to frame (flush mount) located beside the on/off handle with identifying label



Estimated weight: 17,800 lbs +/- 3%

Estimated volume: 123 cu yds
