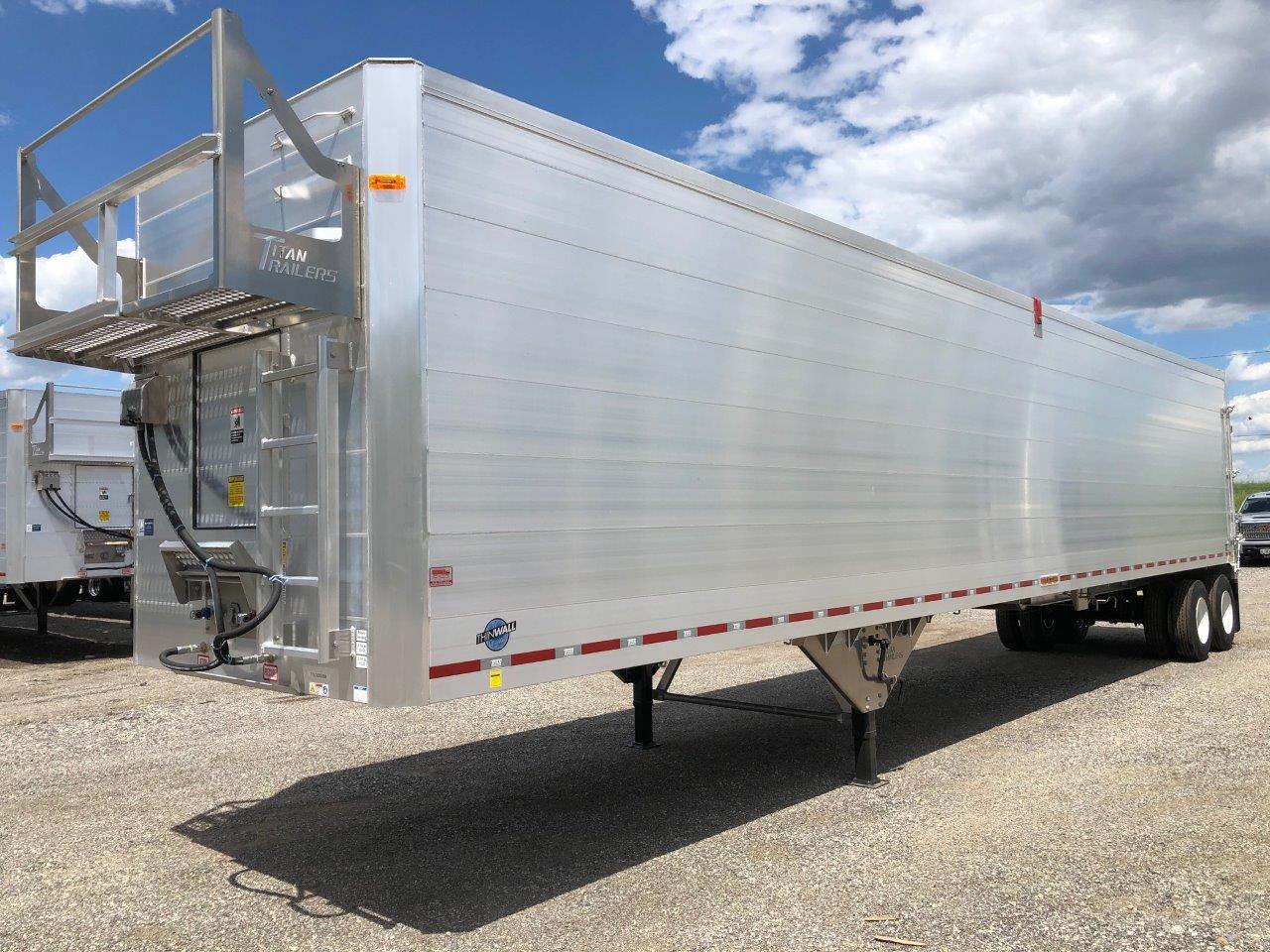

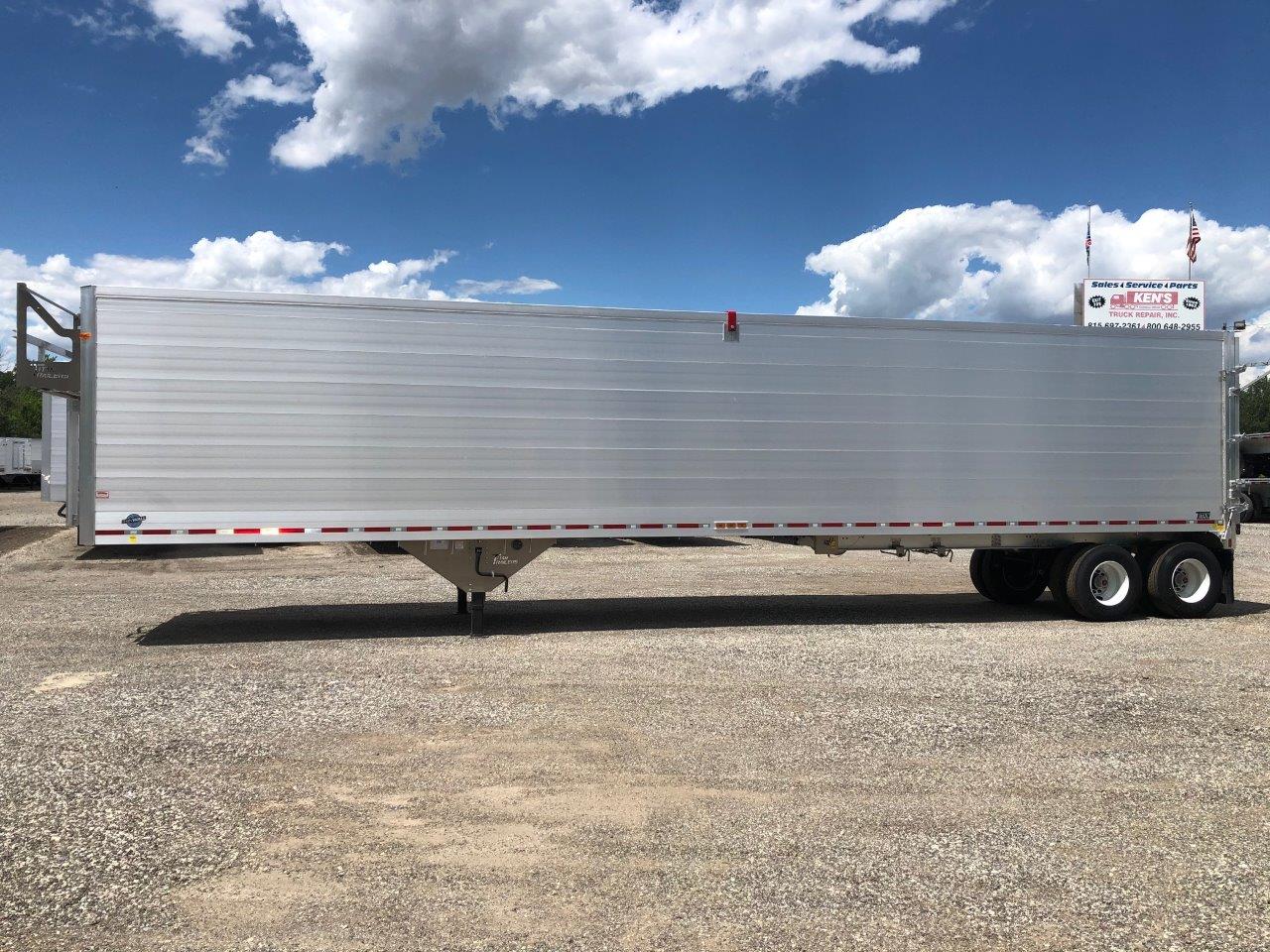

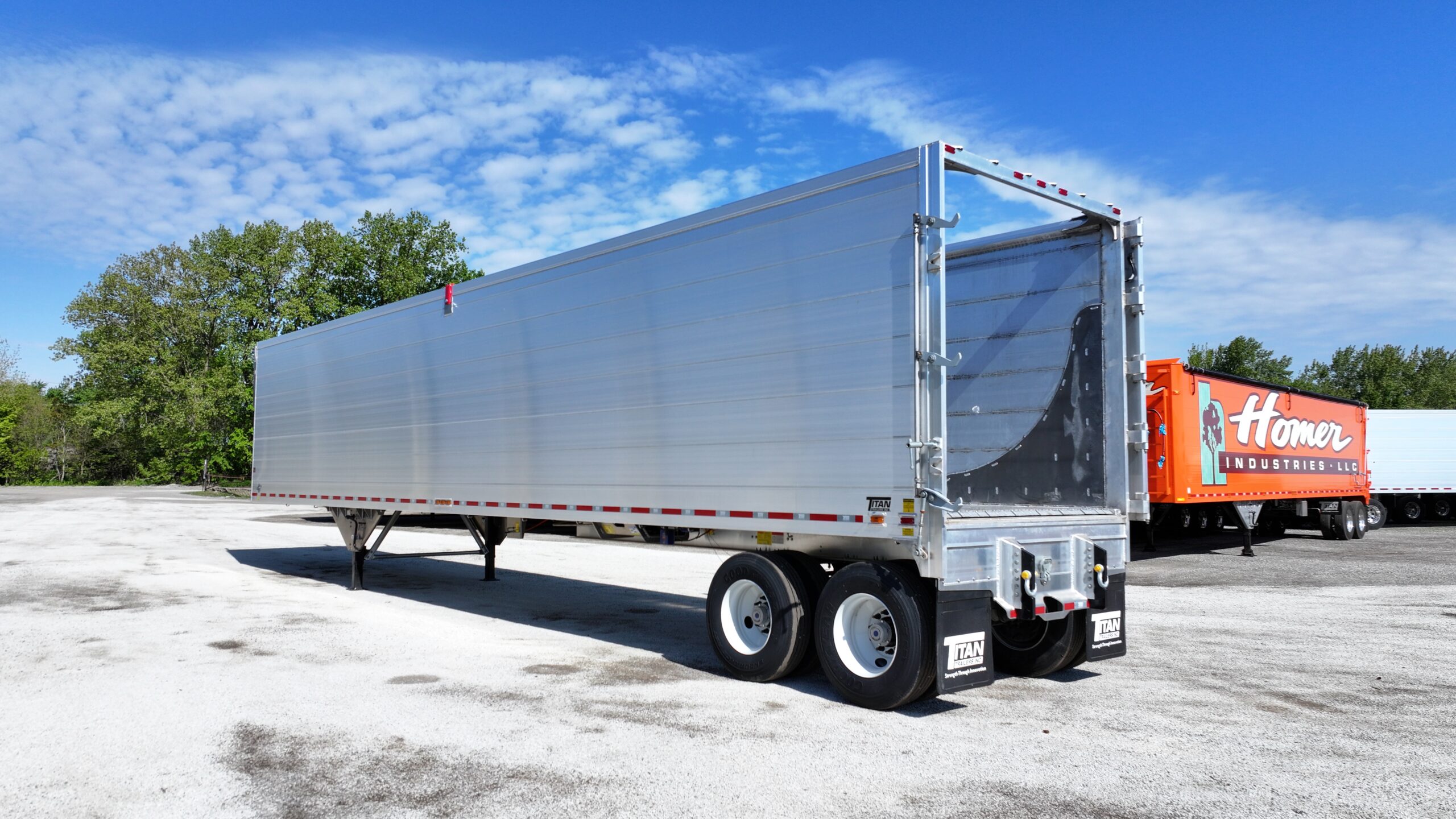

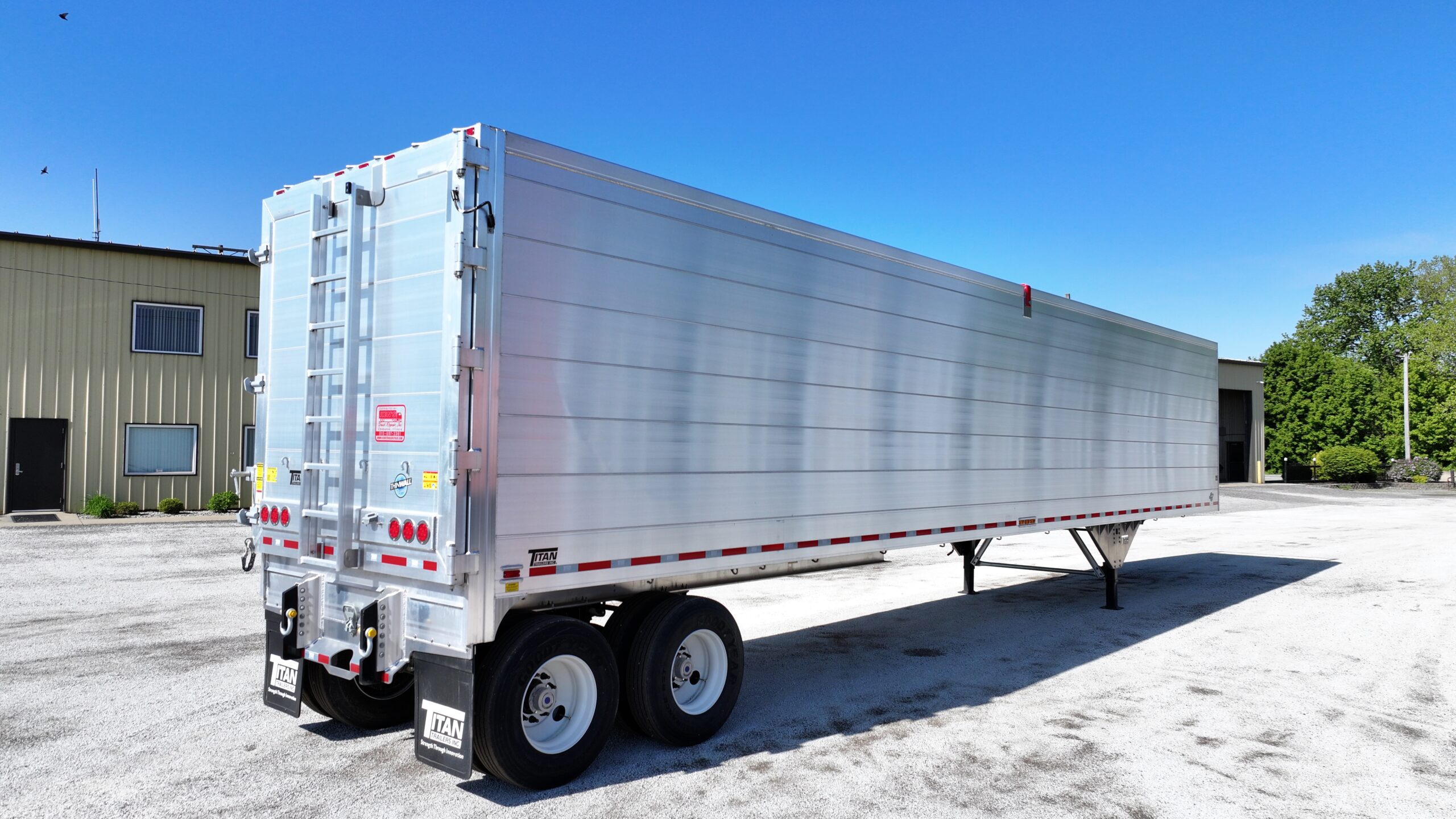

2026 TITAN 48′ 2 AXLE WALKING FLOOR TRAILER     3 UNITS AVAILABLE IN NOVEMBER 2025    CALL FOR PRICING

Customer application                 Garbage Application

Base model                                   48-2-TW-WF – Open Top

Style                                               Straight

Wall configuration

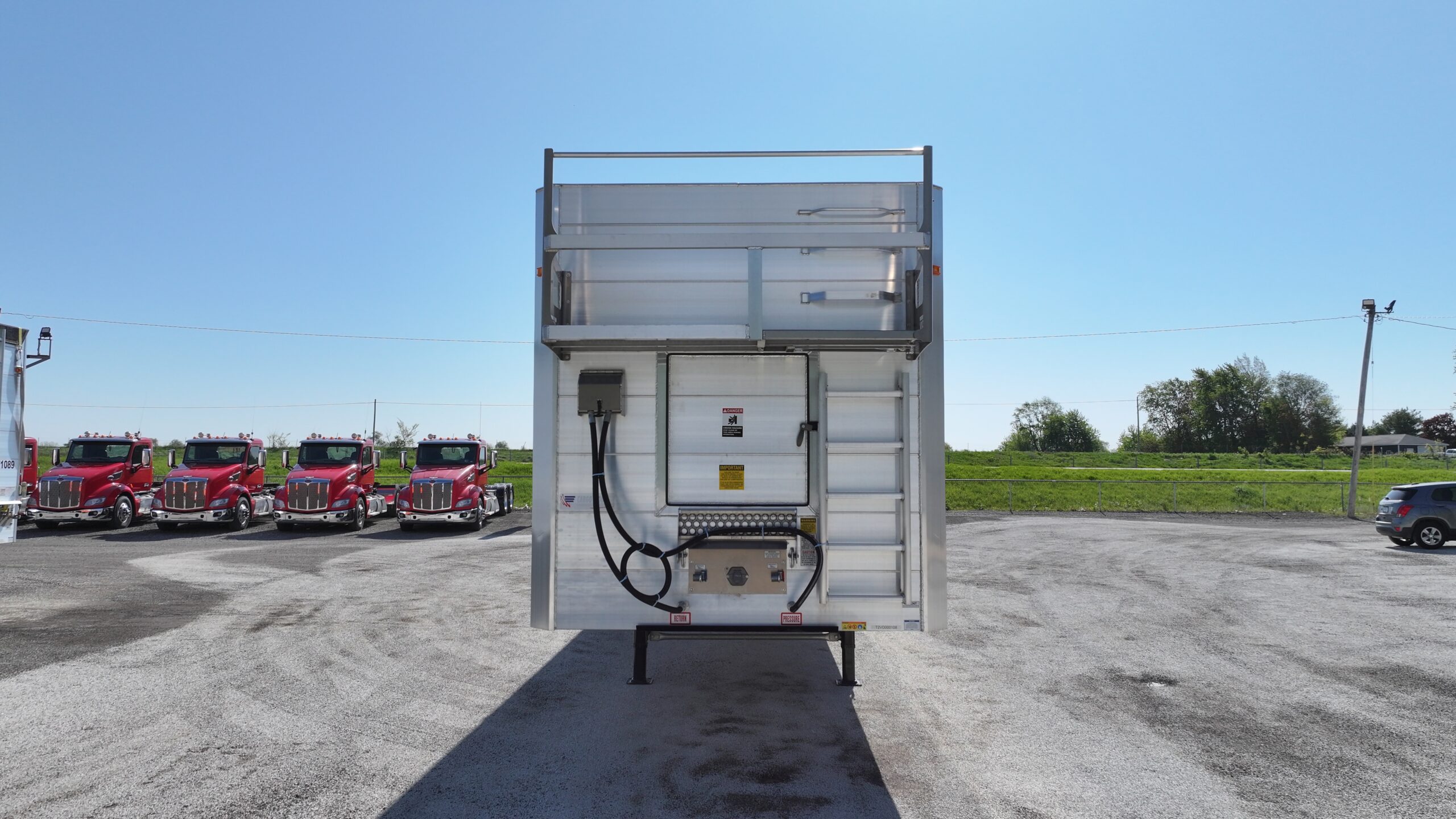

Front                    To Suit Garbage Application

Sides                    7-14” + 1-6” to Suit Garbage Application

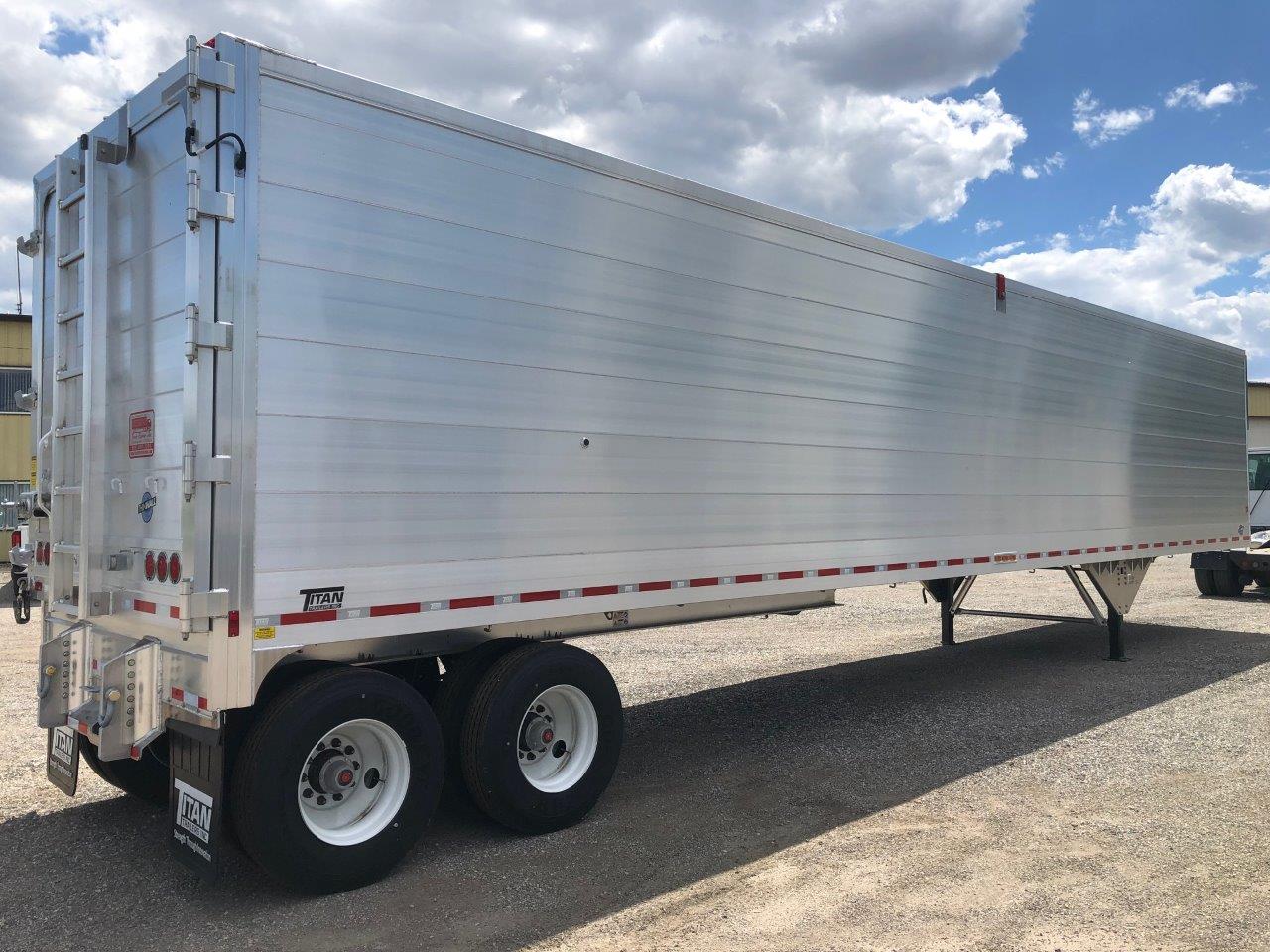

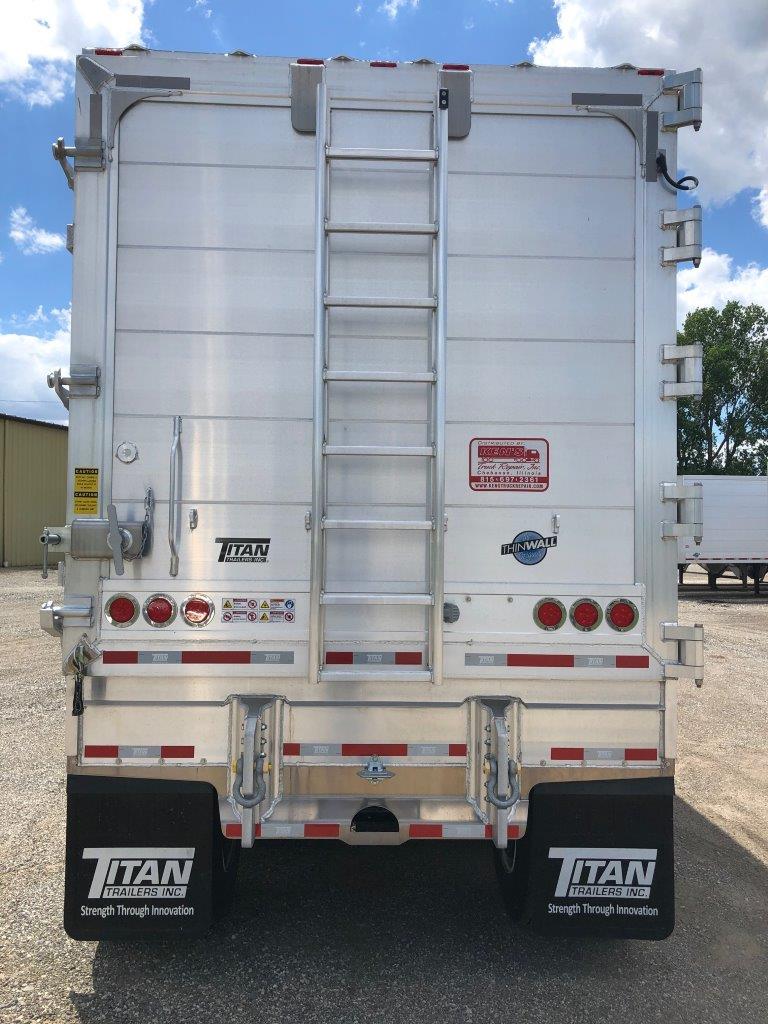

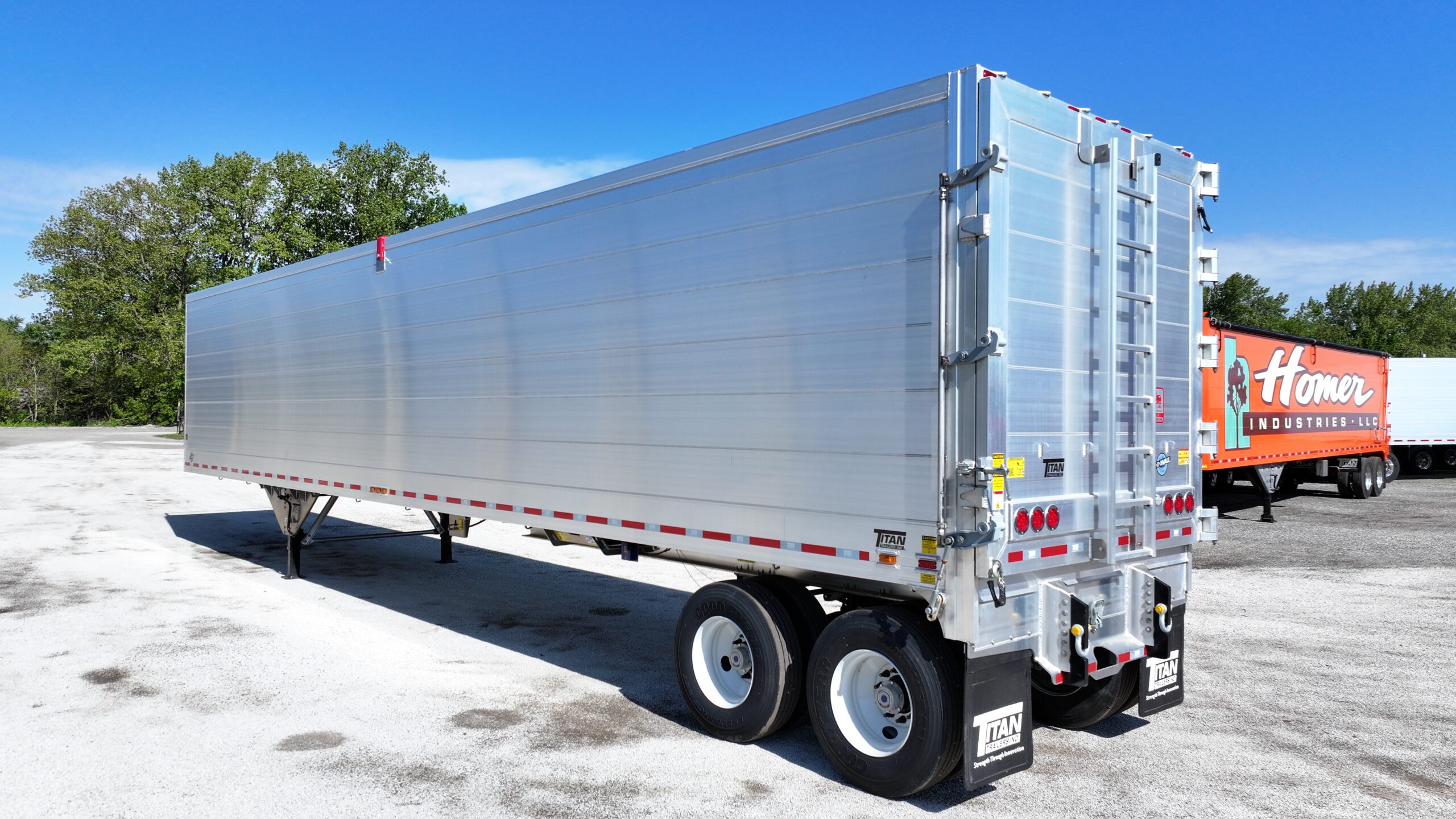

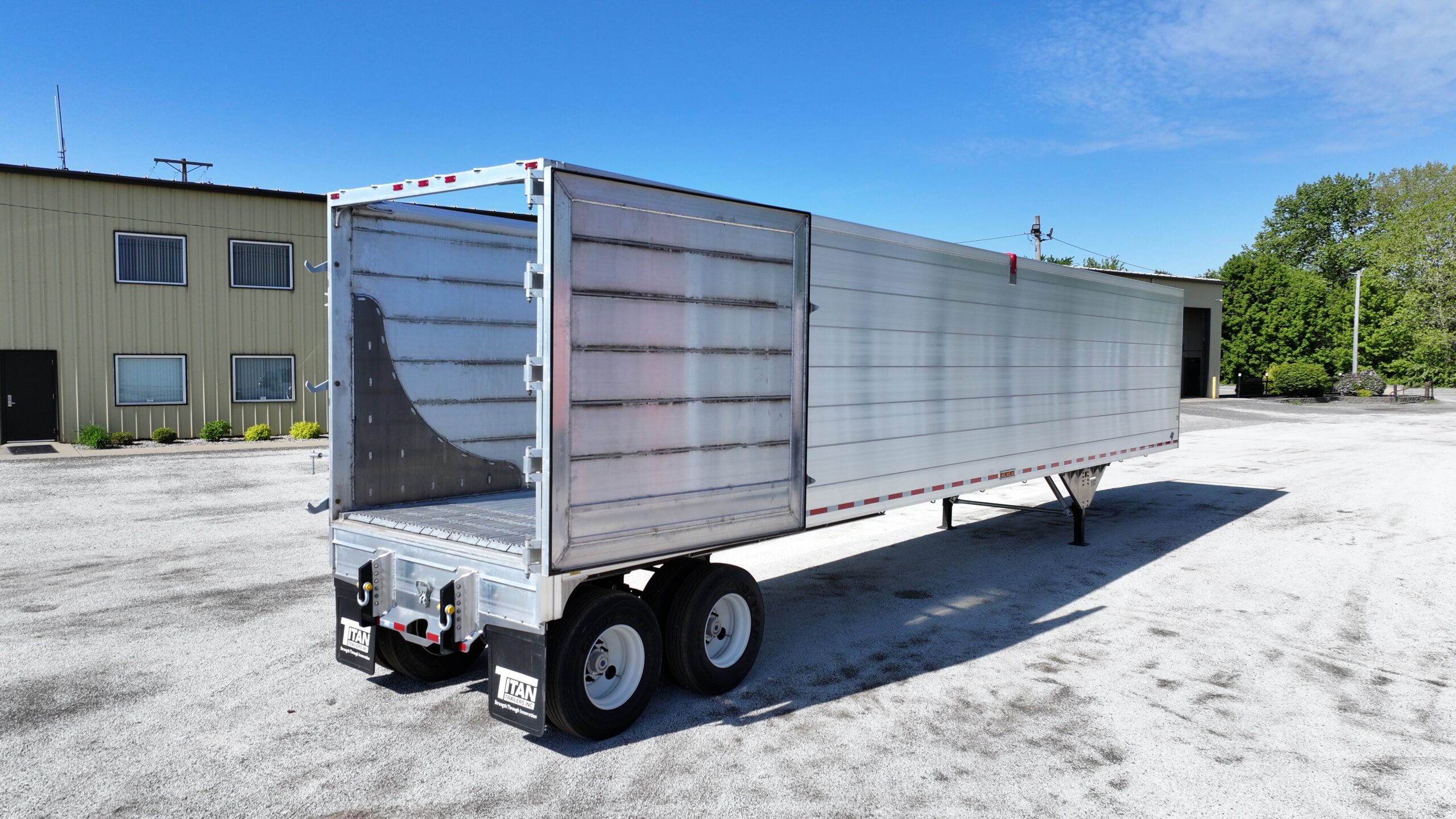

Rear Door           Side Swing, Solid, Lights in Door, Air Release w/ reinforced bottom lock finger – See Note # 4

Overall length                            48ft

Overall width                             102” Nominal

Overall height                             13’ 0 7/8”  (156.875”)  Approx

King pin location                        36” WELD IN – See Note #1

Upper coupler                             5/16” THK Steel– Set @ 48” high

Number of Axles   Primary     Two (2)

Axles                                               5” Round .580 Wall-Straight Spindle – See Note #2

Axle track                                       77.5”

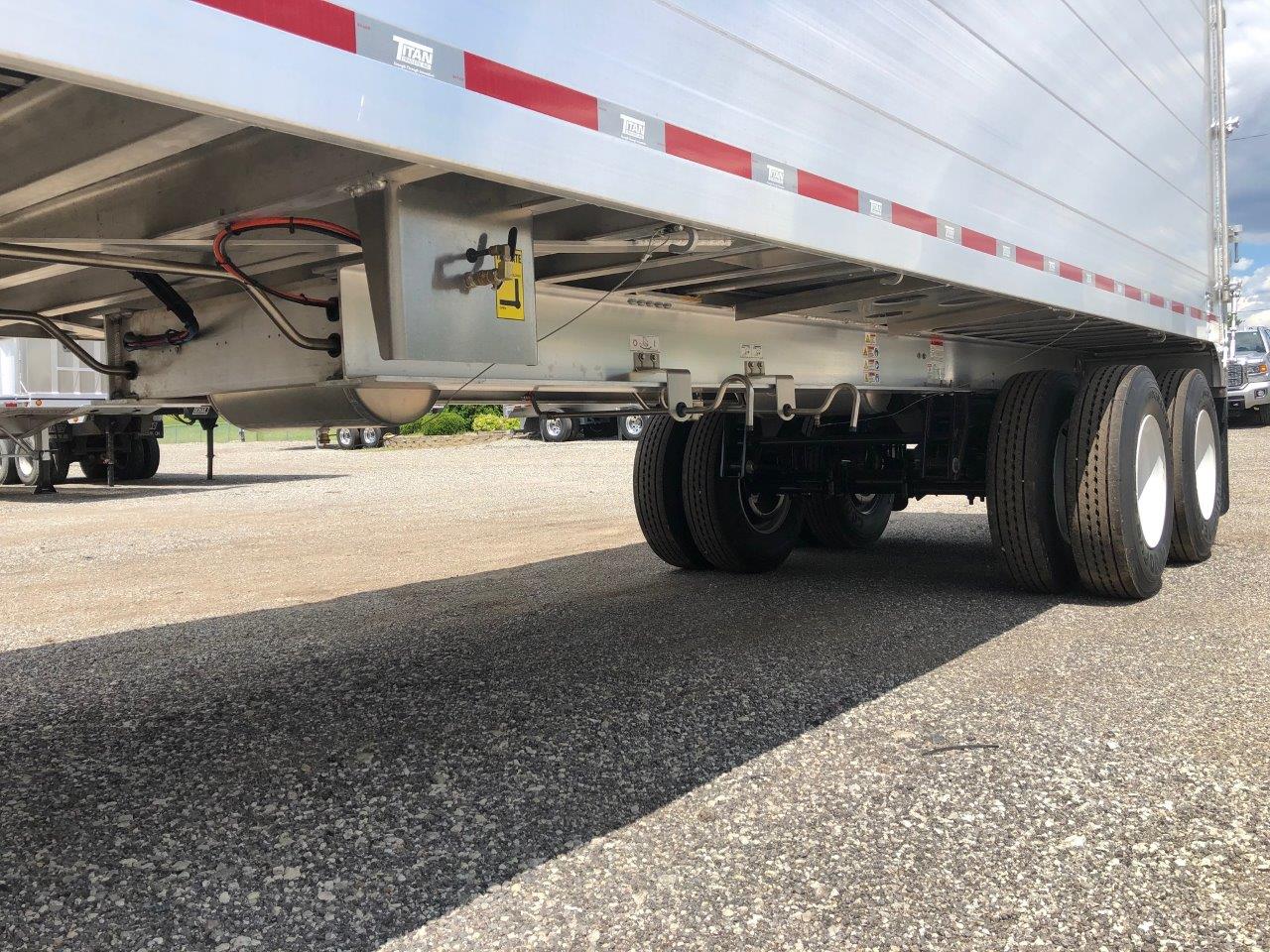

Suspension                                    Titan/Eveley with inner & upper wear pads with 3 leaf springs

Location of spreads                     See axle layout

Hub/drum assembly                   10 Stud Dura-light – Hub/Centrifuse Drum

Disc wheel size                             8.25 x 22.5

Rims                                               STEEL- Std. Duty – Pre-painted White

Tires              Brand                      Goodyear

Size                         11R22.5 – 41.4 dia

Tread                      Endurance RST

Ply                           16

Quantity                 8

Axle layout                                    FRONT -Prim -50 – Prim -28 – REAR

Oil seals                                         To suit axles

Lubricants                                     Oil-Std 80W-90

Brakes         iABS                          2S/1M Meritor Wabco

Slack adj.                  DRUM BRAKES: Meritor Auto

Cam Enclos              DRUM BRAKES: All Axles & C/W Dust Shields

Lift kits                                          None

Lift controls                                 None

Frame width                                48”

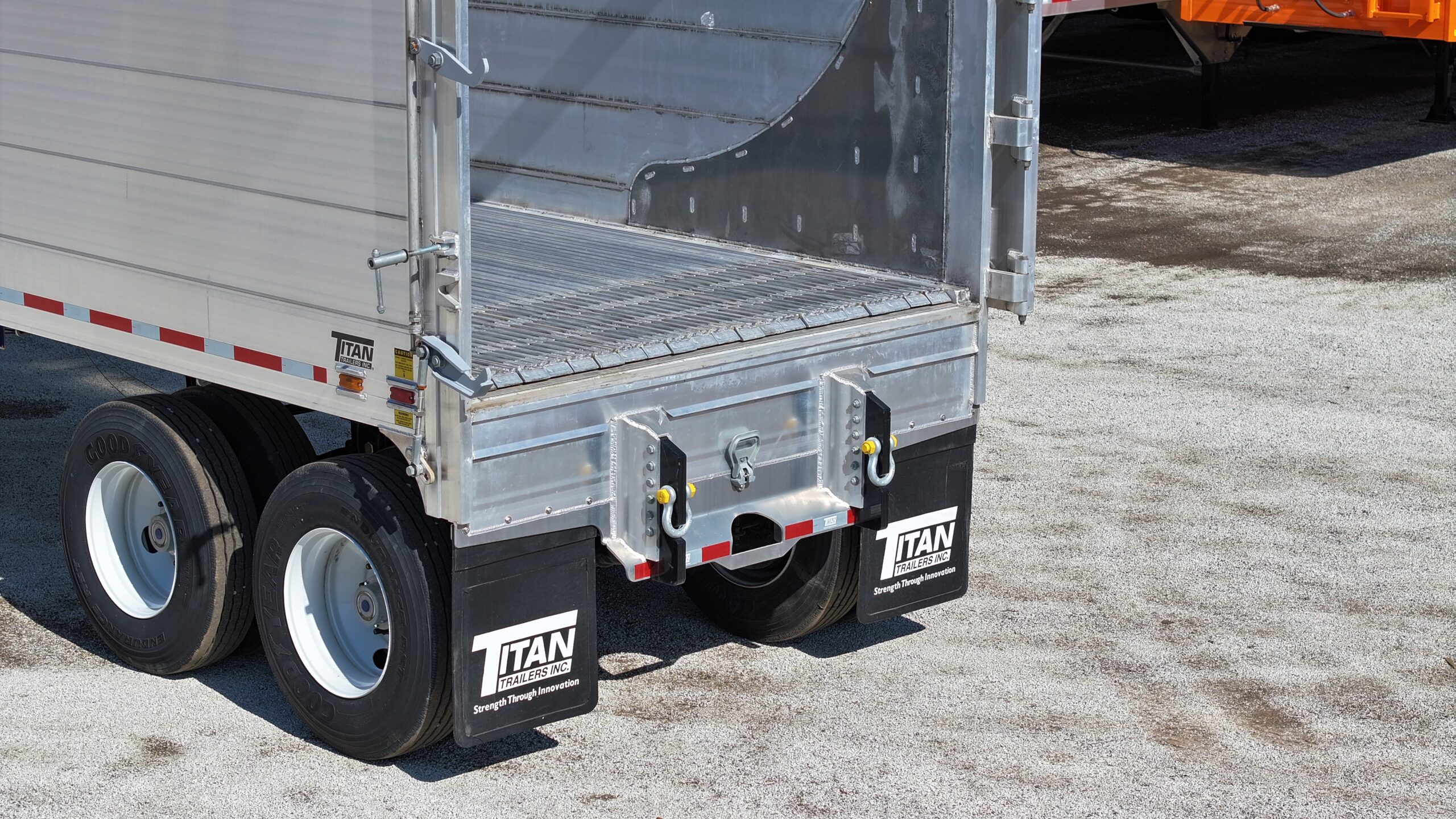

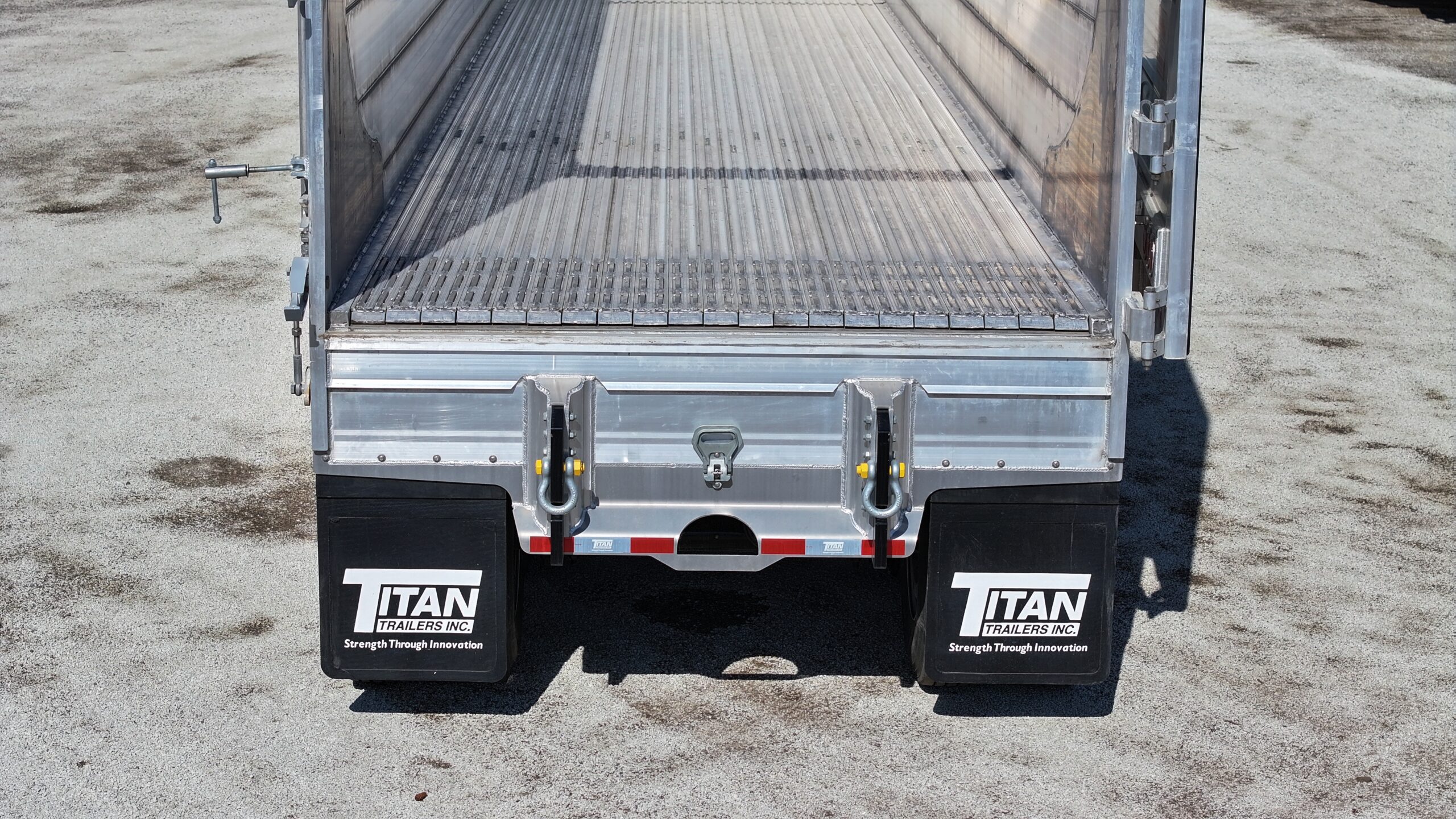

Rear bumper                             Aluminum, offset, push

Option #1            Tow shackles

Option #2           Steel vertical blocks bolted to bumper protruding 3 ½” sloped top

Tire carrier                                 None

Landing gear                             Jost Standard A400 Series: A401-G3-Low pro cushion foot

Top rail                                       Titan Tapered, V1

Top cross tube                           Qty 1 – Spring Steel (two piece style)

Floor crossmember                  12” centers

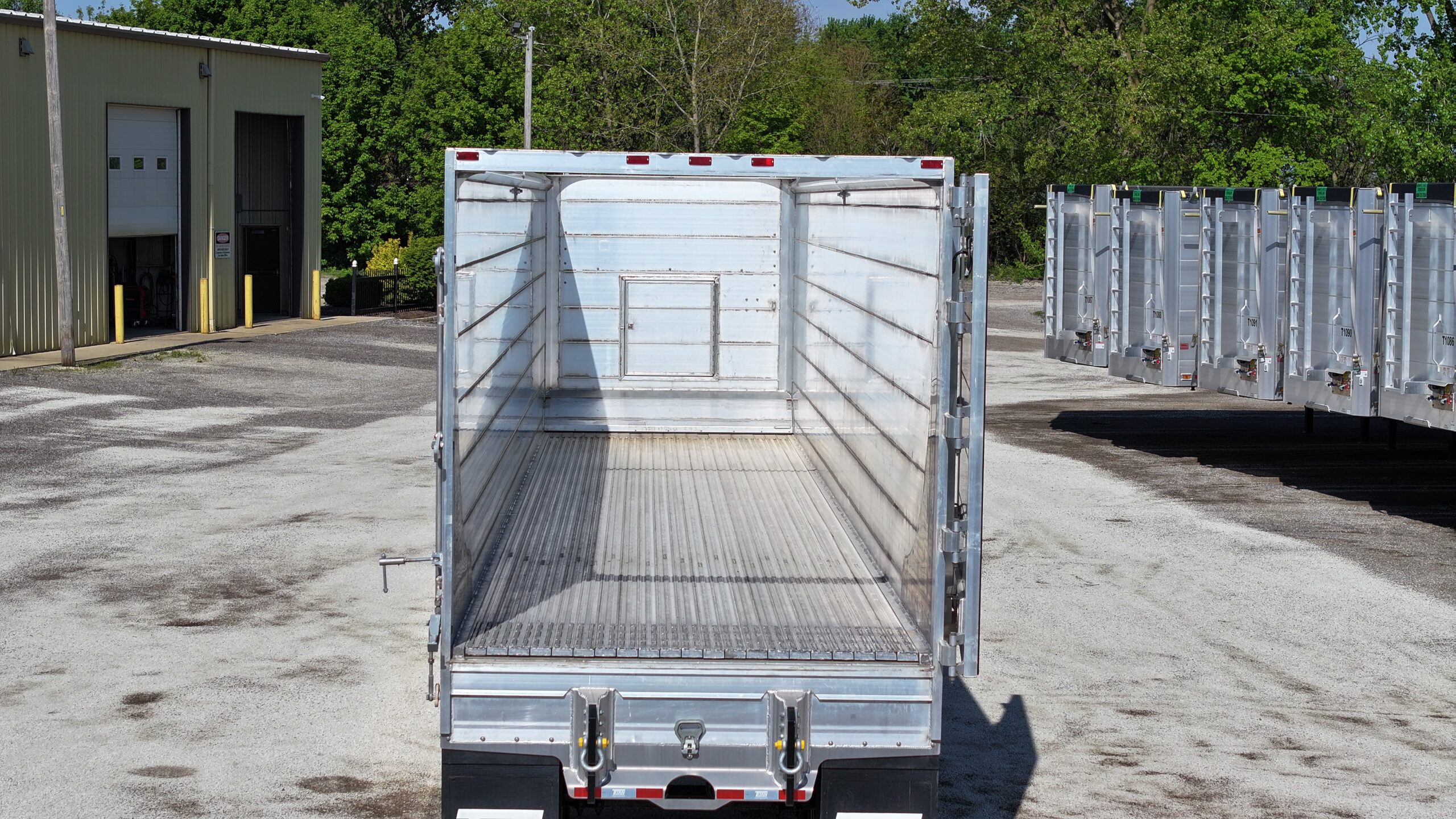

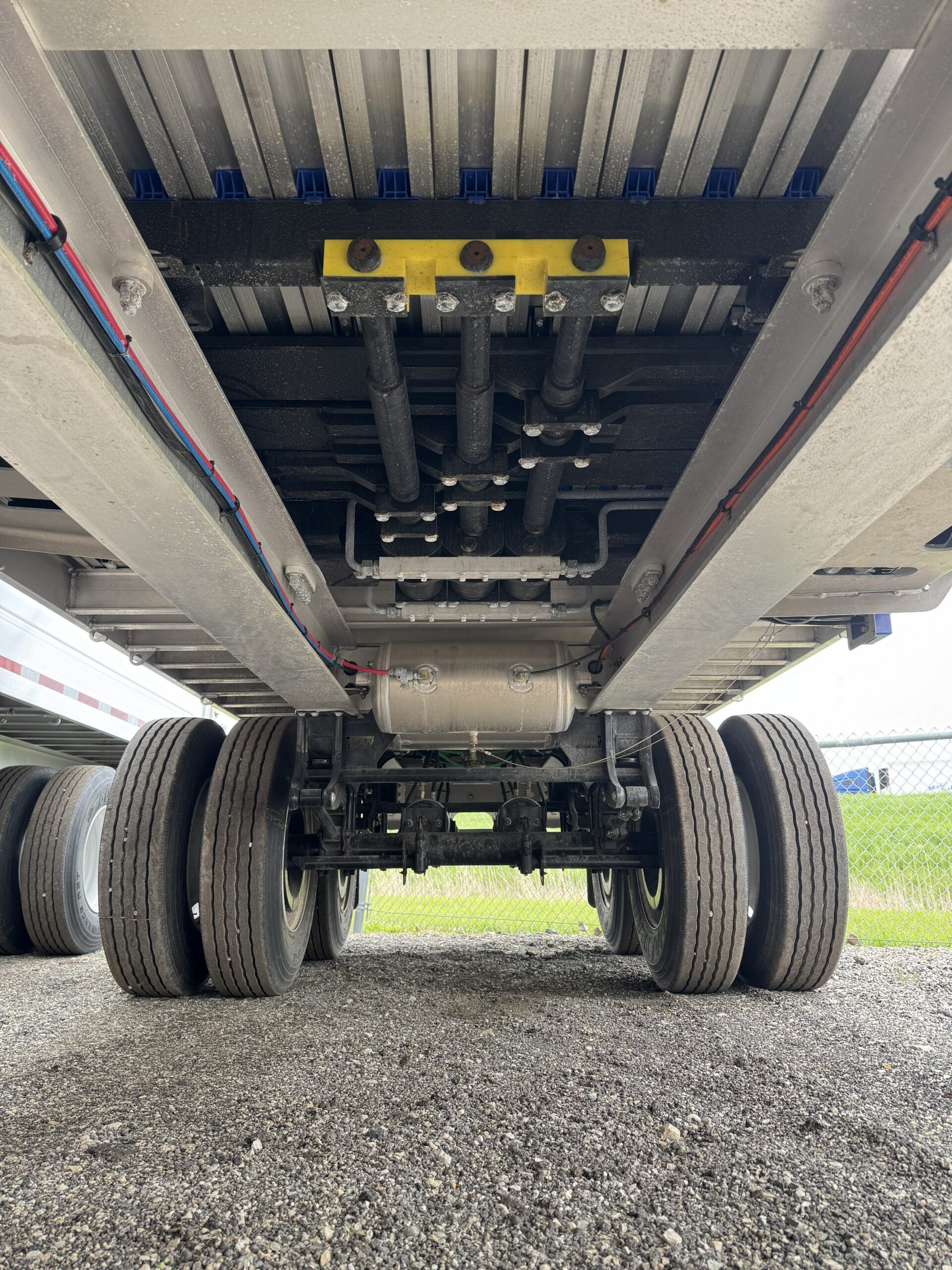

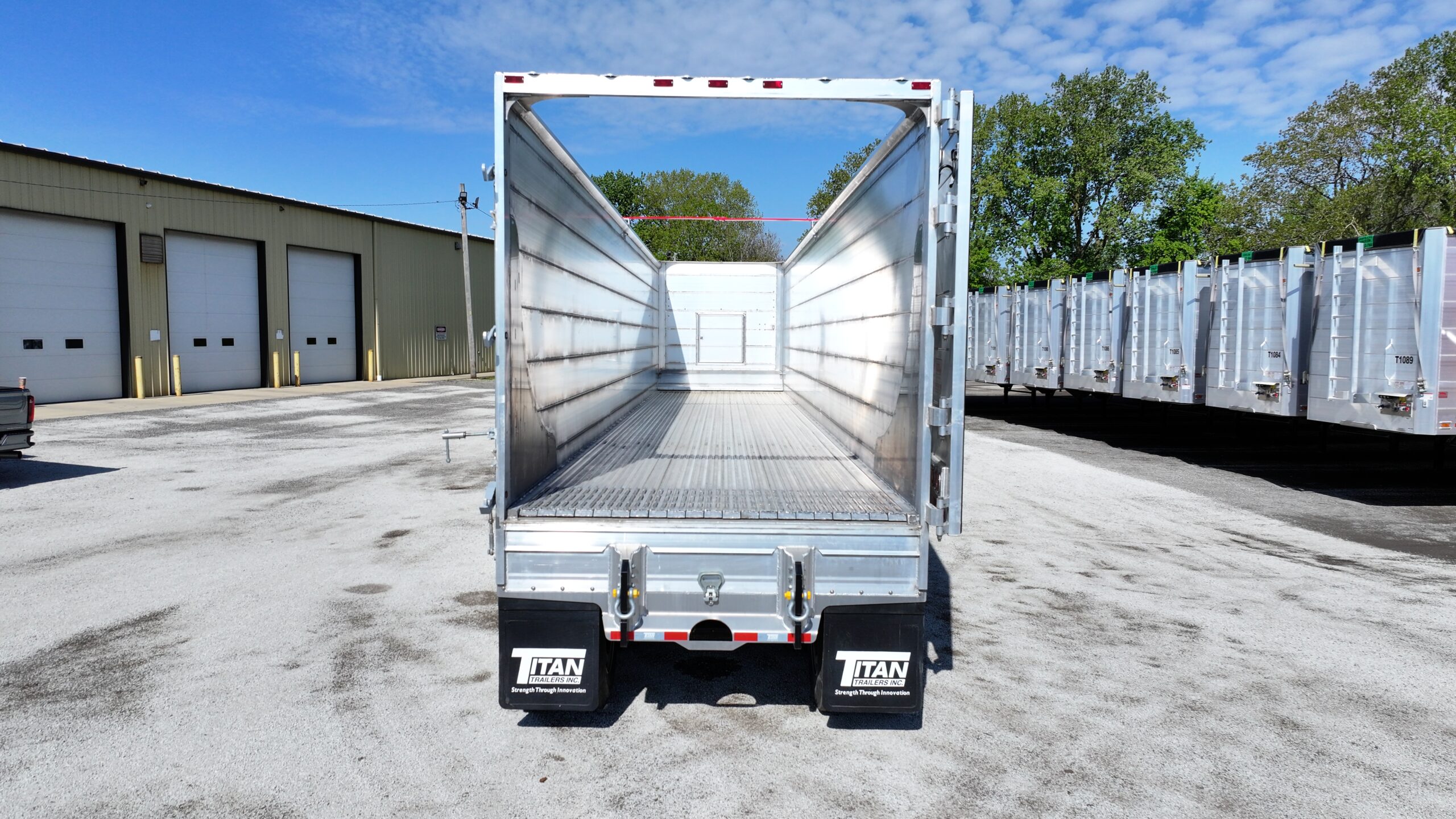

Walking floor kit                      Cargo CF600 HDC

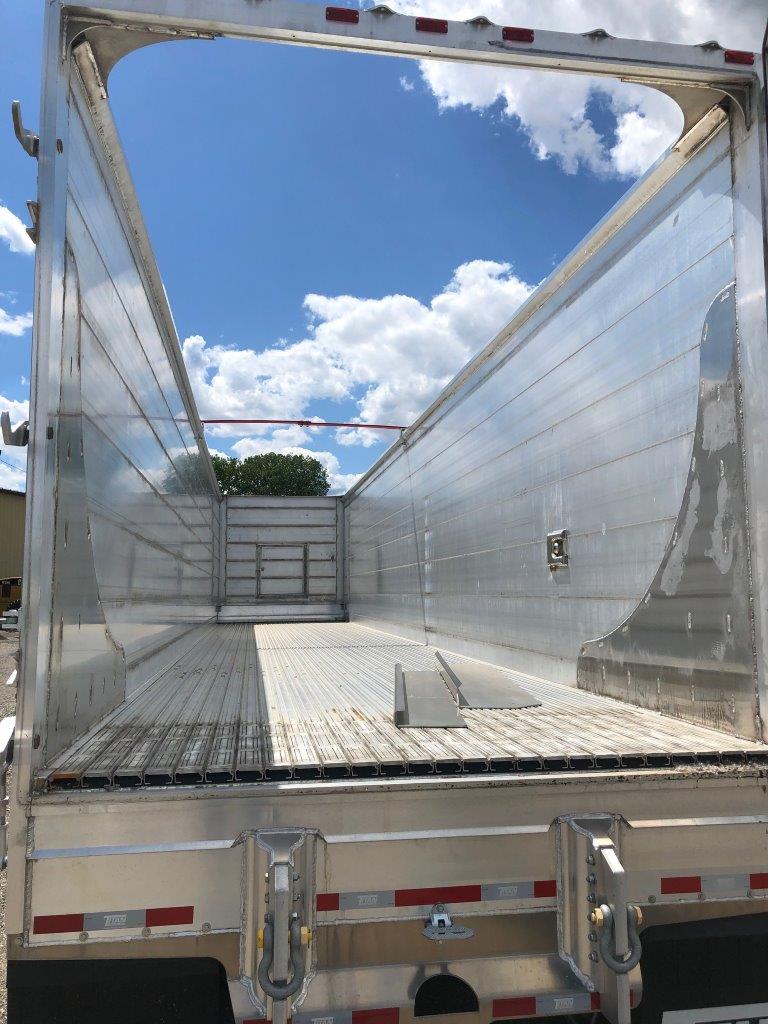

Slat model & width                  Cargo: 21 Slat: Triple Ridge (Titan Extruded Slats), low friction seal,  Aluminum endcaps

Slat wear strips                         36” long, Flush, Filler bar wear strips

Continuous bearing                 Twister Bearings (no continuous green bearings)

Side wall wear plates               Boomerang style

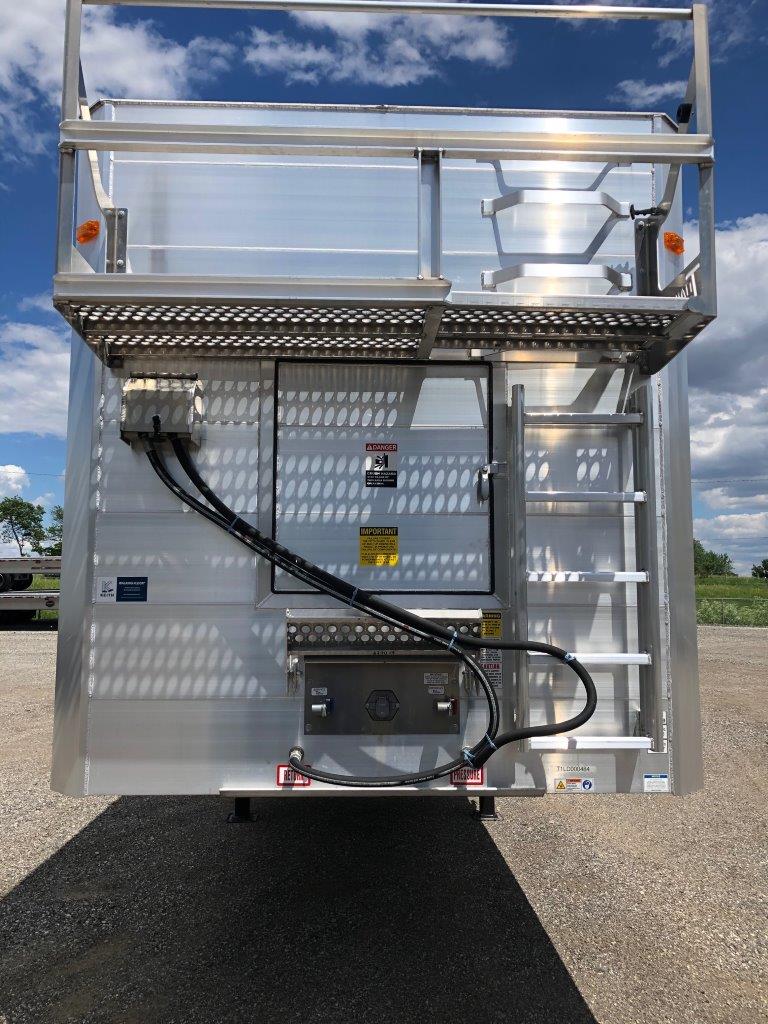

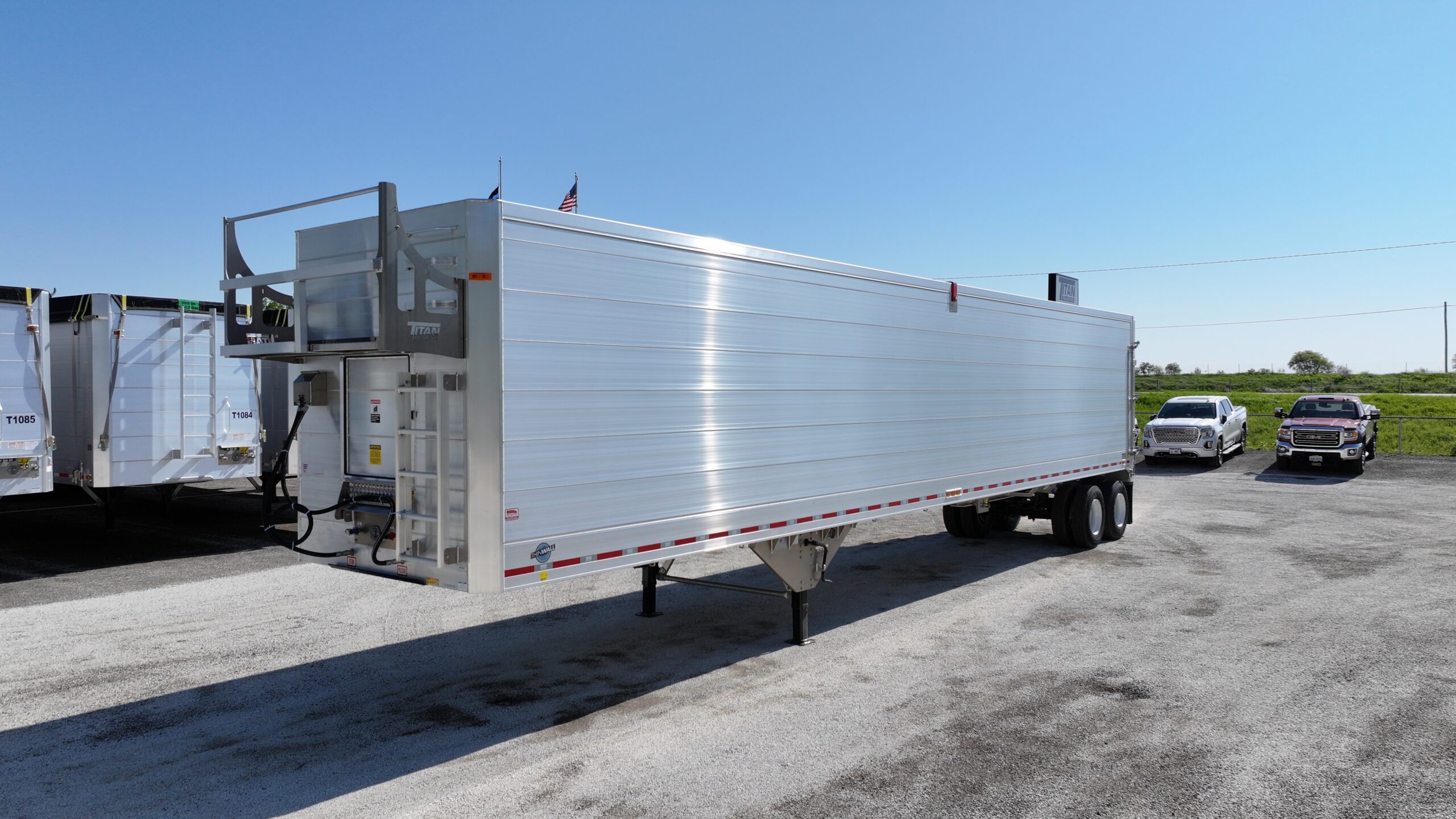

Front access door                    STD (35”W x 37.5”H) Curbside Hinge W/Flip Step, located center

Tarp style                                  None

Tarp header                              None

Tarp basket/hoops                 None

Tarp hooks                               Side Hooks approx. 48” o/c & (4)  Hooks on Rear Door

Axle fender                              None

Hyd fitting    Pressure            1” quick coupler – Male – See Note #3

Return              1” quick coupler – Female – See Note #3

Mud flaps      Style                 Titan black rubber

Location          (2) at Rear

Mud flap – Landing gear      None

Paint            Body – color       Natural aluminum

Run – gear          Titan black

Hub / drum        Same as running gear

Rims or Disc       Steel Pre-painted White

Light package                          Front: (1) mkr per corner mitre.      Sides: (2) mkrs (includes midturn)        Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

Access         Catwalk                Universal Roadside entry 24” catwalk

J-Ladder Frt       Roadside to catwalk

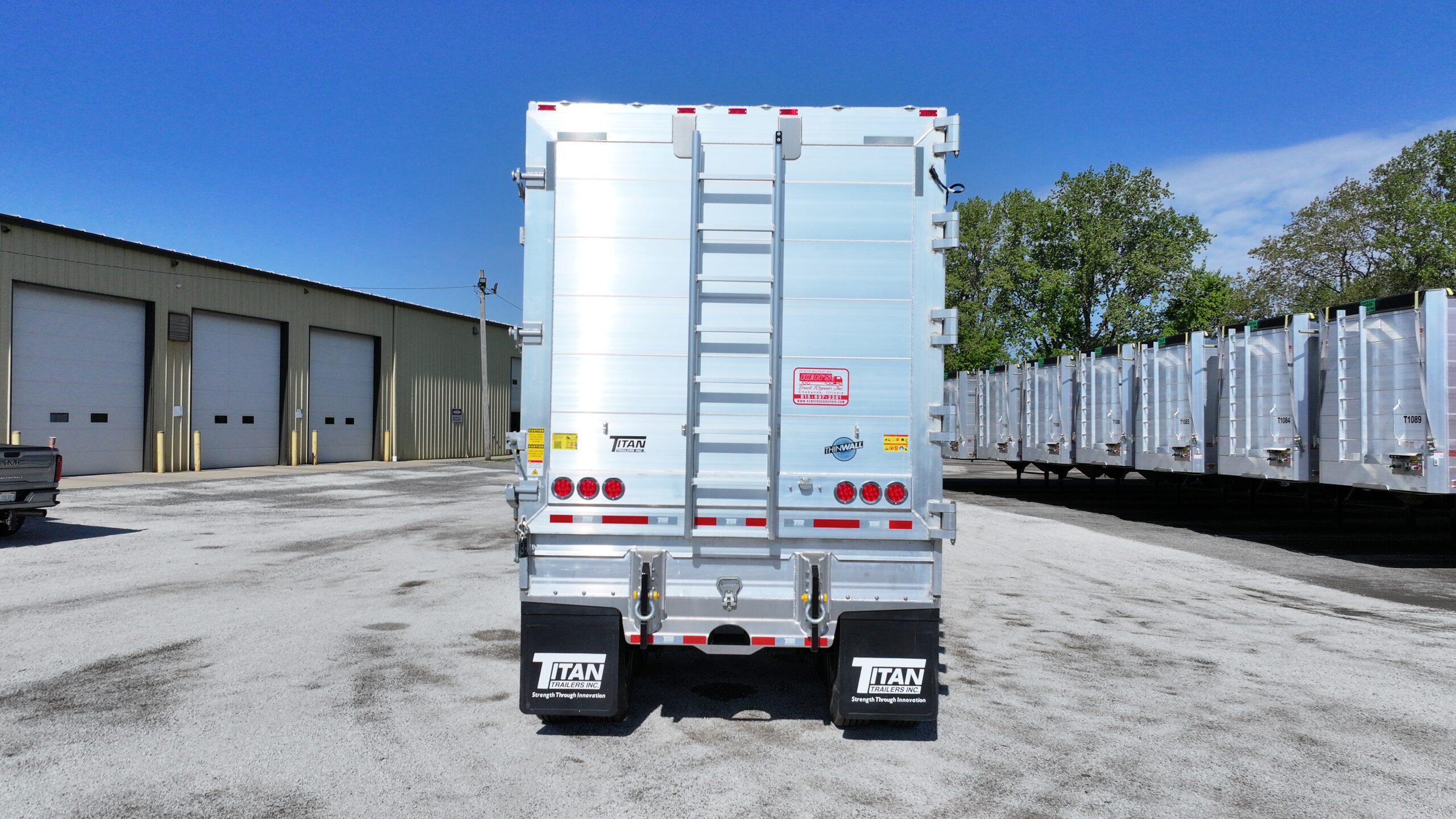

J-Ladder Rear    Middle of Rear Door Full Height

Steps Frt out        None

Steps Frt in          None

Steps Rear           None

Additional specifications:

1.   KP To Center of Tandem must be approx. 41’ or Less

2.  a) Invert axles

b) PSI ready axles

3.   a) Add 9’ hoses to front wall

b)Add hinged lid hose hanger to front wall

4.   Tapered door header with one piece gusset attached to top side of tapered header.  Gusset to suit 10” bolt on tarp header

Estimated weight: 18,500 lbs +/- 3%

Estimated volume: 123 cu yds
