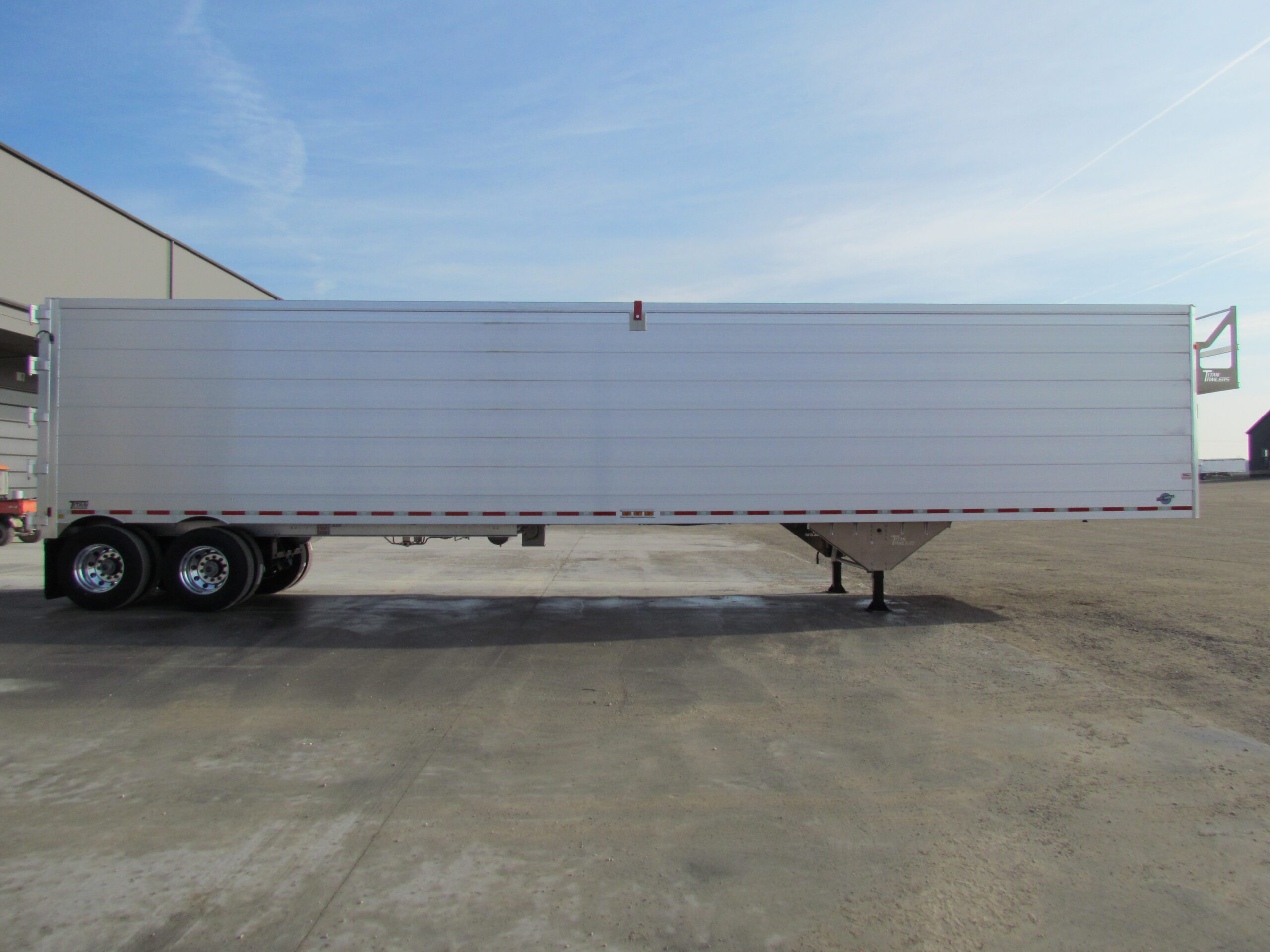

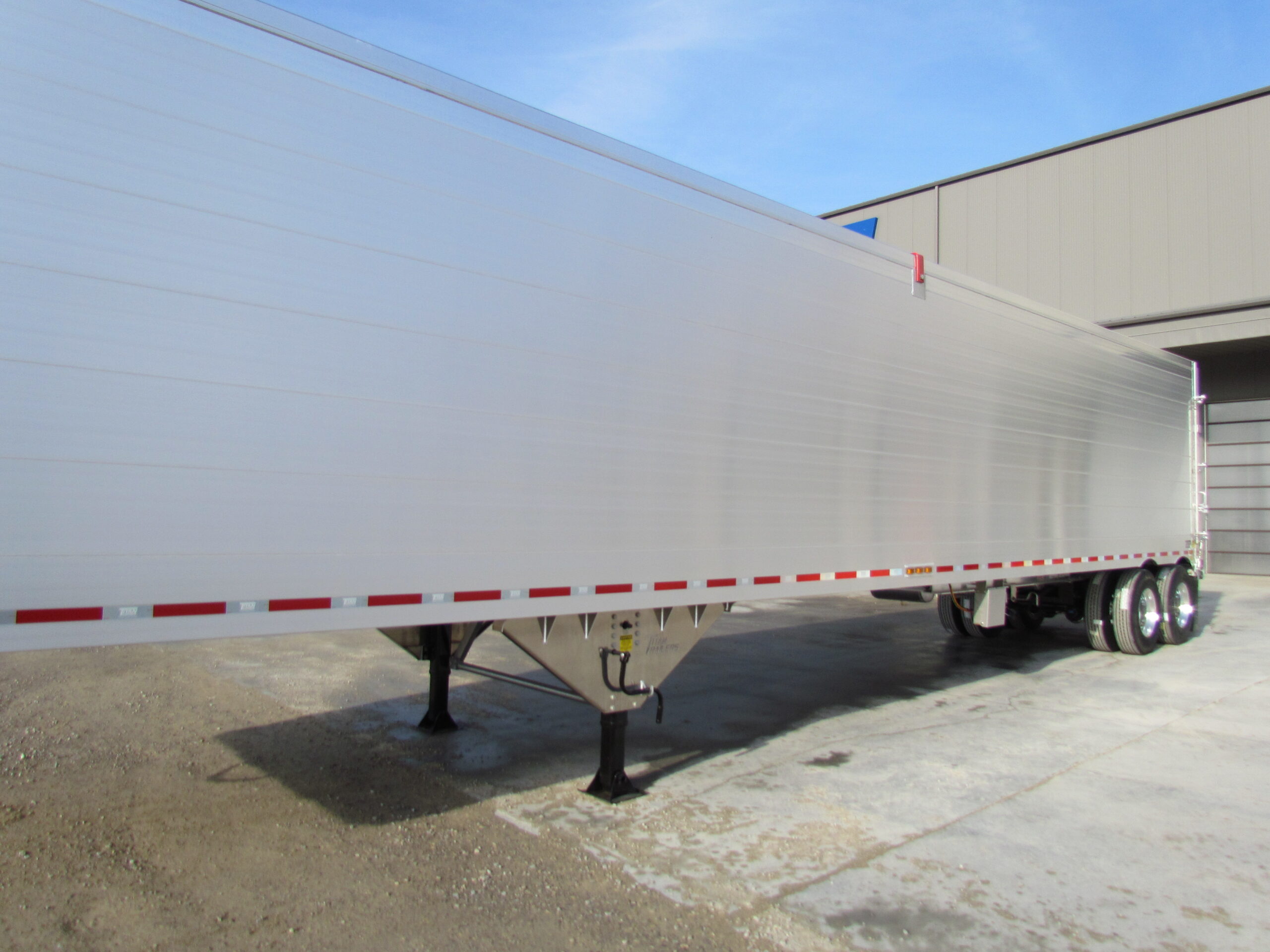

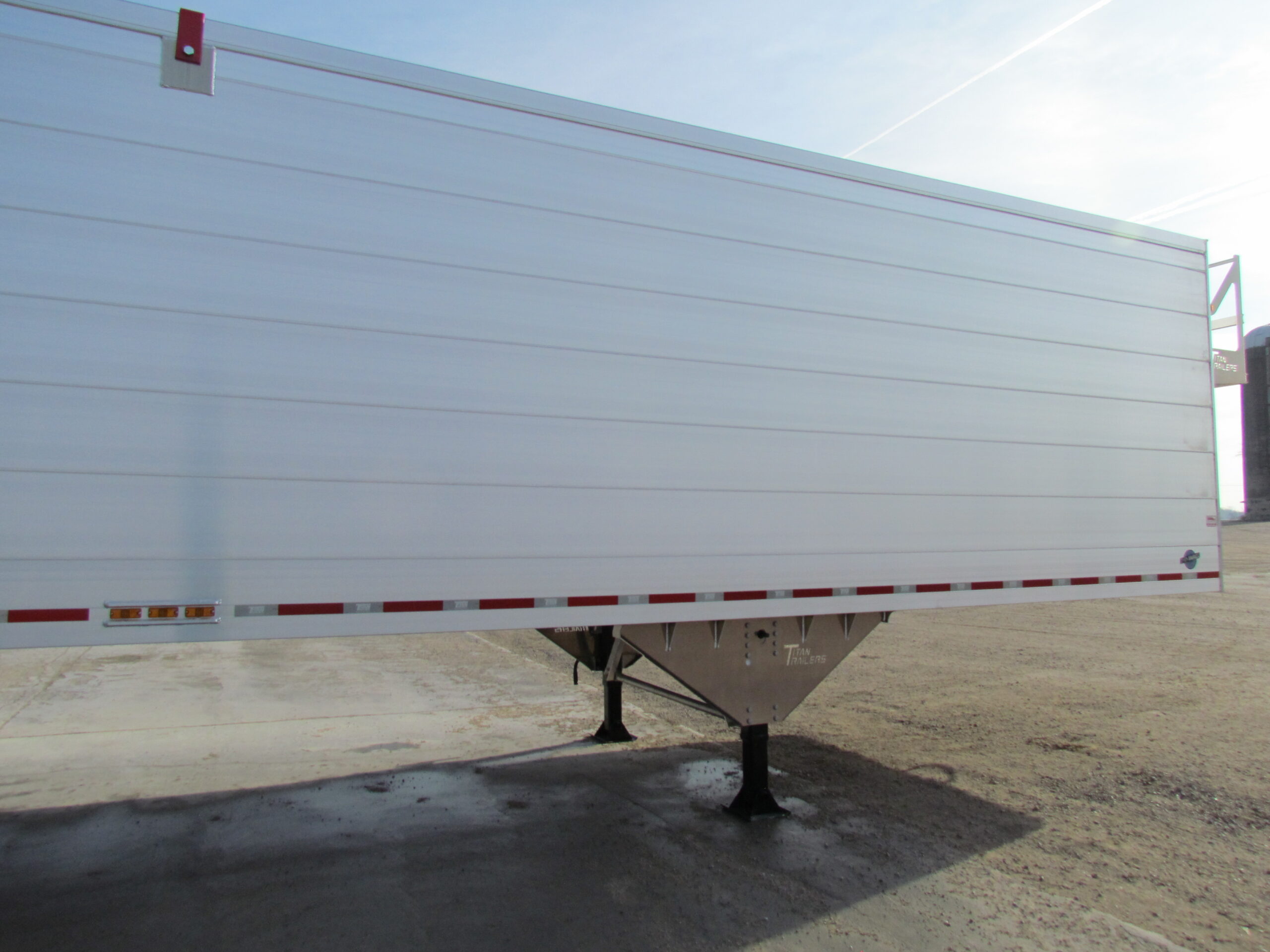

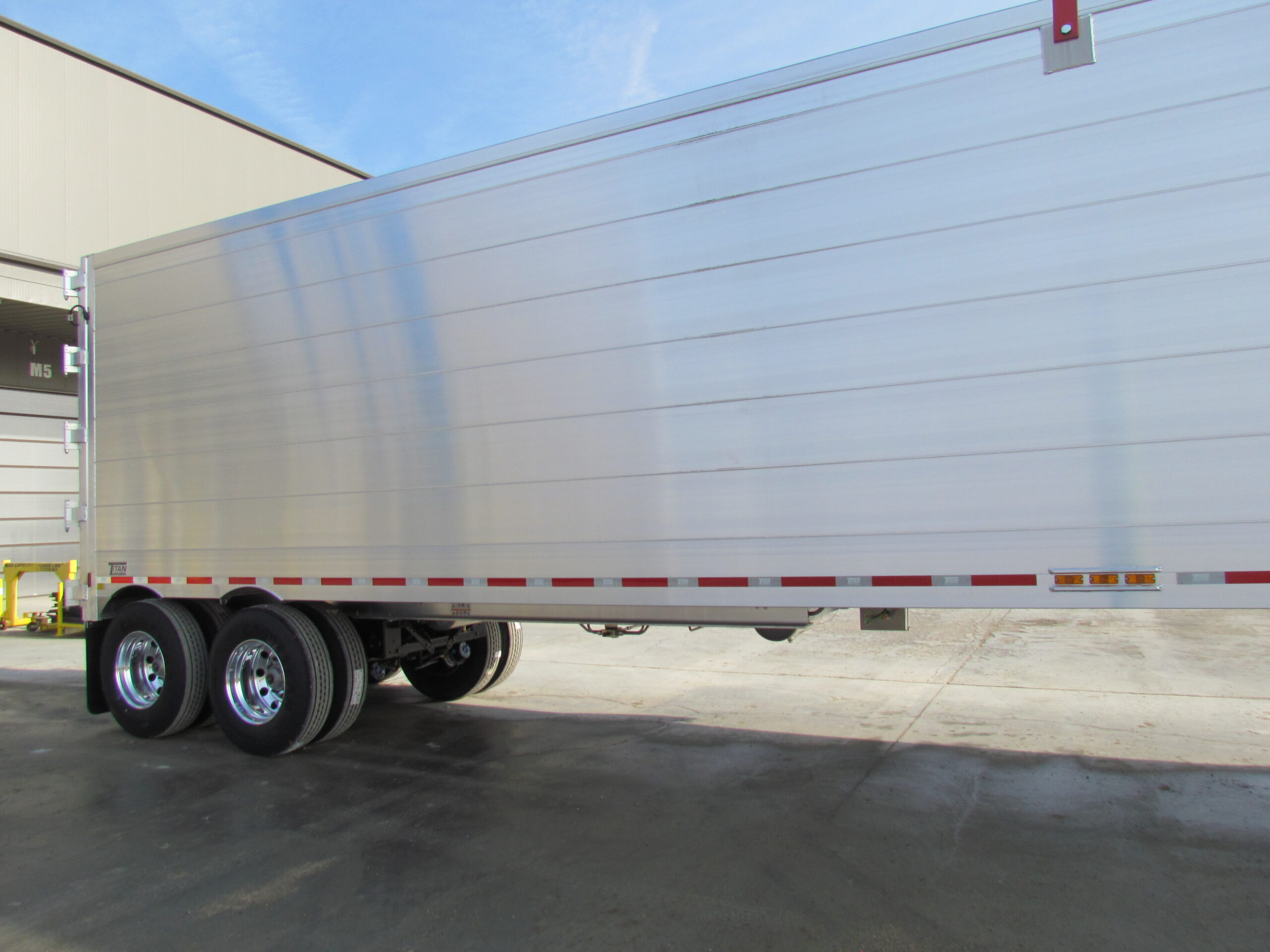

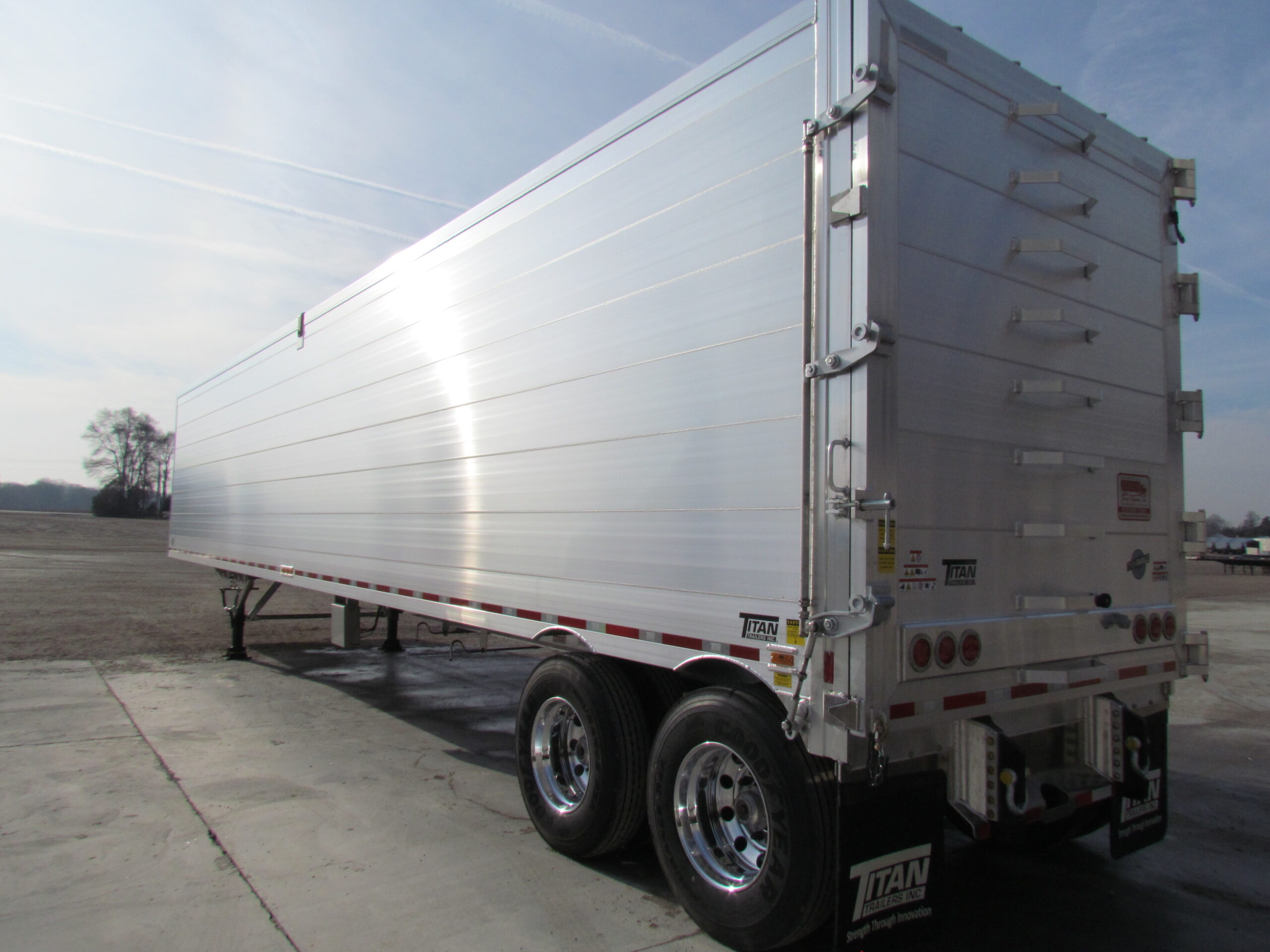

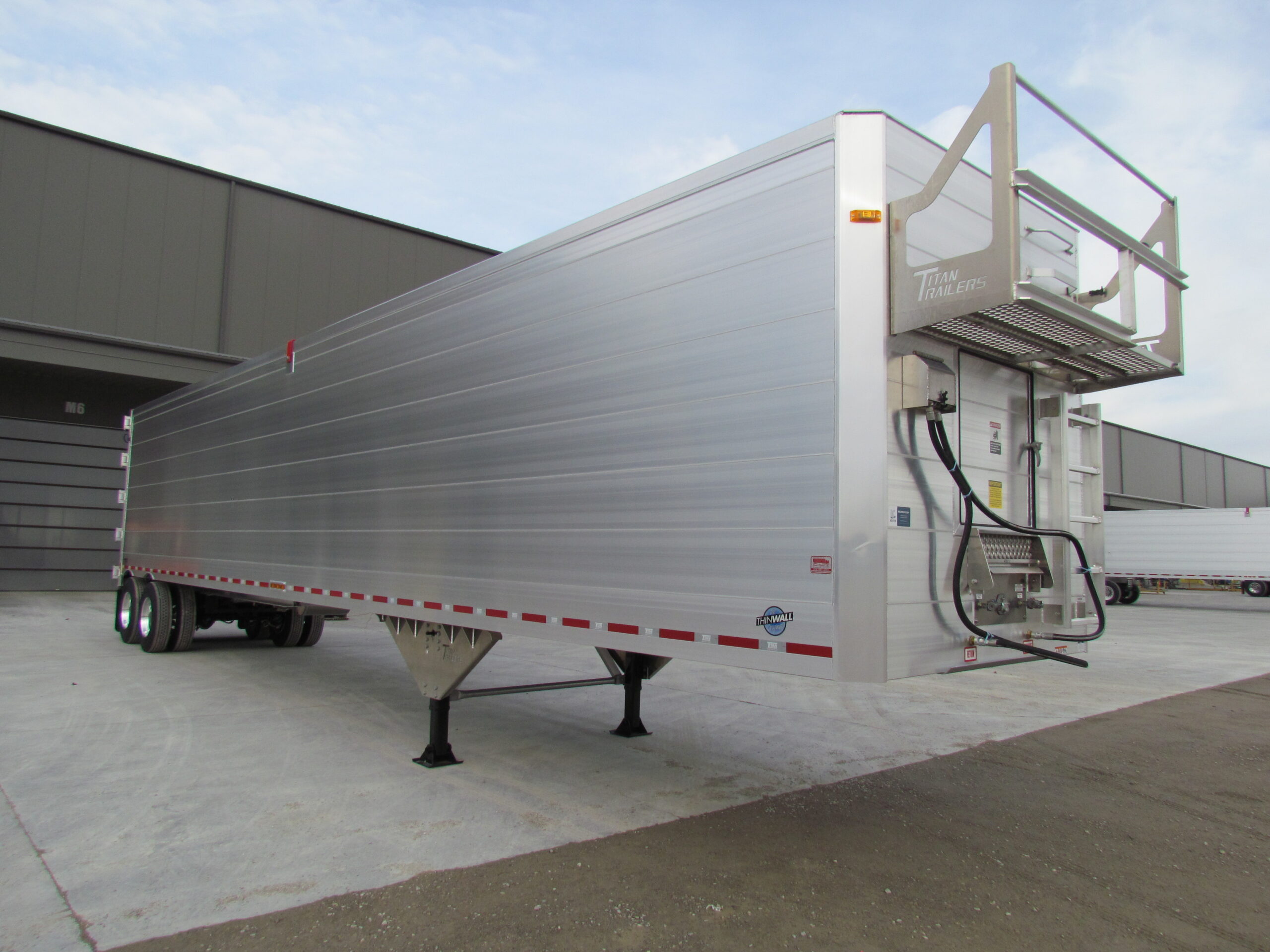

2026 TITAN 48′ 2 AXLE V-FLOOR 9 SLAT TRAILER         CALL FOR PRICING

Customer Application                         Garbage – Flat top aluminum with steel tips

Base Model                                           48-2-TW-VF OT

Body Style                                            Straight (top panel cut to wedge)

Wall configuration      Front             To suit garbage application upgraded to EHD panels wherever possible

Sides               7-14” + 1-12” panels to suit garbage application upgraded to EHD panels wherever possible, top panel cut to wedge

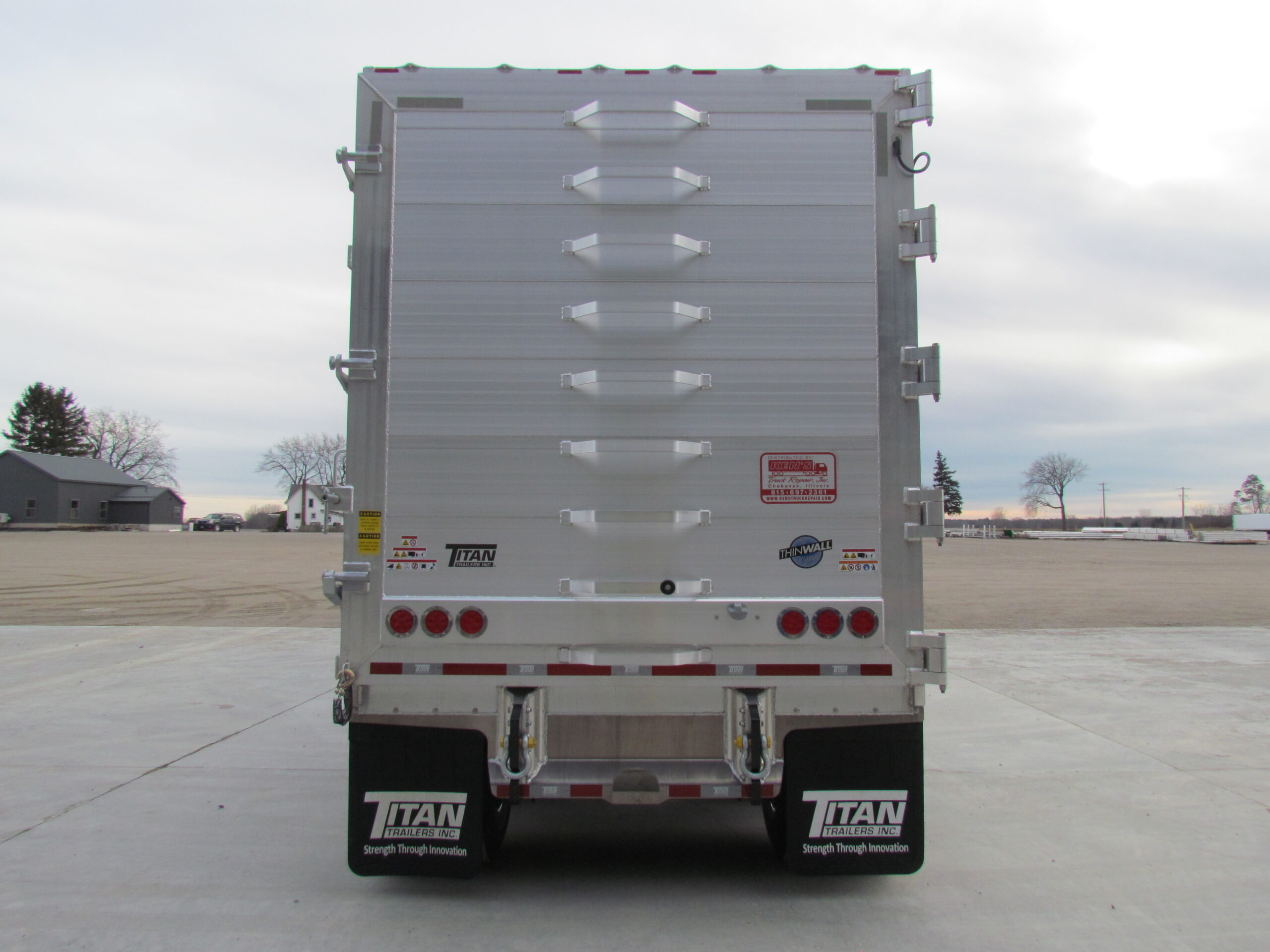

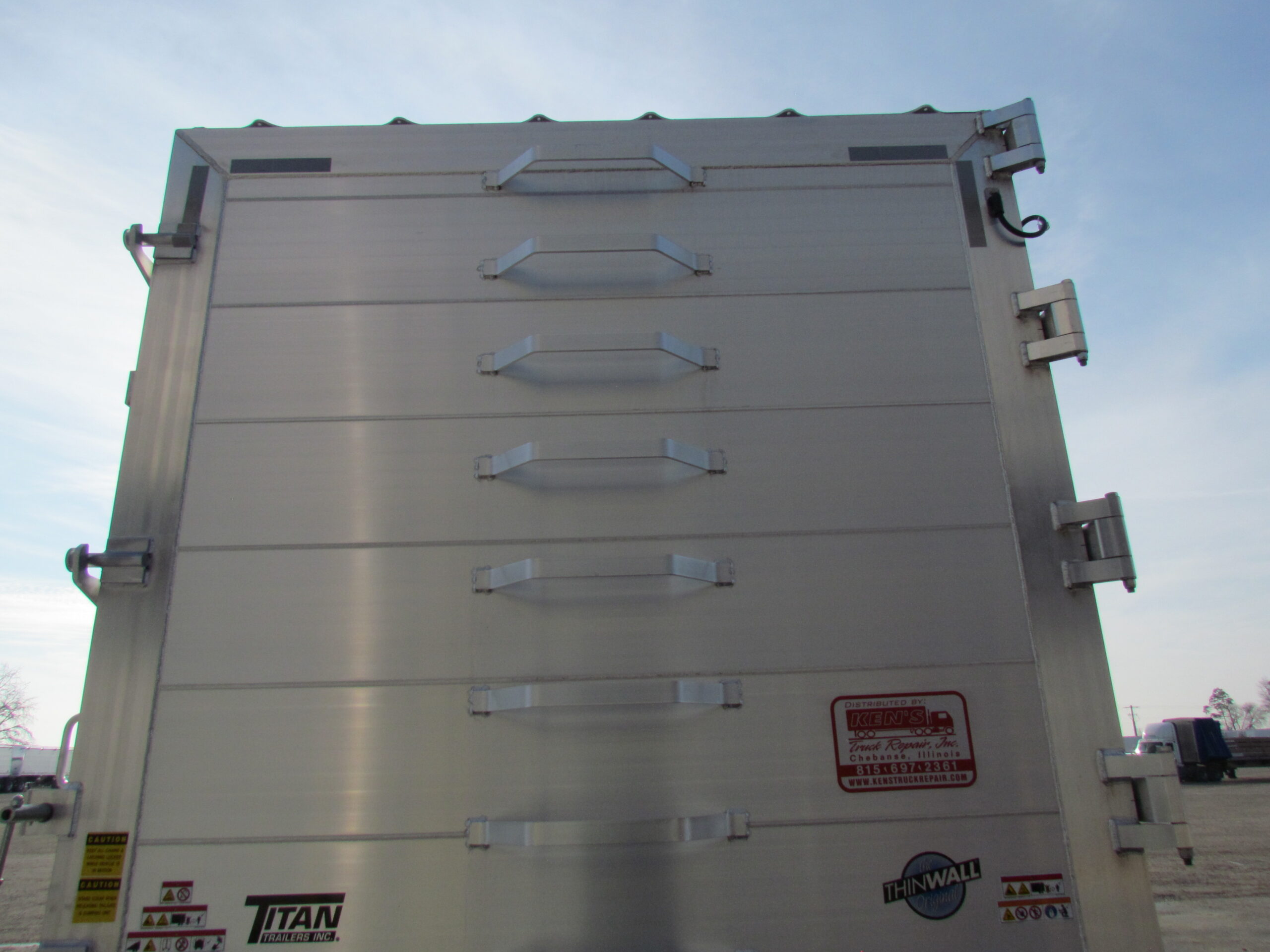

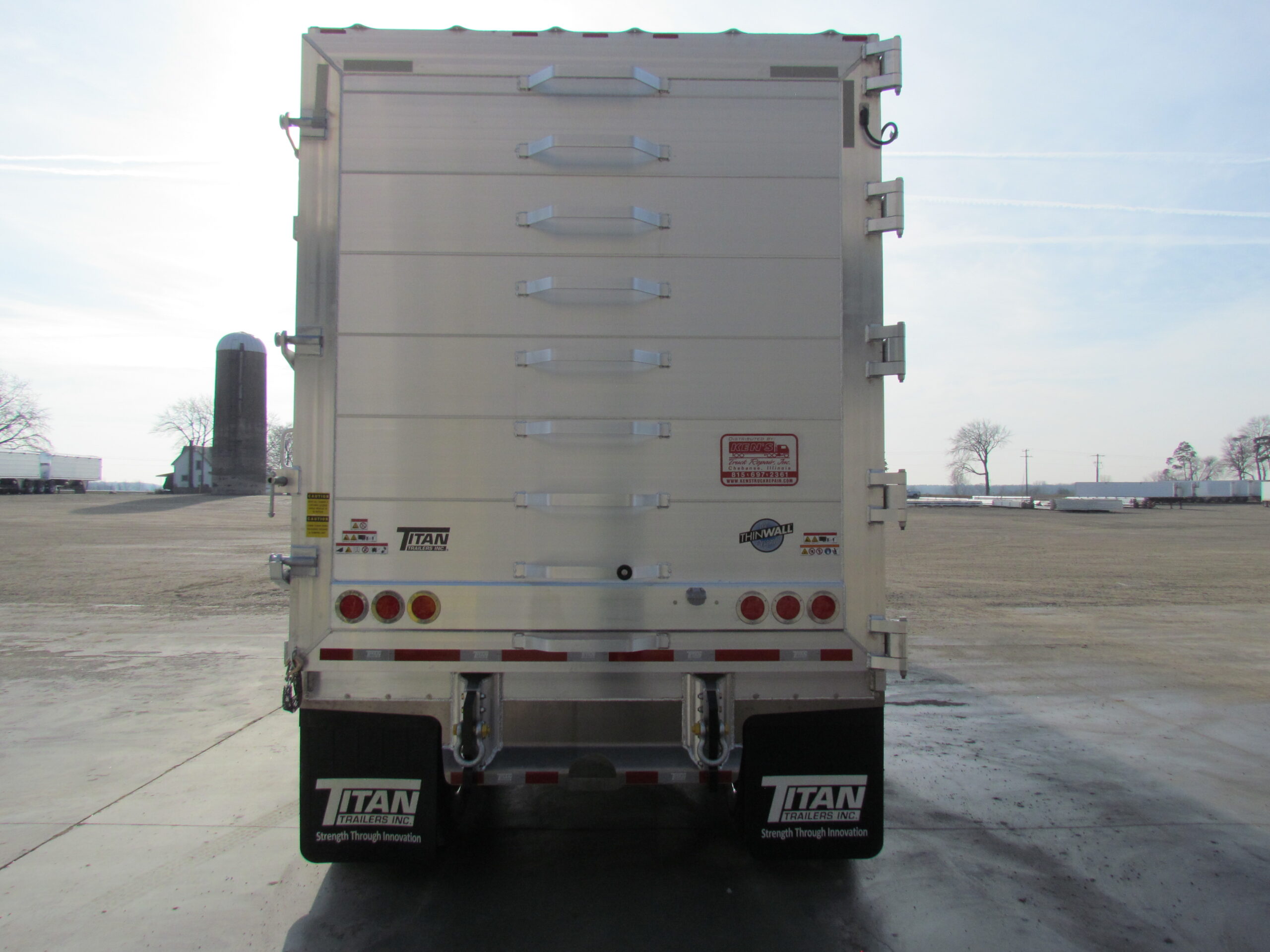

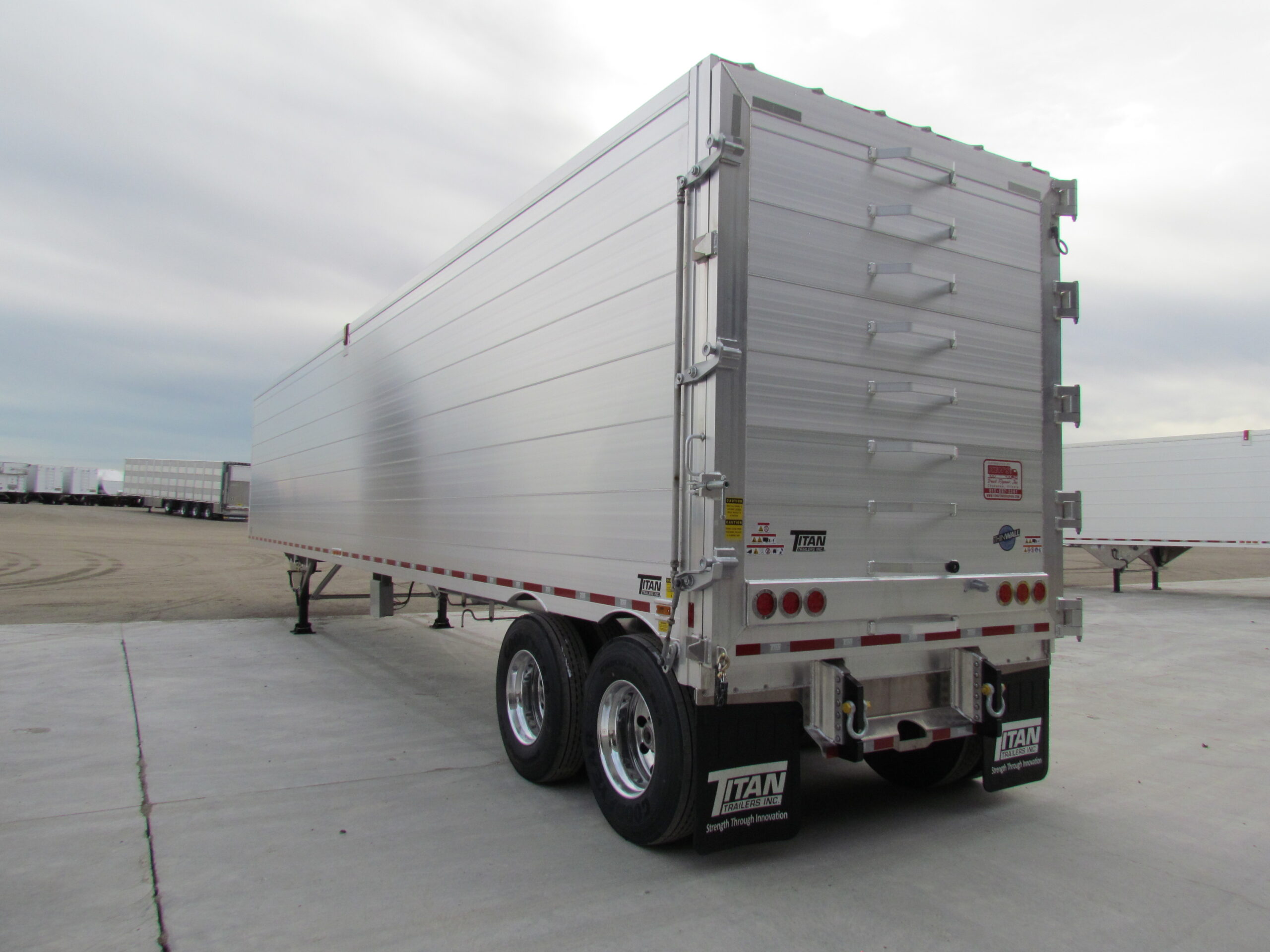

Rear Door       Sideswing, Solid, lights in door, air release w/reinforced Bottom lock finger- See Note #1

Overall Length                                    48’

Overall Width                                     102”

Overall Height                                    13’ 4” (160”) approx.

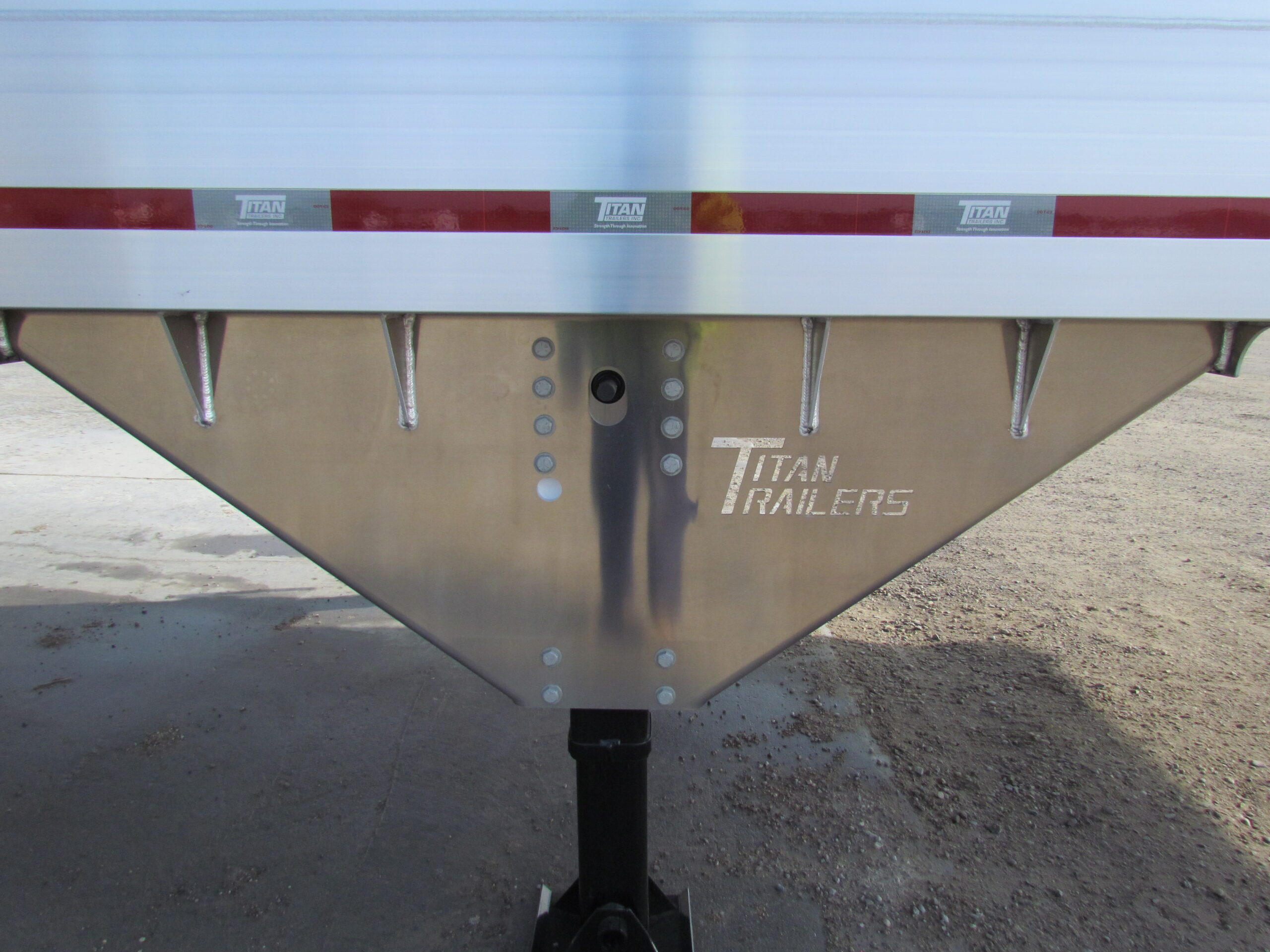

King Pin Location                              36” WELD IN

Upper Coupler                                    5/16” THK- set @ 48” high

Number of Axles        Primary         Two (2)

Axles                                                   Intraax – Straight Spindle

Axle track                                           77.5”

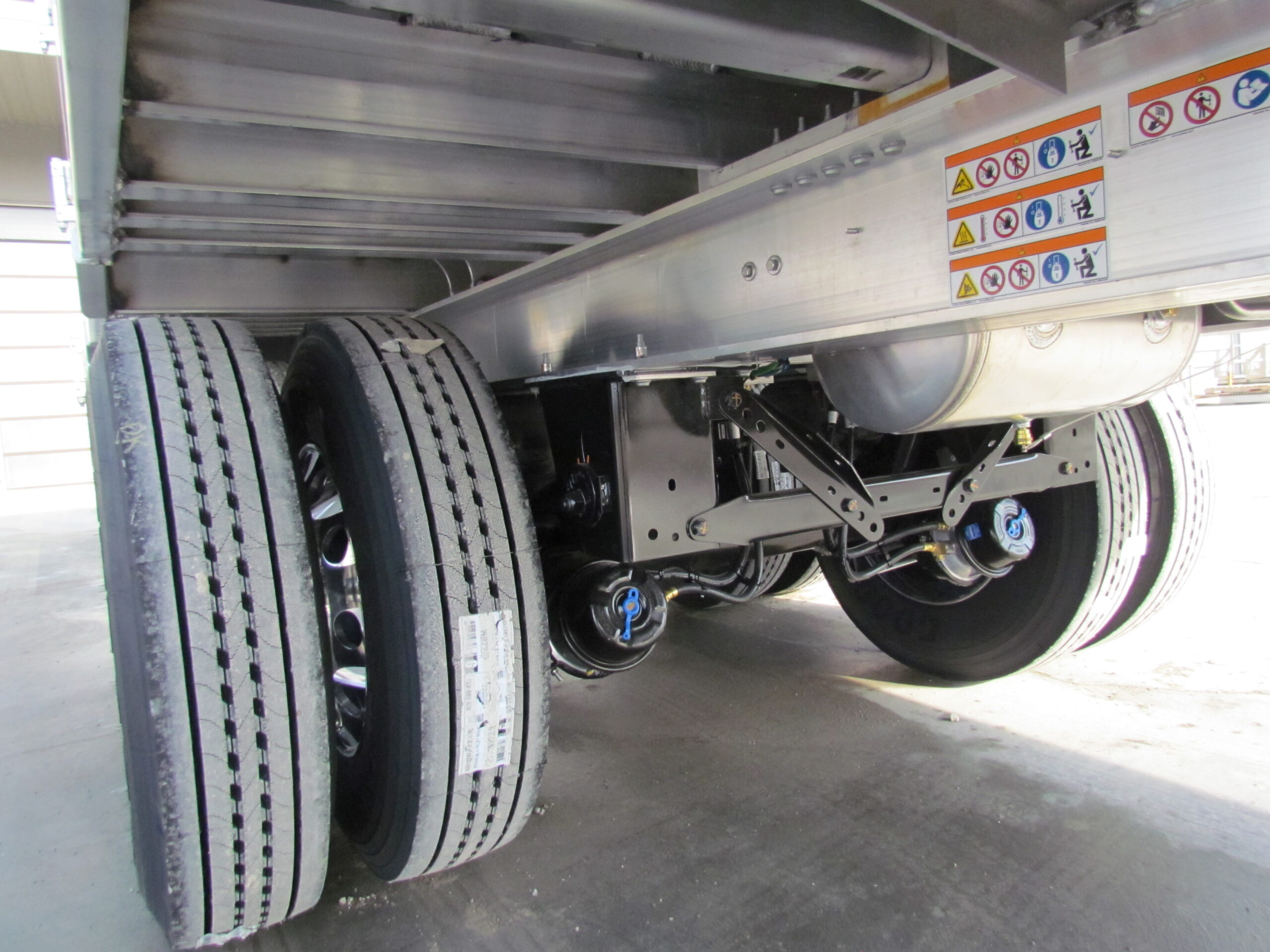

Suspension                                        Intraax AAT 30K

Location of Spreads                        See axle layout

Hub & Drum Assembly                  10 Stud Dura-light Hub/Centrifuse Drum

Disc Wheel Size                                8.25 x 22.5

Rims                                                   Steel Std Duty (Prepainted White)

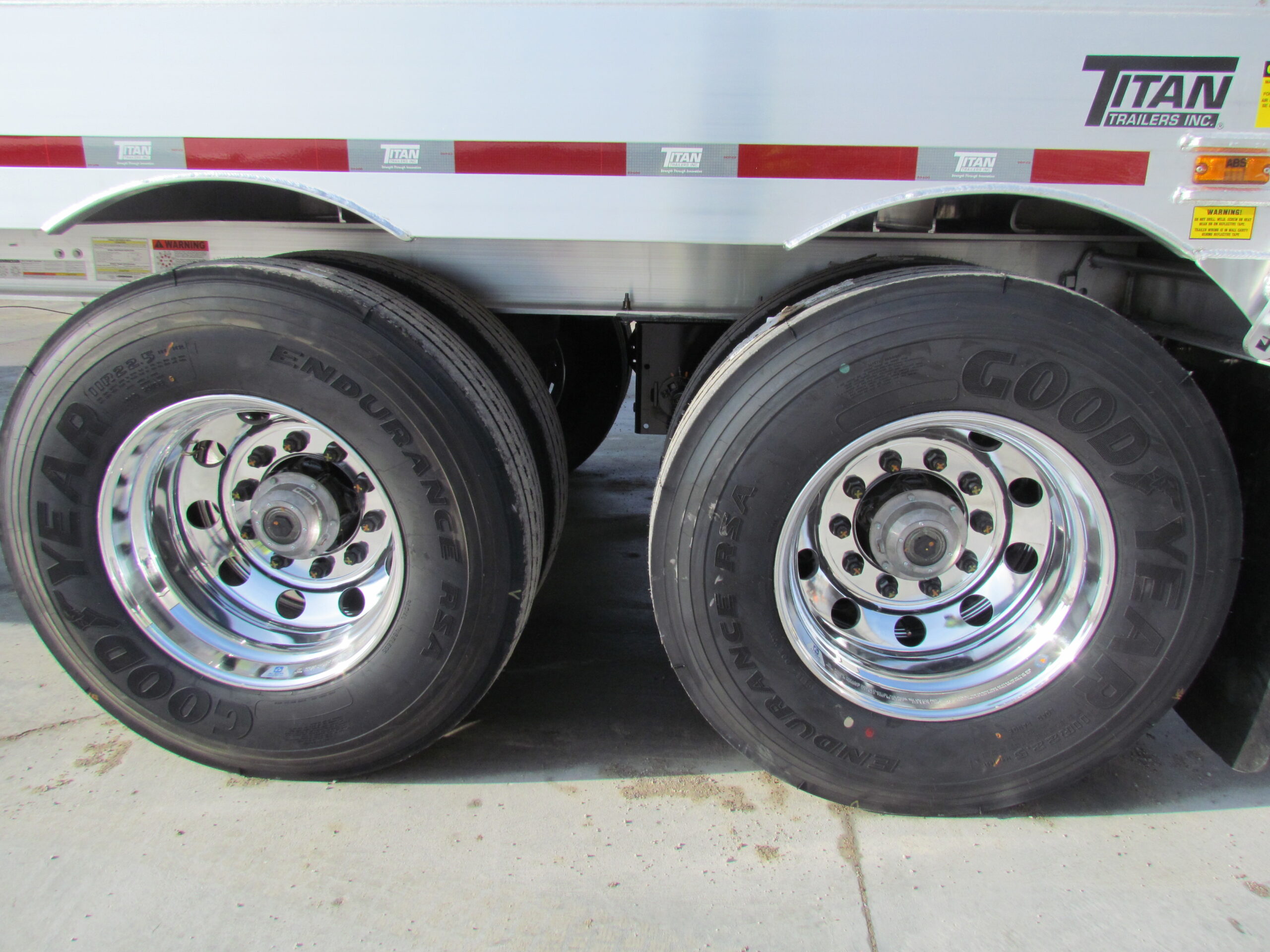

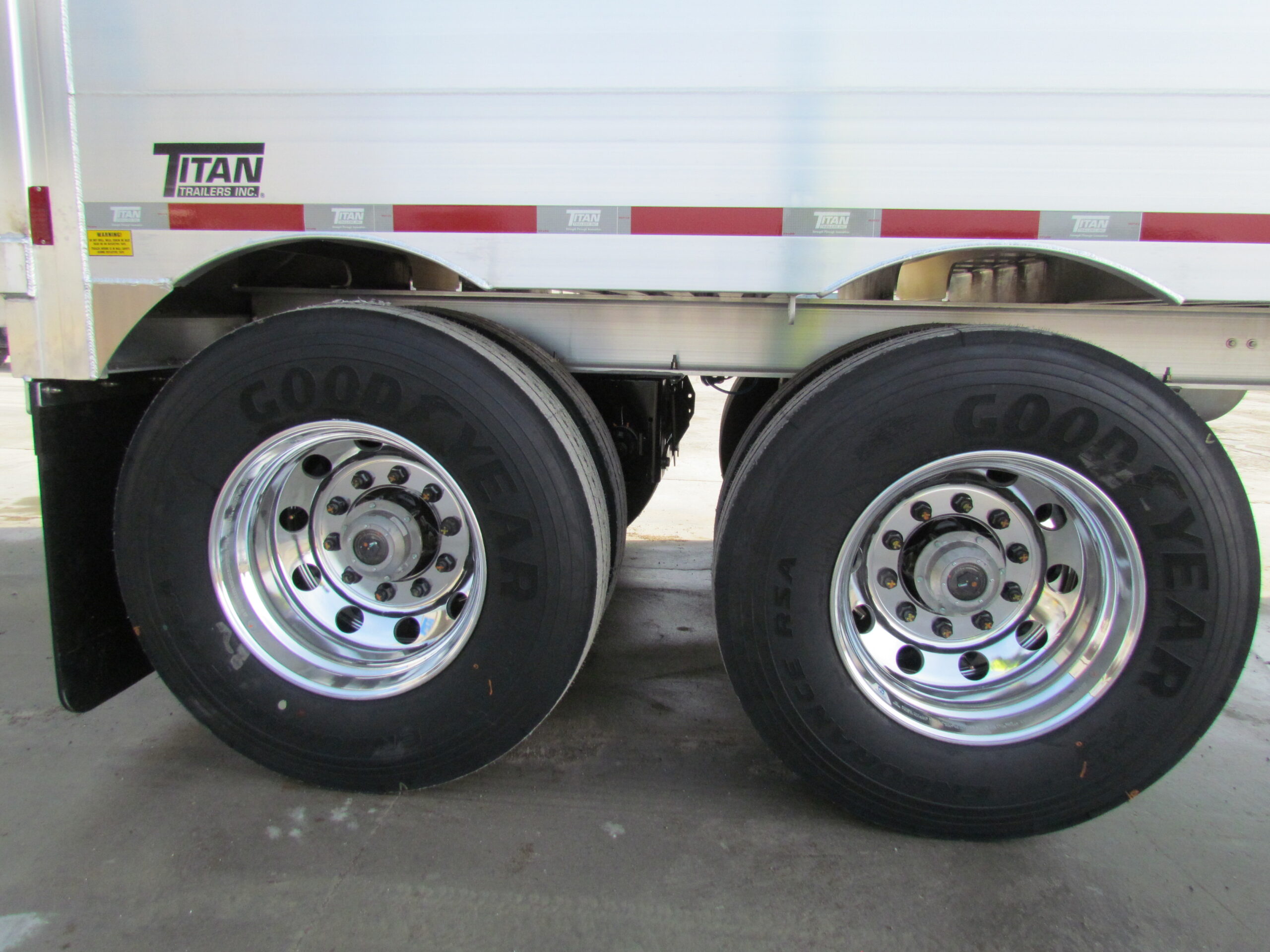

Tires                          Brand              Goodyear

Size                 11R22.5 – 41.4 dia

Tread               Endurance RST

Ply                   16

Quantity          8

Axle layout                                         FRONT–Prim-50-Prim-28-REAR

Oil Seals                                              To suit axles

Lubricants                                           Oil-80W-90

Brakes                       iABS                 2S1M Meritor Wabco

Slack Adj         DRUM BRAKES: Haldex Auto

Cam Enclos     DRUM BRAKES: All Axles & c/w Dust Shields

Lift Kits                                              None

Lift Control                                         None

Frame Width                                      48”

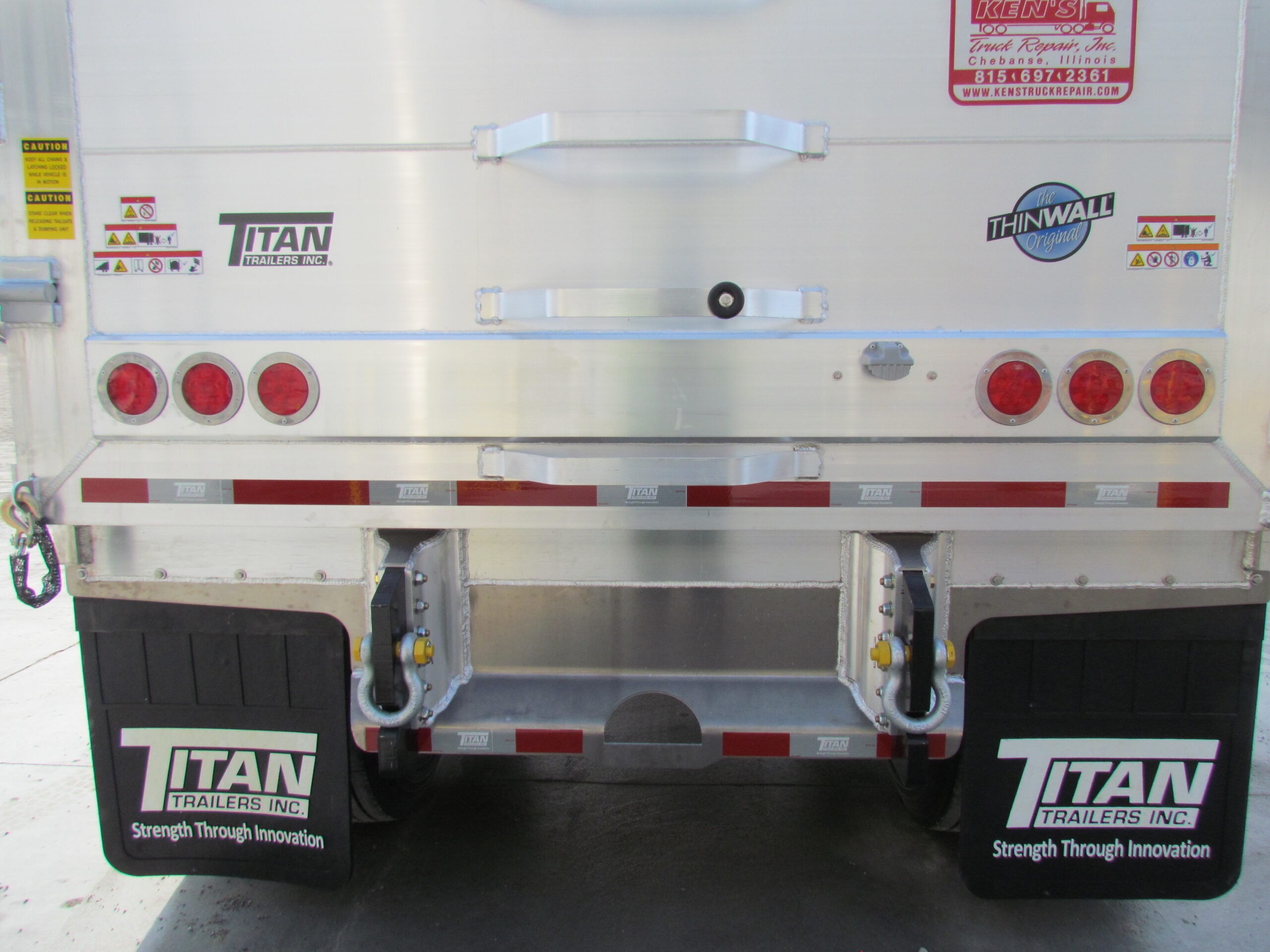

Rear Bumper                                       Aluminum Offset, Push

Additional Bumper Option # 1       Tow Shackles

Additional Bumper Option # 2       Steel Vertical Blocks Bolted to Bumper protrudes 3 ½” sloped top

Tire Carrier                                           None

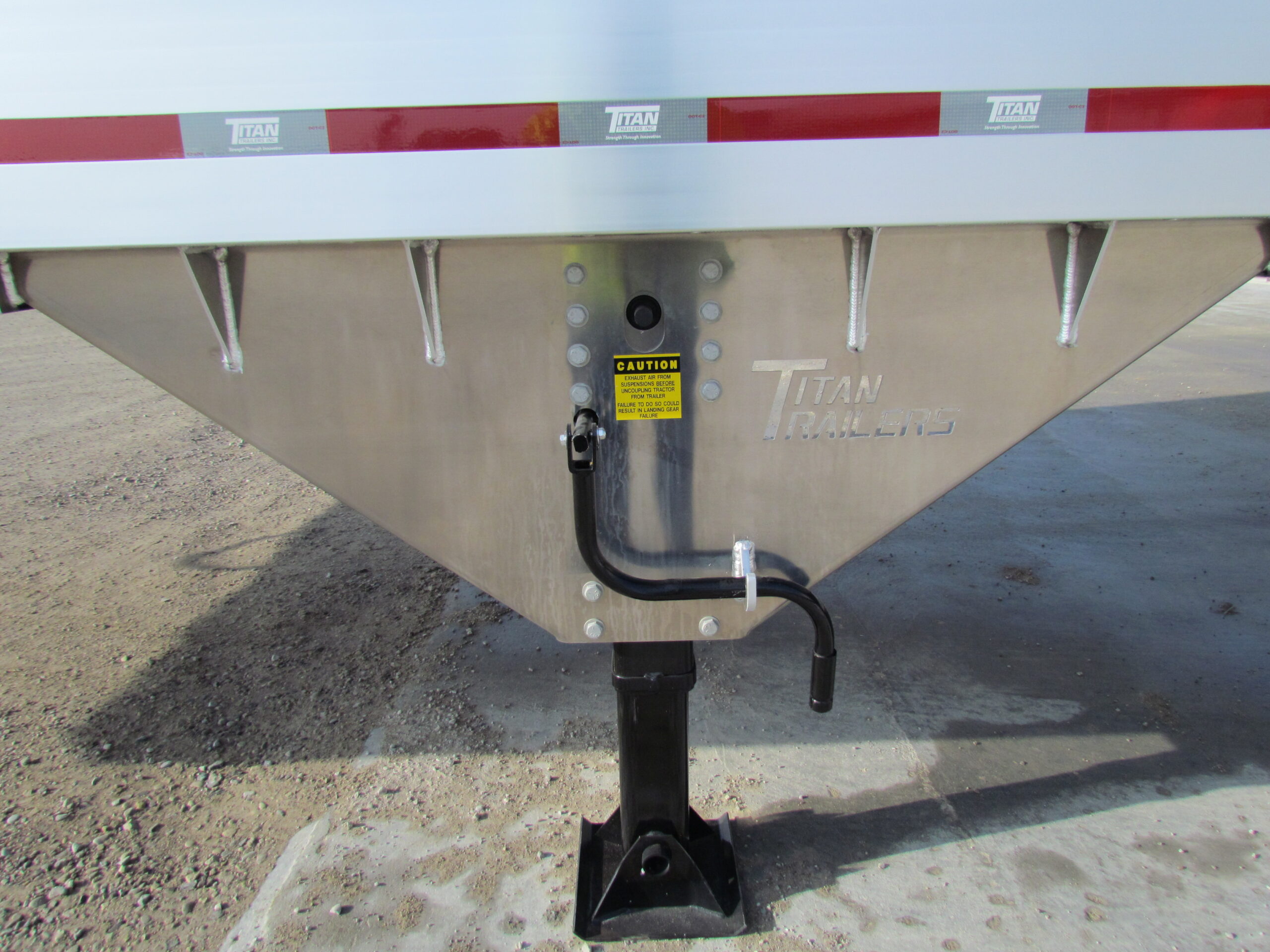

Landing Gear                                       SAF-Holland Mark V: 105 Standard Skid Foot, Standard hollow axle

Top Rail                                               Titan Tapered V1

Top Cross Tube                                   Qty 1- Spring Steel (two piece style) – See Note # 3

Floor Crossmembers                          12” Centers

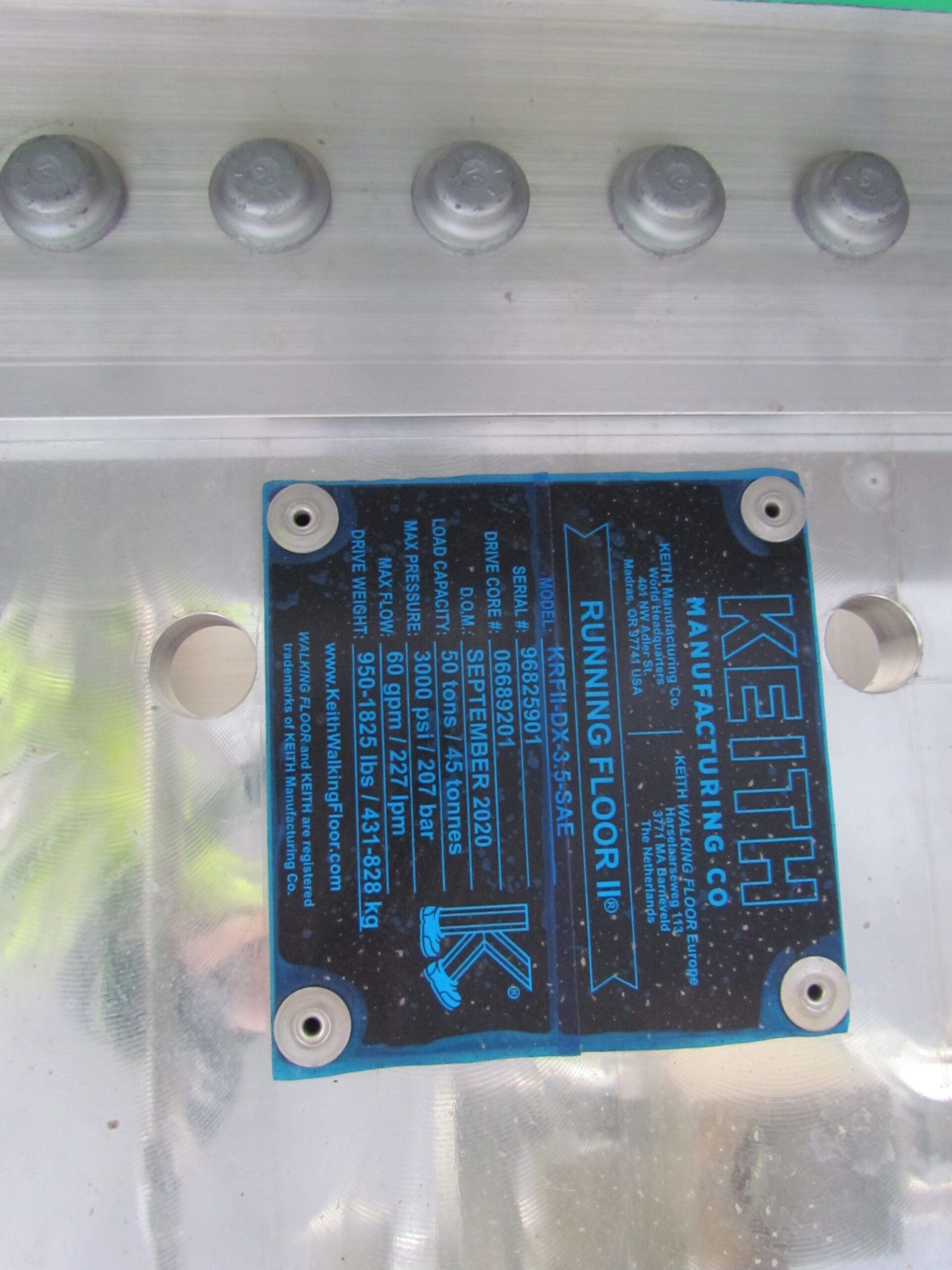

Keith Walking Floor Kit                    Running Floor II: -3.5” Dia Cylinders, 6” stroke

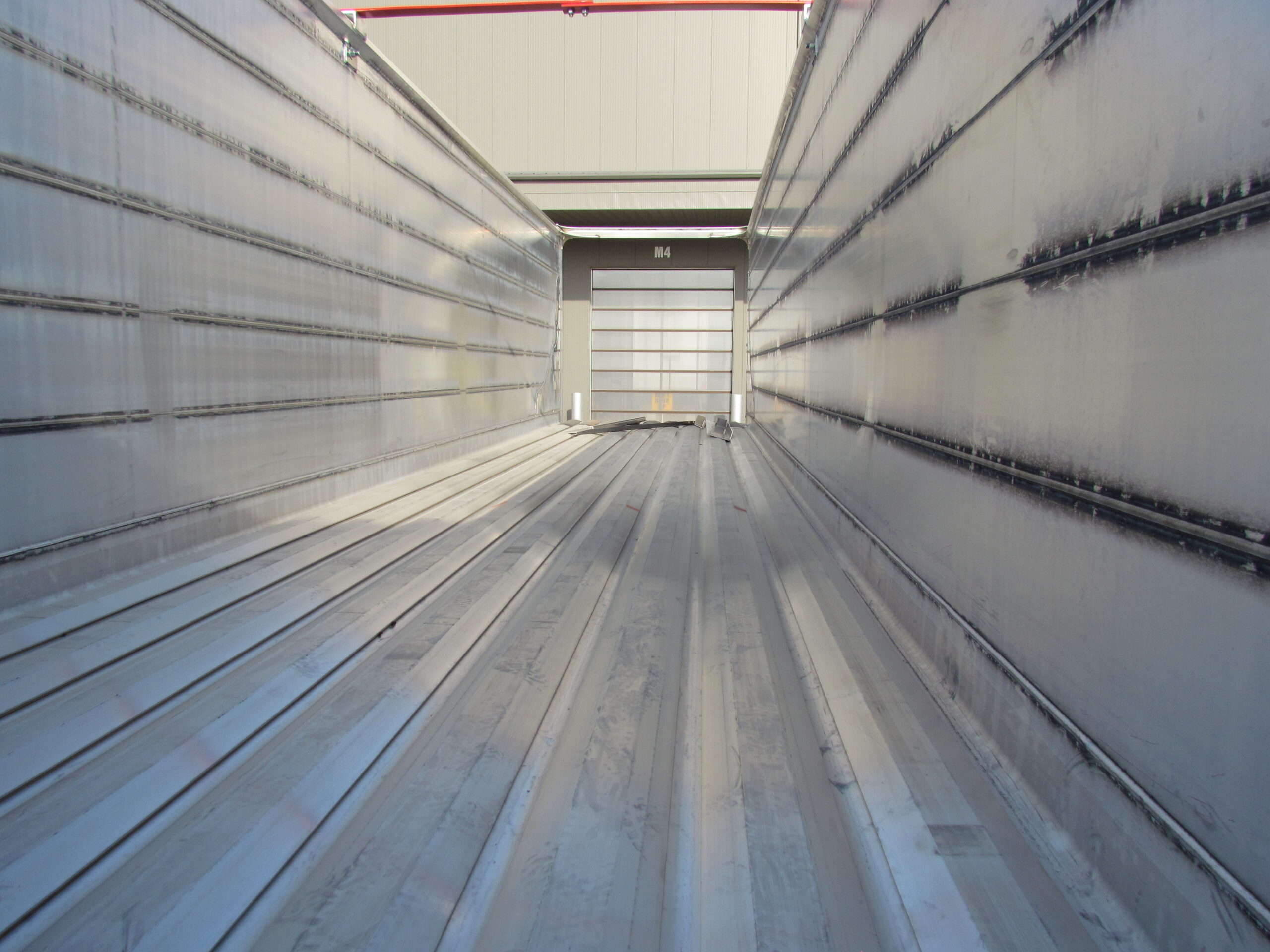

Slat Model & Width                           9 Slat : 2631slats  (Alum flat top -3/8” THK, 10.5” Centers) 2490 Subdeck, 2493 J-Bearing

Slat Wear Strips                                  48” long steel tips

Continuous Bearings                          None

Side Wall Wear Plates                        Boomerang Style

Front Access Door                              Std (35”W x 37.5”H) Curbside Hinge W/ Flip, located center

Tarp Style                                            None

Tarp Header                                        None

Tarp Basket                                         None

Tarp Hooks                                         None

Axle Fender                                        None

Hyd Fitting             Pressure           1” Quick Coupler Male  – See Note # 2

Return              1” Quick Coupler Female – See Note # 2

Mud Flaps               Style                  Titan Black Rubber

Location            (2) at rear

Mud Flaps – Landing Gear             None

Paint                      Body – Color       Natural Aluminum

Run – Gear         Titan Black

Hub/Drum         Same As Running Gear

Rims Or Disc      Steel Prepainted white

Light Package (Plug Form)             Front: (1) mkr corner mitre.     Sides: (2) mkrs (includes midturn)     Rear: (5) mkrs at top, (3) 4” round red taillights per side in door

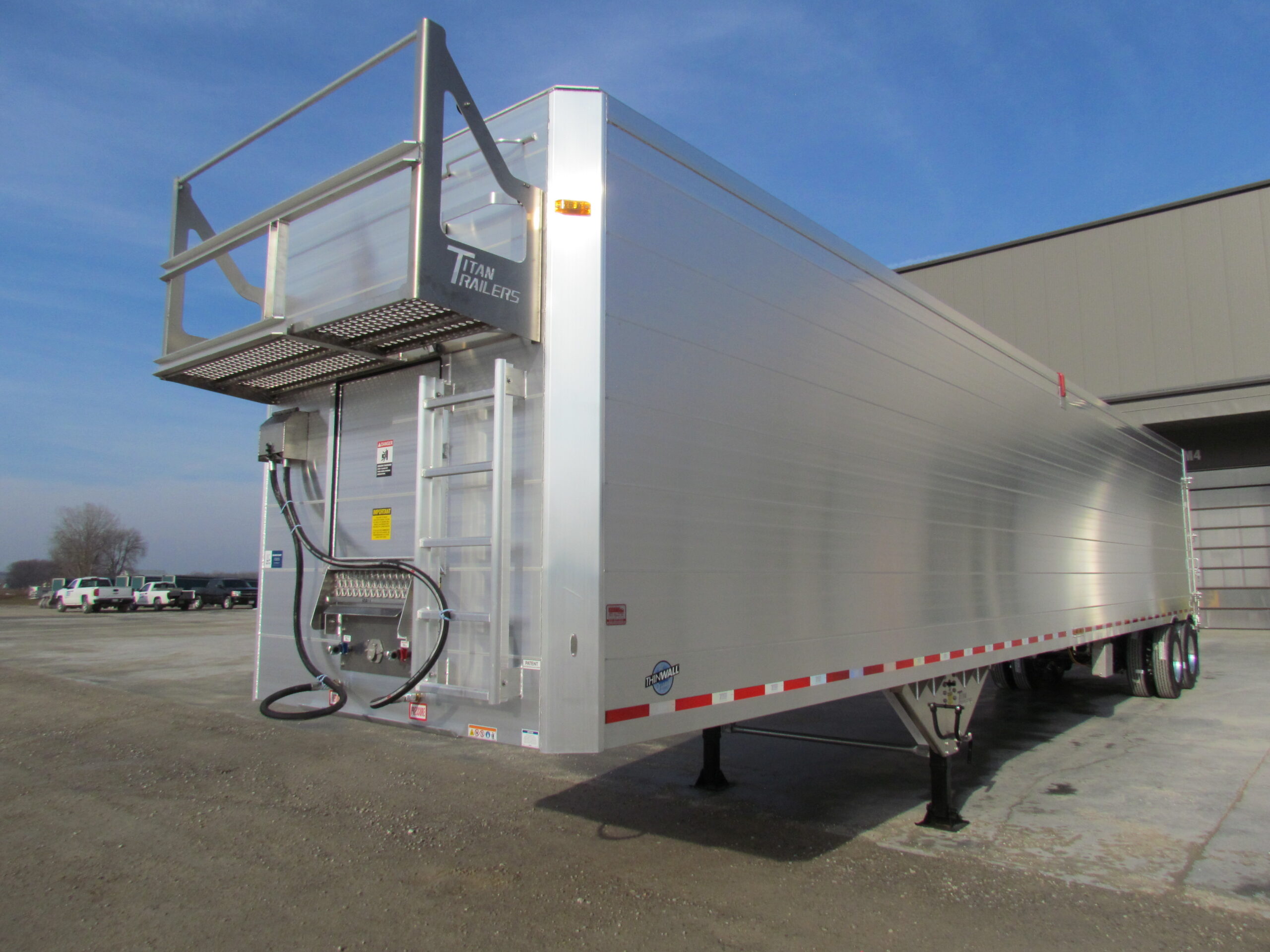

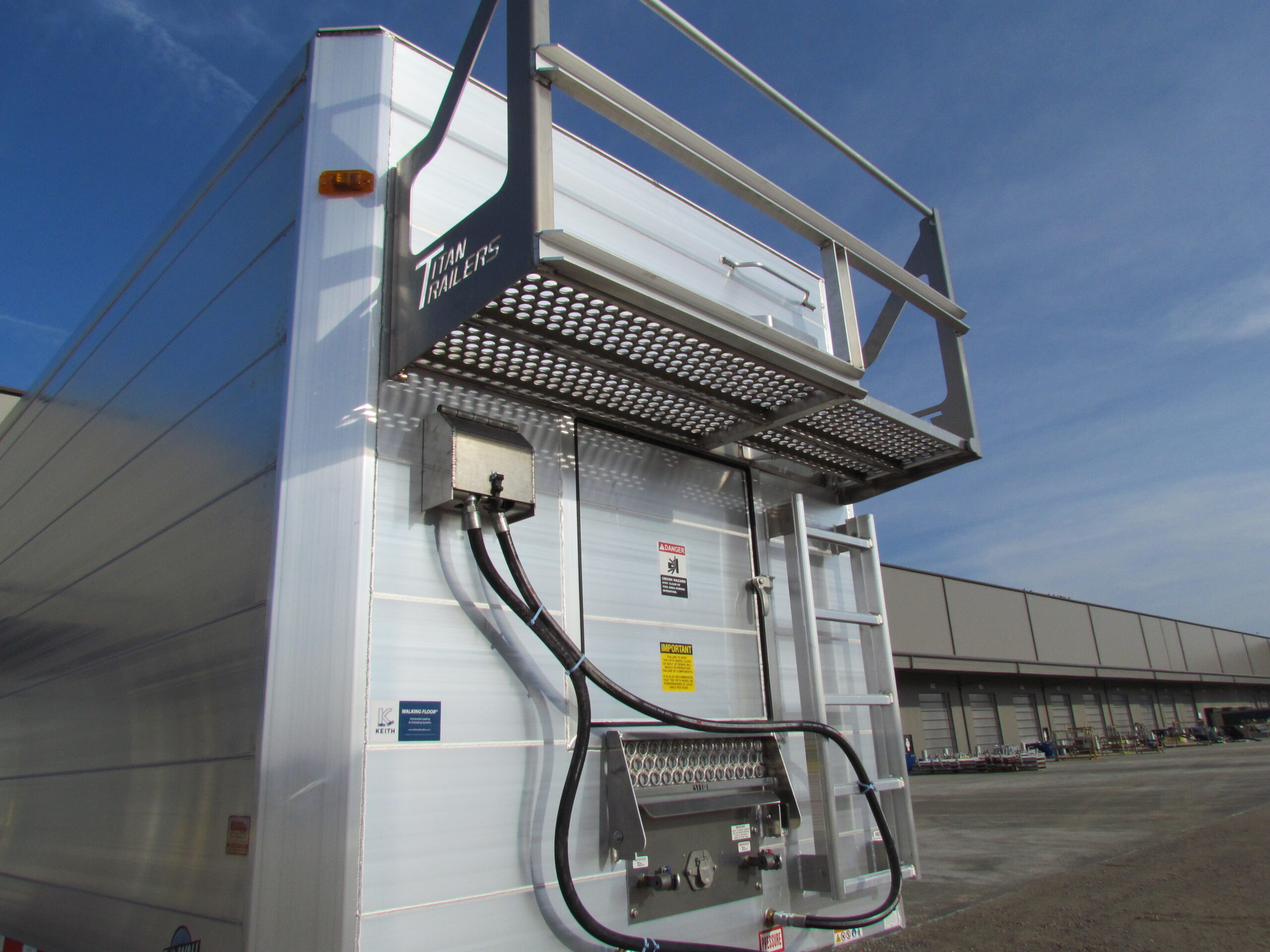

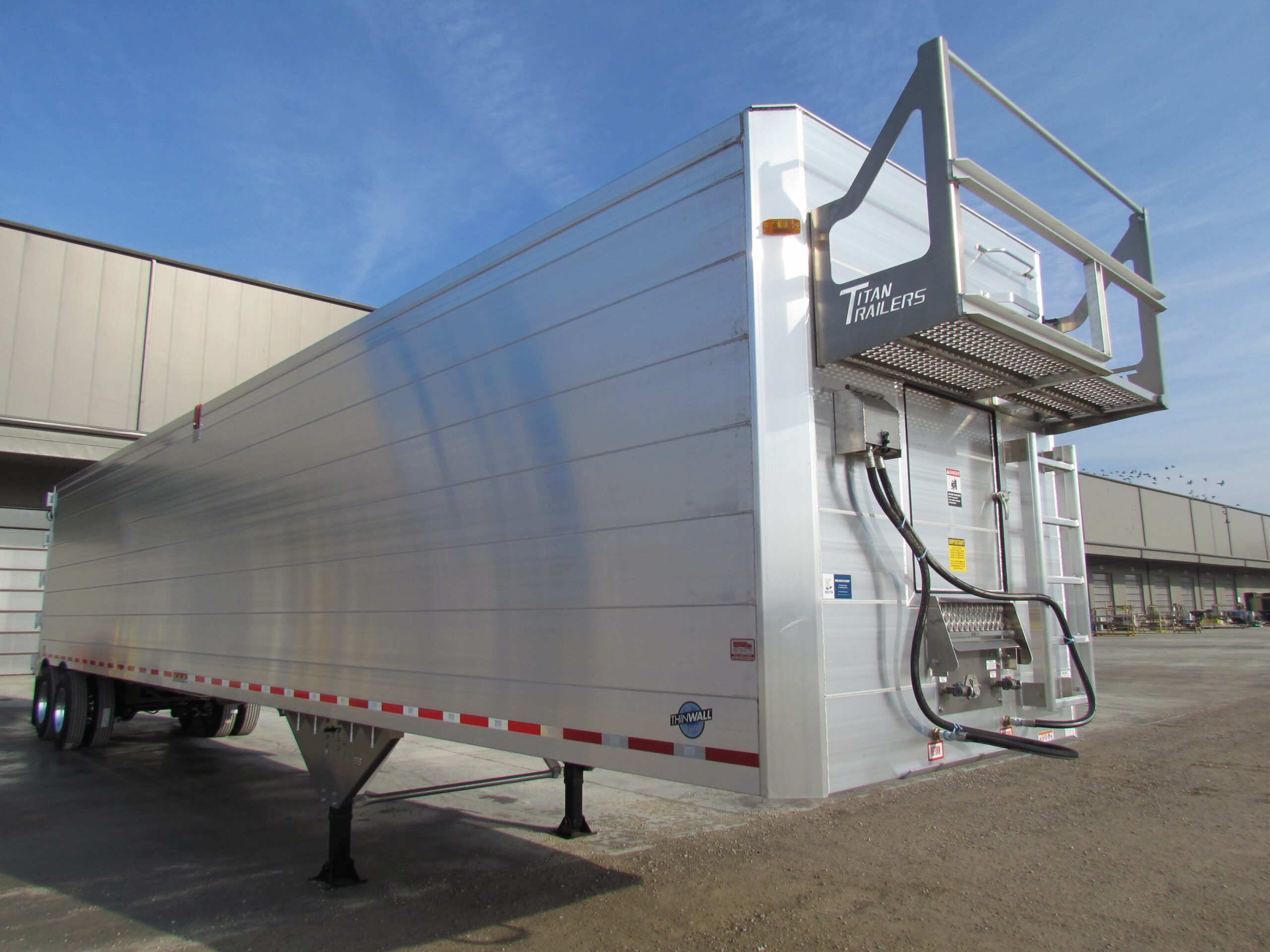

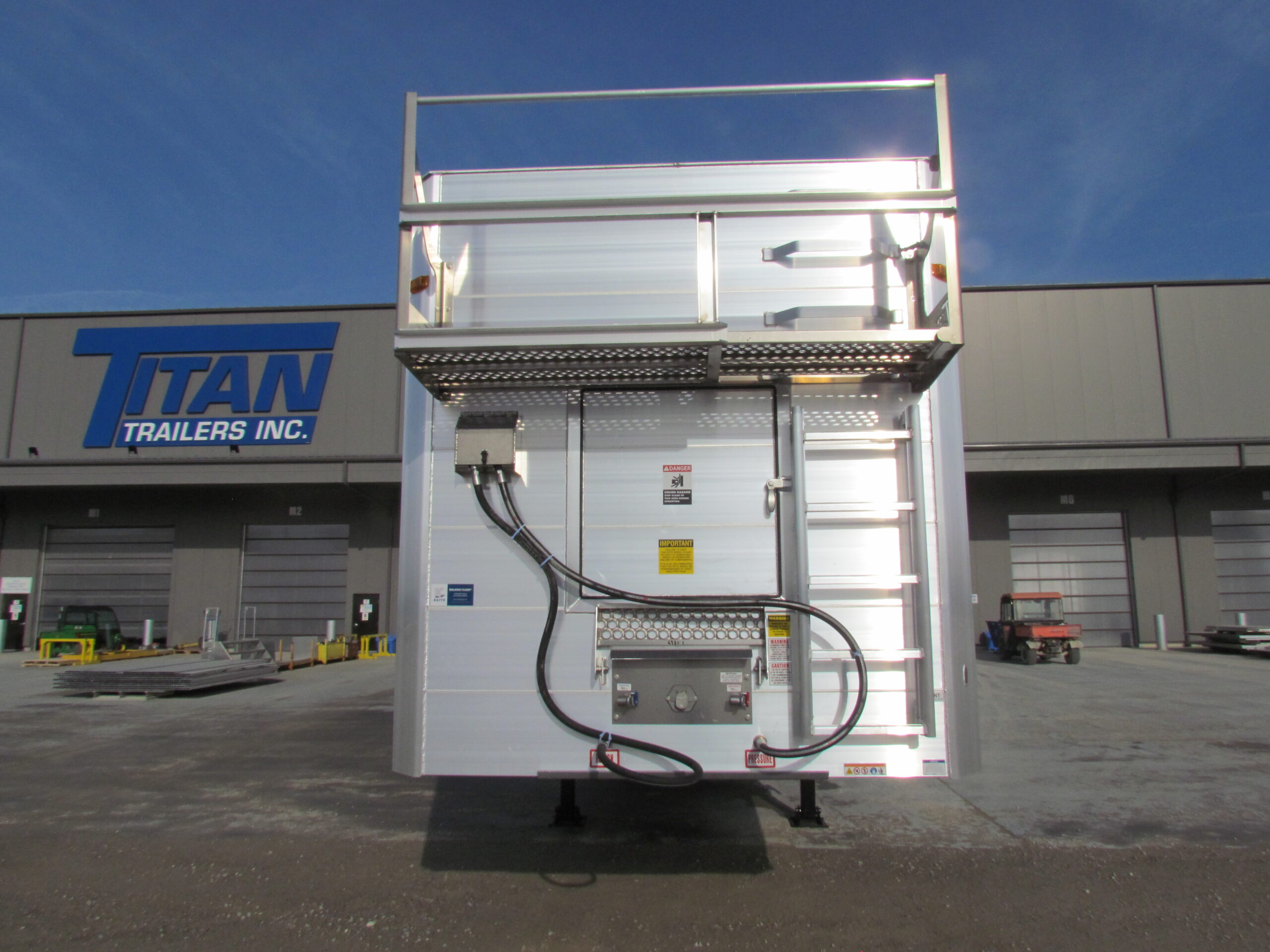

Access             Catwalk                      Universal Roadside Enty 24” Catwalk

J-Ladder – Front      Roadside to Catwalk

J-Ladder – Rear        None

Steps-Front-Out        None

Steps-Front-Ins         None

Steps-Rear                  Rung style steps up middle

Additional Specifications:

1.   Tapered Door Header with one pc gusset attached to top side of tapered header  Gusset to suit 10” bolt on tarp header

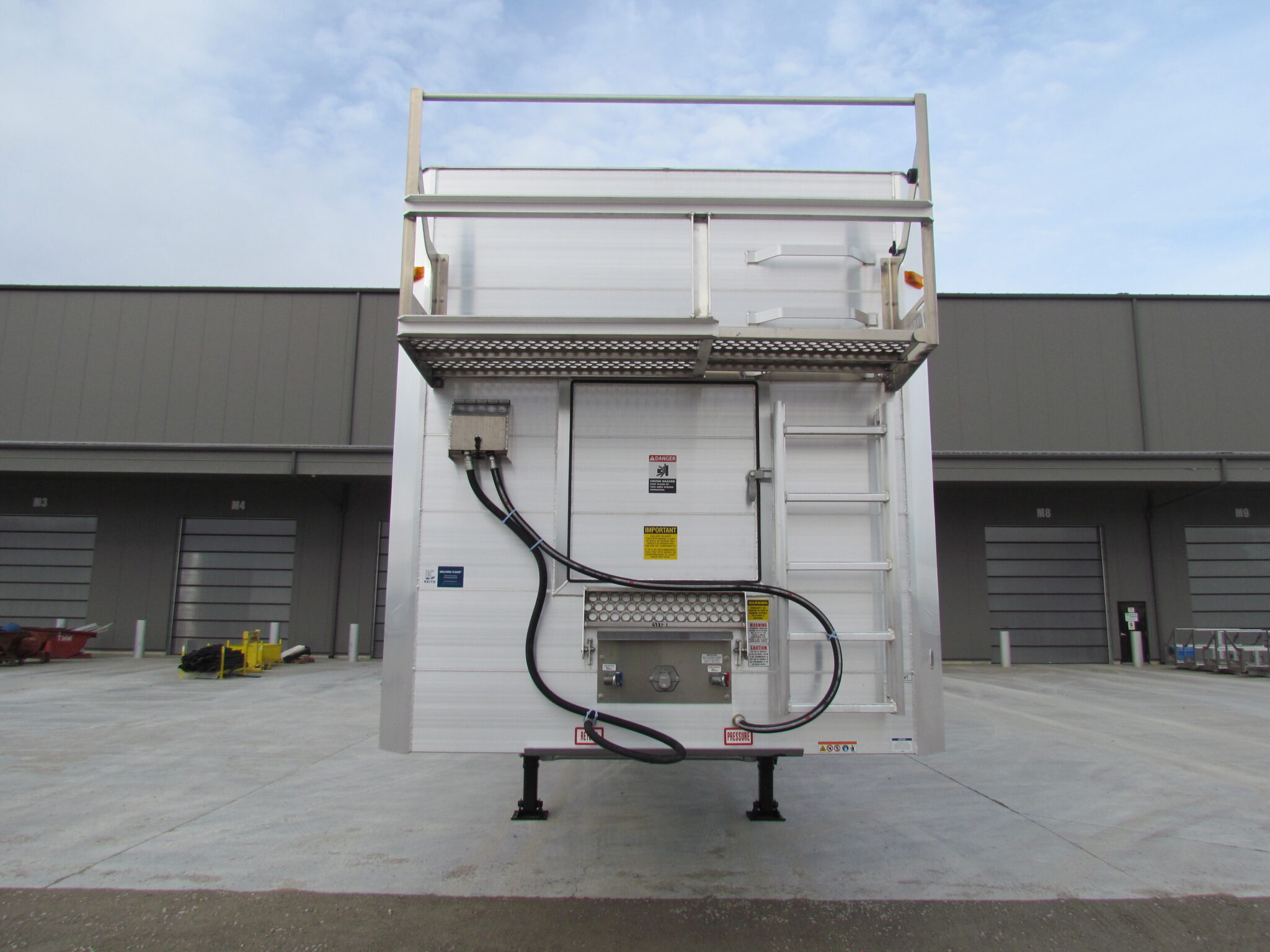

2.   a) Add 9’ hoses to front wall

b) Add hinged lid hose hanger to front wall

3.  SHIP LOOSE: QTY (1) 4” OD Steel Crosstube

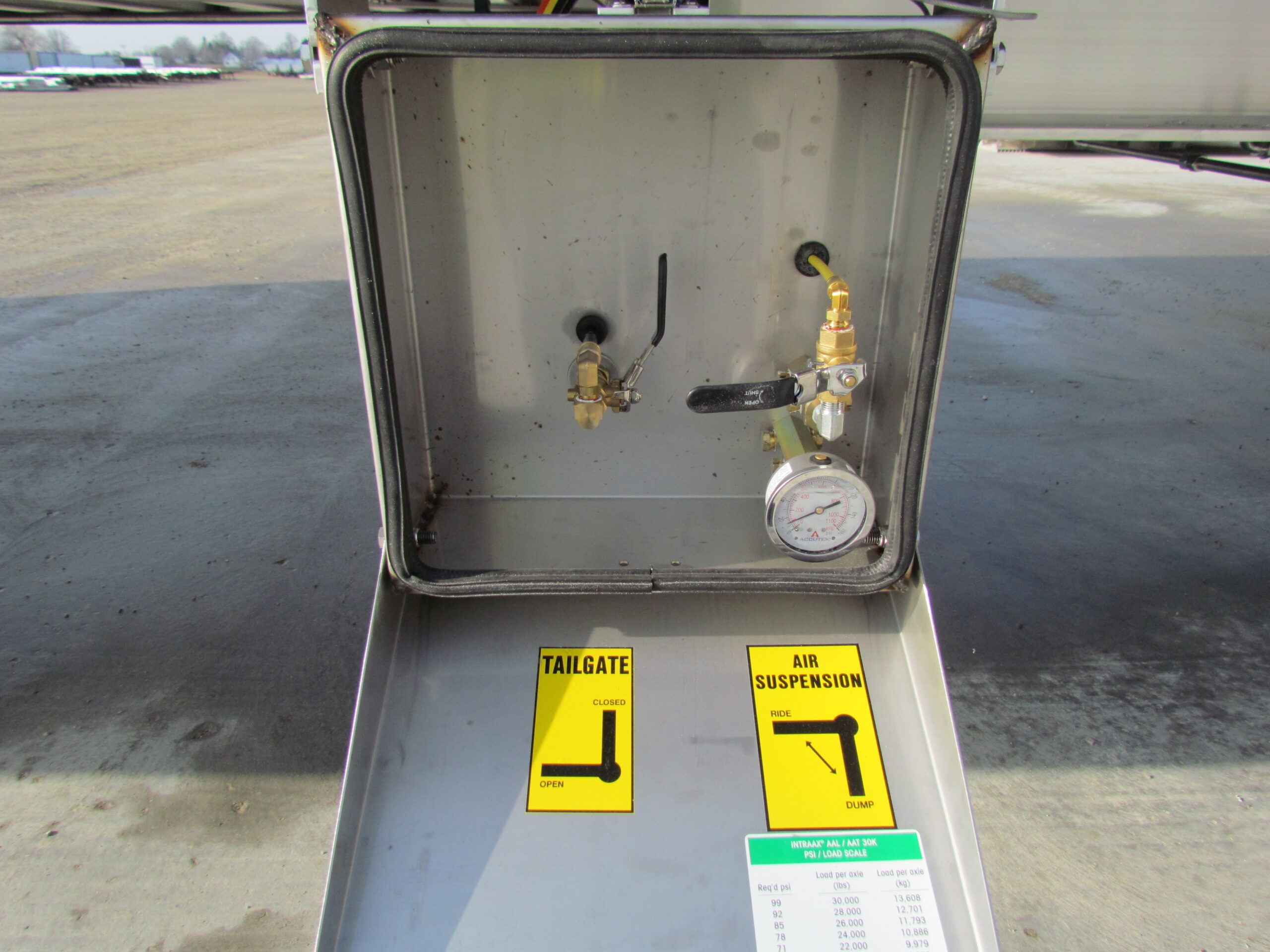

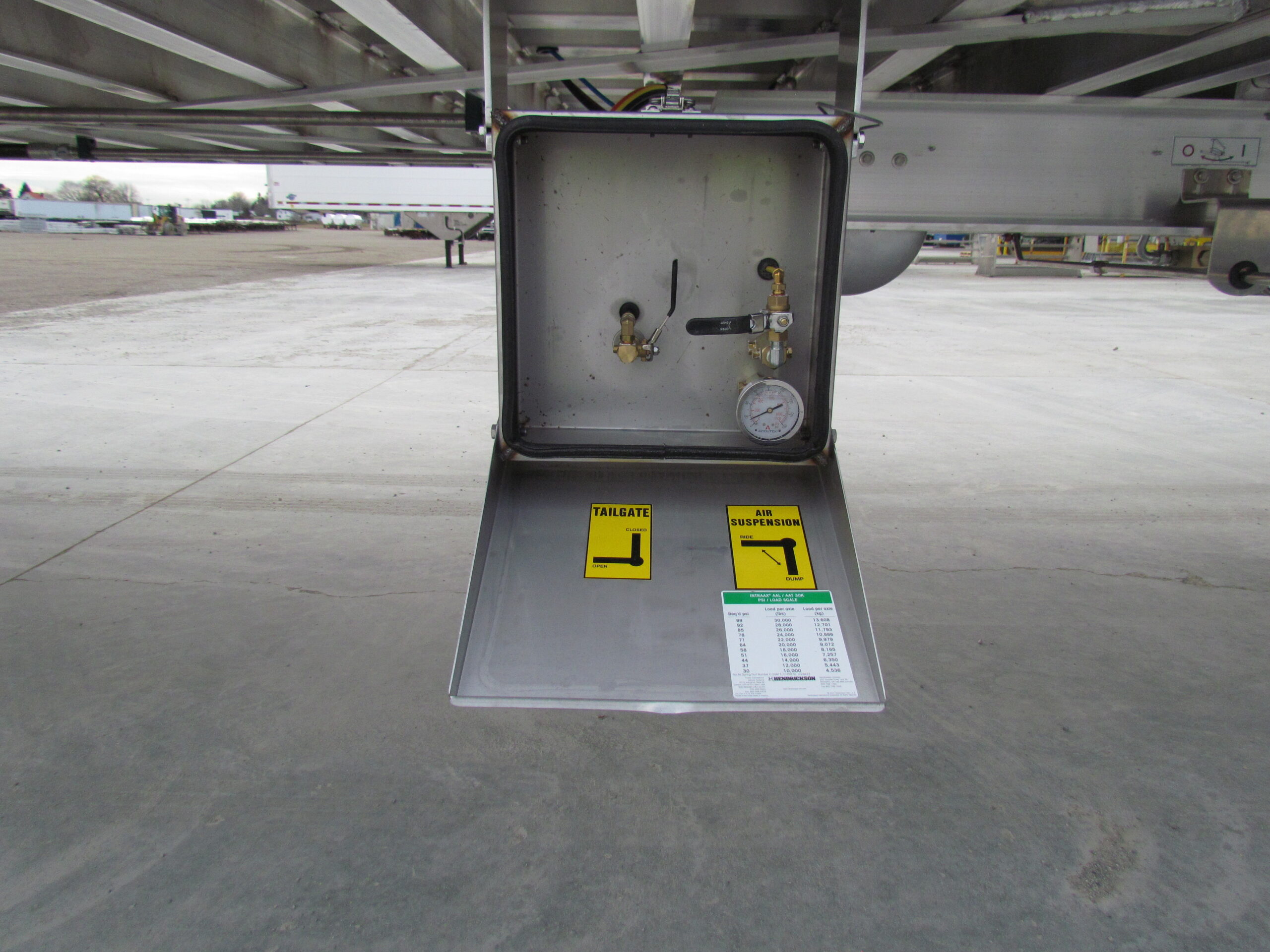

4.  Add 2.5” hydraulic pressure gauge to frame (flush mount) , located beside the on/off handle with identifying label

Estimated weight: 19,400 lbs.   +/- 3%

Estimated volume: 127 cu yds
