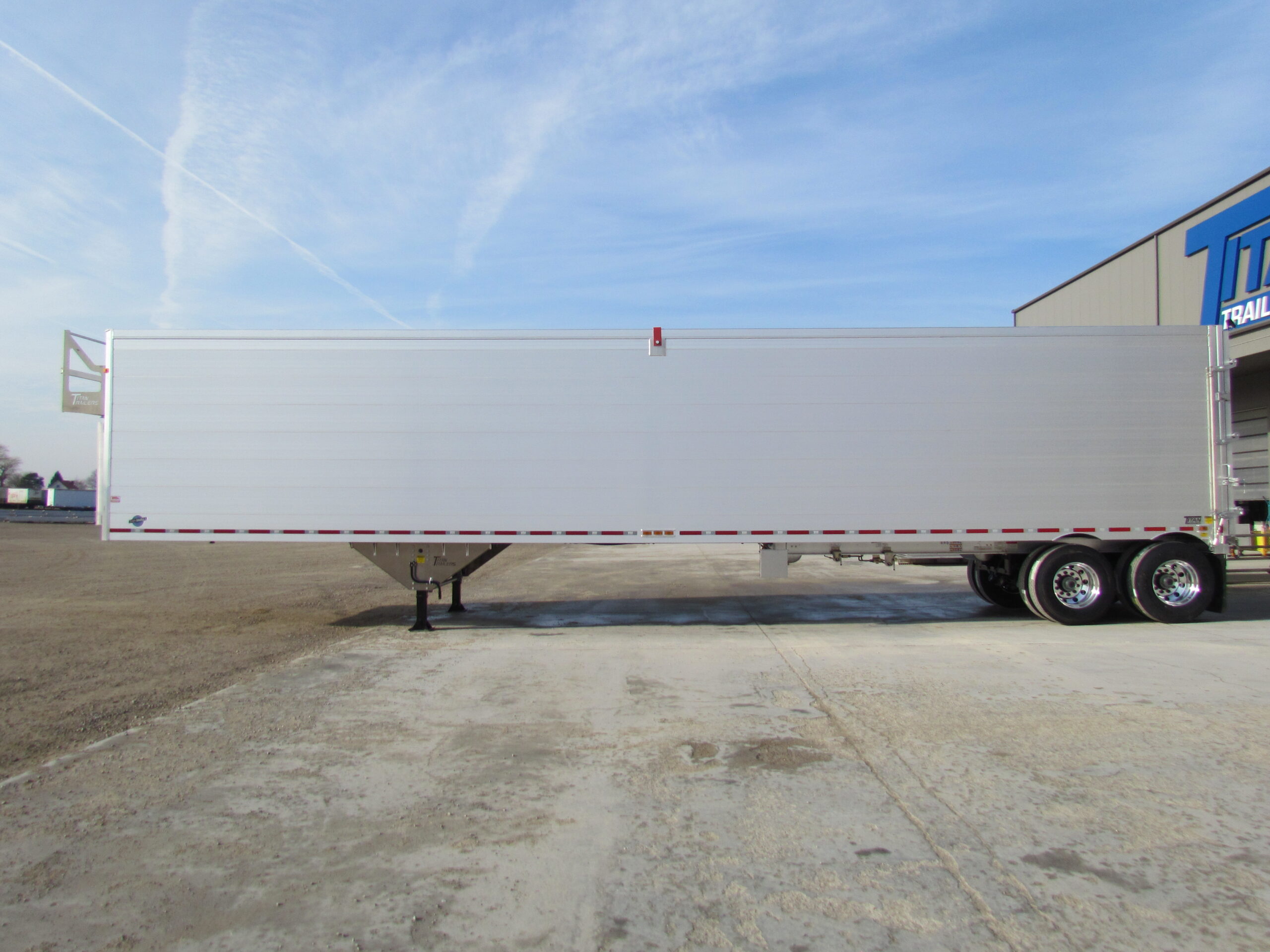

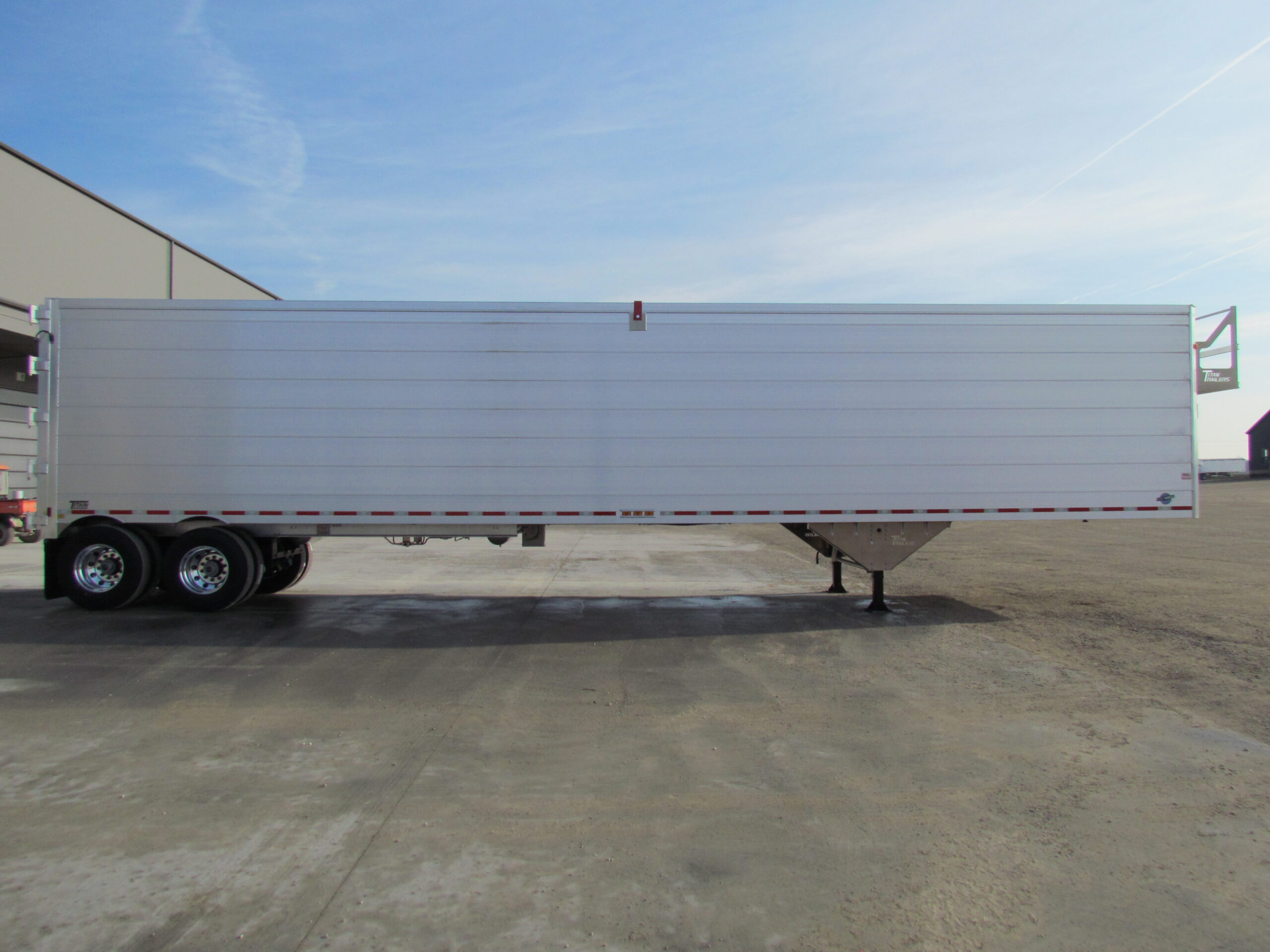

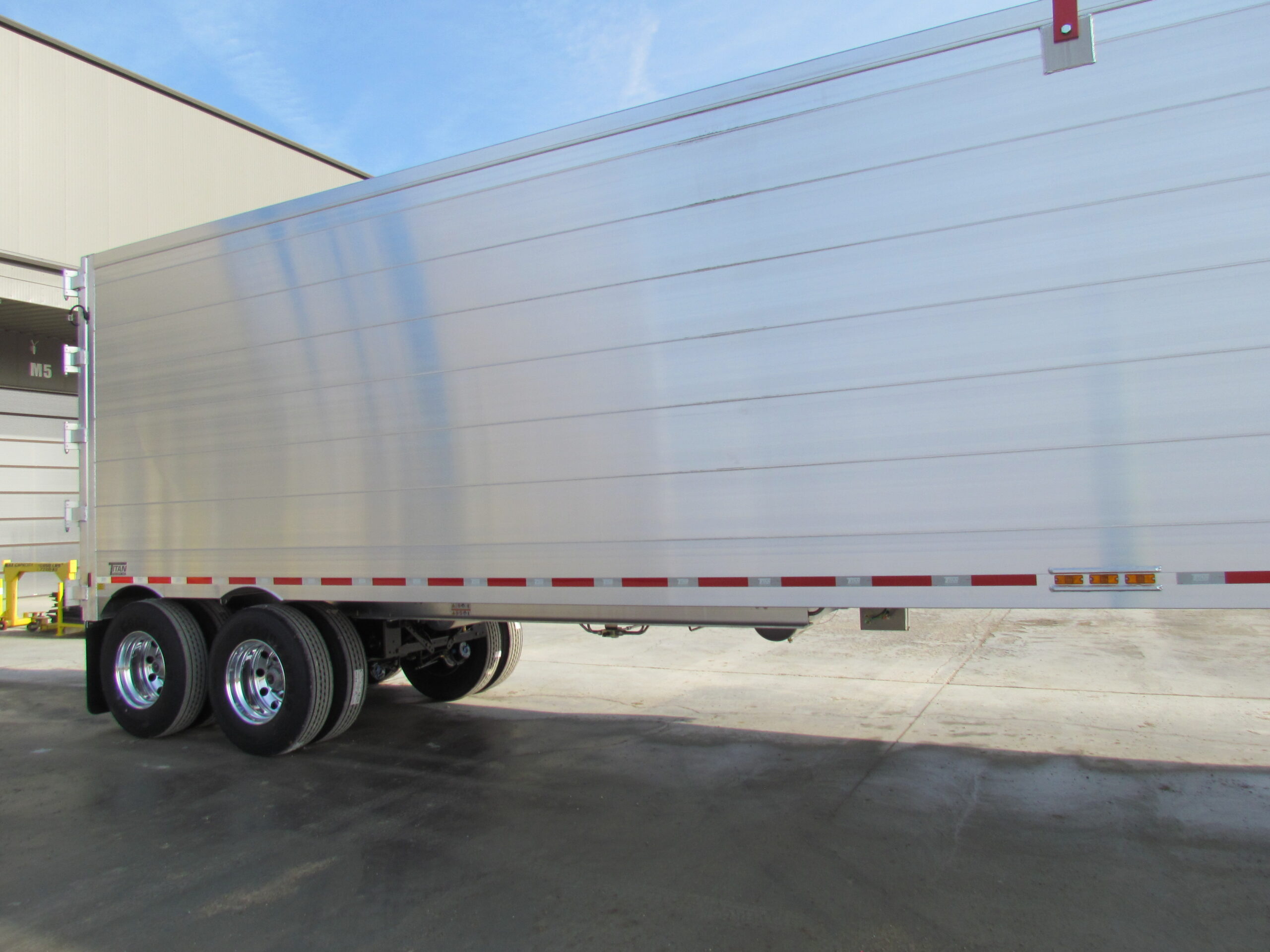

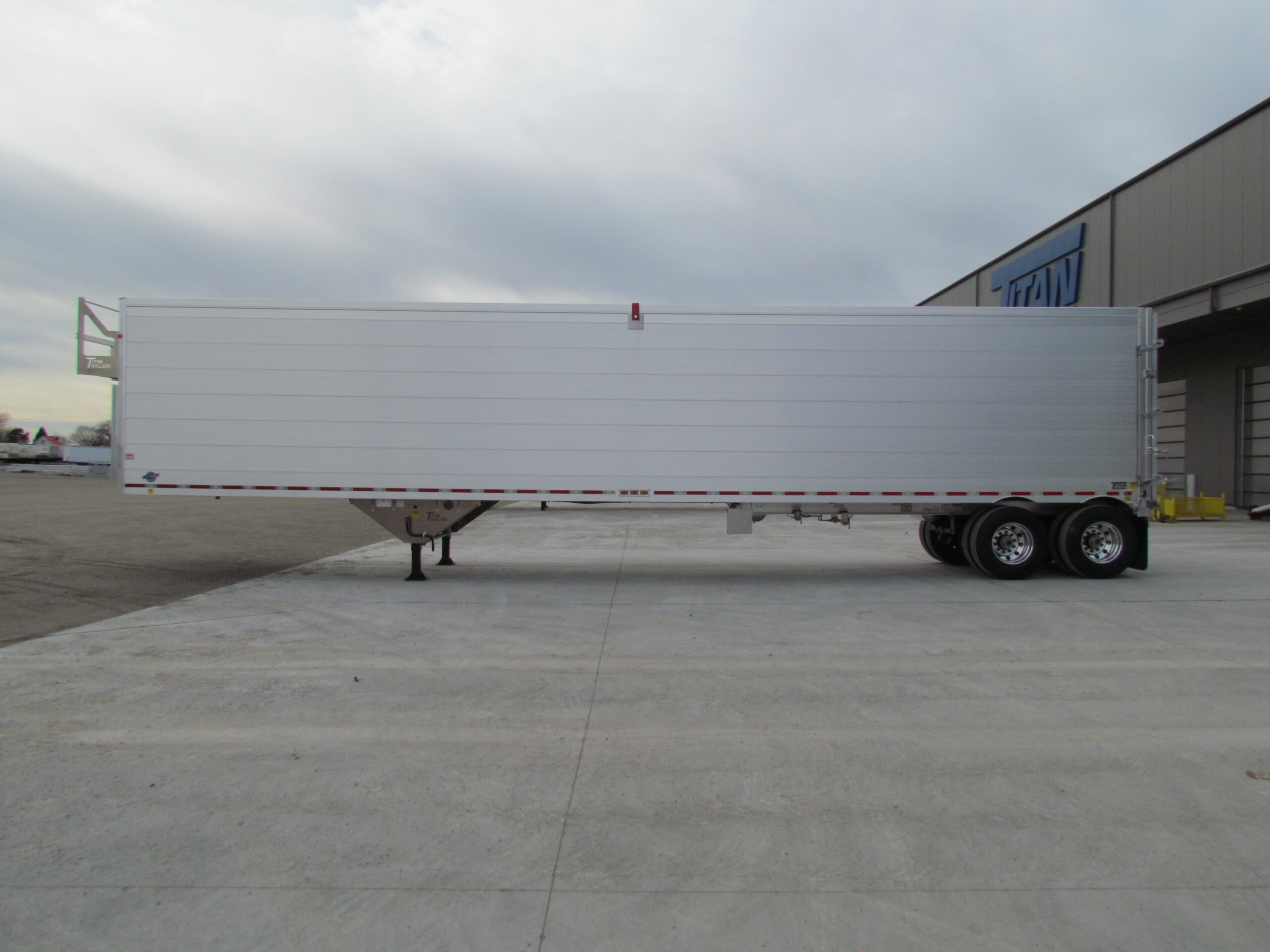

2026 TITAN 48′ 2 AXLE V-FLOOR TRAILER 2 UNITS CALL FOR PRICING
Customer Application Garbage Application
Base Model 48-2-TW-VF OT
Body Style Straight (top panel cut to wedge)
Wall configuration
Front To suit garbage application upgraded to EHD panels wherever possible

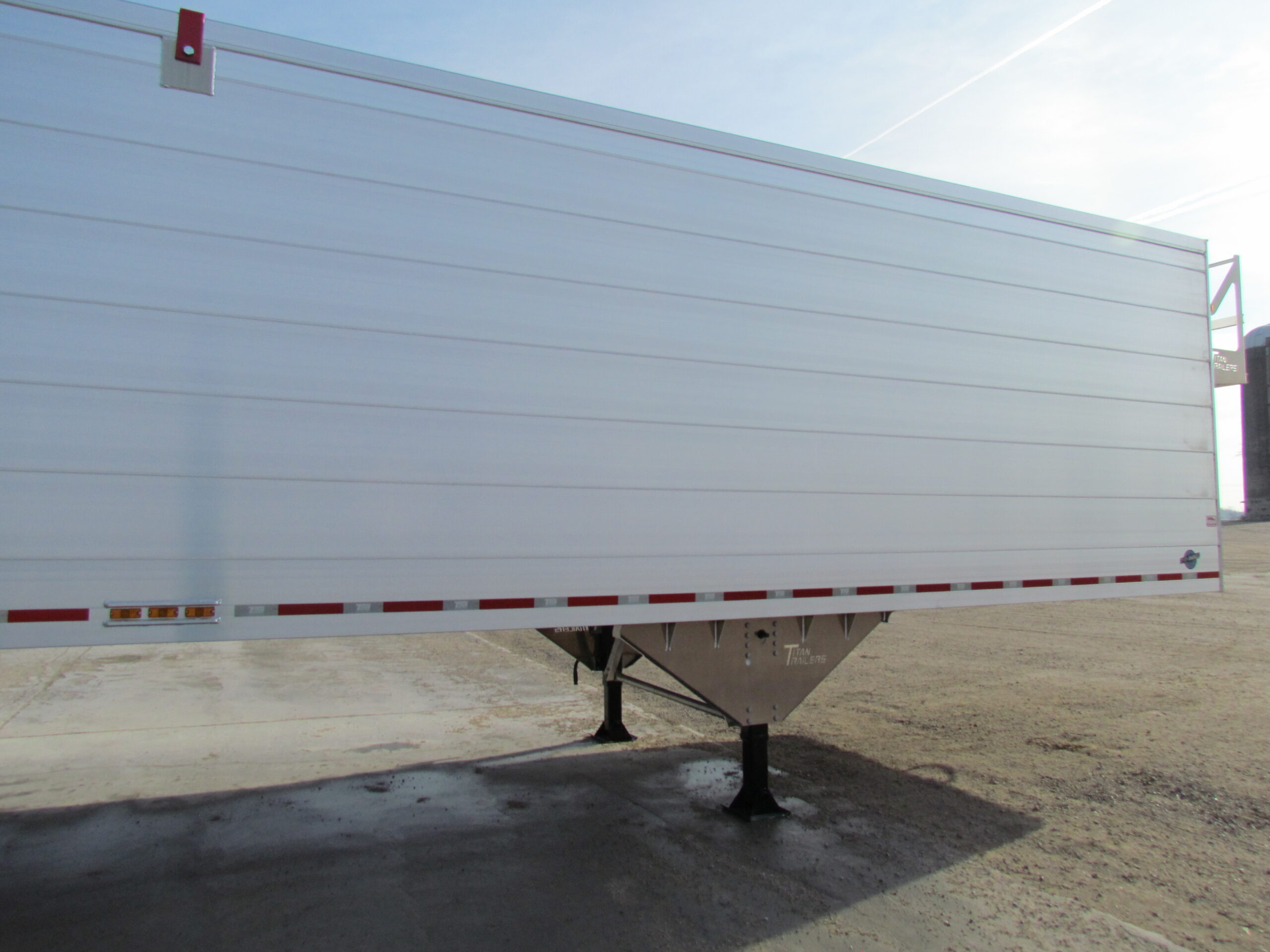

Sides 7-14” + 1-12” to suit garbage application upgraded to EHD panels wherever possible, top panel cut to wedge

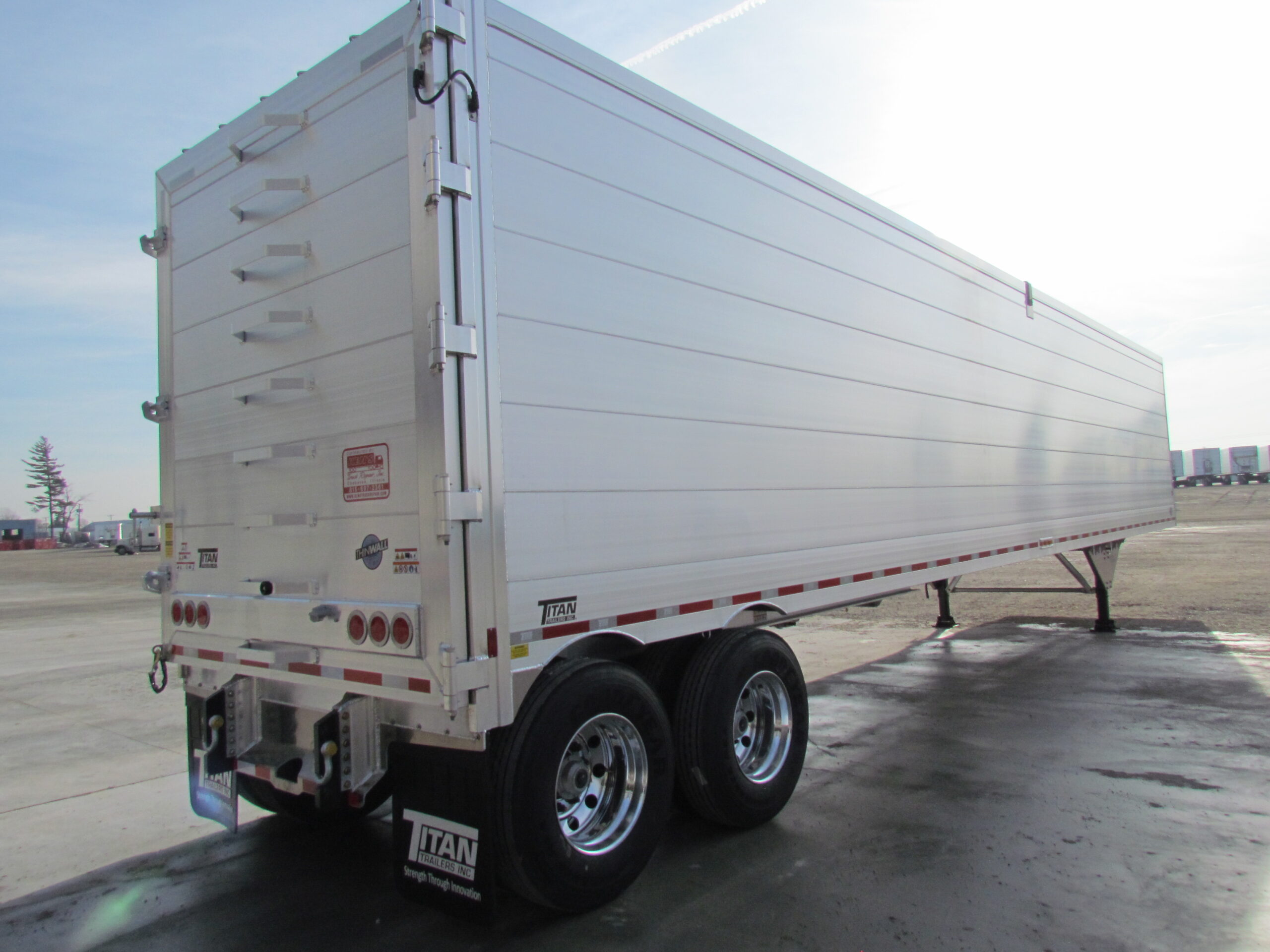

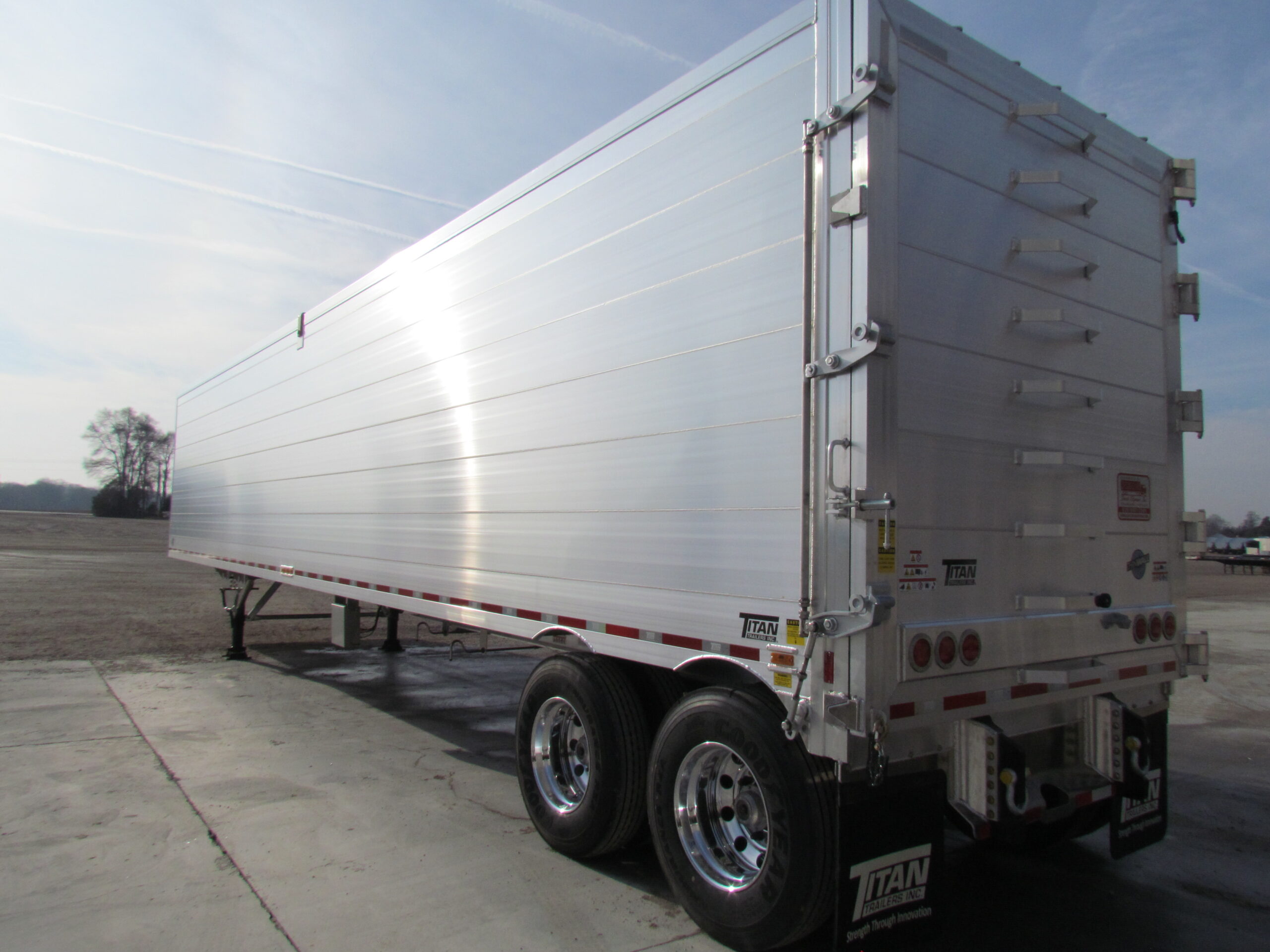

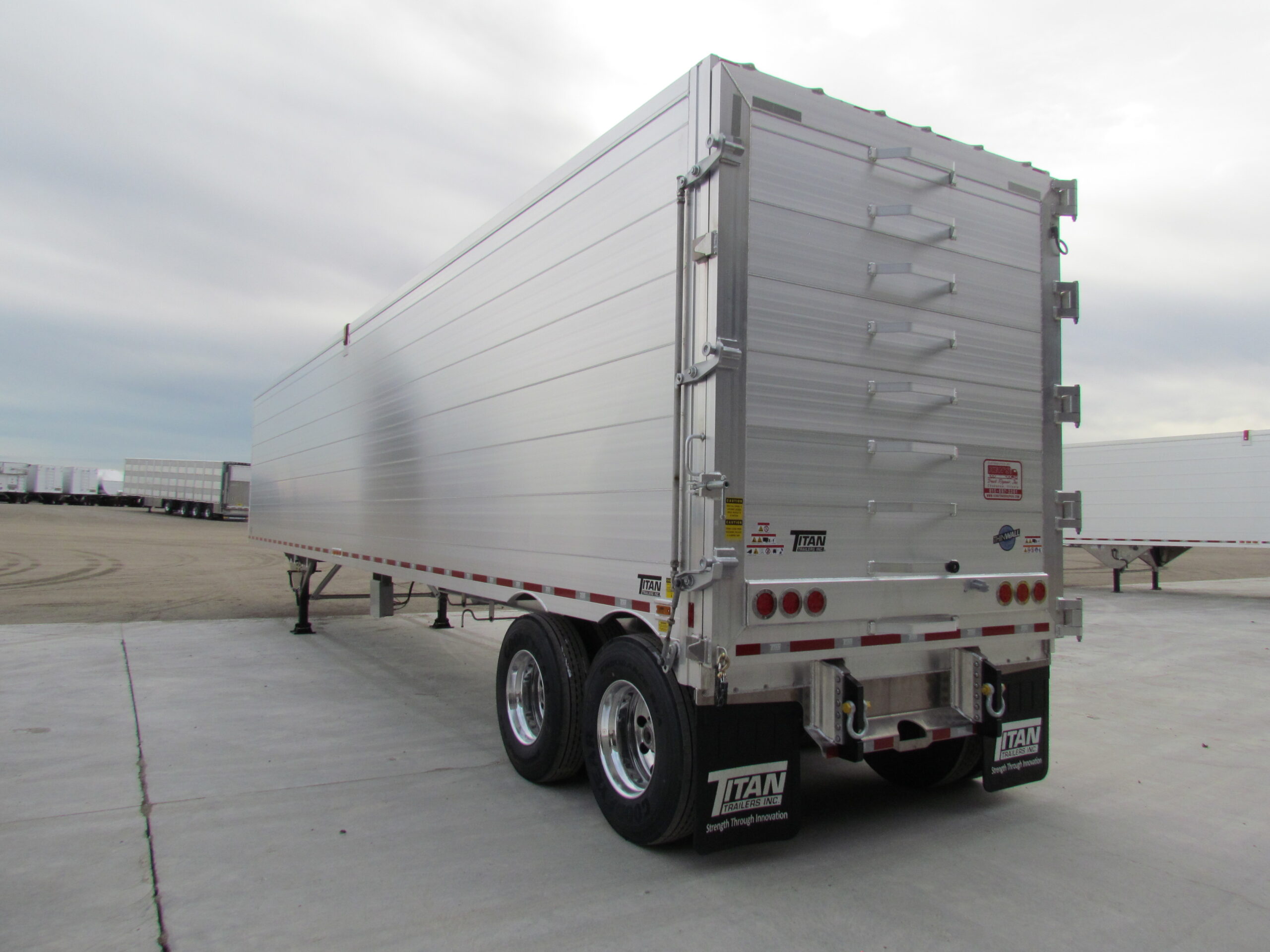

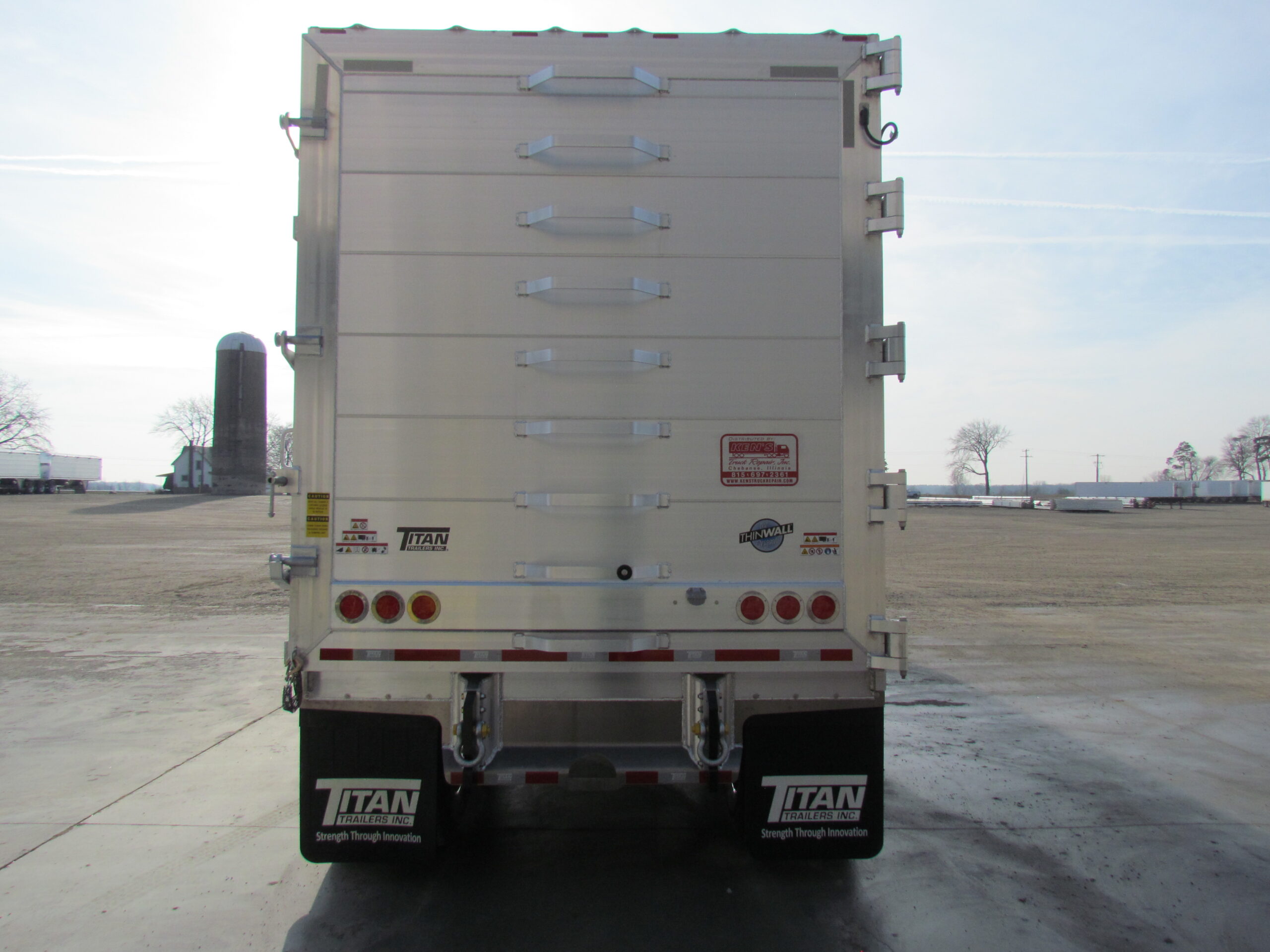

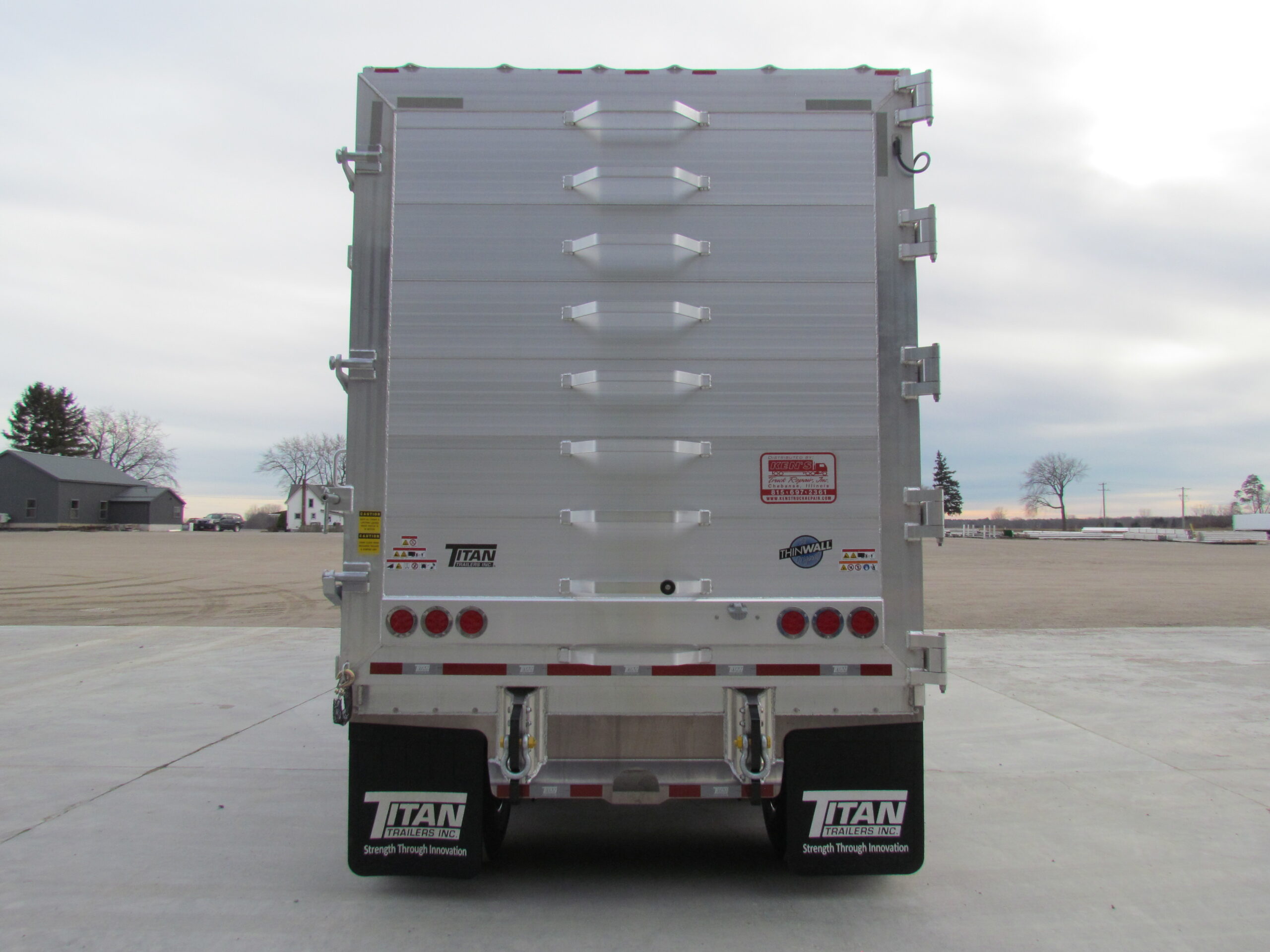

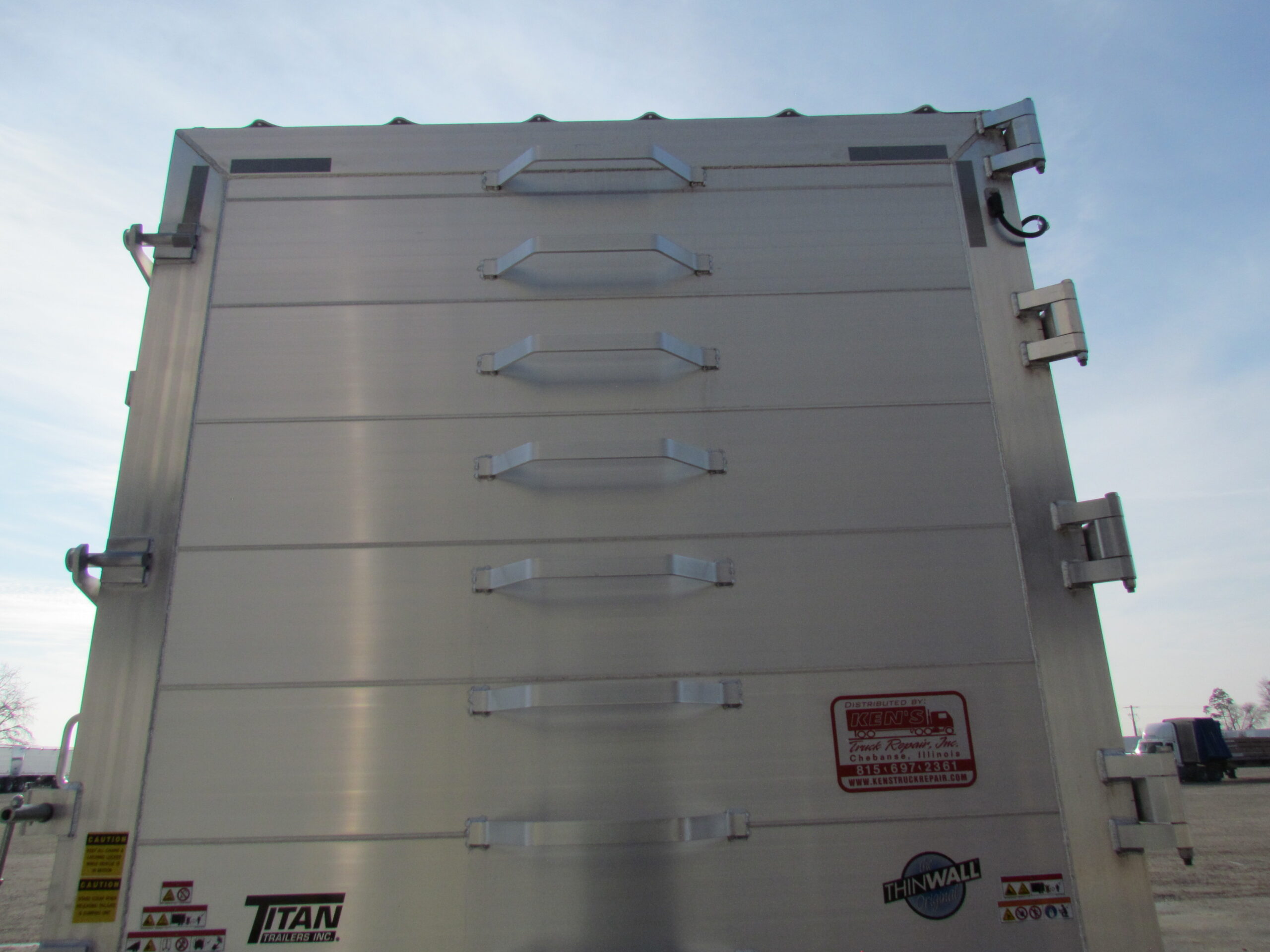

Rear Door Sideswing, Solid, lights in door, air release w/reinforced Bottom lock finger- See Note #3
Overall Length 48’
Overall Width 102”
Overall Height 13’ 3-78” (159.875”) approx.

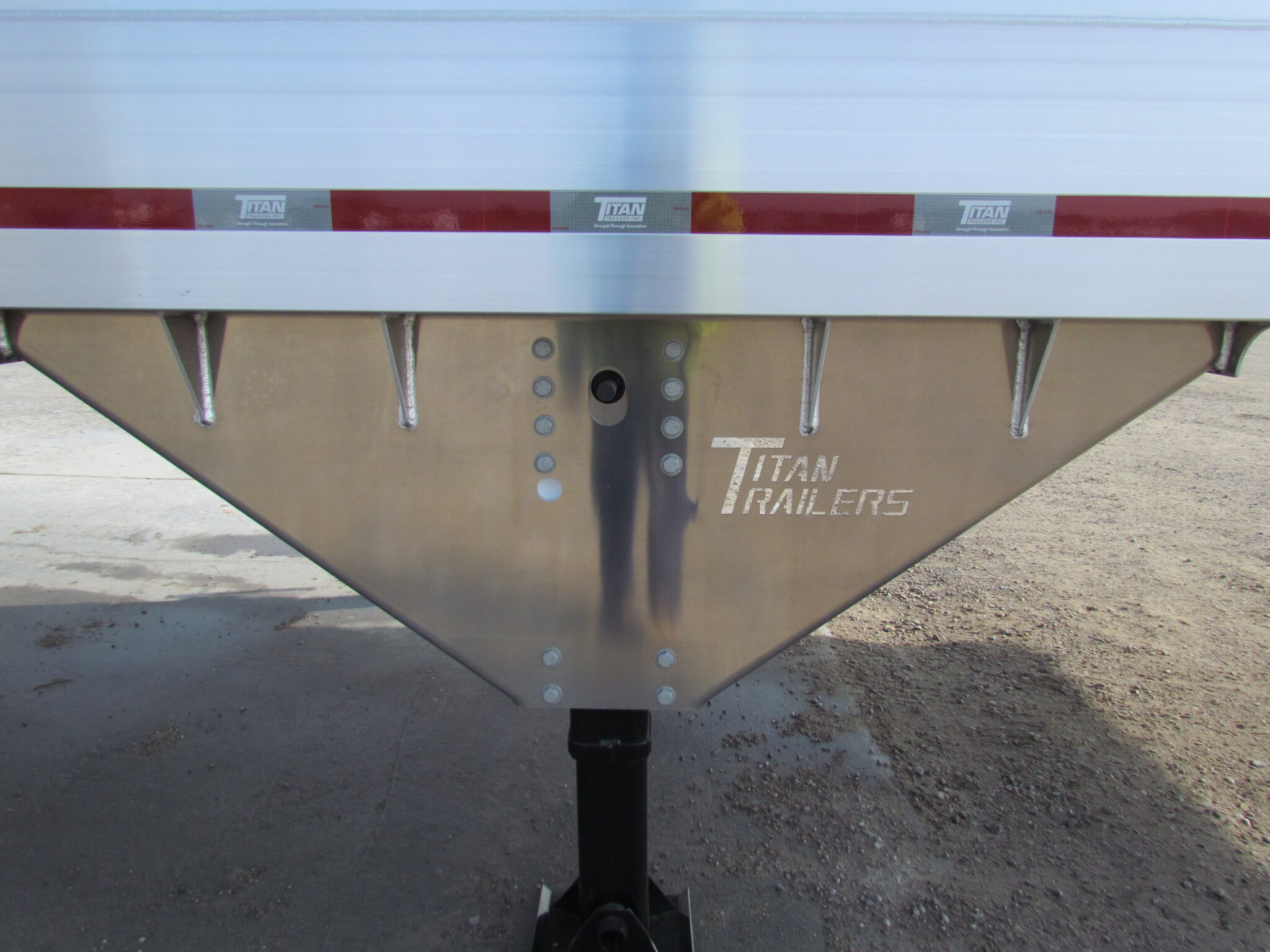

King Pin Location 36” WELD IN
Upper Coupler 5/16” THK- set @ 48” high
Number of Axles Primary Two (2)
Axles 5” Round .580 Wall-Straight Spindle
Axle track 77.5”

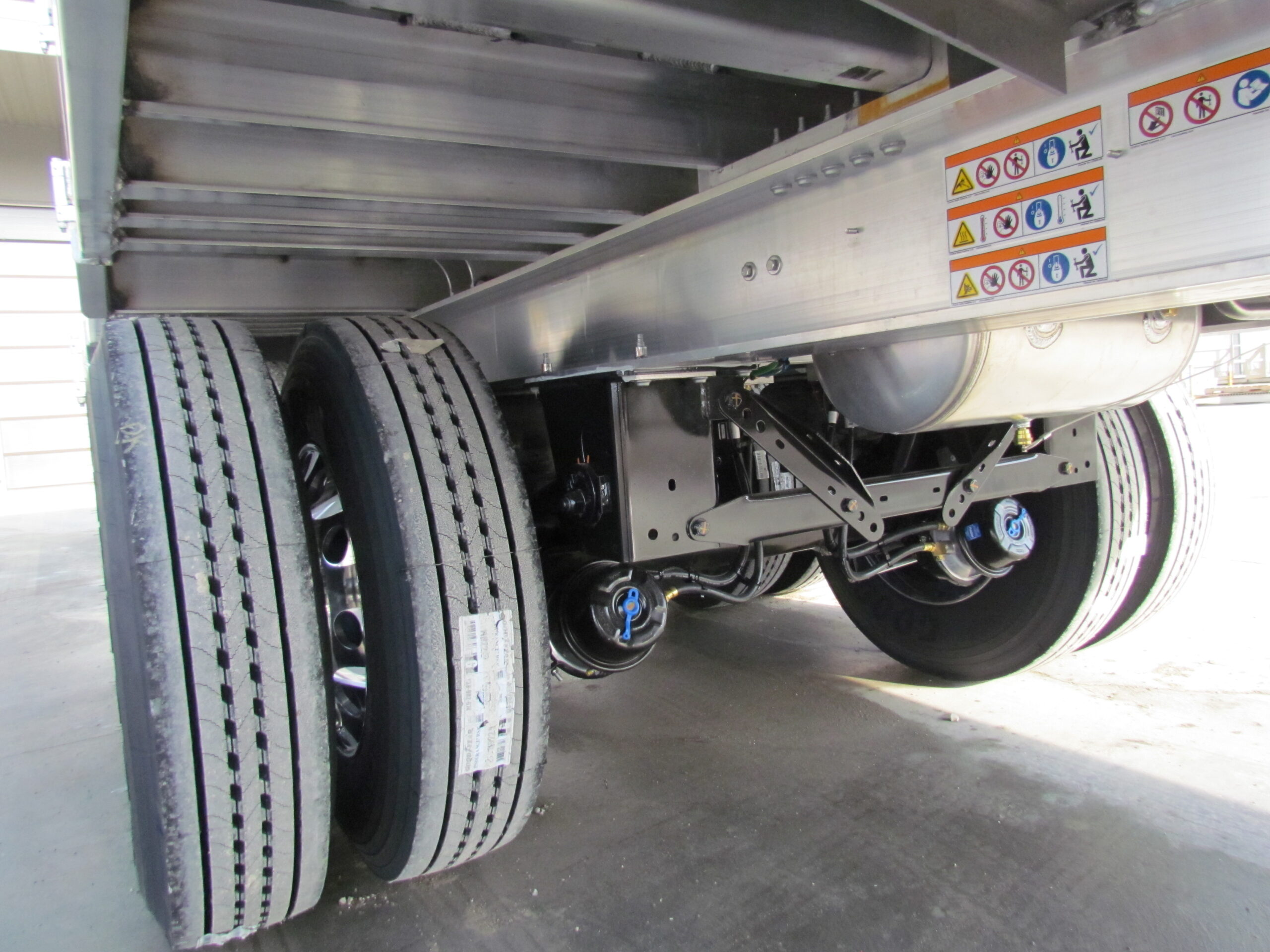

Suspension Reyco 21B FAB w/inner & upper wear pads & 3 leaf springs
Location of Spreads See axle layout
Hub & Drum Assembly 10 Stud Dura-light Hub, Centrifuse Drum
Disc Wheel Size 8.25 x 22.5
Rims Steel Std Duty (Prepainted White)

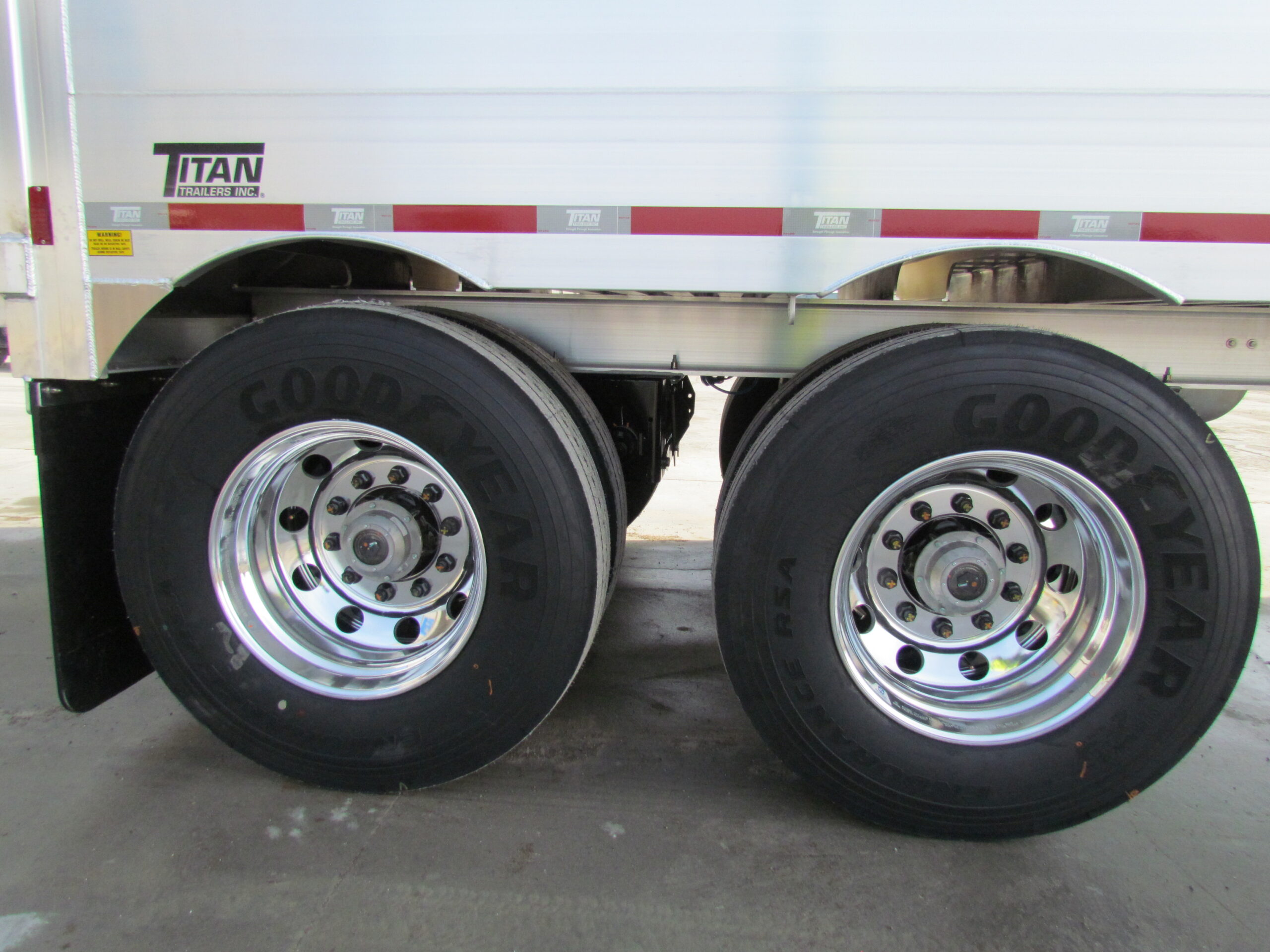

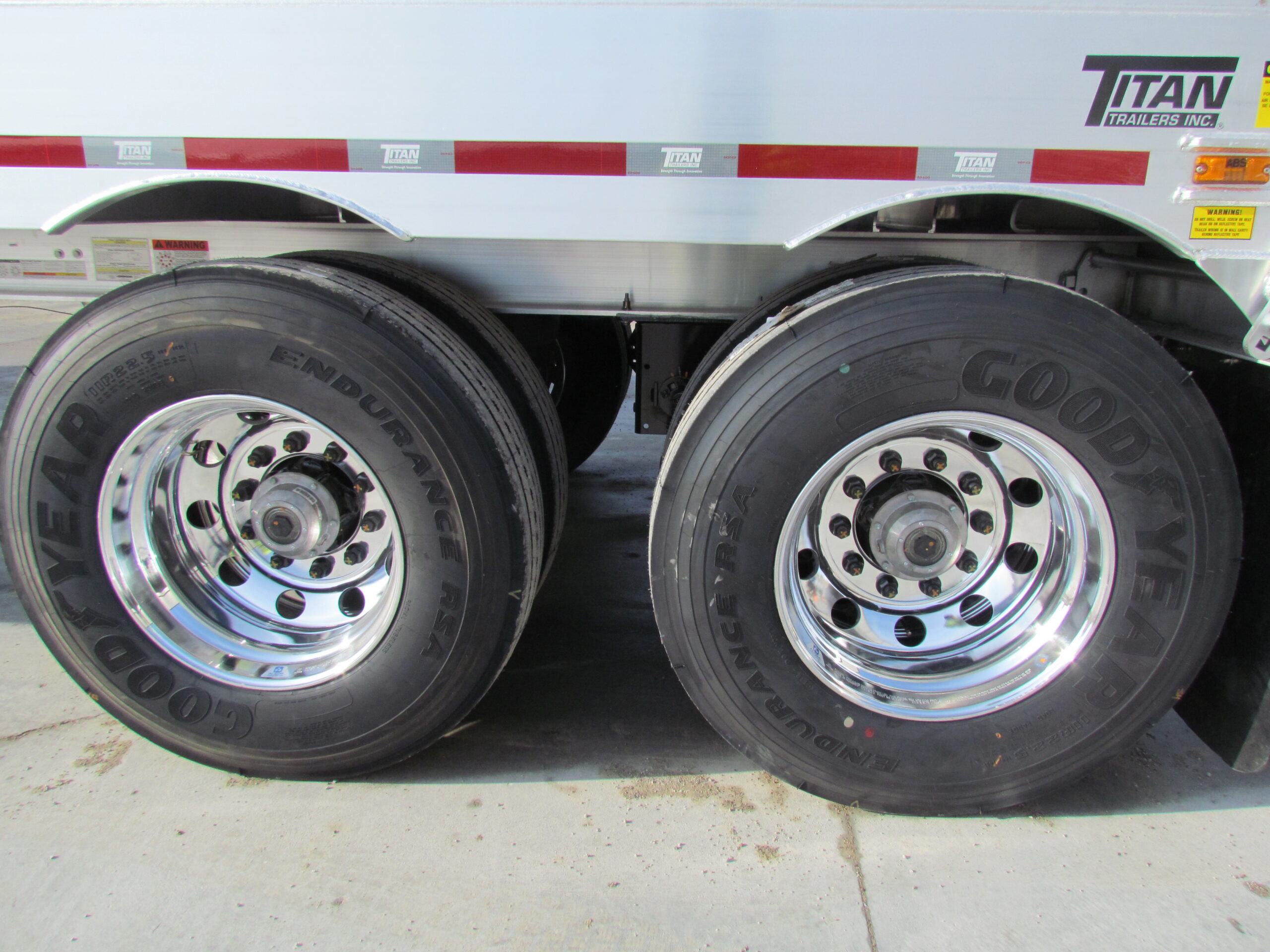

Tires Brand Goodyear
Size 11R22.5 – 41.4 dia
Tread Endurance RST
Ply 16
Quantity 8
Axle layout FRONT–Prim-50-Prim-28-REAR
Oil Seals To suit axles
Lubricants Oil-80W-90
Brakes ABS 2S1M Meritor Wabco
Slack Adj Meritor Auto
Cam Enclos All Axles c/w Dust Shields
Lift Kits None
Lift Control None
Frame Width 48”

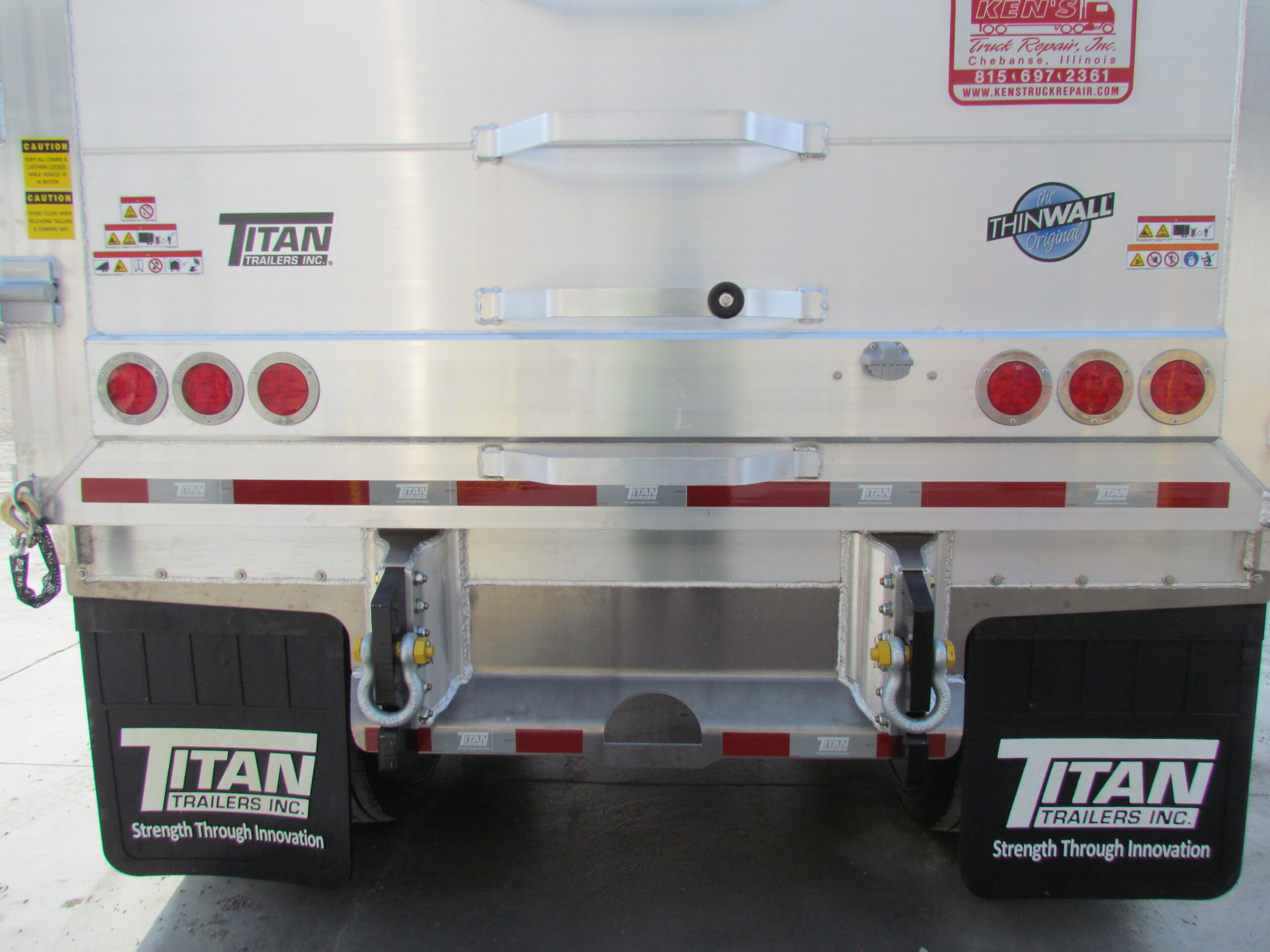

Rear Bumper Aluminum Offset, Push
Additional Bumper Option # 1 Tow Shackles
Additional Bumper Option # 2 Steel Vertical Blocks Bolted to Bumper protrudes 3 ½” sloped top
Tire Carrier None

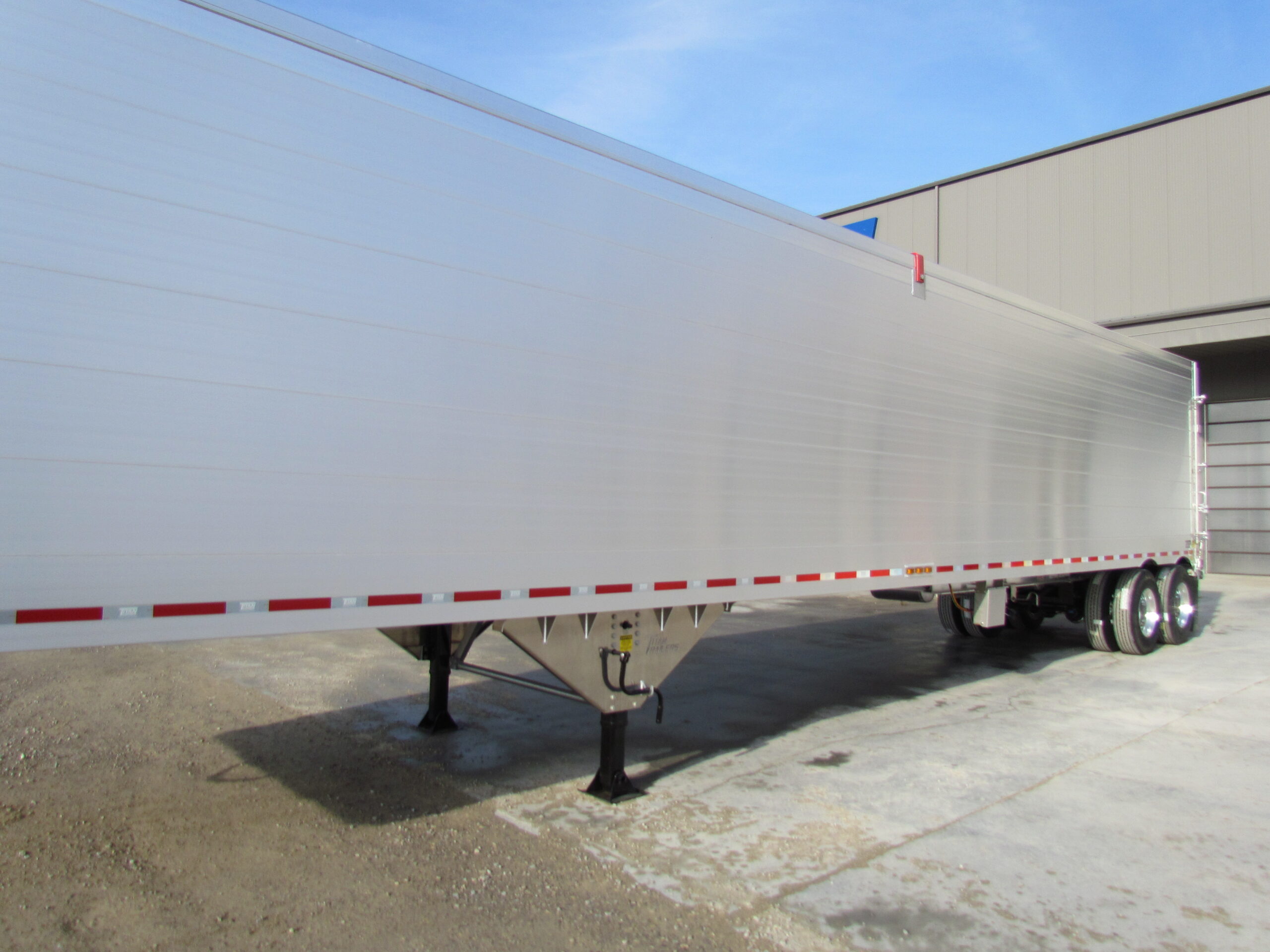

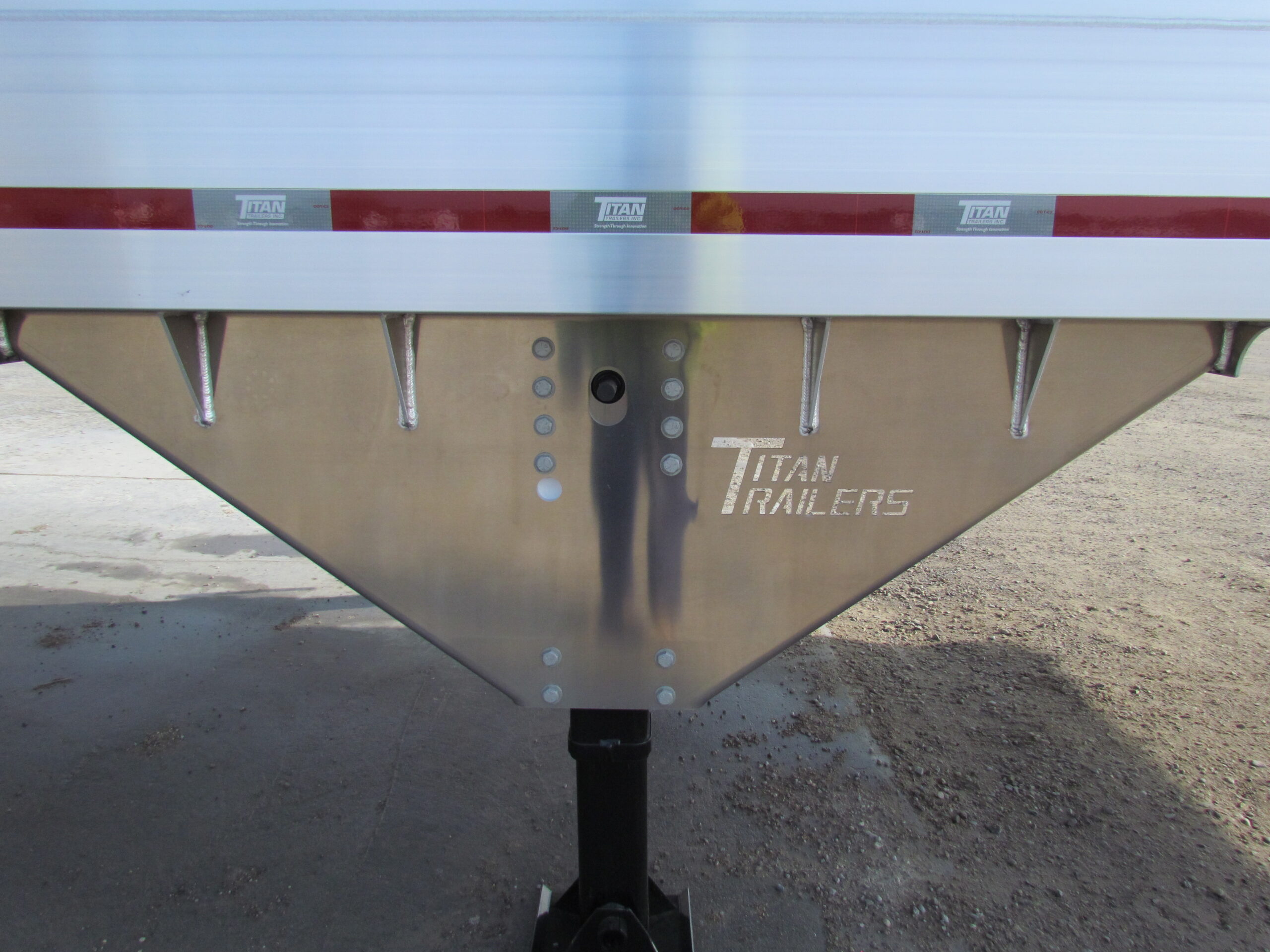

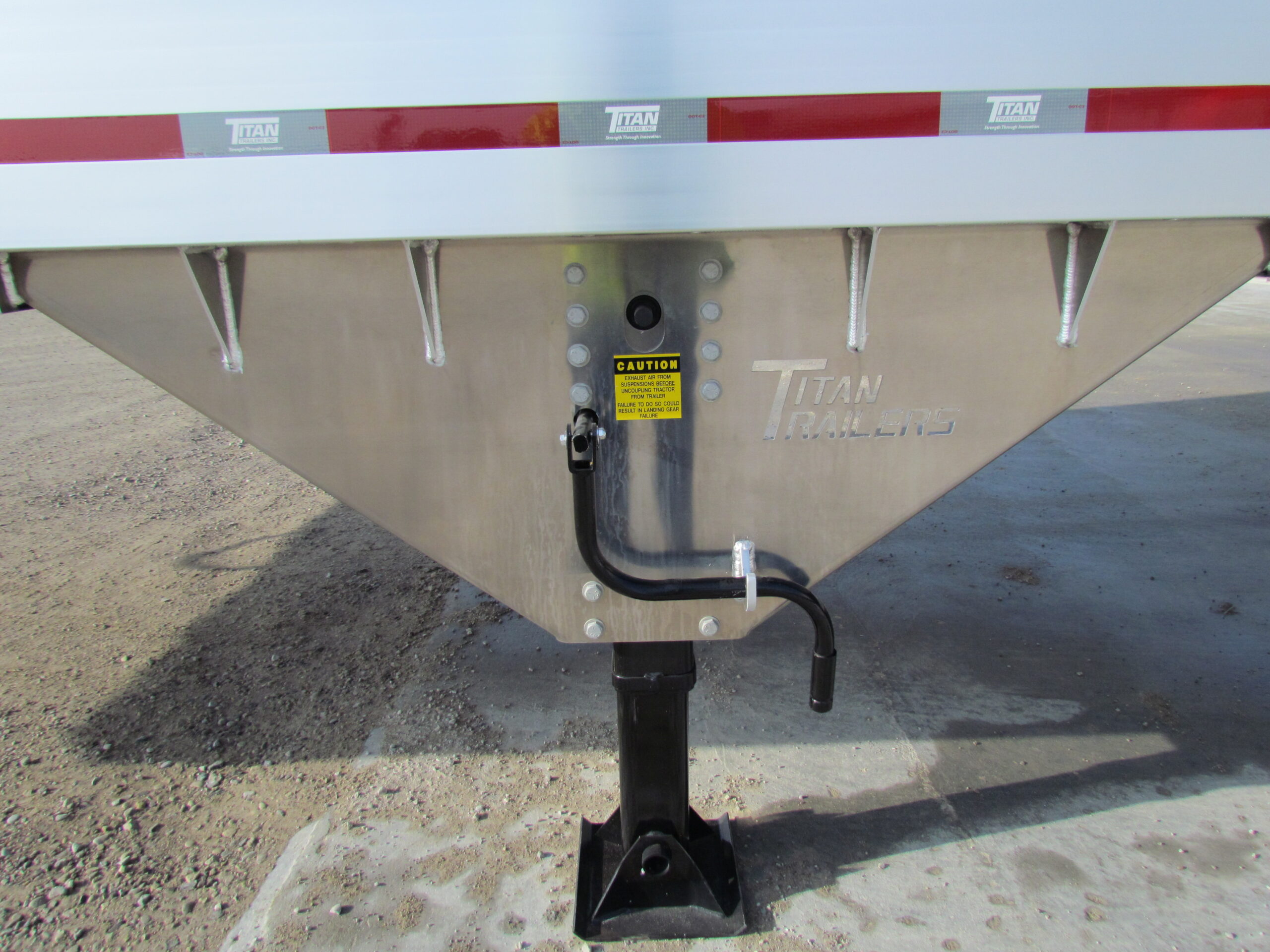

Landing Gear SAF-Holland Mark V: 105 Std Skid Foot
Top Rail Titan Tapered V1
Top Cross Tube Qty 1- Spring Steel (two piece style) – See Note # 5
Floor Crossmembers 12” Centers

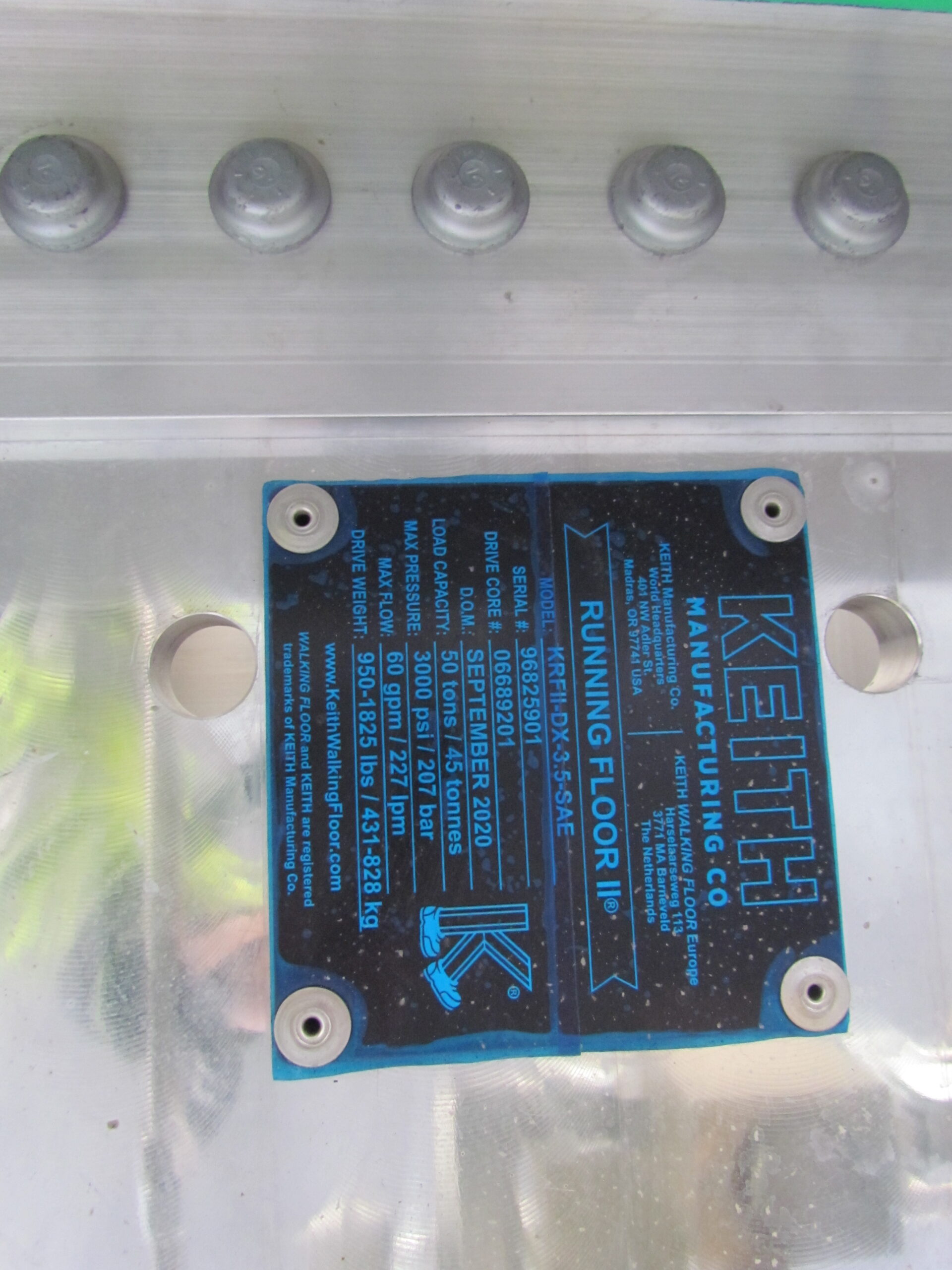

Keith Walking Floor Kit Running Floor II -3.5” Dia Cylinders, 6” stroke – See Note # 4

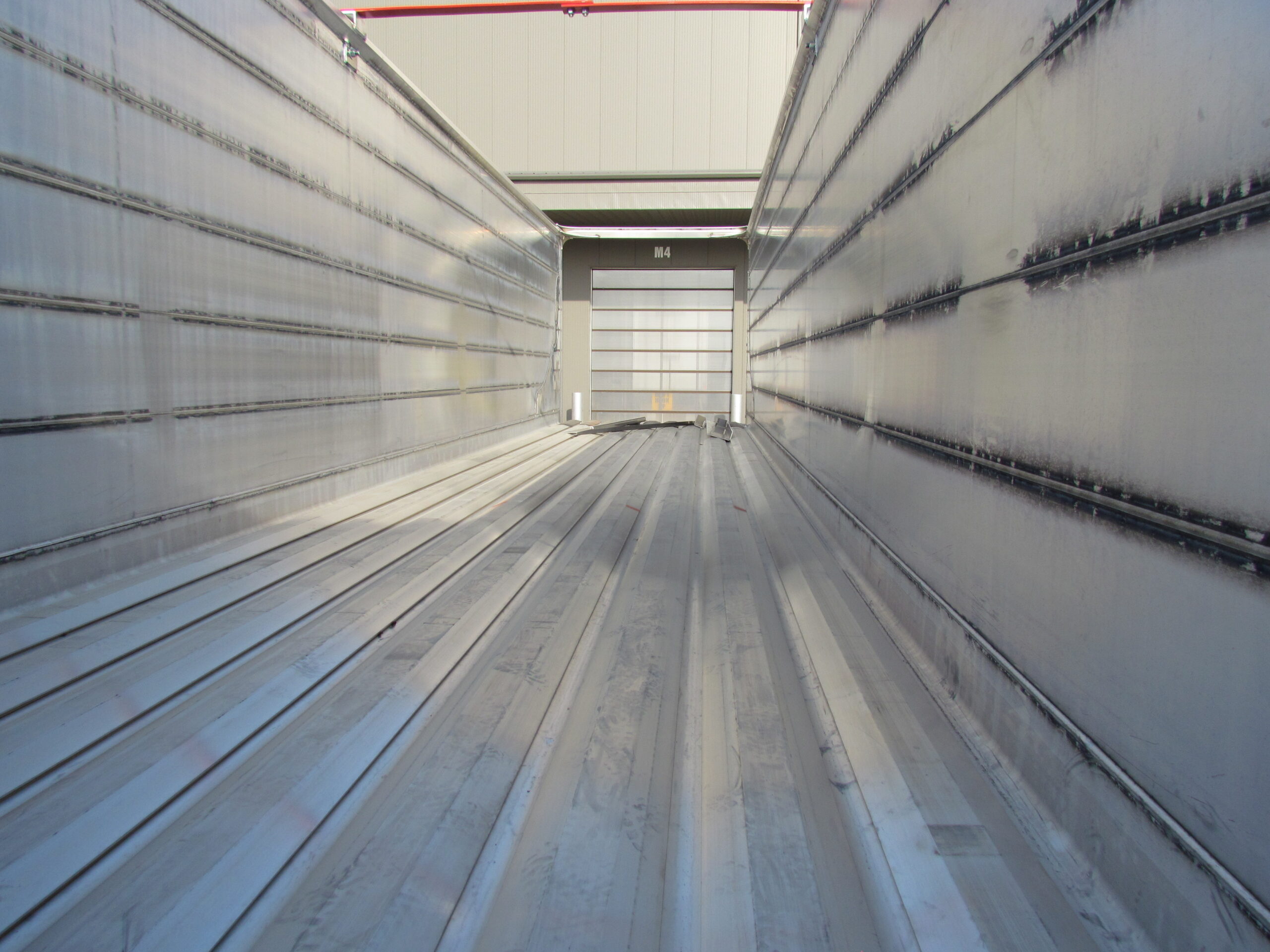

Slat Model & Width 9 Slat: 2631 slats (Alum flat top – 3/8” THK, 10.5” Centers), 2490 Subdeck, 2493 J-Bearing
Slat Wear Strips 48” long steel tips
Continuous Bearings None
Side Wall Wear Plates Boomerang Style
Front Access Door Std-(35”W X 37.5”H), Curbside Hinge W/ Flip Step, located center
Tarp Style None
Tarp Header None
Tarp Basket None
Tarp Hooks None
Axle Fender None
Hyd Fitting Pressure 1” Quick Coupler – See Note # 2
Return 1” Quick Coupler – See Note # 2
Mud Flaps Style Titan Black Rubber
Location (2) at rear
Mud Flaps – Landing Gear None
Paint Body – Color Natural Aluminum
Run – Gear Titan Black
Hub/Drum Same As Running Gear
Rims Or Disc Steel Prepainted White

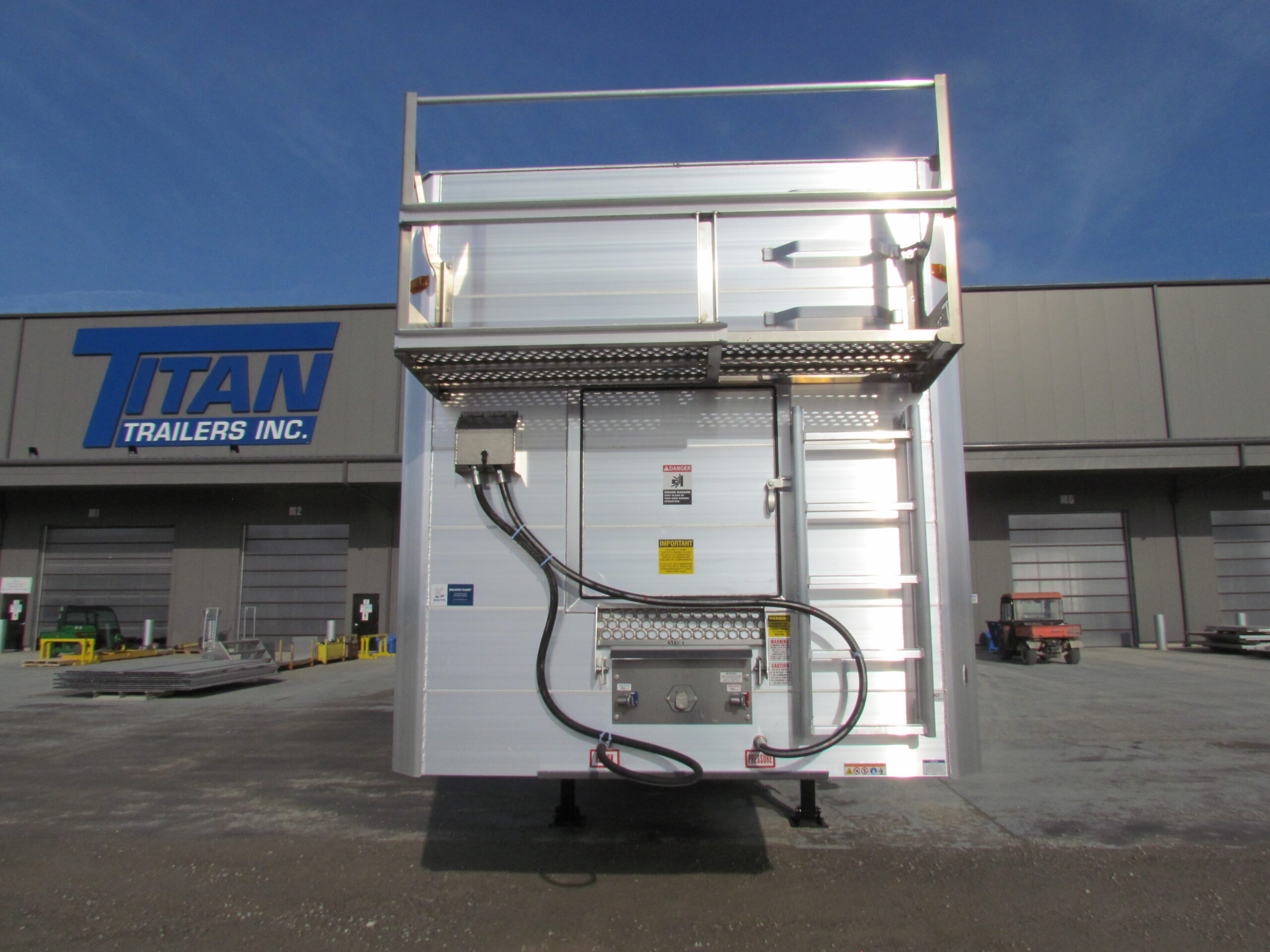

Light Package (Plug Form) Front: (1) mkr per corner mitre. Sides: (2) mkrs (includes midturn) Rear: (5) mkrs at top, (3) 4” round taillights per side in Door
Access

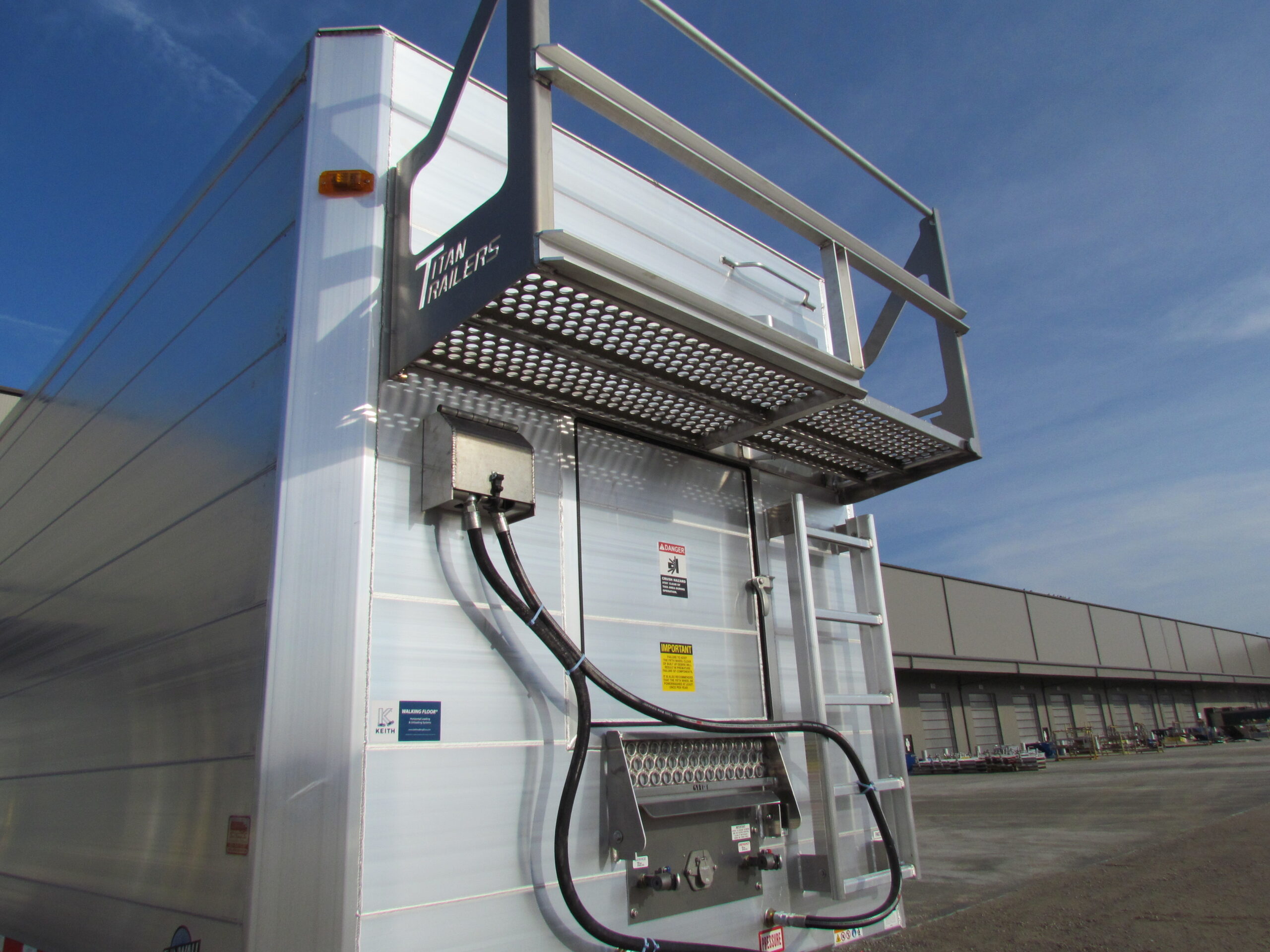

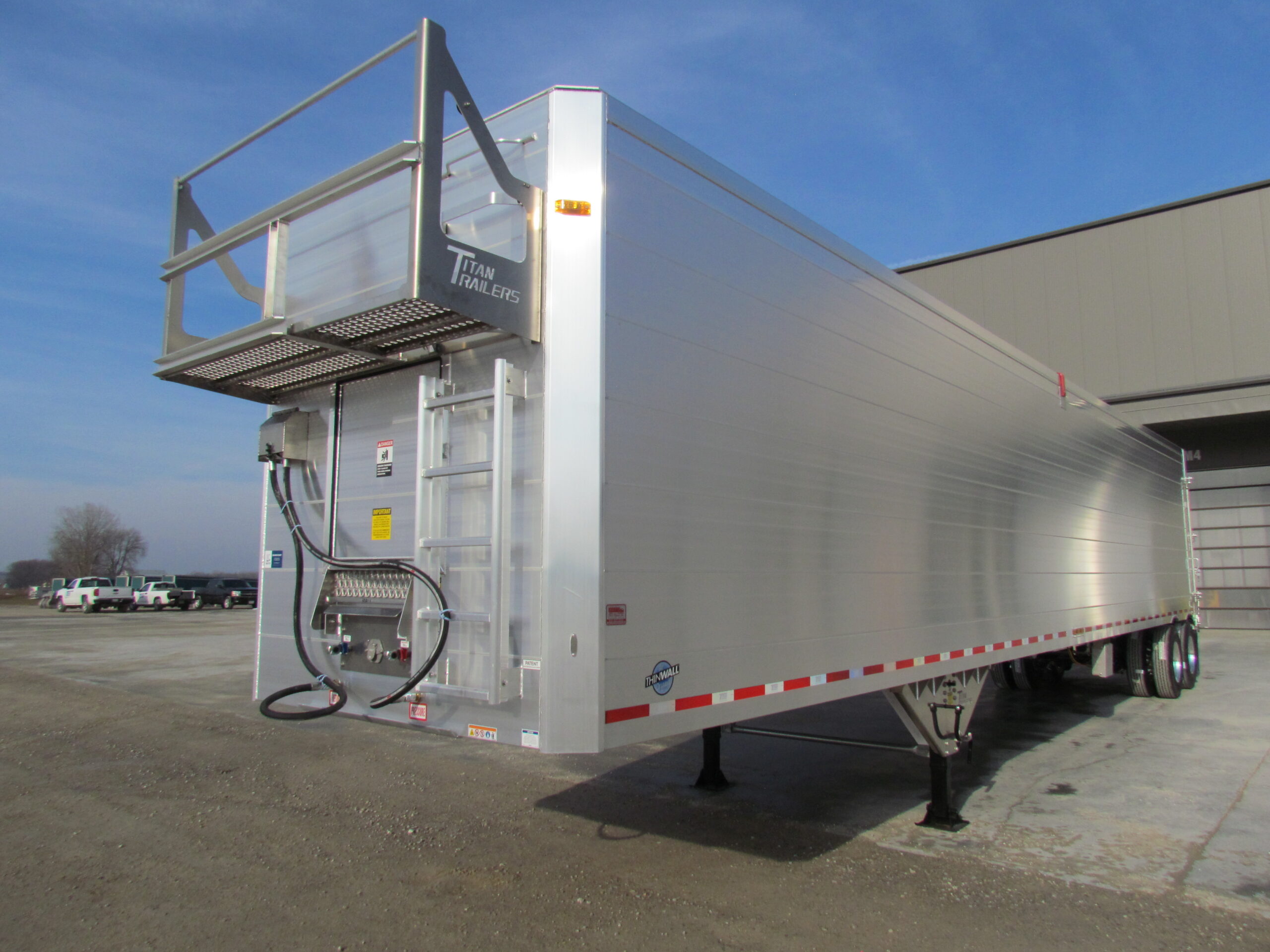

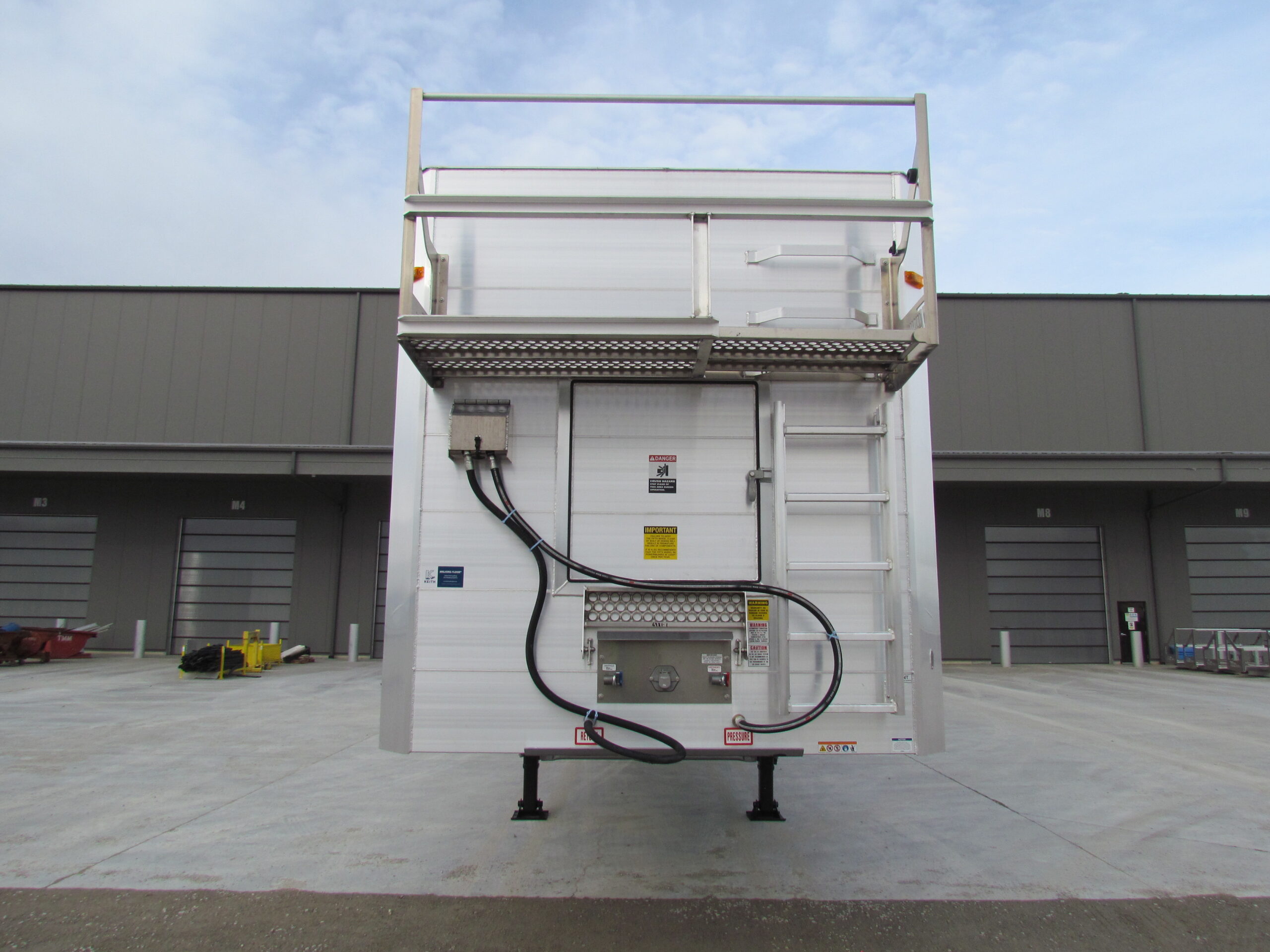

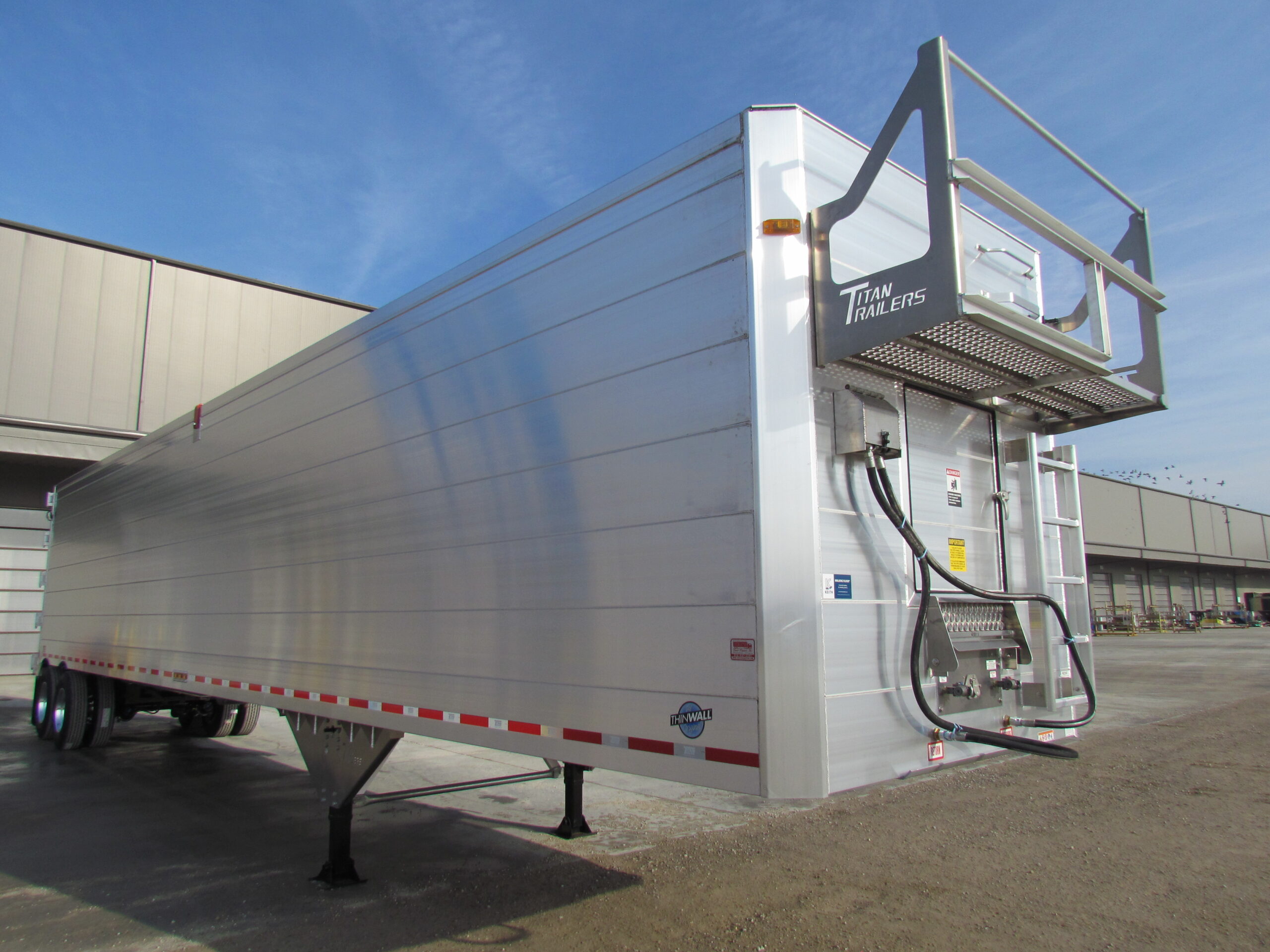

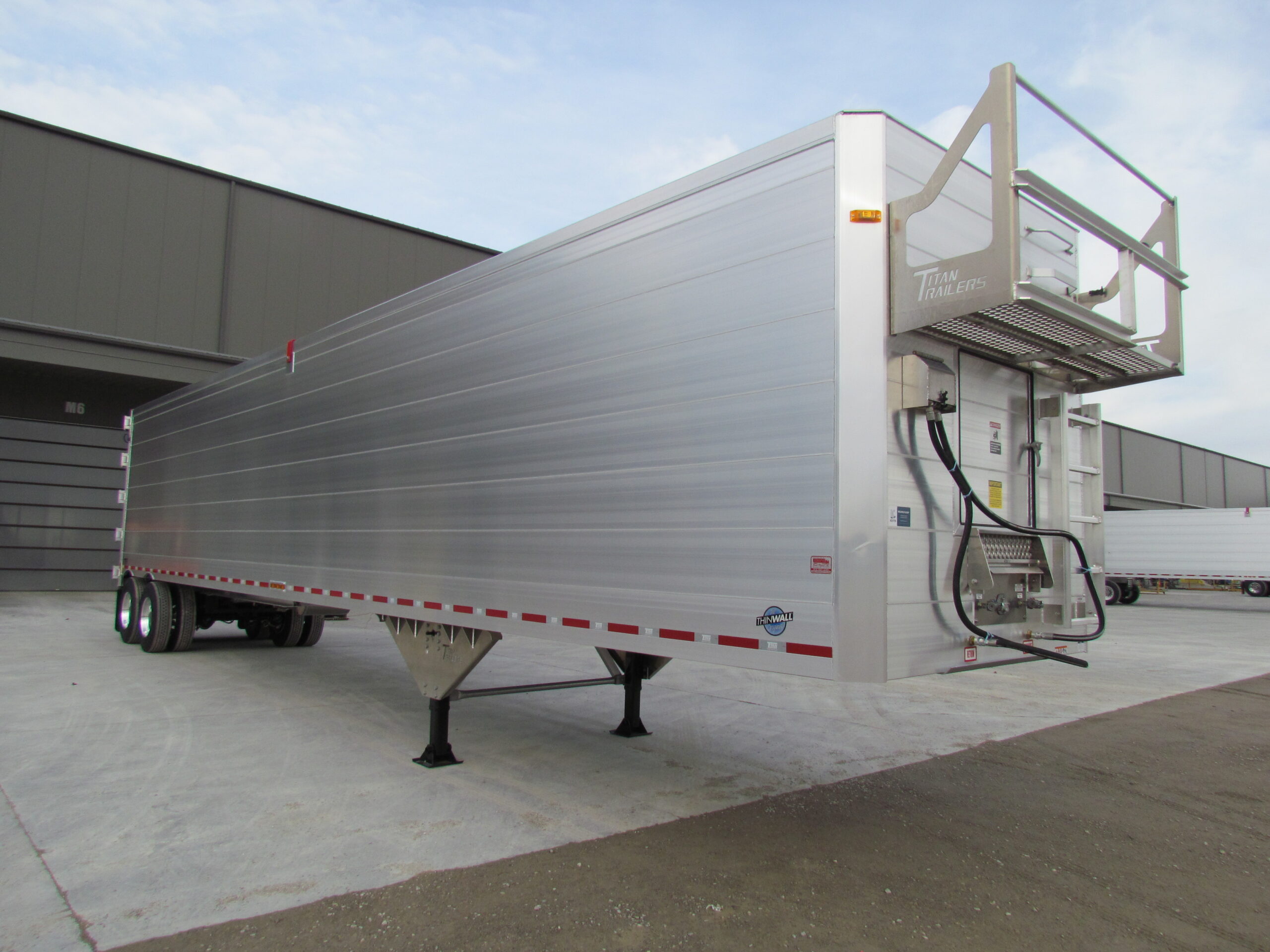

Catwalk Universal Roadside Enty 24” Catwalk
J-Ladder – Front Roadside to Catwalk
J-Ladder – Rear None
Steps-Front-Out None
Steps-Front-Ins None
Steps-Rear Rung style steps up middle
Additional Specifications:
2. a) Add 9’ hoses to front wall b) Add hinged lid hose hanger to front wall
3. Tapered door header with 1-PC gusset attached to top side of tapered header. Gusset to suit 10” bolt on tarp header

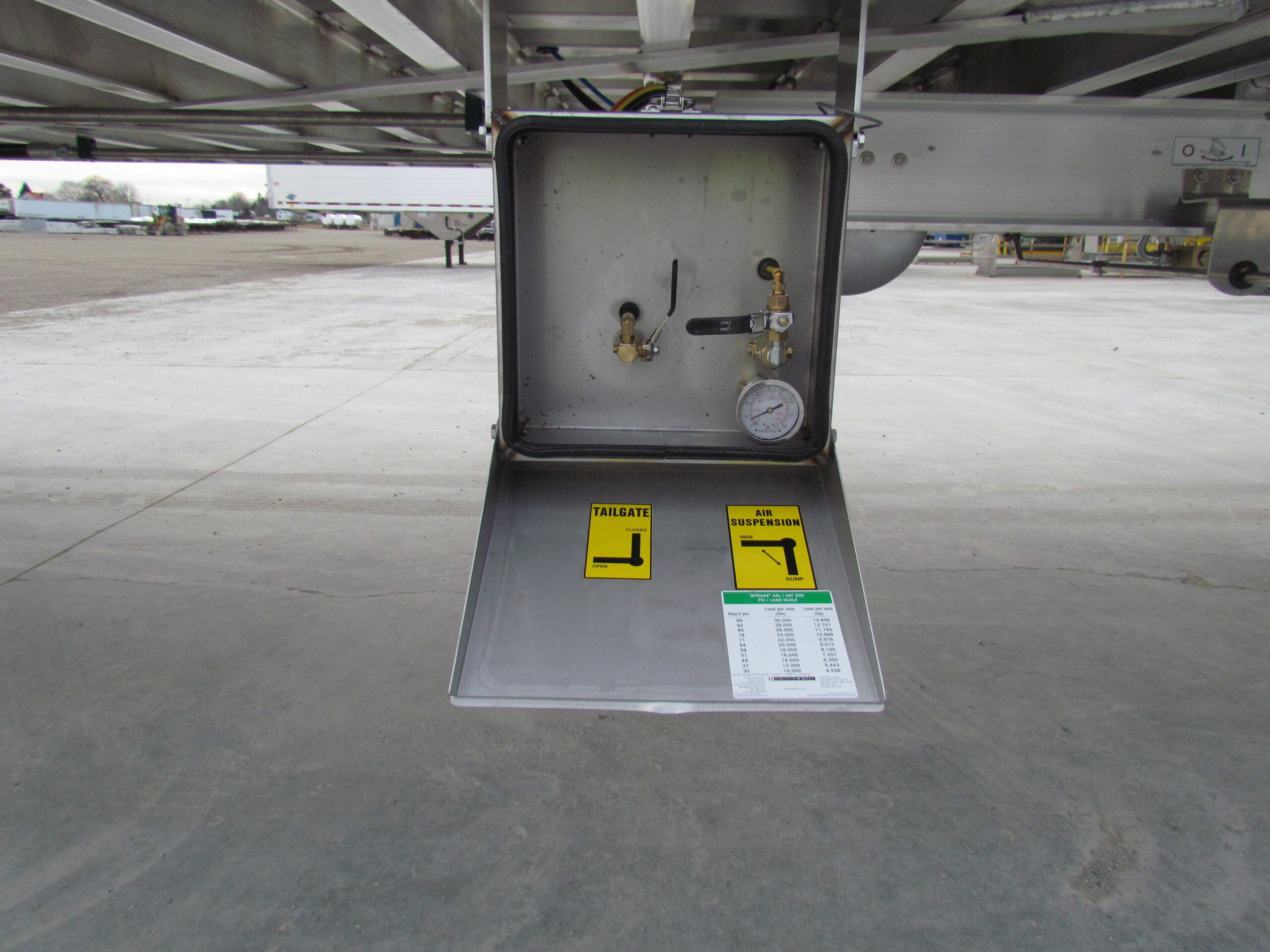

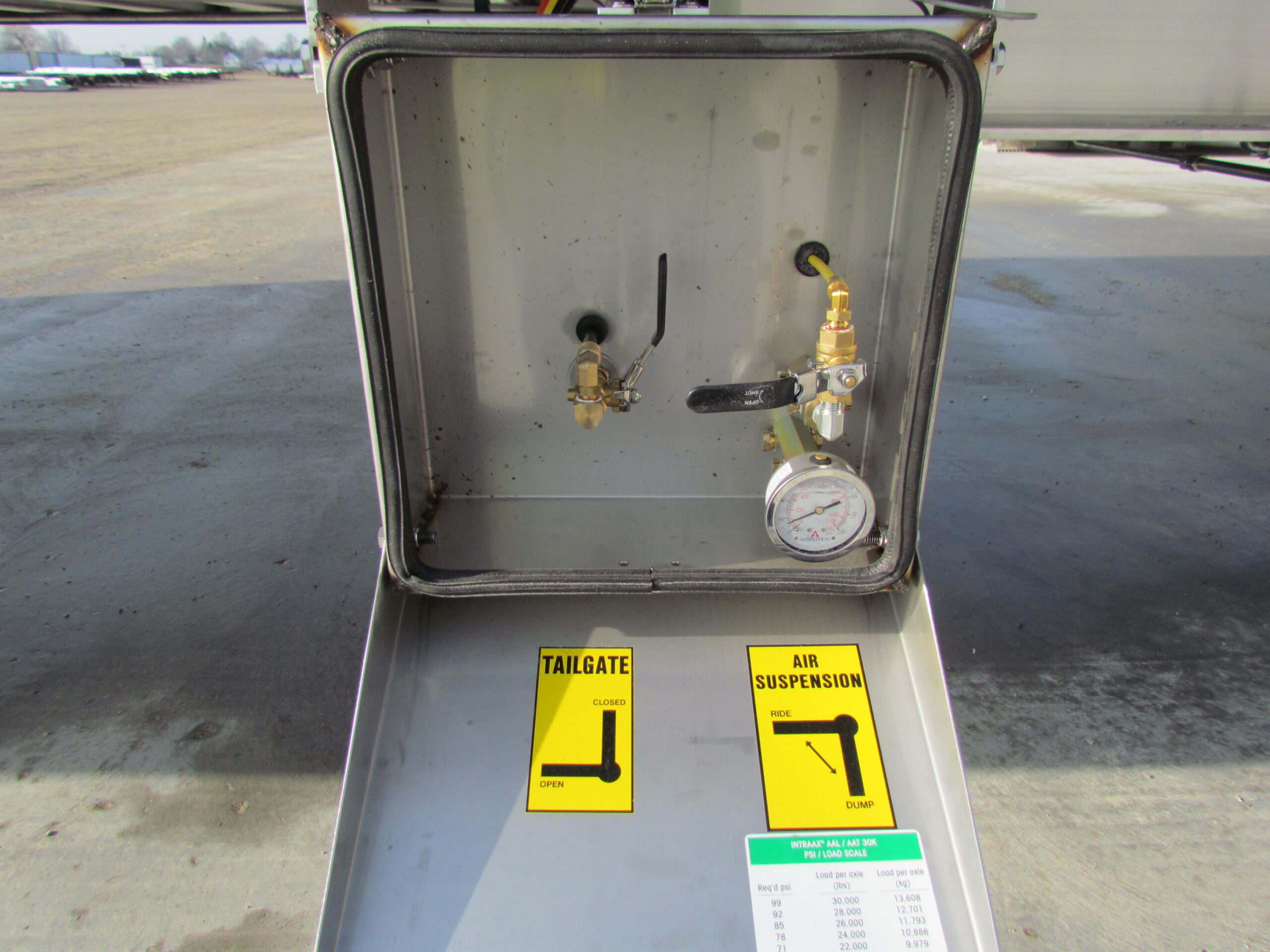

4. Add 2.5” hydraulic pressure gauge to frame (flush mount), located beside the on/off handle with identifying label
5. Ship Loose: QTY (1) 4” OD steel crosstube pinned to steel bolt-on brackets
Estimated weight: 19,600 lbs. +/- 3%
Estimated volume: 127 cu yds
