2026 TITAN 48′ 2 AXLE TIPPER TRAILER    25 UNITS AVAILABLE     CALL FOR PRICING

Customer Application                         Garbage sheet floor

Base Model                                            48-2-TW-TP (open top)

Body Style                                              Straight

Panel Configuration                             7-14” + 1-6” panels to suit garbage application – See Note # 3 Overall Length                                 48’

Overall Width                                      102” Nominal

Overall Height                                    13’ 4” (160”) approx.

King Pin Location                               36” bolt in

Upper Coupler                                    Aluminum coupler assembly with stainless steel wear plate (3” drop) set @ 48” high

Number of Axles        Primary        (2) Two

Axle                                                      5” Round .580 Wall-straight spindle – See Note #2

Axle Track                                           77.5”

Suspension                                          Reyco 21B FAB w/ inner & upper wear plates

Location of Spreads                           See axle layout

Hub & Drum Assembly                     10 stud dura-light – hub/centrifuse drum

Disc Wheels Size                                 8.25 x 22.5

Rims                                                     ALUM LVL Outer/Inner

Tires           Brand                               Goodyear – See Note # 4

Size                                  11R22.5 – 41.4 dia

Tread                               Endurance RST

Ply                                    16

Quantity                          8

Axle Layout                                        Front-Primary-50- Primary-29.5-Rear

Oil Seals                                              To suit axles

Lubricants                                           Oil 80W-90

Brakes             ABS                             2S/1M Meritor Wabco

Slack Adj                     DRUM BRAKES: Meritor Auto

Cam Enclos                 DRUM BRAKES: All Axles & c/w Dust Shields

Lift Kits                                              None

Lift Controls                                      None

Springs                                               3 leaf TRA-3384

Frame Width                                     48”

Rear Bumper                                     Aluminum, Flush, Narrow

Rubber Bumpers                               Tailgate        Aluminum Rubber Channel Bumpers

Tow Hooks                                         QTY (1) 21B Rear Hanger Tow Hook, Roadside

Tire Carrier                                          None

Floor                                                    ¼” THK alum. sheet & 5/16” THK alum sheet at 6’ of rear

Floor Cross members                       U channel: 18” centers and 12” centers over subframe

Landing Gear                                      Jost Standard A400 Series: A401-G3-low profile cushion ft – See Note #1

Top Rail                                              Titan Tapered,V1

Top Cross Tube Qty                           QTY (1)

Top Cross Tube Type                         Spring steel (two piece style)

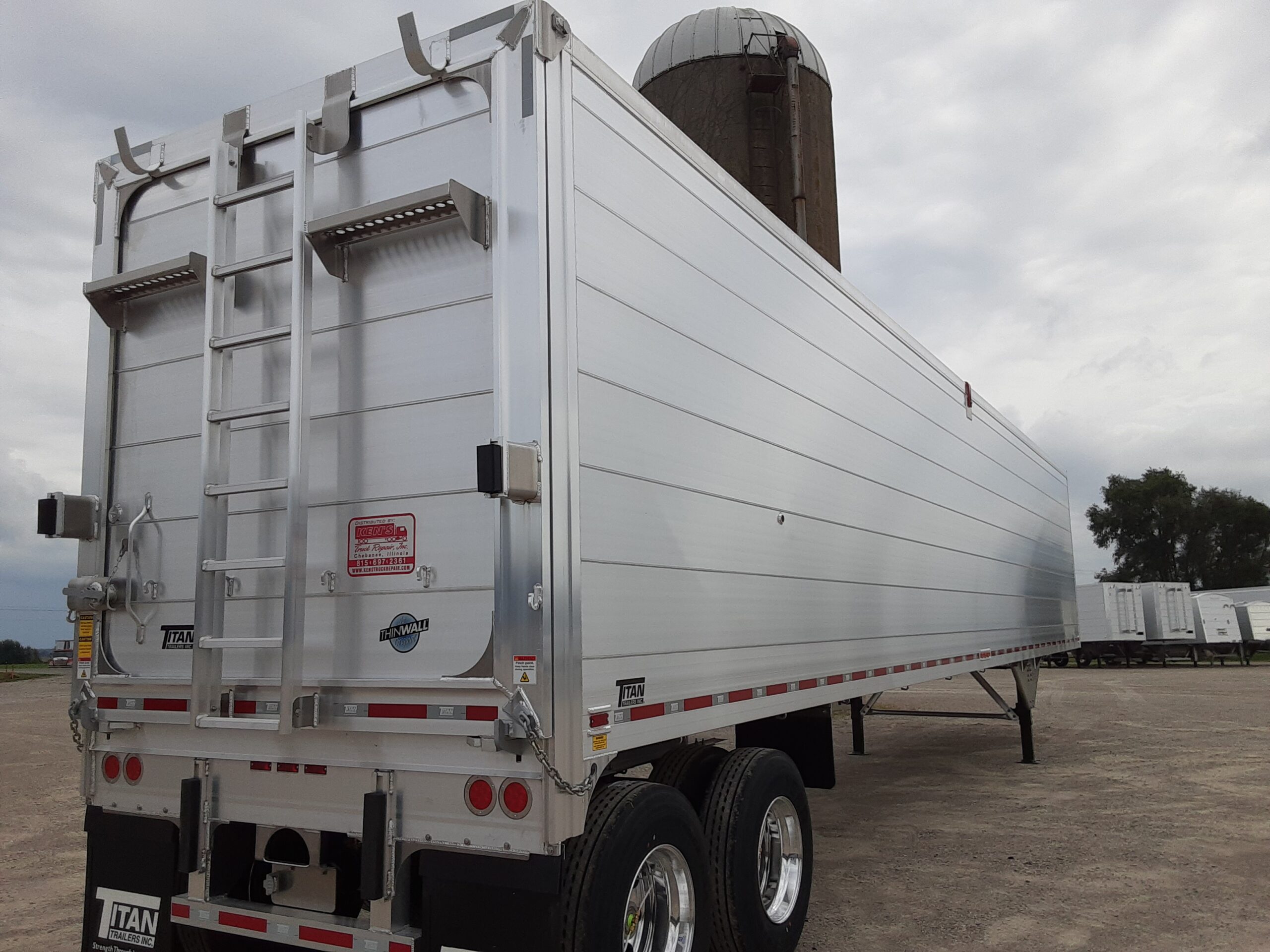

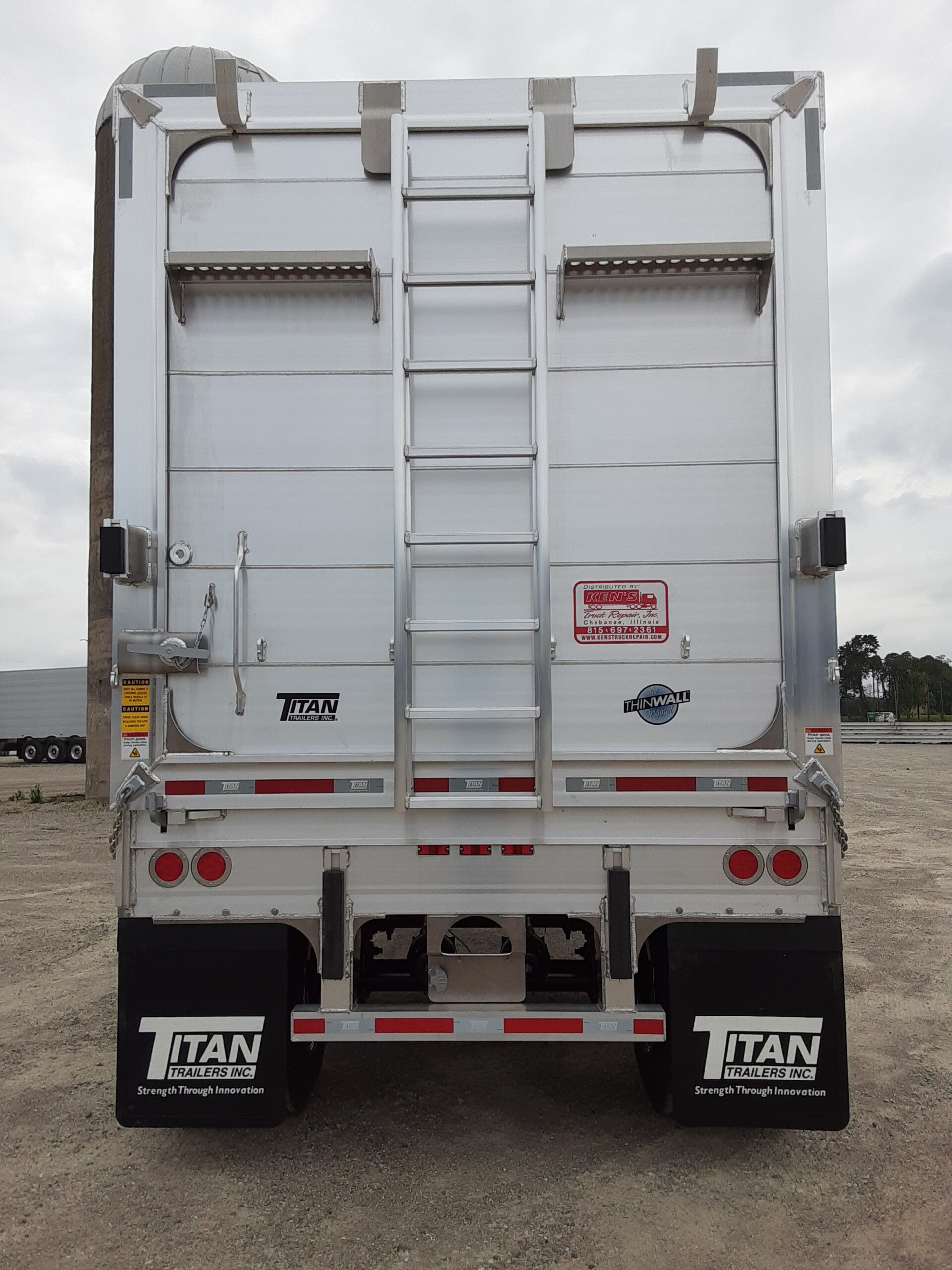

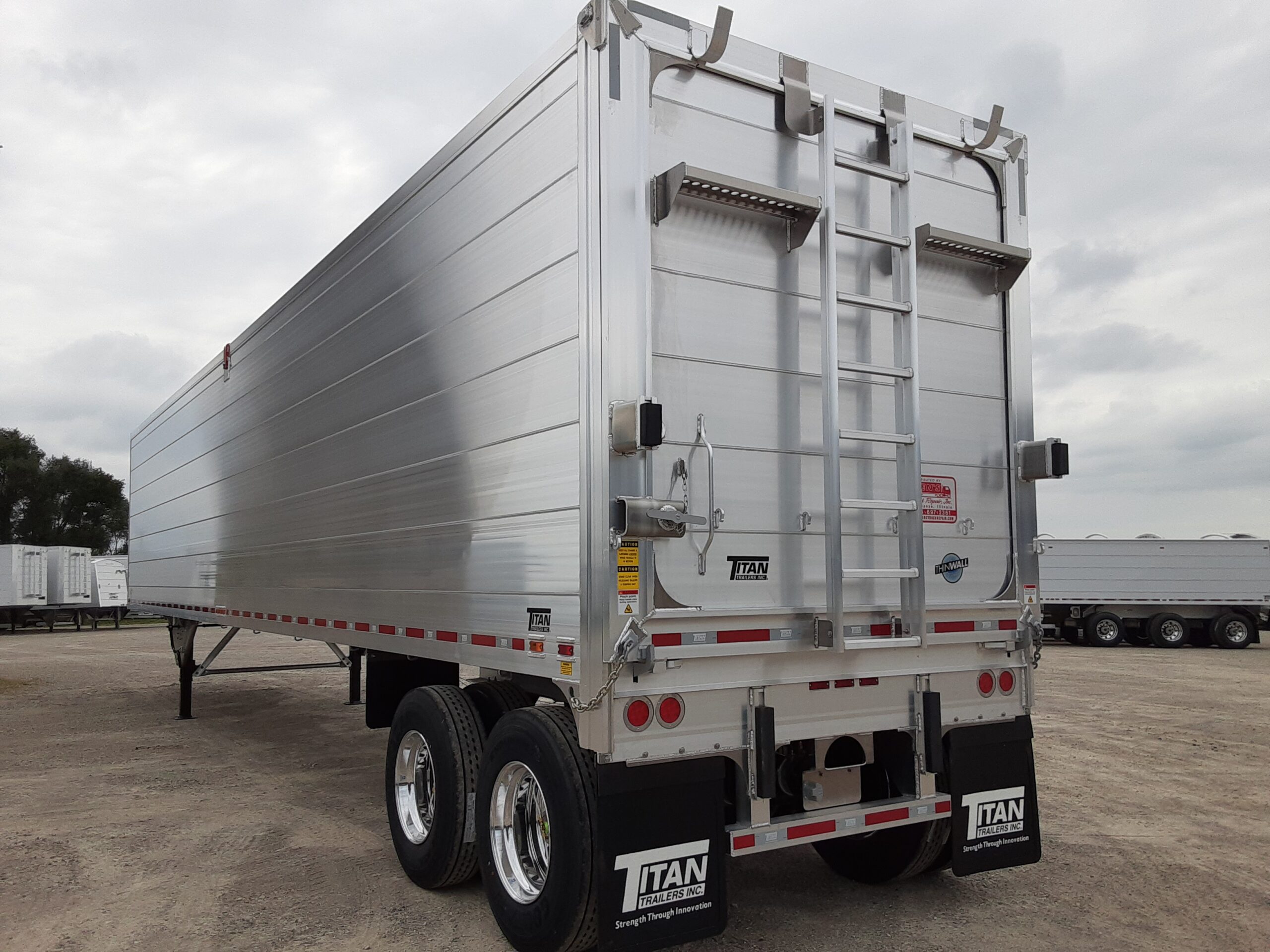

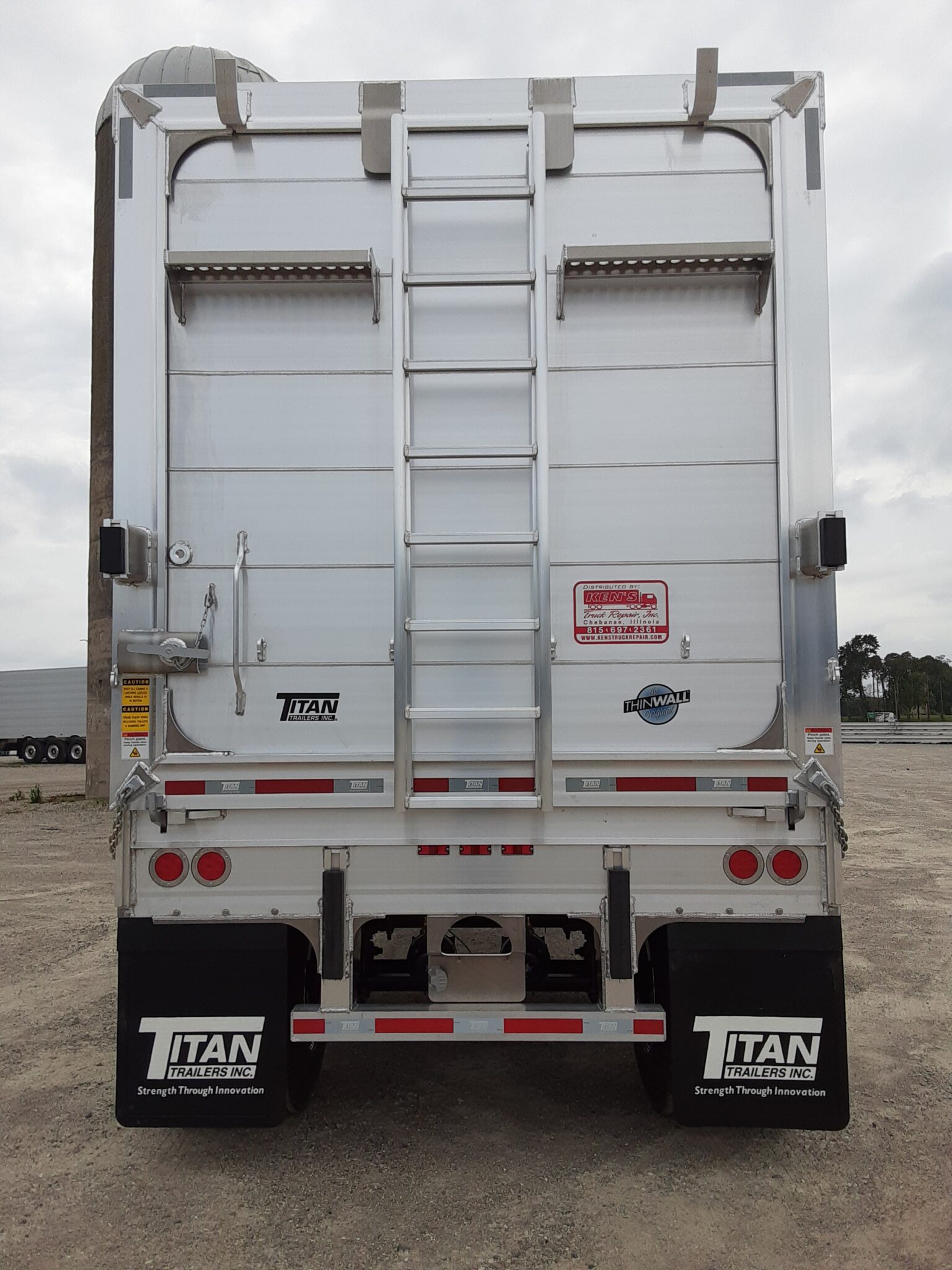

Rear Door                                           Overslung hinge, door in door, air release & safety chain

Rear Door Seal                                    Rubber

Front Door                                          None

Tarp Header                                        None

Tarp Basket (Hoops)                         None

Tarp Hook                                           Side hooks approx. 54” o/c & (4) hooks at rear

Tarp/Roof                                            None

Mud Flaps         Style                          Titan Black Rubb

Location                   (2) ahead & (2) behind primary group

Paint                 Body                           Natural Aluminum

Run – Gear               Titan Black

Hub/Drum               Same as running gear

Rims or Disc             Aluminum

Std Light Package – plug form      Front (2) mkrs.  Sides: (3) mkrs (included midturn)    Rear: No mkrsat top w/center cluster of (3) mkrs in lightbar, (2) 4” round red taillights per side

Access           Catwalk – front          None

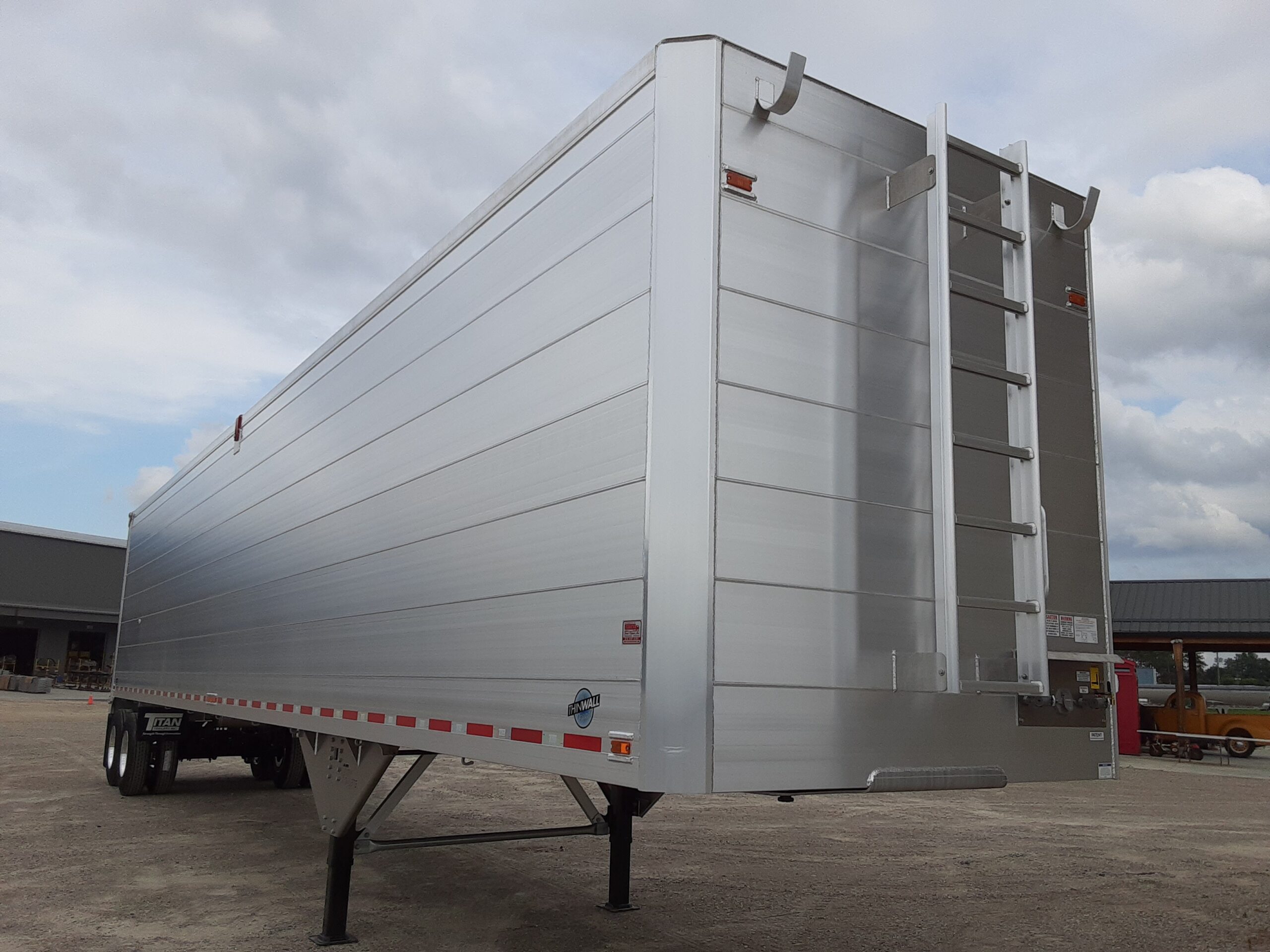

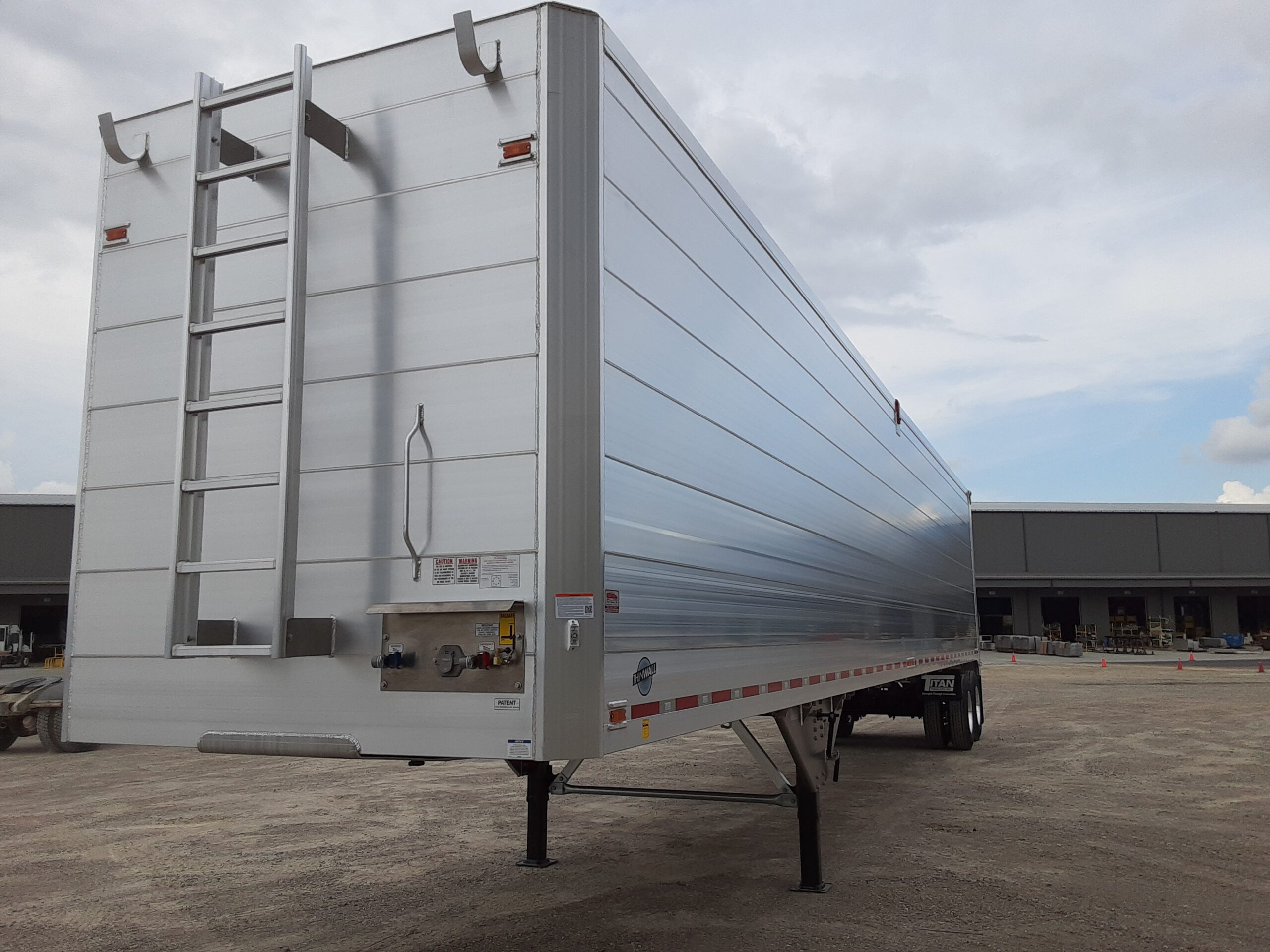

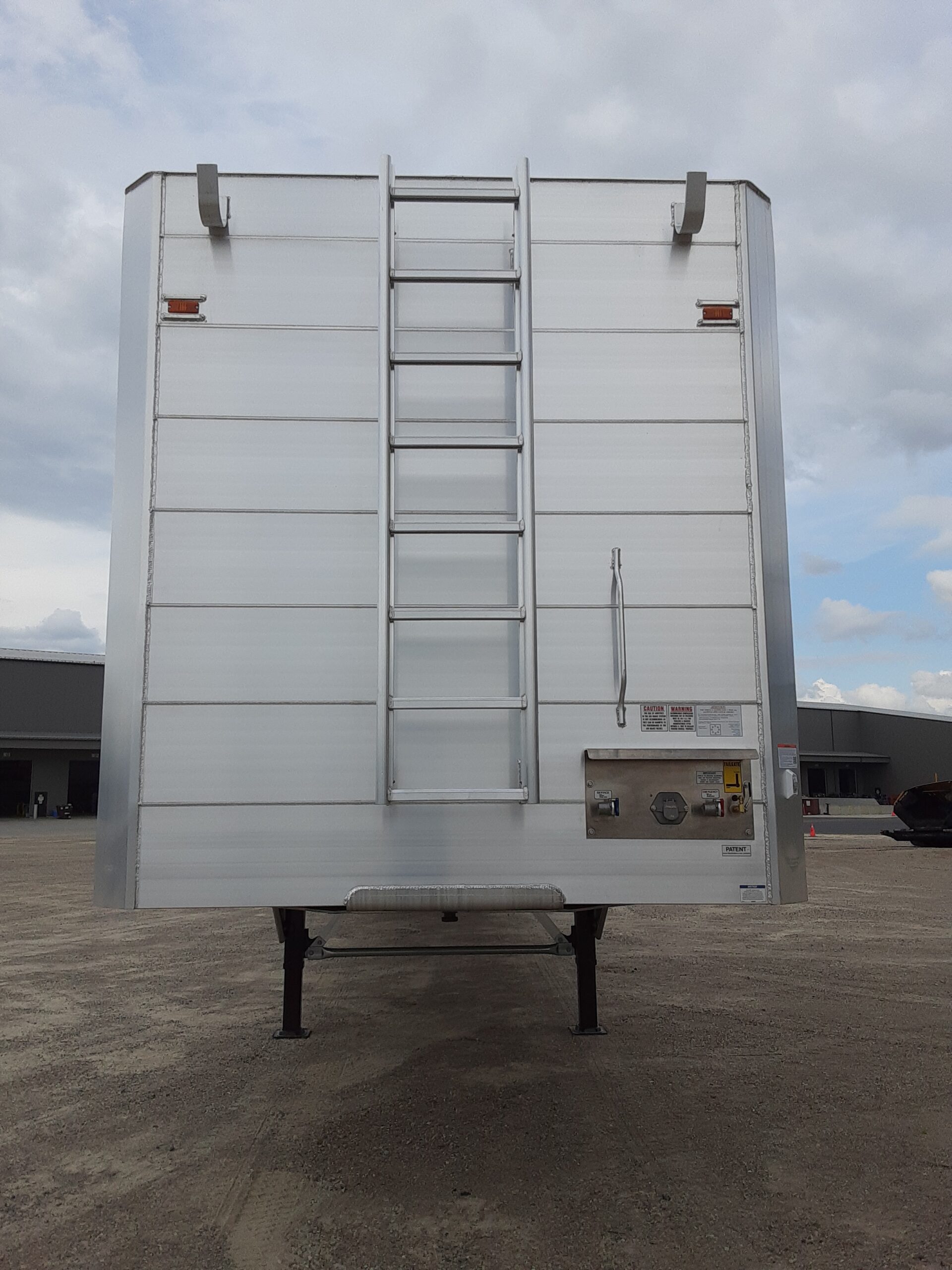

Ladder – front           Middle of frontwall full height

Ladder – rear            QTY (1) middle full height with (1) small catwalk on each side

Steps – front – out    None

Steps – front – ins     None

Steps – rear               Non

Additional Specifications:

1.  34’ 11-¾” from center of landing gear to rear of rubber bumpers

2.  Invert axles

3.  Boomerang wear plates

4. Add PSI Meritor Tire Inflation System to all axles



Estimated volume: 125 cu yds

Estimated weight: 13,089 lbs +/- 3%
