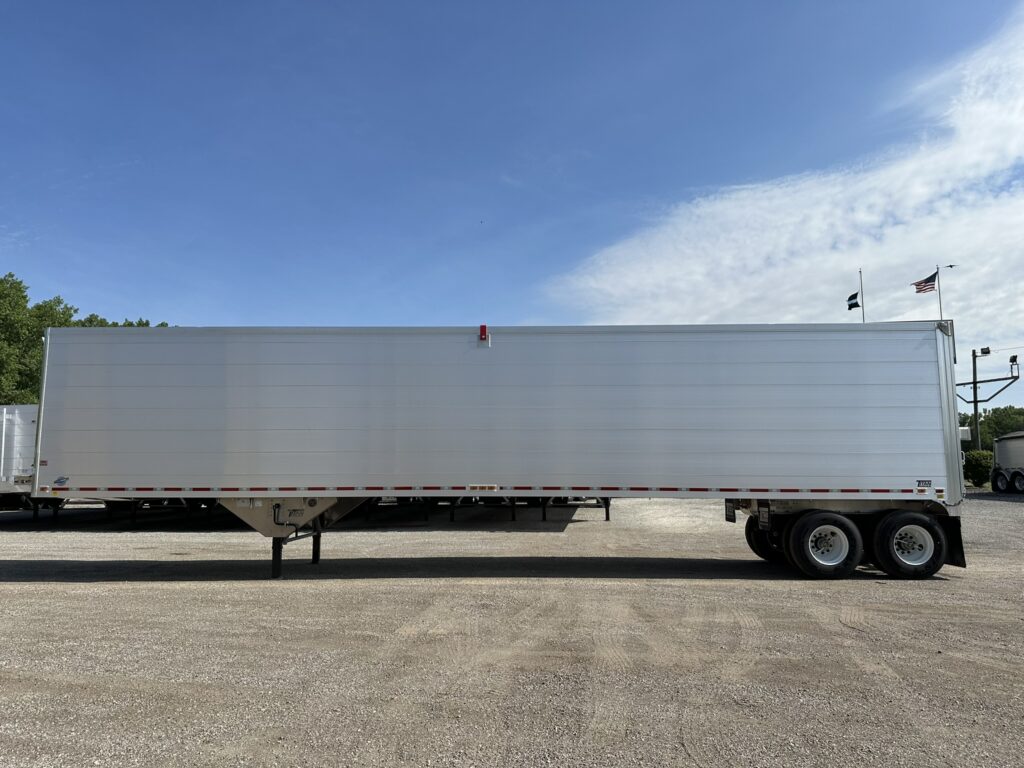

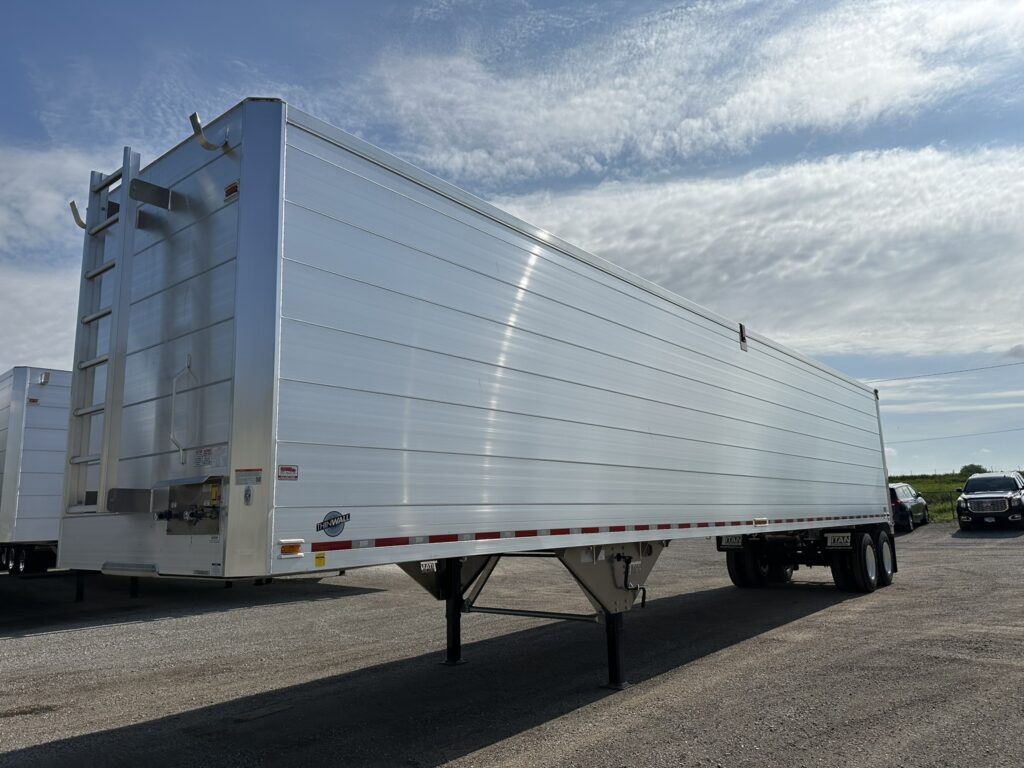

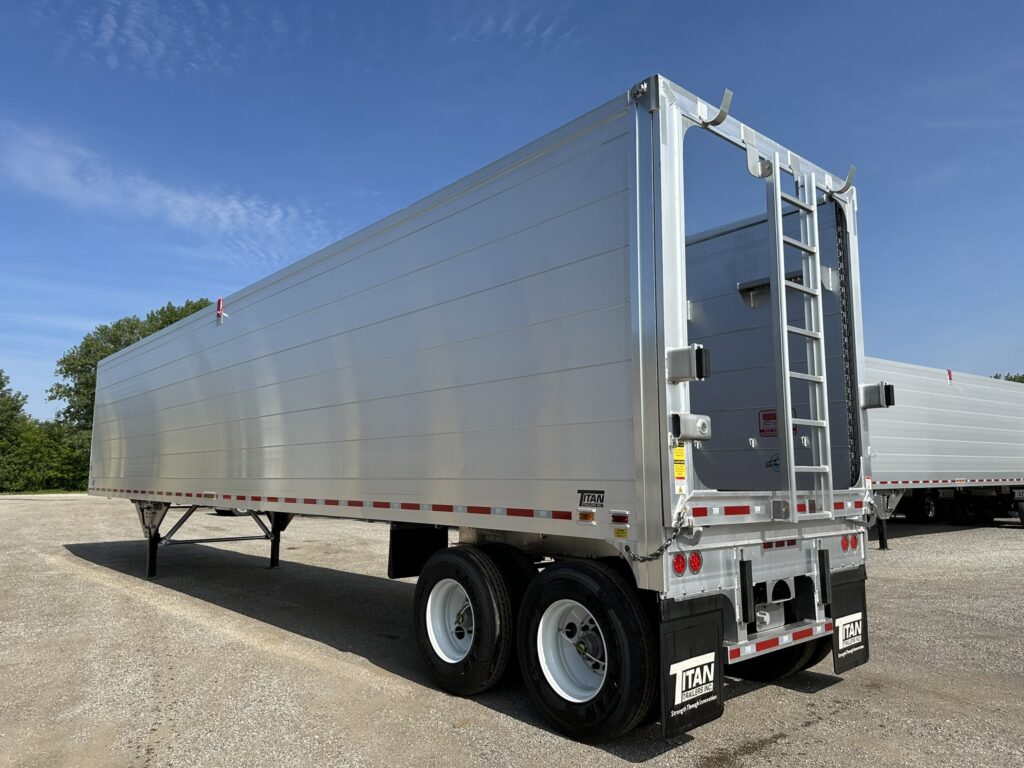

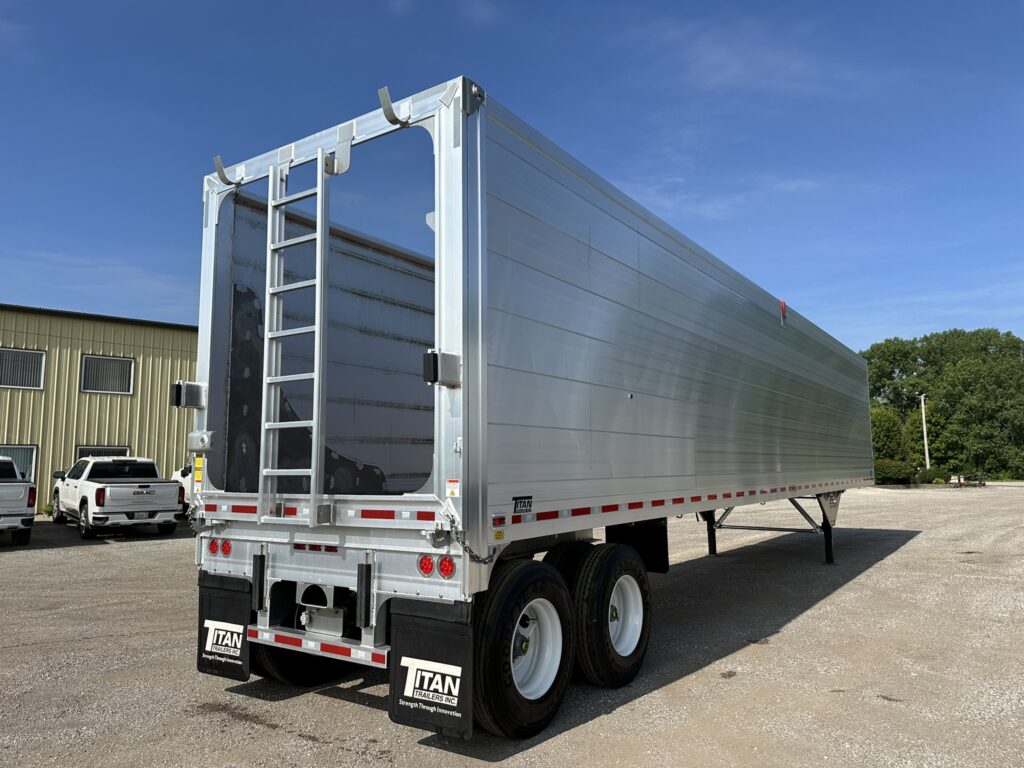

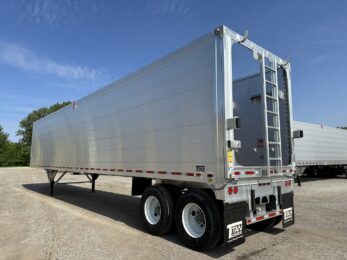

2025 TITAN 48' 2 AXLE TIPPER TRAILER 25 UNITS DUE IN FEBRUARY CALL FOR PRICING
| Type | Tipper |
| Year | 2025 |
| Manufacturer | TITAN |
| Stock # | T7SD000133 |
| Vin # | 2TVTP4827SD000133 |
| Suspension | REYCO 21B FAB W/INNER WEAR PLATES |
| Length | 48 ft |
| Width | 102" |
| Height | 13' 4" |
| Tires | GOODYEAR |
| Wheels | 8.25 X 22.5 |
| # of Axles | 2 |
| Tarp | |
| Liner |
Description
2025 TITAN 48′ 2 AXLE TIPPER TRAILER 25 UNITS DUE IN FEBRUARY 2024 CALL FOR PRICING
Customer Application Garbage sheet floor
Base Model 48-2-TW-TP (open top)
Body Style Straight
Panel Configuration 7-14” + 1-6” to suit garbage application – See Note #3
Overall Length 48’
Overall Width 102” Nominal
Overall Height 13’ 4” at front
King Pin Location 36” bolt in
Upper Coupler Aluminum coupler assembly w/ 3” drop stainless steel wear plate set @ 48” high
Number of Axles Primary (2) Two
Lift (0) None
Axle 5” Round .580 Wall-straight spindle – See Note #2,4
Axle Track 77”
Suspension Reyco 21B FAB w/ inner wear plates
Location of Spreads See axle layout
Hub & Drum Assembly 10 stud duralite – hub pilot/centrifuse drum

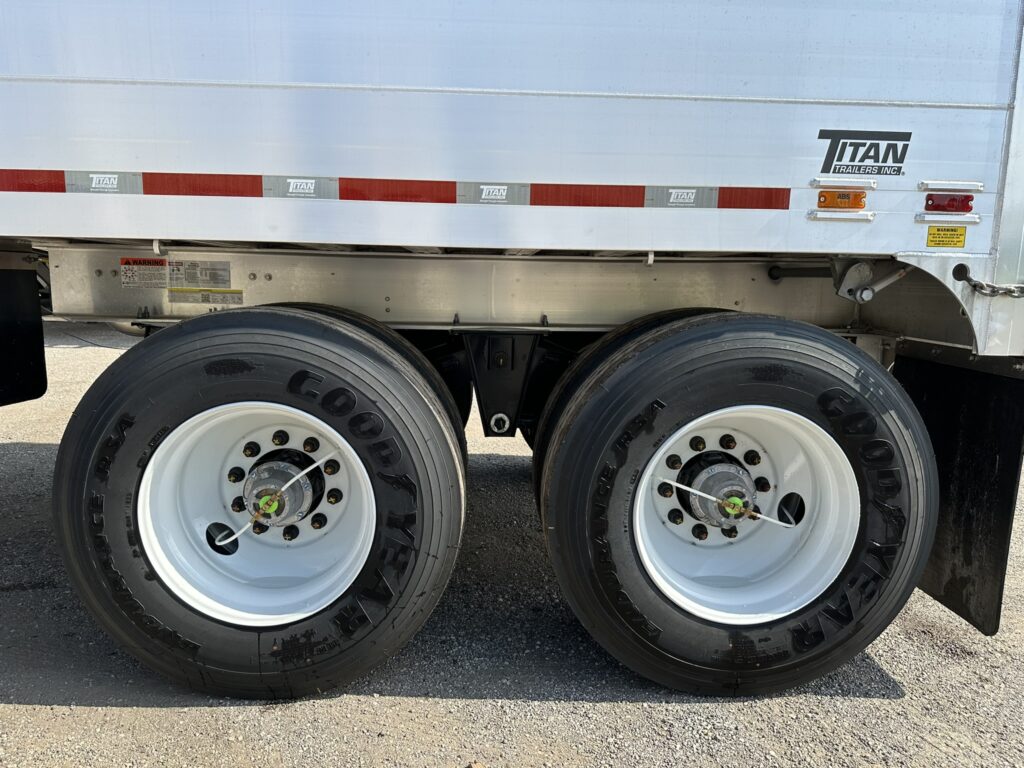

Disc Wheels Size 8.25 x 22.5
Rims Steel – Std. Duty – Pre-painted White

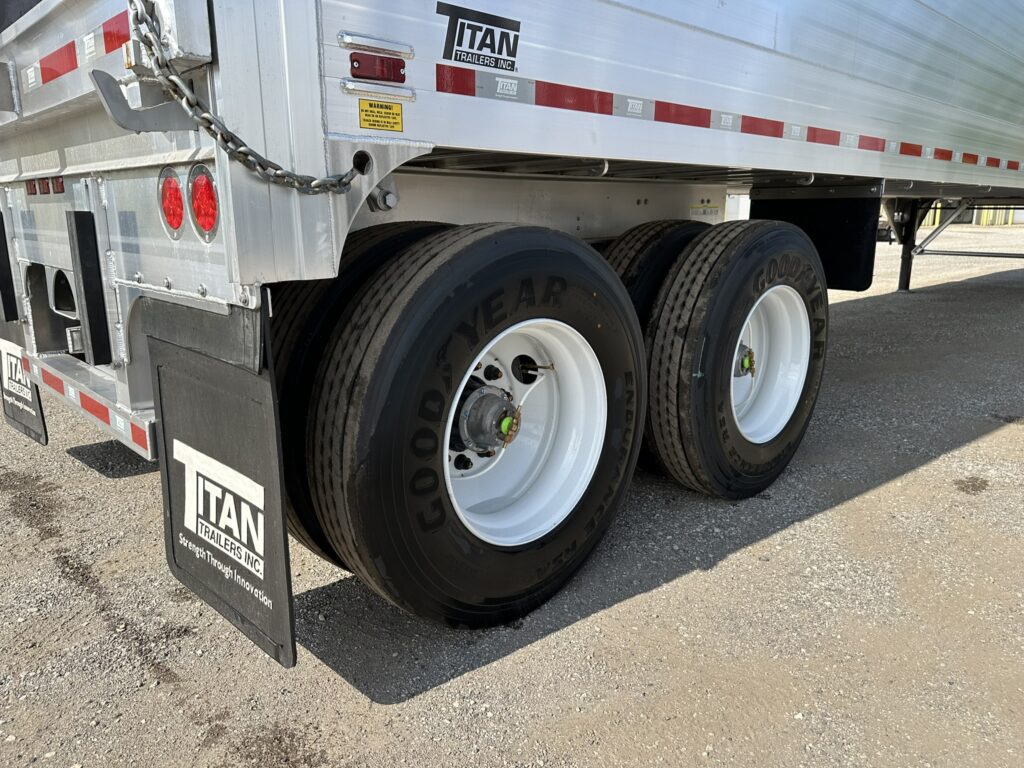

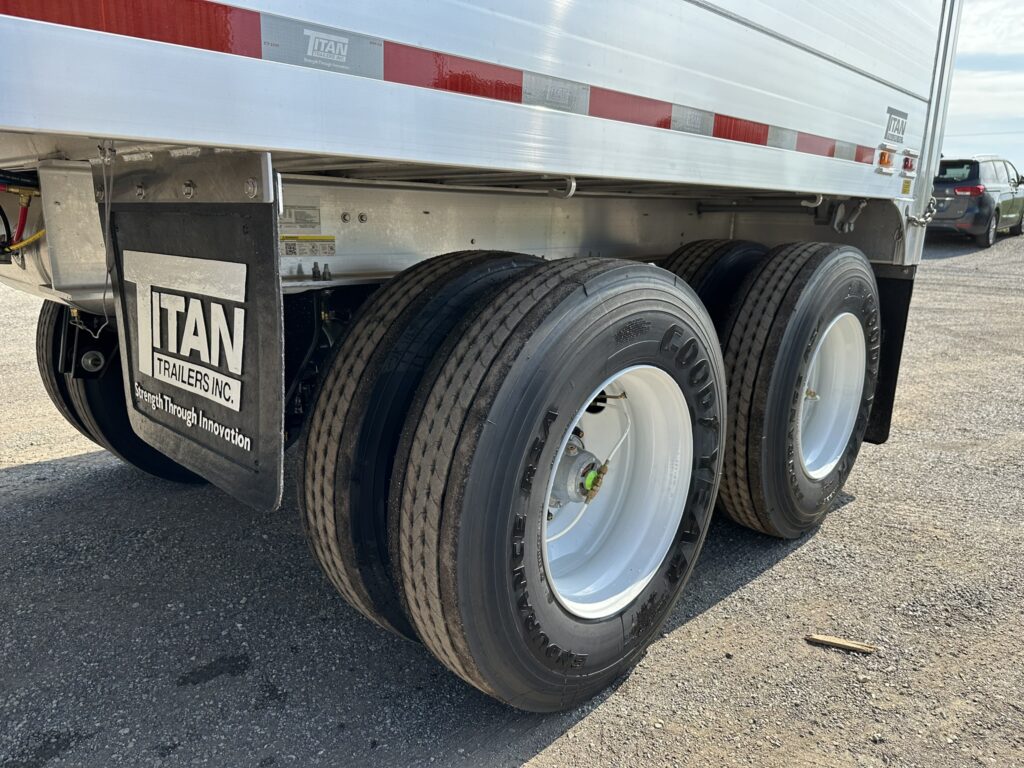

Tires Brand Goodyear
Size 11R22.5 – 41.9 dia
Tread Endurance RSA
Ply 14
Quantity 8
Axle Layout Front-Primary-50- Primary-29.5-Rear
Oil Seals To Suit Axles
Lubricants Oil Std 80W-90
Brakes ABS 2S/1M Meritor Wabco
Slack Adj Meritor Auto
Cam Enclos All Axles – c/w Dust Shields
Lift Kits None
Lift Controls None
Springs 3 leaf TRA-3384
Frame Width 48”
Rear Bumper Aluminum, Flush, Narrow
Rubber Bumpers Tailgate
Rubber Tipper T Block Bumpers
Tow Hooks 1 hanger style tow hook roadside
Tire Carrier None

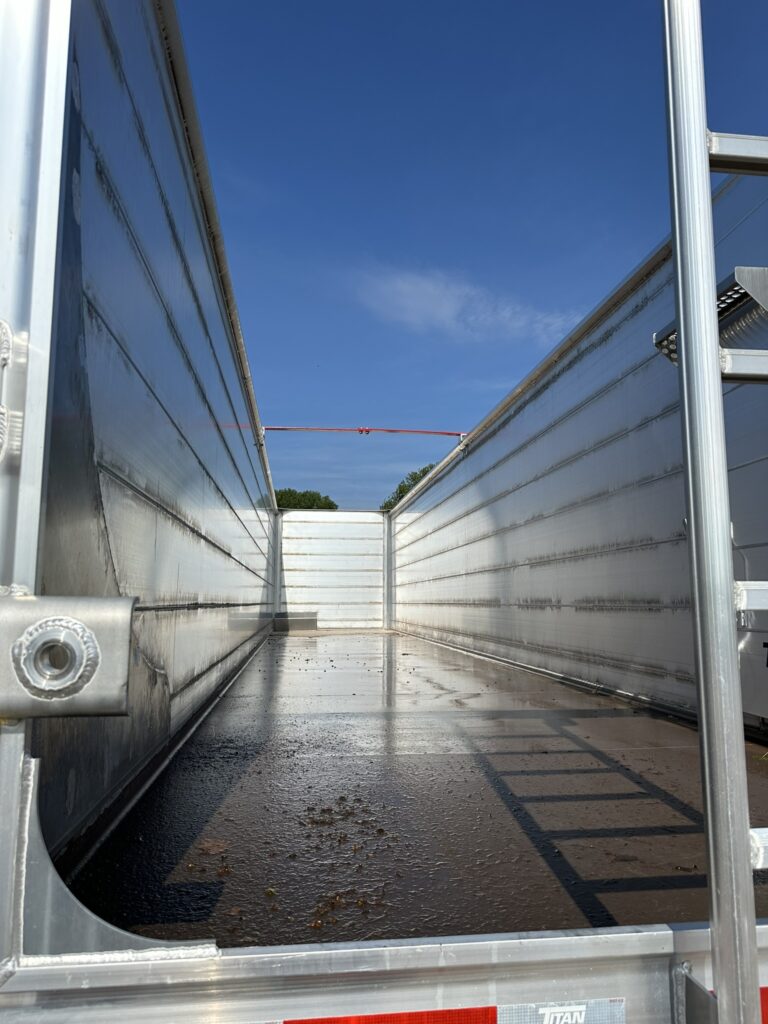

Floor ¼” sheet alum. w/ 5/16” material in rear 6’
Floor Cross members U channel 18” centers

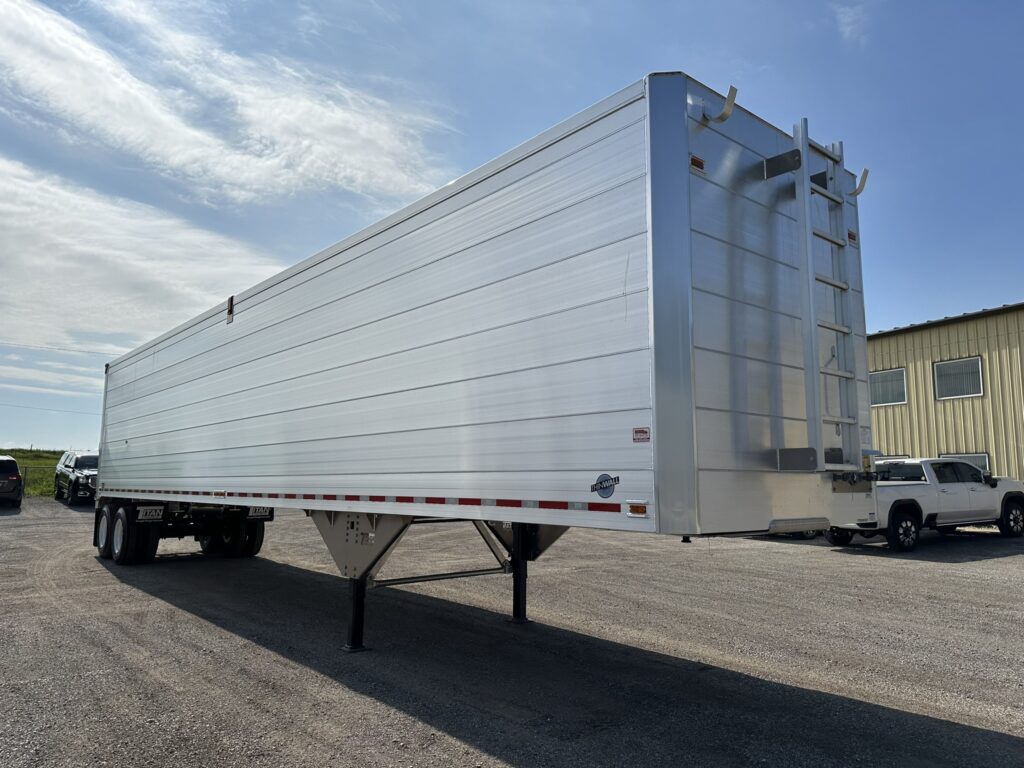

Landing Gear Jost Landing Gear Model A401-G3-19 low profile cushion ft inside mount – See Note #1
Top Rail Titan Tapered top rail V1
Top Cross Tube Qty 1 pc
Top Cross Tube Type Spring steel 5/8” x 4” (two piece version)

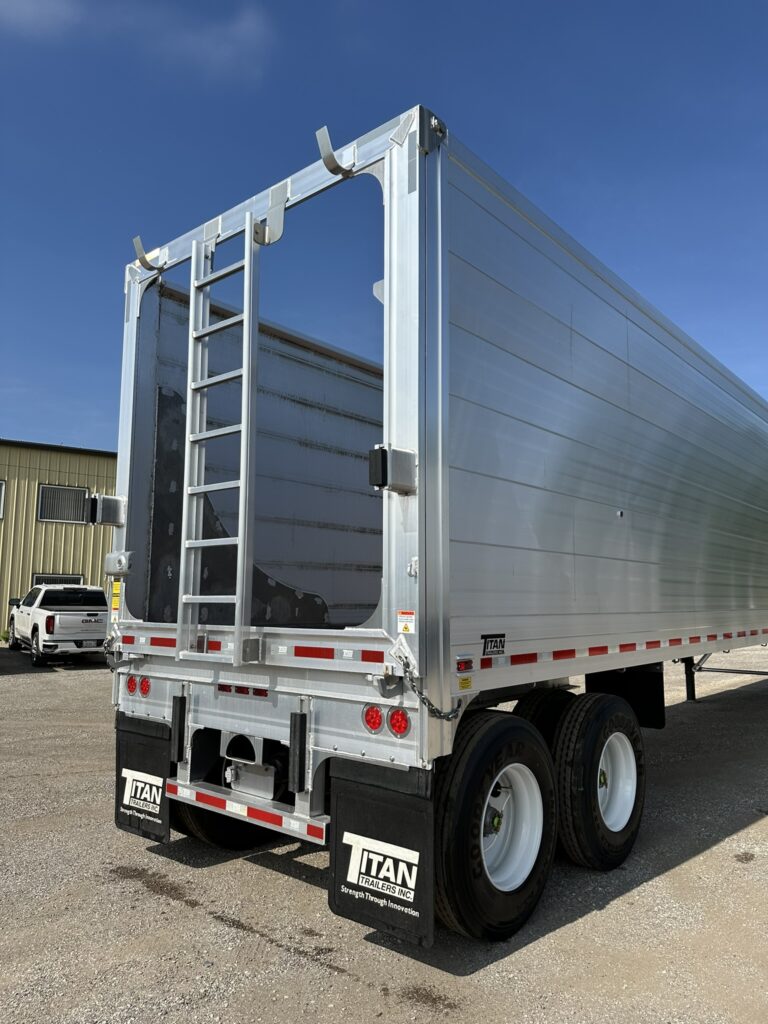

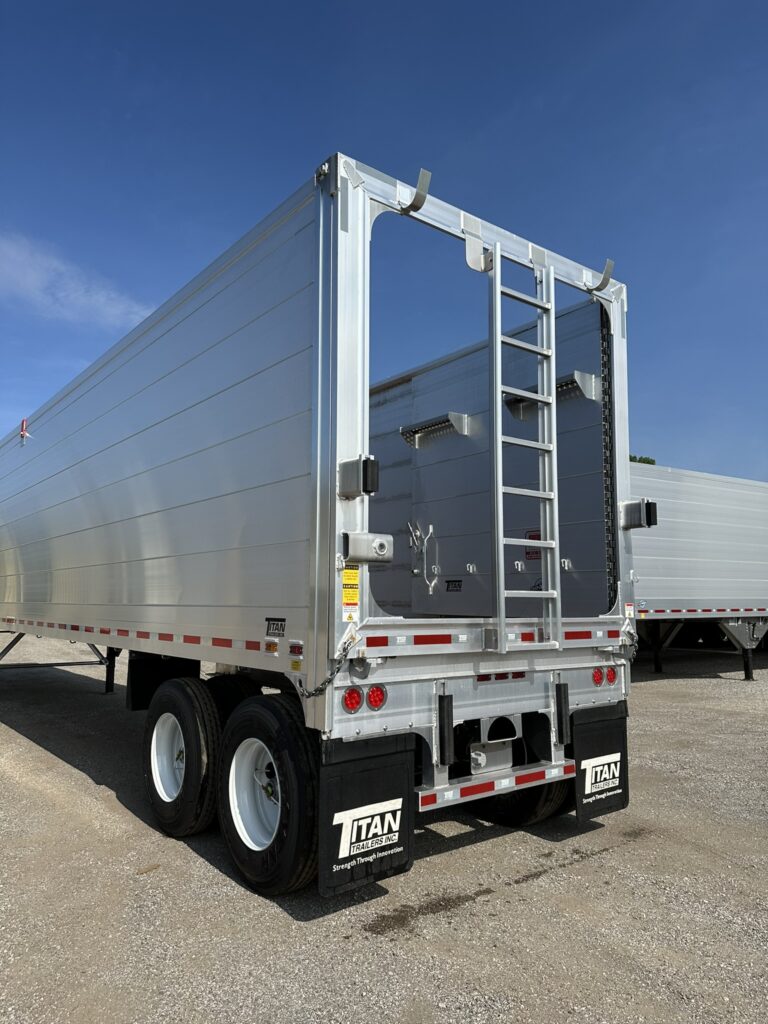

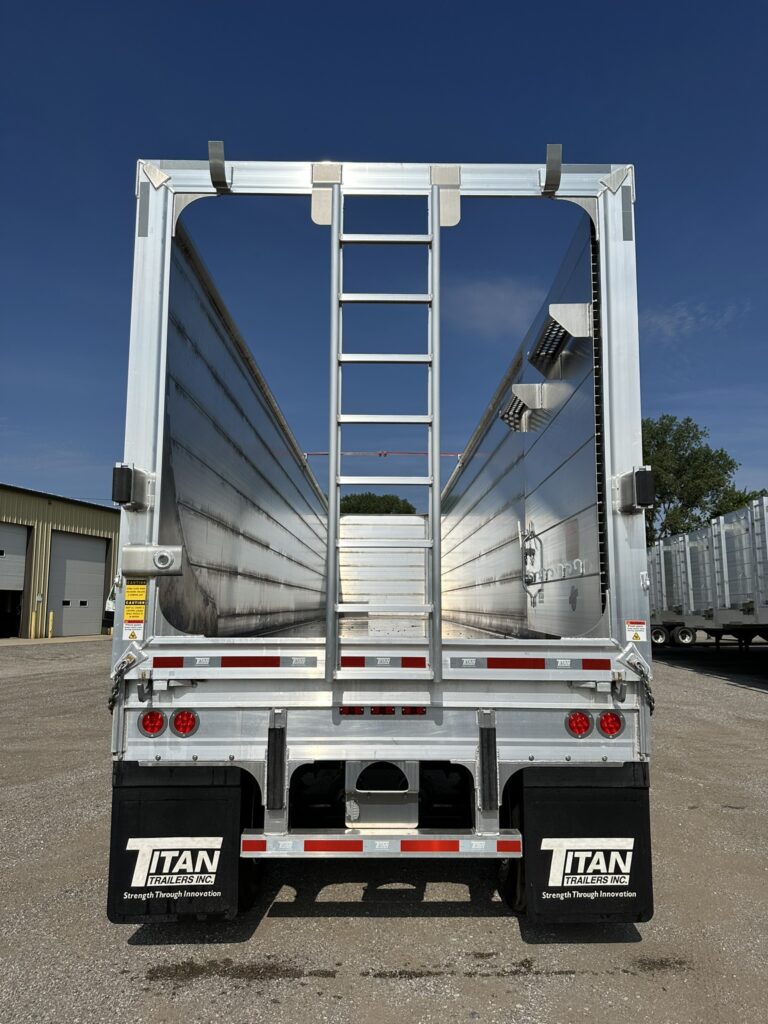

Rear Door Overslung hinge, door in door, air release & safety chain
Rear Door Seal Rubber
Front Door None
Tarp Header None
Tarp Basket (Hoops) Tarp hoops front & rear
Tarp Hook Side hook 54” apart and at rear
Tarp/Roof None
Mud Flaps Style Titan Black Rubber
Location Front/Rear primary
Paint Body Natural Aluminum
Run – Gear Titan Black
Hub/Drum Same as running gear
Rims or Disc Pre-painted White
Std Light Package – plug form 2 mks per sidewall & midturn, 2-4” dia per side & 3-rect in rear light bar, 1 per side ID clearance lights at front
Option #1 None
Option #2 None
Access Catwalk – front None

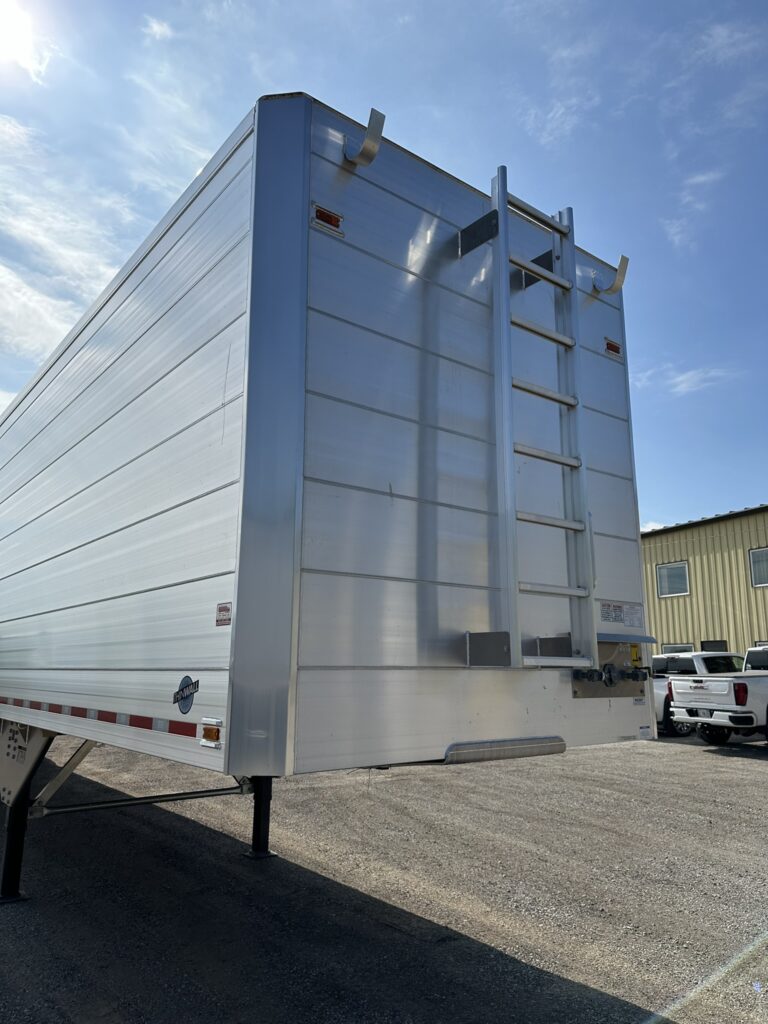

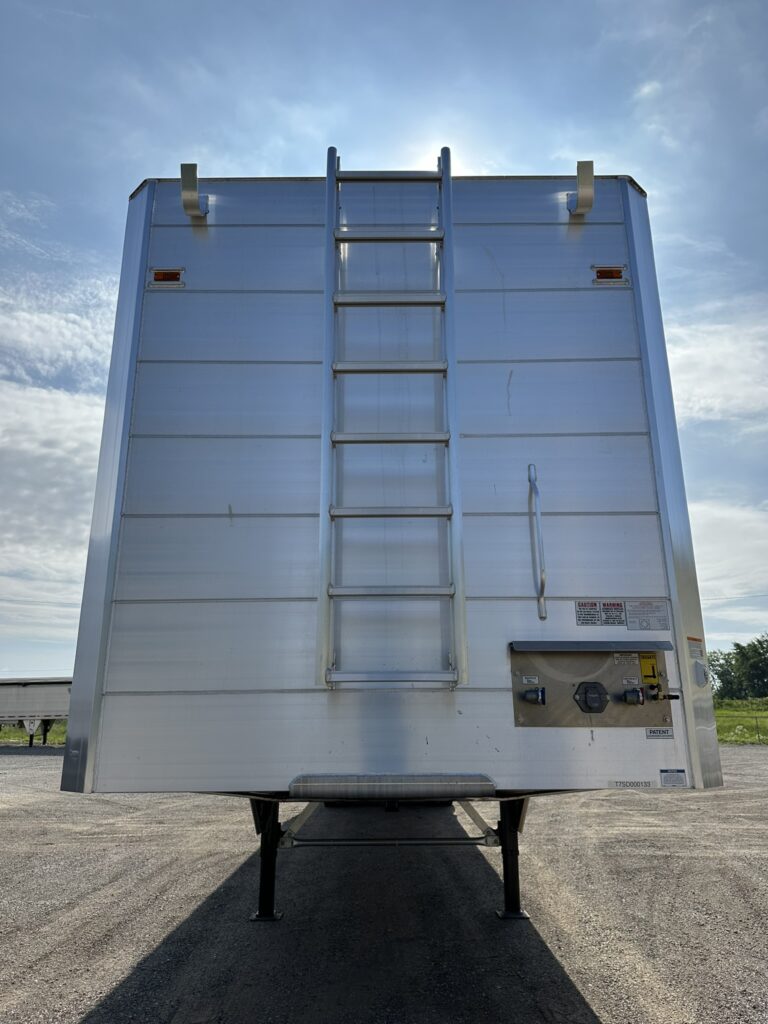

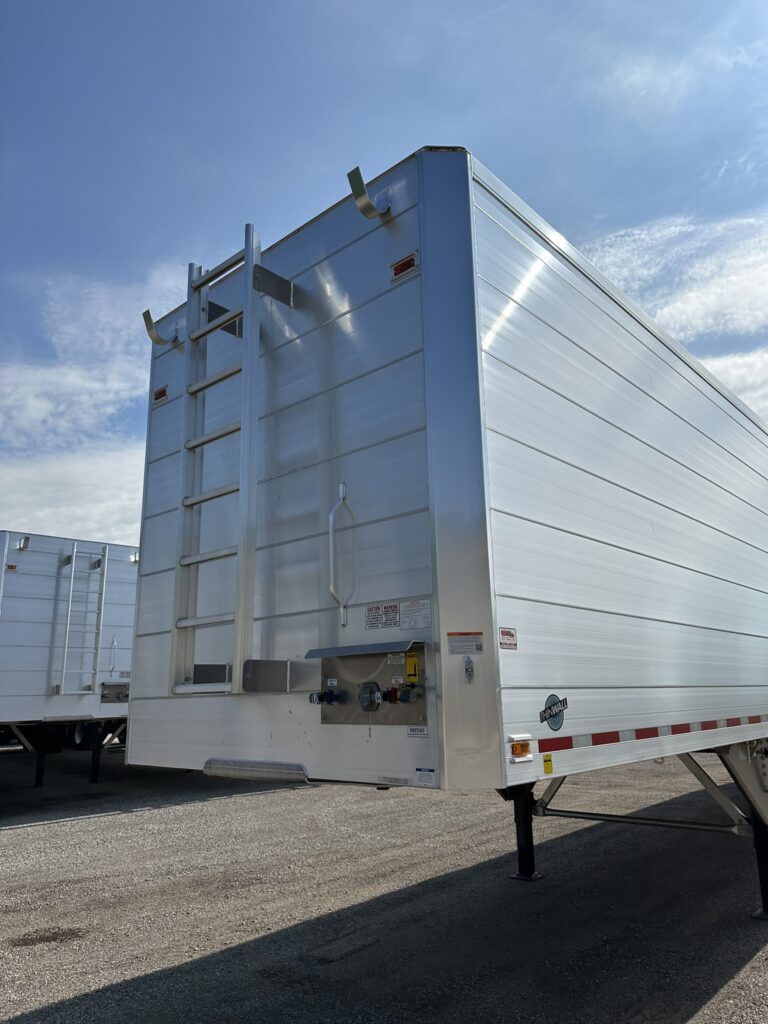

Ladder – front J-ladder middle
Ladder – rear J-ladder middle & two small catwalks on inner door
Steps – front – out None
Steps – front – ins None
Steps – rear None
Additional Specifications:
1) Approx. 34’ 11 ½” from center of landing gear to rear of rubber bumpers on rear of trailer. 2) Invert axles
3) Add boomerang wear plates
4) Add PSI Tire Inflation System
Estimated volume: 125 cu yds
Estimated weight: 13,089 lbs +/- 3%
