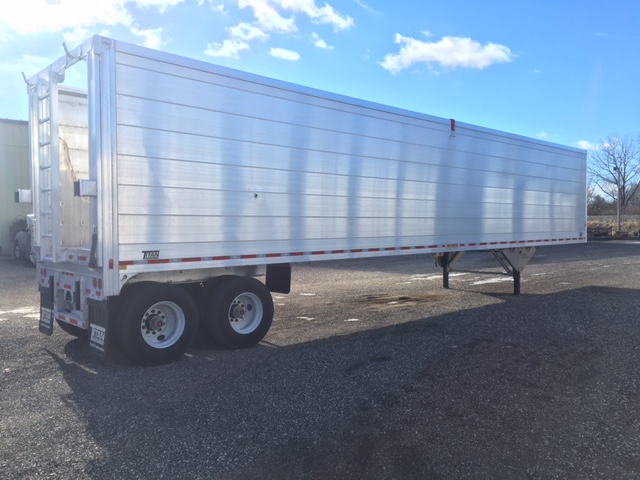

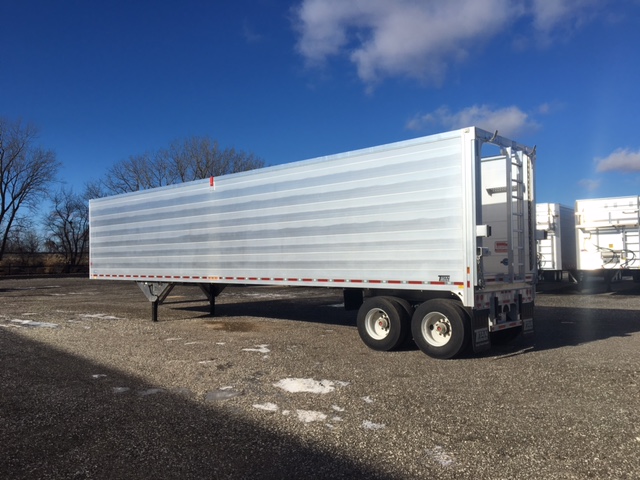

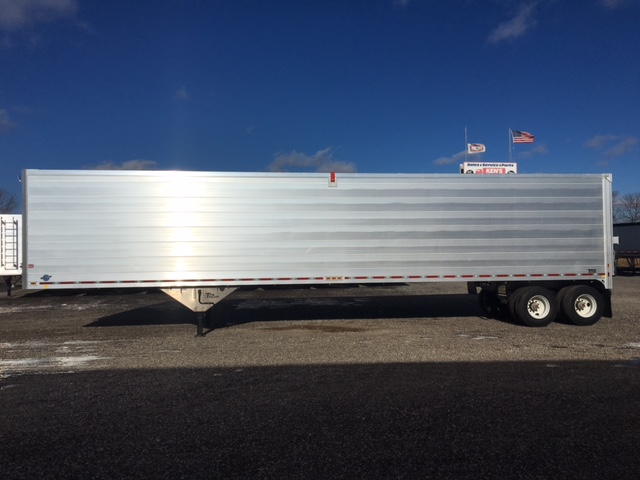

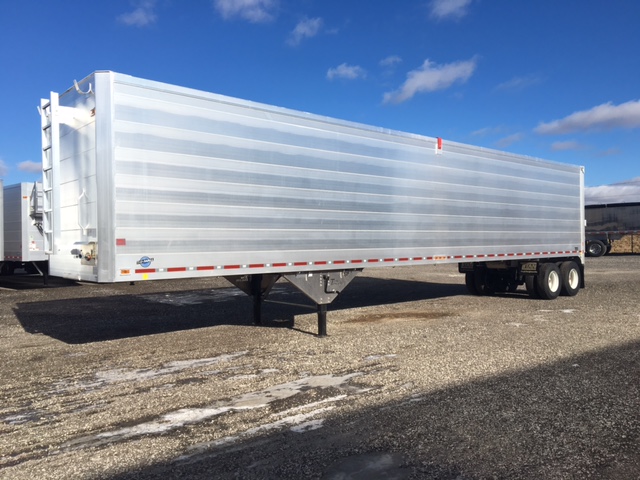

2025 TITAN 48′ 2 AXLE TIPPER TRAILER       2 UNITS      CALL FOR PRICING

Customer Application                  Garbage sheet floor

Base Model                                    48-2-TW-TP (open top)

Body Style                                      Straight

Panel Configuration                    7-14” + 1-6” to suit garbage application – See Note #3

Overall Length                             48’

Overall Width                              102” Nominal

Overall Height                             13’ 4” at front

King Pin Location                        36” bolt in

Upper Coupler                             Aluminum coupler assembly w/ 3” drop stainless steel wear plate set @ 48” high

Number of Axles    Primary       (2) Two

Lift               (0) None

Axle                                                5” Round .580 Wall-straight spindle  – See Note #2,4

Axle Track                                    77”

Suspension                                 Reyco 21B FAB w/ inner wear plates

Location of Spreads                  See axle layout

Hub & Drum Assemb             10 stud duralite – hub pilot/centrifuse drum

Disc Wheels Size                     8.25 x 22.5

Rims                                        Steel – Std. Duty – Pre–painted White

Tires                Brand              Goodyear

Size                 11R22.5 – 41.9 dia

Tread               Endurance RSA

Ply                   14

Quantity          8

Axle Lay                             Front-Primary-50- Primary-29.5-Rear

Oil Seals                           To Suit Axles

Lubricant                        Oil Std 80W-90

Brakes       ABS               2S/1M Meritor Wabco

Slack Adj        Meritor Auto

Cam Enclos     All Axles – c/w Dust Shields

Lift Kits                             None

Lift Controls                    None

Springs                            3 leaf TRA-3384

Frame Width                  48”

Rear Bumper                 Aluminum, Flush, Narrow

Rubber Bumpers           Tailgate          Rubber Tipper T Block Bumpers

Tow Hooks                     1 hanger style tow hook roadside

Tire Carrier                     None

Floor                                 ¼” sheet alum. w/ 5/16” material in rear 6’

Floor Cross members      U channel 18” centers

Landing Gear                   Jost Landing Gear Model A401-G3-19 low profile cushion ft inside mount – See Note #1

Top Rail                             Titan Tapered top rail V1

Top Cross Tube Qty         1 pc

Top Cross Tube Type      Spring steel 5/8” x 4” (two piece version)

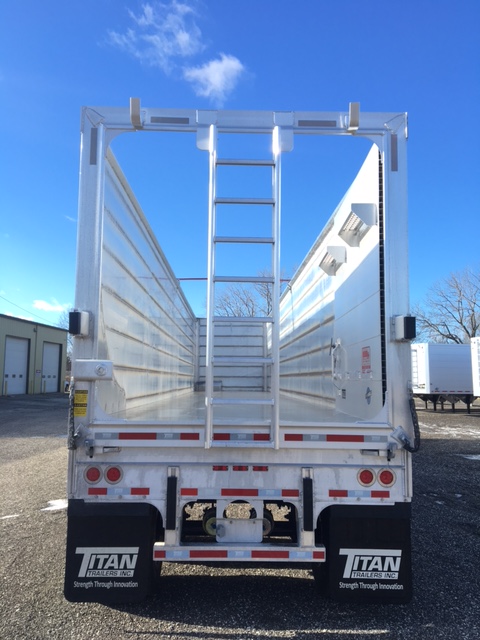

Rear Door                         Overslung hinge, door in door, air release & safety chain

Rear Door Seal                 Rubber

Front Door                        None

Tarp Header                     None

Tarp Basket (Hoops)      Tarp hoops front & rear

Tarp Hook                         Side hook 54” apart and at rear

Tarp/Roof                          None

Mud Flaps       Style         Titan Black Rubber

Location       Front/Rear primary

Paint

Body                           Natural Aluminum

Run – Gear                Titan Black

Hub/Drum                Same as running gear

Rims or Disc             Pre-painted White

Std Light Package – plug form           2 mks per sidewall & midturn, 2-4” dia  per side & 3-rect in rear light bar, 1 per side ID clearance lights at front

Access

Catwalk – front              None

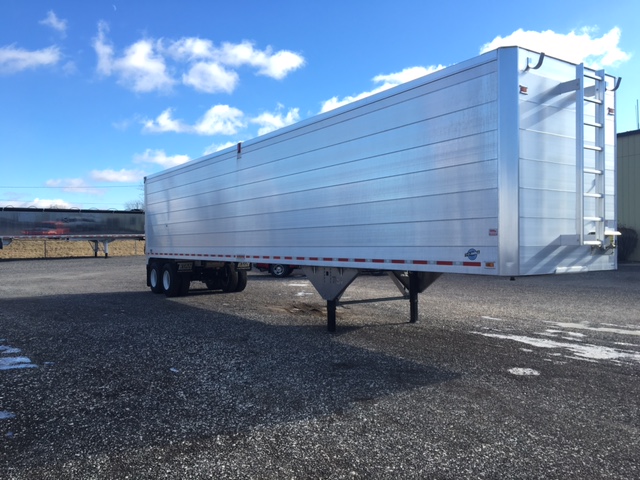

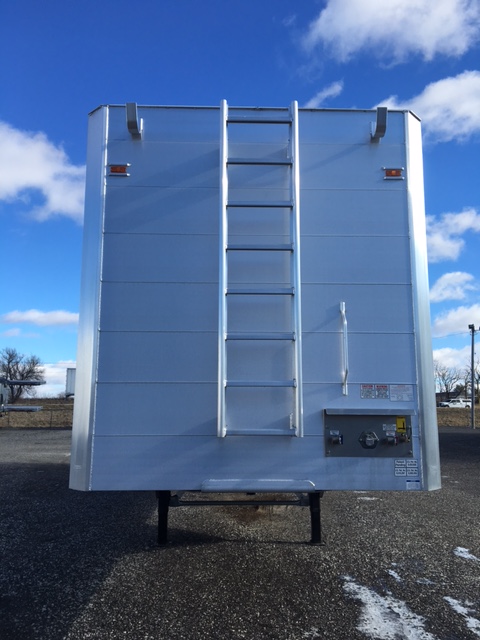

Ladder – front                J-ladder middle

Ladder – rear                  J-ladder middle & two small catwalks on inner door

Steps – front – out          None

Steps – front – ins          None

Steps – rear                      None

Additional Specifications:

            1)  Approx. 34’ 11 ½” from center of landing gear to rear of rubber bumpers on rear of trailer.

            2)  Invert axles

            3)  Add boomerang wear plates

4)  Add PSI Tire Inflation System

Estimated volume: 125 cu yds

Estimated weight: 13,089 lbs +/- 3%
