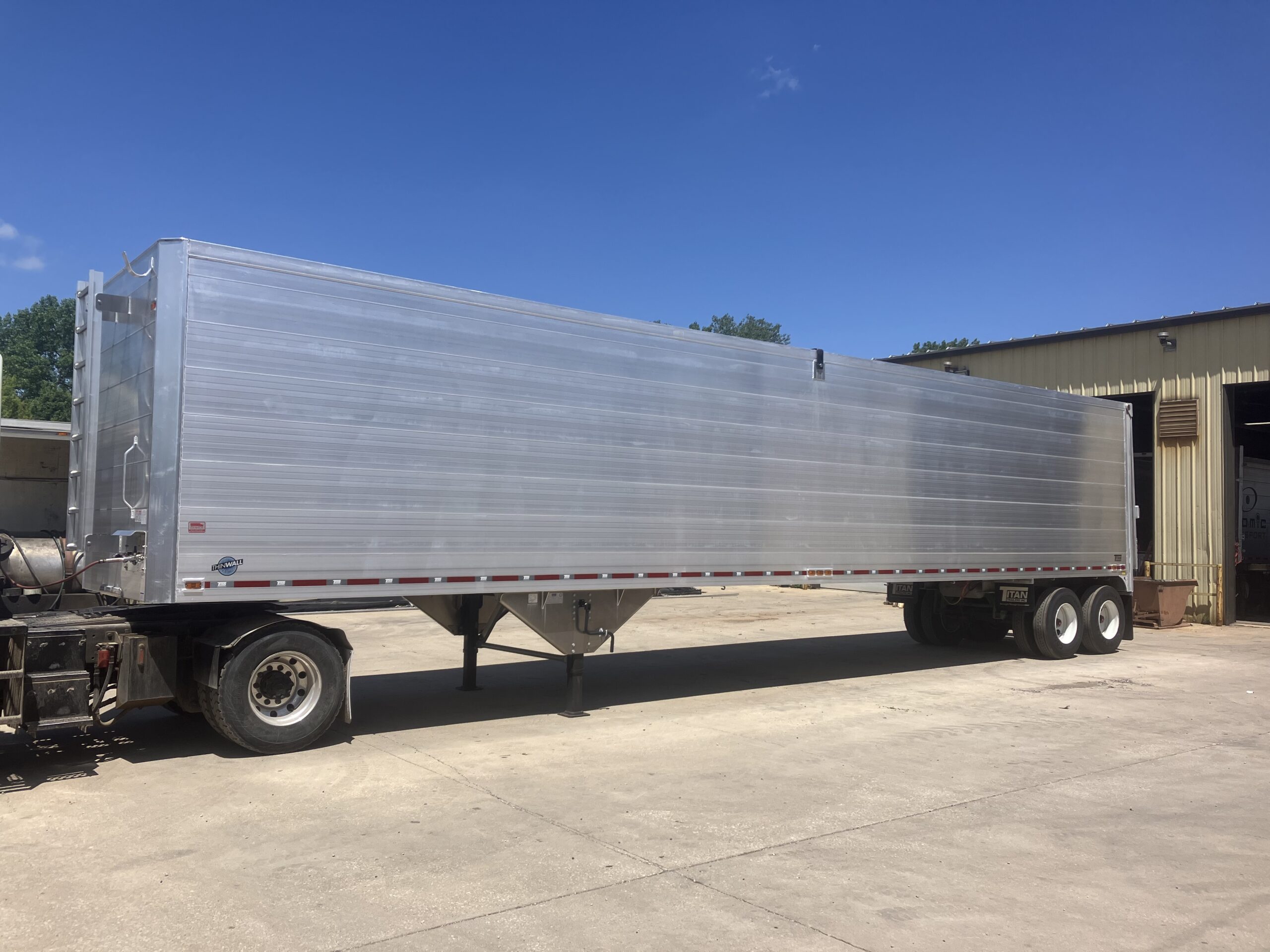

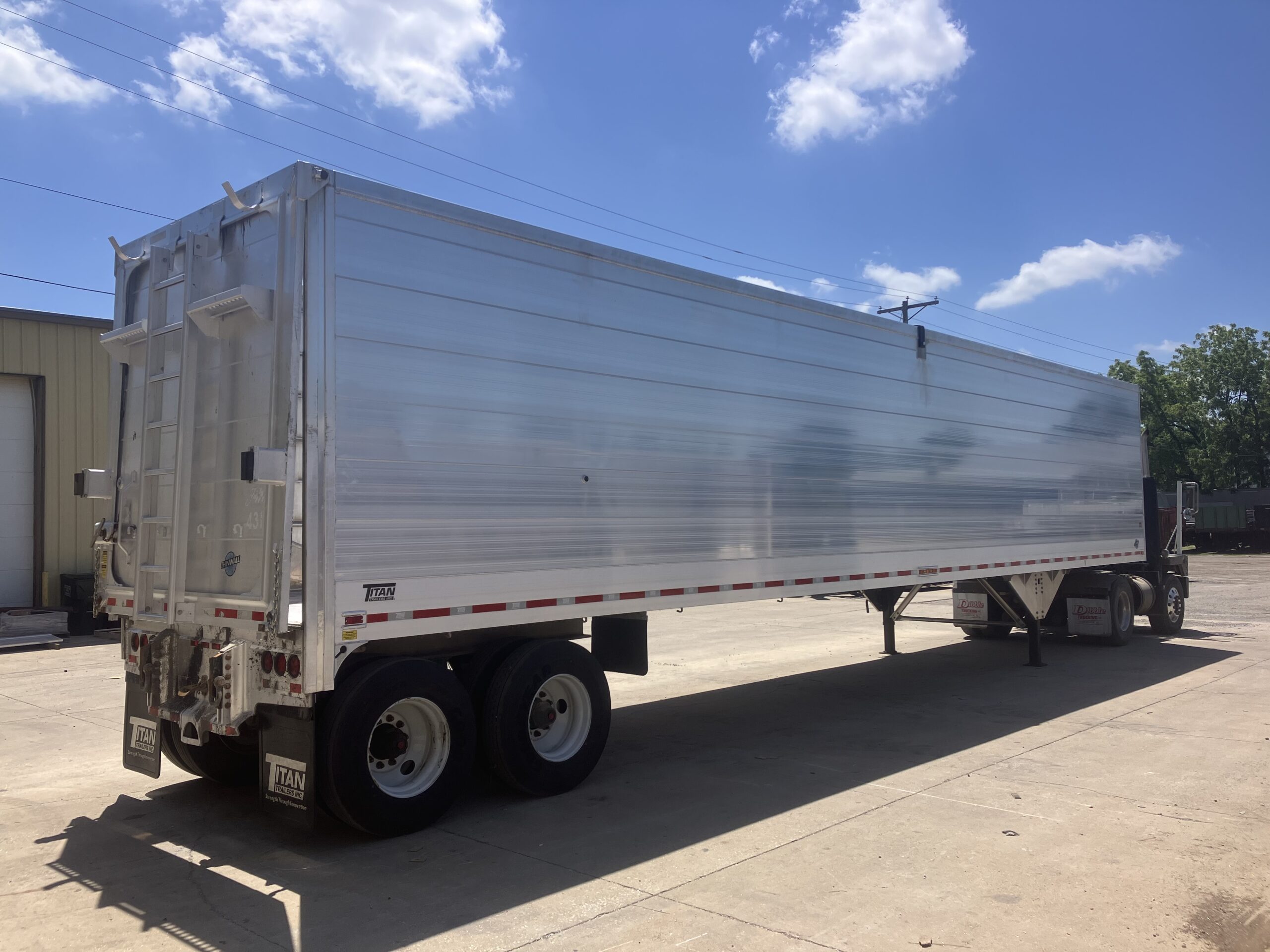

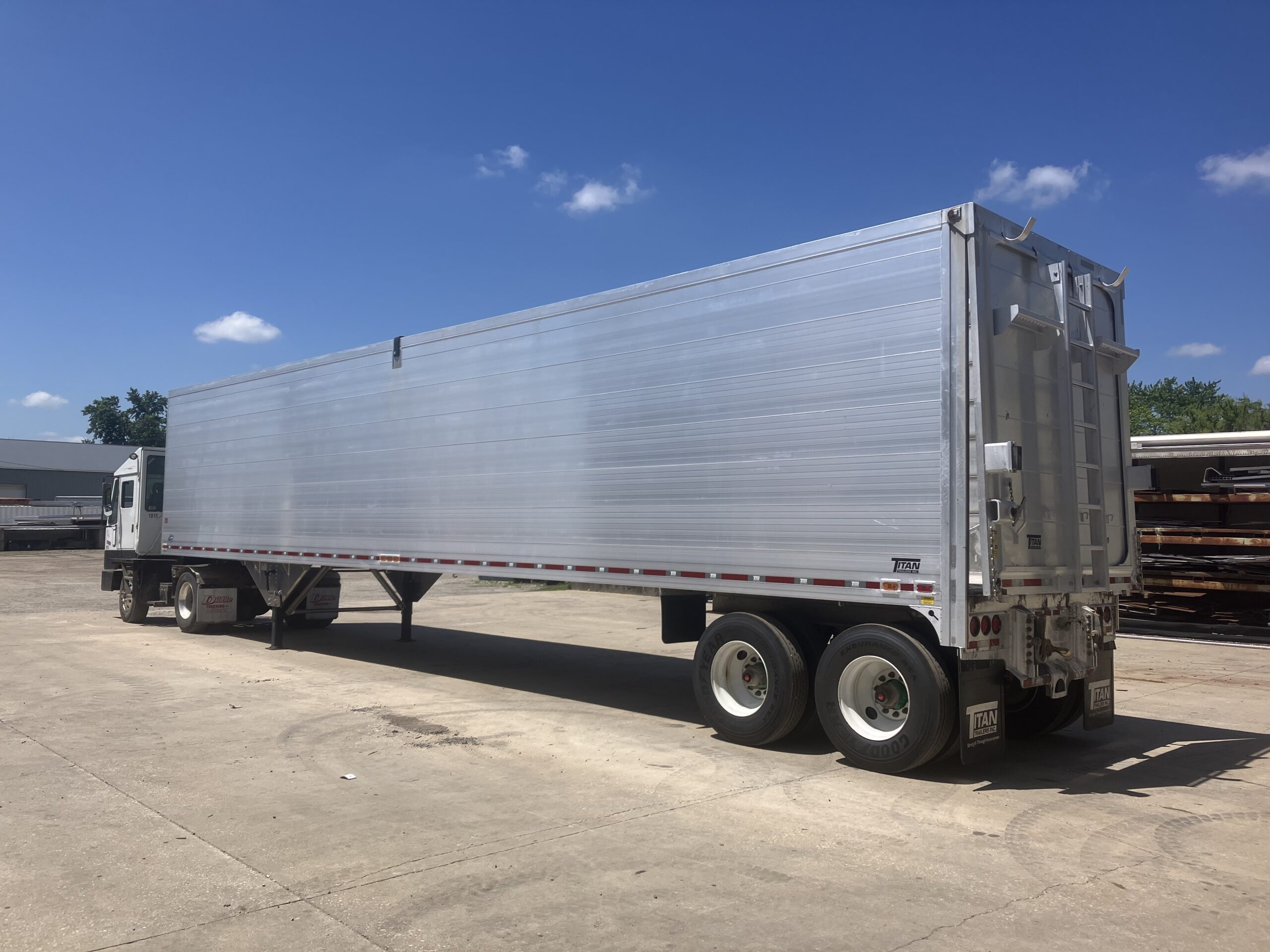

2020 TITAN 48′ 2 AXLE TIPPER TRAILER    $76,900.00

;

Customer Application                         Garbage

Base Model                                           48-2-TW-TP OT

Body Style                                             Straight

Panel Configuration                            7 – 14” + 1 – 6” to suit garbage application

Overall Length                                    48’

Overall Width                                     102” Nominal

Overall Height                                    13’ 6” at front approx.

King Pin Location                               36”

Upper Coupler Height                      Aluminum coupler assembly with 3” drop set w/Stainless steel wear plate set  @ 50”

Number of Axles        Primary           (2) Two

Lift/Steer         (0) None

Axles                                                     5” Round – Straight Spindle – See Note #2

Axle Track                                            77”

Suspension                                          Reyco 21B FAB w/inner wear plates

Location of Spreads                            See axles layout

Hub/drum assembly                          10 stud Duralite – hub pilot / centrifuse drum

Disc wheel size                                   8.25 x 22.5

Rims                                                     STEEL-std. duty-pre-painted white

Tires                           Brand               Goodyear

Size                 11R22.5 – 41.5 dia

Tread               Endurance

Ply                   14

Quantity          8

Axle layout                                         Front-Primary-50-Primary-28-Rear

Oil Seals                                              SKF

Lubricants                                          Shell Spirex Synthetic oil 80w-90

Brakes                        ABS                 4S/2M Meritor Wabco

Slack Adj         Meritor Auto

Cam Enclos     All Axles – c/w dust shields

Lift Kits                                              None

Lift Controls                                      None

Springs                                               3 Leaf – TRA 3384

Frame Width                                     48”

Rear Bumper                                     Alum, offset, push, with high ground clearance

Rubber Bumpers                              Tailgate         Steel vertical blocks bolted to bumper

Tow Hooks                                         Tow shackles

Tire Carrier                                         None

Floor                                                    ¼” sheet alum. with 5/16” material in rear 18’

Floor Crossmembers                        U-channel 18” centers

Landing Gear                                      Jost landing gear model A451-G3-19 inside mt.– See Note #1,6

Top Rail                                              Titan Tapered Top Rail, V1

Top Cross Tube Qty                           1 Pc

Top Cross Tube Type                         Spring steel 5/8” x 4” (two piece version)

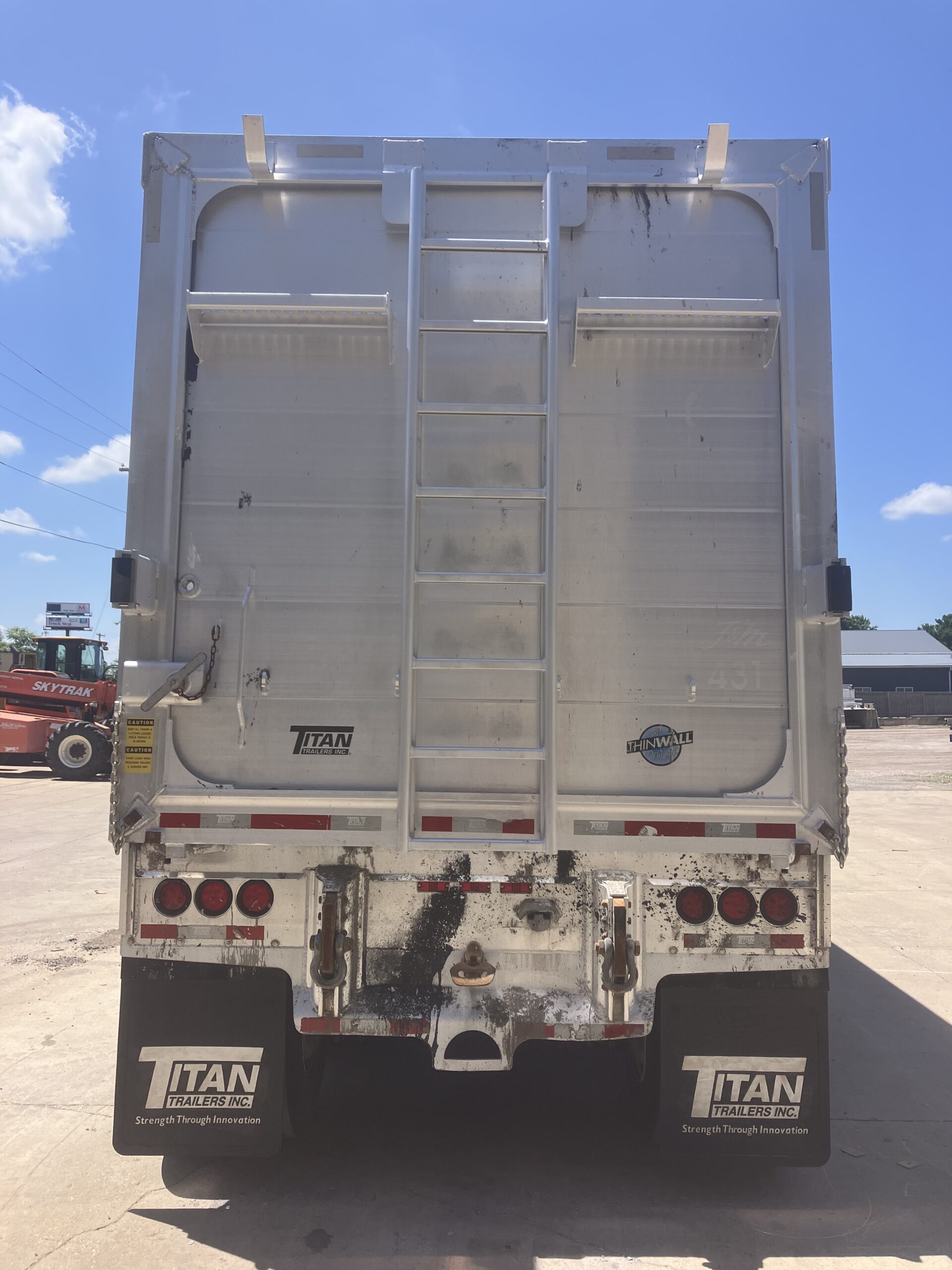

Rear Door                                           Overslung hinge, door in door, air release and safety chain

Rear Door Seal                                    Rubber

Front Door                                           None

Tarp Header                                        None

Tarp Basket (Hoops)                         Tarp hoops front & rear

Tarp Hook                                           54” on center, 4 hooks on rear door

Tarp/Roof                                            None

Mud Flaps                   Style               Titan Black Rubber

Location          Front/rear primary

Paint                            Body               Natural Aluminum

Run-Gear        TO match dupont centari #N4028 Kelly Green

Hub/Drum       Same as running gear

Rims or Disc   Pre-painted white

STD Light Package – Plug form        2-ID markers per side & midturn, 2-4” dia per side &  3  rect. in rear light bar, 1 per side ID clearance lights at front

Option #1        Add 1 – 4” round S/T/T rear light per side for a total of 3 per side at rear – Note #4

Access             Catwalk – Front          None

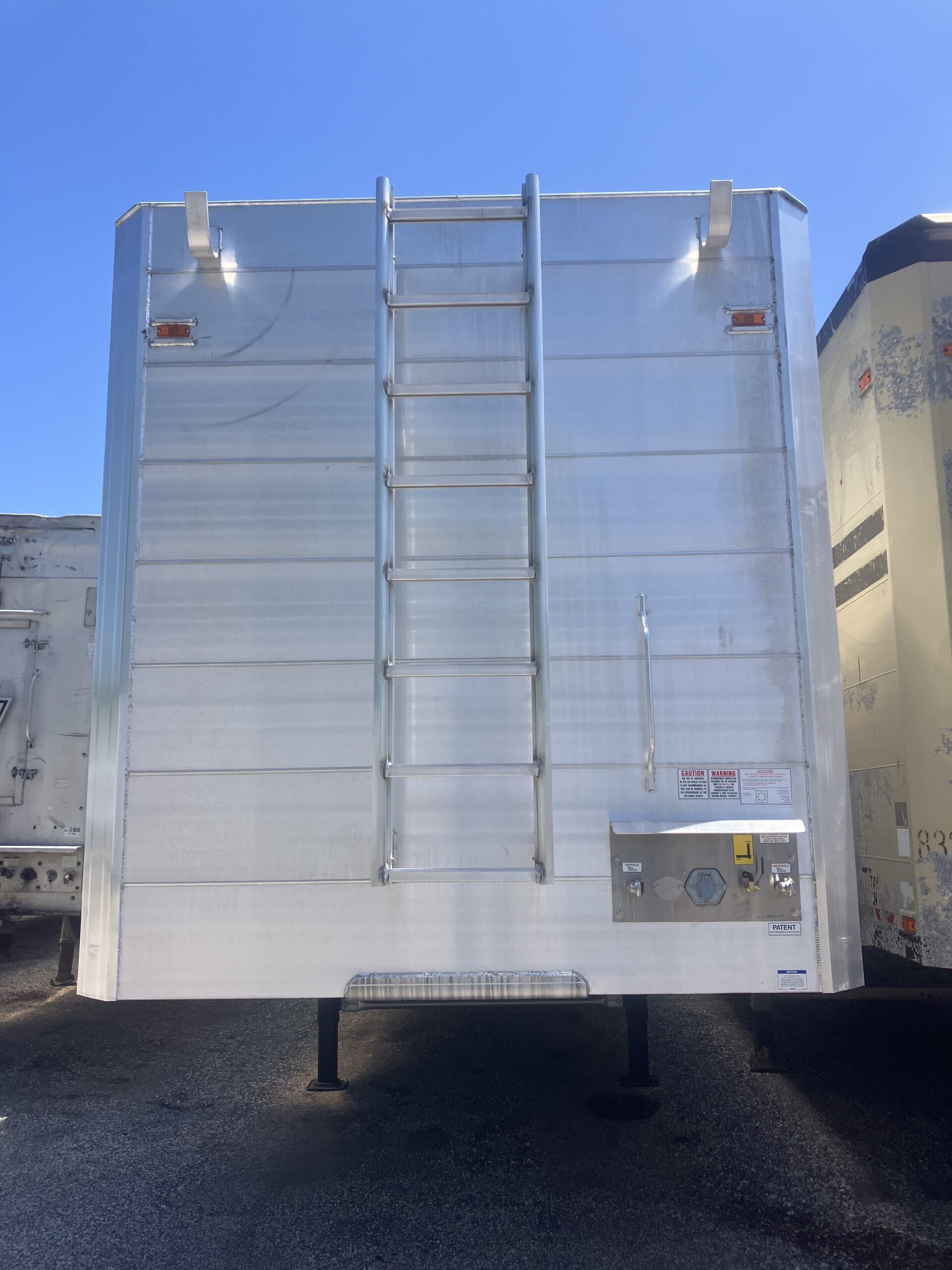

Ladder – Front           J ladder middle

Ladder – Rear             J ladder middle & two small catwalks on inner door

Steps – Front – Out   None

Steps – Front – Ins    None

Steps – Rear               None

Additional Specifications:

• 35’ 5” approx. from center of landing gear to rear of HD vertical blocks on rear of trailer.
• Invert axles.
• Extended life lining
• Rear 4” dia. Lights to be grommet mounted.
• Do Not Cut Titan Trailers into Wing Plate
• Add boomerang Wear Plates at rear
• One piece bearing blocks to be used on each end of the lock cross shaft in place of the two piece bearing blocks

Estimated weight: 13,668 lbs

Estimated volume: 125 cu yds
