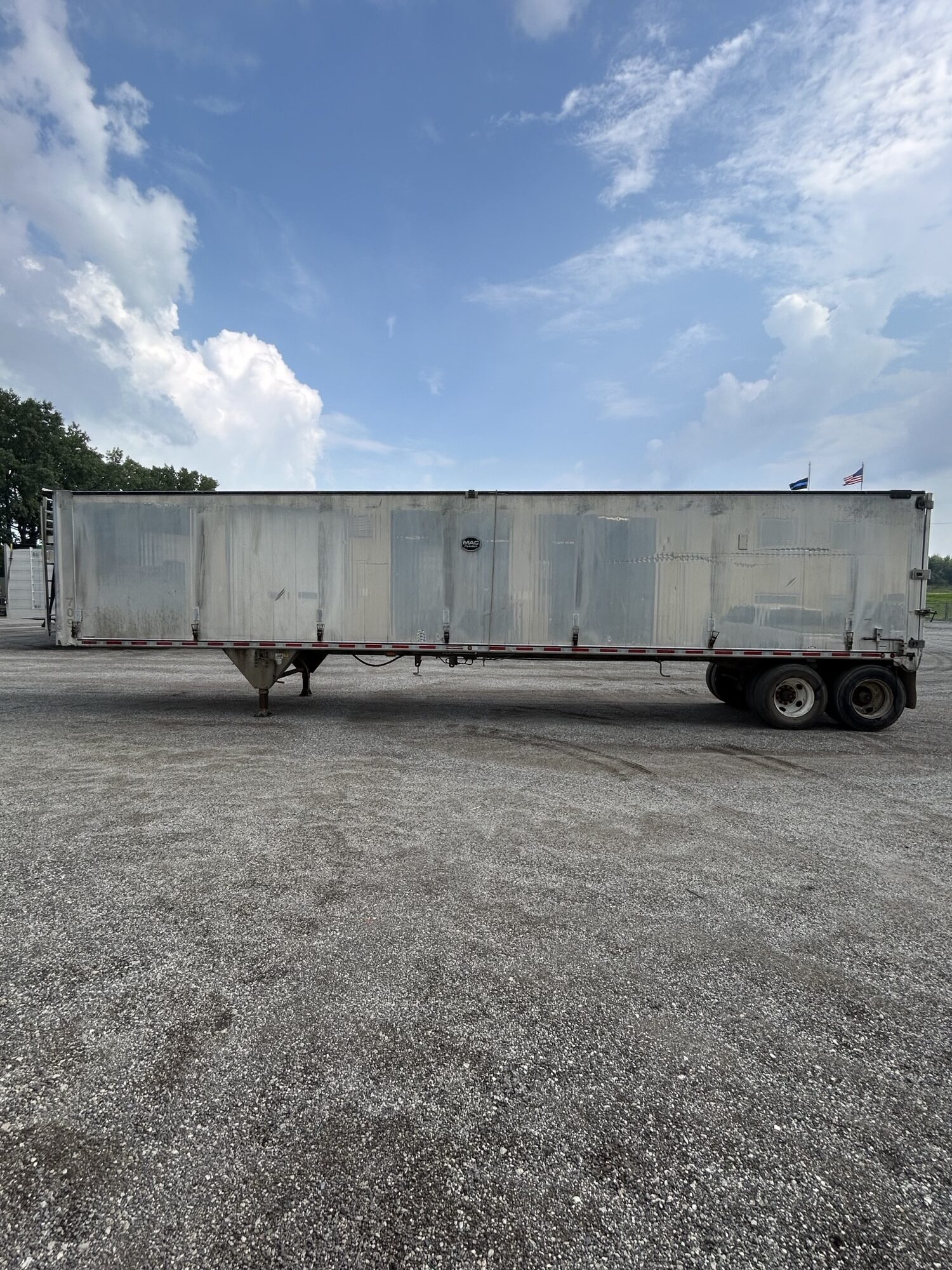

2016 MAC 48′ 2 AXLE MVP SS WALKING FLOOR TRAILER $57,000.00
BODY
Length: 48’
Load Profile: Material, 80K GVWR
Width: 102”
Wall Height: 100”
Top Rail Option: Heavy 2 ¼” Vert. Panel Top Rail

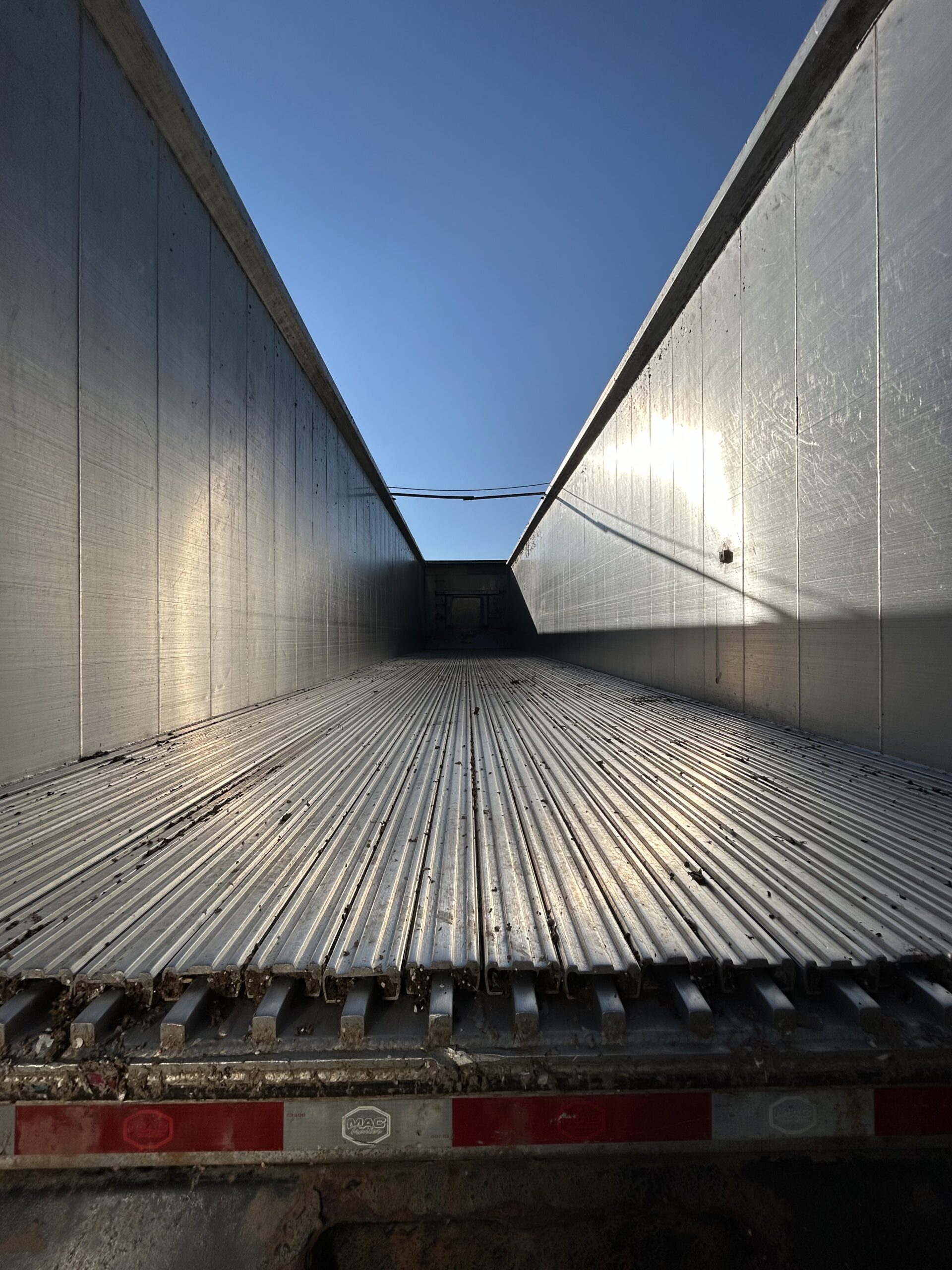

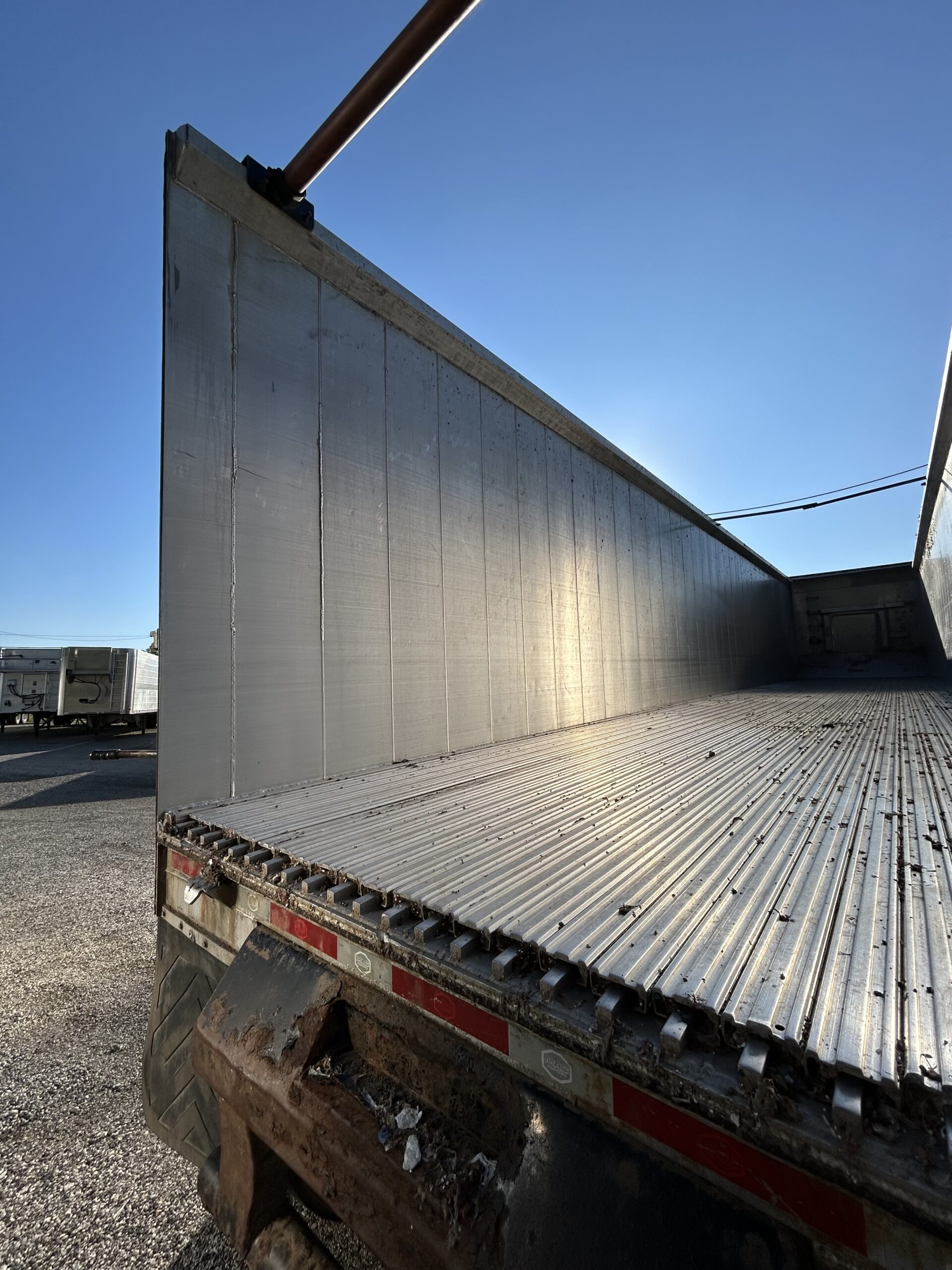

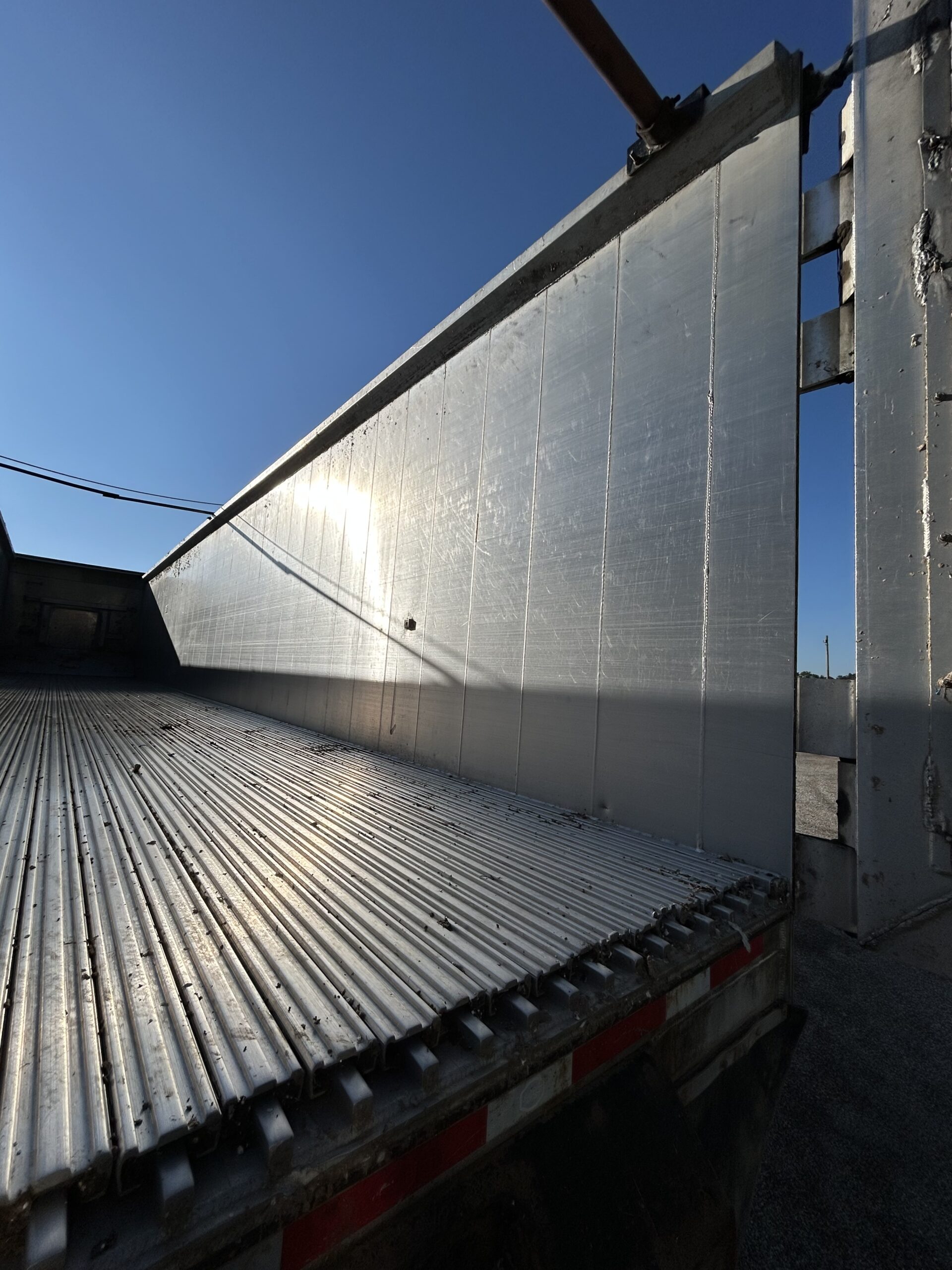

Floor: 2299 (2218), Cont. Wear (102 W)
Drive Unit: Keith, 3” cylinders
Hydraulic Pipe: Std. Hydraulic Pipe
Bottom Rail: (STD) Square No Clean Out
Crossmember Type: Standard
Crossmember Spacing: 5-1/4” I-Beams, 14 O.C.
Rubber Seal: Yes
Tarp Bar: None
Bulkhead: Std. 3/16”

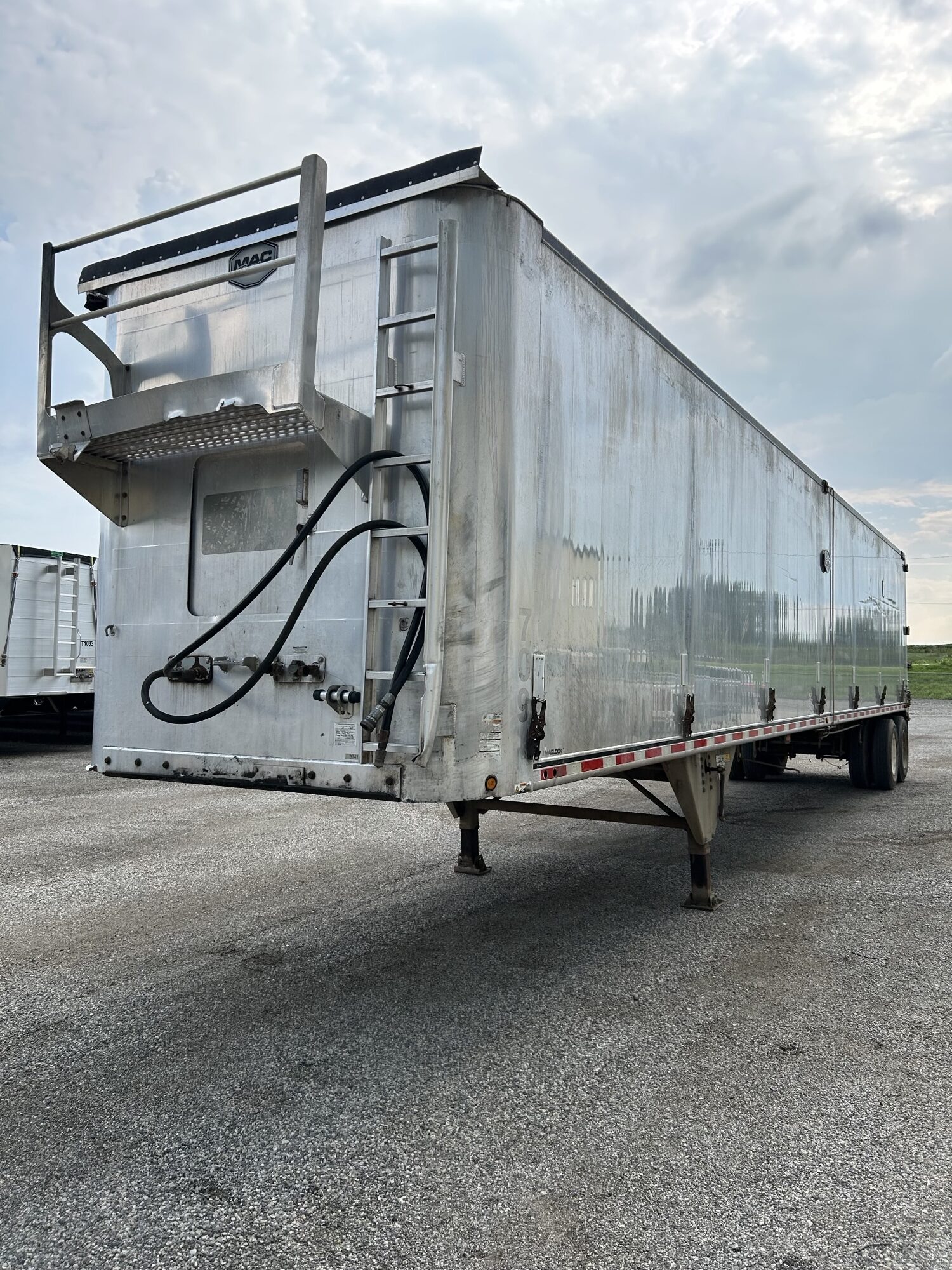

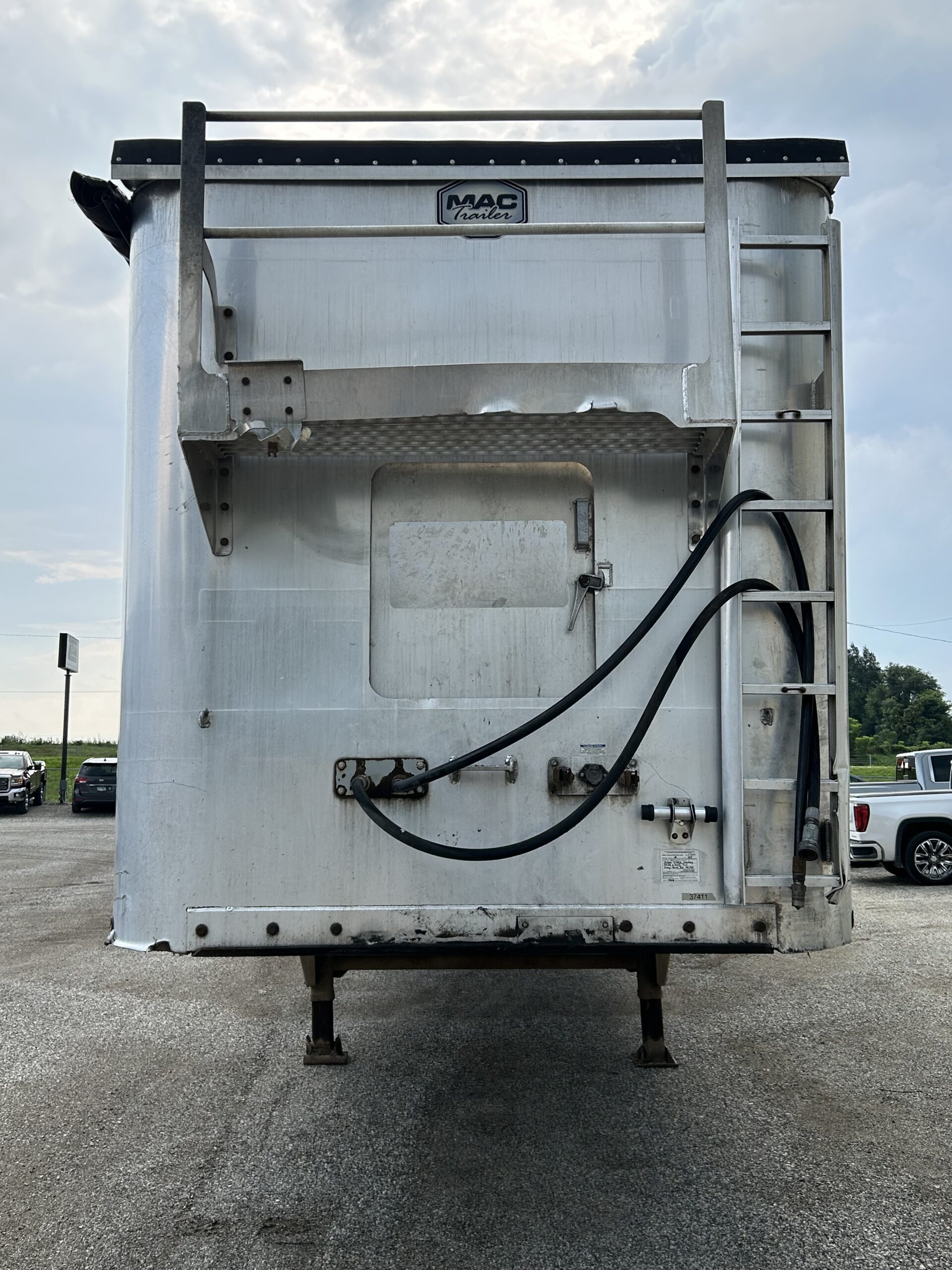

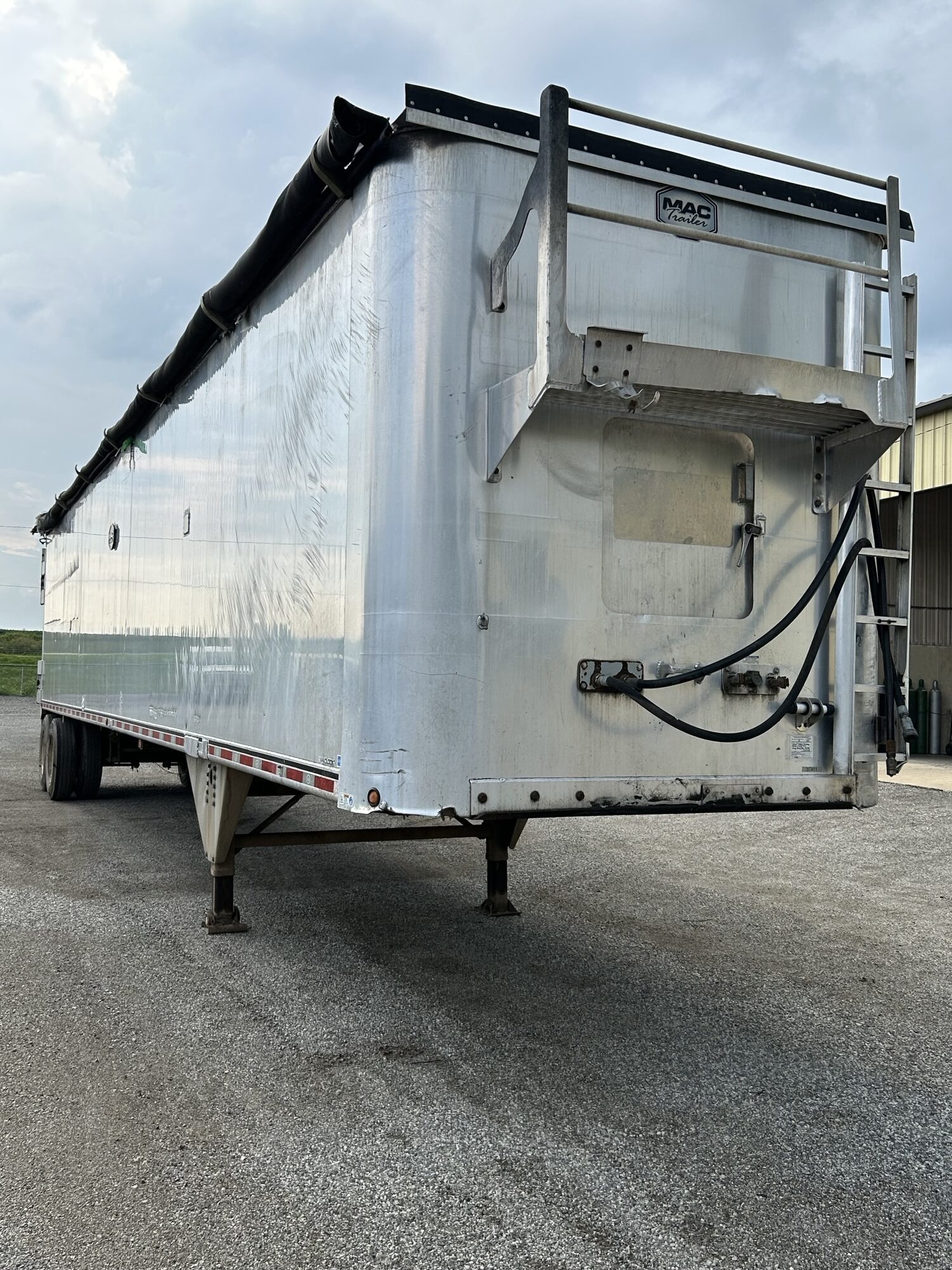

Bulkhead Steps/Catwalk: Catwalk & Ladder with steps inside
Gate Steps: (STD) Up center of gate outside only
Tarp Hooks: Bulkhead and Gate
Fenders/Front Flaps: None
Flaps, Rear of Tires: STD Flap behind rear axle
Upper Cross Tubes/Caps: STD (1) Spring-Mid & (1) Tube-Rear
Sides: 2 ¼ x 15 ½ Vert. Panels – (Buffed)
LIGHTS OOOoooOOO
Light Panel: LED, 3 large-3 small- 3 large in tailgate
Light Type: Grote LED w/ Grommet
Light ShieldApron: None
Marker Lights: LED 3 each side
Midturns: 1 pair LED (Non-Combo)
Back-up Lights: None
Rear Pocket Lights: 1 Pair
TARP None
PAINT
Chassis Color: Black
Pin Striping: Black
MAC Logos: Mac Black
Optional Signs: None

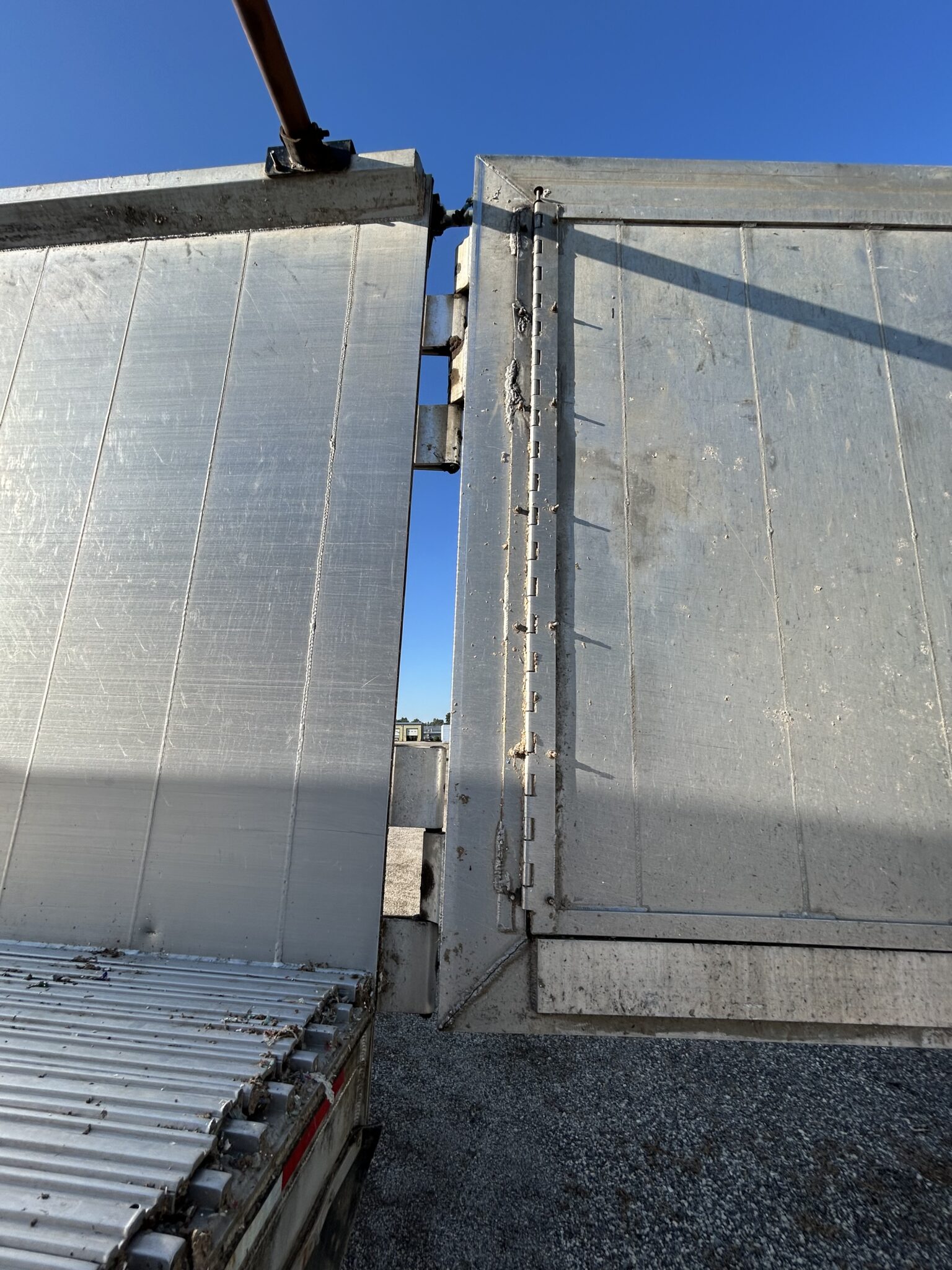

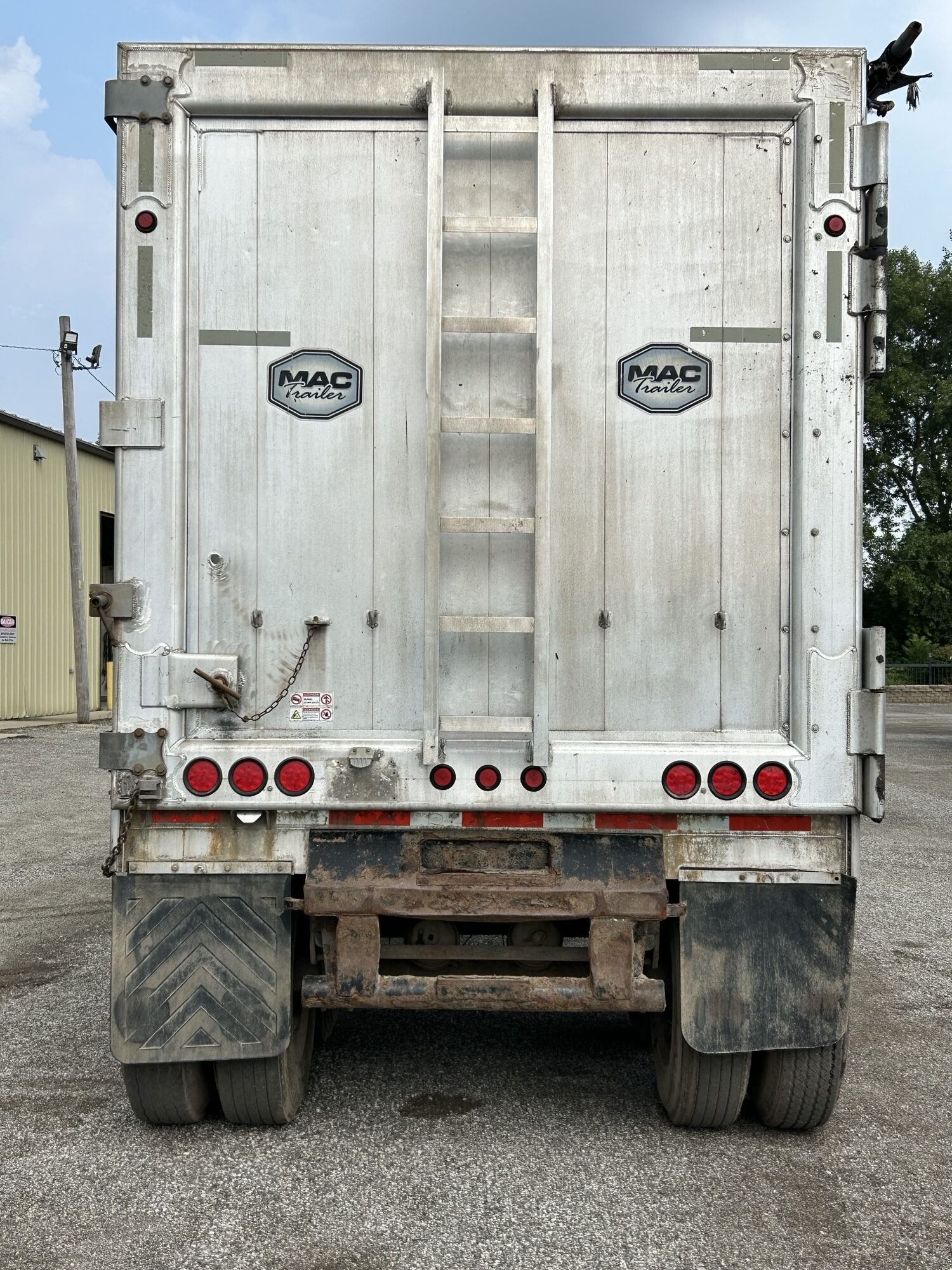

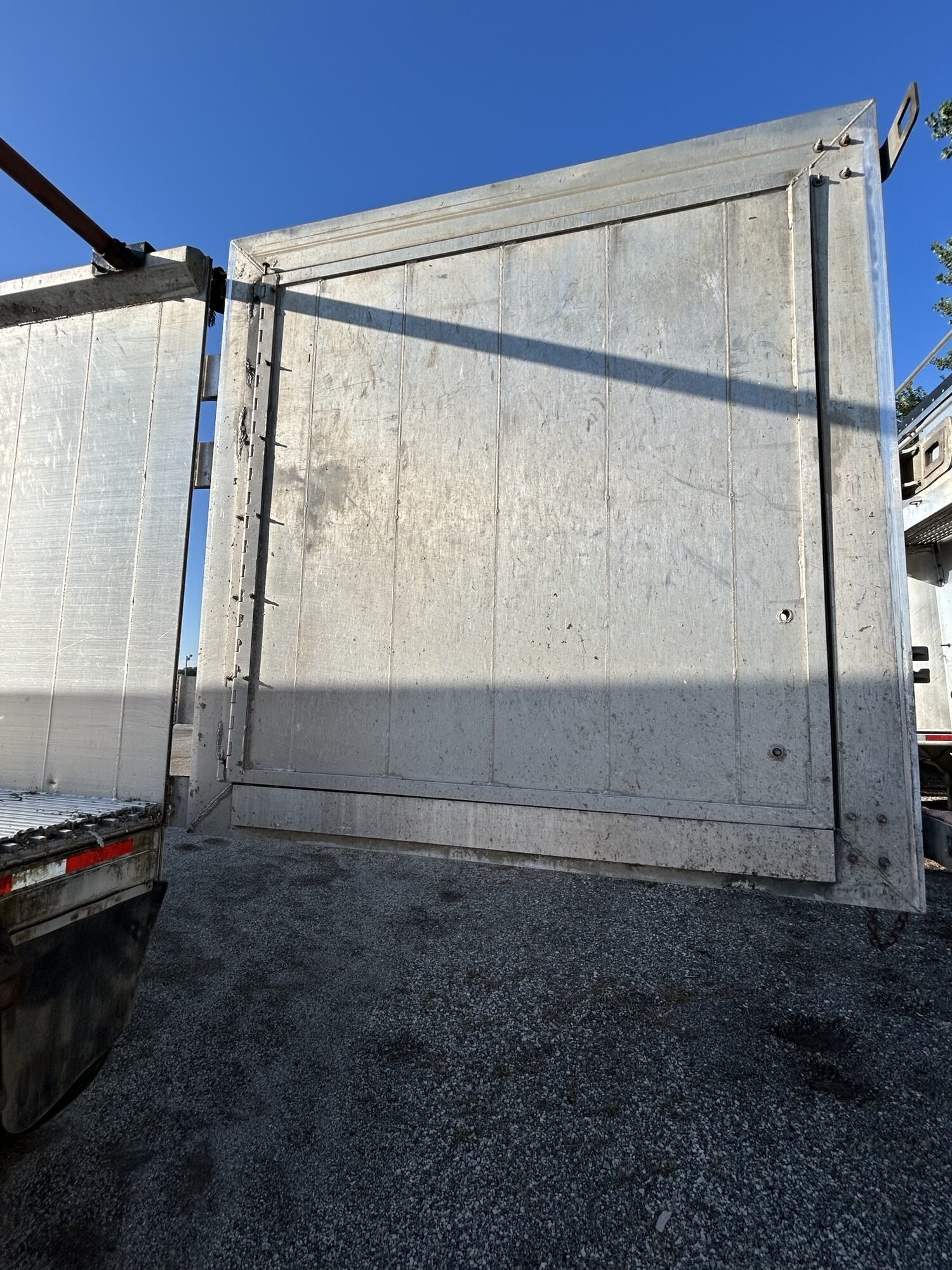

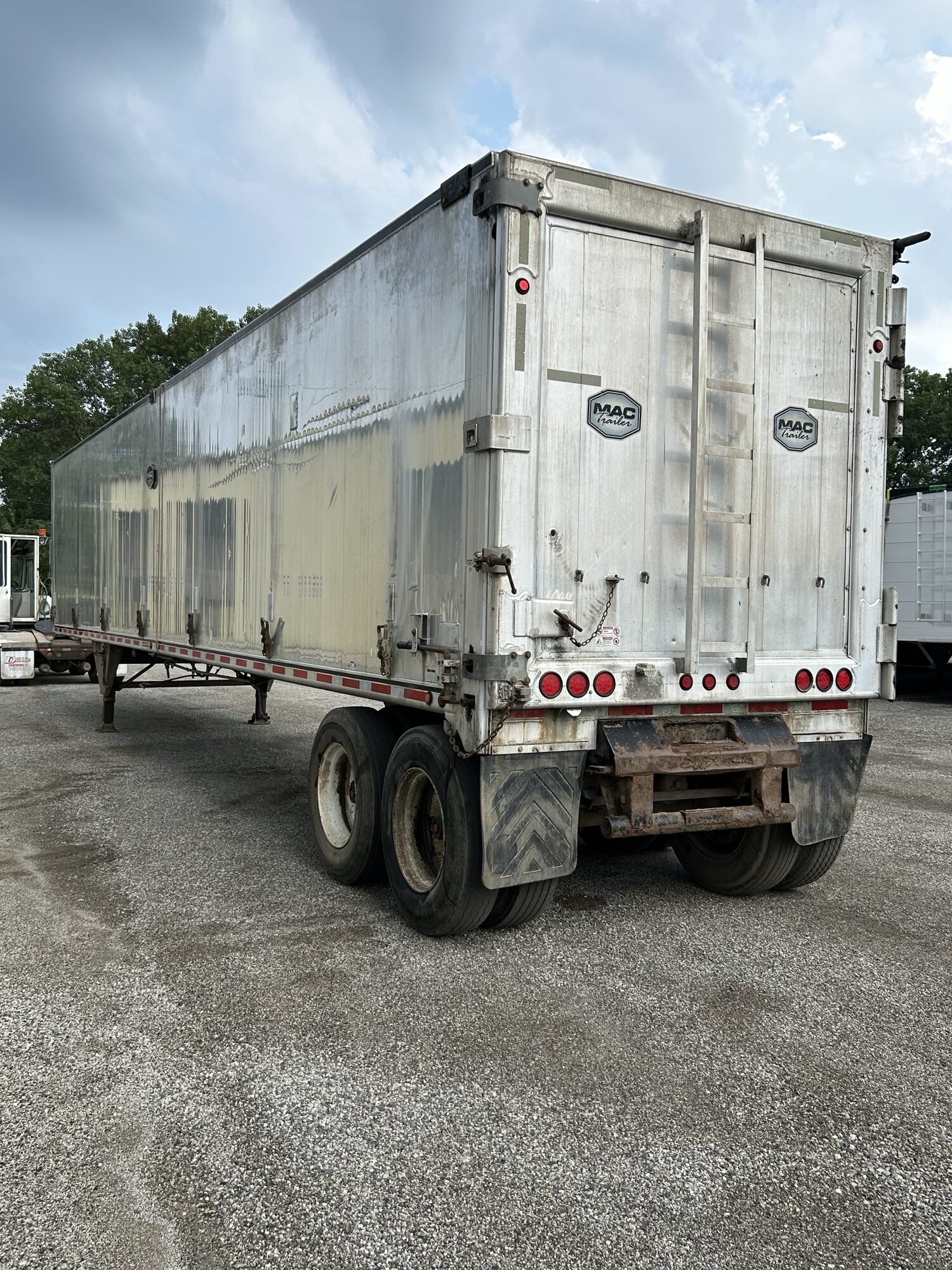

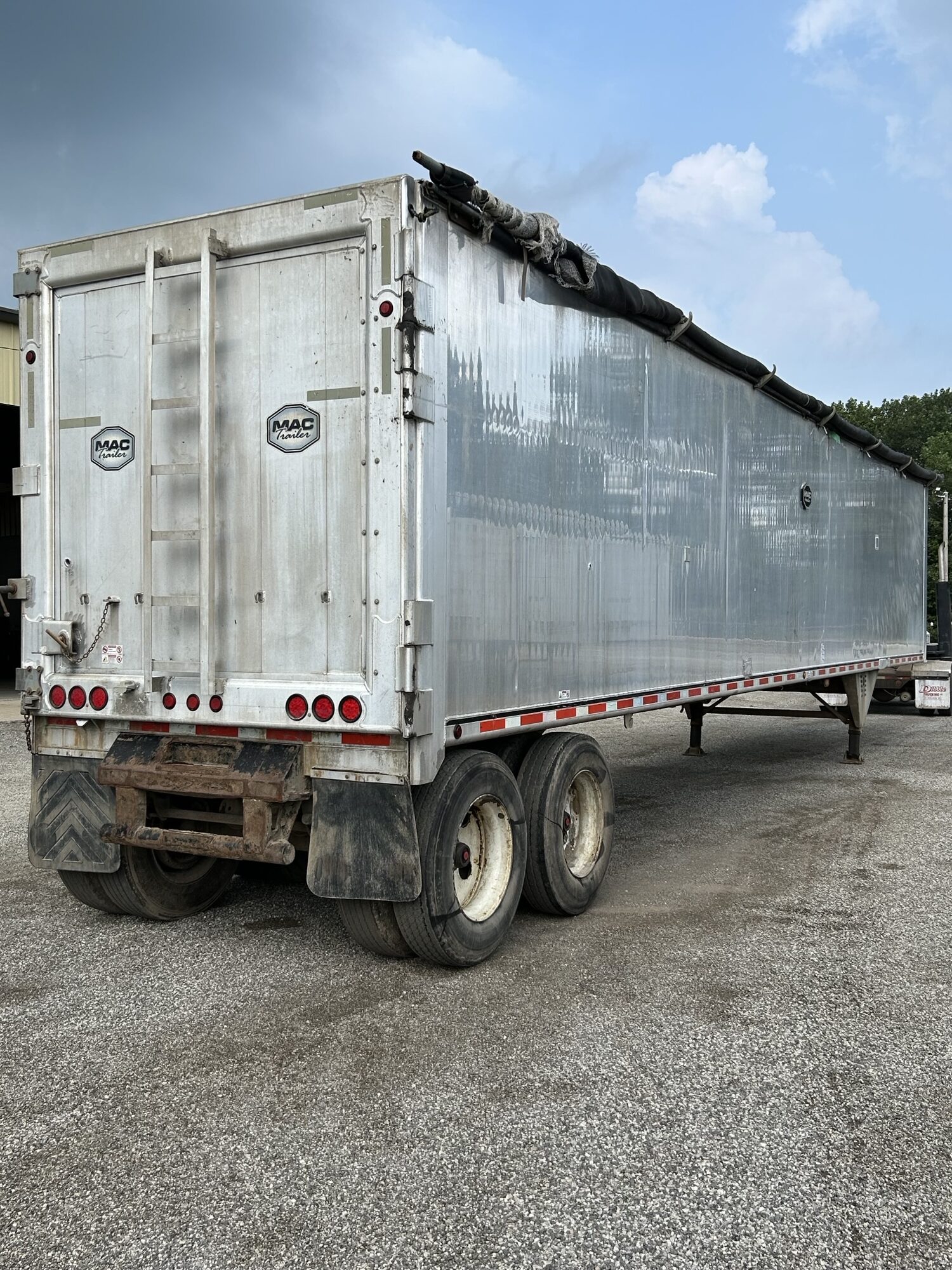

GATE
Hinge Type: Air Flow Side Swing only
Gate Operation: Mechanical Side Latch
Safety Chain: Yes
Winders/Safety Latch: (STD) (1) Winder on side only
Gate Sheet Thickness: Smooth Side Panels
Gate Bracing: No Bracing (Smooth Side Panels)
CHASSIS
Model: Closed Tandem
Sub Frame: Std. Tandem, Hi-Tensile FAB
Pin Setting: 36”
5th Wheel Plate: 3/8” Low Profile
5th Wheel Plate Height: 49”

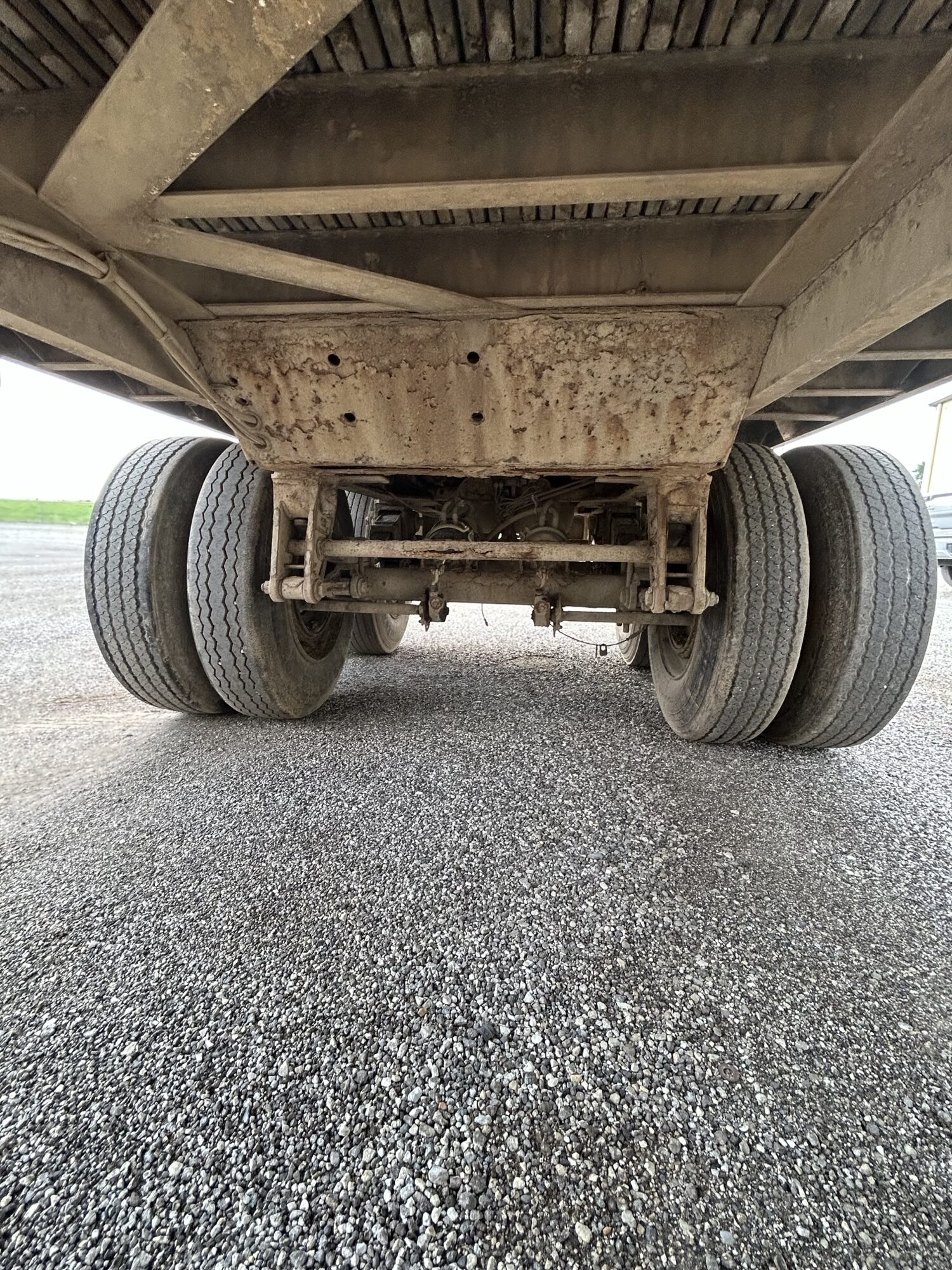

Suspension: Mac Cast Spring Ride Single Leaf Tan.(49)
Axle Spacing: 49”
Suspension Control: None
Axles: (2) 77.5”, AXN 5/8” Wall TP
ABS: (1) 2S1M Meritor Wabco
Brake Shoes: 7” XL, W/30-30 Chambers
Slacks: Automatic
Cam Guard: None
Hub/Drum: Cast w/Steel Hub, HP, 10 Stud, TP, SS, 7”

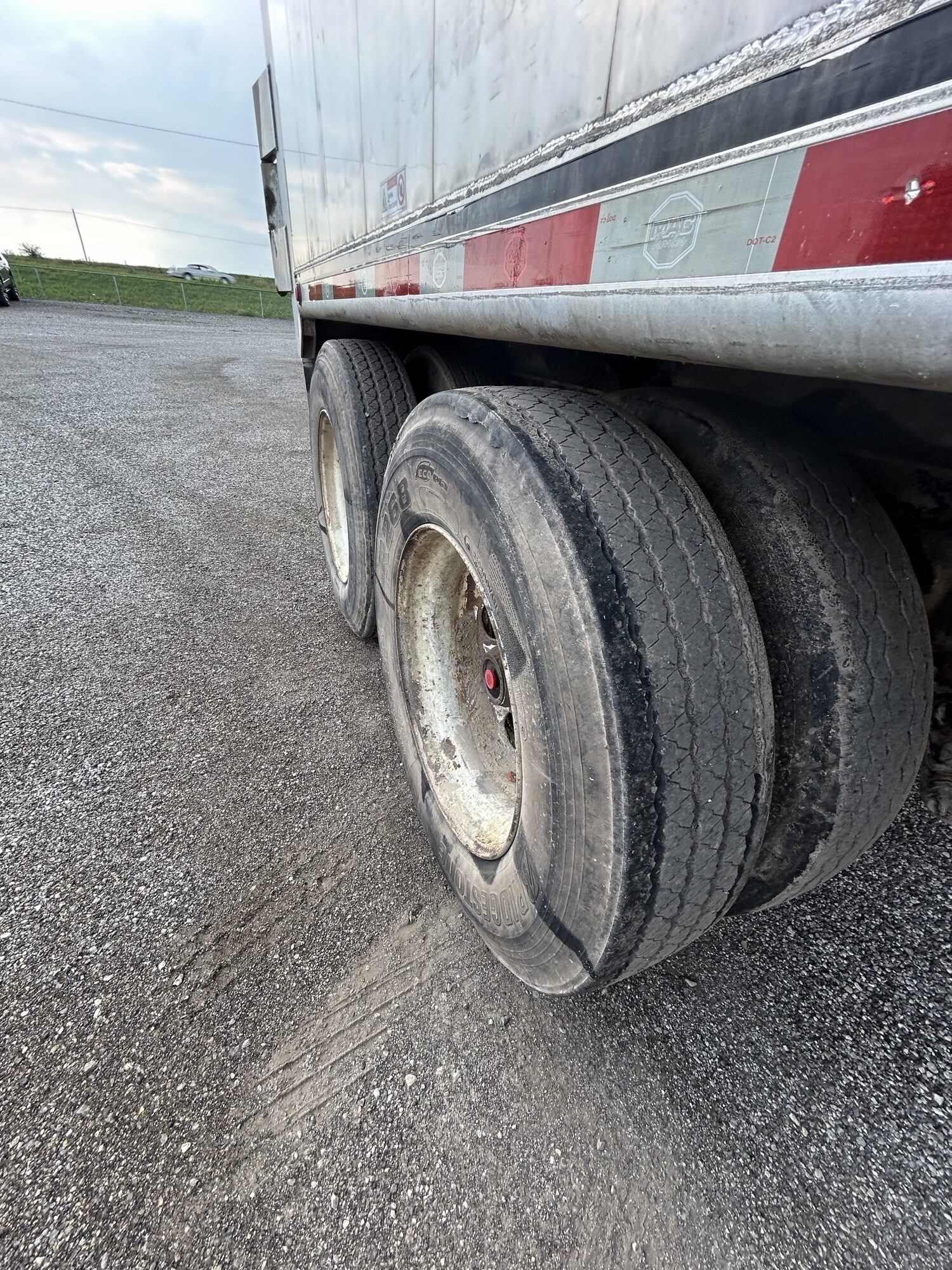

Wheels: Steel HP 24.5 x 8.25 10 Hole White Powder Coated
Dust Covers: Yes
Dollies: Jost A451 – 10 year no lube – D.S. (reverse mount)
HYD. Hose Fitting: 1” x 108” Hose w/wing fitting
Bumper: (STD) Mover Bumper
Air Tanks: 12” Aluminum Tank
Axle Lubrication: Std. Oil
Tire Inflation System: None
Weight: 18,651 lbs. +/- 3%
