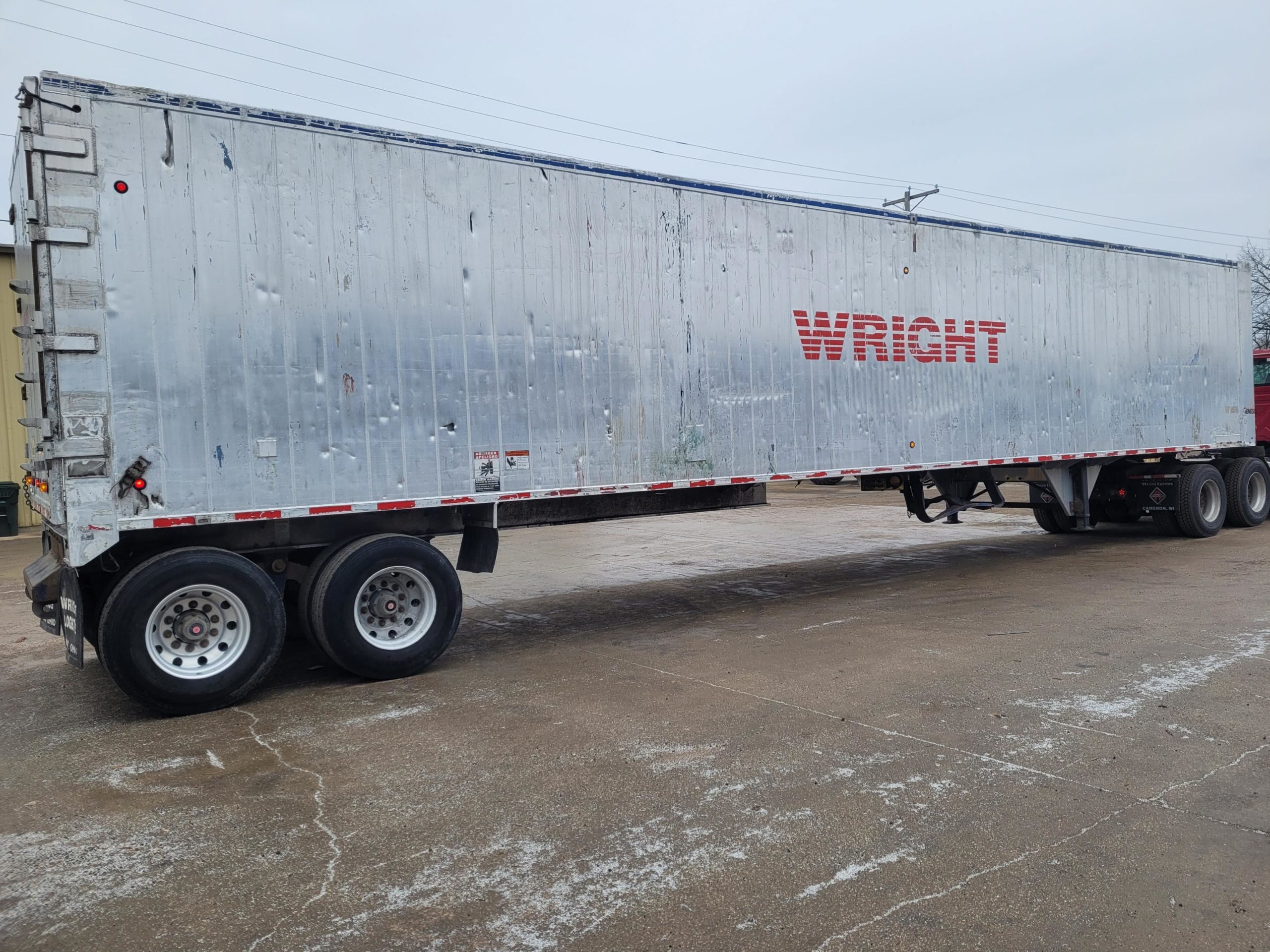

VIN#1E1U2Z2847RM41089
Stock # EM41089
BODY
Length: 50’
Width: 102”
Height: 100”
Bulkhead: 3/16” – Mandoor

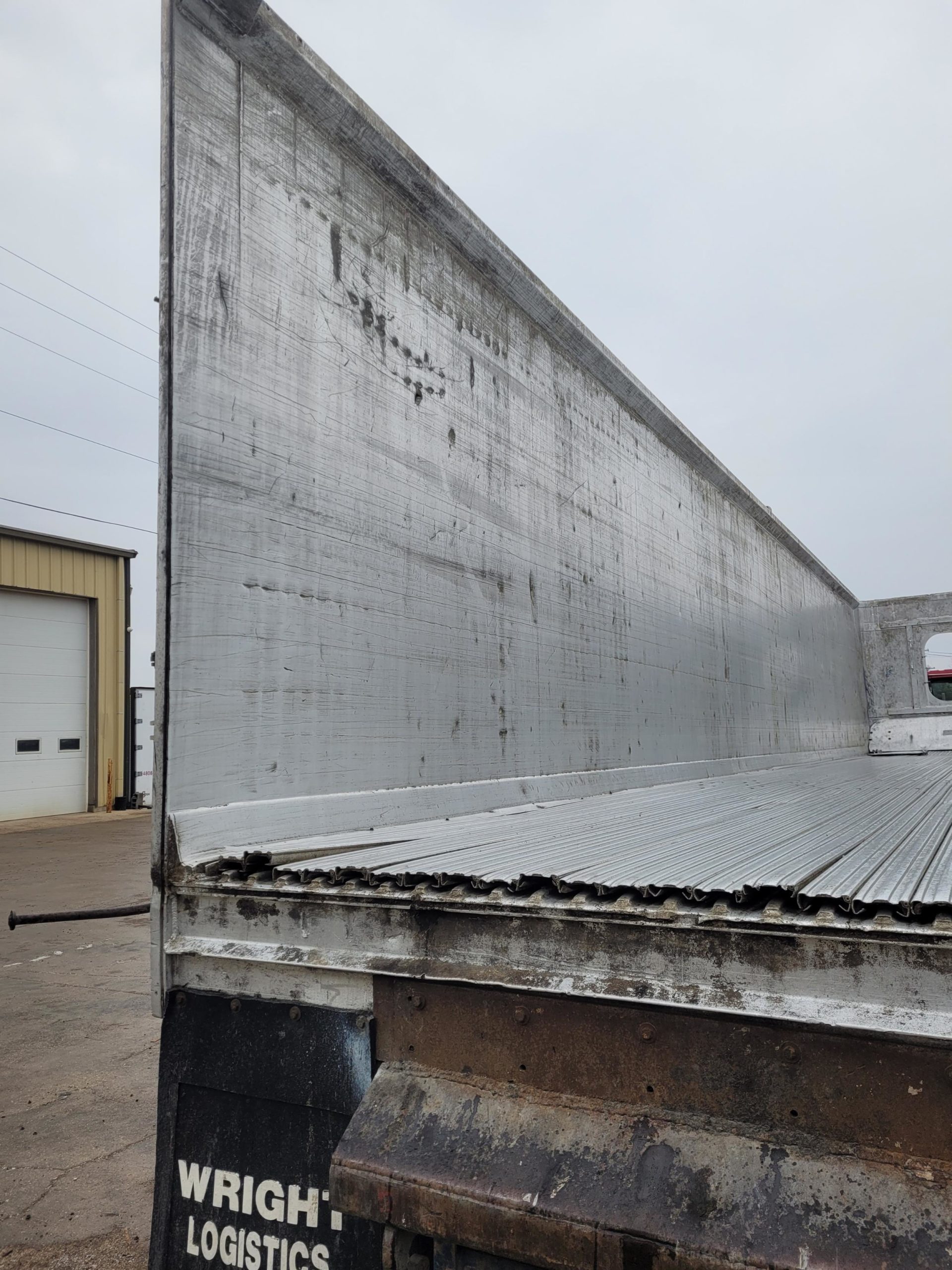

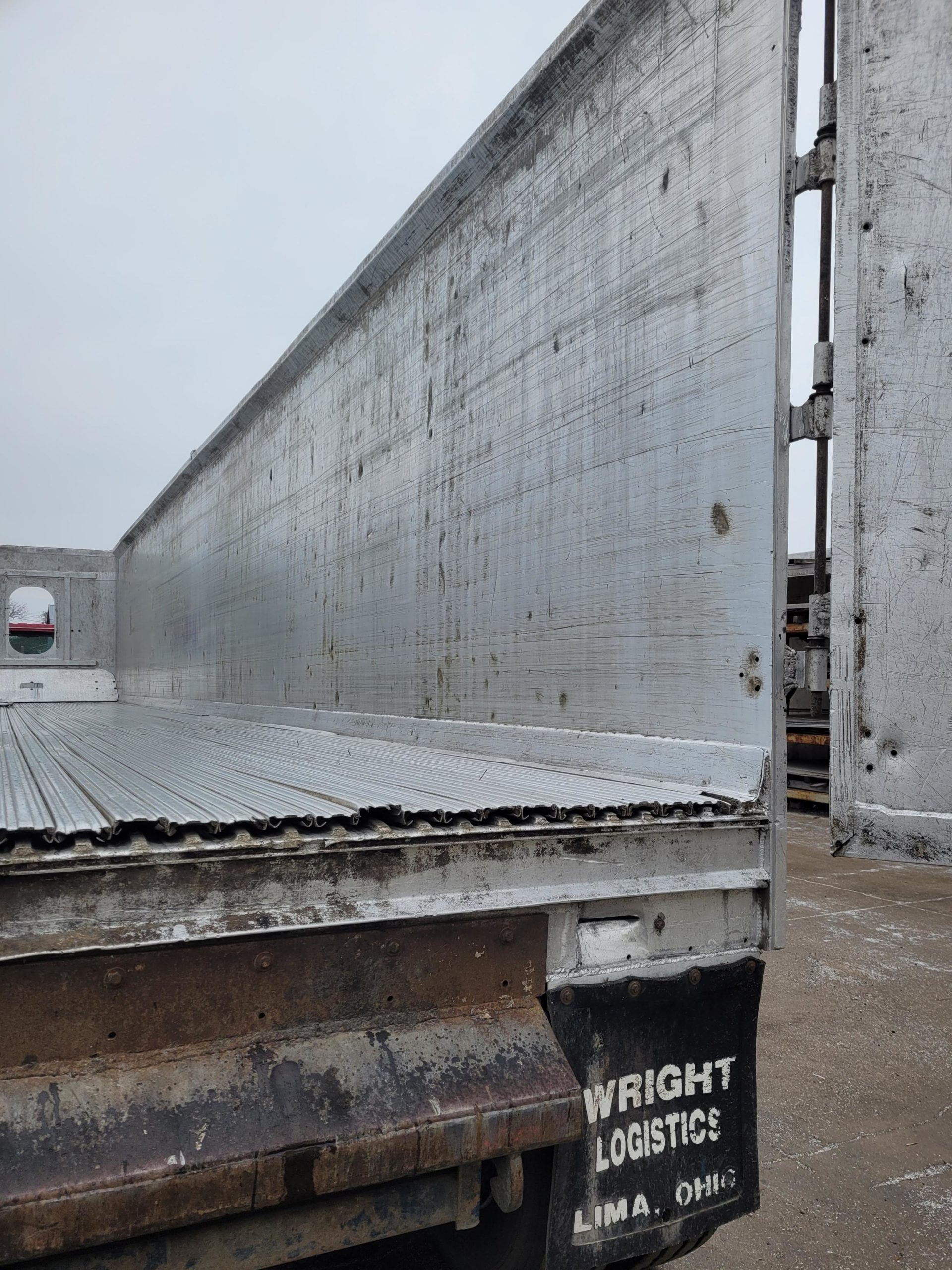

Side Material: Genesis Front – 0.150 Middle – 0.150 Rear – 0.150
Catwalk: None
B.H. Ladder: Rung – Drivers side
Crossmember: “I” Beam – 12” C/L

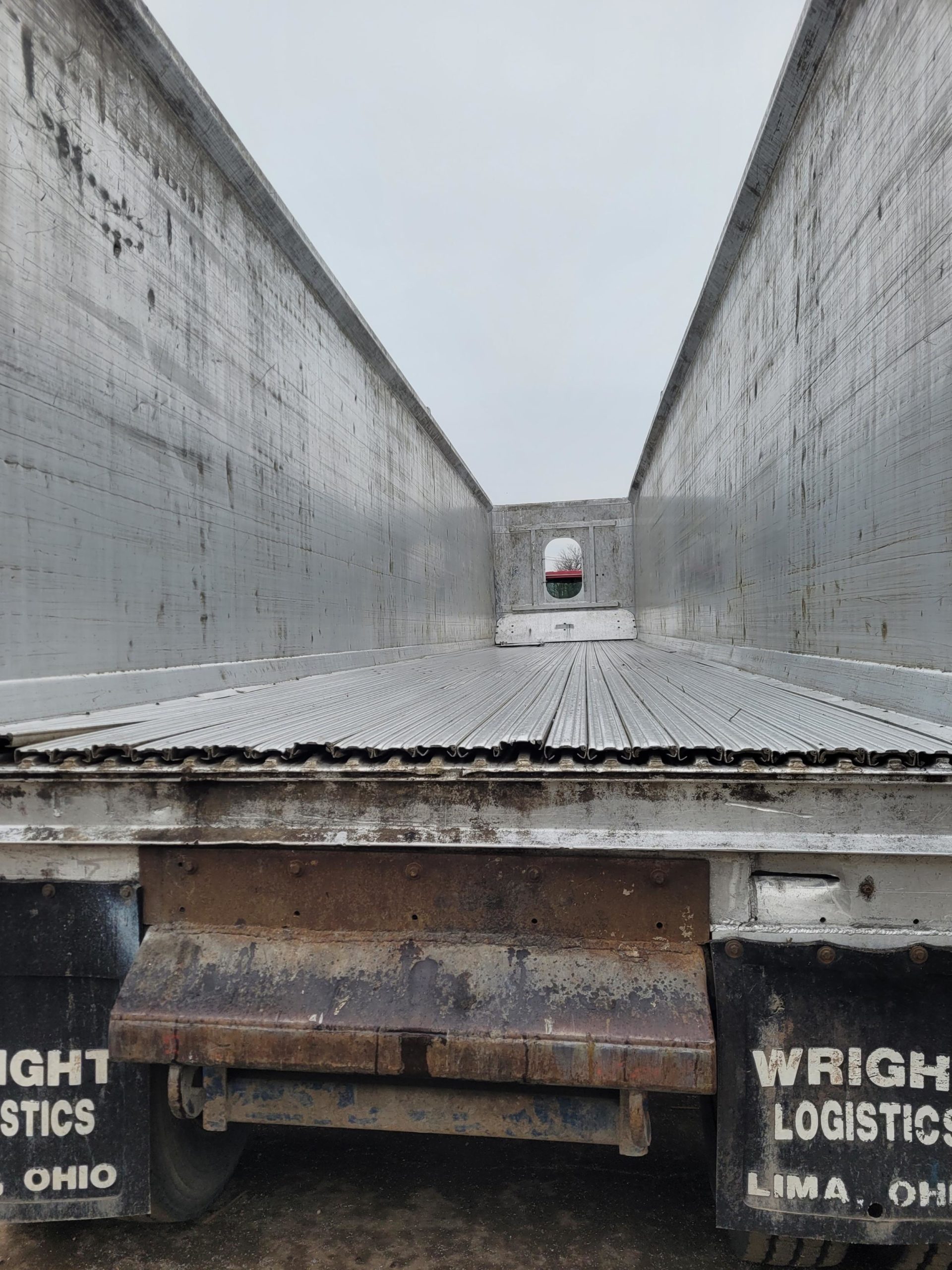

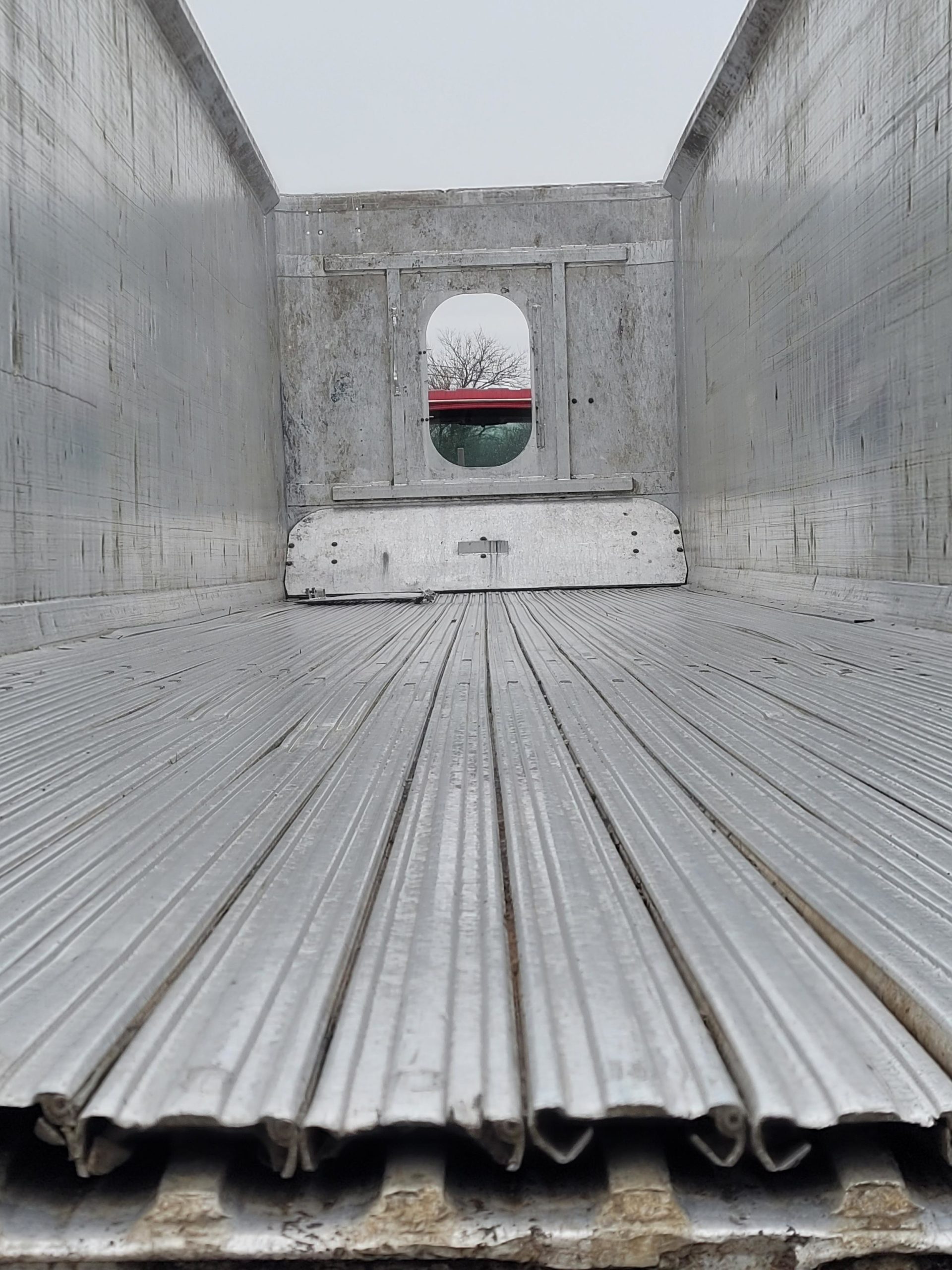

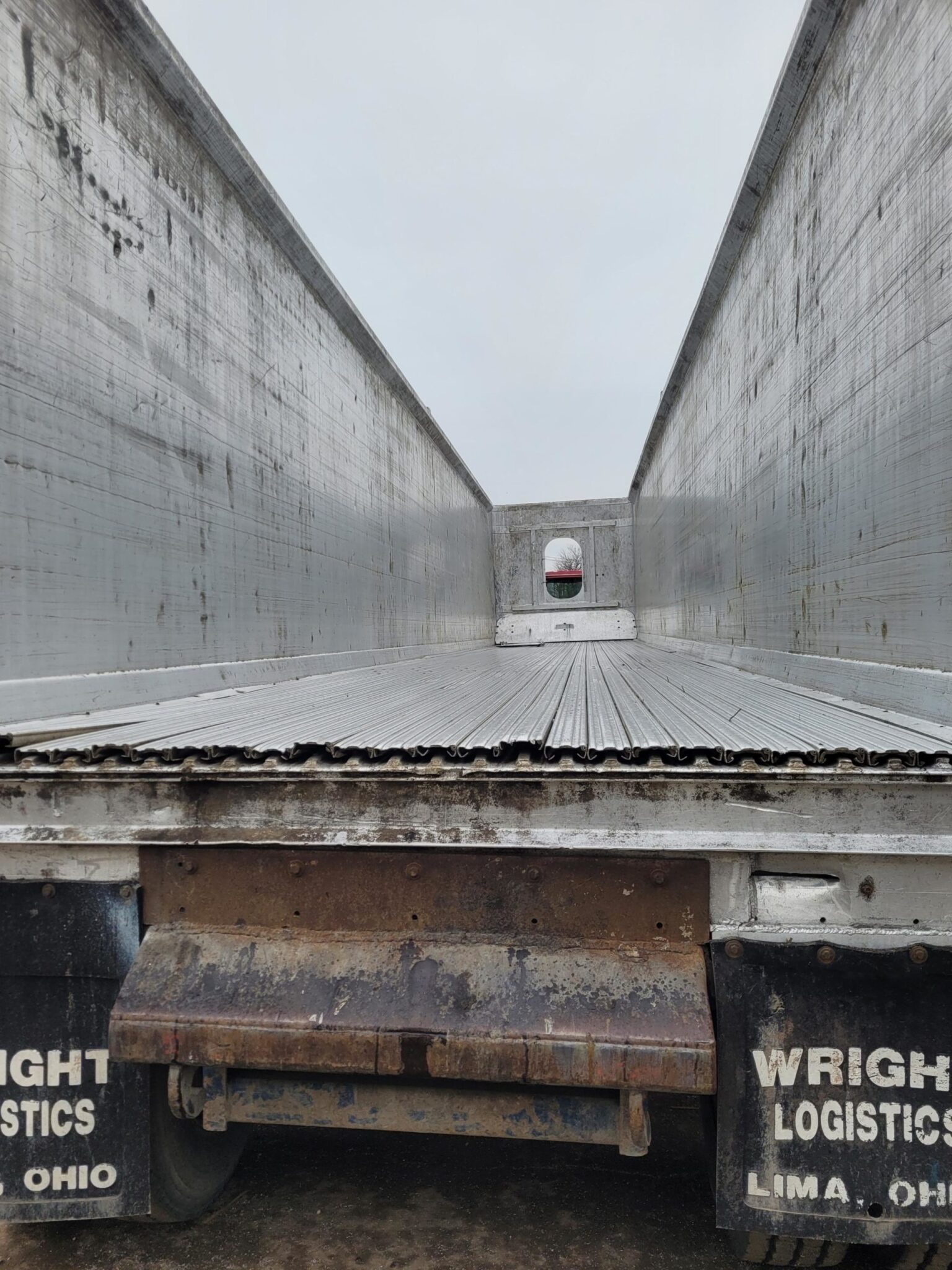

Floor Make: Keith Mfg. ** New Floor within the last 2 years **
Floor Material: 2299 W/Sloped
Wear Pads: Cleanout
Hose Hanger: Yes
Tire Carrier: Yes

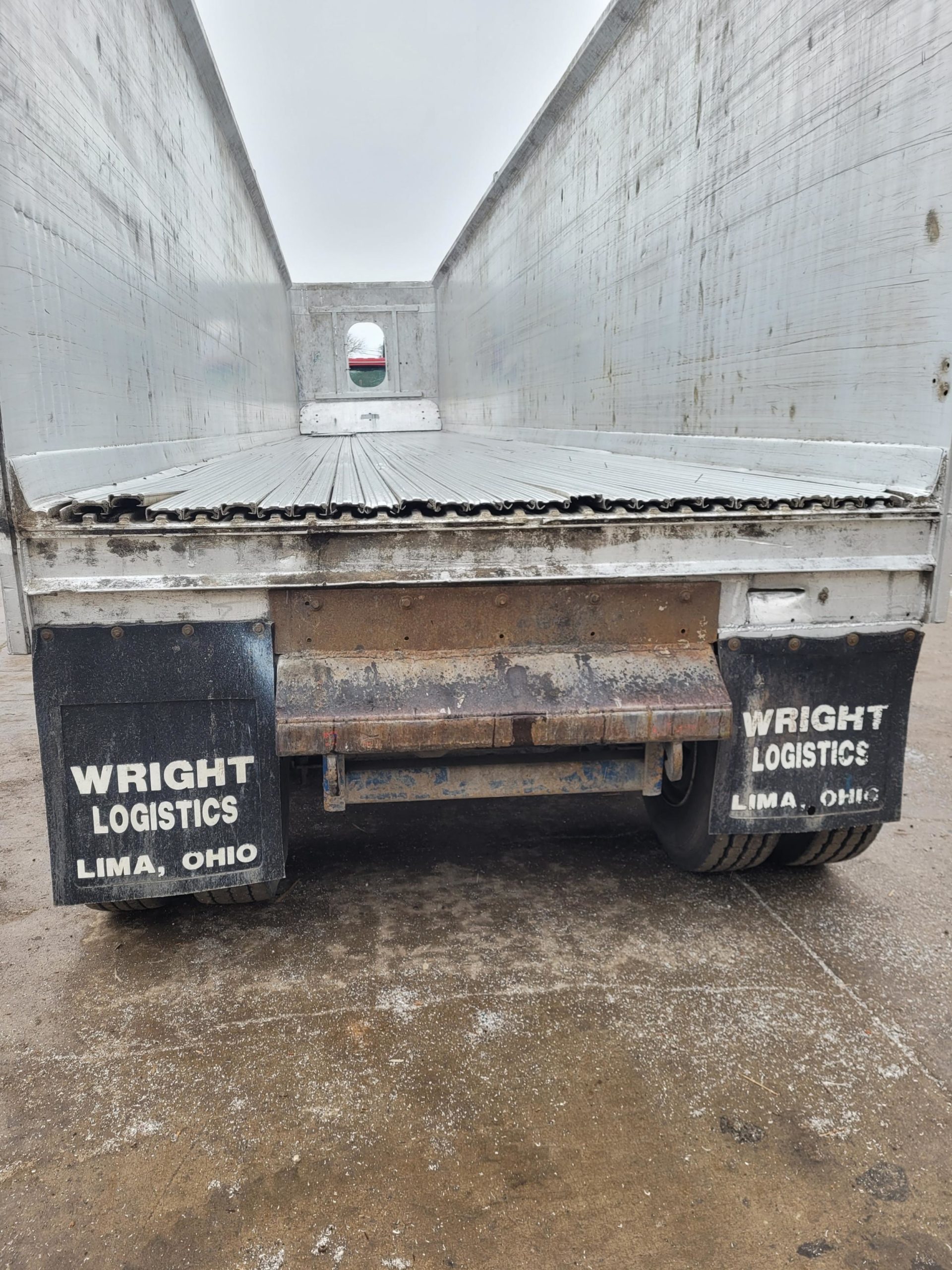

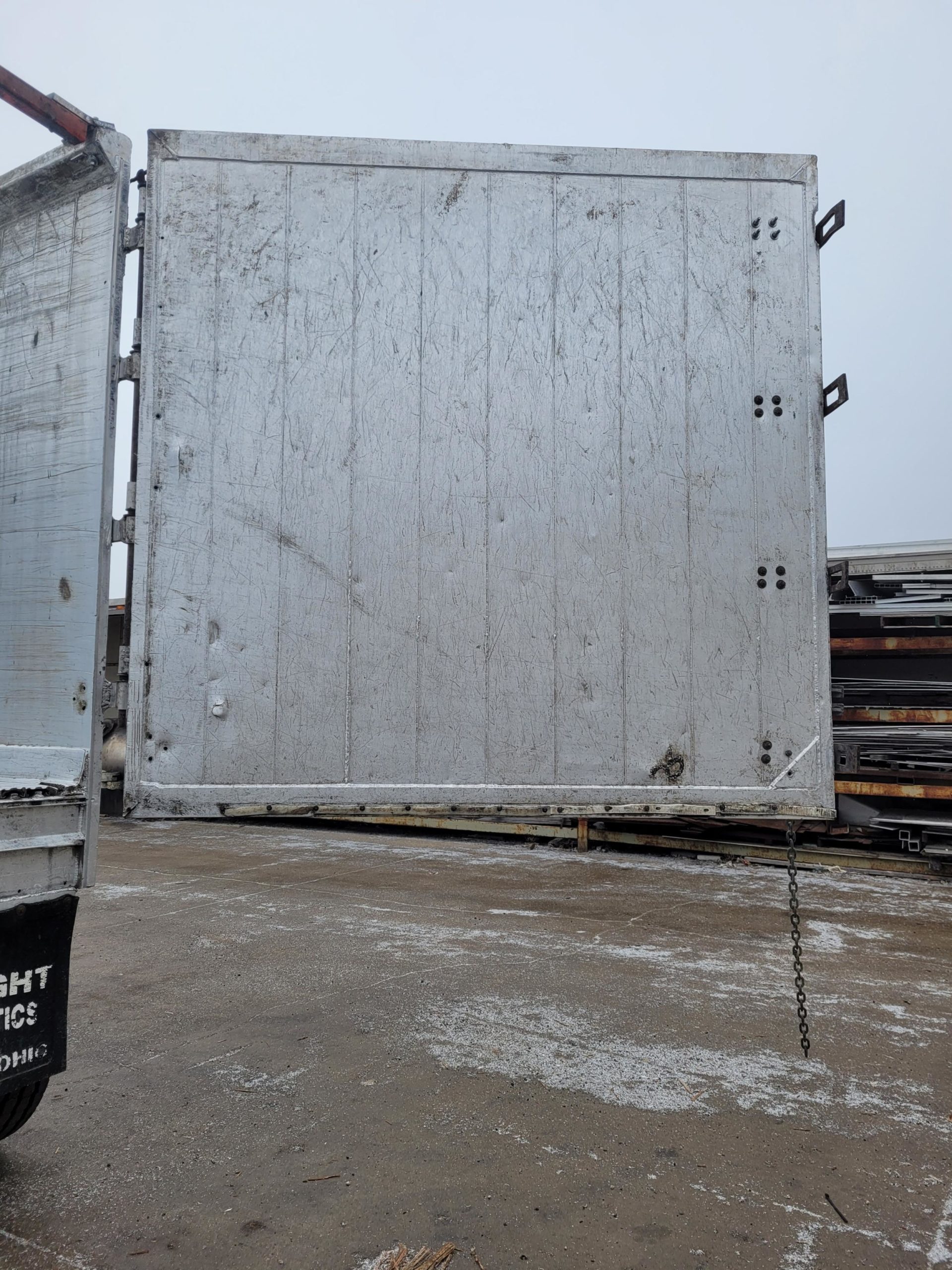

TAILGATE
Height: Full
Type: Single
Style: Genesis
Material Thickness: 0.150
Side Swing Hinge: On Passenger side
Gate seal: None
Gate Ladder: Cast / Center
Tarp Hooks: None
Winders: One
Gate Guide: Yes
Gate Control: Mechanical
Pockets: Extruded
Cross pipe: Two – Spring type
HYDRAULICS
Hoses: None
Fittings: Push-Pull
HP: 1” Male
LP: 1” Female
Access Panel: Access to Steel Hydraulic lines.
CHASSIS
Model: Tandem
Type: Aluminum Sub Frame
Axle to Axle: 49”
Rear Axle Setting: 26 1/2”
5th Wheel Ht: 49” standard
Pin Setting: 36”
Suspension: Reyco 21B
Springs: HD Single Leaf Axles: 5” Round – 5/8” TP
Brakes: 16 ½” x 7”
Dust Shields: Yes
Brake Chambers: Top of axle – long stroke brake chambers
ABS: 4S/2M
Hubs: 10 S AL / LWBD-PIL – East Elite

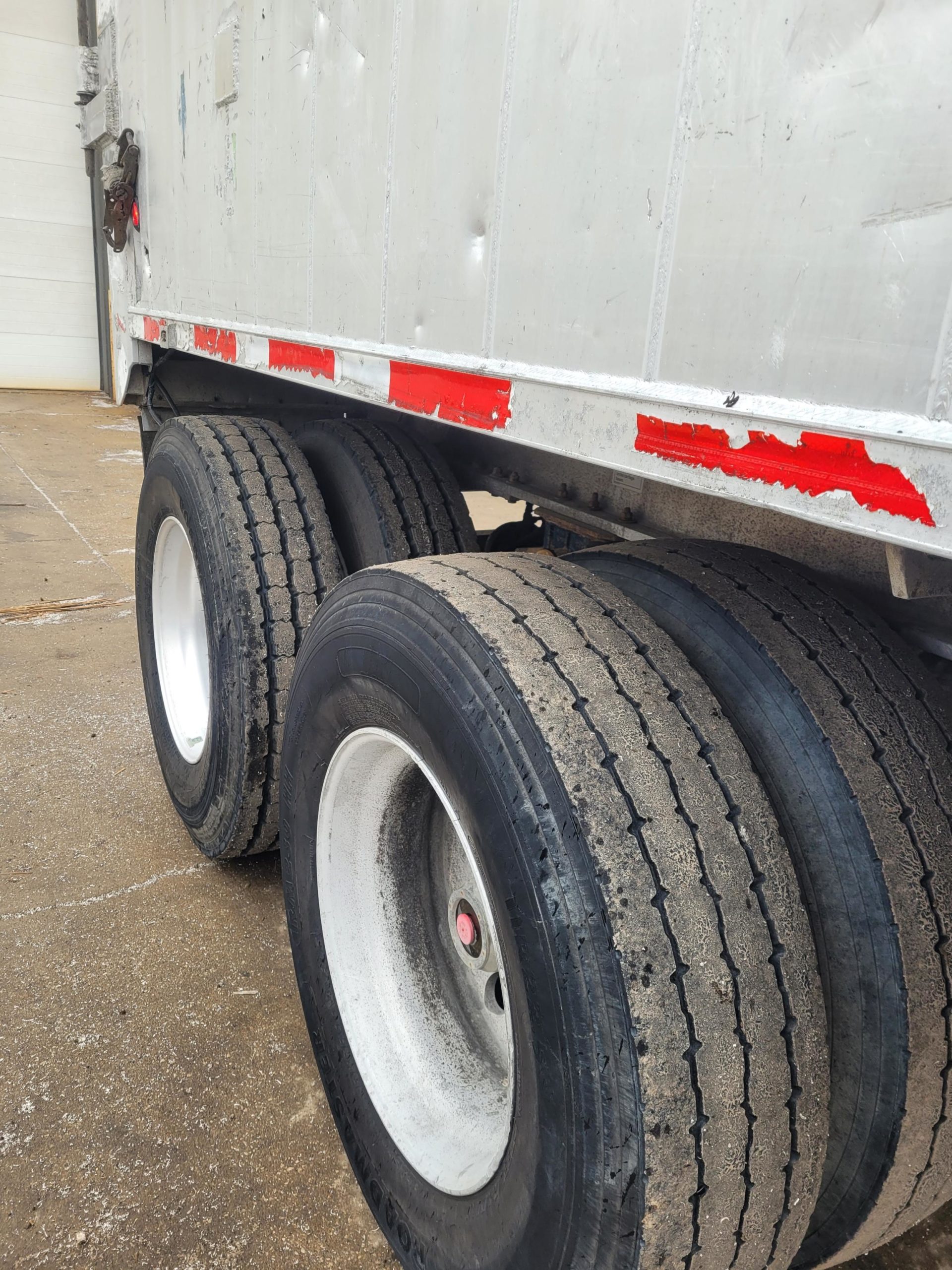

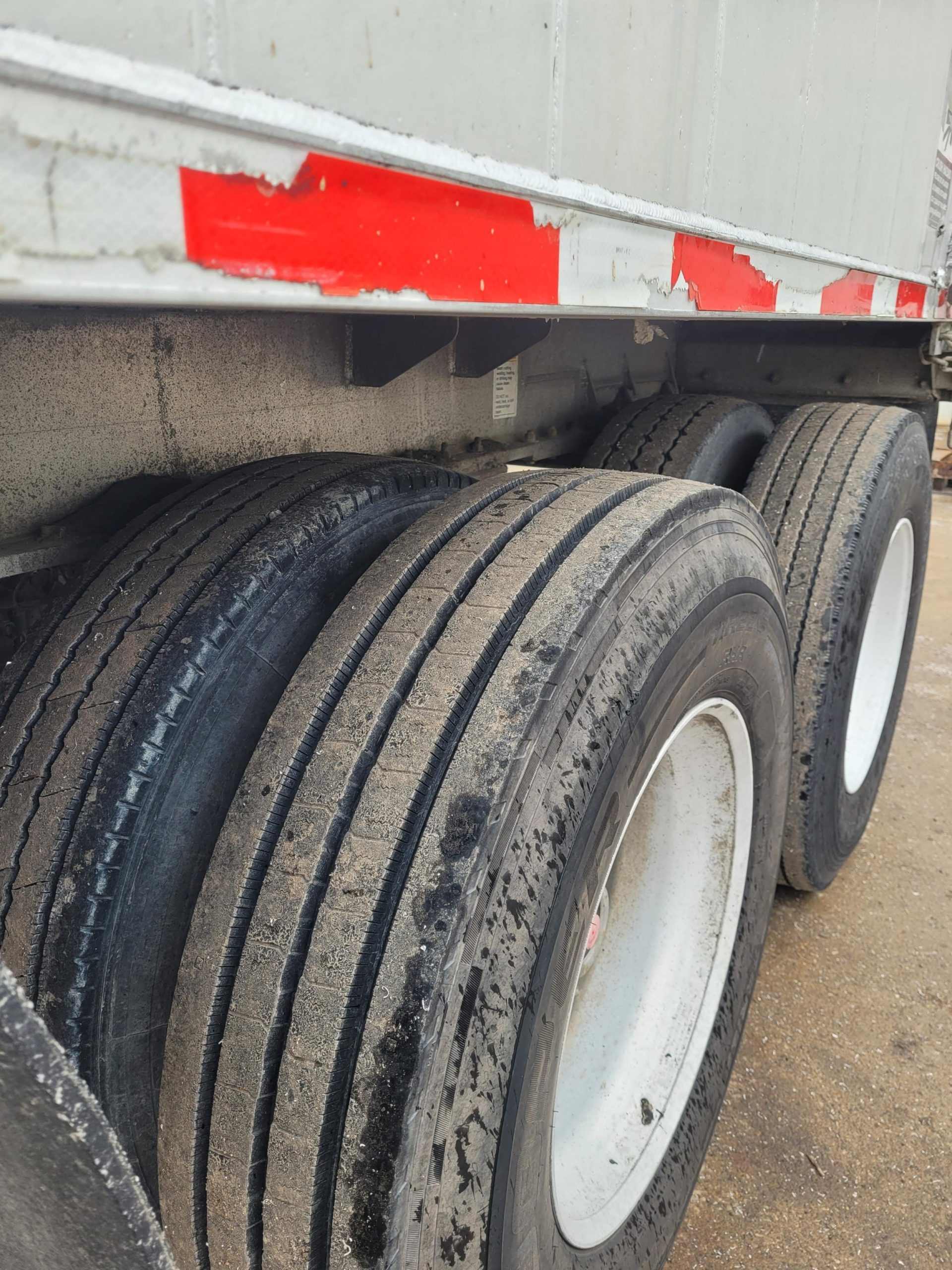

Wheels: 8.25 x 22.5 Aluminum Mill Disc
Dollies: 2 Speed Mark V
Location: Driverside Crank
Bumper: Tubular
Tow Hooks: Two
Push Blocks: Yes
Tire Inflation System: Pressure Guard
Weight: 18,010 lbs
Volume: 125 cu yds
