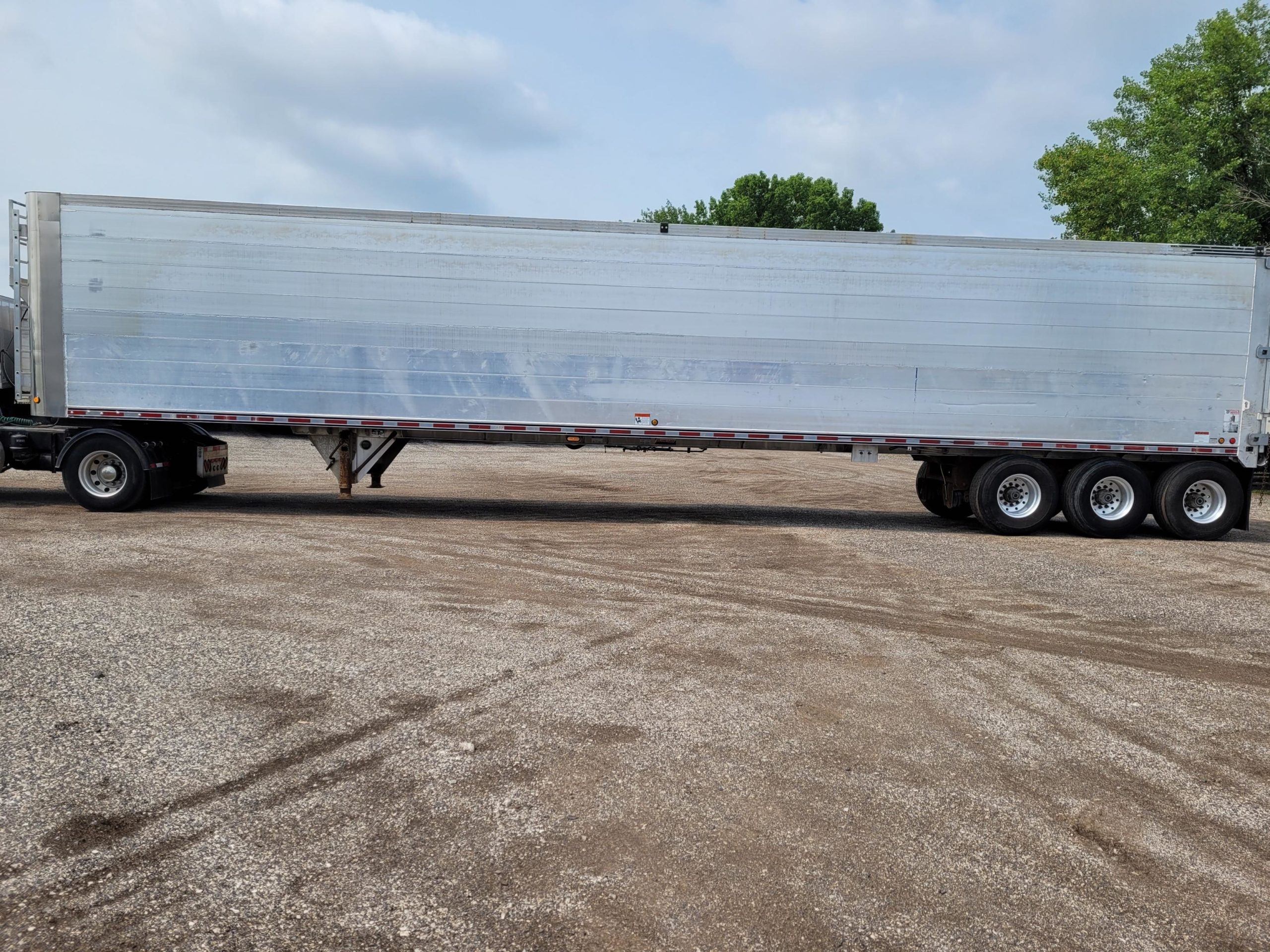

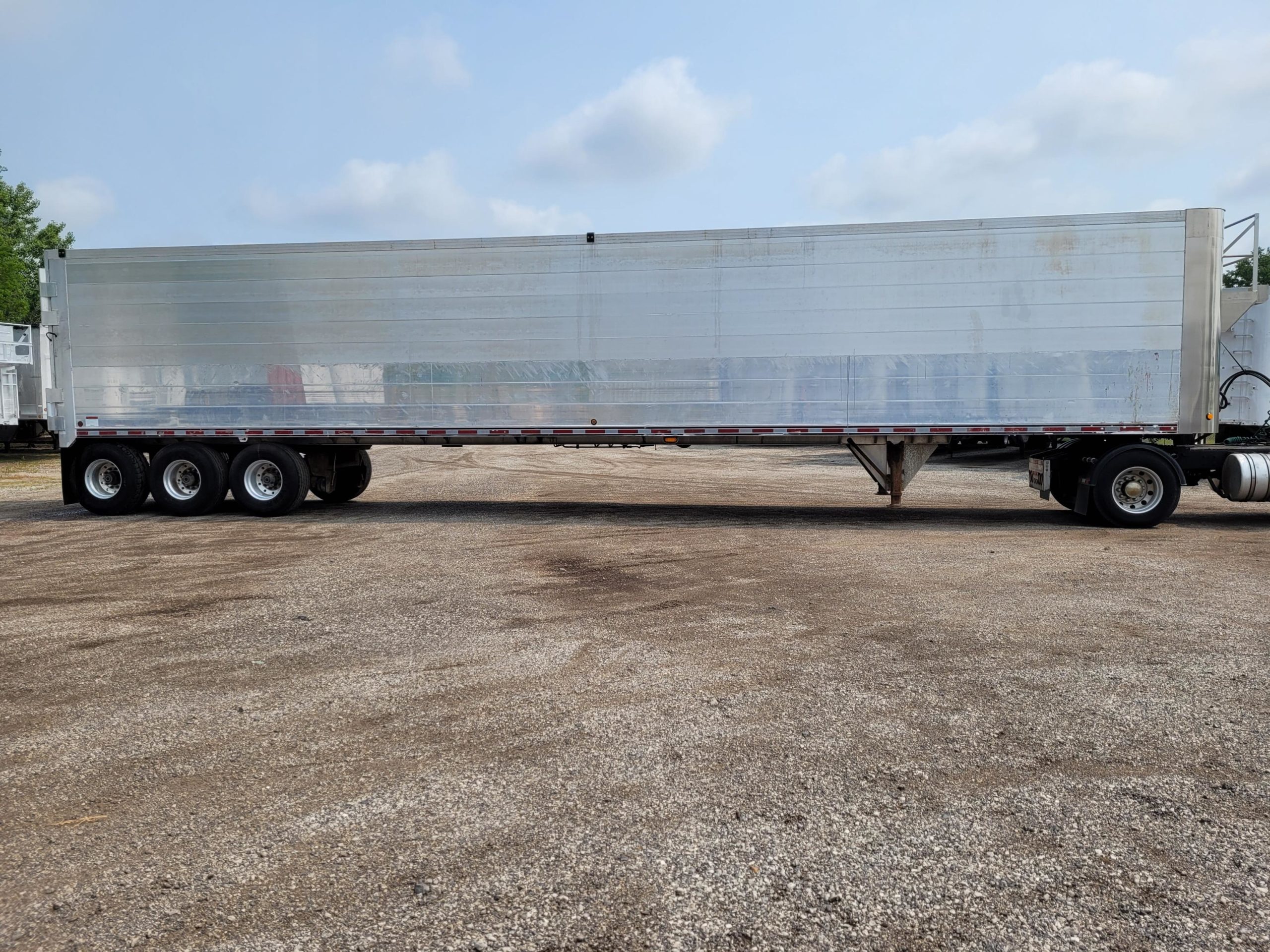

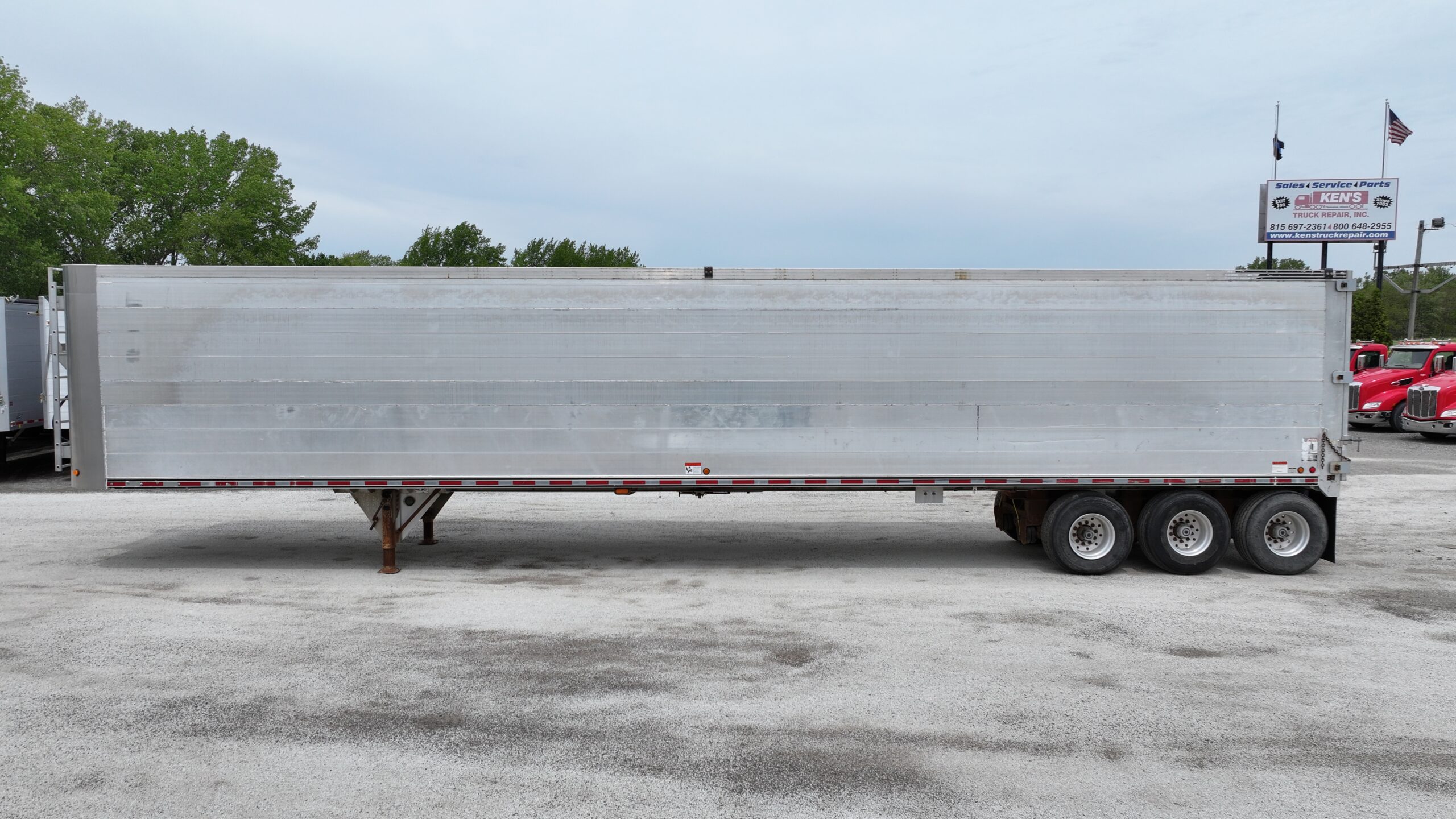

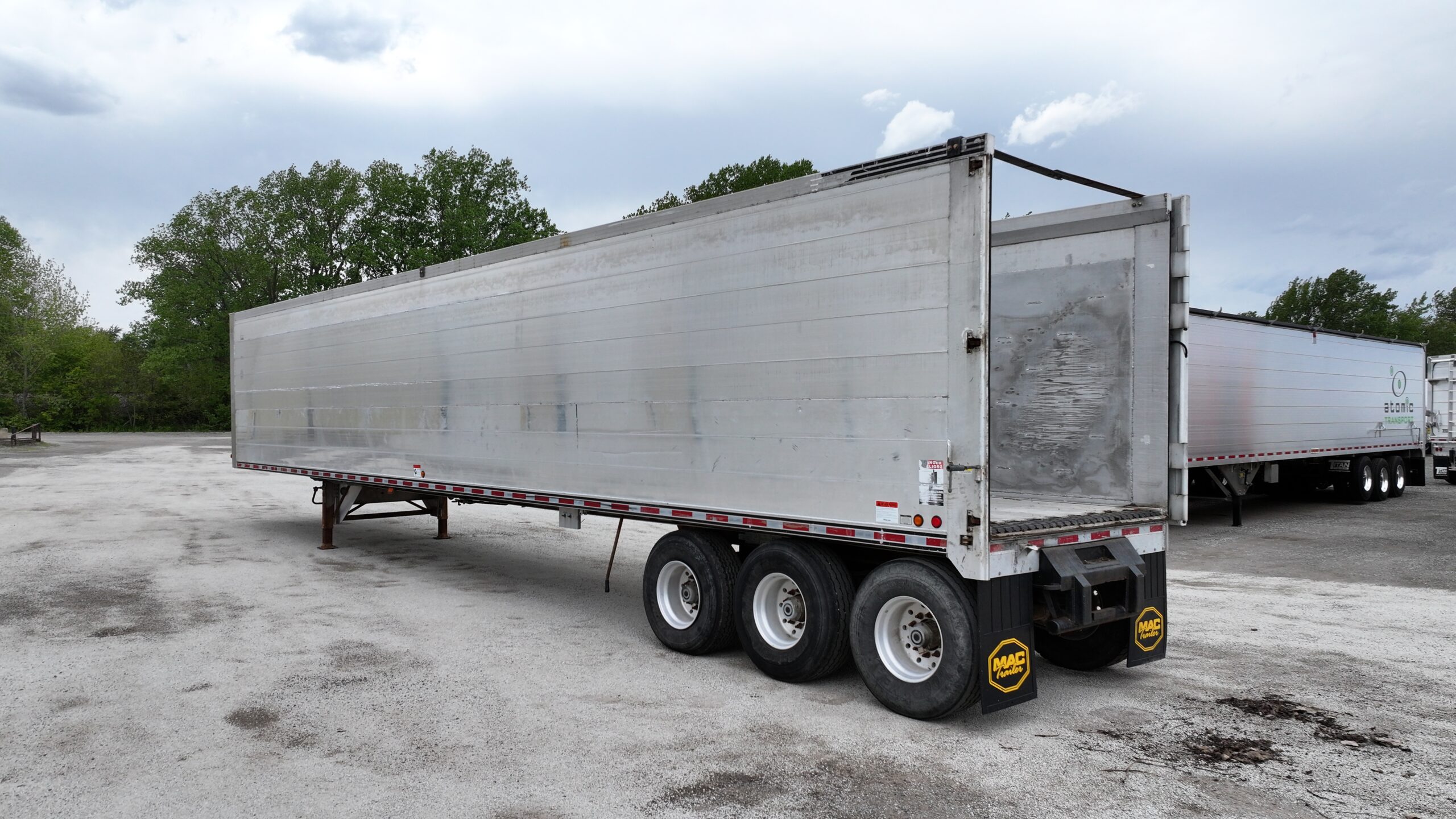

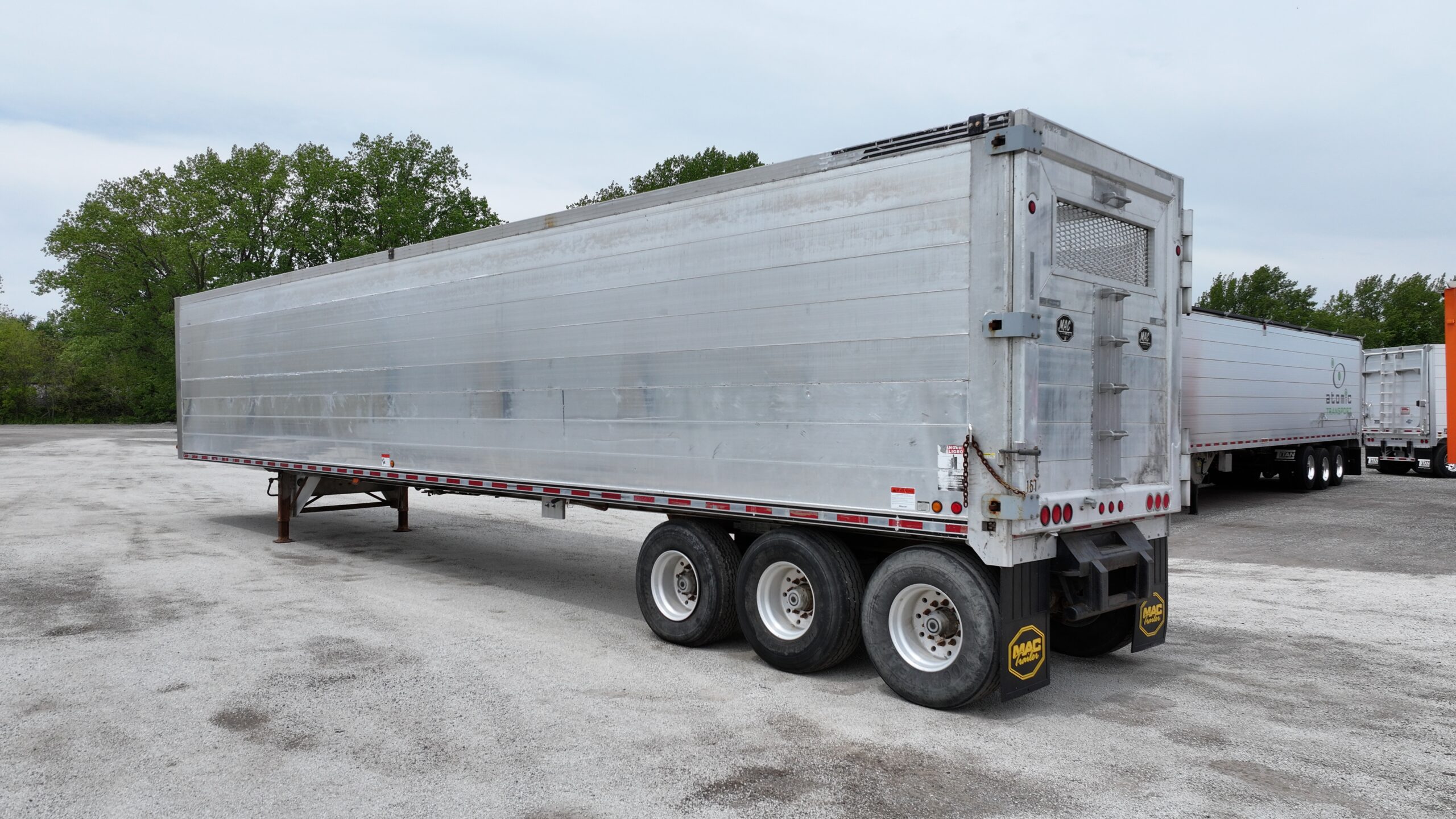

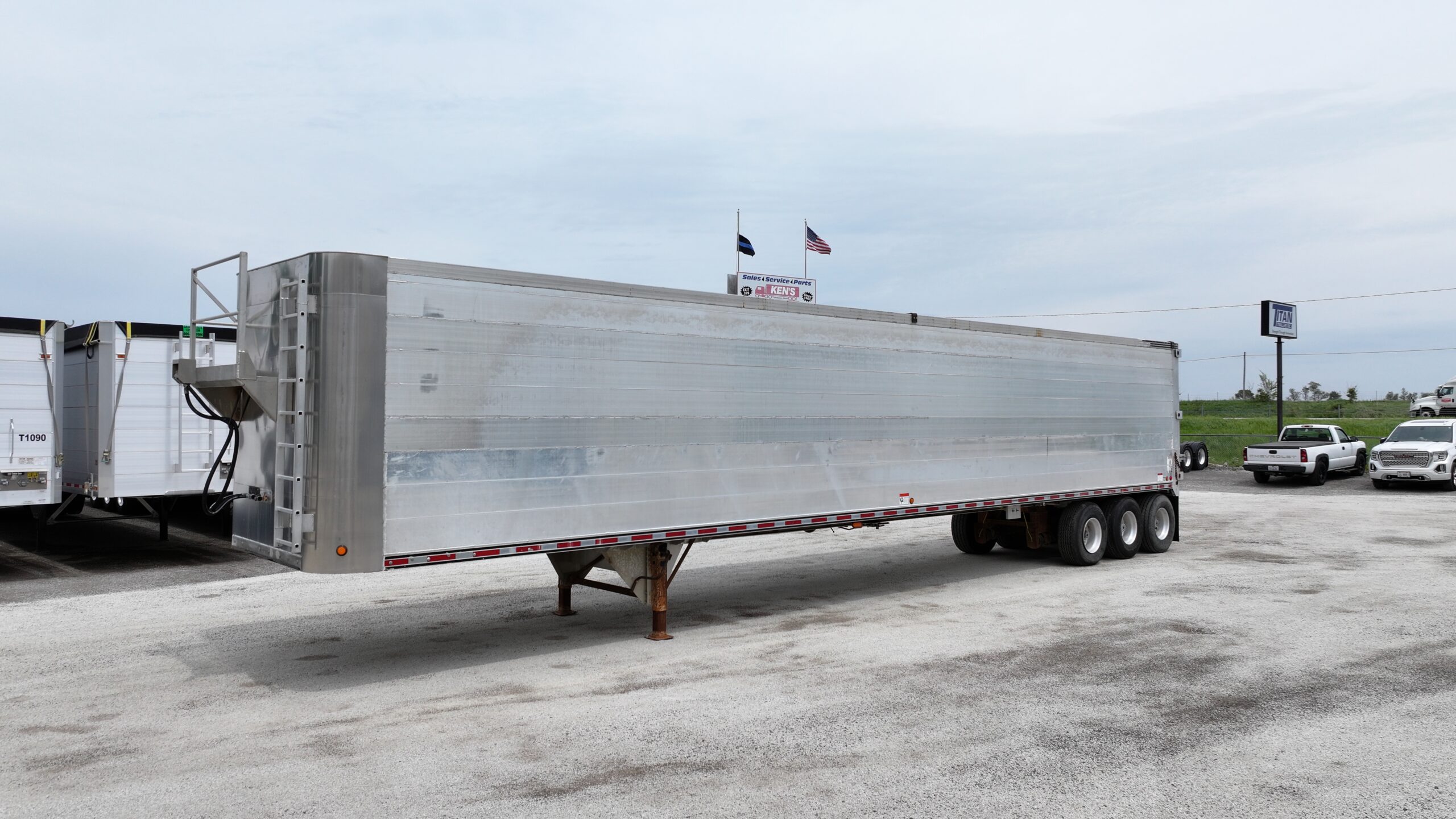

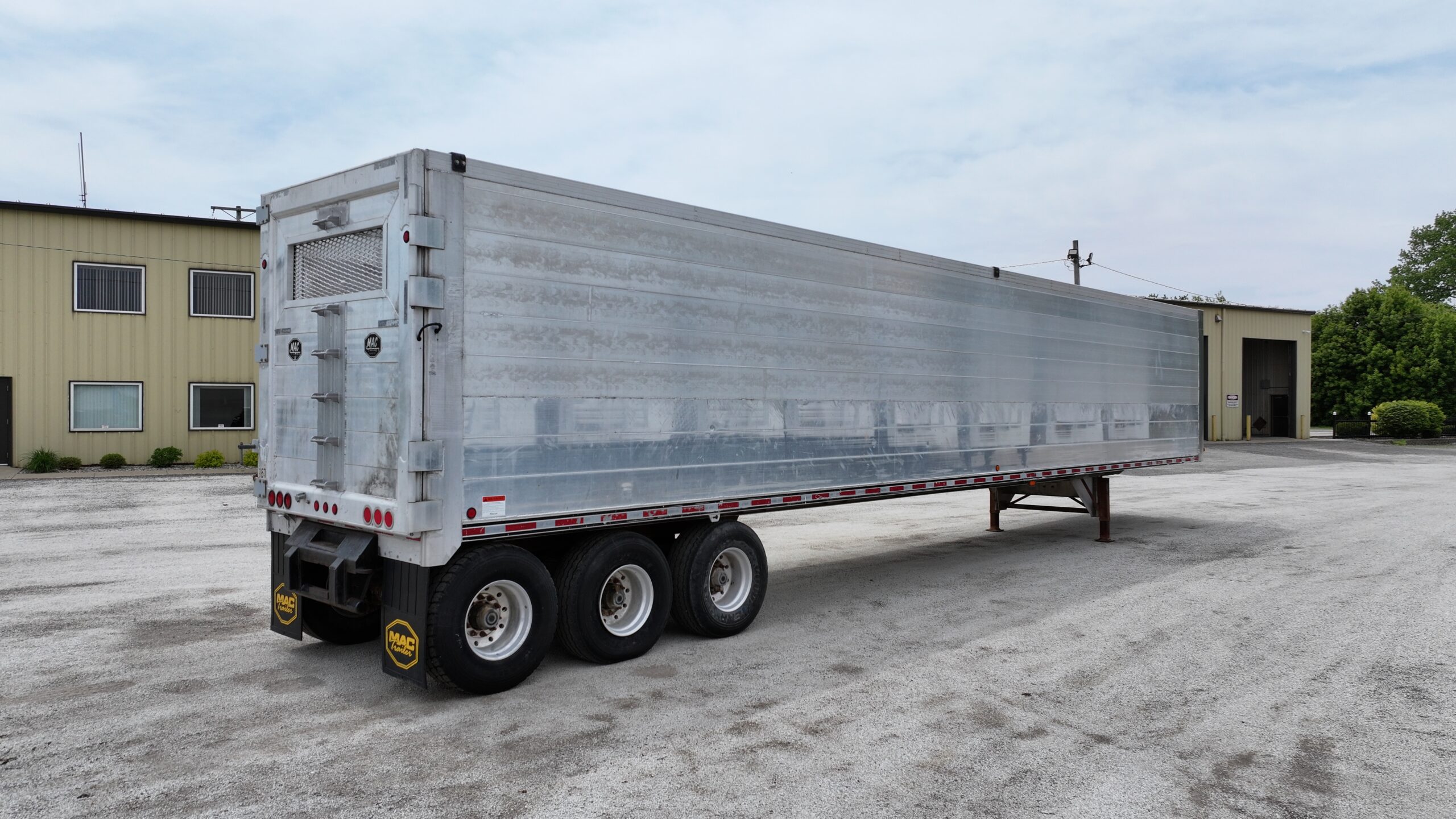

2006 MAC 53′ 3 AXLE WALKING FLOOR TRAILER

Top Rail:          Standard 6 x 9 x 5/8″

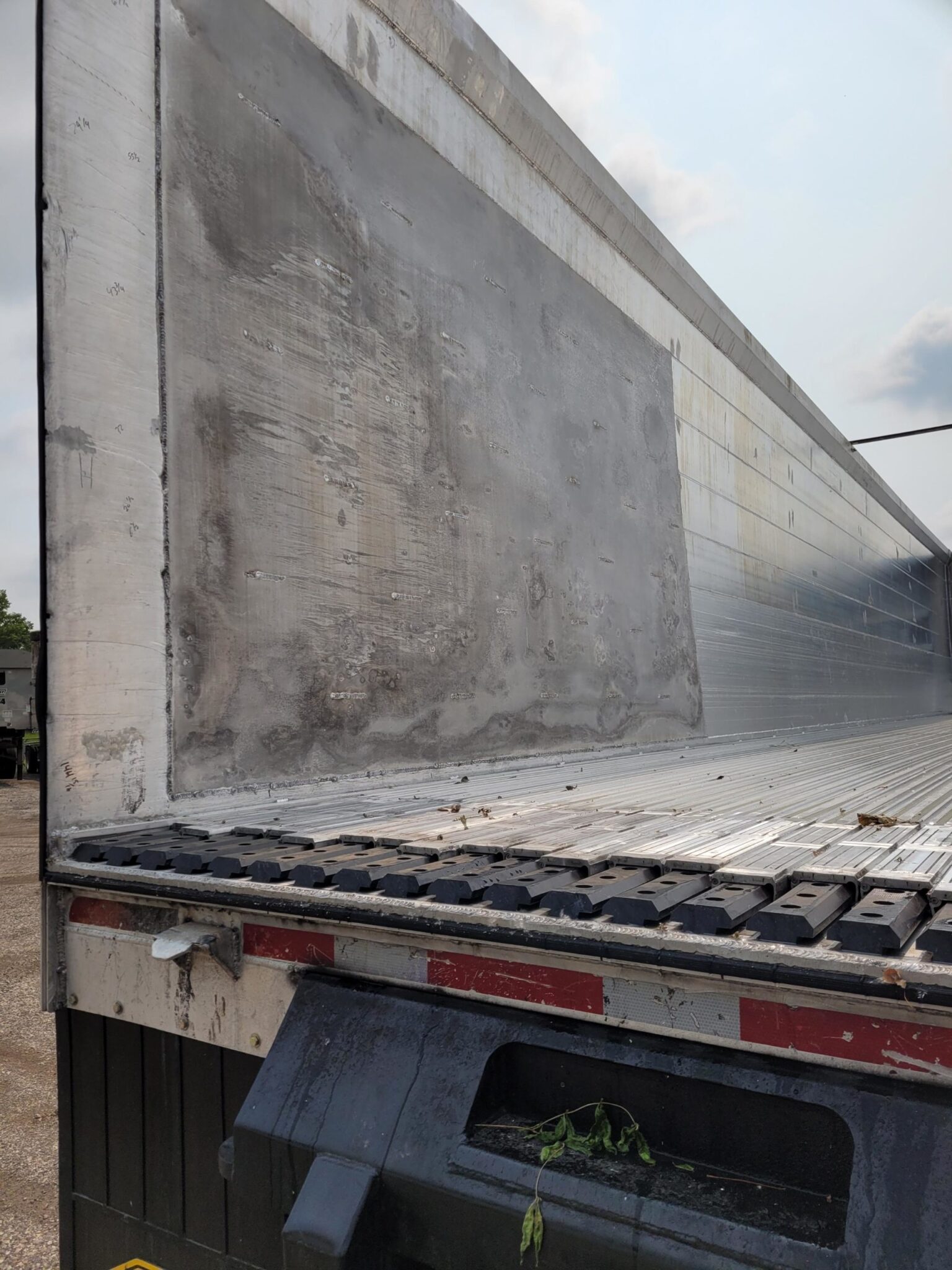

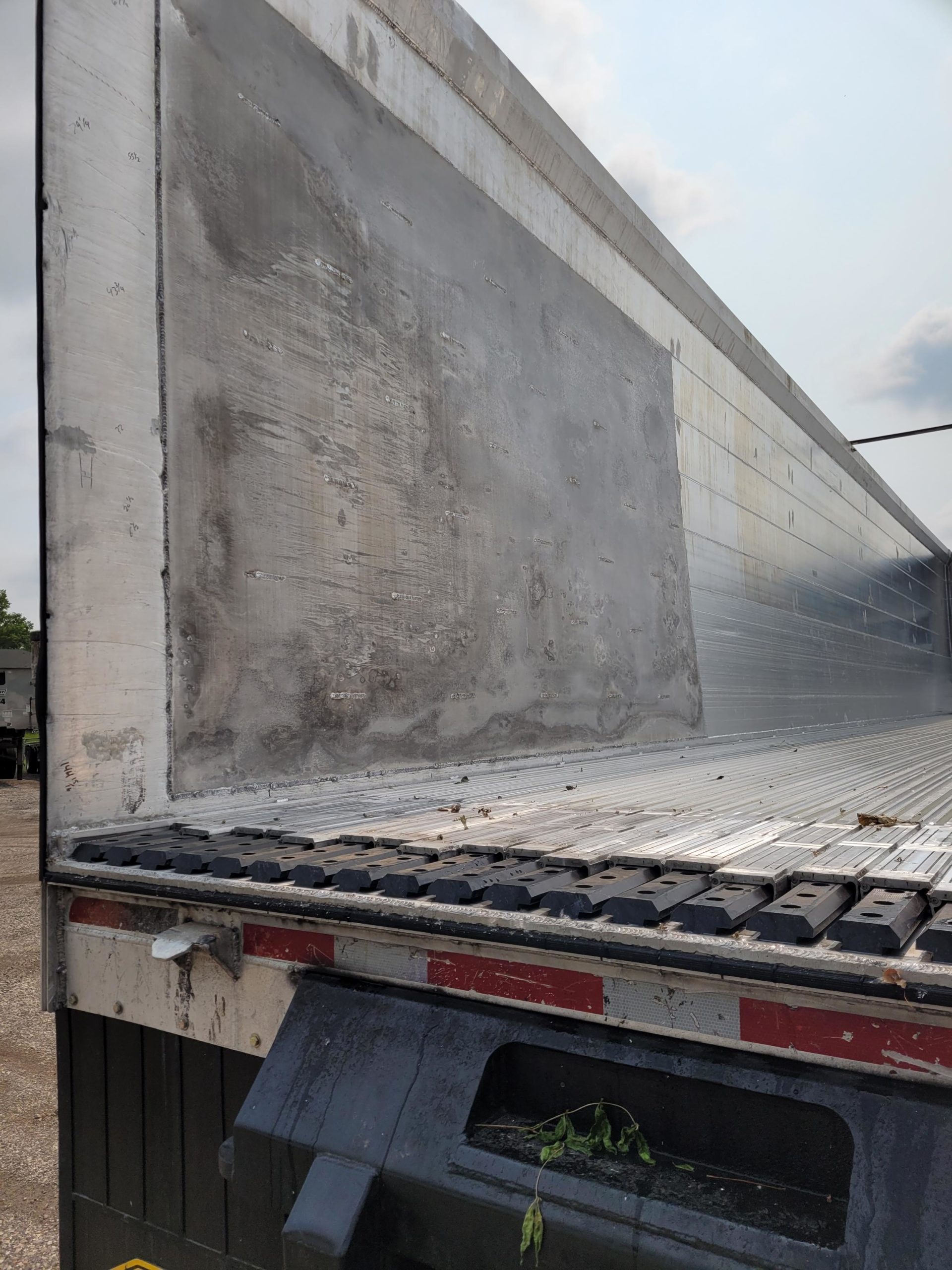

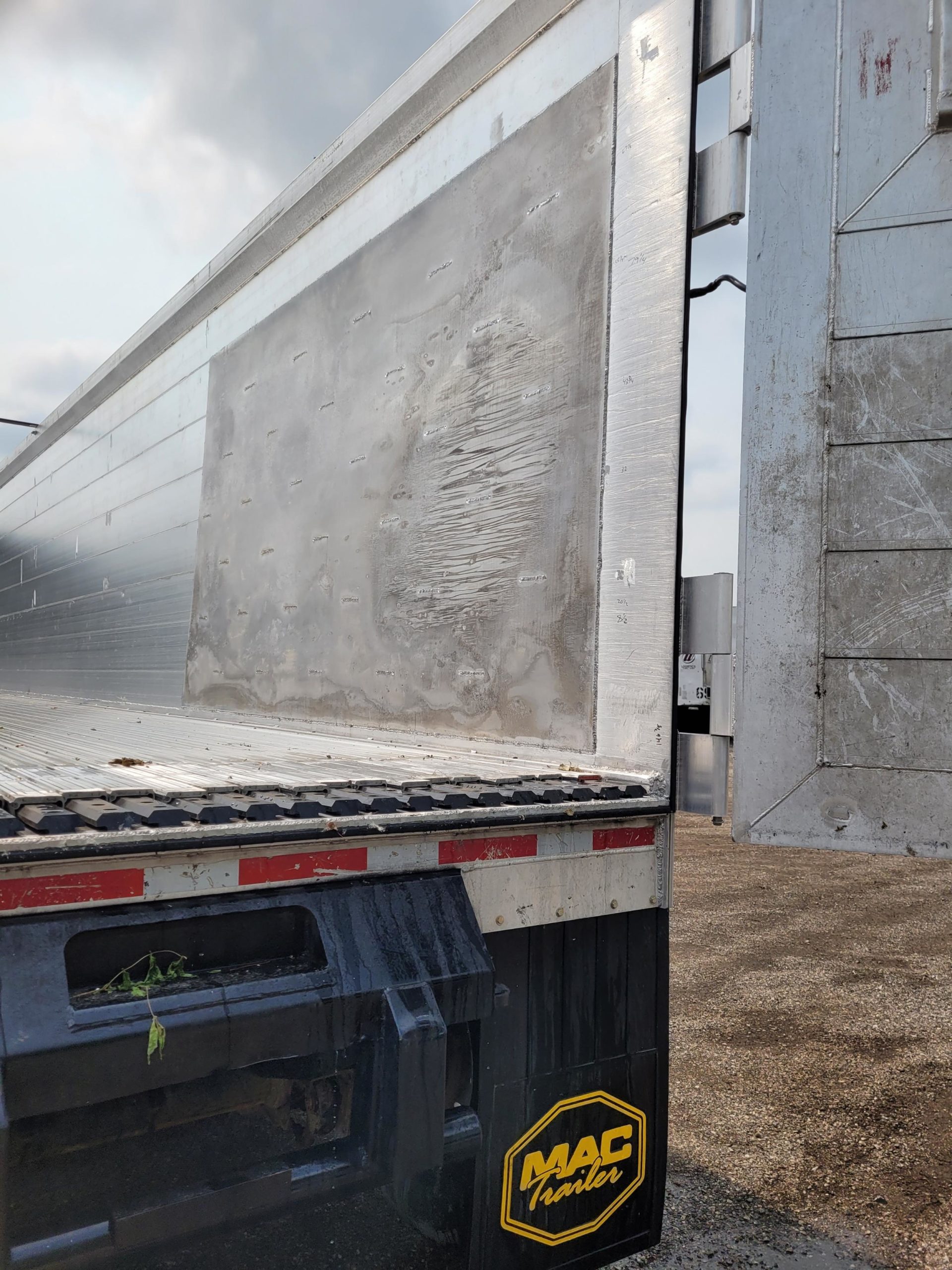

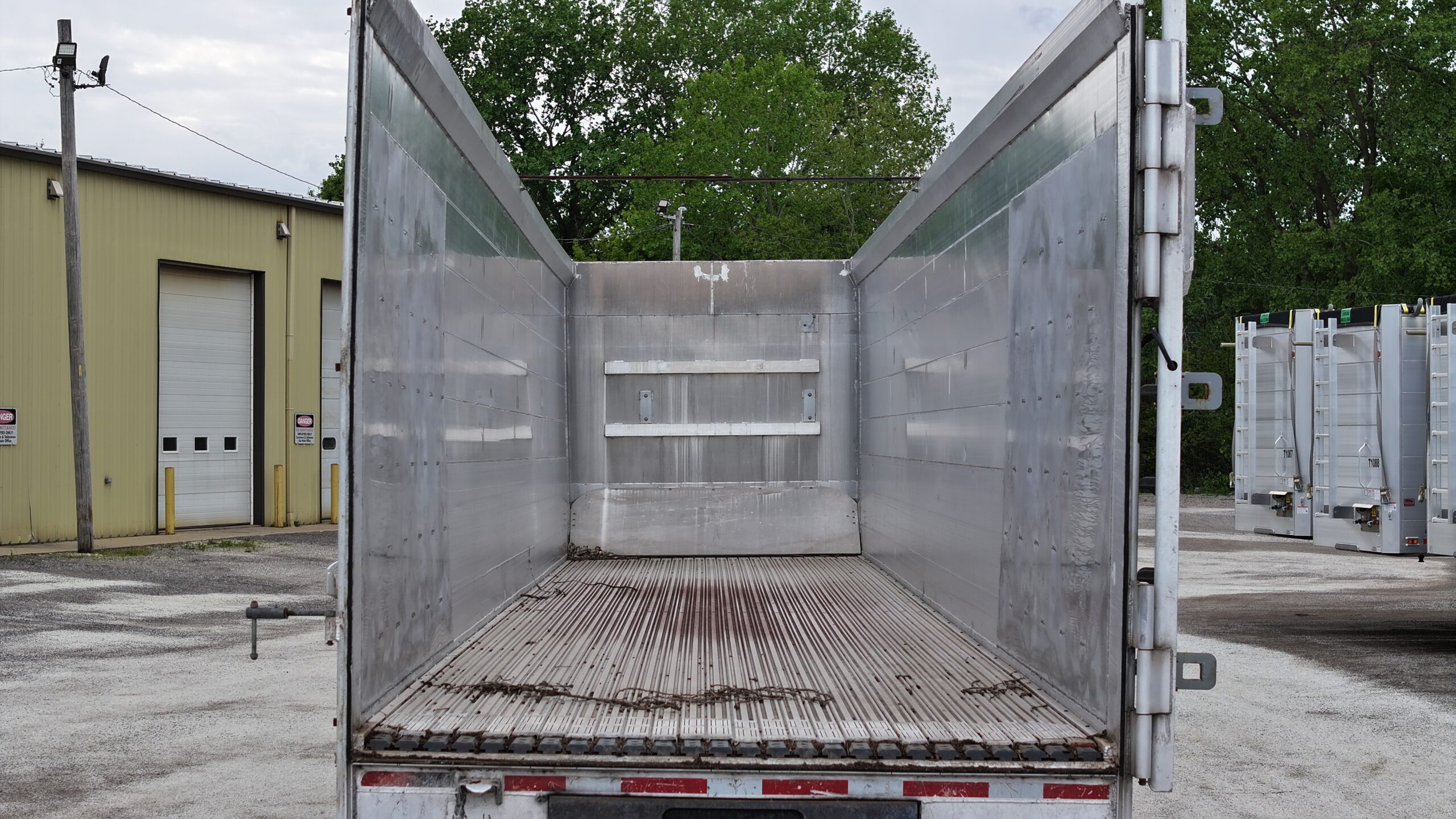

Floor:                2299 – Triple Ridge – Square (26 Slat)

Drive Unit:      Keith, 3.5″ Cylinder

Bottom Rail:   Square (26 Slat)

Crossmember: Spacing 5 – 1/4″ I-Beams, 14 O.C.

I Beam Width:  Z-Beam, 48″

Rear Pocket Ht: 110 1/4″

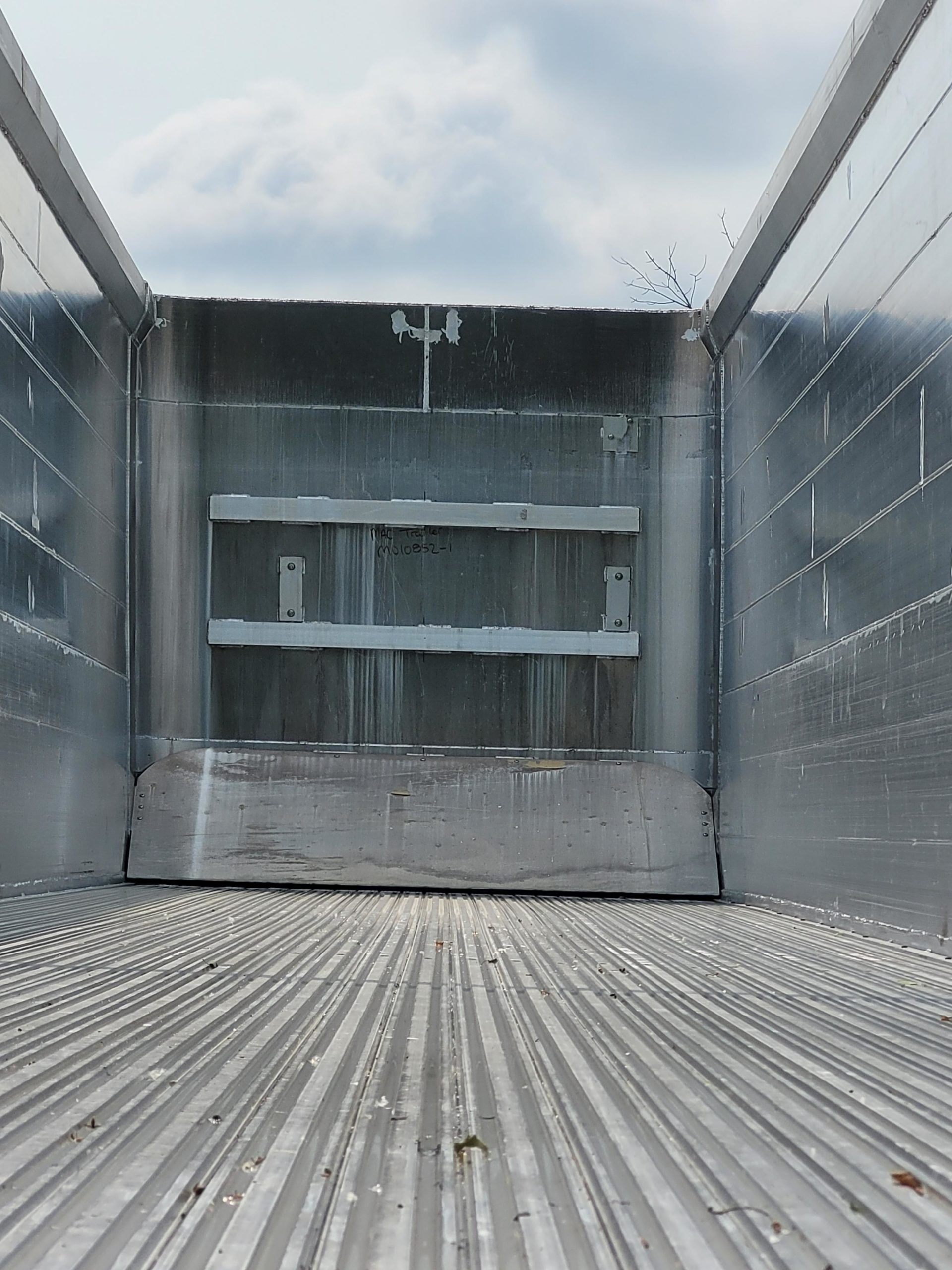

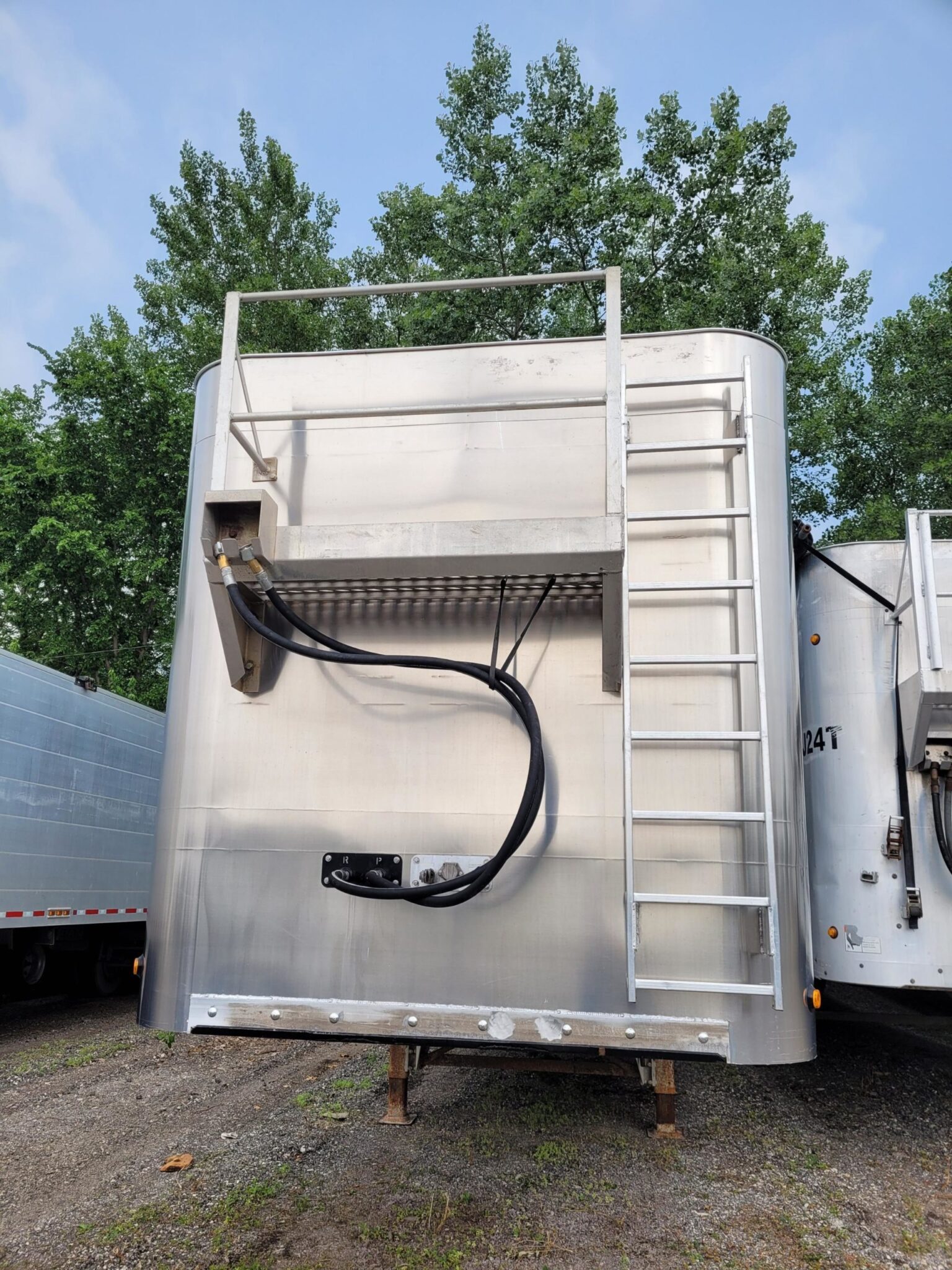

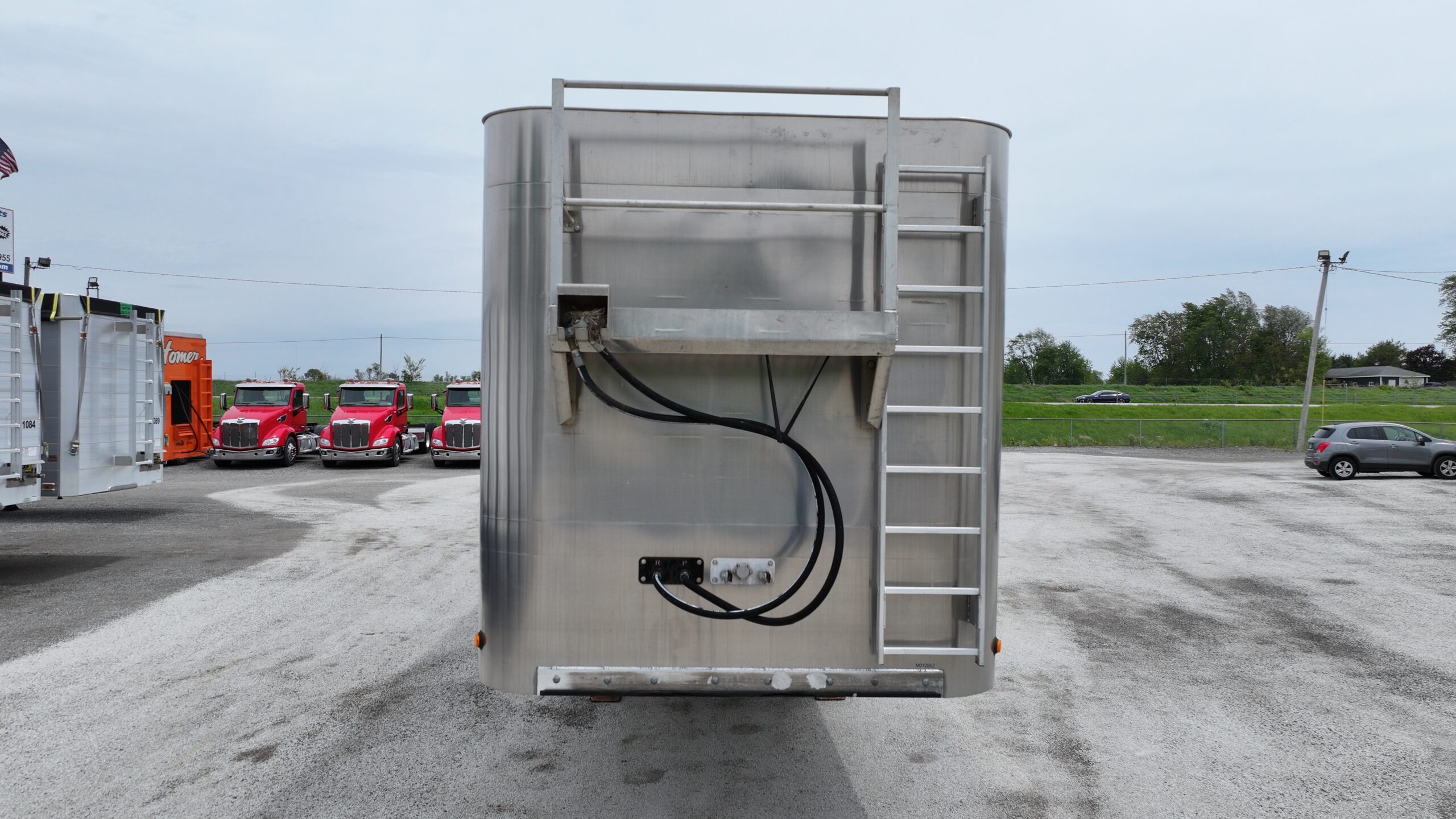

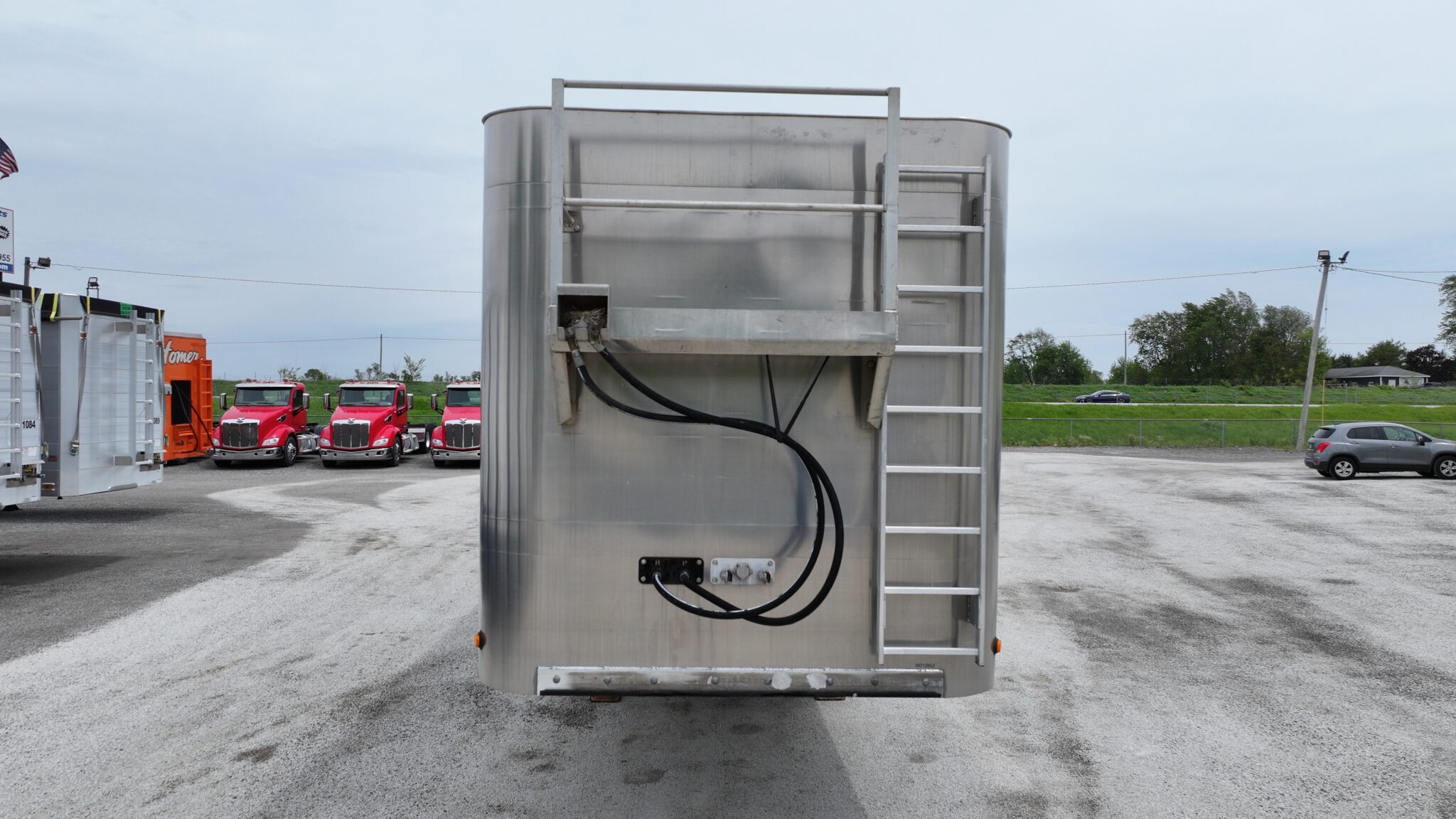

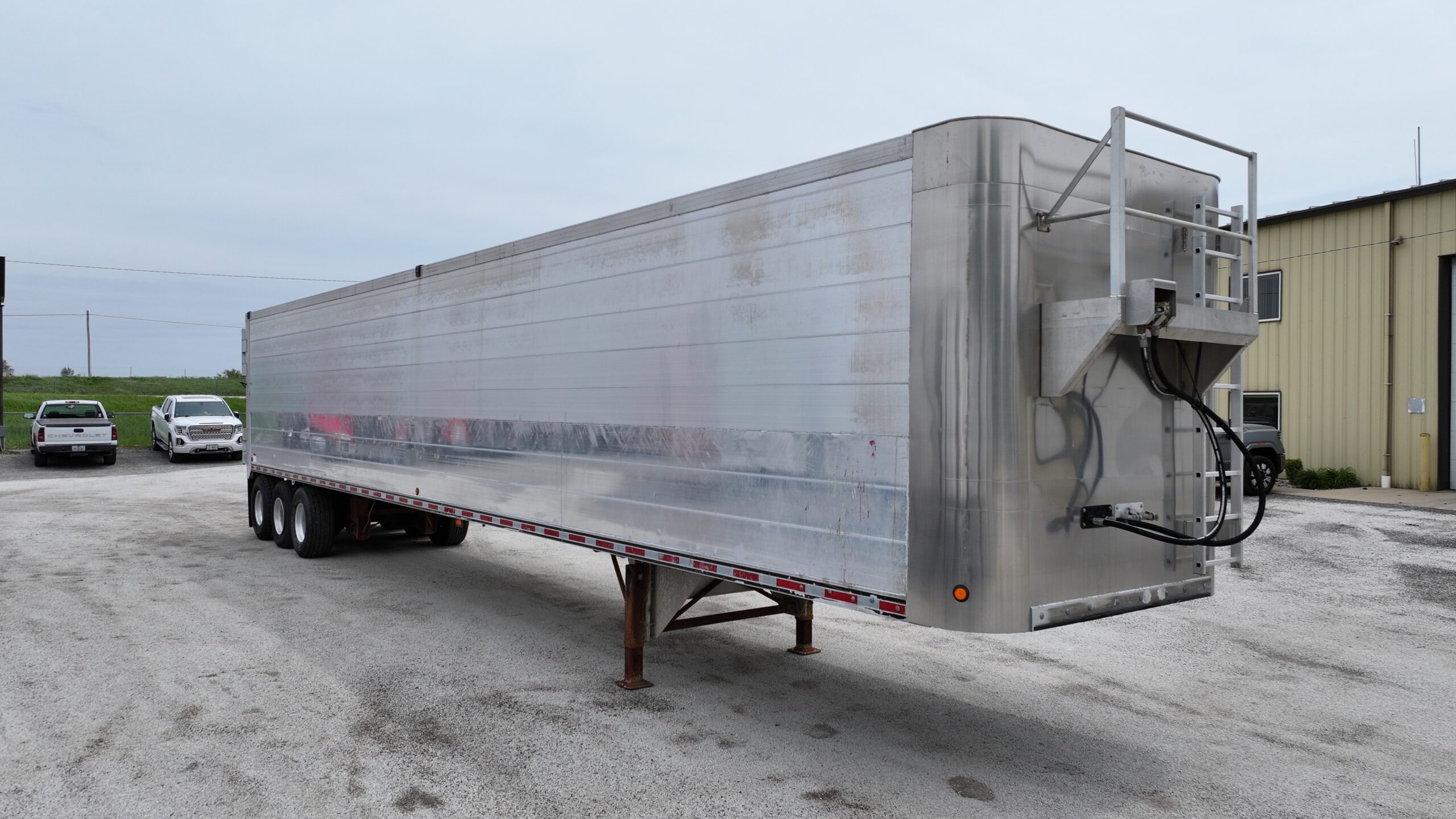

Bulkhead:        Lower Wrap – Yes    Thickness – 0.190     Height – 110  1/4″      Steps/Catwalk – Catwalk & Ladder with steps inside

Gate Steps:      Up center of gate outside only

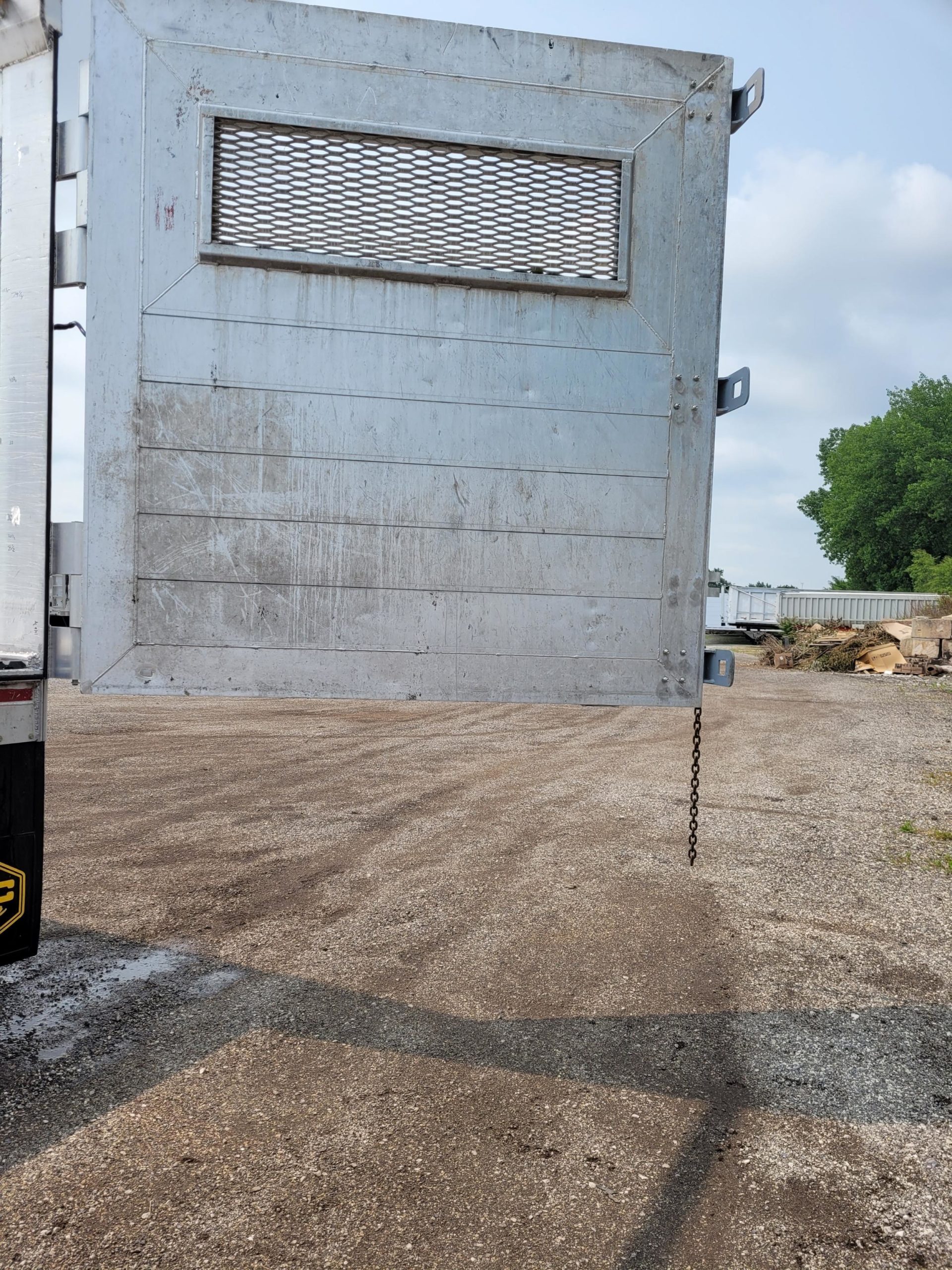

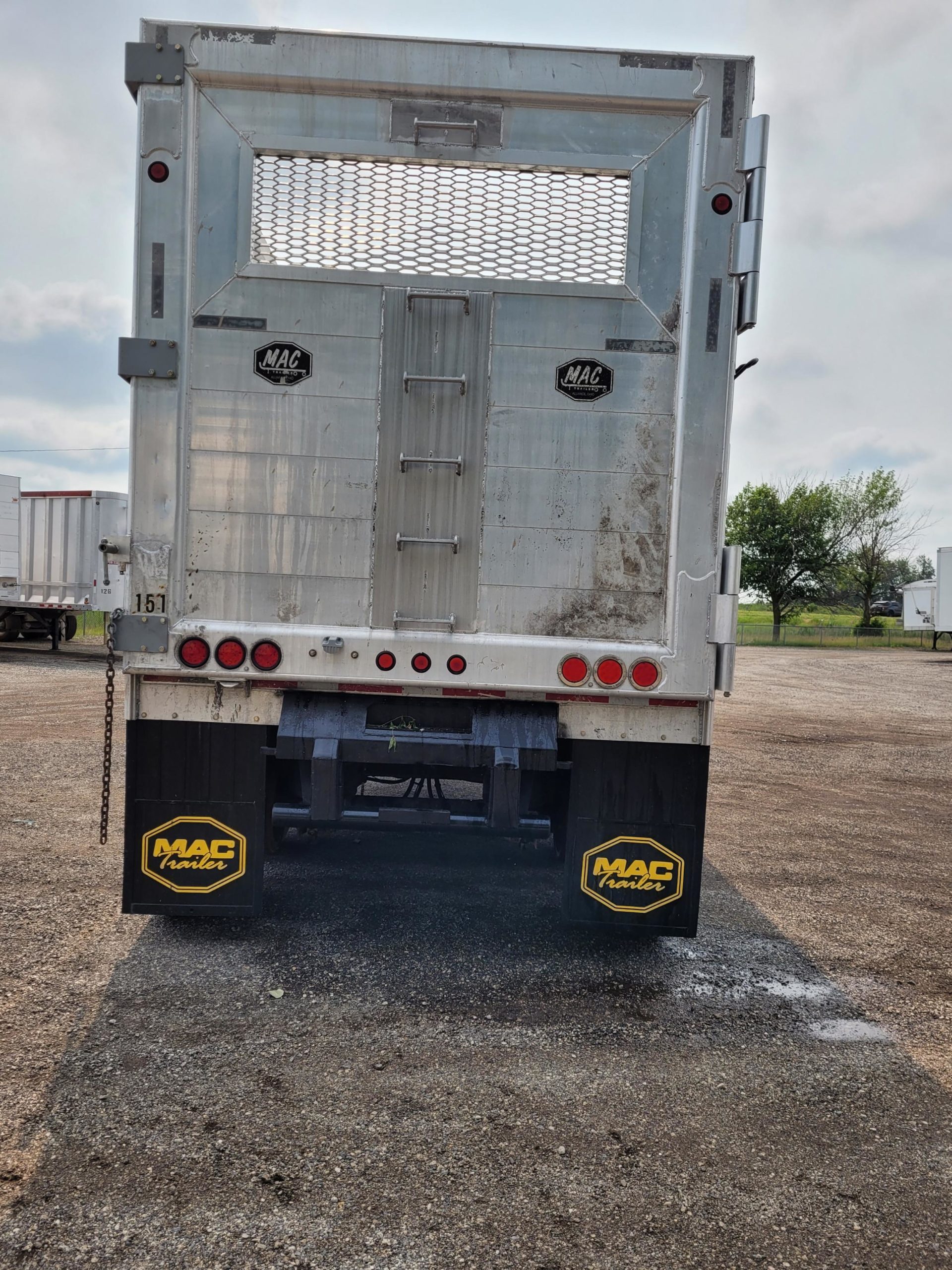

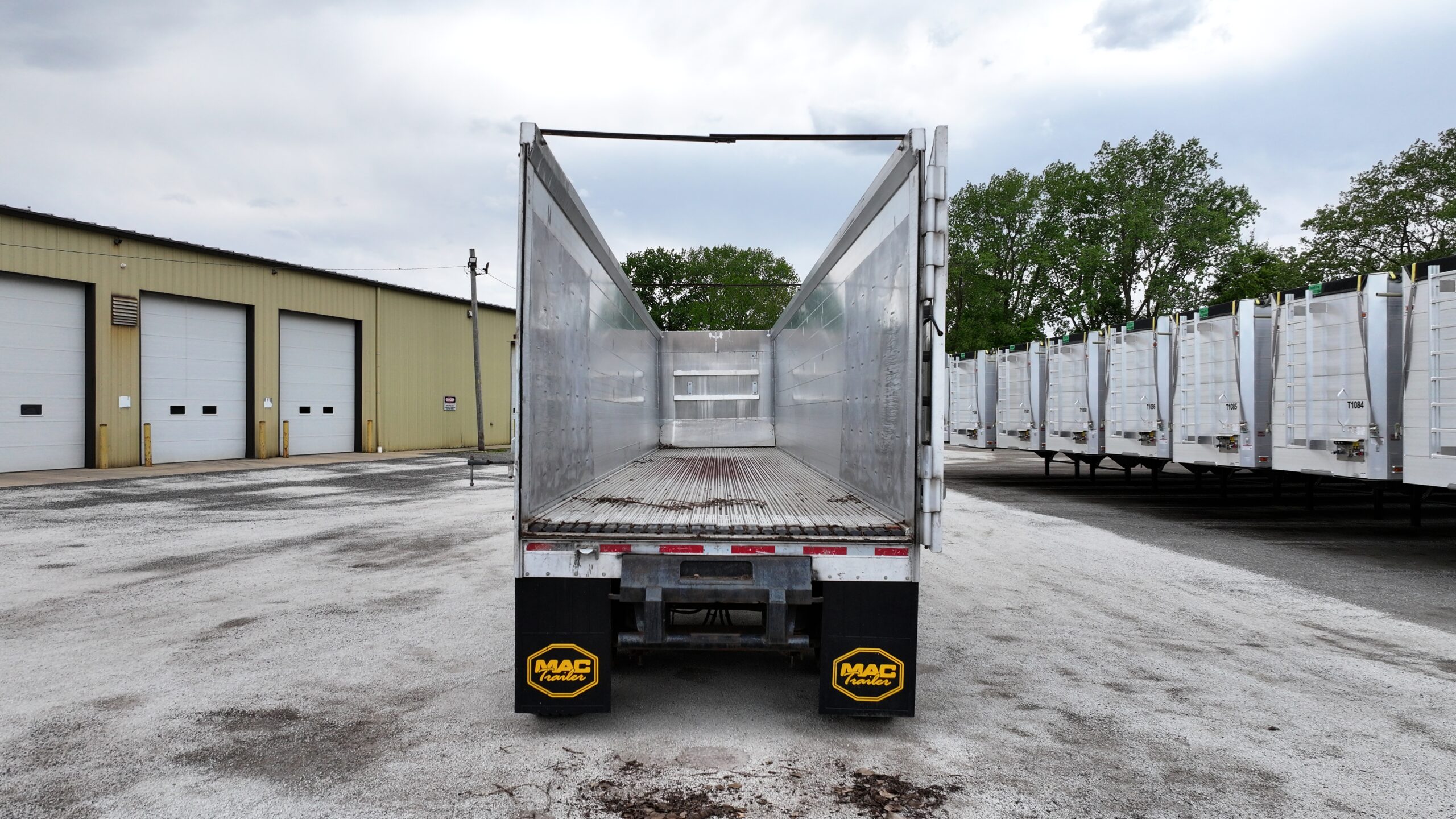

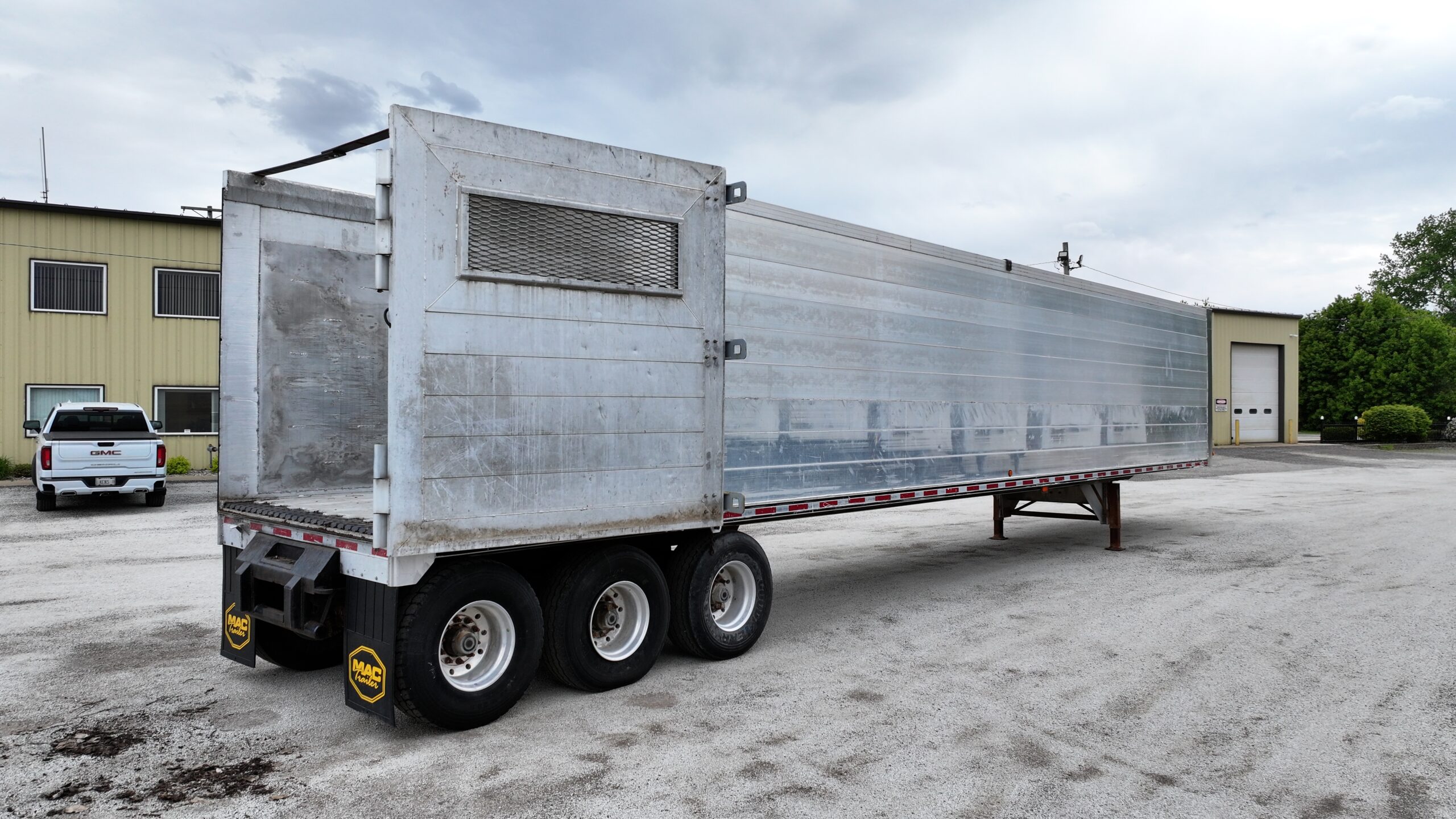

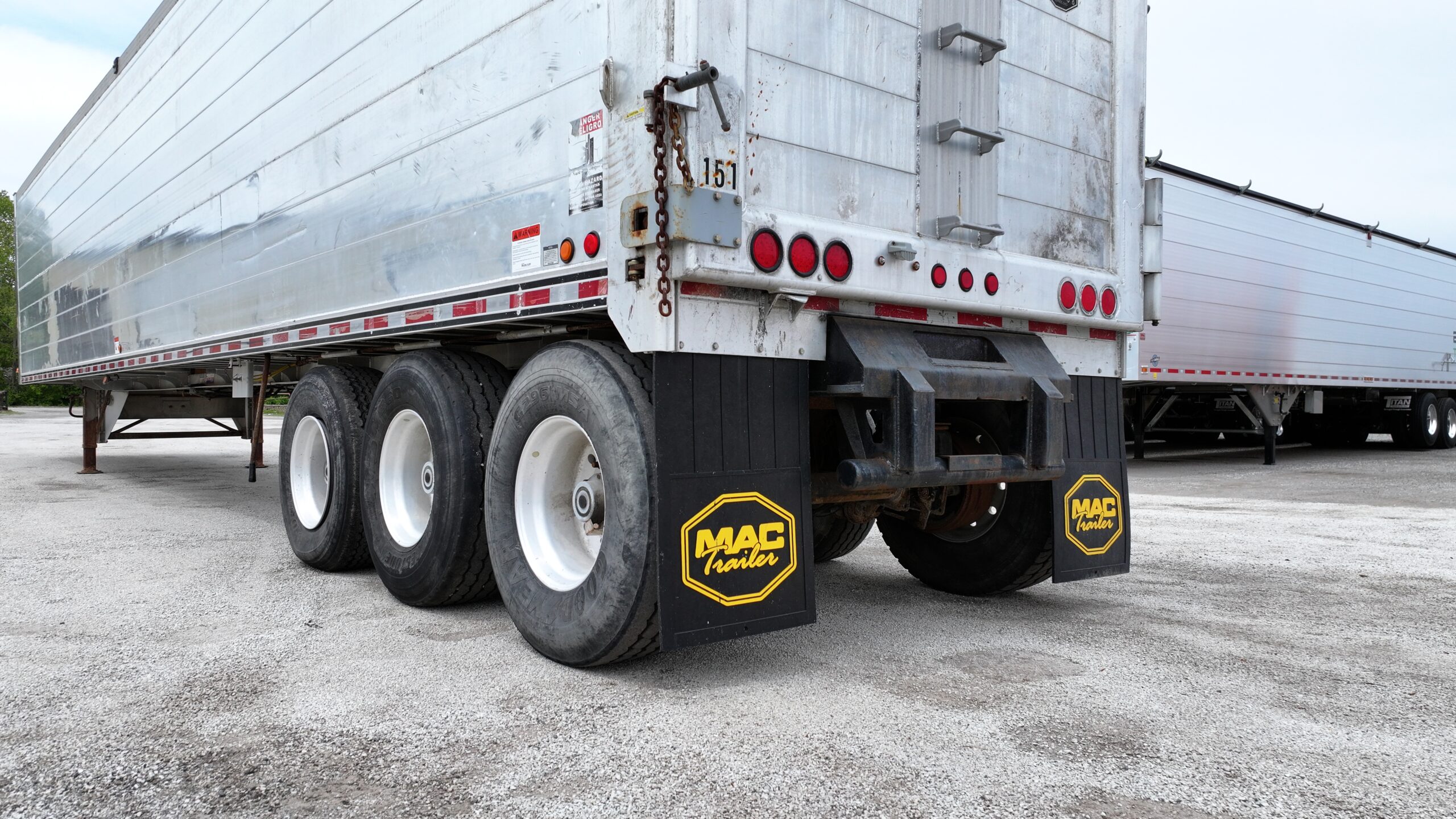

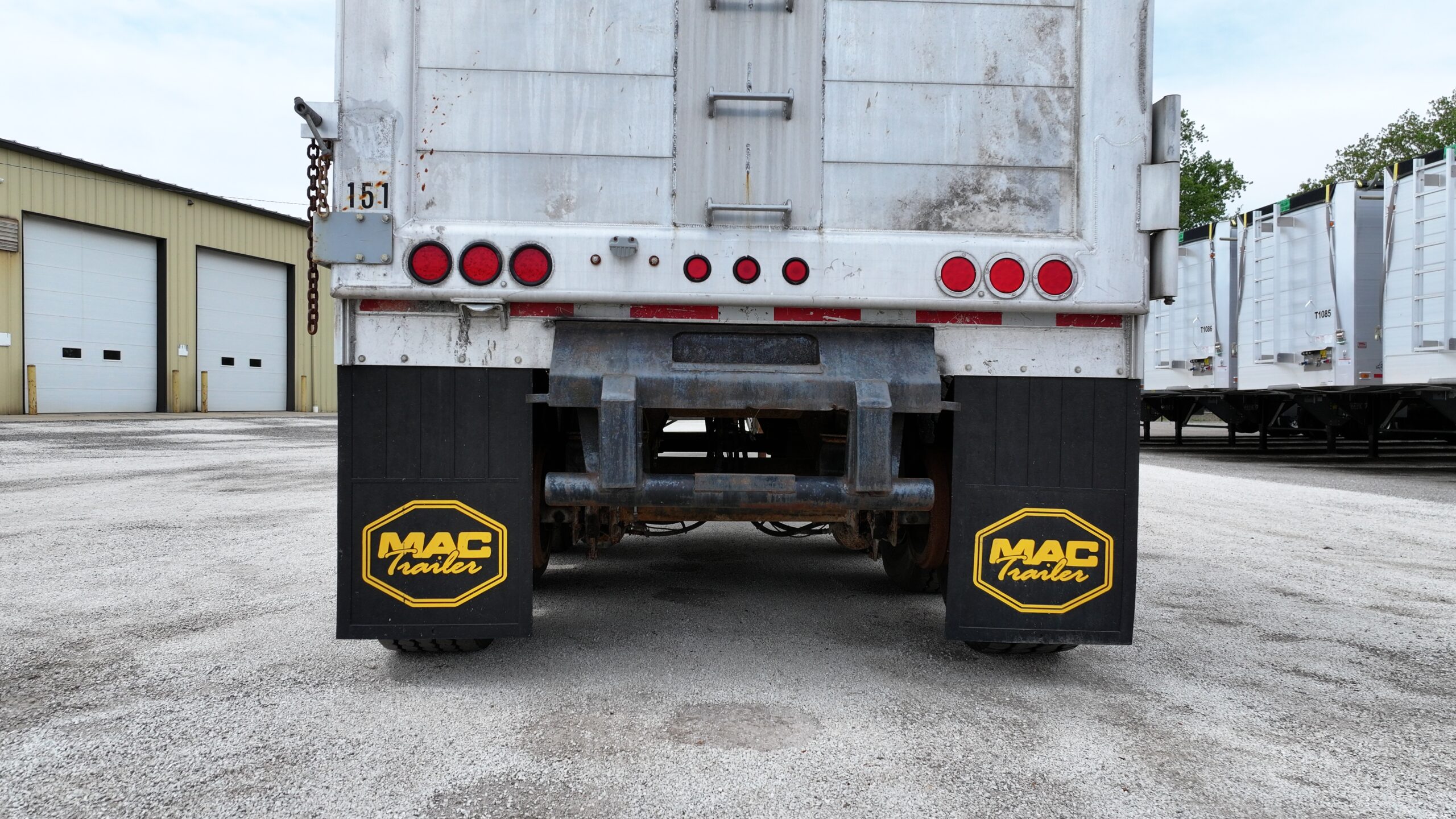

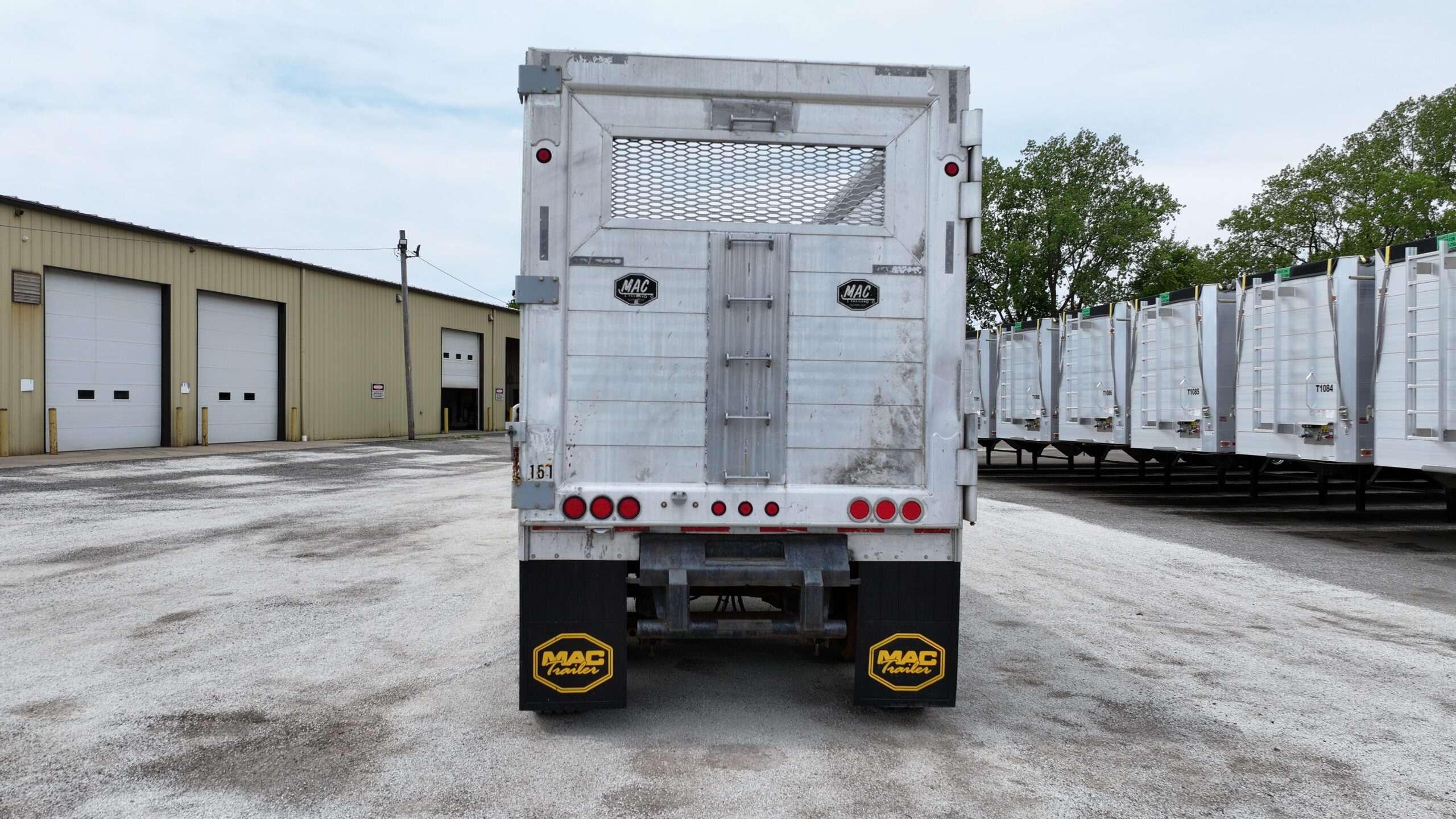

Gate:                Height – 105 3/4″     Width – 100″     Panel Type – Standard Smooth – Upper 1/3 of gate to be mess Aluminum      Hinge Type – C.S. Side Swing     Operation –  Mechanical Side Latch      Safety Chain – Yes         Winders – (1) Winder on side only

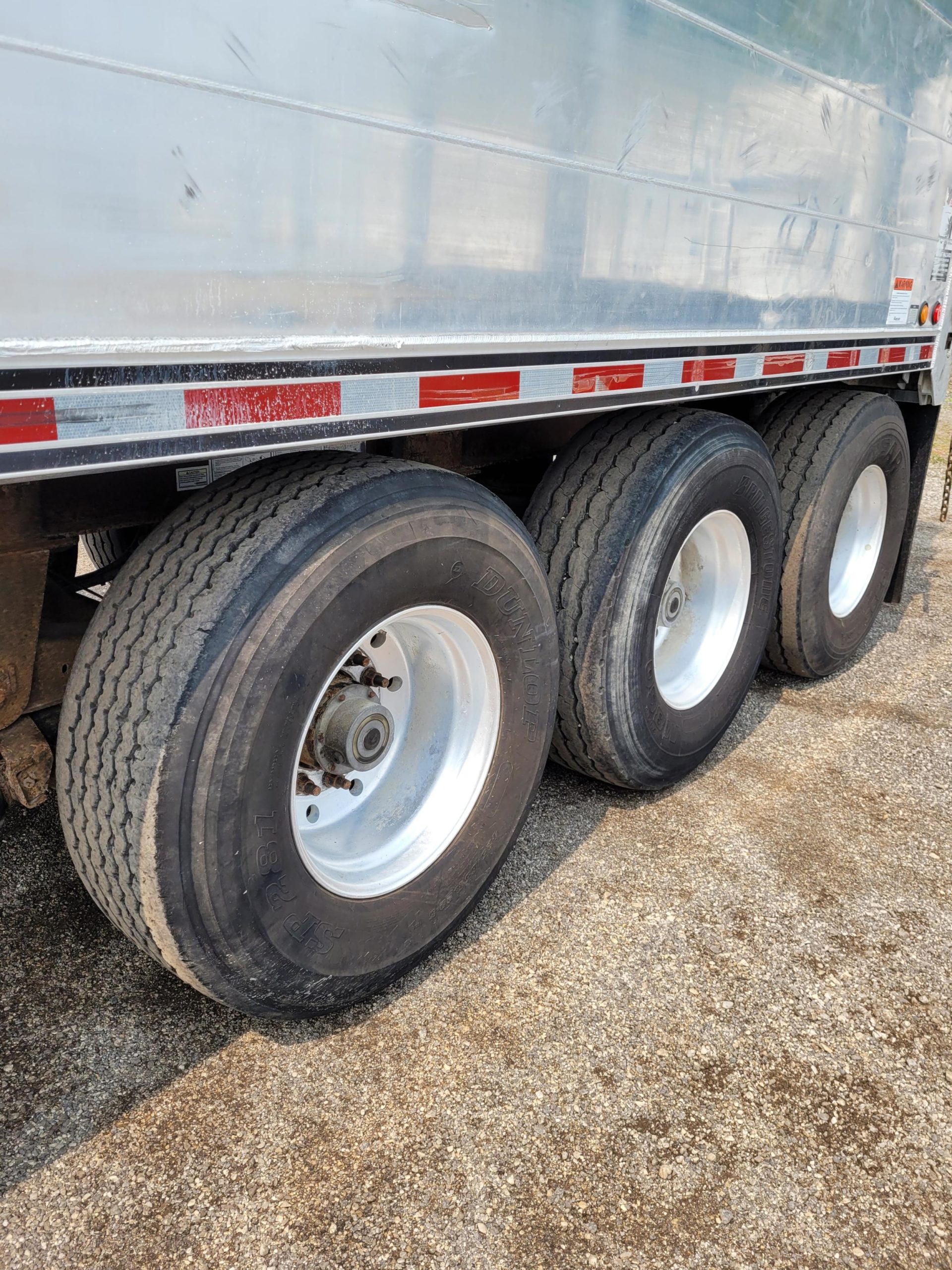

Model:            Tri-Axle                    Sub Frame Rails – Triaxle 10″ x 22# I-Beam          Sub Frame Width – 47 1/4″          Pin Setting – 36″

5th Wheel Plate:   Standard 3/8″ FLAT @ 50″ High

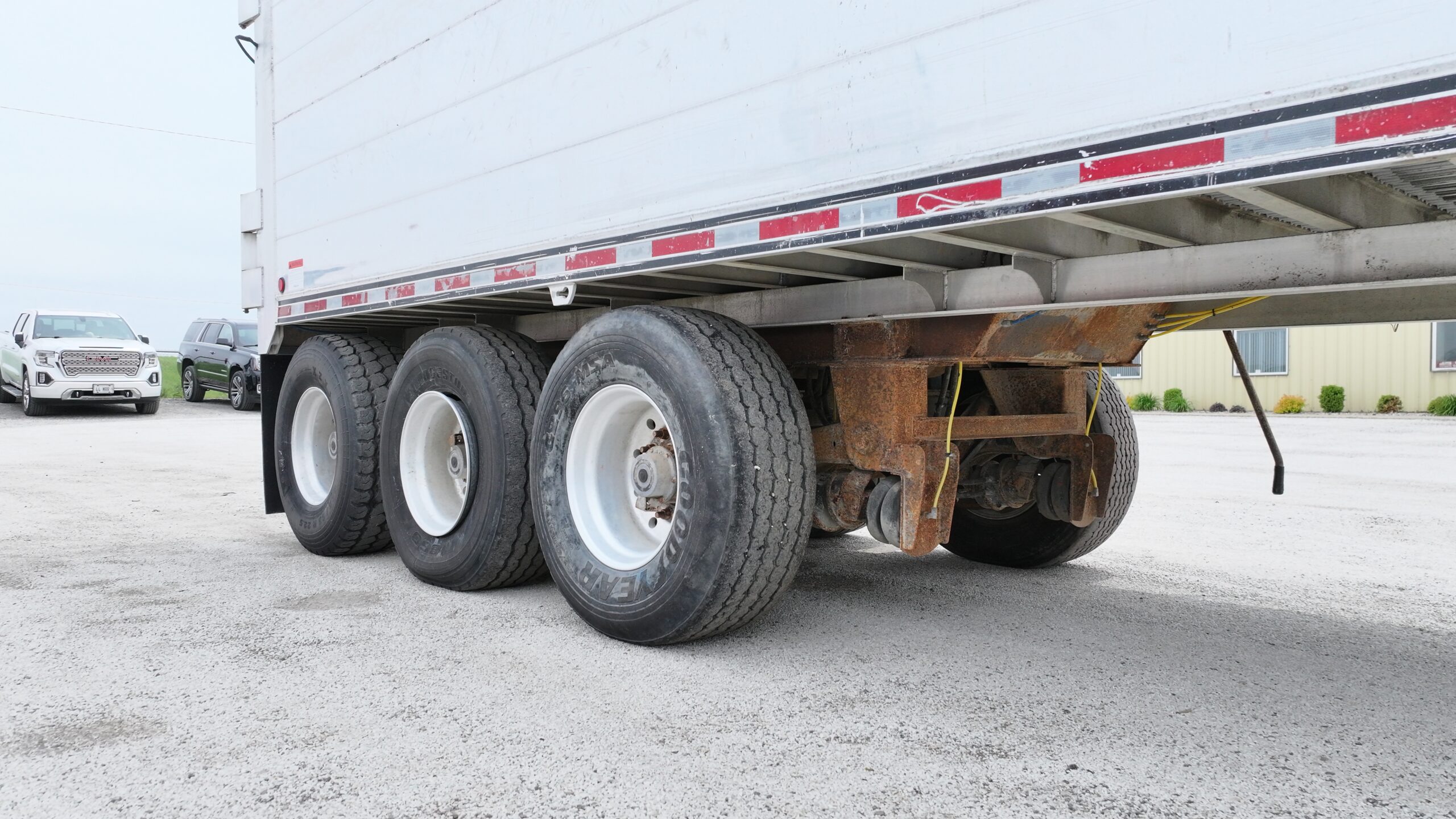

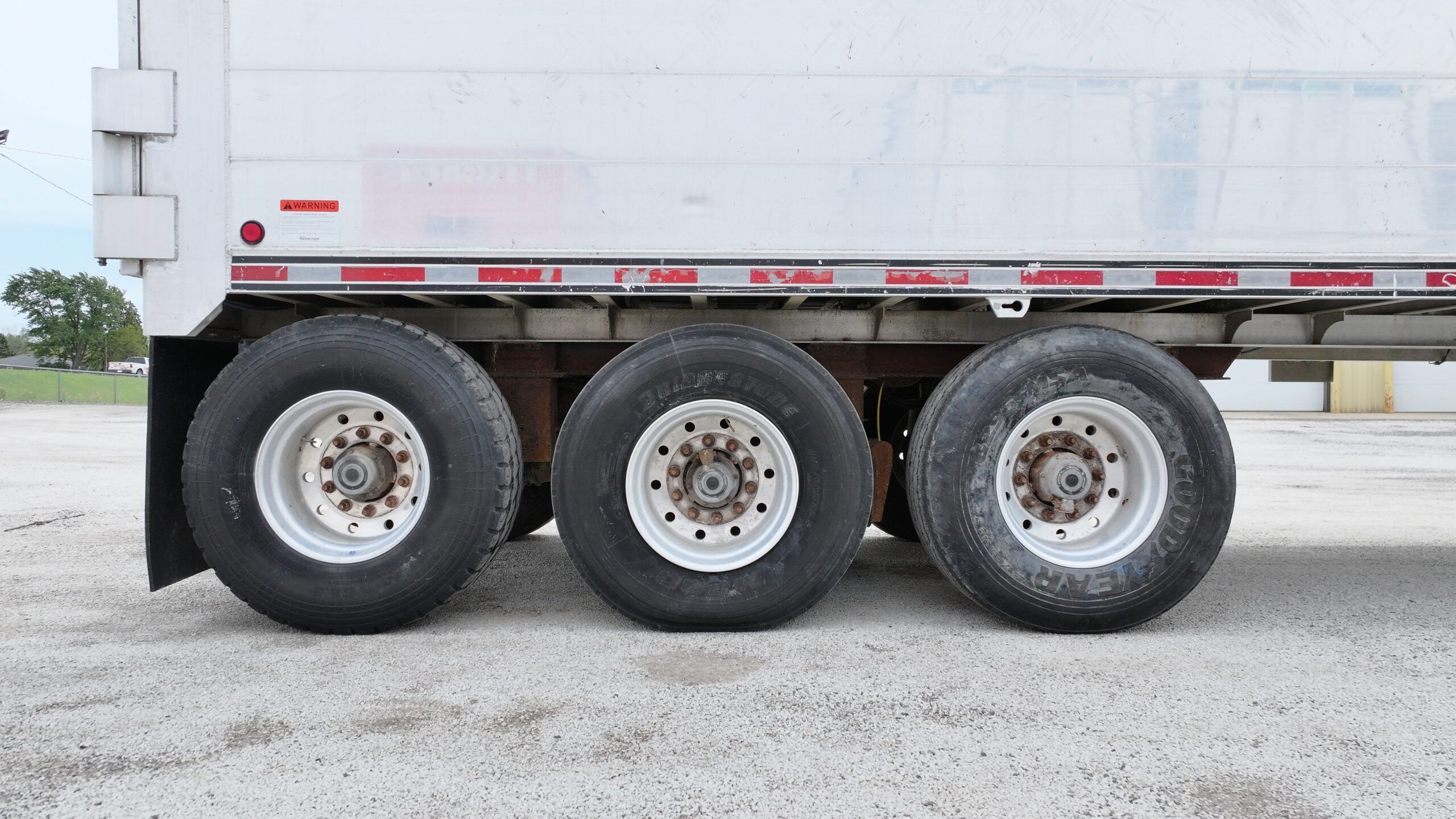

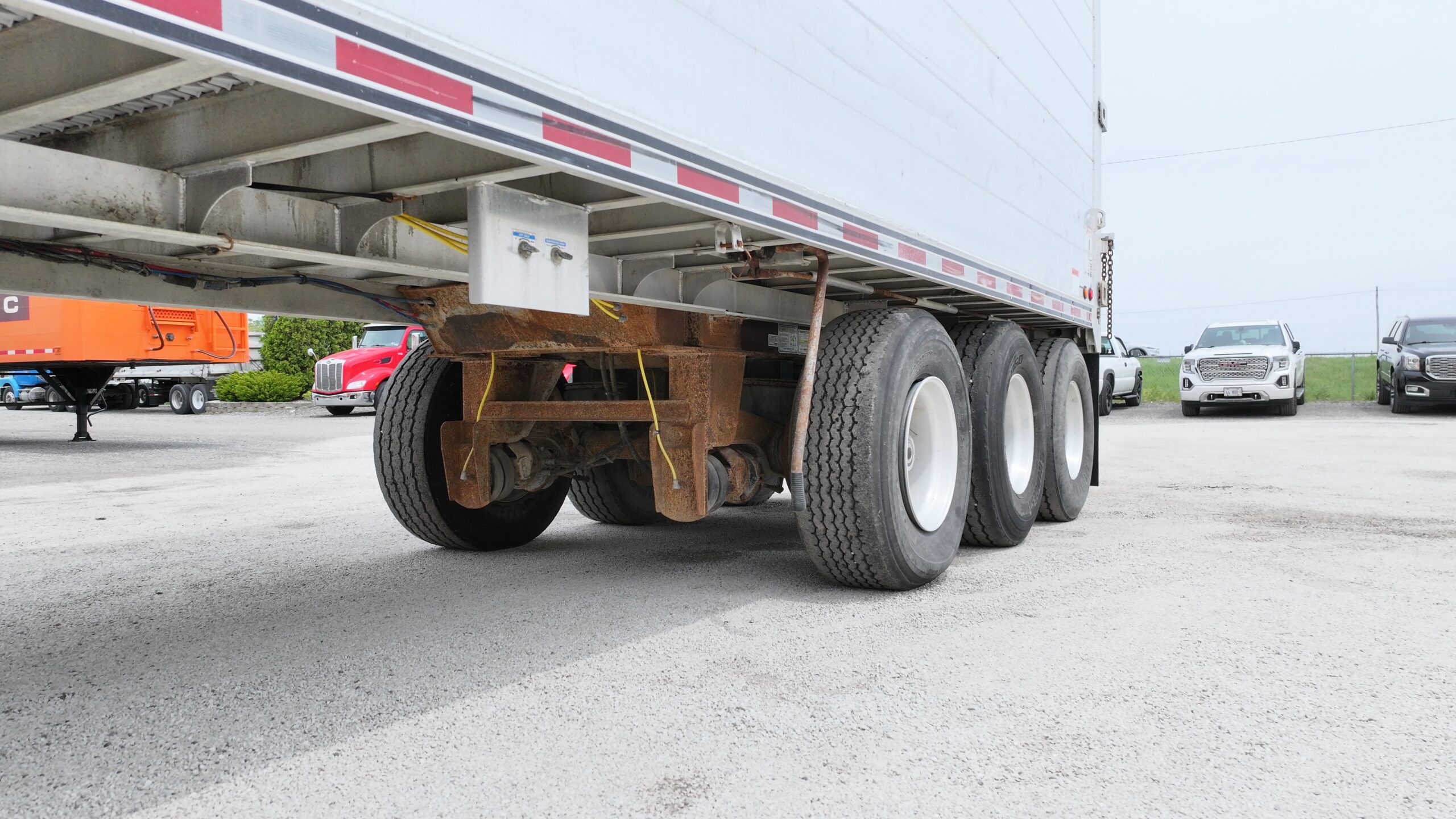

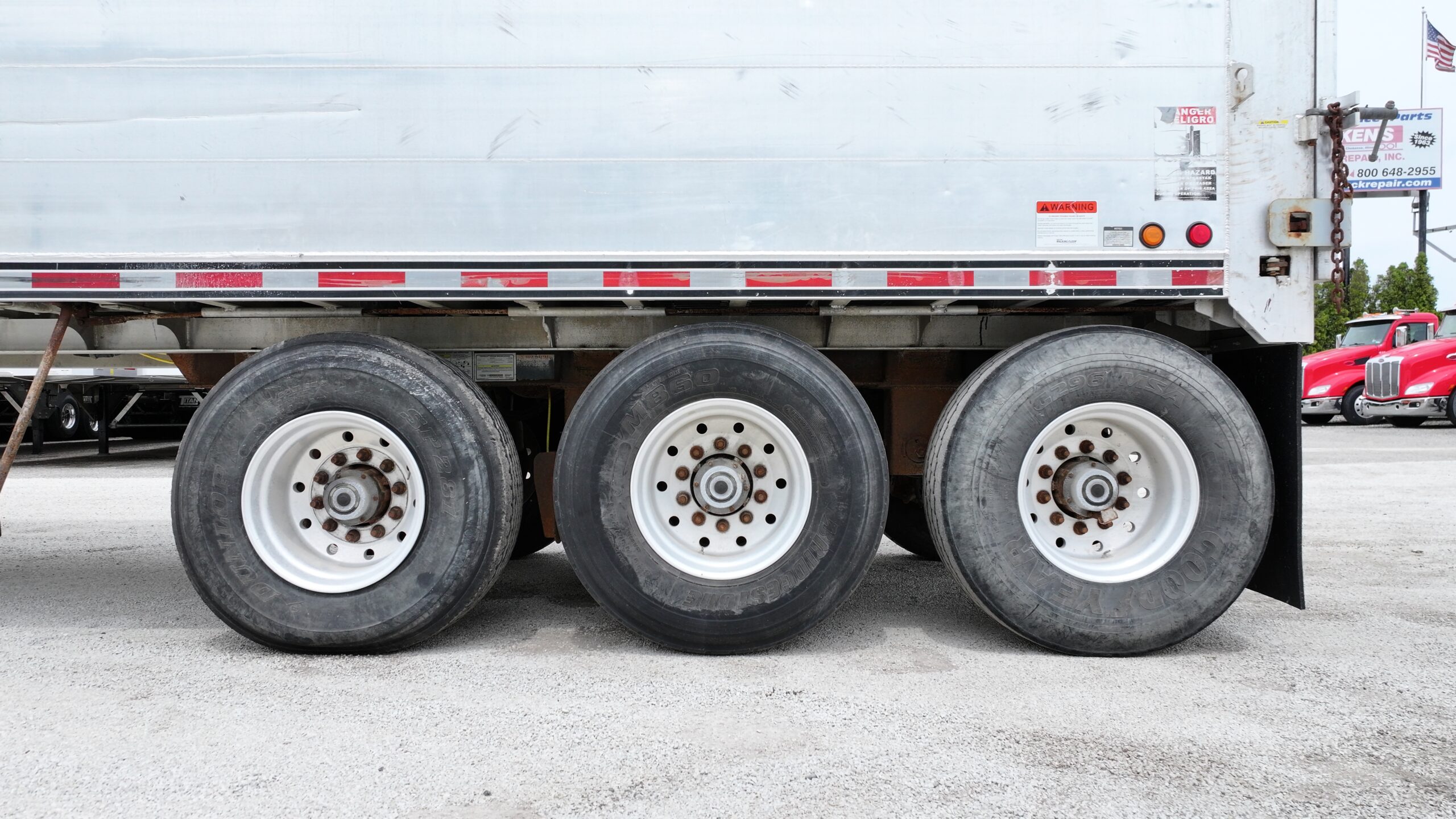

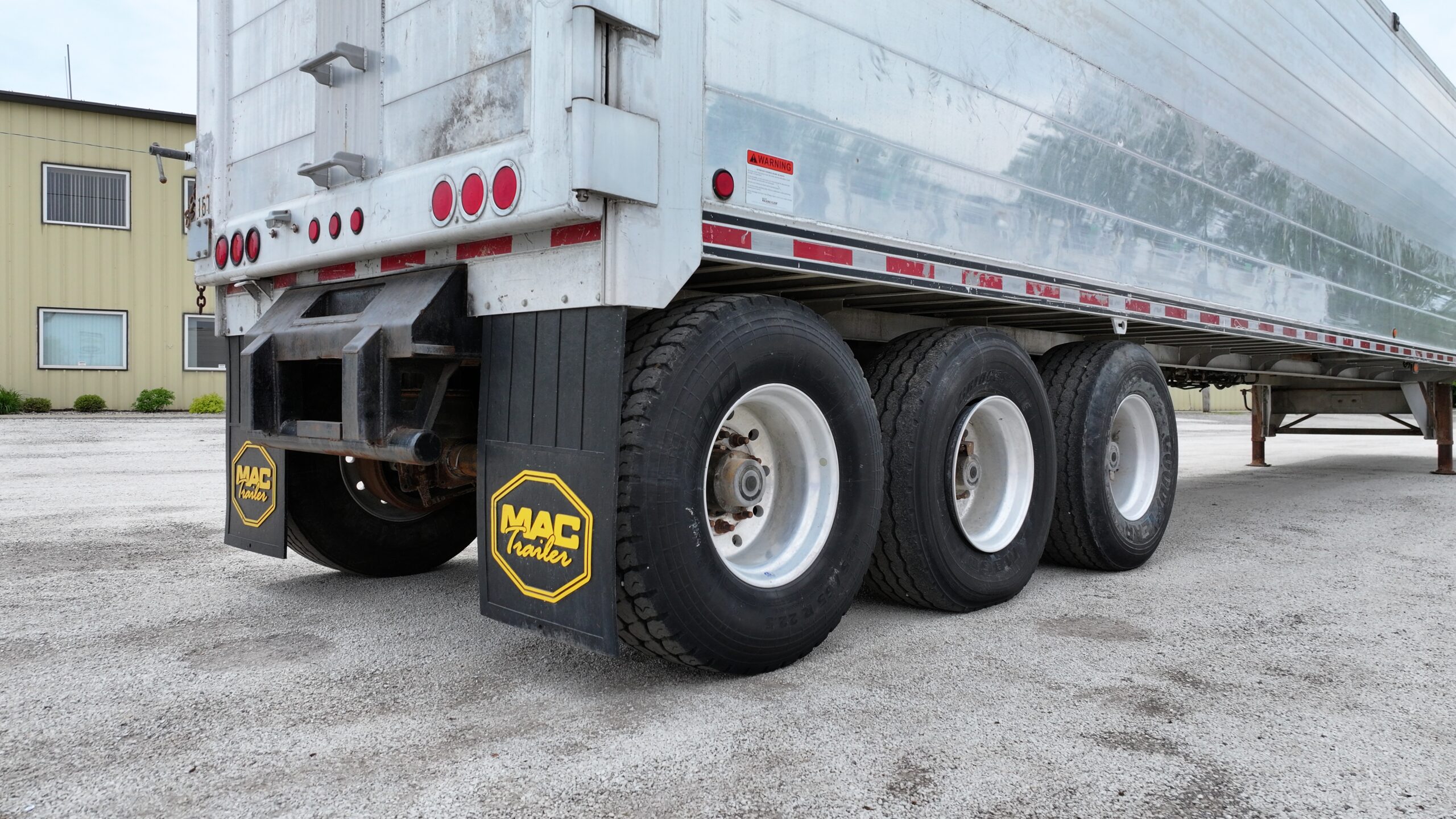

Suspension:          Hendrickson Intraax AA-300 TP

Springs:                 Air

ABS:                     2S1M

Brake Shoes:       7″ XL, W/30-30 Chambers

Slacks:                  Gunite

Cam Guards:       Standard – all axles

Dollies:                Jost A400 D.S.

Tow Hooks:        Two in pocket

Hose Fitting:      1″ x 108″ Hose with wing fitting – Hydraulics pumped to driver side of bulkhead

Weight:  20,644 lbs

Volume:  140 cu yds
