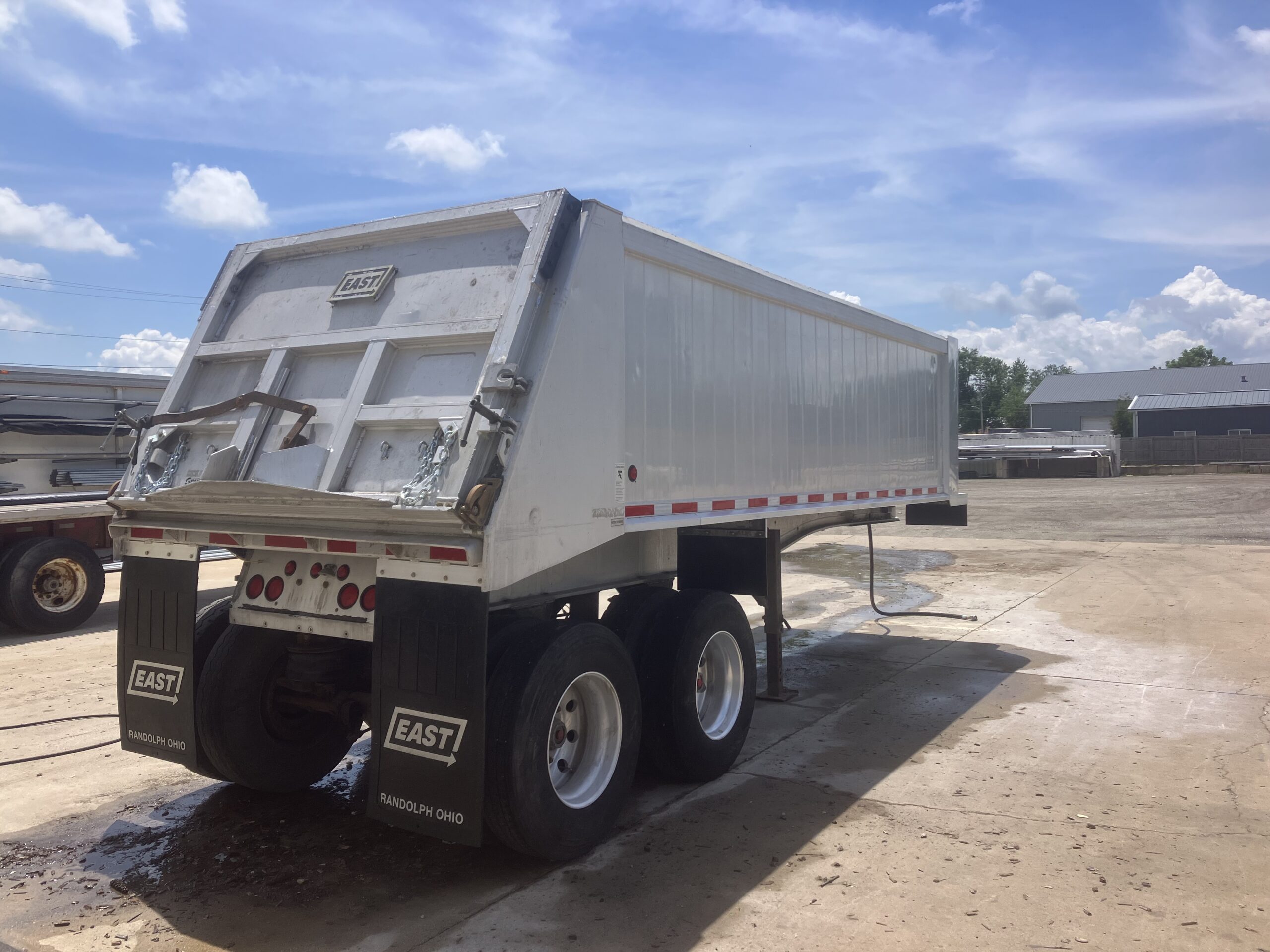

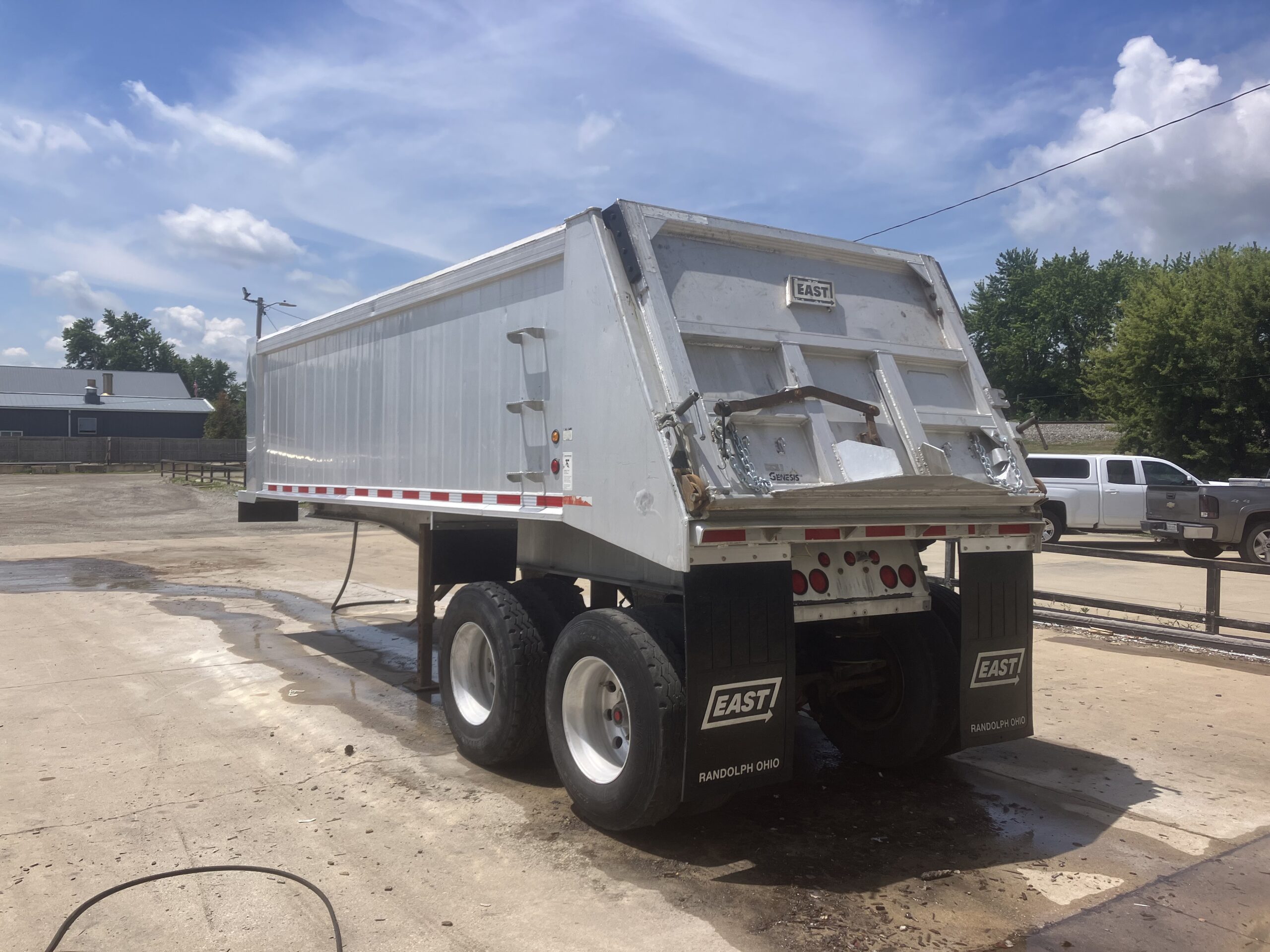

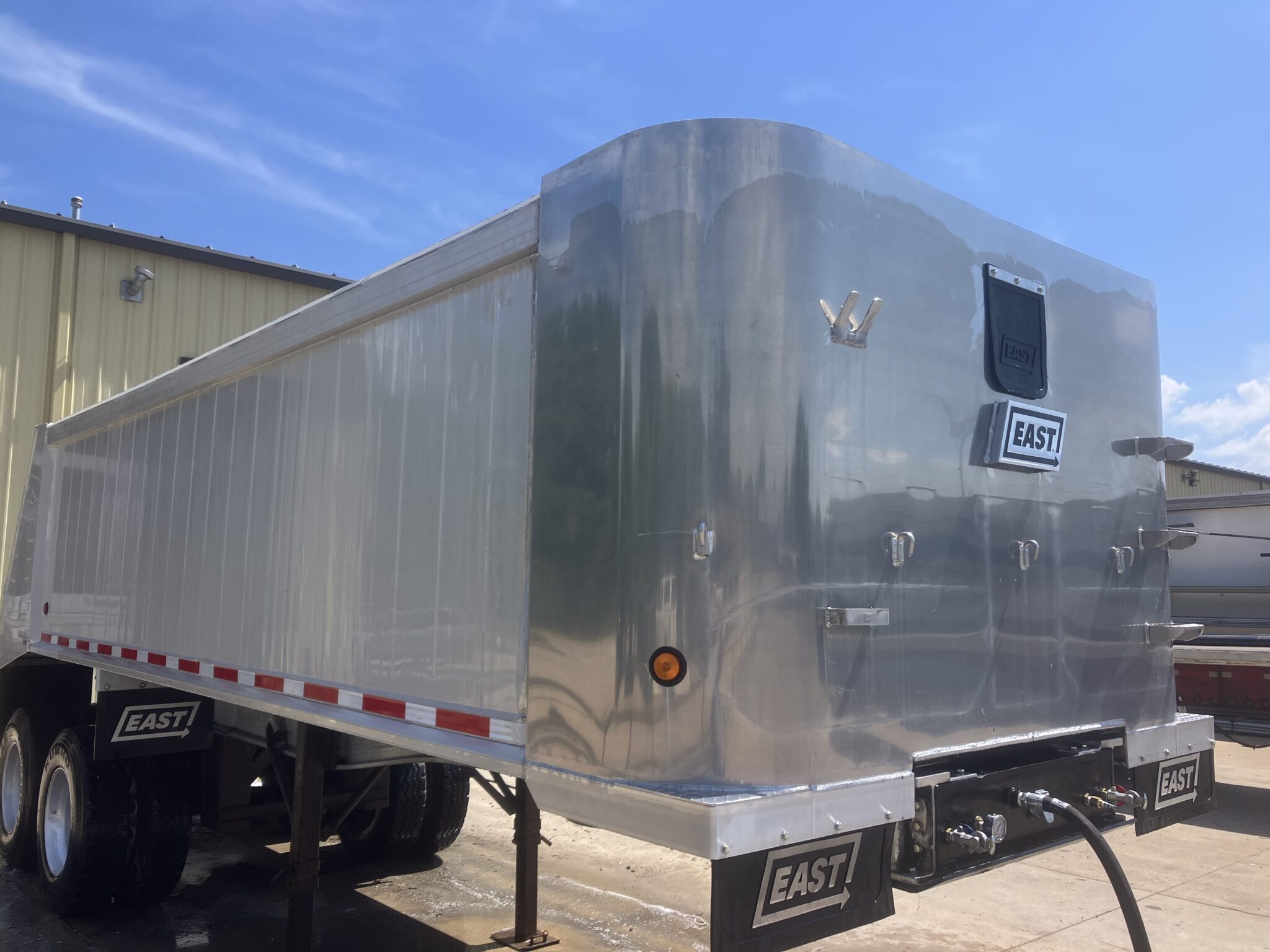

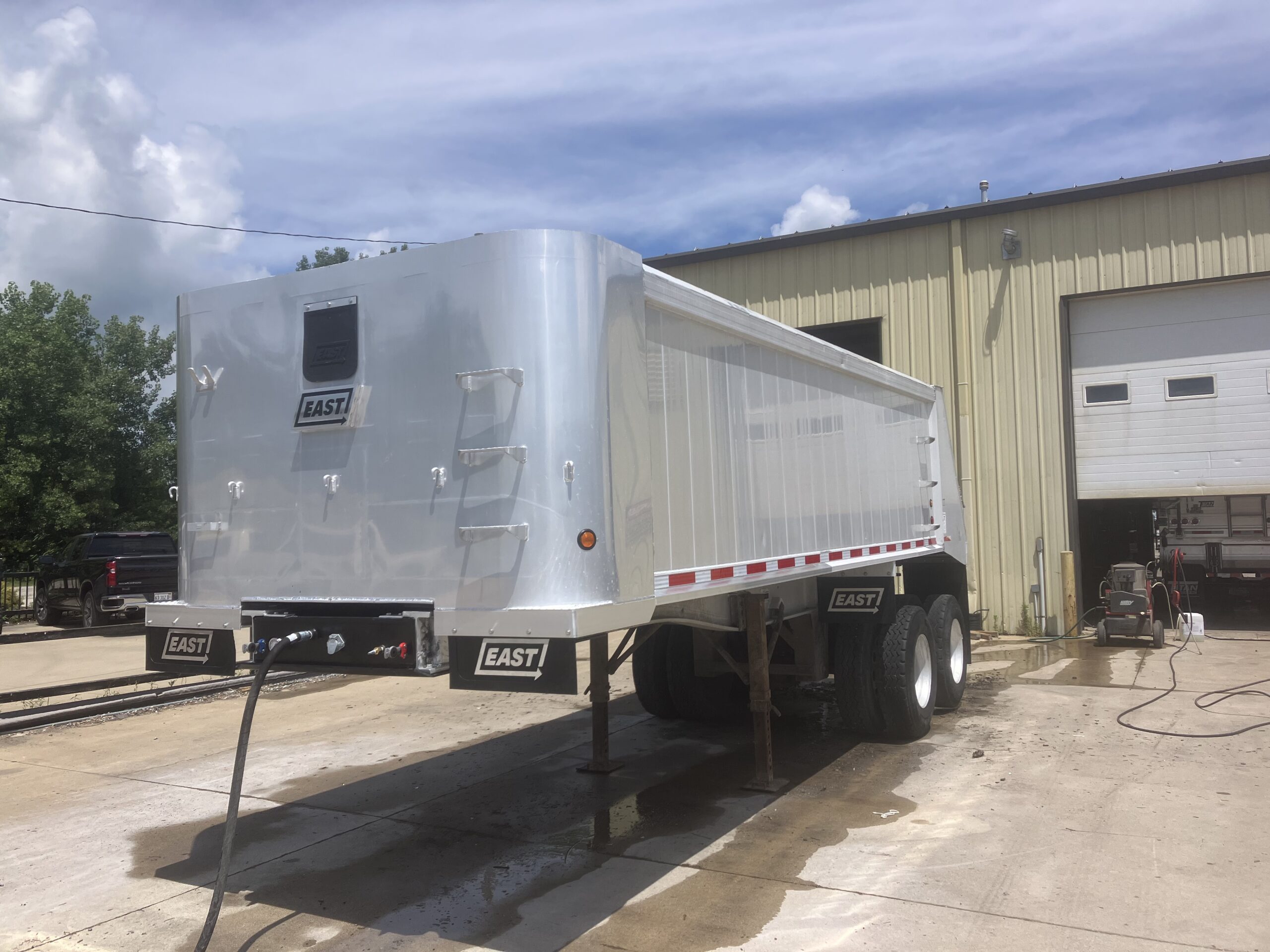

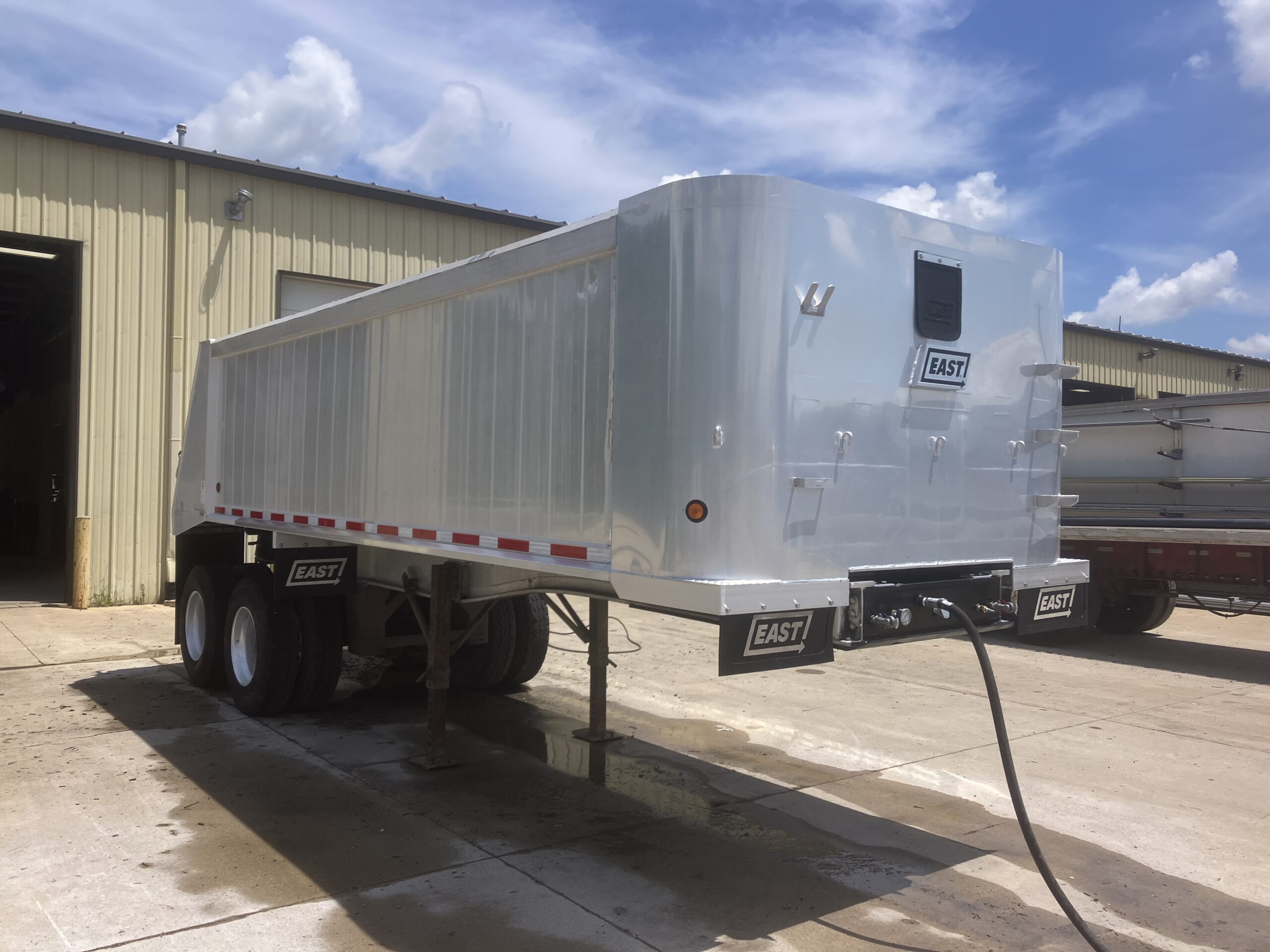

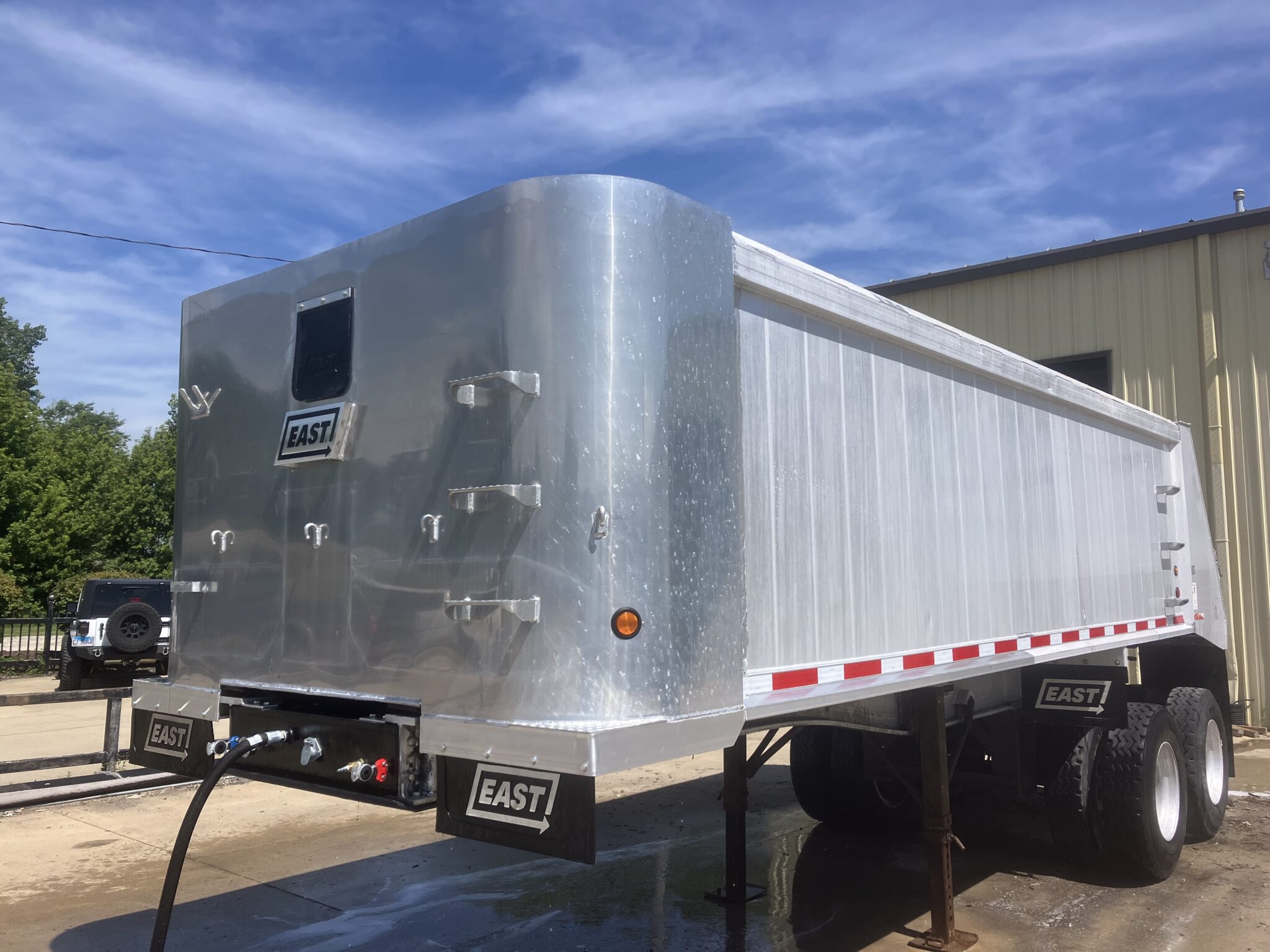

2006 EAST 24′ GENESIS DUMP TRAILER $37,500.00
BODY
Length: 24’
Width: 96” Inboard
Side Height: 54” (52” + 3” x 3” angle)
Top Rail: 4 ½” Old Style Rail
Side Material: Front – 10’-.100 Wall Middle – 10’-.140 Wall Rear – 4’-.180 Wall
Crossmember Spacing: 12”
Floor Material: ¼” (3/8” last 8’)
Tailgate Control: Air/Frame + Air CC
Mudflaps: Std. across rear chassis + 2 at front of trailer
Tarp Hooks: Rear only
Bulkhead Material: 3/16”
Bulkhead: 17” Slope Plates
Body Fenders: Square Off
Ladders (out): Bulkhead – D/S Rear Panel – D/S
Ladders (inside): None on bulkhead One Rear Panel – D/S
Shovel Hgr: On Bulkhead P/S
TAILGATE
Height: Full
Material Thickness: ¼”
Hinges: Overslung
Slope: 30”
Side Swing: None
Gate seal: None
Safety Latch: One each side – 12” above floor
Coal/Grain Door: 20” Stainless door
Coal Chute: 2 ½” Tapered
CHASSIS
Model: Tandem
Beam Material: Aluminum
Length: 23’ 6”
Width: 96”
Hoist: 85-220
Chassis Neck: Tandem + 10”
King Pin Setting: 30”
5th Wheel Plate: 5/16” Steel
5th Wheel Height: 49”
Overhang: 6”
Rear Axle Setting: 21 ½”
K/P to Rear Axle: 230 ½”
Suspension: HT300T / E2-1
Suspension Control: Frame + Auto Dump
Suspension Spacing: 52”
Springs: Air
Axles: 5” RD – TQ
Brakes: 16 ½” x 7”
Dust Shields: None
Hubs/Drums: 10 S LWSTL LWBD – Pilot
Wheels: 8.25” x 22.5” Aluminum 4M/4P
Tires: 11R X 22.5” R196
ABS: 4S/2M
Tire Carrier: None
Landing Gear: Drop Stands
Hyd Hose Fitting: Wingnut
Hyd Hose Length: 108” 4000 PSI
Tow Hooks: Two
Weight: 10,238 lbs
