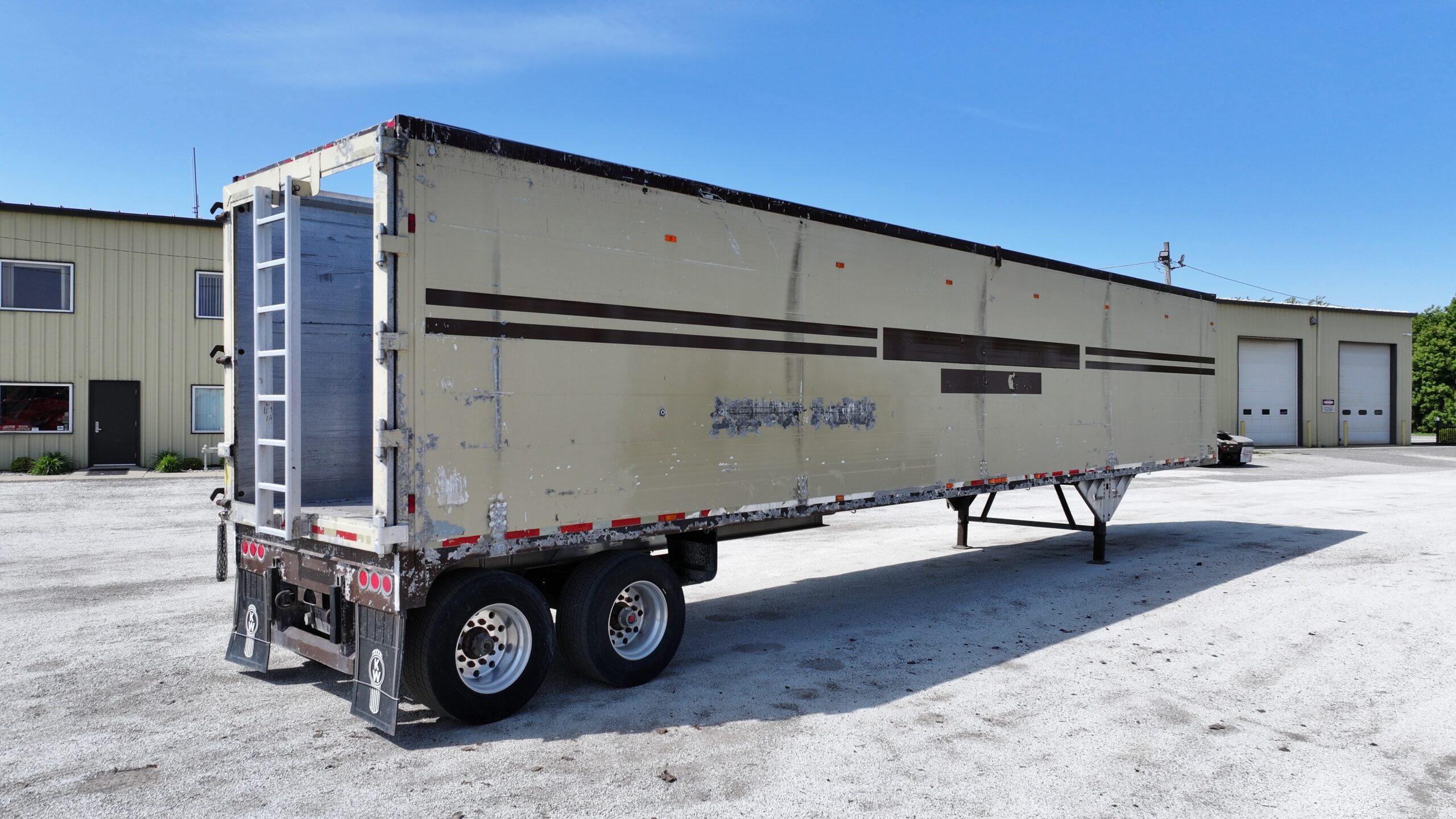

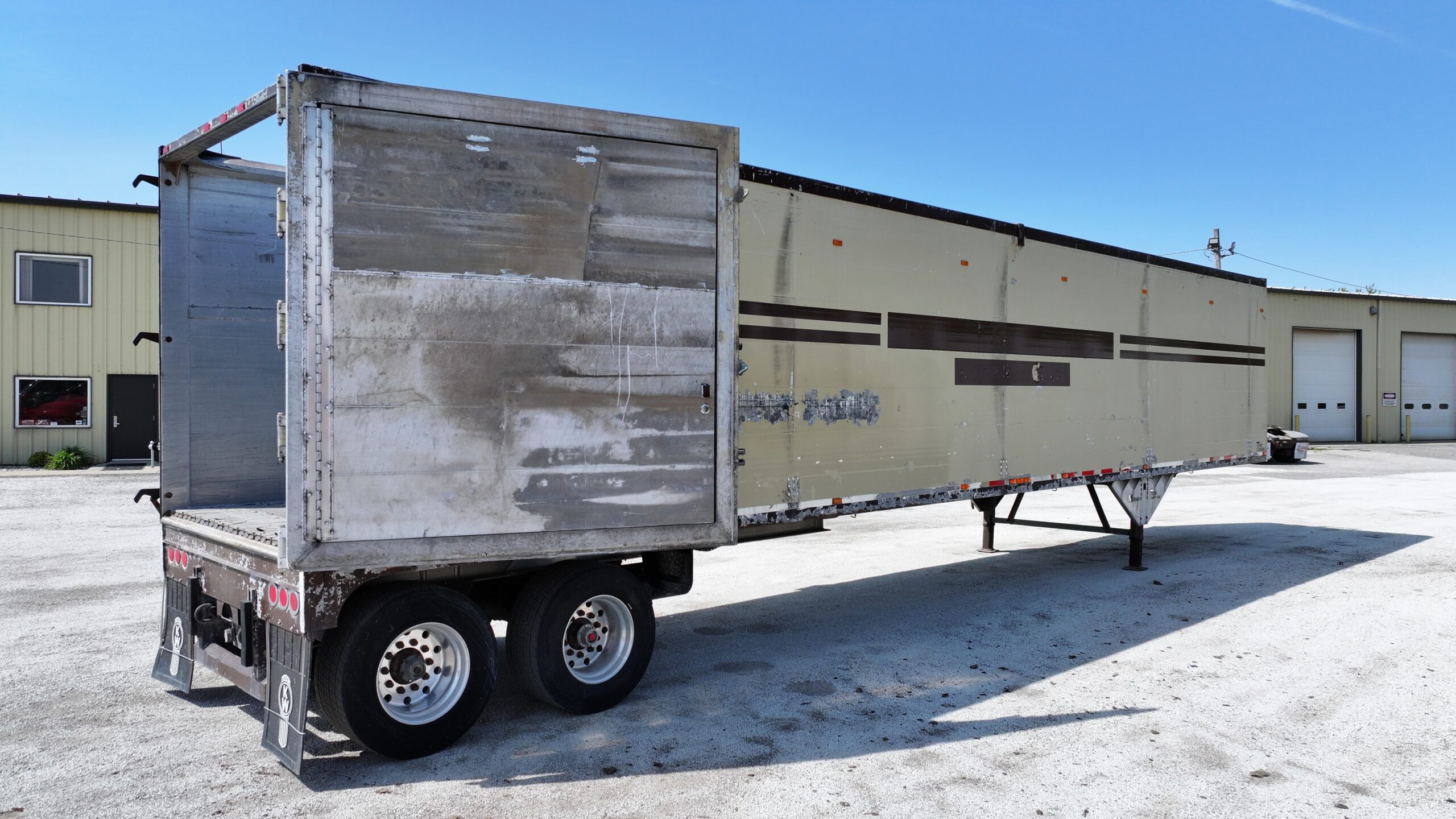

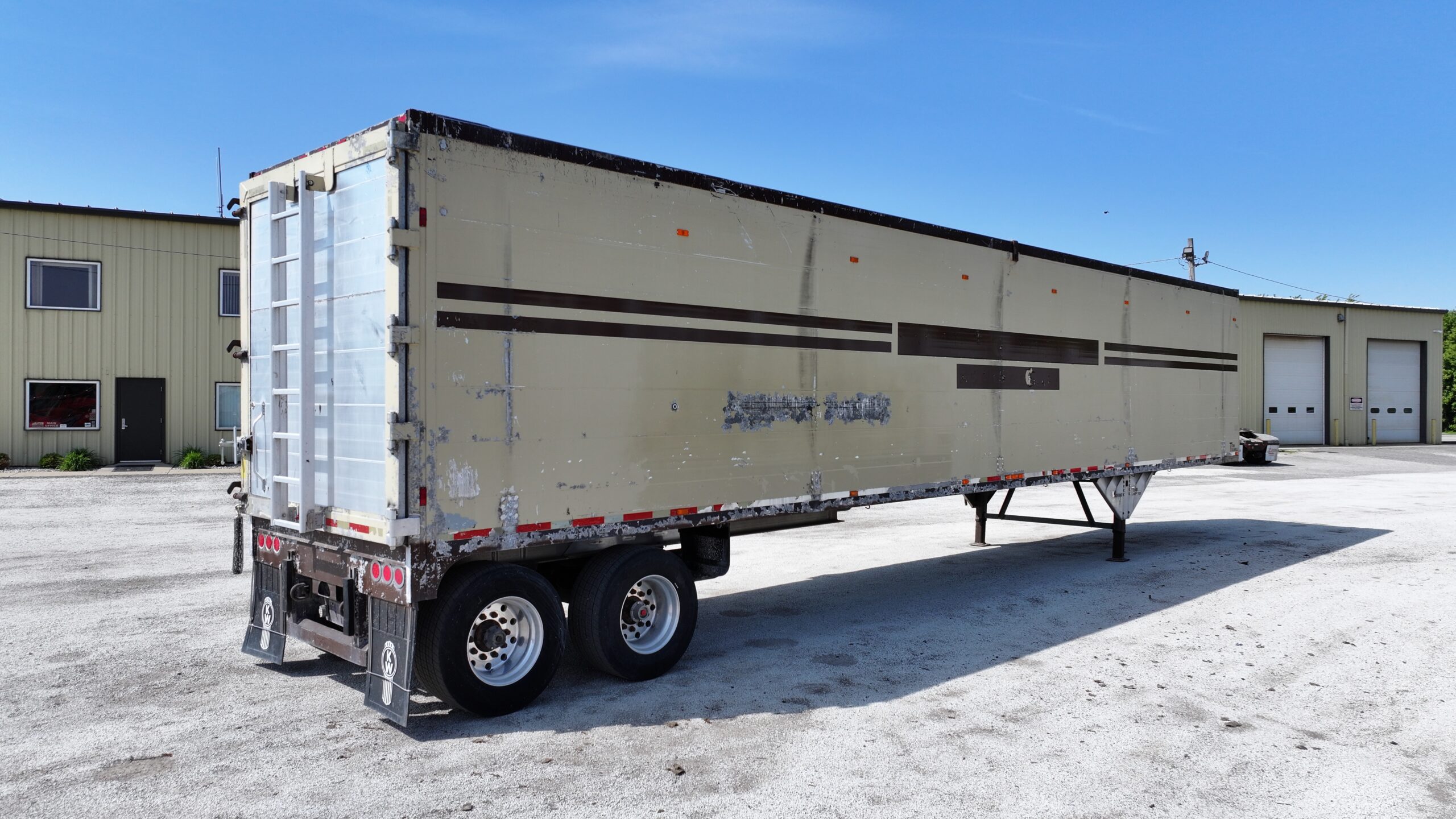

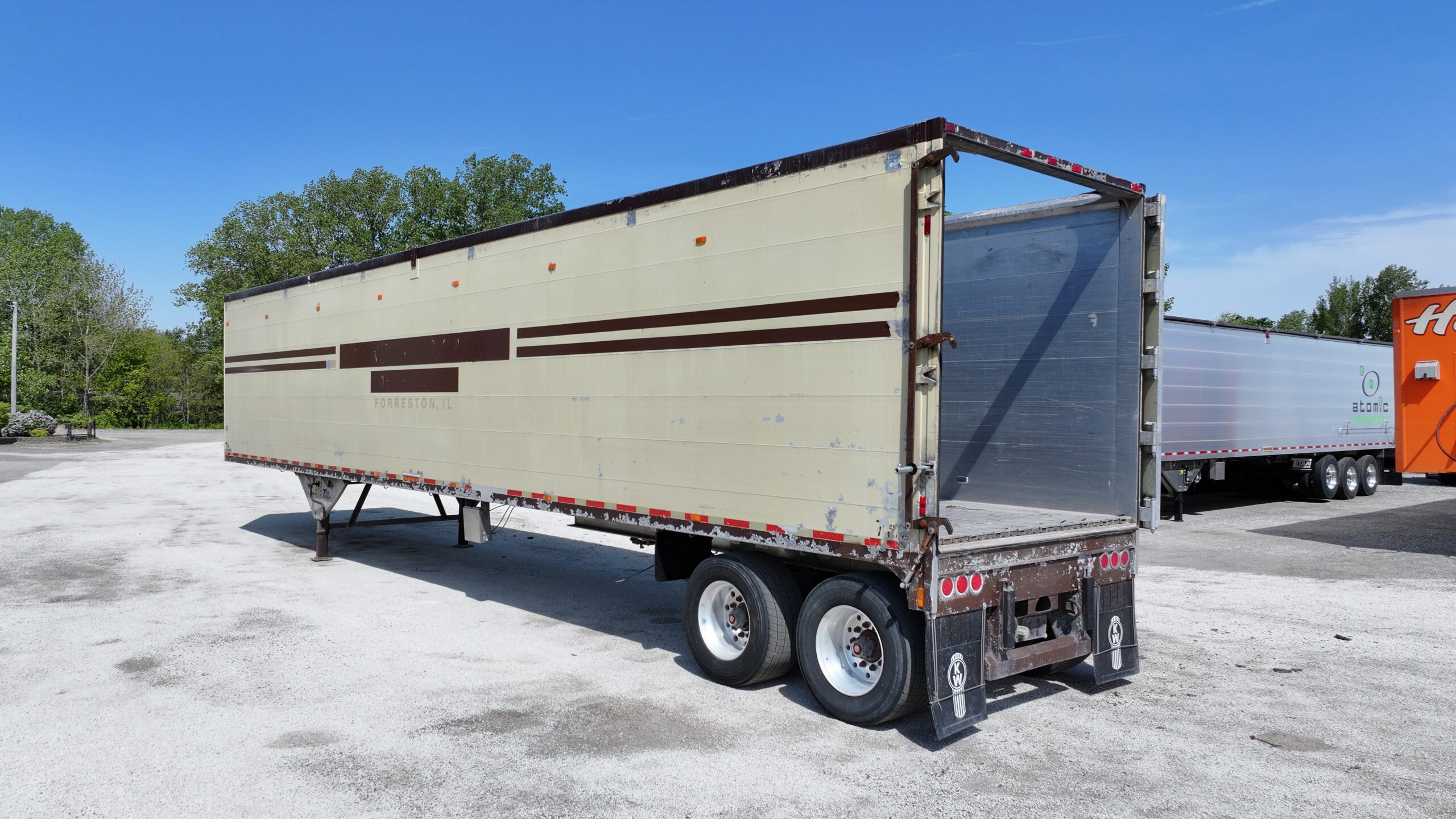

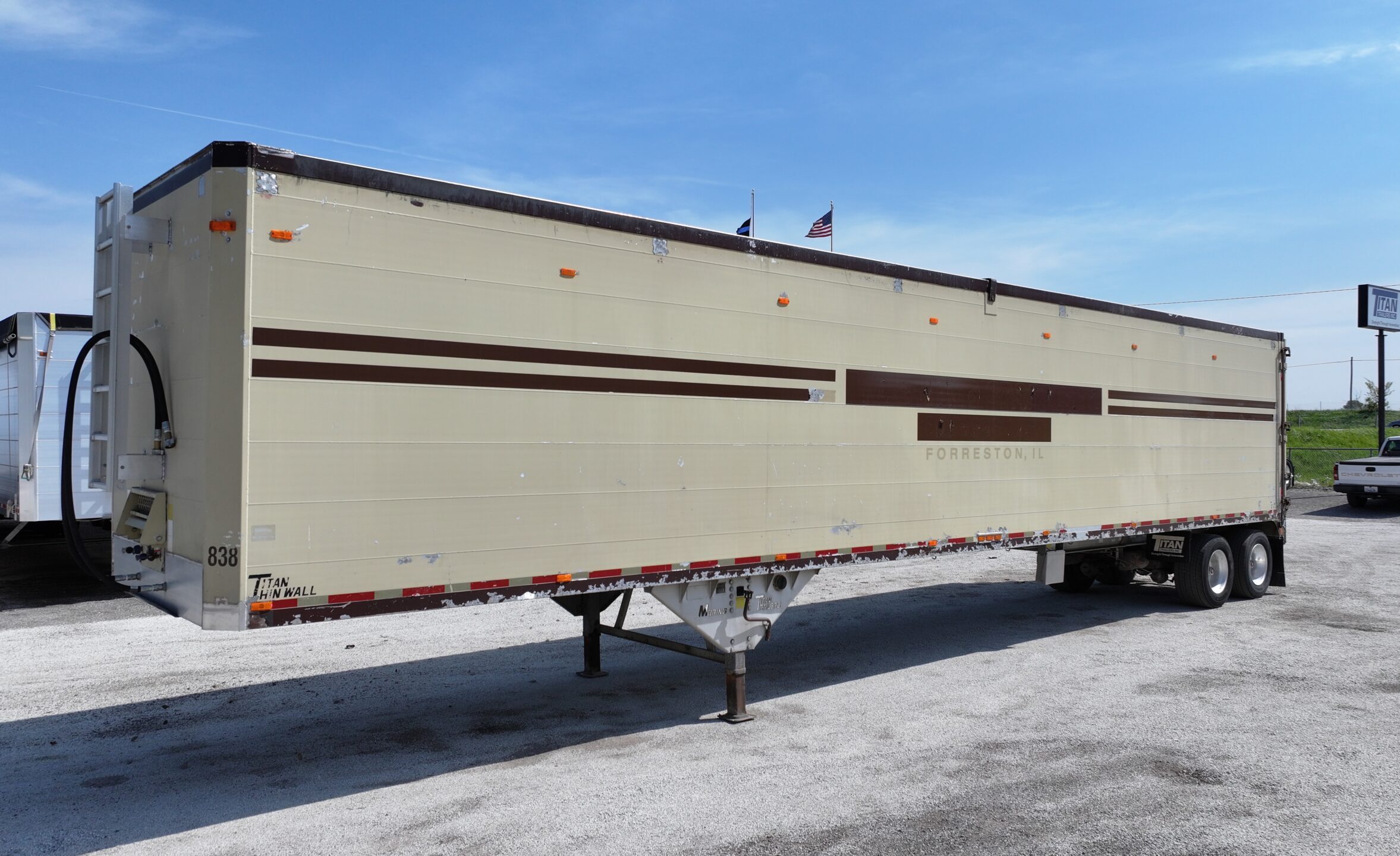

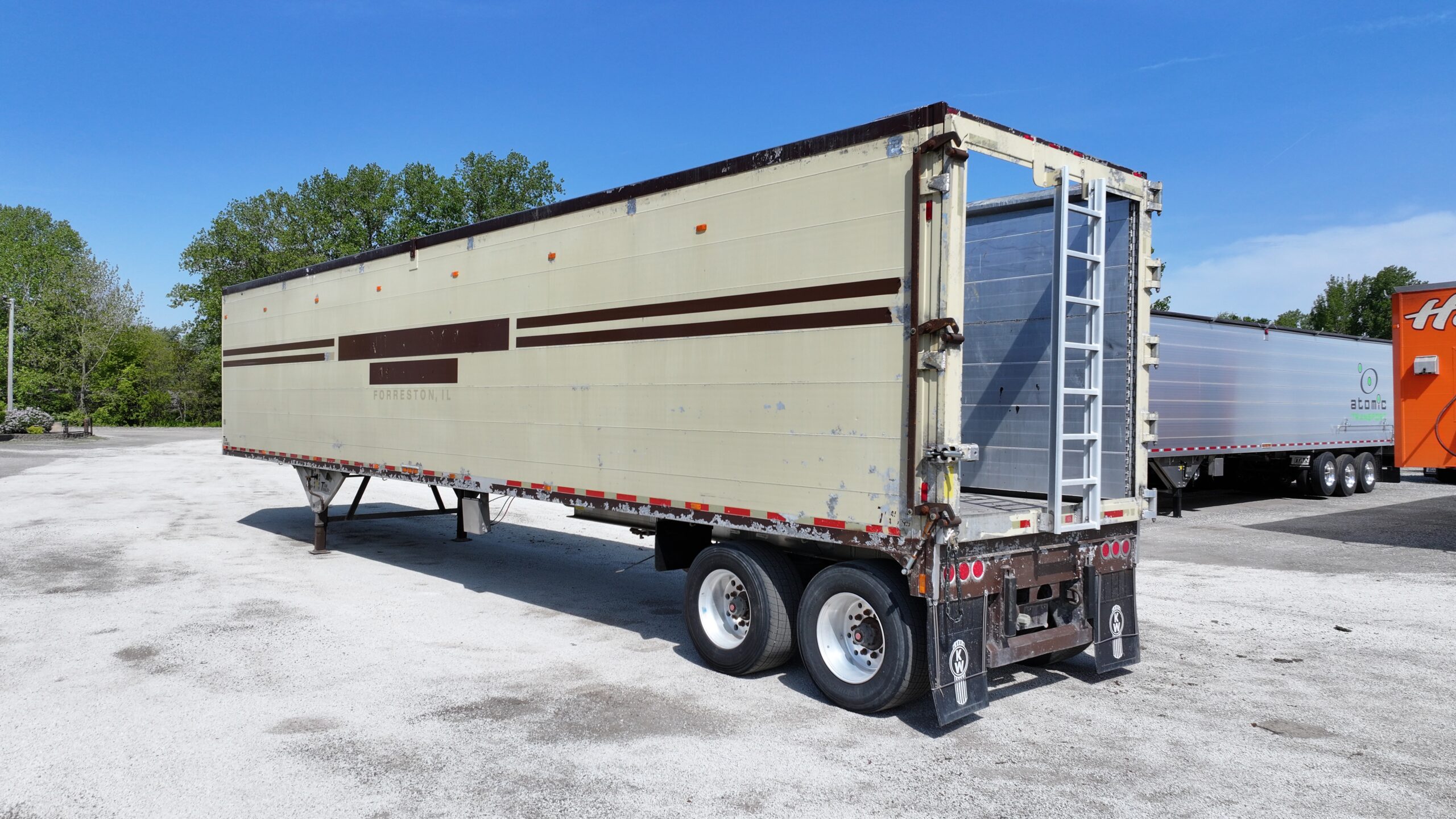

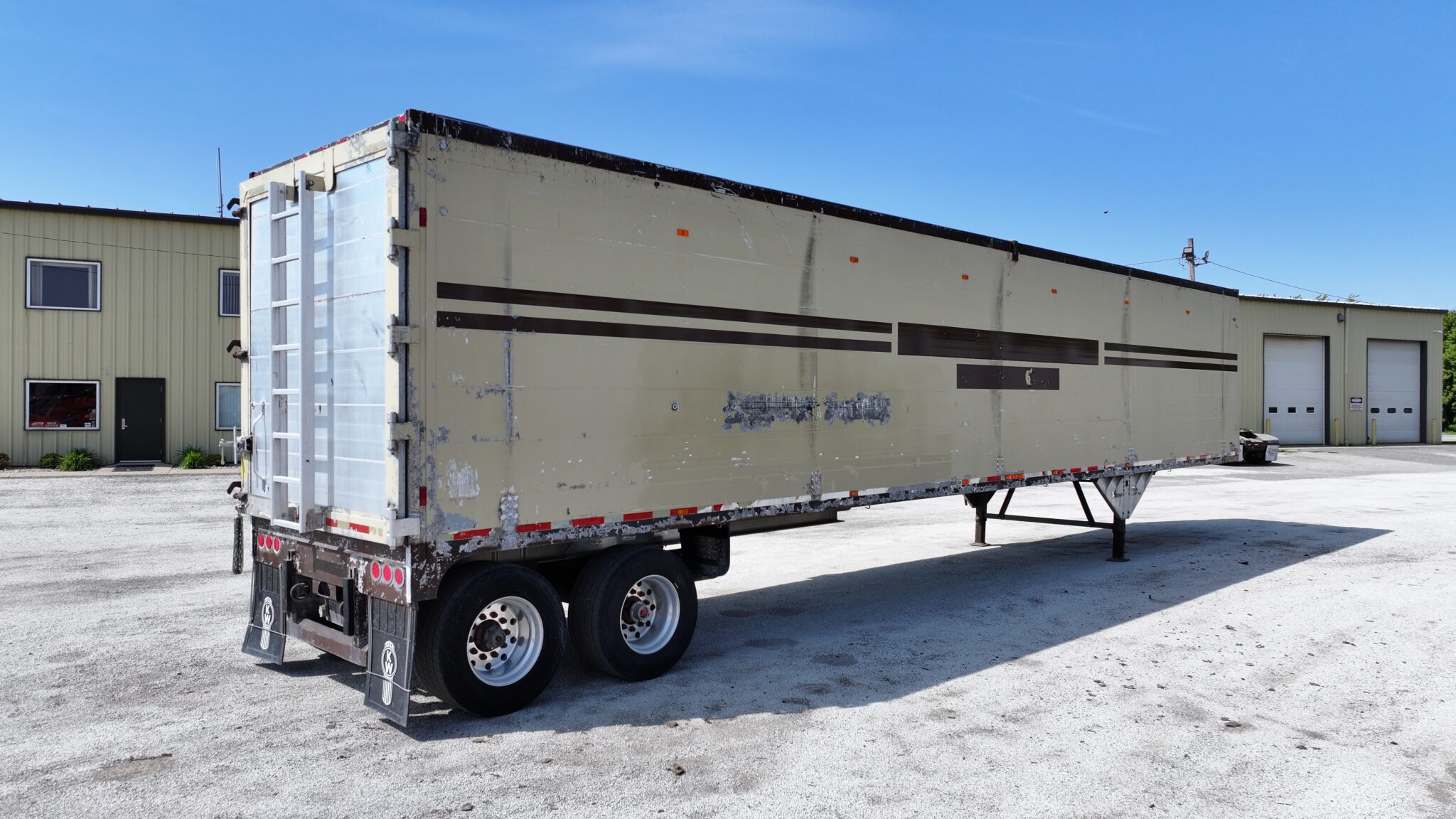

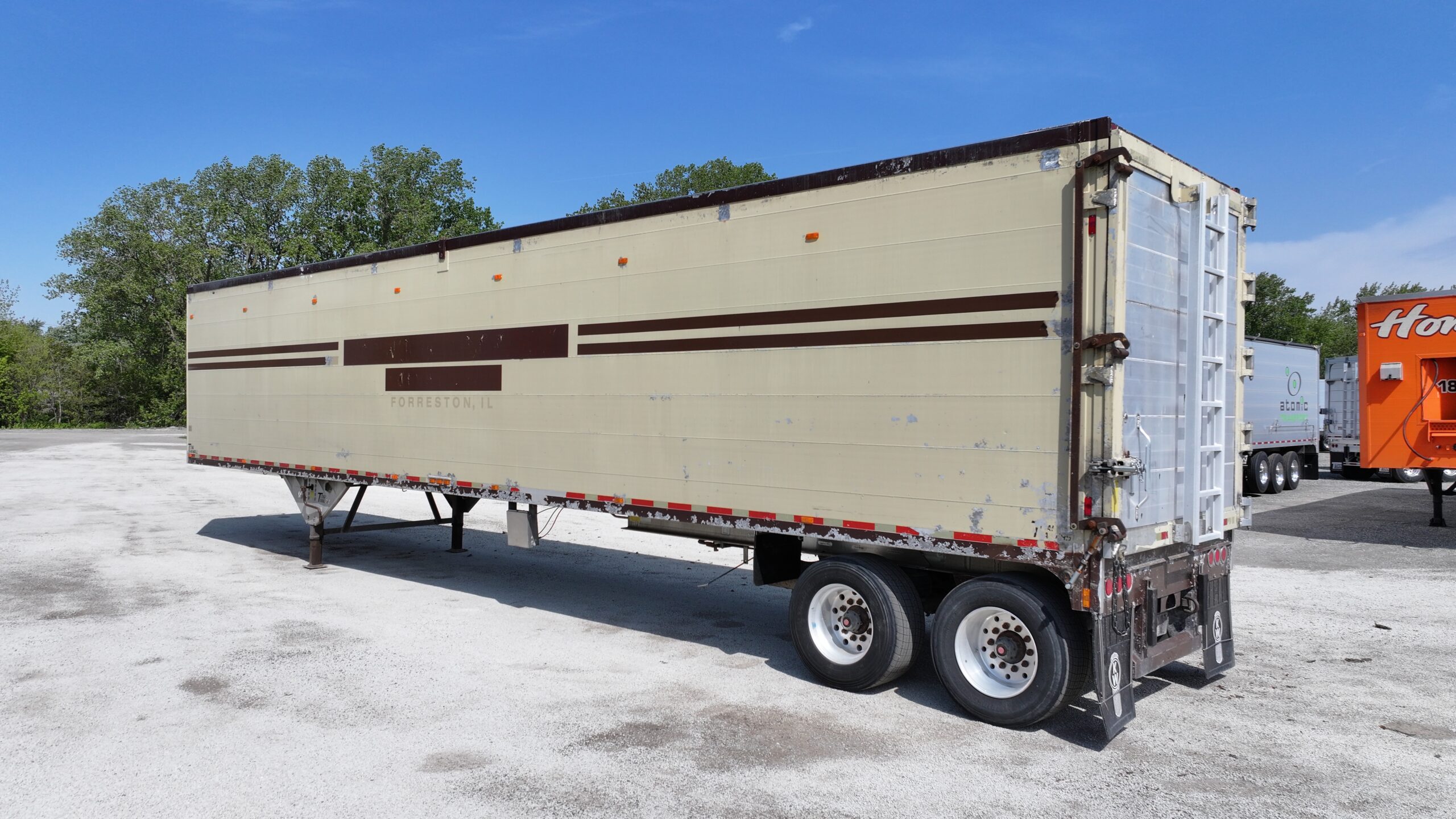

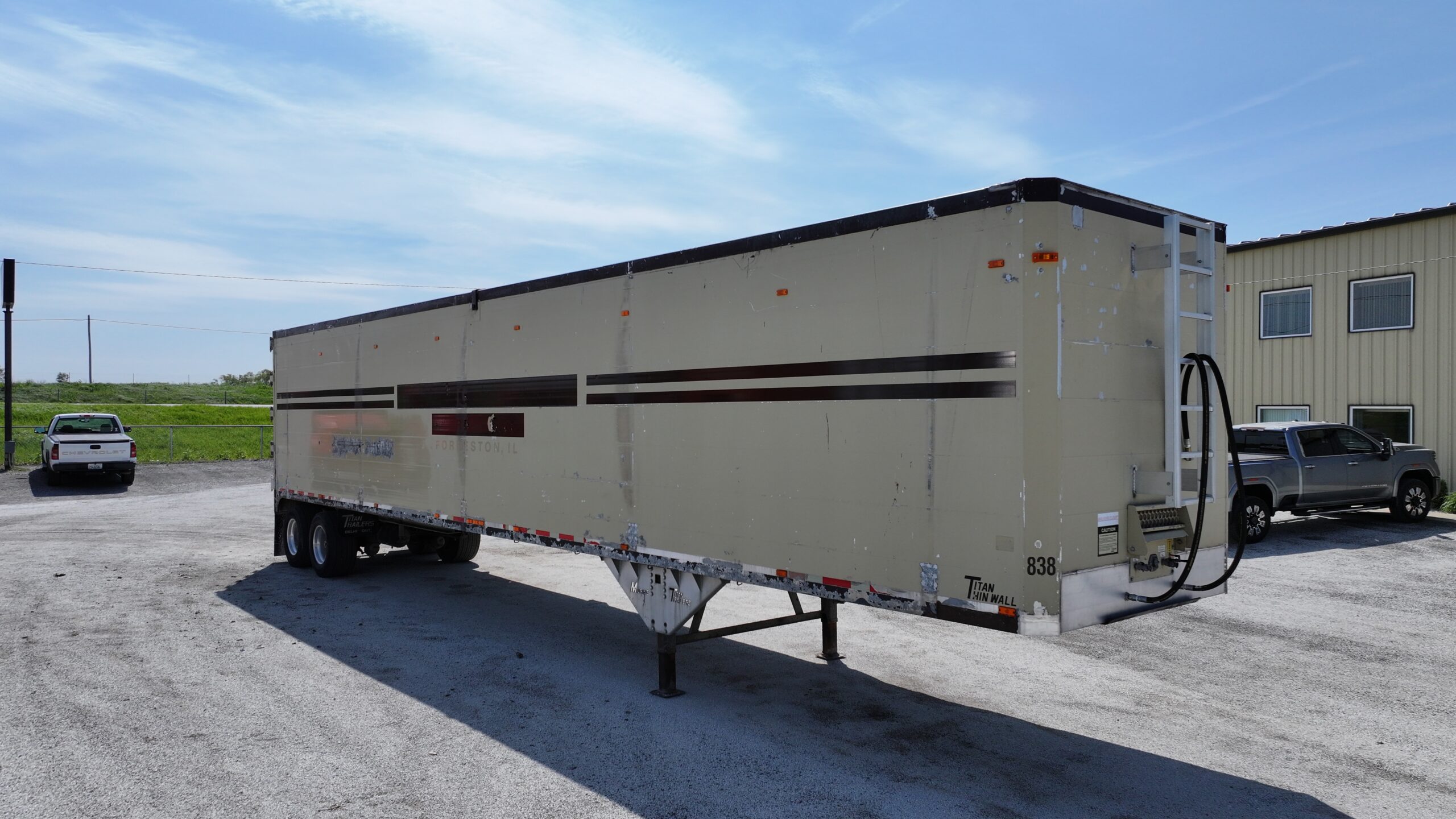

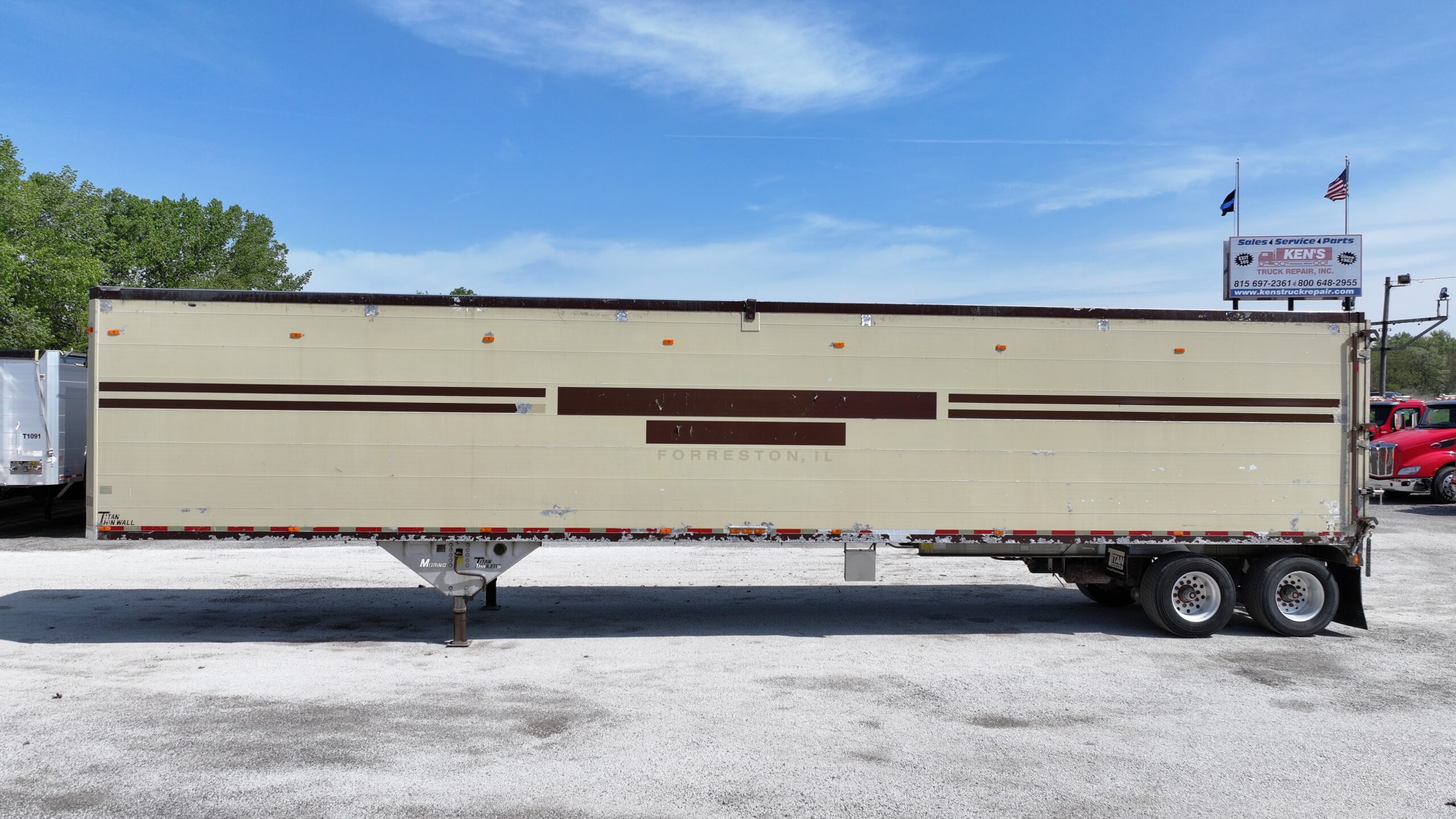

2005 TITAN 48′ WALKING FLOOR TRAILER

Base Model                             48-2-TW-WF

Style                                        Straight

Overall Length                        48 ft

Overall Width                         102” Nominal

Overall Height                        13’ 1 ¼” Approximately

King Pin Location                   36”

Upper Coupler Ht                   40”

Number of Axles

PRIMARY                                Two (2)

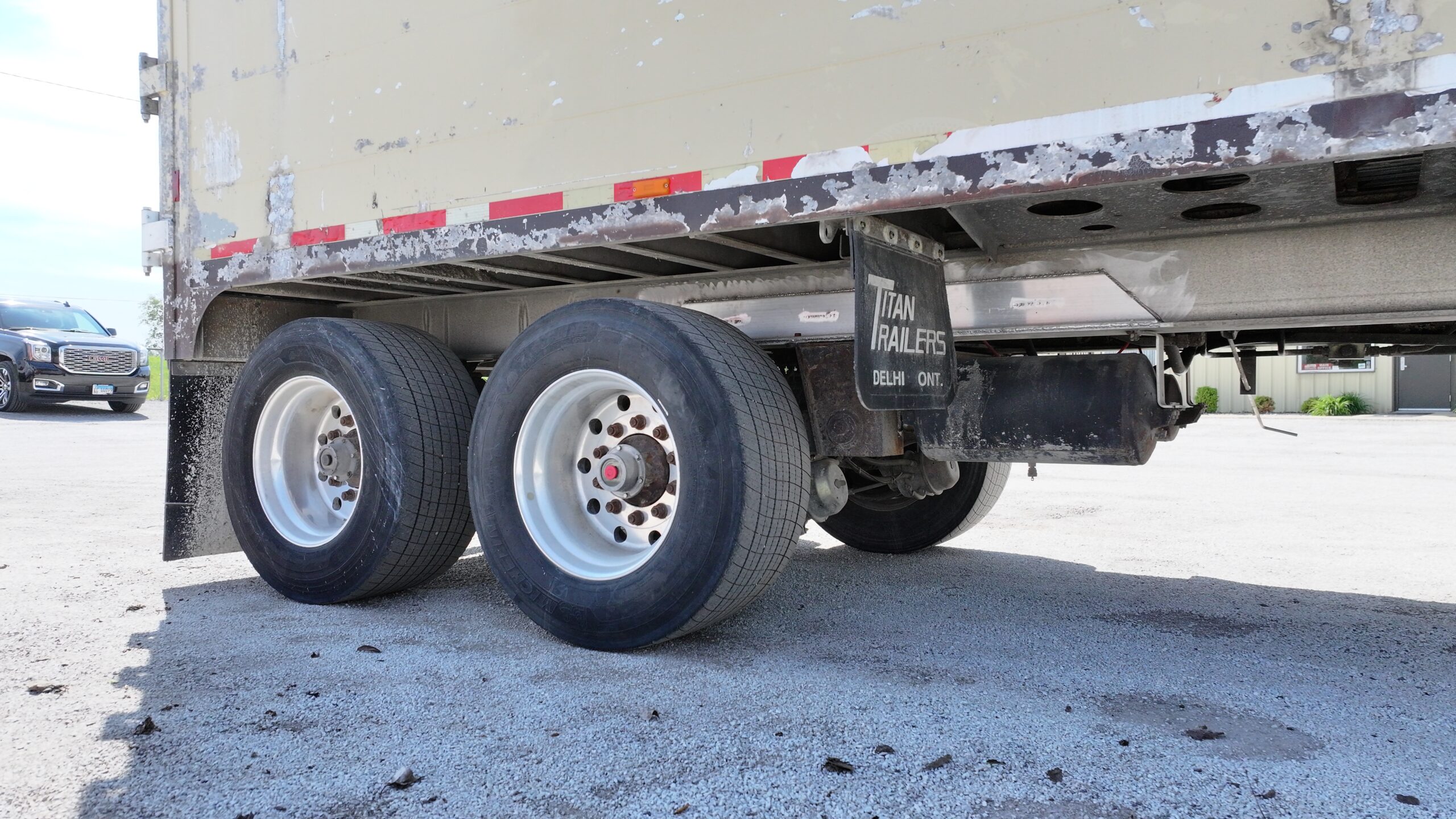

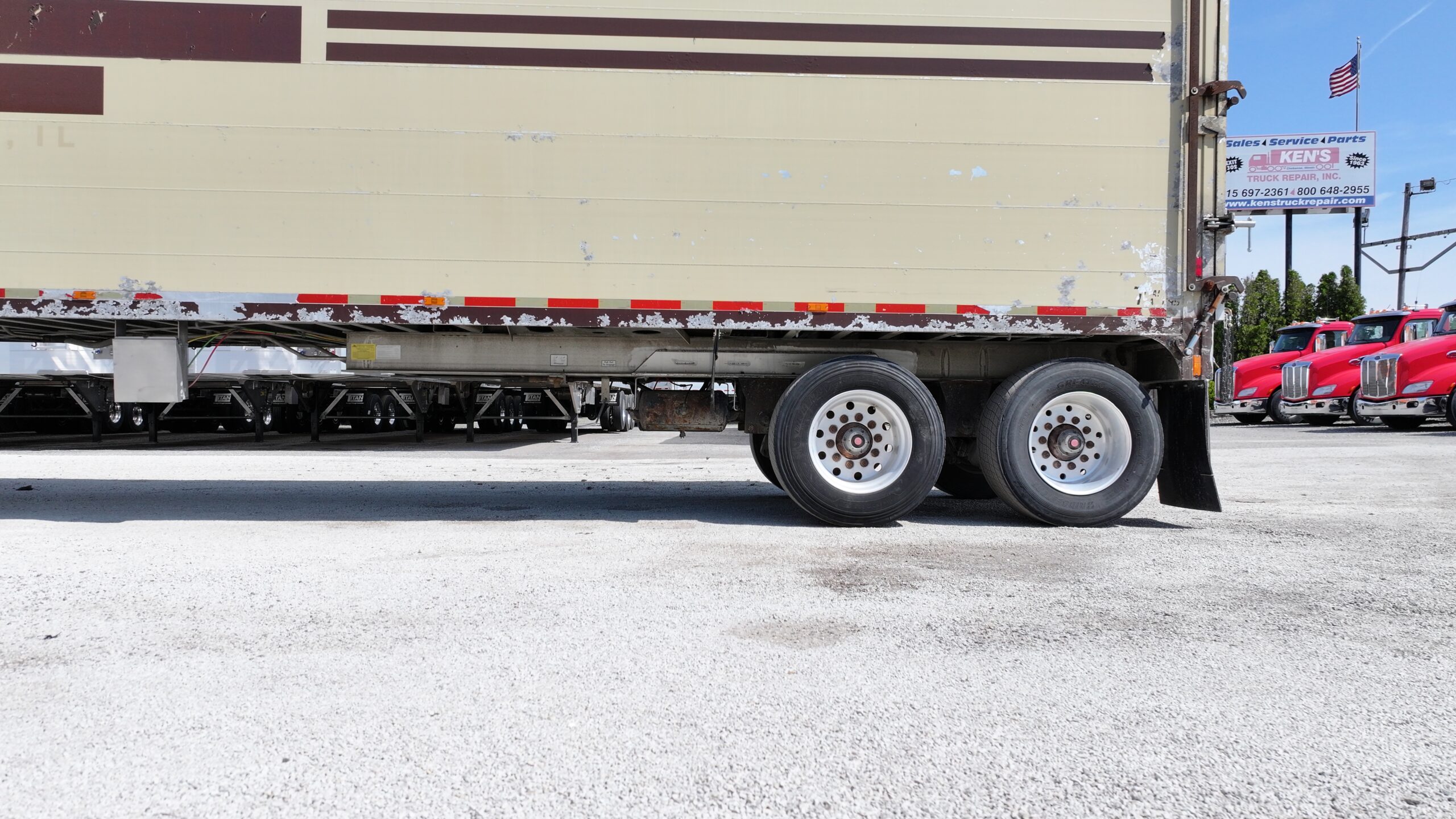

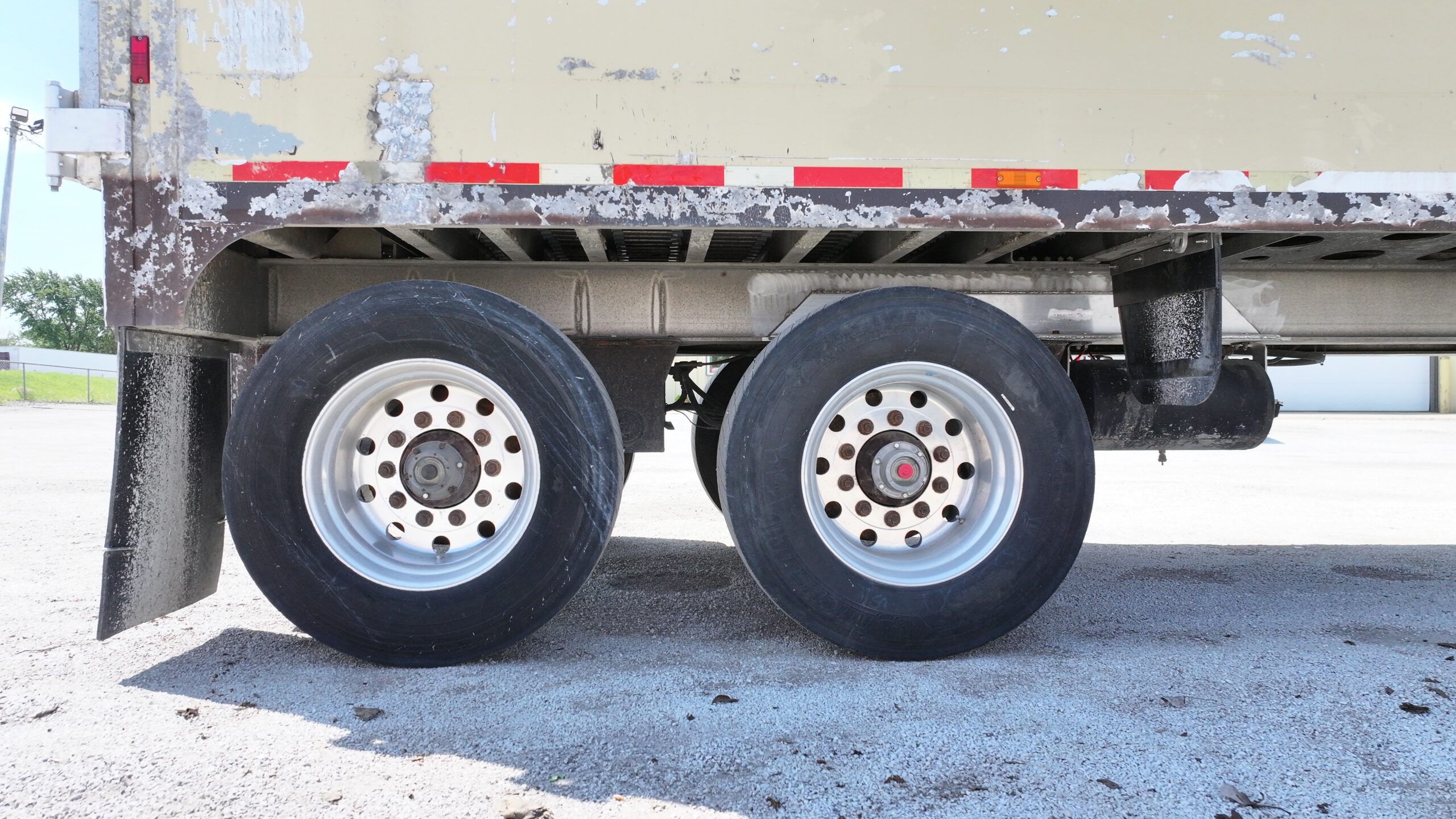

Axles                                       D22-.625 Wall Dana

Axle Track                                77”

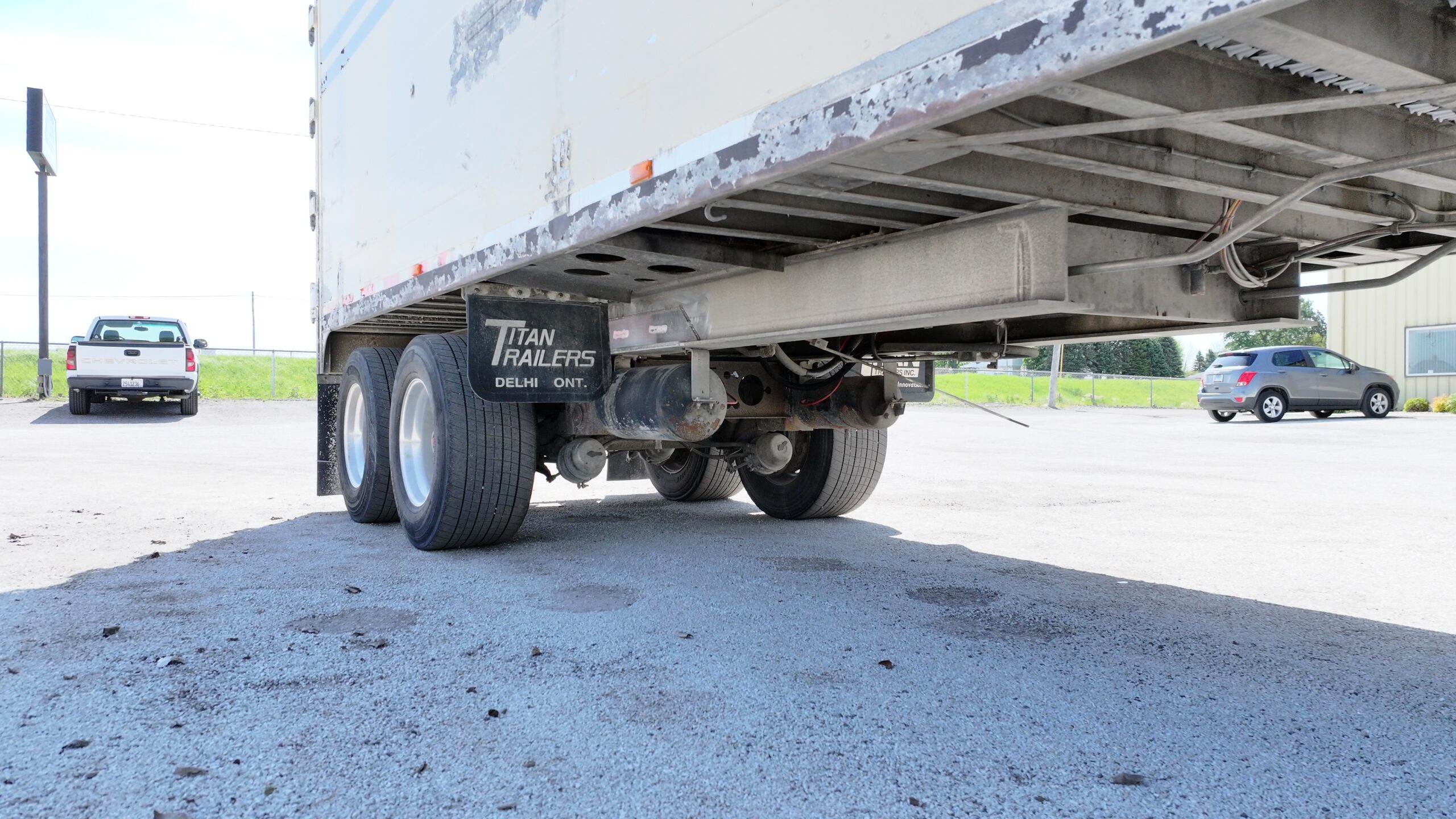

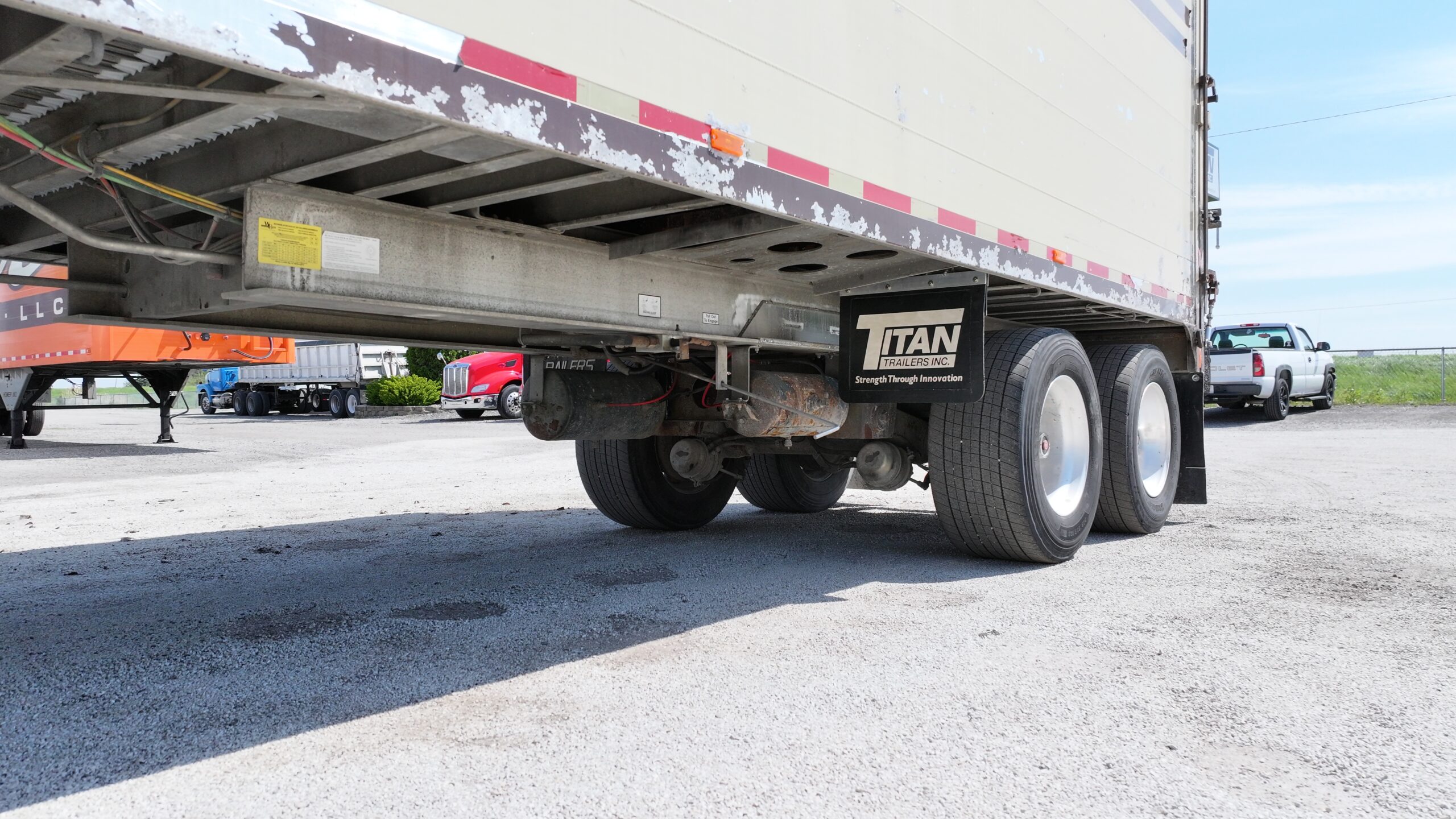

Suspension                              Watson Integra 30,000 lb @ 50”

Hub / Drum Assembly            Duralite-10 hole

Disc Wheel Size                      14 x 22.5

Rims                                        Aluminum

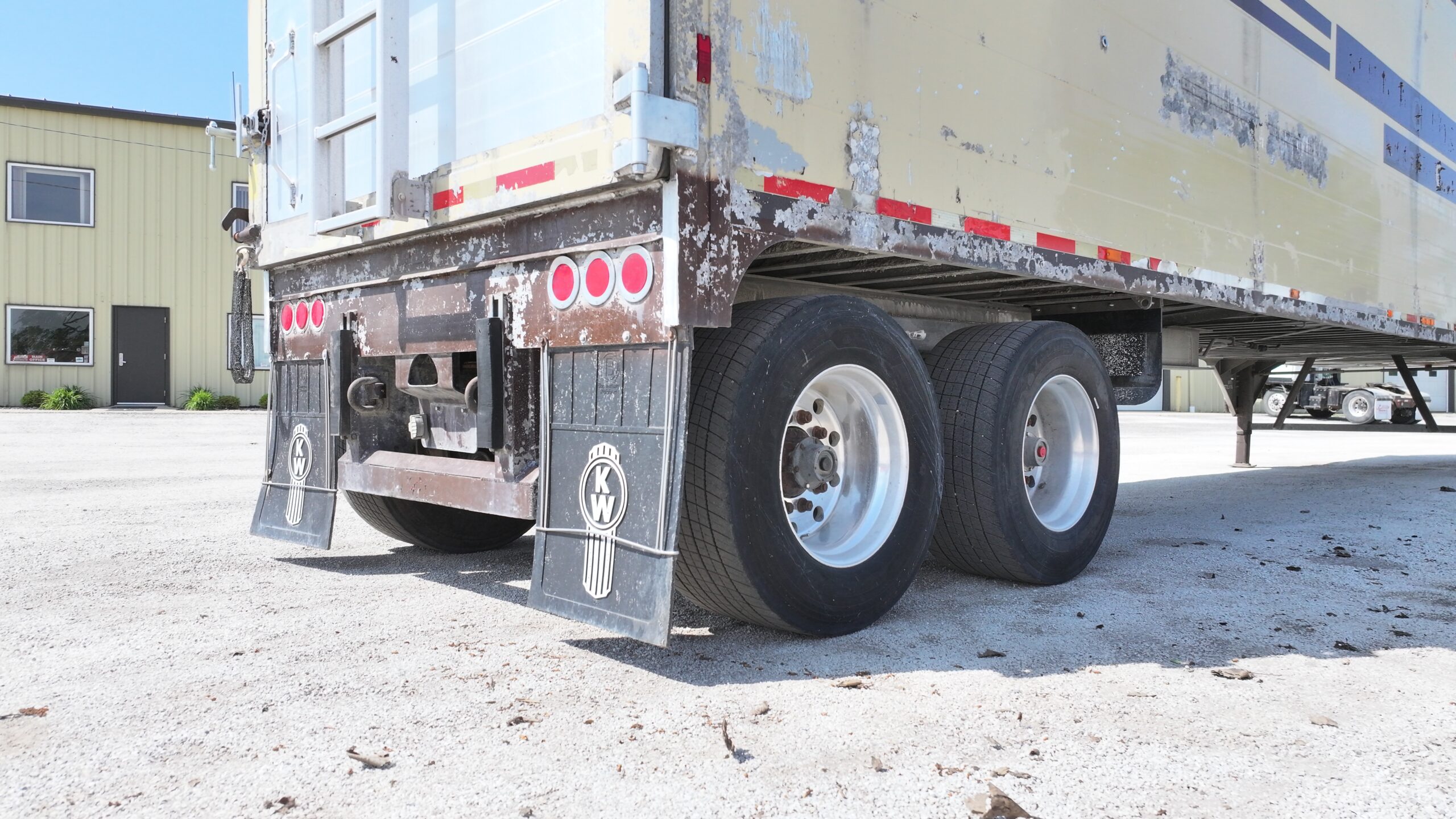

Tires                Brand              Michelin

Quantity          4

445/50R22.5

Axle Layout                            FRONT-Primary-50-Primary-29.5-REAR

Oil Seals                                  Chicago Rawhide

Lubricants                               Oil

Brakes             ABS                4S2M Meritor Wabco

Slack Adj.       Haldex Auto

Cam Enclos     All Axles – c/w Dust Shields

Lift Kits                                  None

Lift Controls                           None

Frame Width                           48”

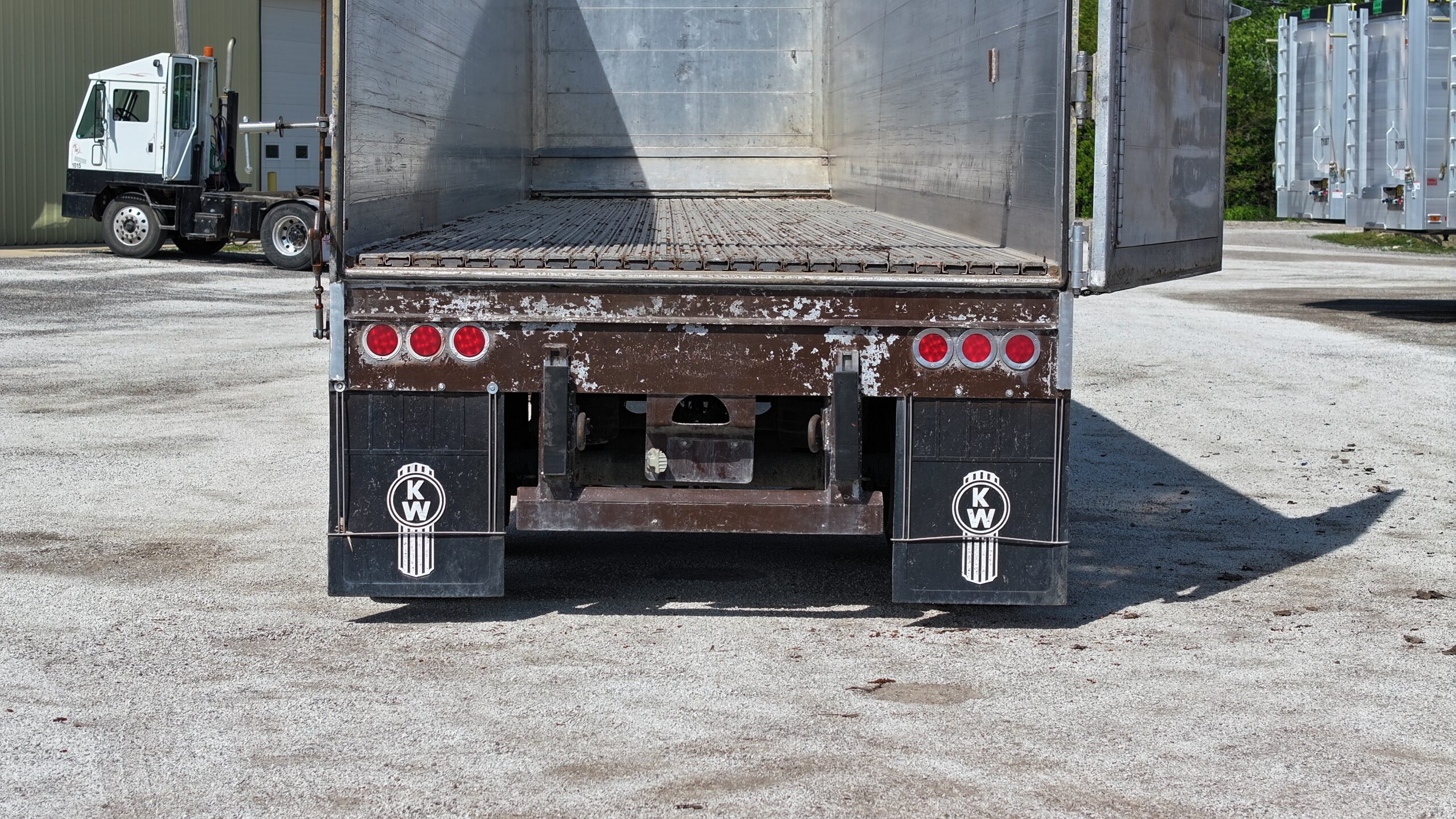

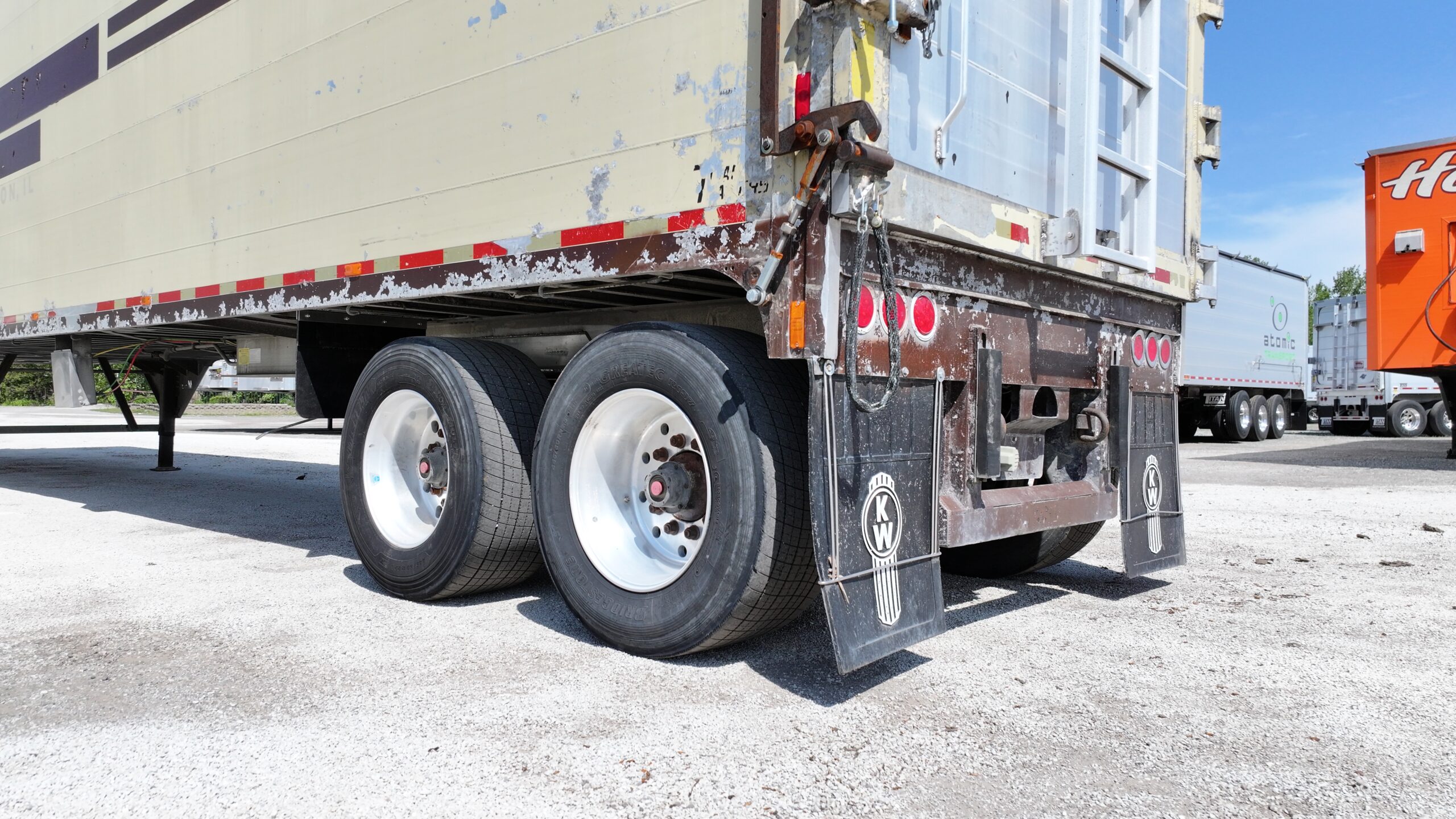

Rear Bumper                           Flush Rear bumper with rubber tipper bumpers & D ring style tow  hooks

Tire Carrier                             None

Landing Gear                          STD. Jost Landing Gear

Top Rail                                  Tapered H.D.

Top Cross Tube                       1 piece   1 spring bar in middle of trailer

Floor Crossmembers               12” Centers X bracing required

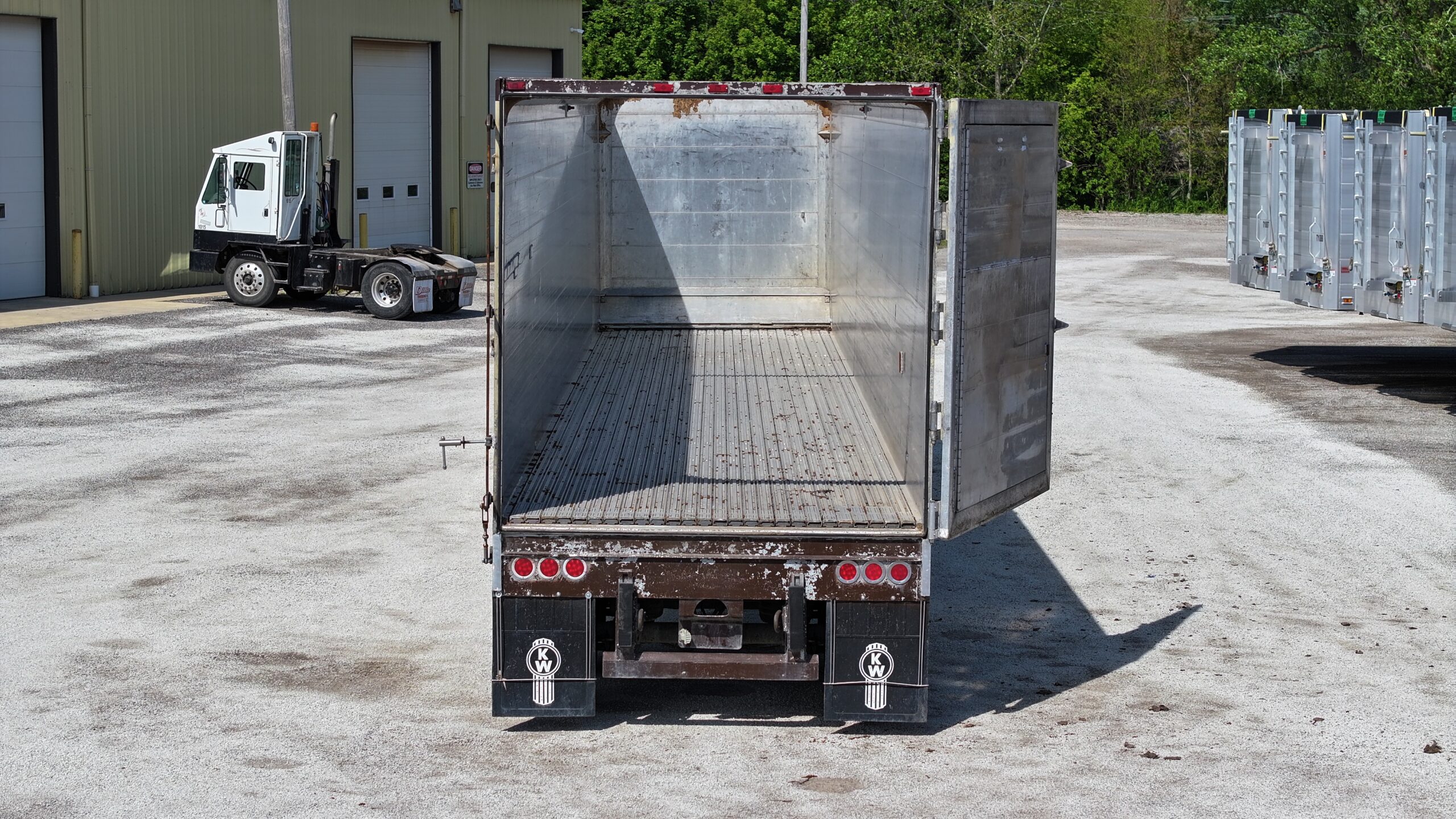

Keith Walking Floor Kit        Running Floor II – 3” Dia Cylinders

Stal Model & Width               2299 (1914 CWS) 3 ½” (Center wear strip) T-Blocks Rear

Slat Wear Strips                      None

Continuous Bearing                Continuous bearing full length

Side Wall Wear Plates            None

Tarp Style                               None

Tarp Header                            Front & Rear

Tarp Basket                             None

Tarp Hooks                             Install tarp hooks on crossmembers near the sidewall at 48” o/c, 4 hooks on rear door

Axle Fender                            None

Hyd Fitting

Pressure                    Wing Coupler

Return                       Wing Coupler

Mud Flaps

Style                         Titan Black Rubber

Location                    Rear

Mud Flaps – Landing Gear     None

Access

Catwalk- Front            None

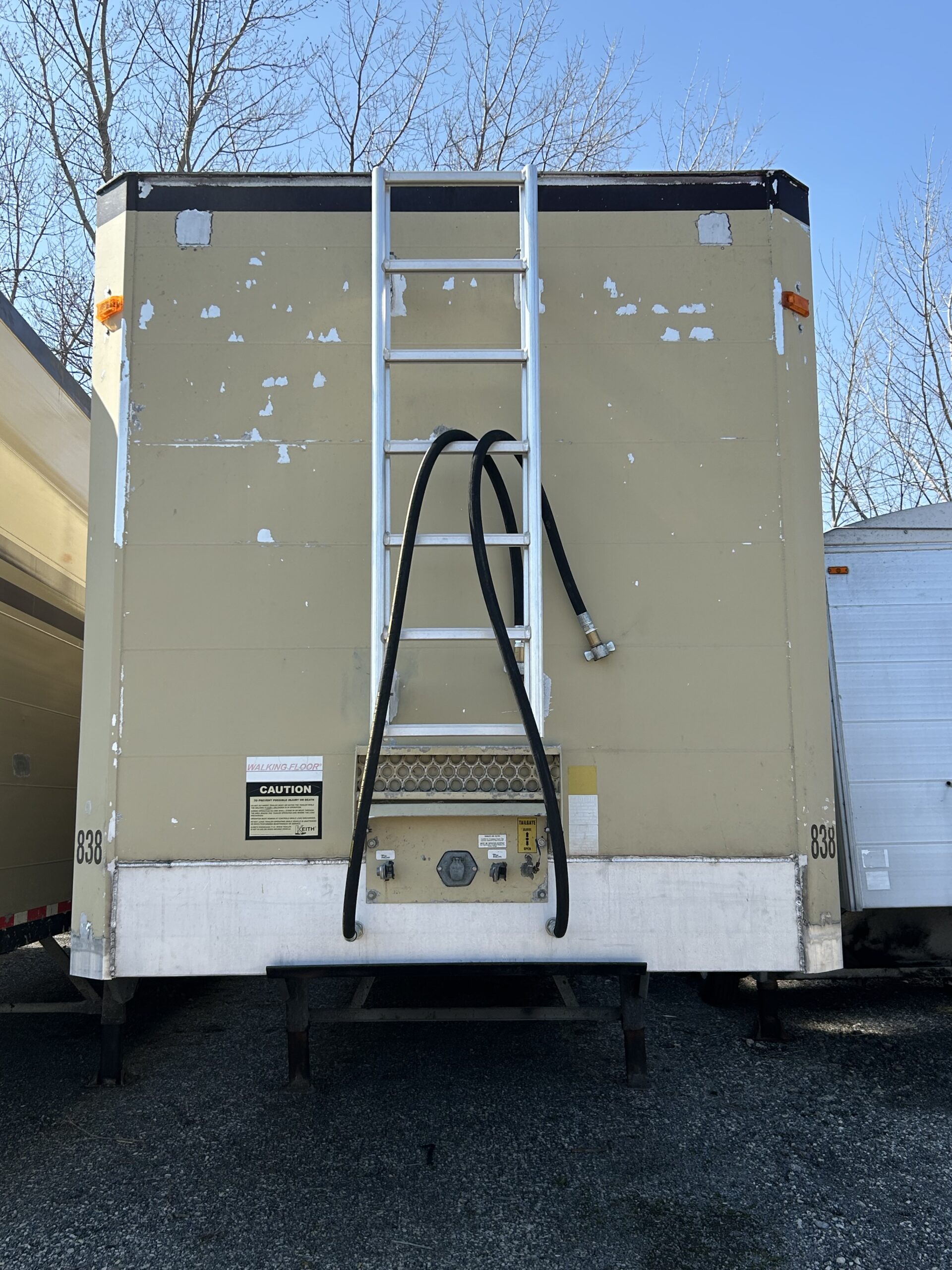

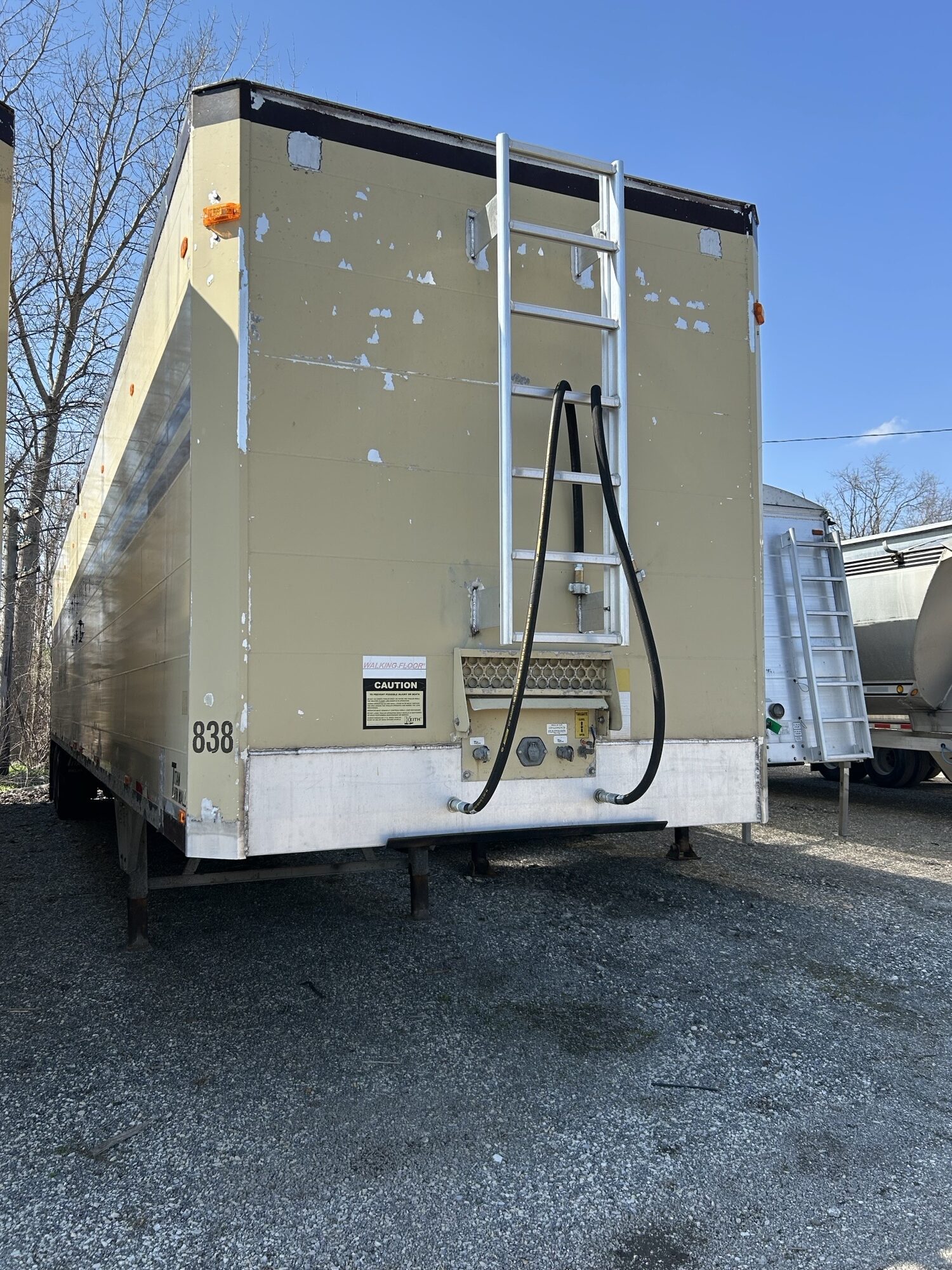

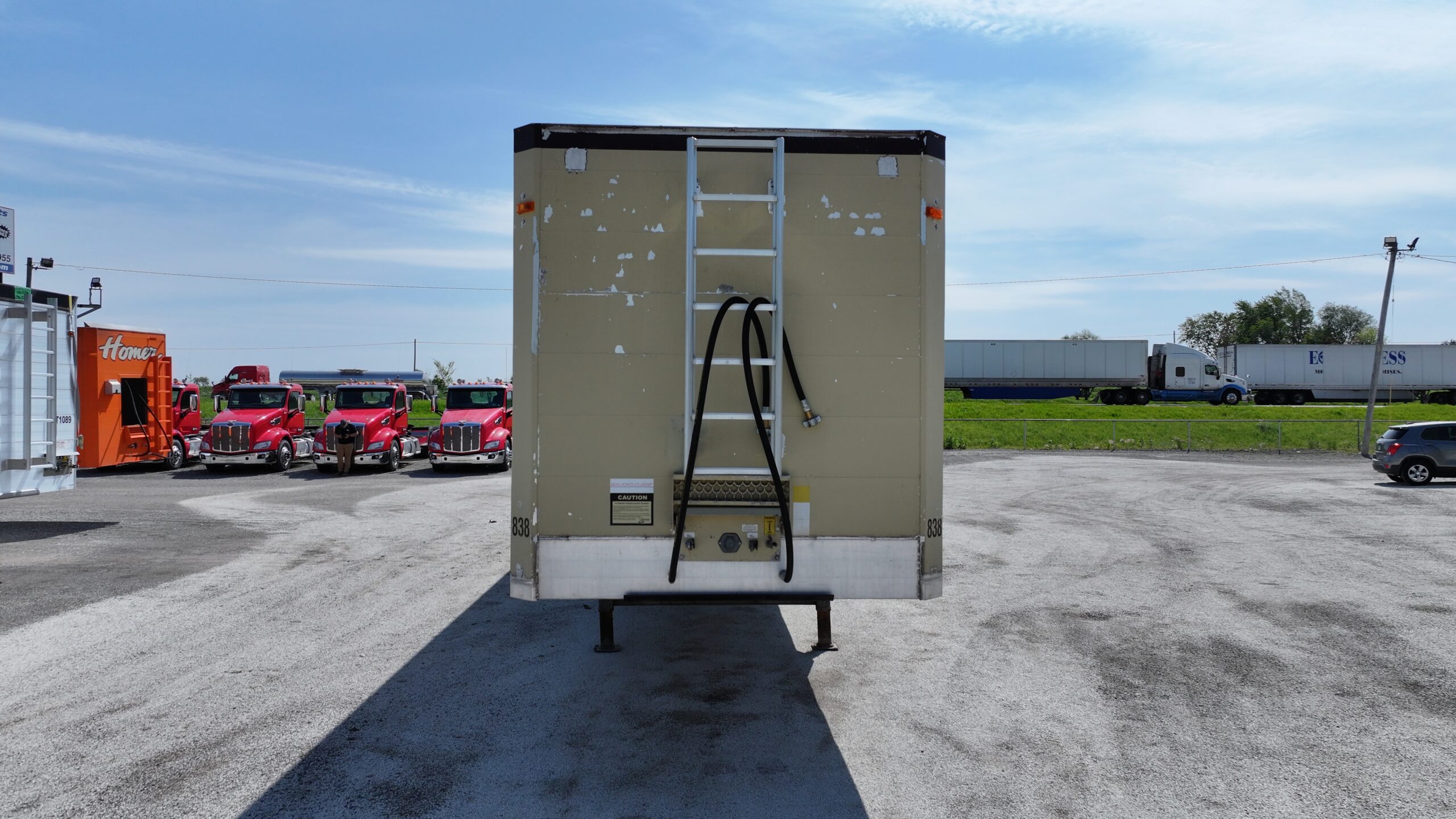

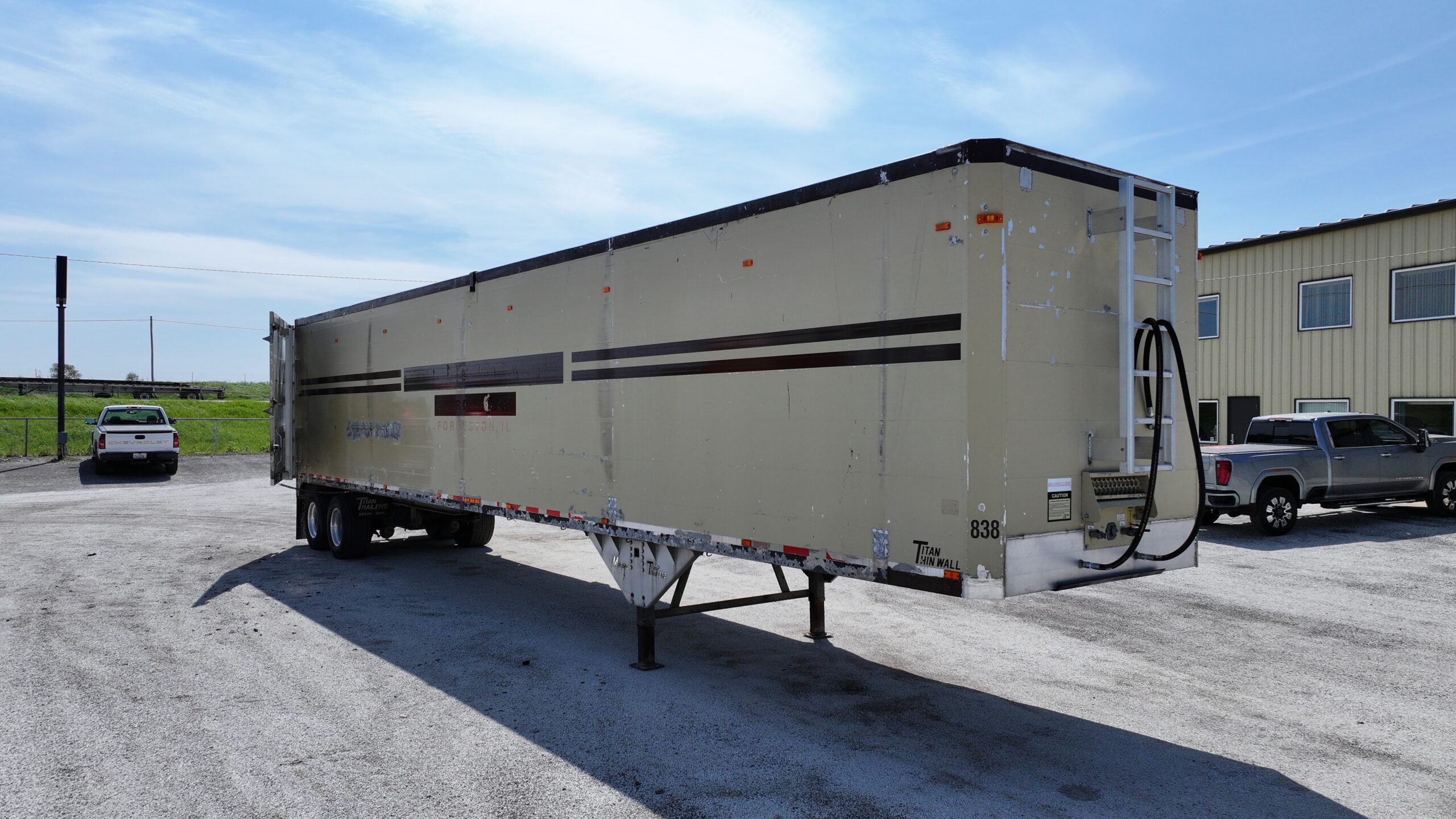

J-Ladder-Front            J- Ladder centered with flip up step below, installed over air & electrical.

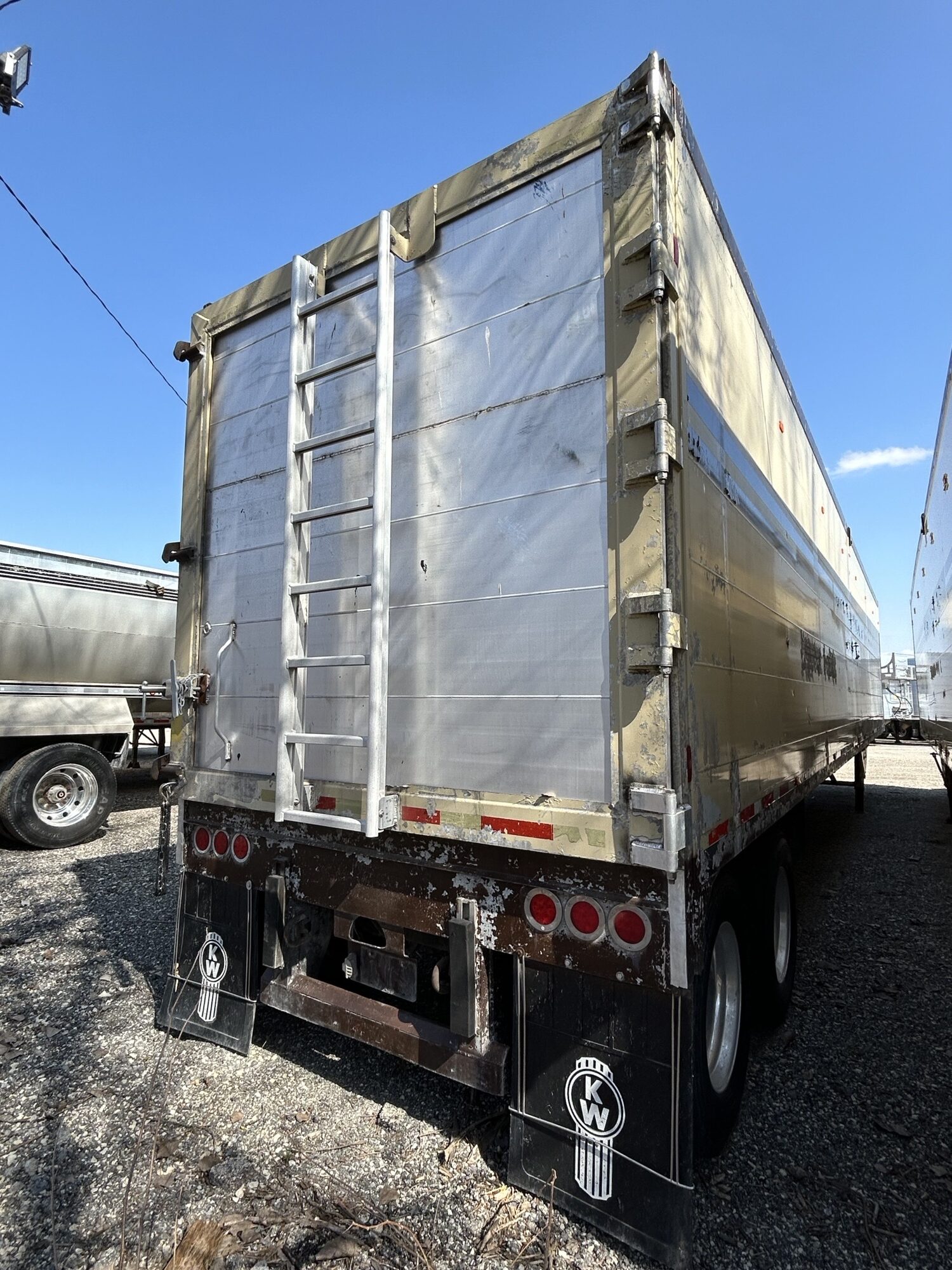

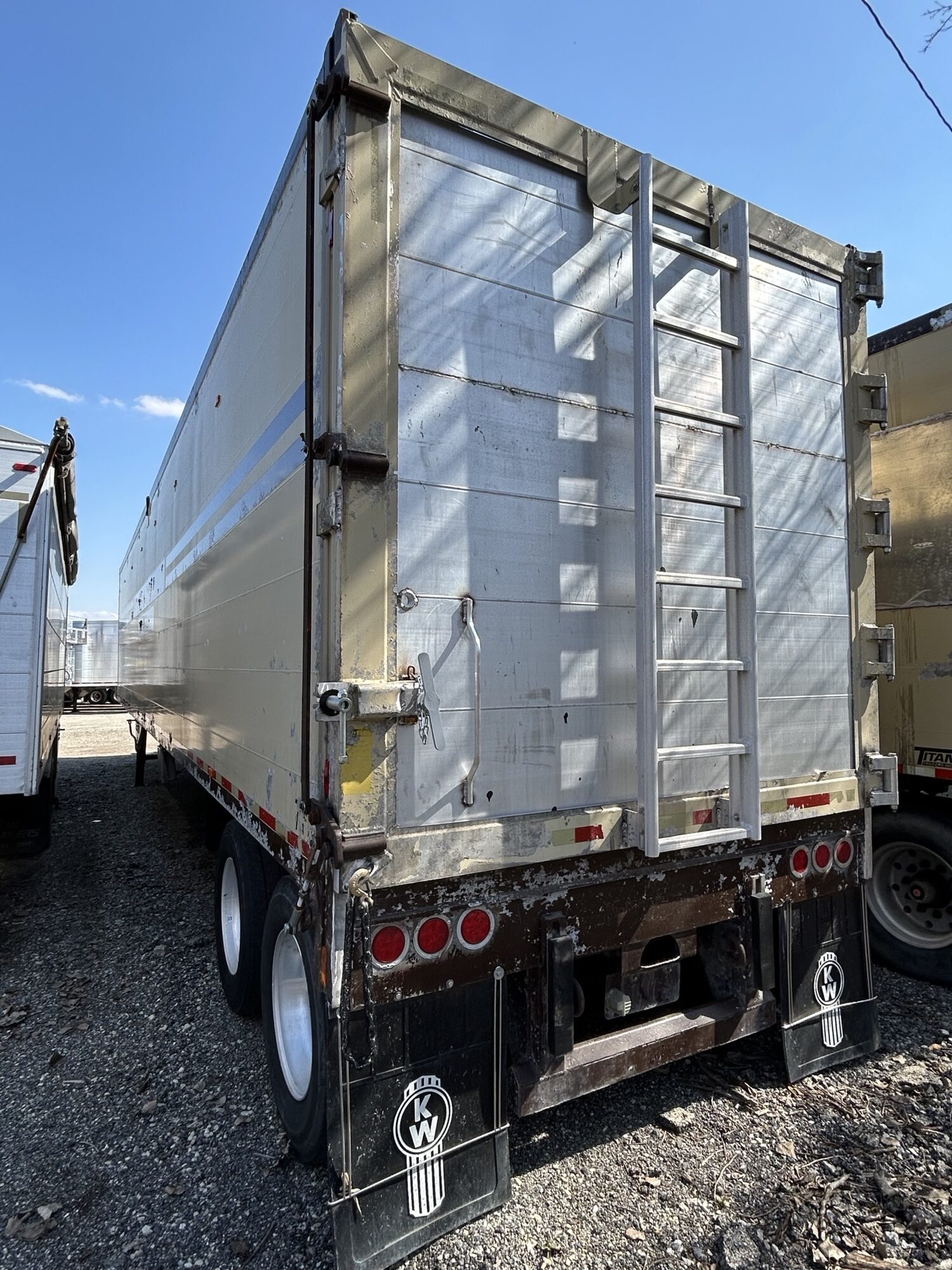

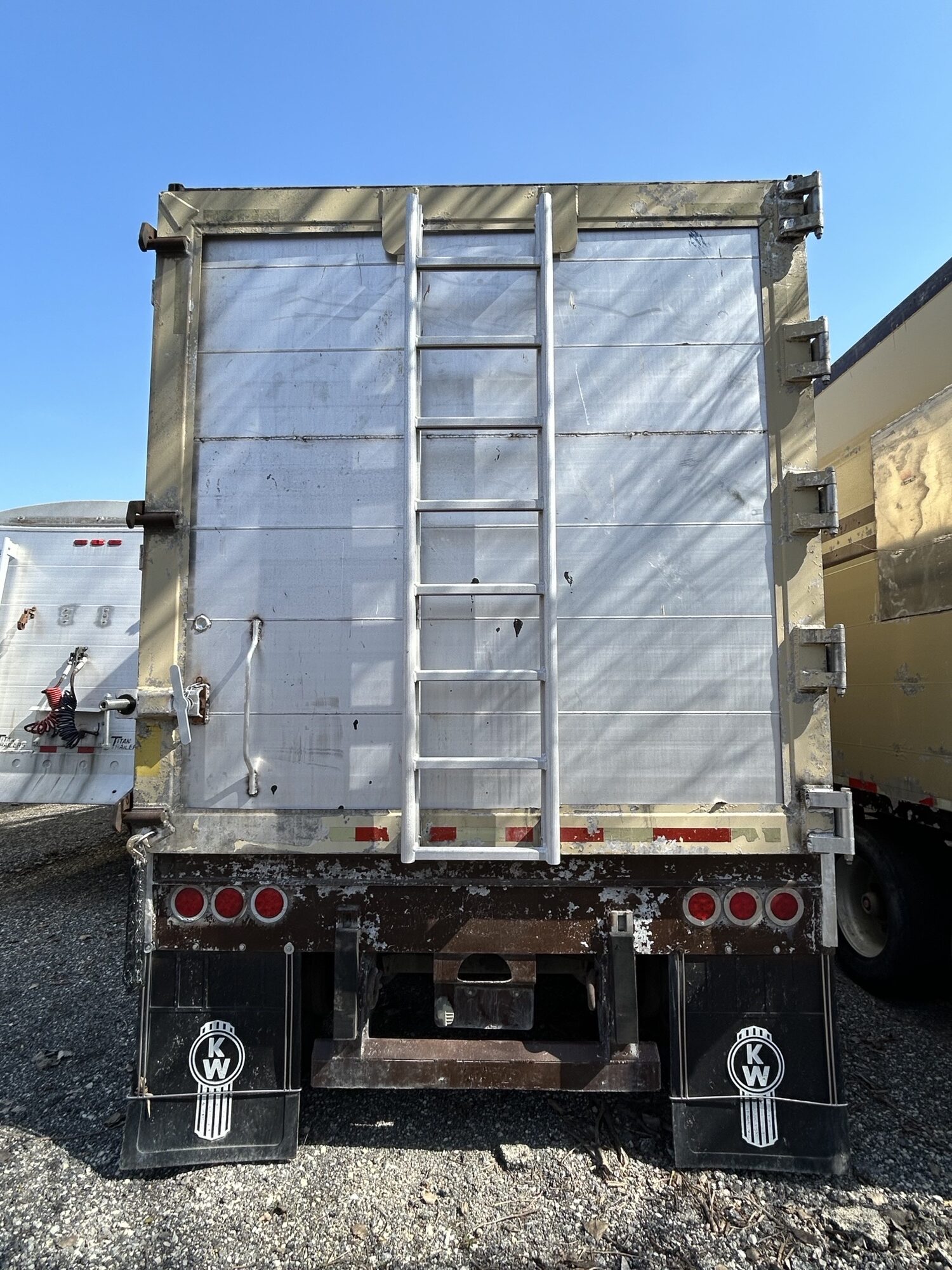

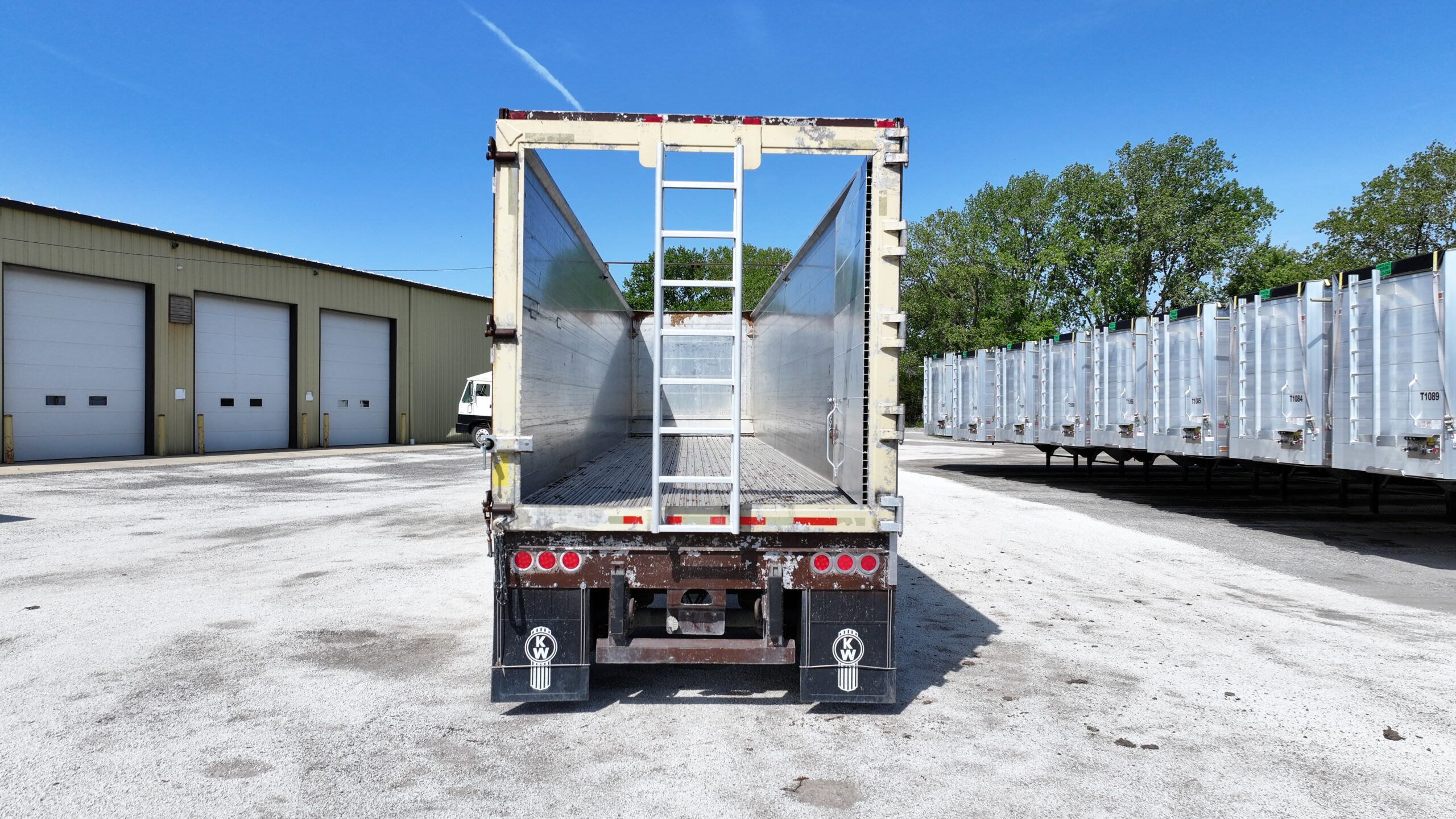

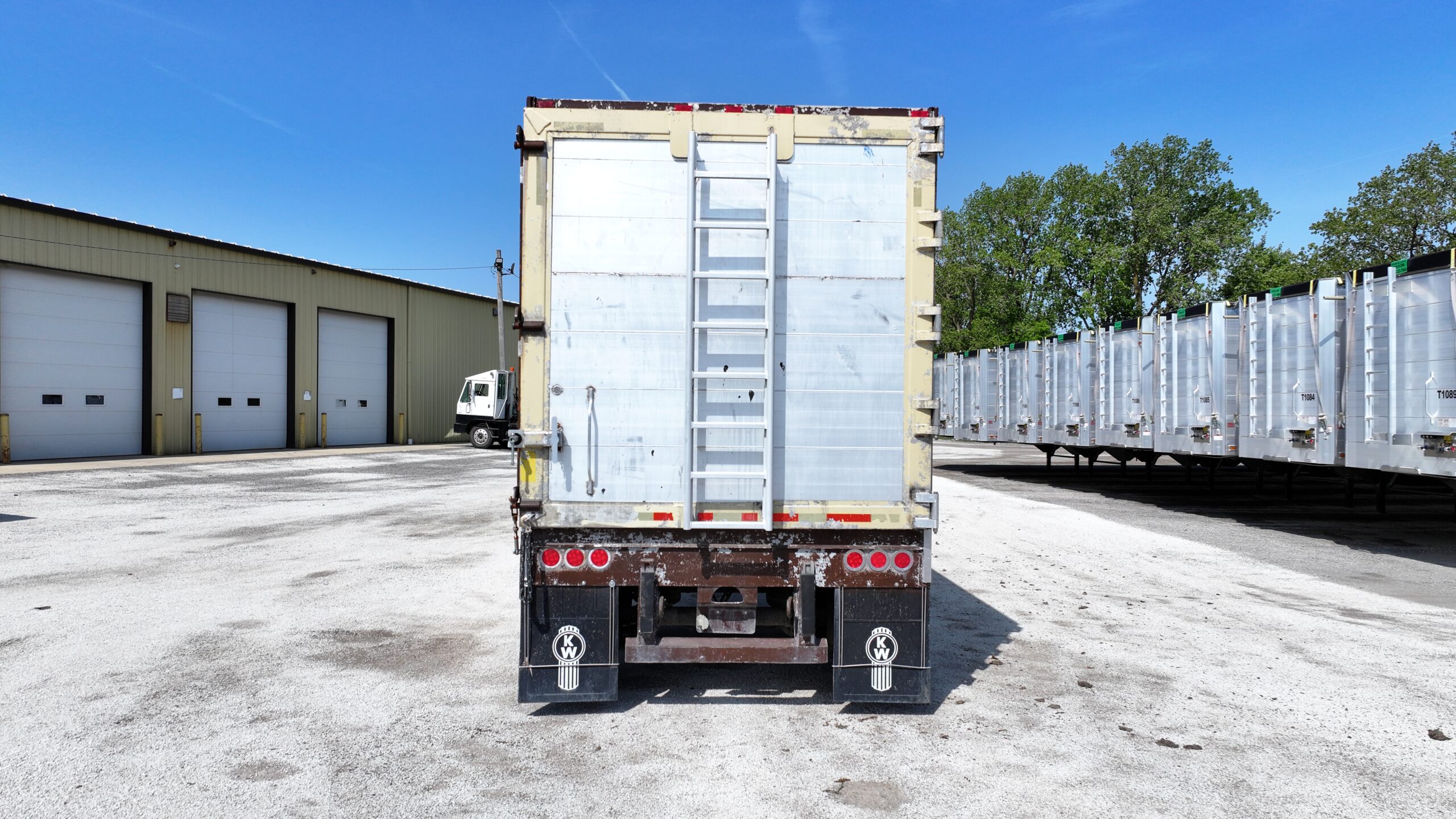

Ladder-Rear                Located in center of rear door

Steps-Front-Out          None

Steps-Front-Ins           None

Steps-Rear                   Located on driver side so door swings open as far as possible



Additional work completed at KTR :

– Prep trailer

– Pressure wash name and loose paint off trailer

– Pull floor to be turned, clean out bearings

– Remove hydraulic, air and electrical lines as needed from kingpin section

– Cut and remove kingpin section, grind clean areas to be rewelded

– Cut and remove bottom front panel, grind clean, fit new panel and weld in place

– Cut and fit kingpin section into trailer, fit bi-metals to kingpin and trailer, weld all in place

– Reattach hydraulic, air, and electrical to kingpin

– Repair crossmembers as needed

– Turn floor, add wear strips, weld up bolt holes

– Reinstall slats, drill holes and bolt downbolt down

– Install new bulkhead fittings and hydraulic hoses with female wingnut couplers on front of trailer

– Repair replace lights as needed

– Replace inner door hinge, repair winder as needed

– Check ABS operation, replace cable and sensor to repair

– Repair water seal track and install new seal, replace broken tailgate hinge

– Repair frame rail and reinforce both sides

– Repair holes on outside of trailer, patch holes inside trailer
