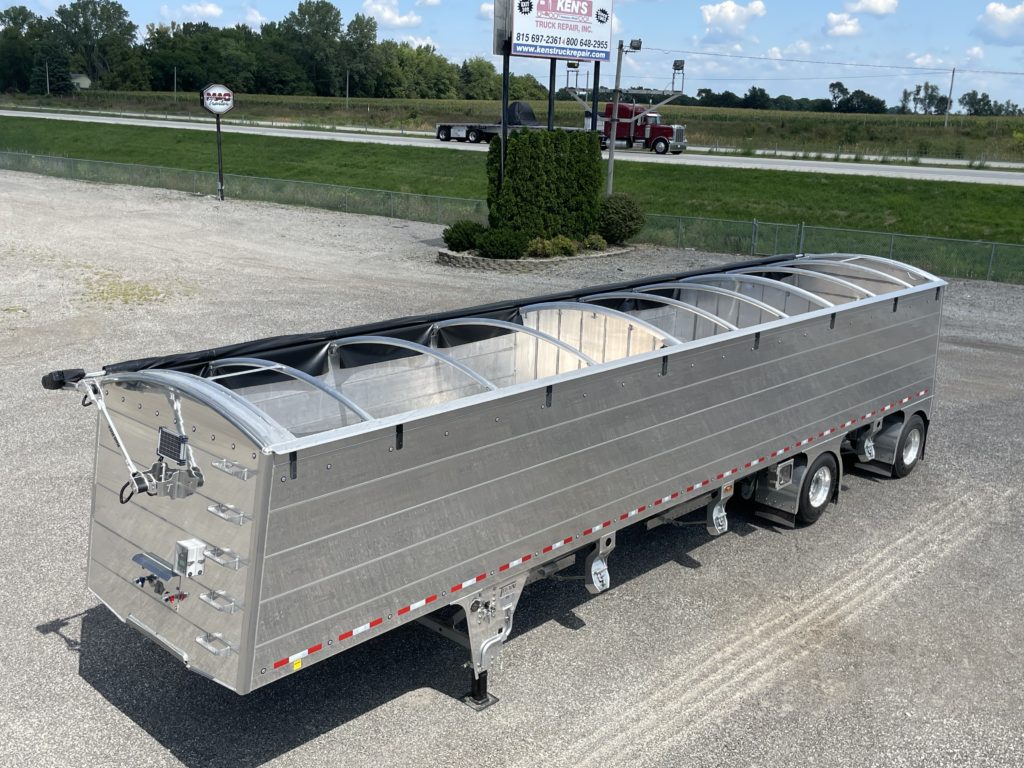

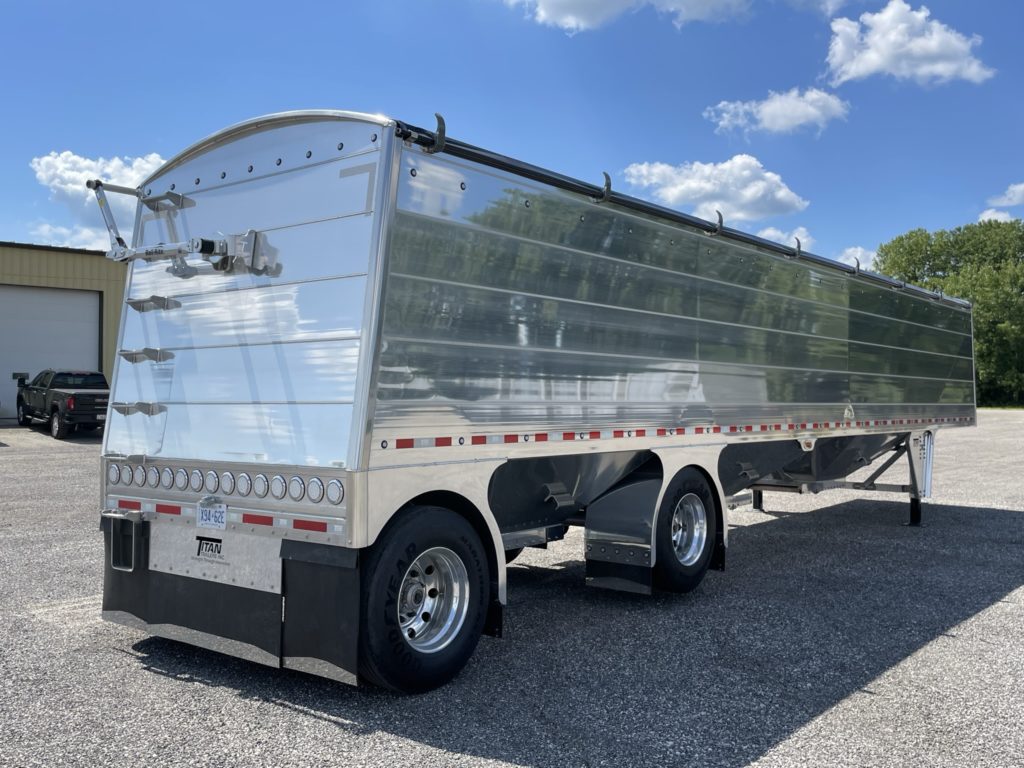

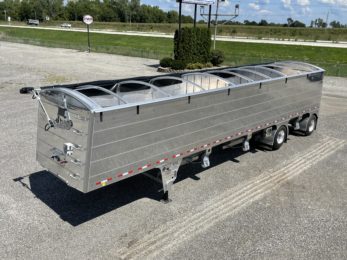

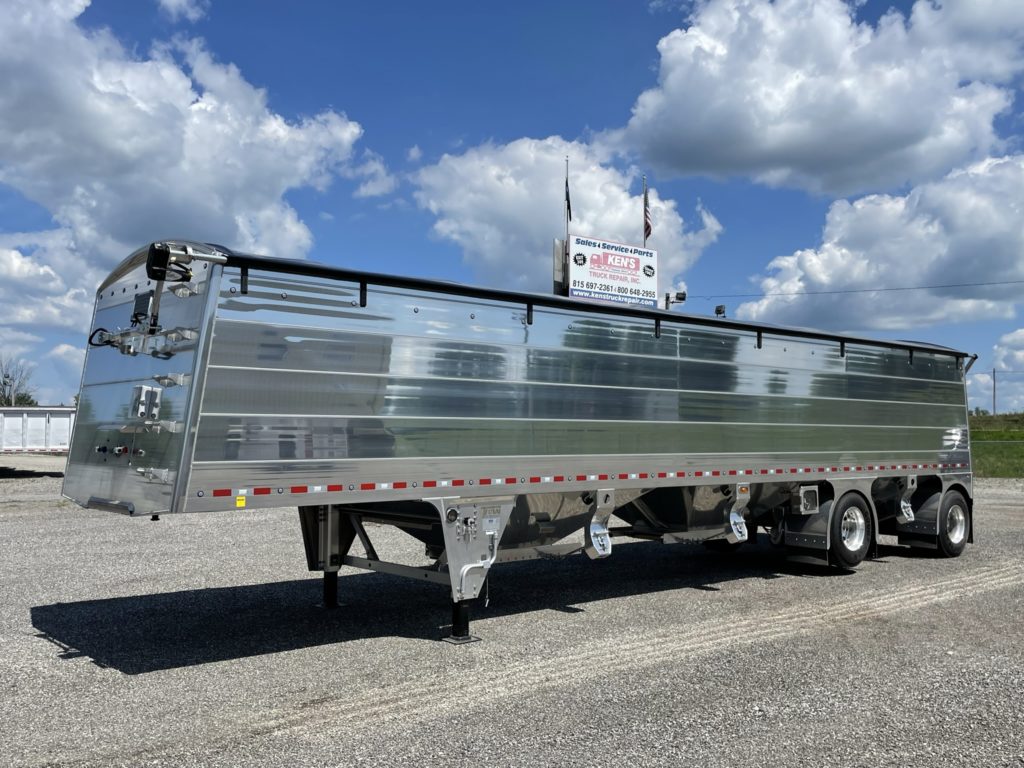

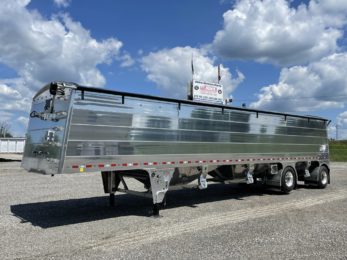

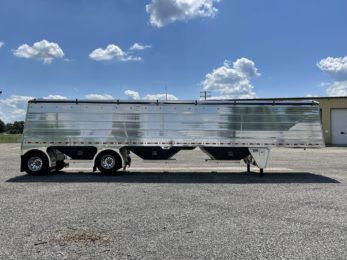

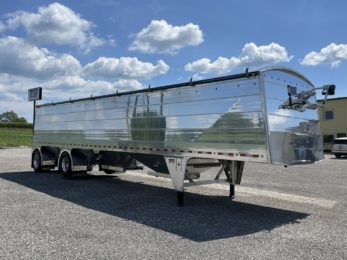

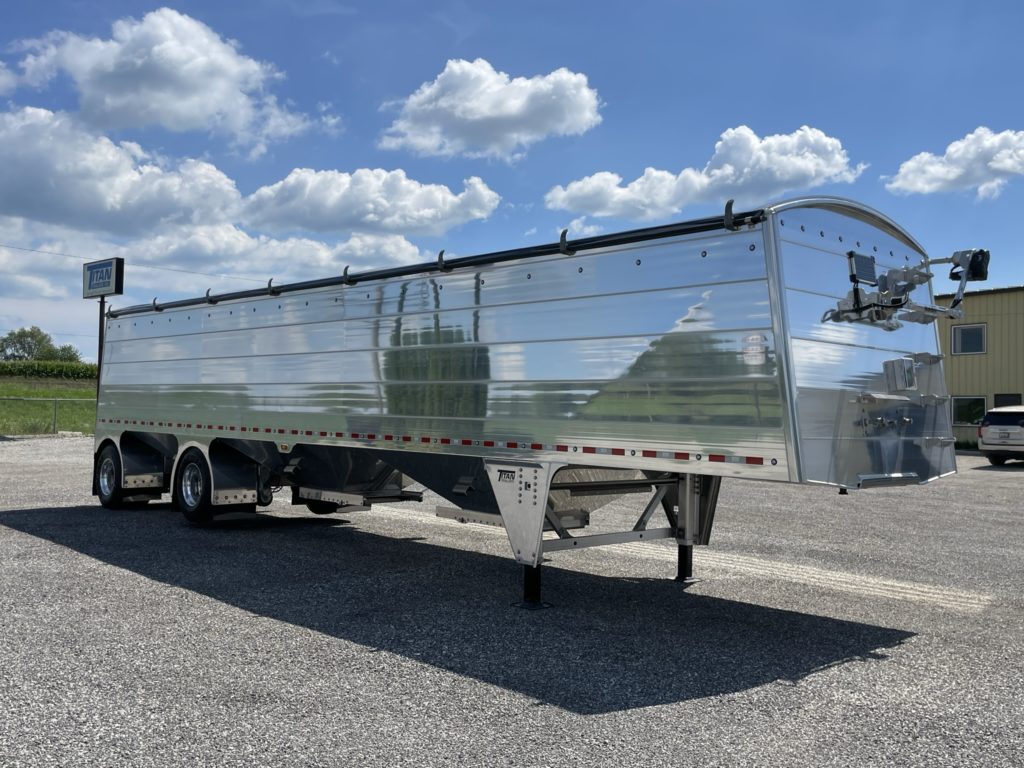

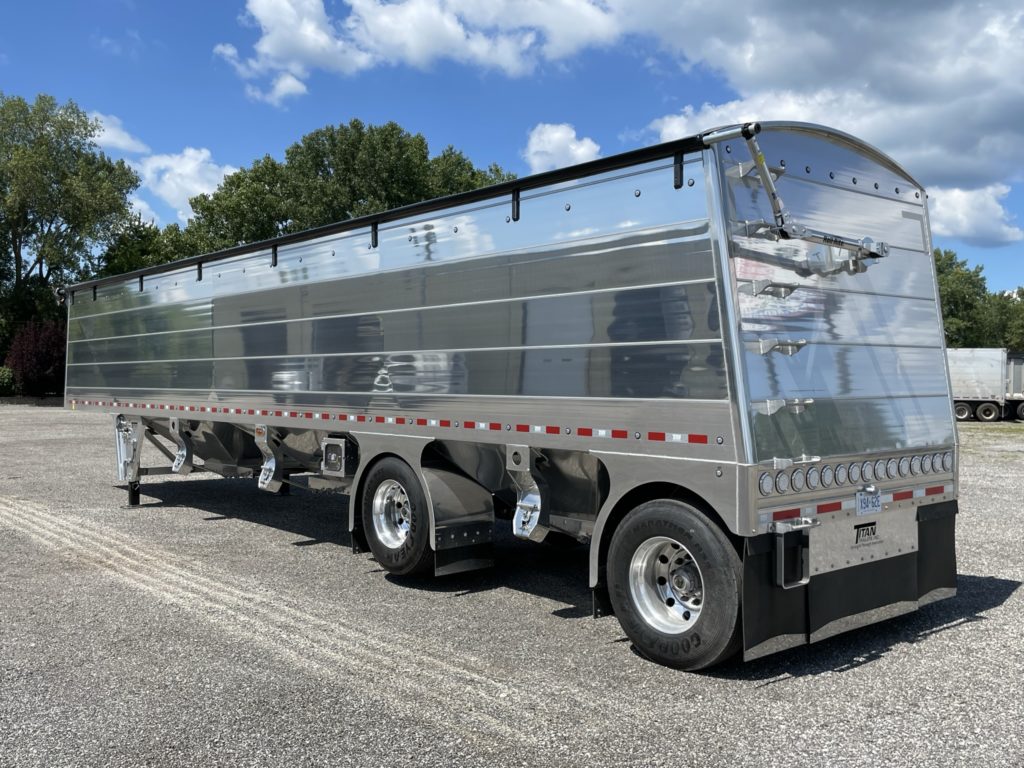

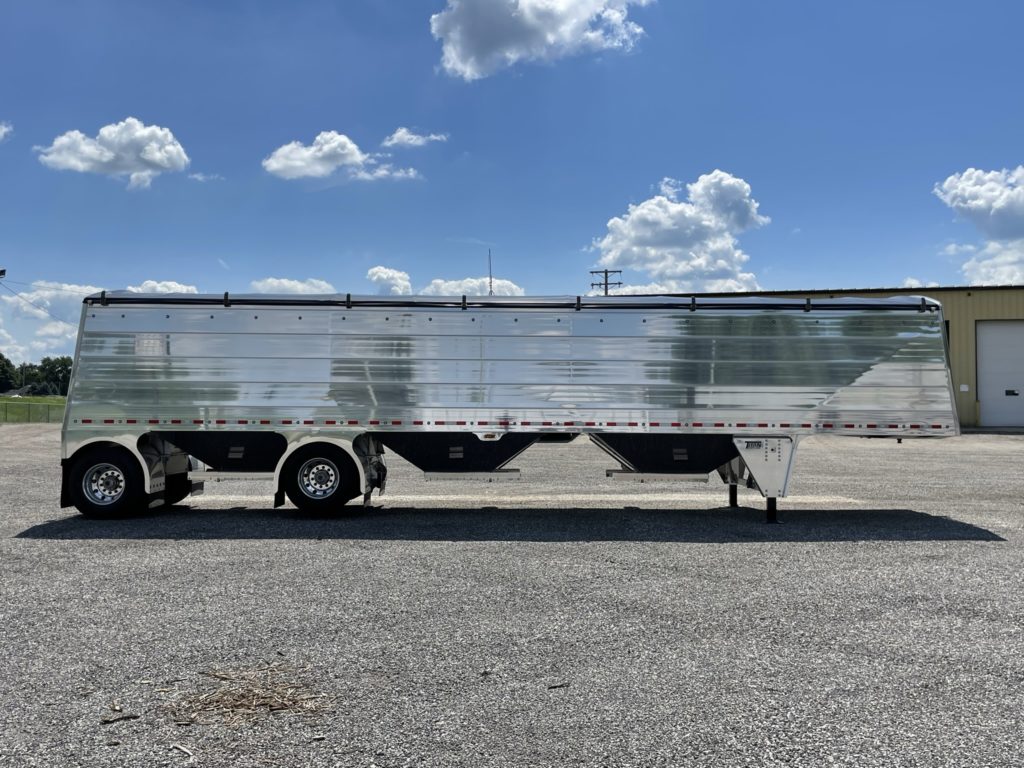

Base model 43-2-TW-HP – Open Top (3 Hopper) – POLISHED PANELS
Panel configuration UBP, 4-14” ELD Panels, 6” V1 Top Panel w/ integrated latchplate roadside
Overall length 43’
Overall width 102” nominal
Overall height 137 1/4” approx. to top of Tarp Header
Side Height 76 3/8” approx.
King pin location 15” BOLT IN
Upper coupler Aluminum Coupler Assembly w/ steel wear plate set @ 48” high

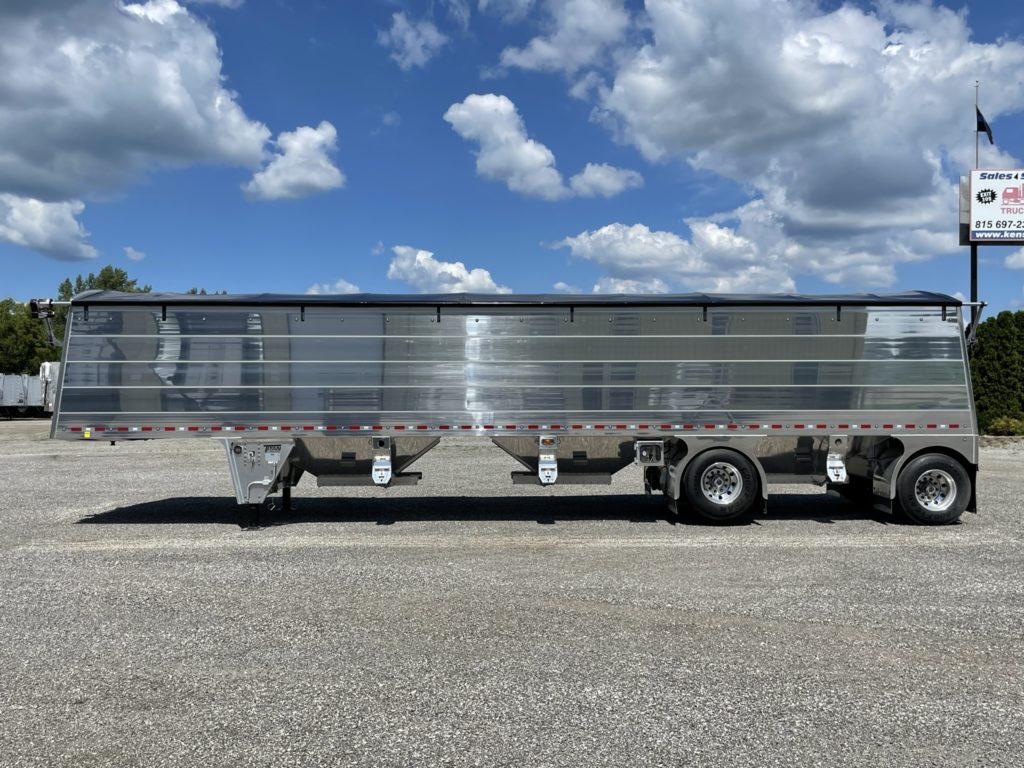

Number of Axles
Primary One (1)
Auto Lift One (1)
Axles Intraax – Straight Spindle – Long Studs
Axle track 77.5”
Suspension Intraax AAT 30K – See Note #3
Location of spreads See axle layout
Hub/drum assembly 10 stud duralite hub pilot/centrifuse drum
Disc wheel size 8.25 x 22.5
Rims Aluminum Durabright Outer/Mill Inner

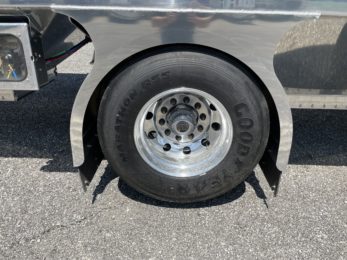

Tires Brand Goodyear
Size 11R22.5 – 41.9 dia
Tread Marathon RSS
Ply 16
Quantity 8
Overall Height from Ground 137 1/4” approx. to top of tarp header
Axle layout Front-A/Lift -122- Primary-24-Rear
Oil seals To suit axles
Lubricants Oil 80W90
Brakes ABS 2S2M
Slack adj. Haldex Auto
Cam Enclos All axles – c/w dust shields
Lift kits Hendrickson UBL
Lift controls Autosensing – See Note #17
Frame width 47 ¼”
Rear bumper None
Tire carrier None

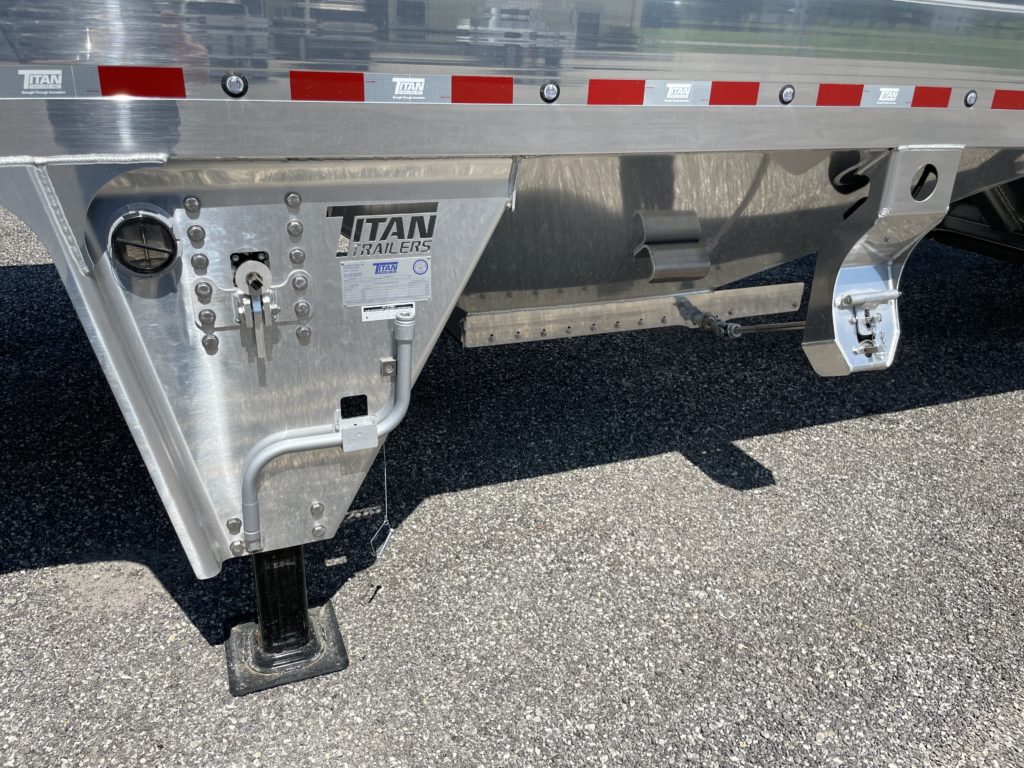

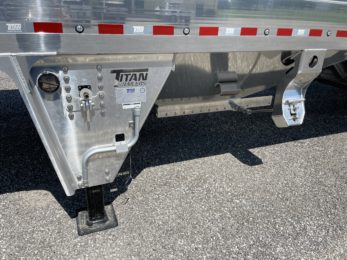

Landing gear Jost AX151.G8.17 Aluminum landing gear – 5 year maintenance free, 10 yr warranty

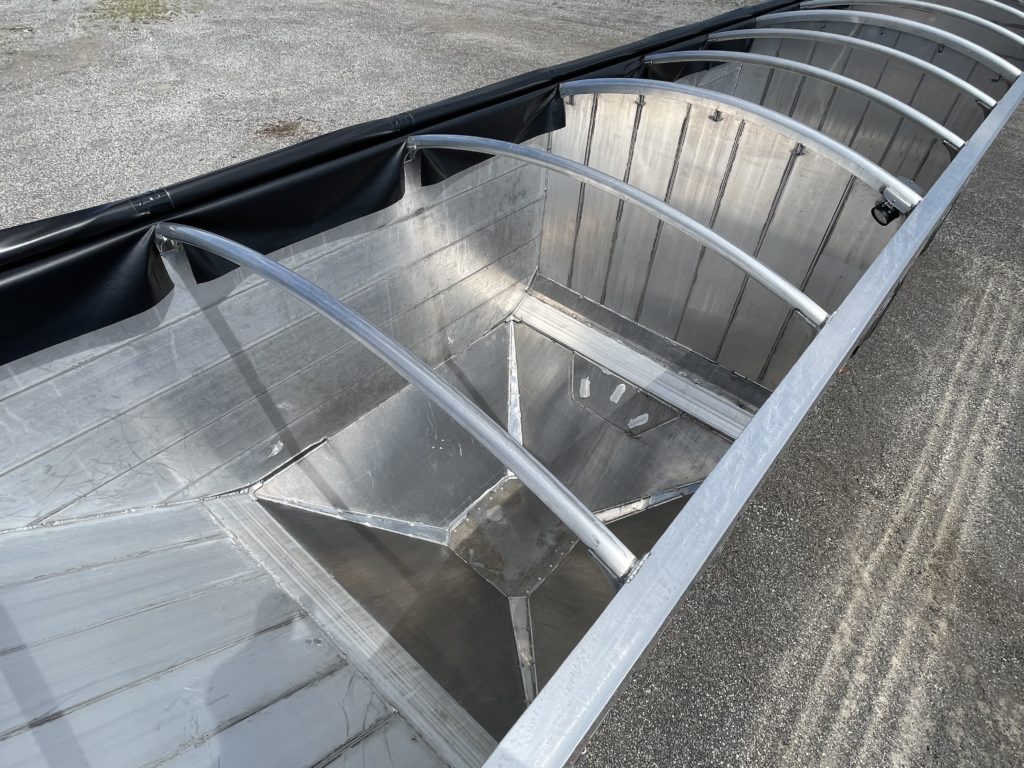

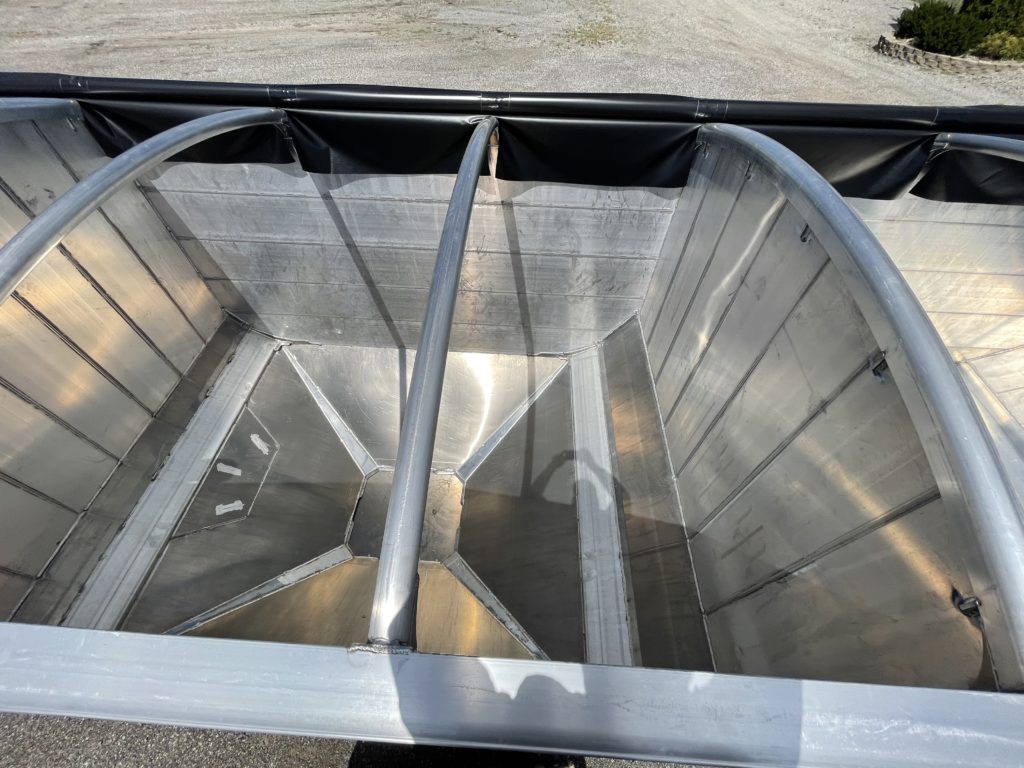

Interior Slope
Angle 35 degrees w/55 degree kickups
Material All TW panel

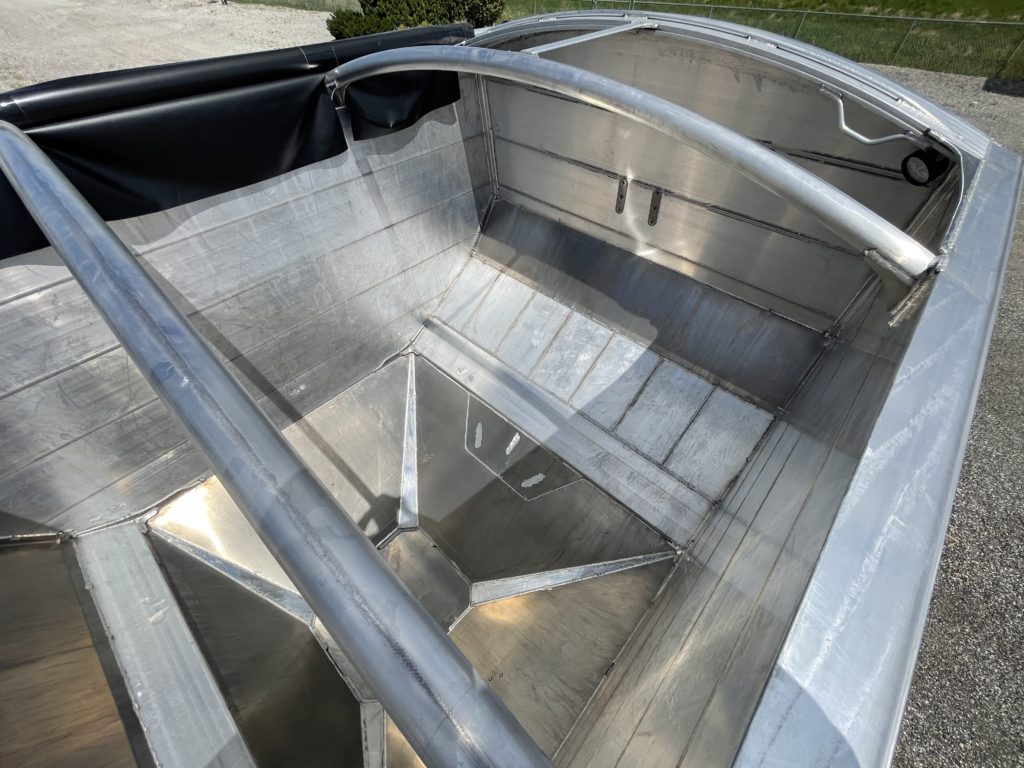

Wall Dividers for Hopper (2) Vented, Thinwall Panel
Hopper Material 3/16” Aluminum Plate, Add knock rail

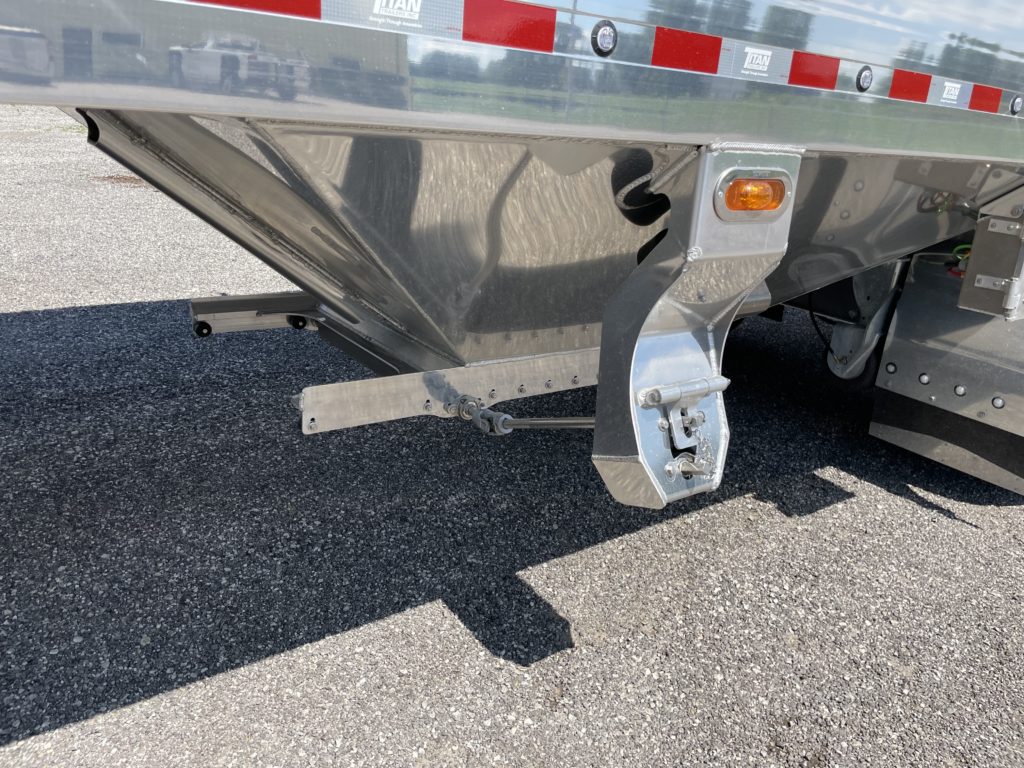

Hopper Door Size 32”W x 36”L
Hopper Door Operator Road Side (2) Speed Crank – New SS bearings on hopper door crank shafts

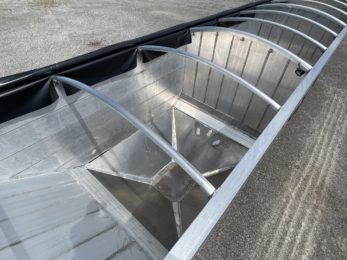

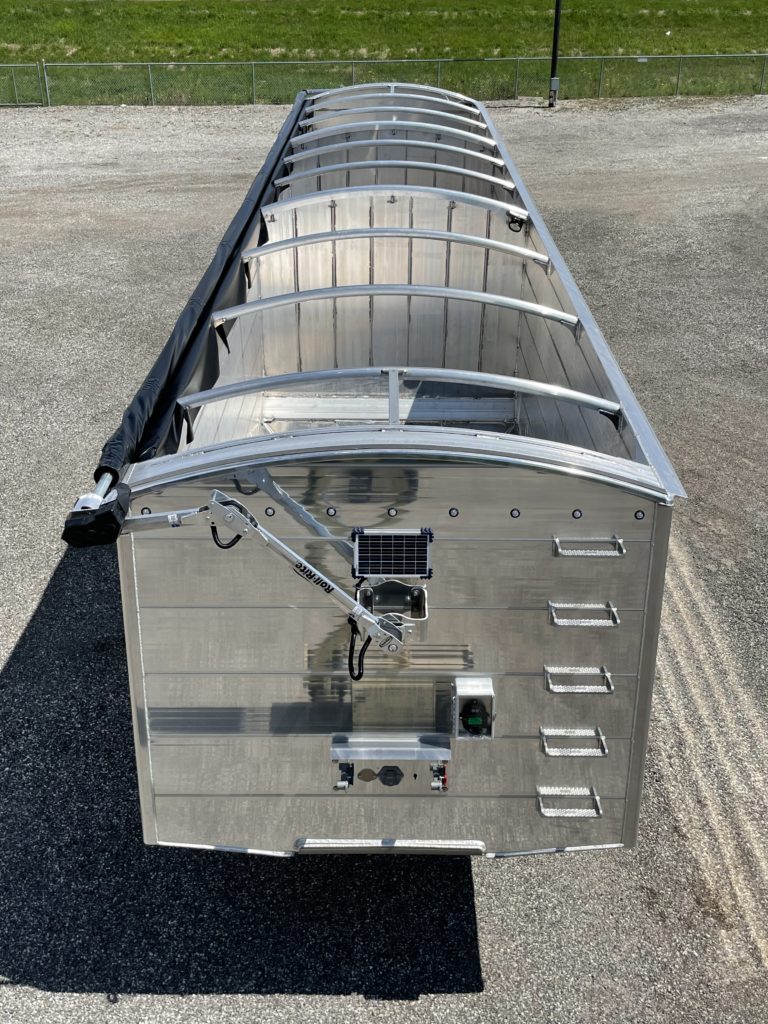

Tarp header Front & Rear 9” rise
Tarp basket None
Tarp Trison (Black Tarp) Side Roll Toll Rite Style Electric Tarp System

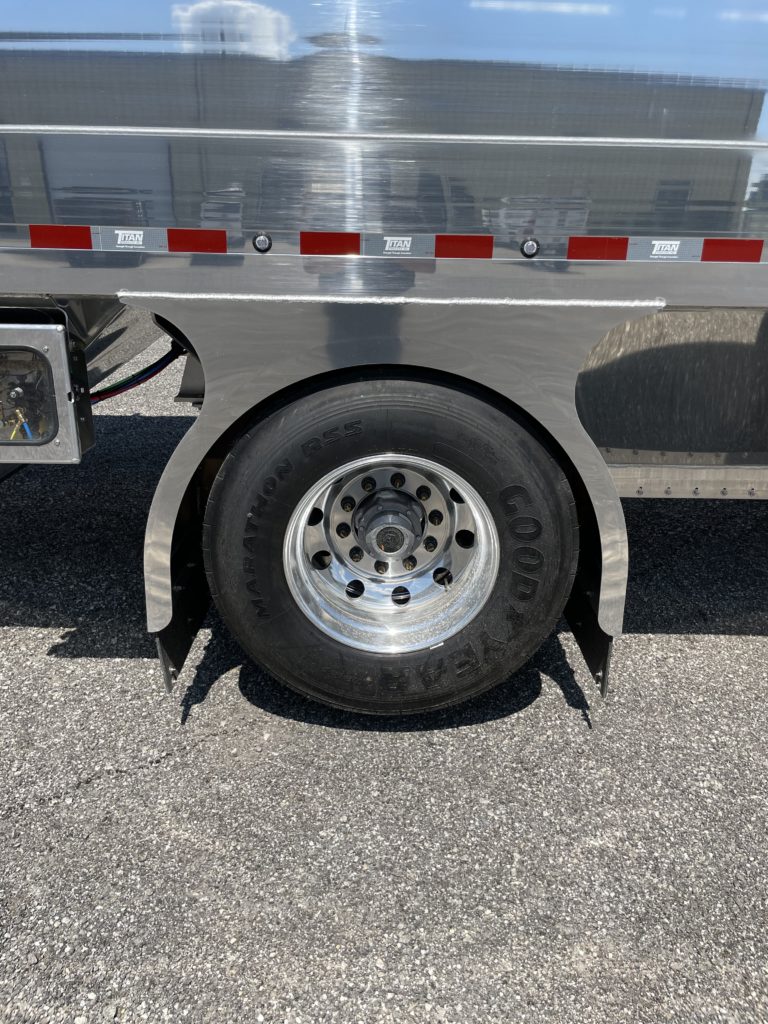

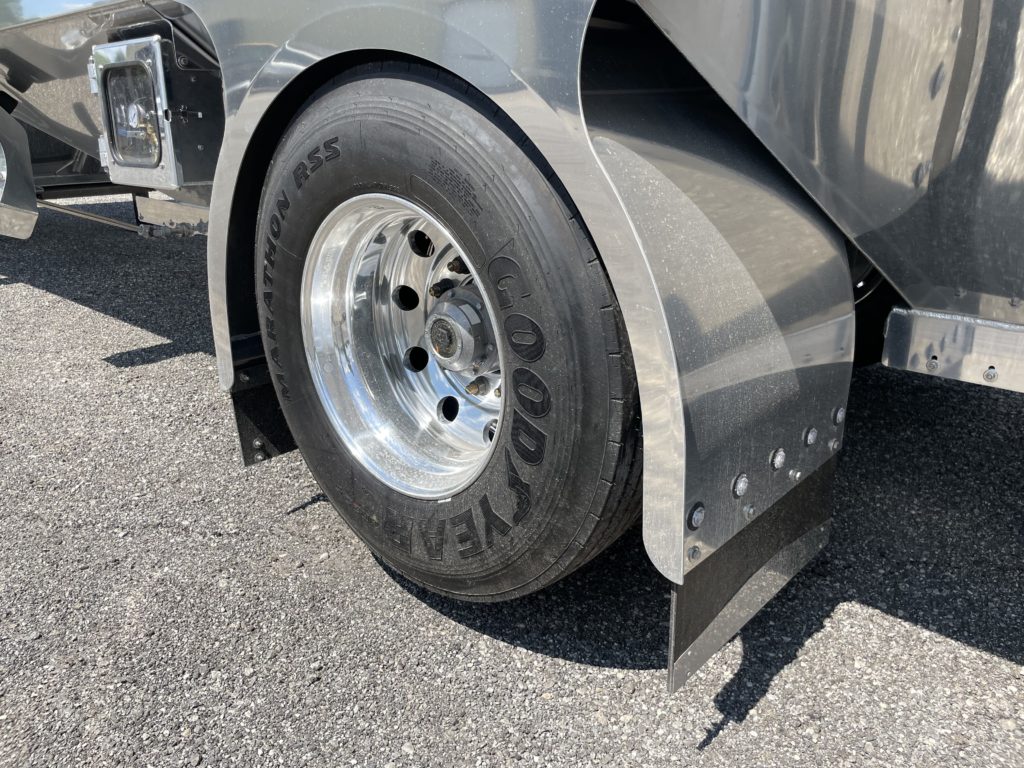

Fenders Titan Polished Fenders w/ Bullet Lights

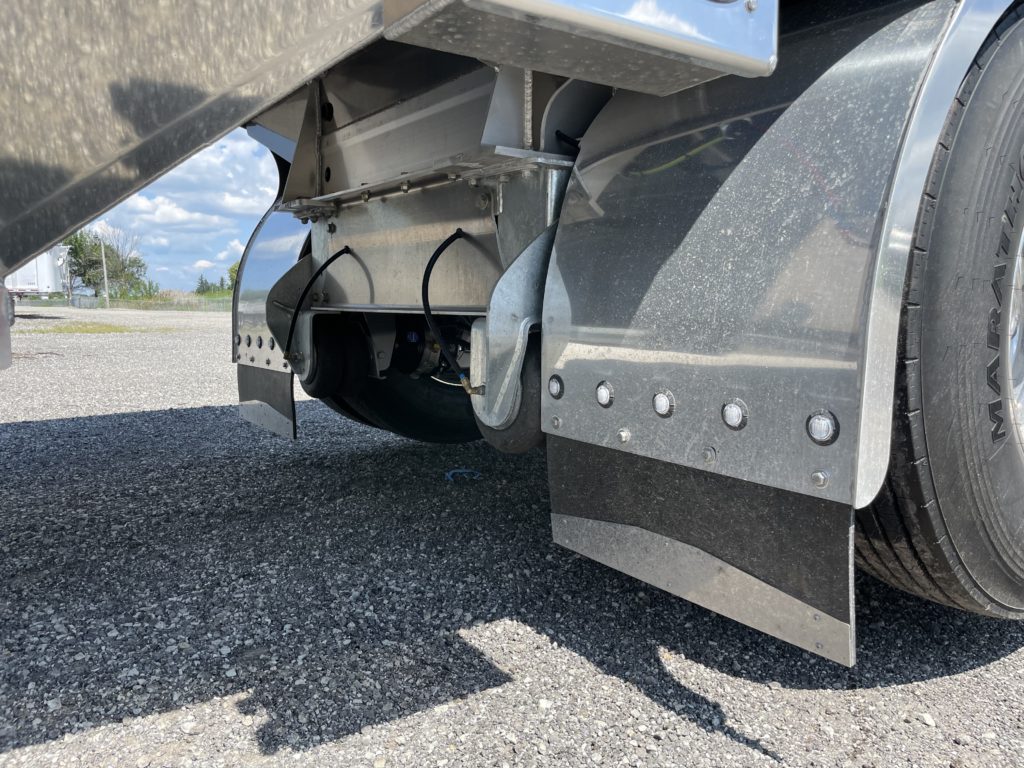

Mud flaps Style Solid Rubber Belting for all mudflaps
Location Front and rear of 1st Primary, & 1 in front of 2nd primary. Rear large center
1 piece mudflap and outer 2 mudflaps with no gaps between them. Add st
stainless steel tips to all mudflaps
Paint Suspension Titan silver
Hub / drum Same as suspension
Rims or Disc Aluminum Durabright Outer/Mill Inner

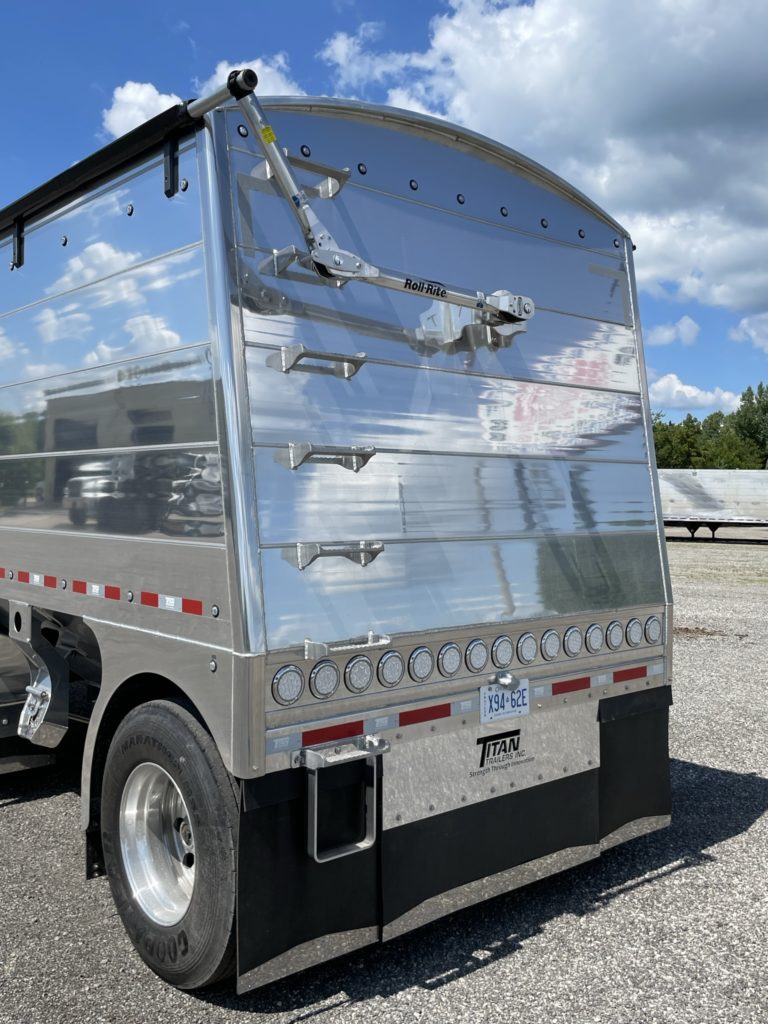

Lights Front – (9) markers across front wall evenly spaced
Lightbar – (15) equally spaced
Midturn – under the sidewall 1 set 30 series oval w/ stainless ring – See Note #2
Option #1 Sidewall – add (39) 1 ¼ bullet (M09400CL) marker lights for a total of 21 top + 21 bottom per side
Option #2 Rear wall (9) 1 ¼” (M09400CL) marker lights evenly spaced
Access Catwalk None – remove top grab handles
J-Ladder Frt None – Cast steps roadside – See Note #14
J-Ladder Rear None – Cast steps roadside – See Note #14
Steps Hopper Slope None
Front – Ins None
Rear – Ins None
Additional specifications:
1) Fenders – Front axle will have (5) lights front and (5) lights rear at bottom, rear axle will have (5) lights on front for a total of (30) lights.
2) Install (3) interior LED lights one per compartment, wire to switch on front wall.
a. Three exterior spot lights, one at each hopper door
b. Run all the above lights from toggle switch in B-Trail style control box
c. Rear light bar all 4” round to be Dual Revolution Trux TLED4X40 and center (5) can change from red to white for back up hooked to P100
d. Do not install SS rings on the bullet lights (m09400CL). All markers are to be M09400CL
3) Galvanized hangers & lift kit. All axles to have galvanized hangers. Axle beam assembly only will be painted.
4) Hopper door frames to suit future grain sock brackets

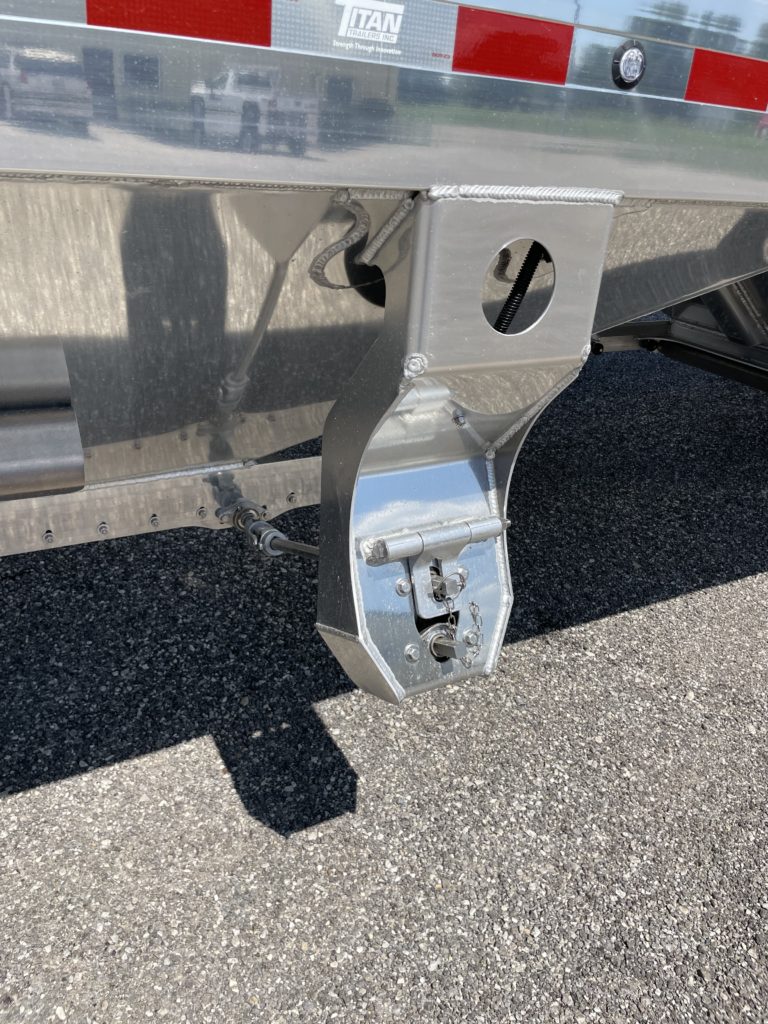

a. Add know rail angle entered on side of each hopper – Curbside and Roadside
b. Trailer to be vibrator ready run air lines (capped off with female quick connect) to vibrator locations with mounting brackets

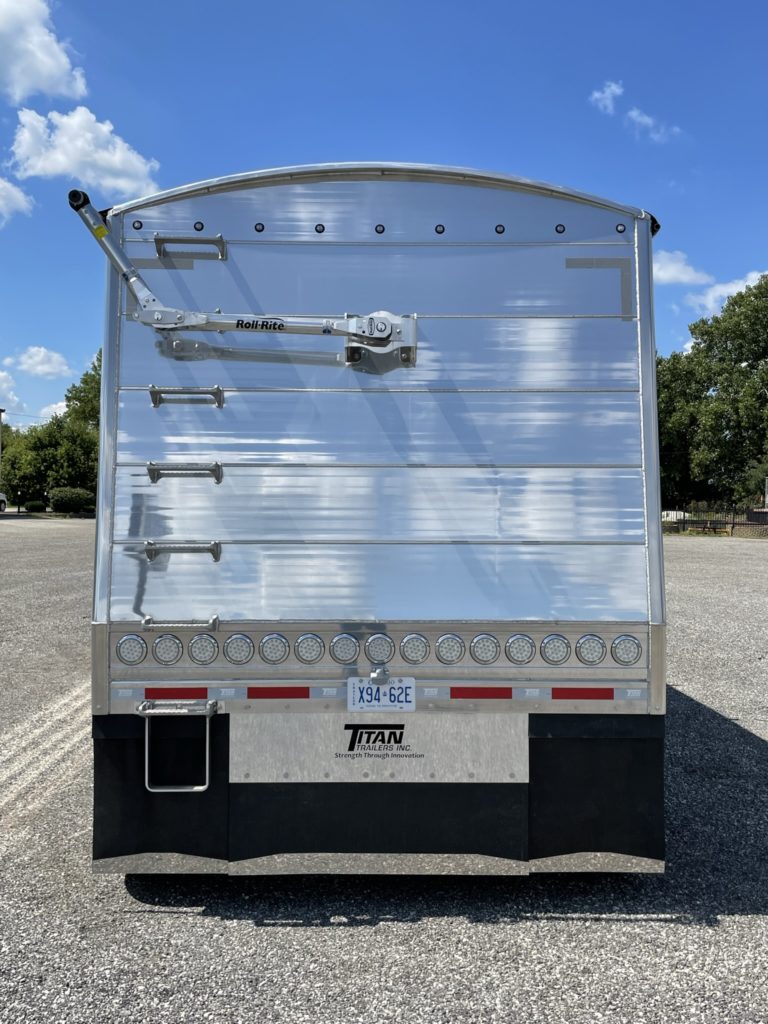

5) Add painted black rear back lit logo, hanger plate, 5 lights to say – “Titan trailers Strength Through Innovation”
6) No town hooks
7) No landing gear pads to be shipped loose with these trailers
8) Top crossmembers as per approval drawing
9) Promo Shield to be sprayed on all exterior components
10) No coupler storage door is to be installed
11) Add LED light in control box
12) Total polish – Titan Tarp Brackets, Landing Gear wing plate, Hopper Sheets, Vib Brackets, Hopper Rails, Fenders

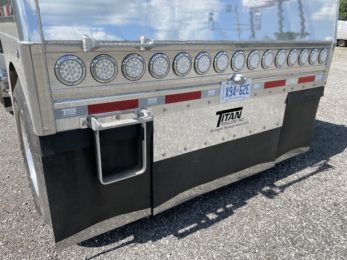

13) License plate centered in trailer at rear
14) New Bolt on cast step and stirrup step
15) Only mandatory decals

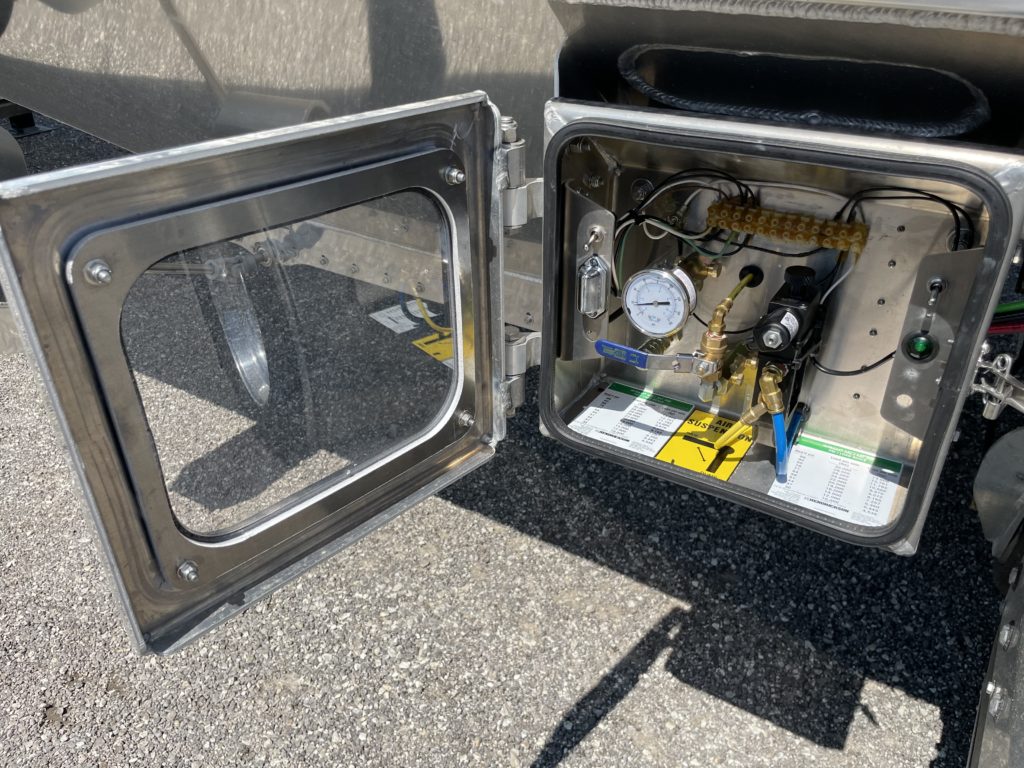

16) Run air line to 3/8” female quick connect coupler in control box from pressure protected air tank
17) Front axle will be an autosensing lift

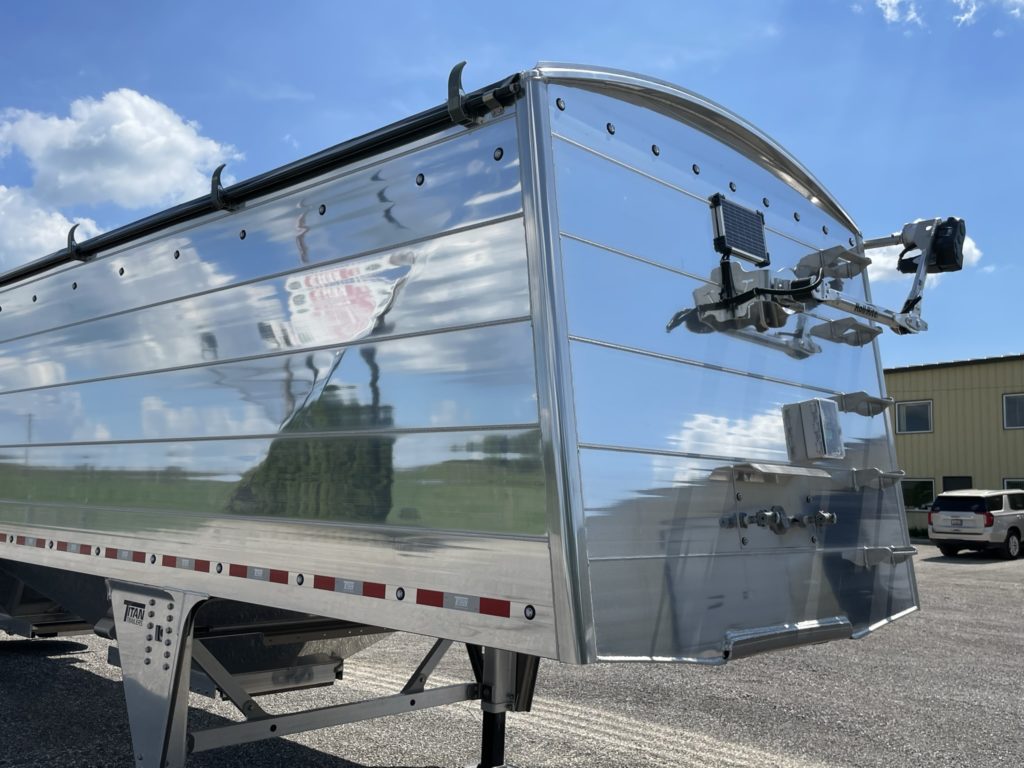

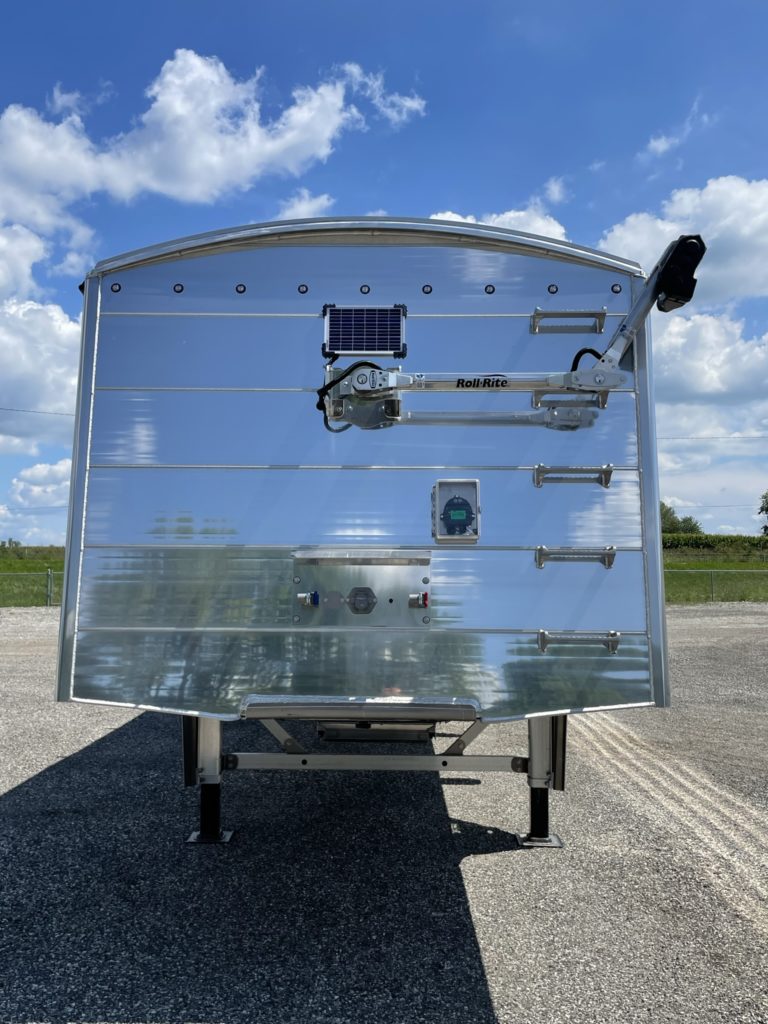

18) Electric tarp to include on board battery, solar panel and remote control
